DO425K - Coffee machine DOMO - Free user manual and instructions

USER MANUAL DO425K DOMO

Modern black and silver coffee maker with digital filter and front grater (no visible text or symbols)

DO425K

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

ZÁRUKA

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

The symbol ⚠ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

INFORMACE O RECYKLACI ODPADU

If the supply cord is damaged, it must be replaced by manufacturer of its service agent or a similarly qualified person in order to avoid a hazard.

Labeled diagram of a coffee maker with numbered parts for identification

VEILIGHEIDSINSTRUCTIES

Labeled diagram of a coffee maker with numbered parts for identification

INSTRUCTIONS DE SECURITÉ

Labeled diagram of a coffee maker with numbered parts for identification

SICHERHEITSHINWEISE

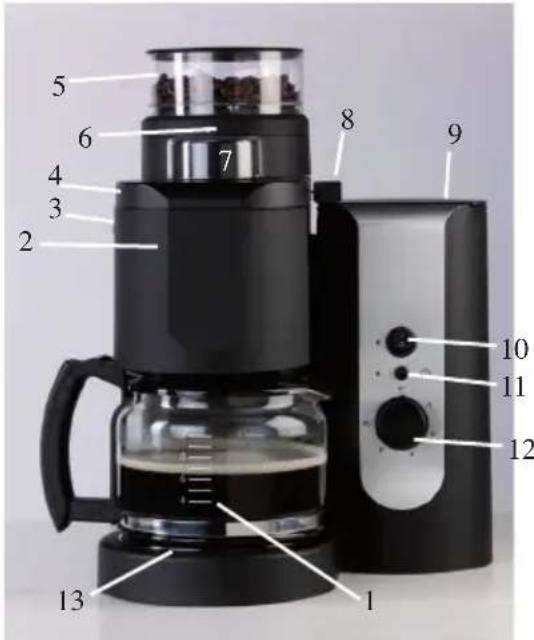

1. Coffee jug with cup markings and jug lid
2. Swivel filter with filter insert and anti-drip valve
3. Release lever for the water supply
4. Swivel water supply
5. Coffee grinder bean container with cover
6. Grinding texture adjustment
7. Grinder channel
8. Swivel water supply lever
9. Fresh water tank with lid
10. On/Off switch with indicator (red)
11. Start button with indicator (green)
12. Rotary knob ready ground coffee/number of cups
13. Coated warming plate
14. Rating plate (underside of appliance)

Labeled diagram of a coffee maker with numbered parts for identification

SAFETY INFORMATION

• The appliance may only be connected to the mains if the voltage, type of current, and frequency match the information on the rating plate (see underside of the appliance)!
• Never let the mains lead touch the warming plate when it is hot!
• Never pull the plug from the socket by means of the mains lead!
• Do not use the appliance if the mains lead is damaged or the housing shows visible signs of damage.
• The warming plate and coffee jug become hot during operation due to the nature of their function. Keep children away!
• Do not put water into the appliance when it is hot! Switch off the coffee maker and leave to cool for approx. 10 minutes!
• Follow the instructions on descaling!
• Prior to carrying out maintenance or cleaning, ensure that the appliance is switched off and unplugged from the mains!
• Do not immerse the base unit in water!
• Do not leave the appliance switched on unnecessarily.
• Only use the coffee grinder for grinding roasted coffee beans; never use it to grind other types of seed or bean. Do not put frozen or caramelised coffee beans in the bean container.

Remove any foreign bodies, e.g. stones, from the coffee beans. Otherwise the guarantee will be void.

- Repairs to this appliance may only be carried out by qualified service engineers. Considerable danger may result from improper repairs. If repairs become necessary, please contact the Customer Care Department or your authorised dealer.

No responsibility can be accepted for any damage if the appliance is used incorrectly or for the wrong purposes.

- The appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety.

CABLE COMPARTMENT

Your coffee machine has a cable compartment.

If the mains lead is too long, you can push cable that is not needed into the compartment on the rear of the appliance.

PRIOR TO USING FOR THE FIRST TIME

Prior to preparing coffee for the first time, you should perform one or two brews with water only.

Fill the fresh water container up to the max. marking with cold water, and with the appliance switched on, allow the water to flow through into the coffee jug without using ground coffee

or filter paper. To do this, turn the rotary knob (12) to the position ⚙. Then switch the appliance by setting the On/Off-switch to “I” and press the start button.

PREPARATION

Filling with water

- Raise the lid of the fresh water tank.

- Fill the container with clear, cold tap water. You will find cup markings on the coffee jug for measuring out the required quantity. The markings apply to the quantity of fresh water. As the ground coffee absorbs water, the amount of coffee produced will be less.

- Reclose the lid of the fresh water tank.

Never use hot water. Nor should you fill the fresh water container with milk, prepared coffee, tea etc.

INSERTING FILTER PAPER

- Remove the glass jug.

- Swing out the swivel filter.

- Place size 4 filter paper in the filter insert. Please first fold back the side and lower edge of the paper filter.

- Swing the swivel filter back again, until it clicks into place.

Place the coffee jug with lid on the warming plate

COFFEE GRINDER

Place coffee beans in the bean container

The coffee grinder has a bean container, which keeps the beans constantly aroma fresh.

0 Fill the container to the top and fasten firmly with the lid. The bean container holds approximately 125 g of coffee beans.

GRINDING TEXTURE ADJUSTMENT

You can change the size of coffee ground to suit the strength of roast.

- Turn the bean container to the desired position. Setting ● is for lightly roasted beans;

setting ● for dark roast beans. We recommend beginning with a medium setting which is suitable for the types of coffee that are usually commercially available.

CONNECTING TO THE MAINS SUPPLY

0 Insert plug into mains socket.

You can make coffee using ready ground coffee.

• Pour in water.
• Remove the glass jug.
• Swing out swivel filter.
• Insert filter paper.

- Add ground coffee. Swing swivel filter back, until it clicks into place.

- Place coffee jug on the warming plate.

- Turn the rotary knob to the position

- Switch the appliance by setting the On/Off-switch to “I”. The red indicator will come on.

- Press the start button. The green indicator will flash. The brewing procedure will start.

MAKING COFFEE USING THE COFFEE GRINDER

You can prepare coffee with beans. Therefore you must set the number of cups with the rotary switch. The grinder will grind the appropriate amount of coffee beans.

• Pour in water.
• Remove the glass jug.
• Swing out the swivel filter.
• Insert filter paper.

- Swing the swivel filter back.

- Place coffee jug on the warming plate.

- Swing out the water supply using the swivel lever until it engages.

- Set the desired number of cups with the rotary switch.

- Switch the appliance on by setting the On/Off-switch to “I3. The red indicator will come on.

- Press the start button. Grinding will begin at once, the green indicator flashes quickly. Once the coffee has been ground, the water supply swings back automatically to the brewing position and brewing begins, the green indicator flashes slowly.

SWITCHING OFF

Switch the appliance off with the On/ Off-switch. The red indicator goes off.

DO425K

press the catch down with your finger. Check that the cover is correctly positioned.

Your coffee machine is now fully ready for use again.

If dark, oily coffee beans are used, the grinding channel needs to be cleaned more often than for light beans. To avoid blockages in the grinding channel:

- Do not use frozen coffee beans, as water condenses on them on defrosting and can lead to blockages.

- Position the appliance sufficiently far away from the cooker or a deep fat fryer as fat can cause a blockage.

• Always keep the container for the coffee beans closed.

0 Every now and again clean the coffee grinder of oily residues from the coffee beans using a dry cloth.

DESCALING

- to prolong the life of your coffee machine

As a precaution we recommend descaling every three months. Use only an environmentally friendly descaling agent and always follow the manufacturer's instructions. Do not use any

descaler based on formic acid. Nor should you use a powder descaling agent.

1 First fill the fresh water container with water and then add the descaling agent.

Never vice versa.

0 Place the coffee jug with lid on the warming plate.

0 Allow the descaling solution to work for approximately 15 minutes, then switch on the appliance.

0 Once the descaling solution has percolated through, switch the appliance off. If necessary, repeat the descaling procedure.

0 Then repeat the procedure at least twice using clear water.

0 Rinse the coffee jug, jug lid and filter insert thoroughly under running water.

Activate the anti-drip valve several times as it is rinsed.

Important

- If the water supply has been inadvertently swung out, use the release lever, to swing it back in position.

WHAT TO DO, IF...

- you are unable to swing the swivel filter into the brewing position?

- Ensure that the filter insert is correctly positioned!

• the coffee runs into the jug too slowly?

– Clean the anti-drip valve!

- Descale the appliance (see instructions on descaling).

– Possibly use other paper filters.
