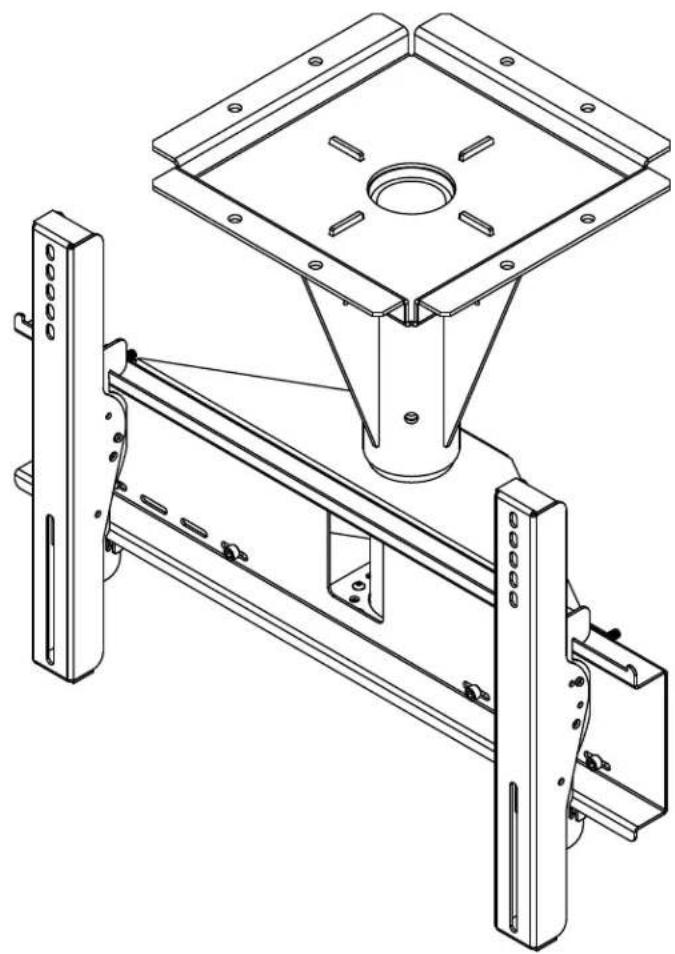

Installation and Assembly: Wind Rated Concrete Ceiling Tilt Mount for 32" - 65" Outdoor Flat Panel Displays Models: ECMU-01-C, ECMU-01-C-S, ECMU-02-C, ECMU-02-C-S ECMU-03-C, ECMU-03-C-S, ECMU-04-C, ECMU-04-C-S ISSUED: 06-22-10 SHEET #: 061-9054-6 01-15-11 Max UL Load Capacity: 200 lb (90.7 kg) Max Wind Rating: 90 mph, elevation 200 ft, Category D

USC2 of 32 ISSUED: 06-22-10 SHEET #: 061-9054-6 01-15-11 NOTE: Read entire instruction sheet before you start installation and assembly. Tools Needed for Assembly

• phillips screwdriver, 3/16" allen wrench

• 3/8" (10 mm) drill bit

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building construction, and fully understands these instructions.

• Due to outdoor environmental conditions such as strong wind gusts, heavy snow, hail, rain, etc. The environmental enclosure, together with its mount, extension tube and hardware, must be inspected at least once a year, and immediately following any time winds exceed 90 mph. A qualifi ed installer or inspector must check for signs of rust, loose fasteners, bent metal, etc. If evidence of excessive wear, deterioration or any unsafe condition is observed, this product must be taken out of service immediately. Direct all inquiries to customer care if you have any questions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.

• Never exceed the Maximum UL Load Capacity. See page one.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws fi rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding power.

• This product was designed for use with other outdoor products only.

• This product was designed to be installed on the following wall construction only;

WALL CONSTRUCTION HARDWARE REQUIRED

• Solid Concrete Included

Support Column (B) Parts List

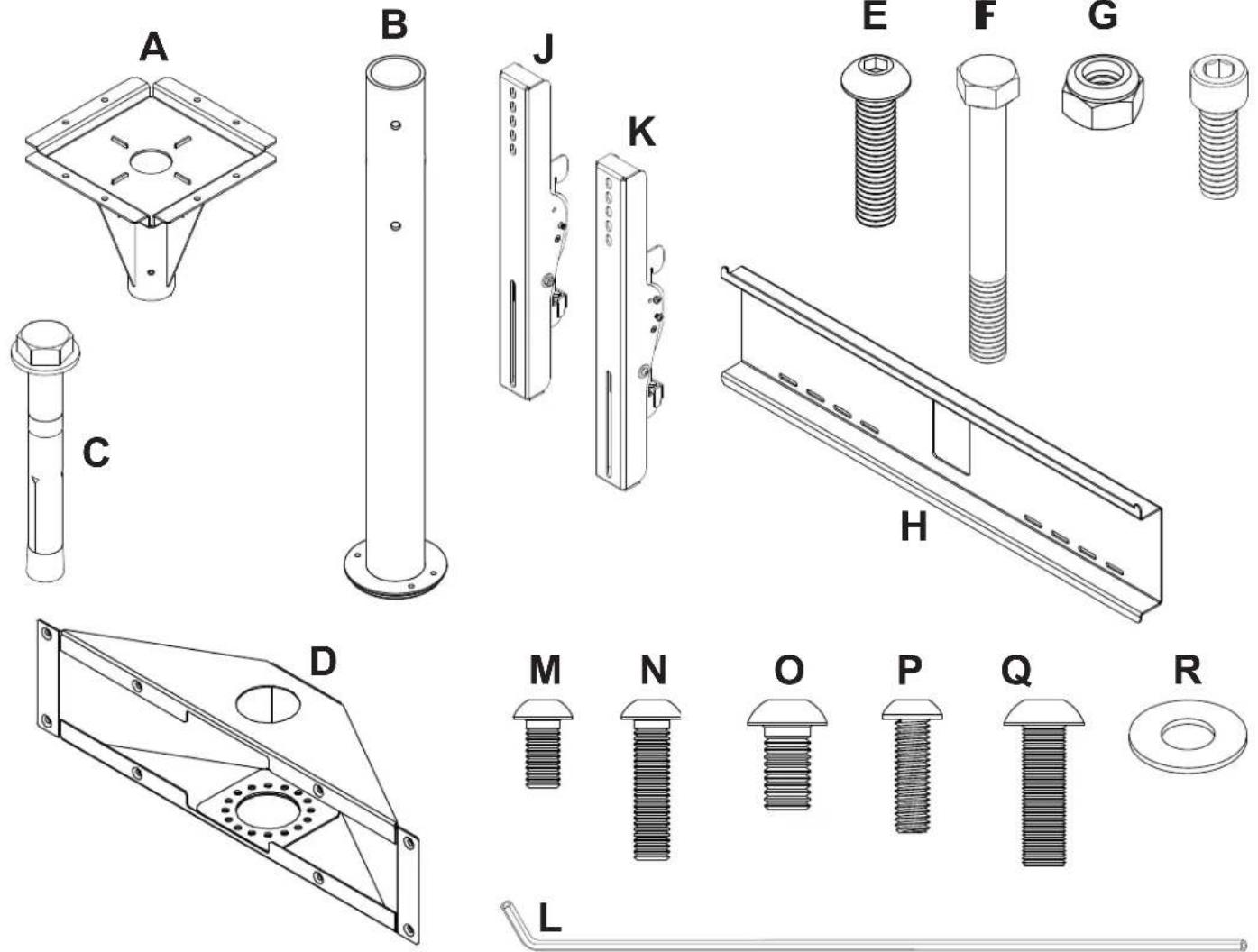

Parts may appear slightly different than illustrated. Before you begin, make sure all parts shown are included with your product.

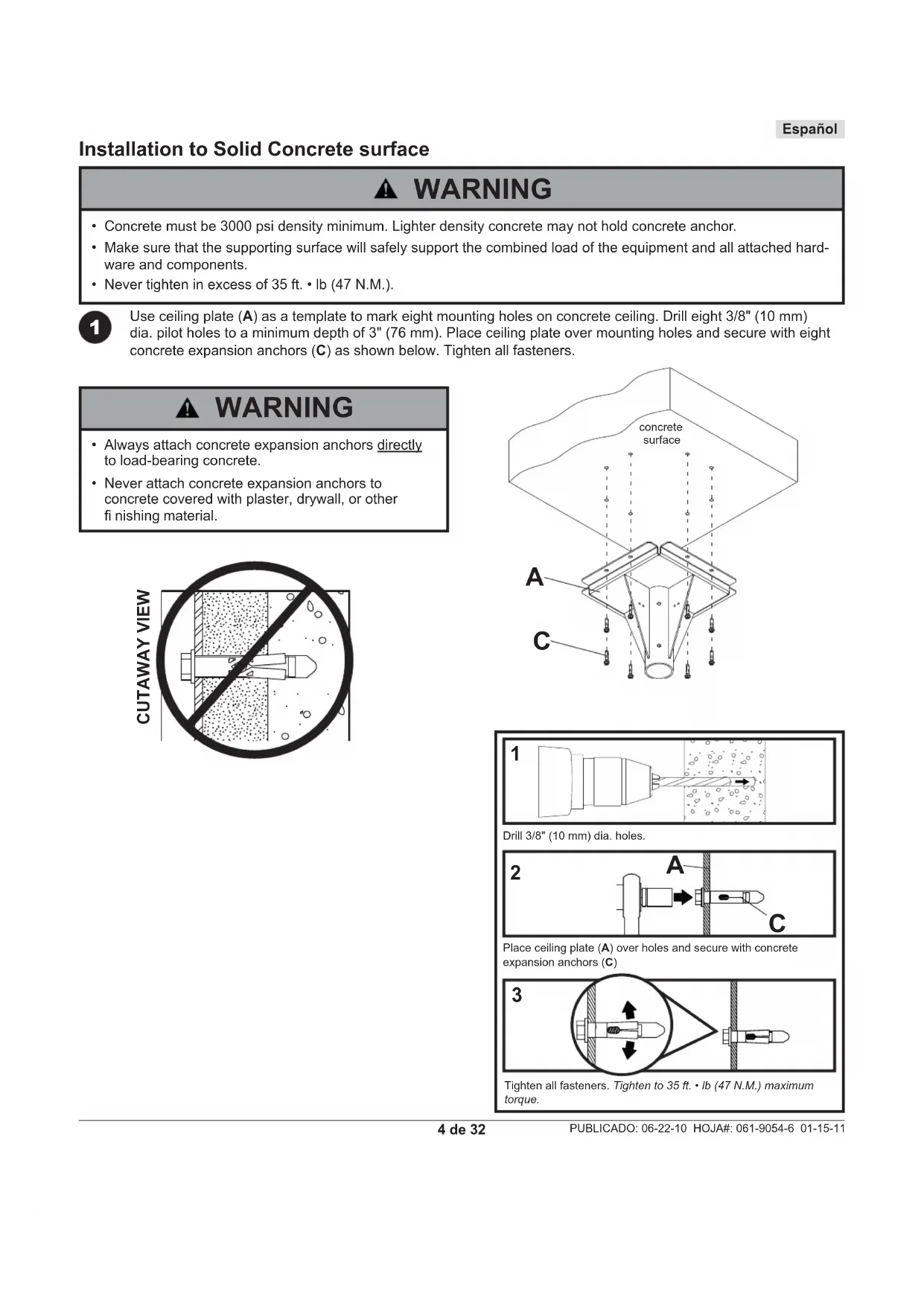

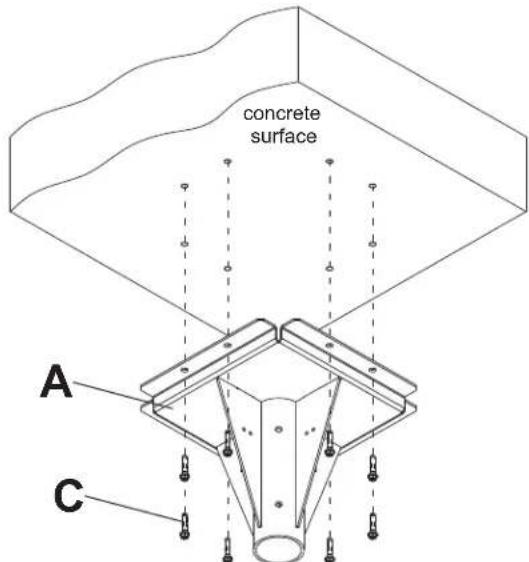

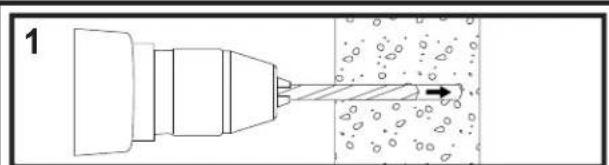

L4 de 32 PUBLICADO: 06-22-10 HOJA#: 061-9054-6 01-15-11 Español Use ceiling plate (A) as a template to mark eight mounting holes on concrete ceiling. Drill eight 3/8" (10 mm) dia. pilot holes to a minimum depth of 3" (76 mm). Place ceiling plate over mounting holes and secure with eight concrete expansion anchors (C) as shown below. Tighten all fasteners.

Installation to Solid Concrete surface CUTAWAY VIEW concretesurface

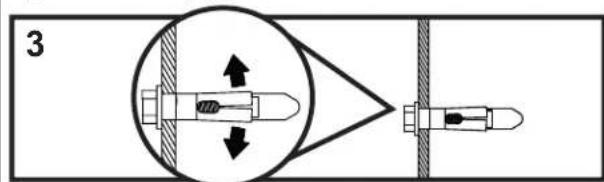

Drill 3/8" (10 mm) dia. holes.Place ceiling plate (A) over holes and secure with concrete expansion anchors (C)Tighten all fasteners. Tighten to 35 ft. • lb (47 N.M.) maximum torque.

• Concrete must be 3000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard- ware and components.

• Never tighten in excess of 35 ft. • lb (47 N.M.). WARNING

• Always attach concrete expansion anchors directly to load-bearing concrete.

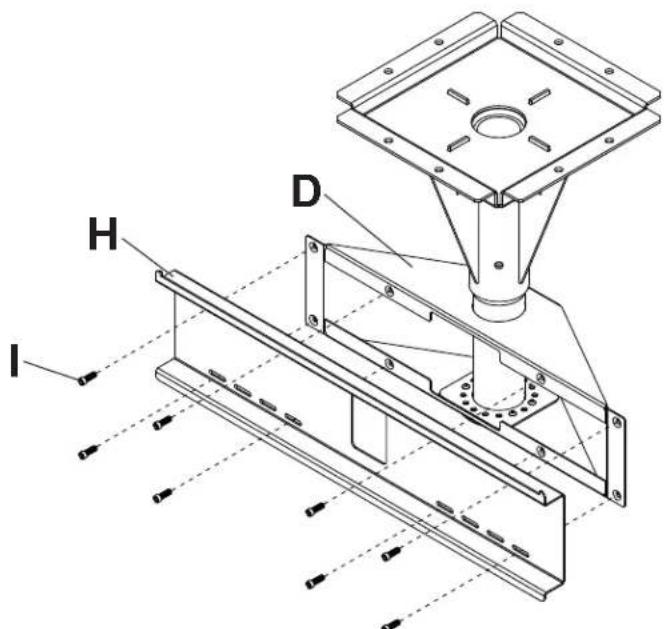

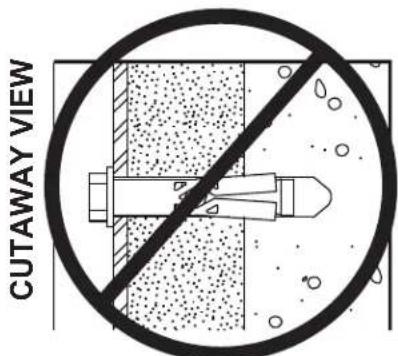

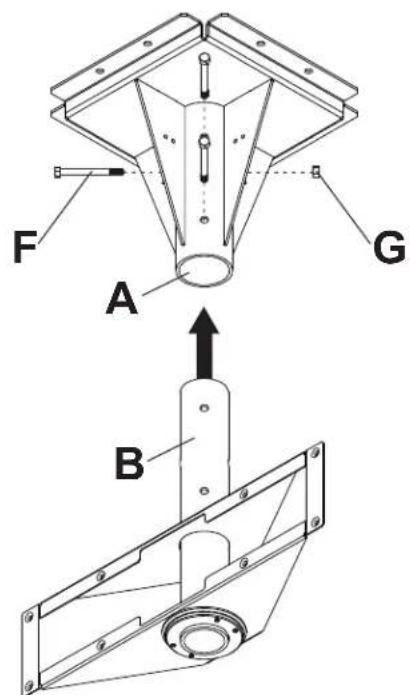

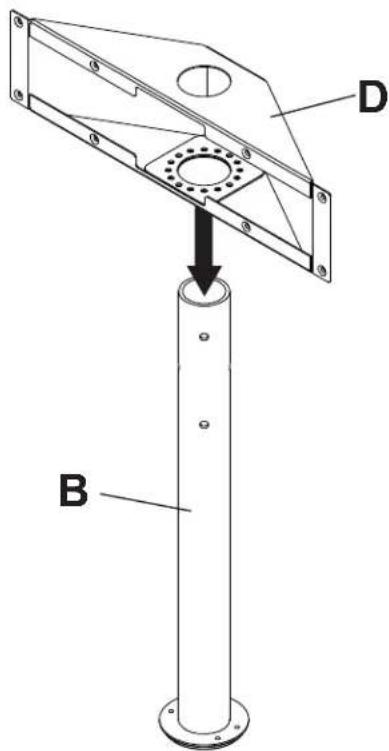

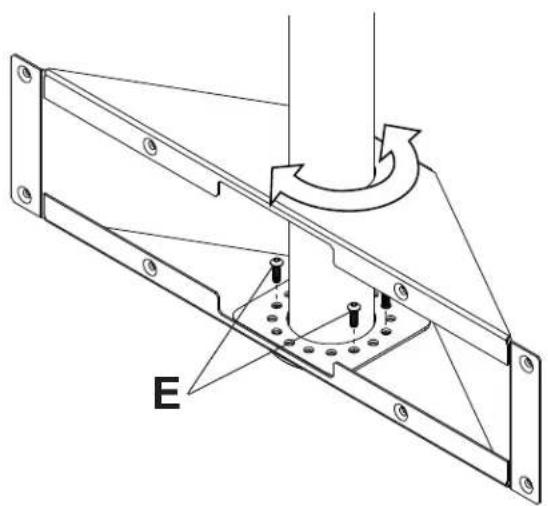

• Never attach concrete expansion anchors to concrete covered with plaster, drywall, or other fi nishing material. WARNING5 of 32 ISSUED: 06-22-10 SHEET #: 061-9054-6 01-15-11 Place adapter box (D) onto support column (B) as shown. Adjust swivel to desired position as shown. Secure adapter box to support column with four 1" socket screws (E) using a 3/16" allen wrench as shown. Insert support column (B) into ceiling assembly (A). Align holes of support column with holes of ceiling assembly and secure using three 7/16" x 4" bolts (F) and three 7/16" nuts (G) as shown. Attach adapter plate (H) to adapter box (D) with eight 3/4" socket screws (I) using a 3/16" allen wrench as shown.

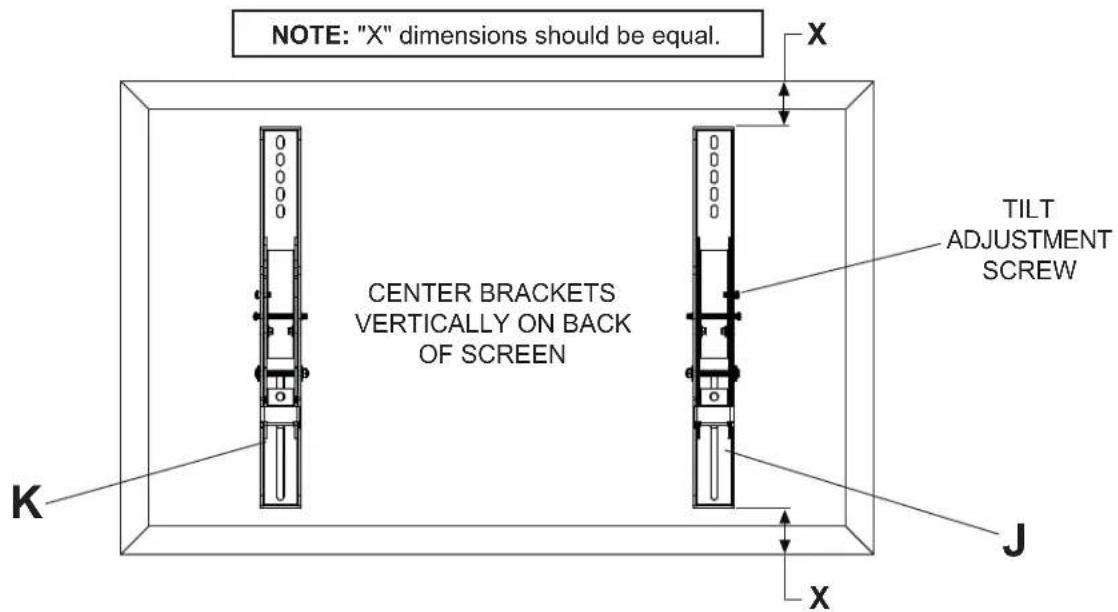

I6 of 32ISSUED: 06-22-10 SHEET #: 061-9054-6 01-15-11To prevent scratching the screen, set a cloth on a fl at, level surface that will support the weight of the screen. Place screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached. Place adapter brackets (J,K) on back of screen, align to holes, and center on back of screen as shown below. Attach the adapter brackets to the back of the screen using the appropriate combination of screws and washers and as shown in step 6-1. NOTE: Top and bottom mounting holes on screen must be used for attaching brackets.NOTE: Be sure to attach tilt brackets with tilt adjustment screw facing outward as shown below.Verify that all holes are properly aligned, and then tighten screws using allen wrench (L).NOTE: "X" dimensions should be equal.CENTER BRACKETS VERTICALLY ON BACK OF SCREEN

TILT ADJUSTMENTSCREW

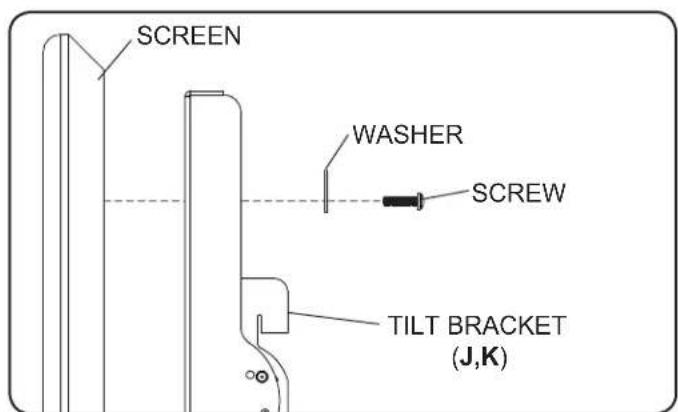

Begin with the shortest length screw, hand thread through washer and tilt bracket into screen as shown. Screw must make at least three full turns into the mounting hole and fi t snug into place. Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffl ed fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws. 6-1

TILT BRACKET(J,K)SCREENWASHERSCREW

• Tighten screws so adapter brackets are fi rmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

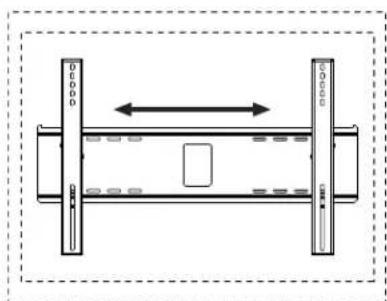

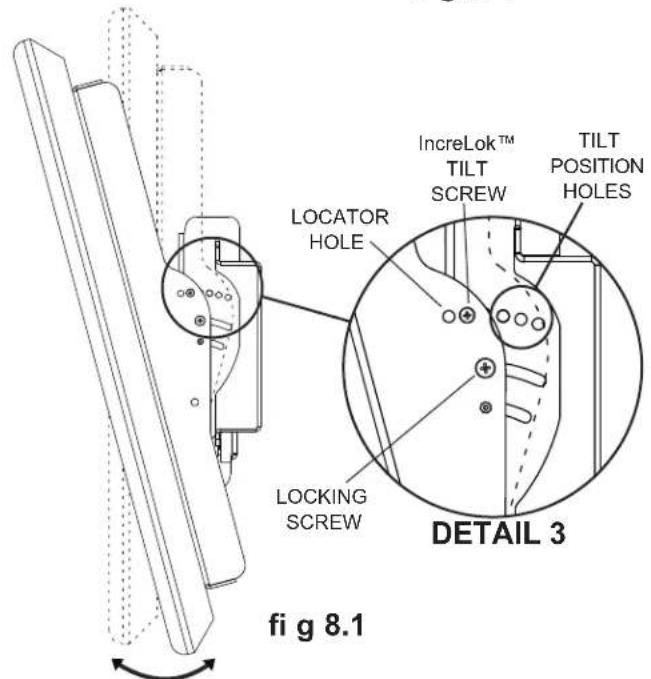

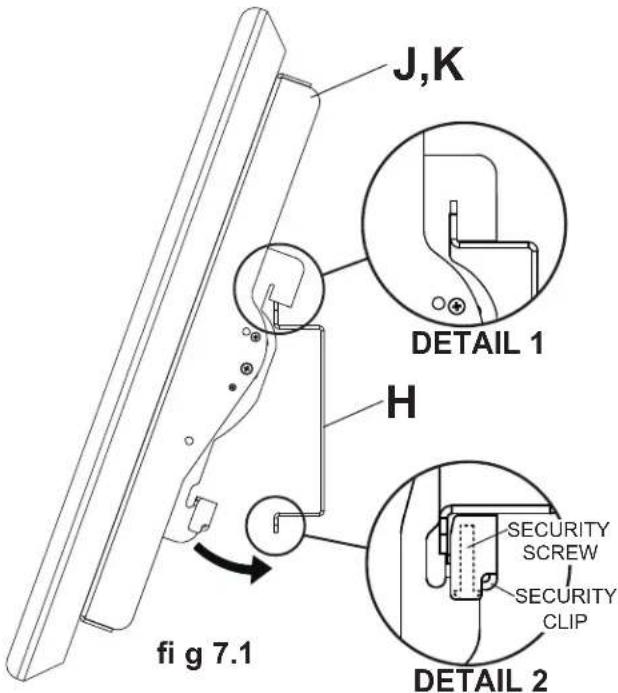

• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly secured, damage may occur to screen or product may fail. WARNING7 of 32 ISSUED: 06-22-10 SHEET #: 061-9054-6 01-15-11© 2010, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners. DETAIL 3 fi g 8.1 IncreLok™TILT SCREWTILT POSITION HOLES LOCATOR HOLE LOCKINGSCREW Mounting Screen: Hook tilt brackets (J,K) onto adapter plate (H) and swing screen in as shown in fi g. 7.1. NOTE: If the security clip does not clear the bottom of the adapter plate, loosen the security screw with allen wrench (L). Tilt bracket hooks must fully engage adapter plate as shown in detail 1. Tighten security screw using allen wrench (L) until security clip sits fi rmly against bottom of adapter plate. NOTE: Be sure security clip is secured to bottom of adapter plate as shown in detail 2. Removing Screen: Loosen security screw from security clip until the screen is able to swing freely, and lift screen off of mount. Screen Adjustment: Screen can be adjusted horizontally by loosening security screw three full turns using allen wrench (L). Adjust screen as shown in fi gure 7.2. Tighten security screw. NOTE: Choosing and setting tilt position may be easier before placing screen onto wall mount. INCRELOK™: The screen can be locked into a pre-set tilt position of -5°, 0°, 5°, 10° or 15°. Use locator hole to fi nd tilt position hole and tilt screen to align holes. Tighten IncreLok™ tilt screws on both tilt brackets as shown in detail 3. Tighten locking screw to lock down tilt position. Mounting and Removing Flat Panel Screen Adjusting the Tilt Angle of the Flat Panel Screen

• Always use an assistant or mechanical lifting equip- ment to safely lift and position the fl at panel screen.

• Do not tighten screws with excessive force. Overtightening can cause damage to mount. Tighten screws to 40 in. • lb (4.5 N.M.) maximum torque.

www.peerlessmounts.com © 2008 Peerless Industries, Inc. Limited one-year warranty on corrosion.
