USER MANUAL NF1 340 D TEKA

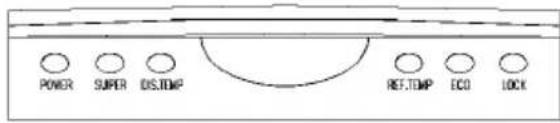

Indicator of freezer room

temperature condition. .2

Indicator of refrigerator room

temperature condition 3

Enery saving, e.g. when you are away

from home for a long period. 4

Means that freezer & refrigerator

compartment temperature is warmer

than position “MID”.

3 – “MID” Means normal storage temperature.

Both compartment temperatures are

colder than position “MID”.

Instant cooling with powerful

Environment–friendly fridge / freezer using R-600a

refrigerant and cyclopentane blowing agent

• This product protects the environment by using the

R-600a refrigerant and the cyclopentane blowing agent.

ODP (Ozone Depletion Potential): 0

GWP (Global Warming Potential): Lowest

High–energy efficiency

• Optimized power consumption when using R-600a and

R134a or R-600a is used as a refrigerant. You can check

the compressor label on the rear of the appliance and the

rating label inside the fridge.

This appliance contains a small amount of

isobutane refrigerant (R600a), a natural gas with

high environmental compatibility, but it is also

combustible. When transporting and installing the

appliance, care should be taken to ensure that no parts of

the refrigerating circuit are damaged.

Refrigerant squirting out of the pipes could ignite or cause

an eye injury. If a leak is detected, avoid any naked flames

or potential sources of ignition and air the room in which

the appliance is standing for several minutes.

• In order to avoid the creation of a flammable gas-air

mixture if a leak in the refrigerating circuit occurs, the

size of the room in which the appliance may be sited

depends on the amount of refrigerant used. The room

in size for every 8g of R600a refrigerant

inside the appliance. The amount of refrigerant in your

particular appliance is shown on the identification plate

inside the appliance.

• Never start up an appliance showing any signs of

damage. If in doubt, consult your dealer.

• Keep ventilation openings in the appliance enclosure or

in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to

accelerate the defrosting process, other than those

recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage

compartments of the appliance, useless they are of a type

recommended by the manufacturer.

Do not plug several appliances into the same sockets.

• This could cause overheating and the risk of fire.

Keep the power plug away from the rear of the fridge / freezer.

• A damaged power plug may cause fire due to overheating.

Do not directly spray water inside or outside the fridge /

• There is a risk of fire or electric shock.

Do not spray water inside or outside the fridge / freezer.

• There is a risk of explosion or fire.

Do not bend the power cord excessively or place heavy articles

• This constitutes a fire hazard. If the power cord is damaged,

have it replaced immediately by the manufacturer, its service

agent or a similarly qualified person.

Do not insert the power plug with wet hands.

• You may receive an electric shock.

Do not put a container filled with water on top of the

• If the water spills on to any electrical parts, it may lead to fire

Do not install the fridge / freezer in a damp place, where it

could be splashed with water.

• Incorrect insulation of the electrical parts may cause an

electric shock or fire.

Do not store volatile and flammable substances in the

• The storage of benzene, thinner, alcohol, ether, LP gas or

other such substances may cause an explosion.

Do not disassemble, repair or alter the appliance.

• It may cause fire or abnormal operations, which may lead to

Pull the power plug out of the socket before replacing the

interior light in the refrigerator.

• Otherwise, there is a risk of electric shock.

Be sure to earth the appliance.

• Otherwise, it may cause material damage and electric shock.

If you wish to dispose of the fridge / freezer, throw it away

after removing the door or its seals.

• In this way, it is not possible for a child to remain trapped

Do not store too much food in the appliance.

– When you open the door, an item may fall out and cause

personal injury or material damage.

Do not put bottles or any kind of glass in the freezer.

– The container may break and cause personal injury.

If the wall socket is loose, do not insert the power plug.

• It may cause electric shock or fire.

Do not disconnect the power cord by pulling on it.

• You may disconnect a wire and cause a short circuit.

Do not store article on top of the appliance.

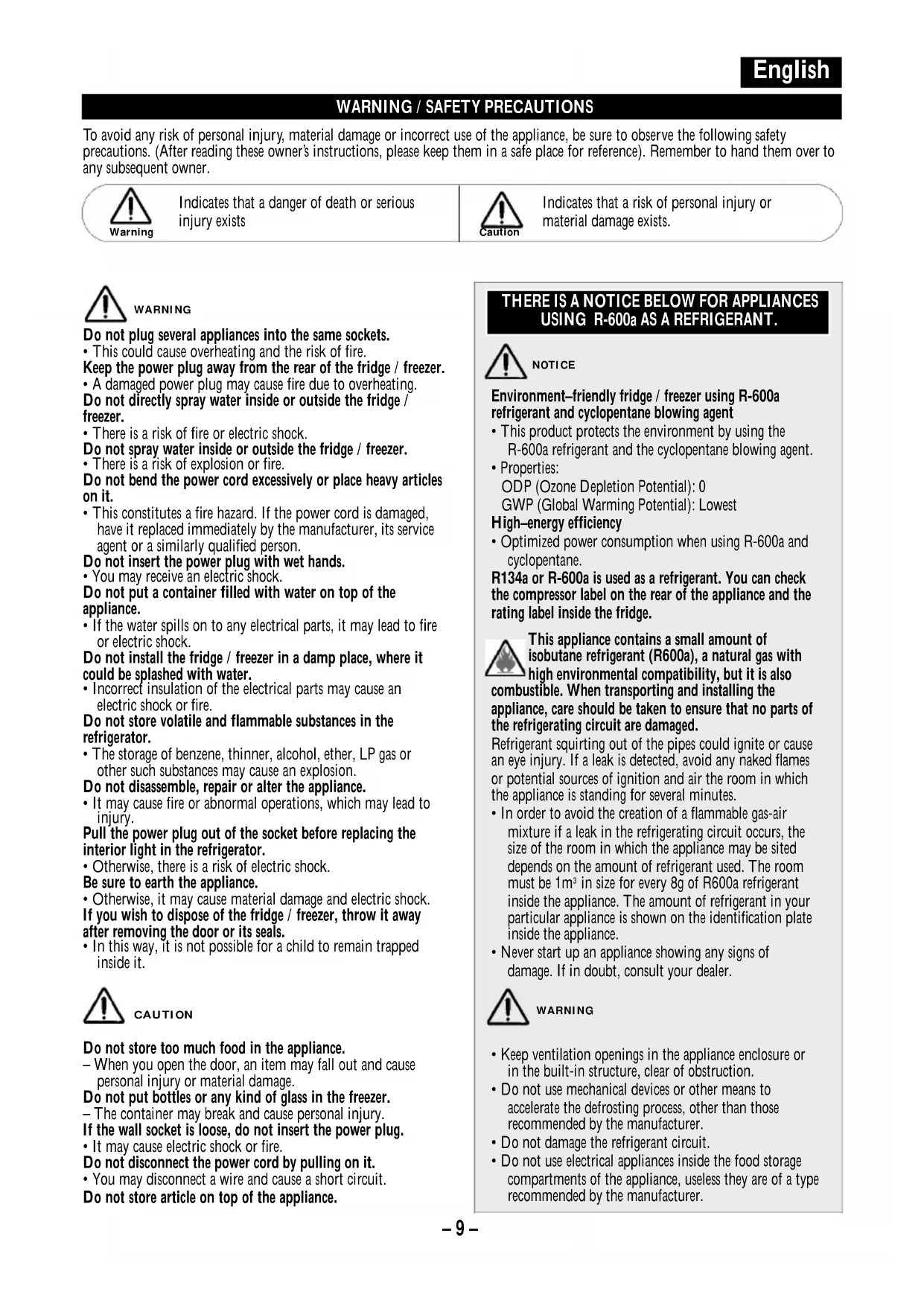

WARNING / SAFETY PRECAUTIONS To avoid any risk of personal injury, material damage or incorrect use of the appliance, be sure to observe the following safety

precautions. (After reading these owner’s instructions, please keep them in a safe place for reference). Remember to hand them over to

any subsequent owner.

Indicates that a danger of death or serious

Indicates that a risk of personal injury or

material damage exists.

NOTICE WARNING CAUTION WARNING THERE IS A NOTICE BELOW FOR APPLIANCES USING R-600a AS A REFRIGERANT.

• When you open or close the door, the articles may fall and

cause personal injury or material damage.

Do not store pharmaceutical products, scientific material or

other temperature-sensitive products in the refrigerator.

• Products that require strict temperature controls must not be

stored in the refrigerator.

Do not let a child hang from the door.

Do not touch any containers and food in the freezer with

• It may cause frostbite.

Remove any foreign matter from the power plug pins.

• Otherwise, there is a risk of fire.

Do not insert your hand into the bottom area of appliance.

• Any sharp edges may cause personal injury.

After unplugging the appliance, wait for at least five

minutes before plugging it again to the wall socket.

• Abnormal operation of the freezer may cause material

If the appliance is not to be used for a long period of time,

pull out the power plug.

• Any deterioration in the insulation may cause fire.

Do not let children touch or play with the control panel on

the front of the appliance.

• Do not allow children to play with this appliance.

• Do not stand or lean on the base panel, pull-out parts, door

• Repairs and maintenance of the appliance should only be

performed by a qualified technician. Incorrect repairs by an

unqualified person are a potential source of danger that may

have critical consequences for the user of the appliance.

• Never put ice cubes or ice lollies straight from the freezer into

your mouth. (The low temperature may cause “cold burns”.)

The refrigerant used in fridge / freezers and the gases in the

insulation material require special disposal procedures. Ensure

that none of the pipes on the back of the appliance are damaged

DISPOSAL INSTALLING THE FRIDGE / FREEZER

1. Allow an adequate space and install the fridge / freezer on a

• If the appliance is not level, there may be unusual noises

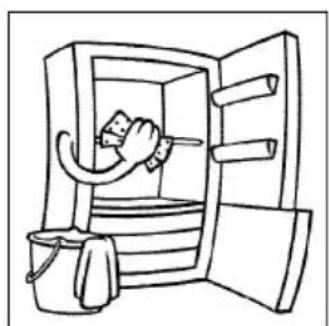

2. Clean the fridge / Freezer

• Wipe and clean the inside and outside of appliance with a

3. Plug the fridge / freezer into a wall socket used exclusively by

• This appliance must be properly earthed.

4. Place the food in the fridge / freezer.

• It is recommended that you wait for the appliance to cool

for 3~4 hours before storing food in it.

5. Keep 60 mm of space between the refrigerator and the back

• Insufficient space causes the noise of vibration, weakening

of refrigerating power and the waste of electricity

6. The electrical plug must be accessible without moving the set.

7. For ambient temperature below 10ºC, the perfect

performance of our refrigerator can not be achieved.

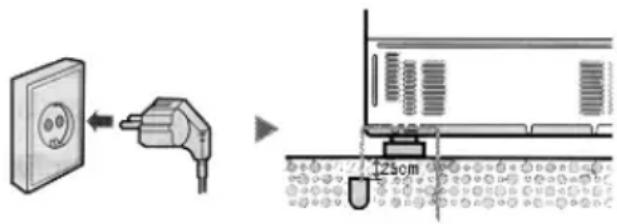

Use of an earthed socket exclusively

• If you are using a socket with an earthed terminal, you do not

require a separate earthed connection.

Use of a non-earthed socket:

• Connect the “earthed wire” to the steel plate and bury it at

depth of at least 25cm in the ground.

LEVELING If the front of the appliance is slightly higher than the rear, the

door can be opened and closed more easily.

1. The appliance tilts down to the

Turn the left adjusting leg in the

direction of the arrow until the

2. The appliance tilts down to the

Turn the right adjusting leg in the

direction of the arrow until the

PREPARING THE FRIDGE / FREEZER To prepare your appliance for use and check that it is running

correctly, take the following steps.

1. Install removed all shelves and compartments during transport

in the correct positions.

2. Clean the fridge/freezer and accessories to remove any dust

that accumulated during packing and shipping.

3. The interior light will be turned on when the refrigerator

4. Set the temperature control to the coldest temperature and let

the refrigerator operate for one hour. The freezer should get

slightly chilled and the motor should run smoothly with a soft

hum and no noise. Your fridge / freezer is operated by a

compressor which switches “on and off” to maintain the

internal temperature. When the compressor is new, it requires

running in for a period of up to five months. During this

period, it may be slightly noisy. This is quite normal and does

not represent a fault.

5. Store food once the temperature in the refrigerator is

sufficiently low. It takes a few hours after starting the

refrigerator to reach the proper temperature.

If the appliance does not operate correctly, check the

electricity supply. If the problem persists, contact your dealer.

WARNING CAUTION English–11–

CE This product has been designed, constructed and marketed in

accordance with EEC directives 73/23, 89/336, 96/57 and

Please read this manual carefully to ensure maximum satisfaction

from your appliance. Keep the manual in a safe place for future

reference. For drawings referenced in the text below, see flap at

This product is designed for domestic household use only.

Use the 4-star freezer compartment

- to freeze fresh and cooked foods,

- to store deep-frozen and frozen products,

- to make ice-cubes.

Use the refrigerator compartment

- to store fresh foods,

The fre ezer and refrigerator compartments defro s t

a u t o m a t i c a l l y.

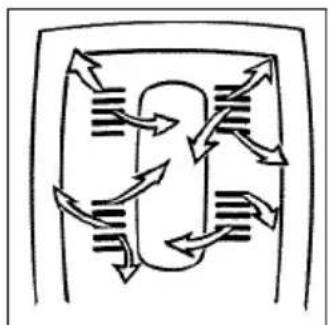

Owing to cool air circulation (Multi-Airflow System) an even

temperature is maintained on every shelf of the refrigerator

compartment. The temperature in the specially designed low

temperature compartment is kept at approximately 0°C,

extending nutritional value and original freshness of the

BEFORE CONNECTING TO THE MAINS

1. Wait 2 hours after delivery before you connect the appliance

to the power supply, in order to ensure trouble-free

2. In the UK only. Electrical connections:

- Check that the voltage on the rating plate (8) corresponds

to the voltage in your home.

- The wires of the mains lead fitted to this appliance are

coloured in accordance with the following code:

GREEN and YELLOW = EARTH

As the colours of the wires in the mains lead fitted to this

appliance may not correspond with the coloured markings

identifying the terminals in the plug, proceed as follows:

- The wire which is coloured GREEN and YELLOW must

be connected to the terminal in the plug which is marked

with the letter “E” or by the earth symbol (

coloured GREEN or GREEN and YELLOW.

- The wire which is coloured BLUE must be connected to

the terminal which is marked with the letter “N” or

- The wire which is coloured BROWN must be connected

to the terminal which is marked with the letter “L” or

If the terminals in the plug are unmarked or you are in any

doubt as to the correct connections, consult a qualified

e l e c t r i c i a n .

3. In the UK only. Moulded plugs:

- Applicable only if moulded plug is fitted.

- Should it be necessary to remove a moulded on plug from

the mains cable, it should be cut off and replaced with a

suitable replacement.

DESCRIPTION OF YOUR REFRIGERATOR See flap at the back of the manual.

2. Cover vegetable case (The material could be

3. Interior light for refrigerator compartment.

4. Multi air flow duct.

5. Refrigerator & freezer temperature control

7. Vegetable case: 2 boxes type.

6. Low temperature compartment*.

8. Rating plate. It´s attached in the refrigerator

compartment on the left-hand side next to

the vegetable case (with serial number).

10. Case for storing & freezing.

13. Egg pocket & egg tray.

17. Adjustable foot.

English * Only in some models.–12–

- The moulded plug cannot be used for any other

appliance, therefore remove the fuse and dispose

immediately and safely to prevent anyone, especially

children, from plugging it into a wall socket, which will

create a safety hazard.

- Should the mains lead ever require a replacement, it is

essential that this operation be carried out by a qualified

electrician and should only be replaced with a flexible

cord obtained from the manufacturer.

- After replacement of a fuse in the plug, the fuse cover

must be refitted. If the fuse cover is lost a replacement

cover must be obtained. The colour of the correct

replacement fuse cover is that of the coloured insert in the

base of the plug or the colour that is embossed in words

in the base of the plug recess or elsewhere on the plug.

Always state this colour when ordering a replacement fuse

- Only 13 amp. replacement fuses which are ASTA

approved to BS 1362 should be fitted.

4. Check the rating plate (8) for voltage information.

5. The socket should be easily accessible and not directly

behind the appliance.

6. Electrical connections must be made in accordance with

local regulations. The appliance must be earthed as described

by law (connected through a properly earthed plug and

socket). The manufacturer rejects all liability for injury to

persons and animals or damage to property resulting from

failure to comply with this requirement.

7. A 10A fuse or one of a higher value must be used in the

8. If the appliance plug and the wall socket are incompatible,

the socket must be replaced by a qualified electrician.

9. If the supply cord is damaged, it must be replaced by the

m a n u f a c t u rer or his service agent or a similarly qualified

p e r s o n in order to avoid hazard.

10. Do not use extension leads or multiple adapters, etc.

11.In some countries a plug has to be fitted. Make sure that the

installation and electrical connections are performed by a

qualified technician in compliance with the manufacturer’s

instructions and current local safety regulations. The wires in

the mains lead are coloured in accordance with the following

- green/yellow = earth

DISCONNECTION Note: does not apply in the UK.

Electrical disconnection: remove the plug from the mains, or (if

applicable) disconnect the two-pole circuit breaker upstream

PROTECTING THE ENVIRONMENT

- The packaging may be completely recycled, as confirmed by

the recycling symbol; follow local disposal regulations.

- The appliance is manufactured from reusable materials.

- When you decide to scrap this product, please check the

cable to be disconnected from the mains. Then cut off the Check for damages and correctclosing of the doors.Not in the vicinity of a heat source.Keep room dry and well ventilated. Keep more than 5cm distance spaceat the top for ventilation.Clean interior with a damp cloth. Wait 2 hours before connecting tothe mains. IMPORTANT

1. Although this product was carefully checked before

packing, please check the product:

- for correct closing of the doors.

Complaints must be reported to your retailer within

24 hours of delivery.

2. Installation instructions (6 drawings below).

3. Keep potentially hazardous packing materials (plastic

bags, etc.) out of reach of children to prevent the

risk of trapping and suffocation.

cable and dispose of the product according to local waste

- This product is free of CFC’s (cooling circuit contains

R-600a). Check the compressor label on the rear of the

appliance or the rating label inside the fridge to see which

refrigerant is used for your re f r i g e r a t o r.

HOW TO USE THE REFRIGERATOR COMPARTMENT

1. Connect the lead to the mains. ( At least wait 2 hours after

delivery: refer to section ”Before connecting to the mains)

Food can be stored after 3 to 4 hours cooling.

- the interior light switches on when the door is opened;

- the compressor operates and starts cooling;

The suitable storage temperature for fresh food is provided in

the "MID" position at an ambient temperature of 16 ~ 32ºC.

Model: NF1-350.../NF1-370...

1. See the CONTROL PANEL. There are six buttons,

"POWER", "SUPER", "DISP. TEMP.","REF. TEMP.",

NOTE: If you connect the lead to the mains, you can see the lights

of the control panel display are "On" . Initially both compartments

temperatures are set to "3" position automatically.

GENERAL RECOMMENDATIONS Keep air vents open.No glass bottles in the freezercompartments. The bottles mightburst.Ice cubes and ice lollies straight outof the freezer are too cold forconsuming.They may cause ‘cold’ burns.Do not allow children to play or hidein the refrigerator to prevent the riskof trapping and suffocation.Always unplug before cleaning andservicing.If the supply cord is damaged, itmust be replaced by themanufacturer or its service agent ora similarly qualified person in orderto avoid a hazard. English

ECO POWER Main on & off switch – for switching complete

appliance on or off.

Instant cooling with powerful supply of cold air.

This button is for the fast freeze function. While

this function is selected, the refrigerating device

remains switched on continuously and produces a

very low temperature inside the freezer. If SUPER

mode is cancelled by pressed this button, the new

mode will be returned on last condition.

To displ ay the t em pera tu r e of re f r i g e r a t o r

compartment and freezer compartment. When

this button is pressed one time, the current set

temperature of refrigerator compartment will be

shown in display for 5sec. When this button is

pressed two times, the temperature of freezer

compartment on each step will be shown in

To indicate the current set temperature when this

button is pressed one time. User can set new

t e m p e r a t u re w hen thi s button is pr e s s e d

re p eated ly until the re q u i re d temper ature is

Energy saving, e.g. when you are away from home

for a long period. ECO indicator remains on

while the ECO function is operating. If ECO

mode is cancelled by pressed this button, the new

mode will be returned on last condition.

To lock & unlock all keys on CONTRO L PANEL. If lock icon is on, any other key doesn’t

work until ‘LOCK’ button is pressed to cancel

2. If you want to change the compartment temperature, press

"REF. TEMP." button. When you press this button, the

lights illuminate in sequence. It is composed of 6 steps. It

follows 3 _ 2 _ 1 _ 6 _ 5 _ 4 _ 3 _ 2 _1 _ 6 _5

3. The storage temperature suitable for fresh food is provided at

"3" position at an ambient temperature of 16ºC to 32ºC.

NOTE: After power failure or momentary power failure happens,

when power is back on, the unit returns previously “set temperature˝.Model: NF-347.. / NF-340..

Temperature Control Panel (see flap on the back of the

 “FREEZER” Indicator of freezer room

temperature condition.

 “REFRIGERATOR” Indicator of refrigerator room

temperature condition.

 1 Energy saving, e.g. when you are

“VAC” away from home for a long period.

Means that freezer & refrigerator

compartment temperature is warmer

than position “MID”.

 3 “MID” Means normal storage temperature.

Means that both compartment

temperatures are colder than

 5 Instant cooling with powerful

 “TEMPERATURE CONTROL” button

- When you connect the lead to the mains, lamps , , 

will illuminate and will go red, due to the high temperature

of the compartments: after some time they turn green.

- The interior light switches on when the door is opened.

- The compressor operates and starts cooling.

1. If you want to change the compartment temperature, push

button . If you press this button, the lamps , , , 

and  will illuminate in sequence. Push the button, so you

can set the temperature that you want.

Note Initially both compartments temperatures are set “MID”

position automatically.

2. The suitable storage temperature for fresh food is provided at

“MID” position at an ambient temperature of 16ºC to

NOTES ON FREEZING AND STORAGE

1. Fo l l ow storage times indicated by the fro zen food

m a n u f a c t u re r. Make sure that the packaging is undamaged.

2. Save energy: minimize opening of the door by storing

identical food items together.

3. Items suitable for fre ezing: meat, poultry, fresh fish,

ve g e t a b l e s , fruits, dairy products, bread, baked goods, pre-

4. Items not suitable for freezing: lettuces, radishes, grapes,

whole apples and pears, fatty meats.

5. When you freeze food yourself, pack it in appropriate

quantities. In order to freeze food right through do not

exceed the following quantities to best preserve the quality:

- fruit and vegetables: up to 1 kg,

- meat: up to 2.5 kg.

6. Blanch vegetables after washing and cutting them. (2-3

minutes in boiling water; then quickly cool them down in

cold water. When you use a steamer or microwave oven,

follow the operating instructions).

7. Keep packs dry in order to avoid them freezing together.

8. Freeze fresh food separately from already frozen foods.

9. Do not salt or season fresh food or blanched vegetables

before freezing. Other foods may be lightly salted or

seasoned. The intensity of flavour of some spices can change.

10.Use materials or containers specially suitable for freezing in

order to avoid loss of quality during defrost.

11. Write contents and date of freezing on the packs. Do not

exceed the storage time indicated in order to preserve quality.

12. Do not freeze bottles or cans with carbonated drinks as they

13. Take out as much food as is immediately required for

thawing. Prepare it as soon as possible after thawing.

WHEN PURCHASING FROZEN FOOD

1. Make sure that the packaging is undamaged (damage may

have caused the food to deteriorate). Bulging packs or packs

which are marked with liquid stains could have been

i m p ro p e r l y stored and may have been partially thawed.

2. Leave frozen food purchases until last and transport the

items in insulated bags.

3. Place the items in the freezer as soon as possible.

4. Do not refreeze partially thawed food. Consume it within 24

5. Observe the date of consumption and storage information.

1. Always disconnect the appliance from the mains supply.

2. Do not use abrasives. Periodically clean with a sponge

dampened in lukewarm water. A neutral pH detergent may

be used. Rinse and dry with a soft cloth.

3. Wipe the outside with a soft cloth dampened in water.

4. Periodically clean the front grille and the radiator at the back

with a vacuum cleaner or a brush.

1. Empty the refrigerator and freezer compartments.

2. Unplug the appliance from the mains.

3. Clean and dry both compartments.

4. Leave the doors open to prevent the formation of unpleasant

AFTER SALES SERVICE Before contacting our After Sales Service Department:

1. Try to remedy the problem (please read section “trouble

2. Restart the appliance to check whether the fault repeats. If

the malfunction persists, switch off the appliance and try

again after an hour.

3. If the malfunction still persists, then contact our Customer

Service, specifying:

- the nature of the problem,

- the appliance model number,

- the service number (please see the rating plate 8),

- your full address, telephone number and area code.

Note: door opening direction changes carried out by our Customer

Service are not covered by the terms of guarantee.

TROUBLESHOOTING GUIDE

1. The appliance does not work. Check:

- properly inserted plug,

- (if applicable) connection of the two-pole circuit breaker,

- damage to the mains lead,

- correct setting of temperature control (5).

2. The temperature inside the compartments is not low

- closure of the doors,

- installation near a heat source,

- inhibited air circulation,

- correct setting of temperature control (5).

3. The refrigerator compartment temperature is too low.

- correct setting of temperature control (5).

4. The internal light does not work. Refer to point 1 and then:

- unplug the appliance from the mains,

- check the bulb and replace if necessary (max.15W).

- to change the lamp, first remove the lamp cover by

pushing lower part upward and pulling forward.

- take out the lamp and replace it for a new one.

- finally replace lamp cover.

EnglishDisposal of Used Electrical & Electronic EquipmentThe meaning of the symbol on the product, its accessory or packaging indicates that thisproduct shall not be treated as household waste. Please, dispose of this equipment at yourapplicable collection point for the recycling of electrical & electronic equipments waste. Inthe European Union and Other European countries which there are separate collectionsystems for used electrical and electronic product. By ensuring the correct disposal of thisproduct, you will help prevent potentially hazardous to the environment and to humanhealth, which could otherwise be caused by unsuitable waste handling of this product. Therecycling of materials will help conserve natural resources. Please do not therefore disposeof your old electrical and electronic equipment with your household waste. For moredetailed information about recycling of this product, please contact your local city office,your household waste disposal service or the shop where you purchased the product.

APPLIANCE PACKAGING INFORMATION All material are environmentally sound! They can be dumped or

burned at an incinerating plant without danger!

About the materials: The plastics can be re c ycled and are

identified as follows:

PE : for polyethylene, e.g. the outer covering and the bags in

PS : for polystyrene foam, e.g. the pads, which are all free of

The carton parts are made from recycled paper and should be

disposed of at a waste-paper recycling collection location.

DISPOSAL OF OLD APPLIANCES For environmental reasons, refrigeration appliances must be

disposed of properly. This applies to your old appliance, and -at

the end of its service life- for your new appliance as well.

Warning! Be f o re disposing of old appliances make them

inoperable. Remove plug from mains, cut the power cable,

remove or destroy any snap or latch closures. This eliminates the

danger that could children playing lock themselves into the

appliance (danger of suffocation!) or place themselves into

other life-endangering situations.

• The appliance may not be disposed of with domestic waste or

• The refrigerant circuit, especially the heat exchanger at back of

the appliance, may not be damaged.

• Information concerning collection schedules or locations can

be obtained from the local disposal authorities or town hall.

The lamp of the refrigerator can be switched off even though

the doors are not completely closed.

Note: The edge of the refrigerator door and the front side of the

refrigerator cabinet may be hot. This is normal and intended to

prevent the formation of condensation.

Gurgling noises etc. inside the refrigerating circuit are normal. NOTICE.

89/336, 96/57 e 93/68.

TIPS VOOR HET KOPEN VAN DIEPVRIESPRODUCTEN

comforme as direitivas EEC 73/23, 89/336, 93/68 and

39011 Santander (Spain)

35708 Haiger (Germany)
