| Product Type | Refrigerator (Fridge) |
| Brand | Teka |
| Model | TS 138 |
| Width | 540 mm |
| Depth | 620 mm |
| Height | 850 mm |
| Weight | 28 kg |
| Door Type | Top freezer door |
| Number of Doors | 1 |
| Freezer Compartment | Yes, with door |
| Net Capacity - Refrigerator | 98 L |
| Net Capacity - Freezer | 17 L |
| Total Net Capacity | 115 L |
| Energy Class | F (EU energy label) |
| Annual Energy Consumption | 138 kWh |
| Noise Level | 40 dB(A) |
| Adjustable Thermostat | Rotary control |
| Interior Light | Yes |
| Defrost Type | Manual (freezer), automatic (fridge) |
| Refrigerant | R600a |
| Climate Class | N-ST |
| Reversible Door | Yes |
| Shelves Material | Glass |
| Leg Levelers | Yes |
| Power Supply | 220-240 V ~ 50 Hz |
Frequently Asked Questions - TS 138 TEKA
User questions about TS 138 TEKA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual TS 138 - TEKA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TS 138 by TEKA.
USER MANUAL TS 138 TEKA
INSTRUCTION MANUAL UK
MANUAL DE INSTRUÇÕES PT
TS 138
Dear customer,
ADVICE
ADVICE
Before placing your new refrigerator/freezer into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.
Notes which are important for your safety or for the proper functioning of the appliance are stressed with a warning triangle and/ or with signal words (Warning!, Caution!, Important!!). Please observe the following carefully.
Supplementary information regarding operation and practical applications of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of the appliance are marked with the cloverleaf.
The operating instructions contain instructions for the correction of possible malfunctions by the user in the section “Trouble shooting”.
If these instructions should not be sufficient, contact your local Service Force Centre.
Printed on paper manufactured with environmentally sound processes he who thinks ecologically acts accordingly...
Contents
- Important Safety Instruction
- Remove transport packaging 21. Installation 21. Installation Location 21. Your refrigerator needs air 21. Reversing the door
- Changing over the freezer compartment door
- Prior to Initial Start up 23. Description of the appliance 23. View of the appliance 23. Starting up and temperature regulation
- Interior Accessories 24. Storage shelves/wire trays 25. Correct storage 25. Freezing and storing frozen food 26. Preparation of Ice Cubes
- Defrosting
- The fridge defrosts automatically
- Defrosting the freezer compartment 28. Switching off the appliance 28. Cleaning and Care
- Energy Saving Tips
- Trouble shooting
- Correcting Malfunctions
- Changing the light bulb
- Noises during Operation
Important Safety Instructions
These warnings are provided in the interests of your safety. Ensure you fully understand them before installing or using the appliance. Your safety is of paramount importance. If you are unsure about the meaning of these warnings contact the Customer Care Department for assistance.
Intended use
The refrigerator is intended for use in the home. It is suitable for the cooling, freezing and storing of frozen food, as well as for making ice. If the appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted by the manufacturer for any damage that may be caused.
Alterations or changes to the refrigerator are not permitted for reasons of safety. If you use the refrigerator in a commercial application or for purposes other than the cooling, freezing or frozen storage of foods, the manufacturer accepts no liability for any damages which may occur.
Prior to initial start-up
Ensure that the appliance does not stand on the electrical supply cable.
Important:
If the supply cable is damaged, it must be replaced by authorized service or qualified personnel using a special cable of the same type.
Check the appliance for transport damage. Under no circumstance should a damaged appliance be plugged in! In the event of damage, please contact your supplier.
WARNING-Keep ventilation openings, in the appliance enclosure or in the build-in structure, clear of obstruction.
WARNING-Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING-Do not damage the refrigerant circuit.
WARNING- This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.
WARNING—This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
WARNING—When disposing of the appliance do so only at an authorized waste disposal centre. Do not expose to flame.
WARNING—if the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
Refrigerant
Refrigerant gas is contained within the refrigerant circuit of the appliance.
Ensure that none of the components of the refrigerant circuit becomes damaged during transportation and installation.
During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
If the refrigerant circuit should become damaged:
avoid open flames and sources of ignition;
thoroughly ventilate the room in which the appliance is situated.
Safety of children
Packaging (e.g. wraps, polystyrene) can be dangerous for children.
There is a risk of suffocation! Keep packaging material away from children!
Please make old appliances unusable prior to disposal. Pull out the mains plug, cut off the mains cable, break or remove spring or bolt catches, if fitted. By doing this you ensure that children cannot lock themselves in the appliance when playing (there is risk of suffocation!) or get themselves into other dangerous situations.
Often children cannot recognize the hazards present in household appliances. It is therefore important that you ensure adequate supervision and never let children play with the appliance!
Daily Operation
Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers with flammable materials such as spray cans, fire extinguisher refill cartridges etc in the refrigerator and/or freezer.
Bottles and cans must not be placed in the freezer compartment. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer compartment.
Do not put ice cream or ice cubes in the mouth immediately after removal from the freezer compartment. Very cold ice can freeze to the lips or tongue and cause injury.
Do not touch frozen food with wet hands. Your hands could freeze to the food.
Do not operate any electrical appliances in the refrigerator and/or freezer (e.g. electric ice cream makers, mixers etc.).
Before cleaning the appliance, always switch off the appliance and unplug it, or pull the house fuse or switch off the circuit breaker.
When unplugging always pull the plug from the mains socket, do not pull on the cable.
In case of malfunction
If a malfunction occurs on the appliance, please look first in the "Trouble shooting" section of these instructions. If the information given there does not help, please do not perform any further repairs yourself.
Under no circumstance should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.
Remove transport packaging
The appliance and the interior fittings are protected for transport.
Pull off the adhesive tape on the left and right side of the door. You can remove any remnants of adhesive using white spirit.
Remove all adhesive tape and packing pieces from the interior of the appliance.
Installation
Installation Location
The appliance should be set up in a well-ventilated, dry room.
Energy use and efficient performance of the appliance is affected by the ambient temperature.
The appliance should therefore not be exposed to direct sunlight;
Do not install it next to radiators, cookers or other sources of heat; only install it at a location whose ambient temperature corresponds to the climate classification for which the appliance is designed.
The climate classification can be found on the serial plate, which is located on the left inside the appliance.
The appliance must be positioned so that the plug is accessible.
The following table shows which ambient temperature is correct for each climate classification:
| Climate classification For an ambient temperature | |
| SN | +10 to +32°C |
| N | +16 to +32°C |
| ST | +16 to +38°C |
| T | +16 to +43°C |
If the refrigeration appliance is installed next to another refrigerator or freezer, a clearance of 5 cm at the sides is required to prevent the formation of condensation on the outside of the appliance.
Your refrigerator needs air.
For correct operation, this appliance must be located in a dry atmosphere, away from heat sources, e.g., cookers, radiators, boilers, and direct sunlight.
You should also ensure that air can circulate freely around the back and the top of the cabinet. There should be 100mm between the top of the cabinet and any overhanging kitchen furniture.
Alternatively, allow 50mm between the top of the cabinet and any overhanging kitchen furniture and a gap of 25mm on either side of the appliance.
Reversing the door
The side at which the door opens can be changed from the right side (as supplied) to the left side, if the installation site requires.
Warning!
When changing the side at which the door opens, the appliance must not be connected to the mains. Remove the plug from the mains beforehand.
- Tilt the appliance slightly towards the rear and prop it securely. 2. Unscrew the door hinge screws and remove the hinge pin bracket. 3. Open the door a little way and take it out downwards.
- Unscrew the upper pin and screw it into place on the opposite side.
- Fit the door into the upper pin and close it.
- Screw the hinge pin bracket securely into place on the opposite side using the screws.
Changing over the freezer compartment door

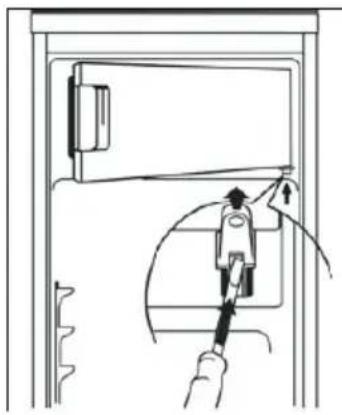

Open the freezer compartment door a little way. Using a small screwdriver, press the spring in the opening of the lower door bearing slightly upwards and take the door bearing out complete with the door.
Position the covering cap (M) on the opposite side.
Turn the freezer compartment door through 180 degrees and fit the lower door bearing into the lower bearing cavity of the freezer compartment door.
Lift the freezer compartment door a little way upwards, fit it into the upper door bearing, and at the same time insert the lower door bearing into the square hole.
Small upward and downward adjustments of the freezer compartment door will make fitting easier.
Prior to Initial Start-up
Please clean the appliance interior and all accessories prior to initial start-up (see section: Cleaning and Care).
Description of the appliance

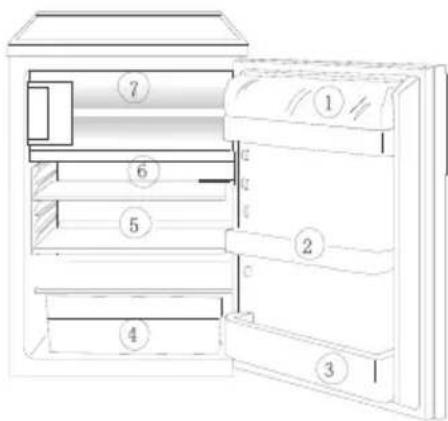

View of the appliance
- Butter/cheese compartments with flap and egg storage insert
- Door storage compartment
- Bottle shelf
- Vegetable drawers
- Storage shelves
- Temperature regulator 7. Freezer compartment
- Rating plate
Starting up and temperature regulation
Insert the plug of the connection lead into the plug socket with protective earth contact. When the refrigerator compartment door is opened, the internal lighting is switched on.
The temperature selector knob is located on the RH side of the refrigerator compartment.
Setting "0" means: Off.
Turning clockwise in direction “1” Refrigerating unit on, the latter then operating automatically.
Setting "1" means:
Highest temperature, warmest setting.
Setting "7" (end-stop) means:
Lowest temperature, coldest setting.
The temperatures in the refrigerator compartment and freezer compartment cannot be independently regulated.
At a low ambient temperature of around 16°C, setting '1' should be selected. At ambient temperatures of around 25°C, select setting '2'. If you require a lower temperature, select setting '3' or '4'. On this setting, you can be sure the fresh food will be reliably frozen and that a storage temperature of -12°C will be maintained in the freezer compartment.
If you want to freeze fresh food rapidly, select setting '7', ensuring that the temperature in the refrigerator compartment does not drop below 0°C. You should also promptly reset the temperature regulator to setting '3' or '4'.
Important!
High ambient temperatures (e.g. on hot summer days) and a cold setting on the temperature regulator (position '6' to '7') can cause the compressor to run continuously.
Reason: when the ambient temperature is high, the compressor must run continuously to maintain the low temperature in the appliance.
The fridge will not be able to defrost since automatic defrosting of the fridge is only possible when the compressor is not running (see also 'Defrosting' section). The result is the build up of a thick layer of frost on the fridge rear wall.
If this happens, turn the temperature regulator back to a warmer setting (position '3' to '4'). At this setting the compressor will be switched on and off as usual and automatic defrosting recommenced.
Interior Accessories
Storage shelves/wire trays
Various glass or plastic storage shelves and wire trays are included with your appliance - different models have different combinations.
You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position.
The height of the storage shelves can be adjusted:
To do this pull the storage shelf forward until it can be swivelled upwards or downwards and removed.
Please do the same in reverse to insert the shelf at a different height.
Correct storage

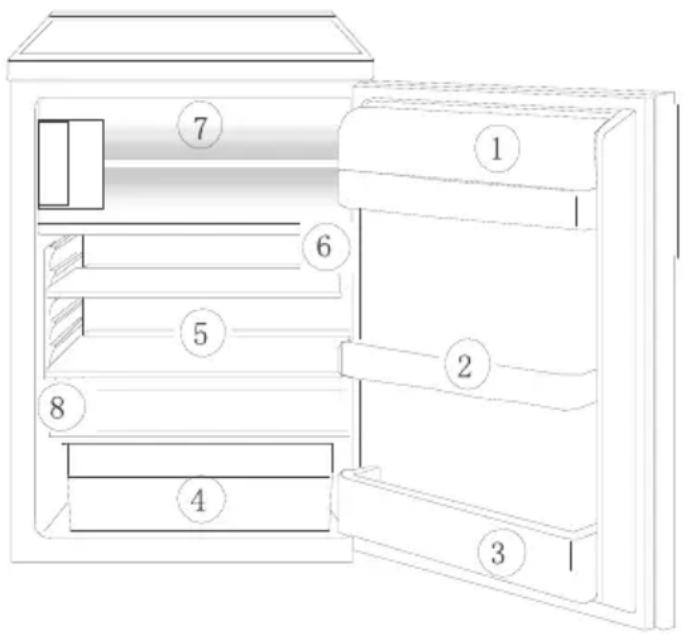

- Butter and cheese 2. Preserves 3. Drinks 4. Cheese storage, fruit, and vegetables 5. Meat, salami, cold cuts, dairy produce
- Ready meals, pastries, preserves
- Frozen food storage/freezing food
Tip:
Food in the fridge should always be covered or packaged, to prevent drying and tainting of other food.
The following are suited for packaging:
– Polyethylene airtight bags and wraps; - Plastic containers with lids; - Special plastic covers with elastic; - aluminium foil.
Freezing and storing frozen food
The freezer compartment is for freezing and storing food.
Important!
The temperature in the freezer compartment must be -12°C or colder before freezing food or storing food already frozen.
Do not freeze too large a quantity at any one time (max. 1 kg per 24 hrs).
The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
Allow warm food to cool down before freezing. The warmth will cause increased ice formation and increase the power consumption.
Please note the maximum storage times specified by the manufacturer.
Thawed foods which have not been processed further
(cooked into meals) may not under any circumstances be frozen a second time.
Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers with flammable materials such as spray cans, fire extinguisher refill cartridges etc in the freezer compartment.
Bottles and cans must not be placed in the freezer. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer compartment.
All foods must be packed air tight prior to freezing, so that they do not dry out or lose their flavour, and so that no flavour contamination of other frozen goods occurs.
Caution!
Do not touch frozen food with wet hands. Your hands could stick to the food and cause skin abrasions.
Lay the packaged food on the floor of the freezer compartment.
Unfrozen food must not touch items already frozen, otherwise the frozen food could begin to defrost.
Tips:
The following are suited for the packaging of frozen goods:
freezer bags and polyethylene wraps;
special cans for frozen goods;
extra-thick aluminium foil.
The following are suitable for sealing bags and wrapping:
plastic clips, rubber bands, or tape.
Smooth the air out of the bag before sealing; air makes it easier for the frozen food to dry out.
Make flat packages, because these freeze more quickly.
Do not fill cans for frozen goods to the brim with liquid or paste-like goods, because liquids expand during freezing.
Preparation of Ice Cubes
Fill the ice cube tray 3/4 full with cold water, place it in the freezer compartment, and leave to freeze.
To loosen the frozen cubes, either bend the ice cube tray or hold it under running water for a few seconds.
Important!
Never try to free an ice tray that is frozen to the freezer compartment using pointed or sharp-edged objects, since you may damage the refrigerating circuit. Use the plastic scraper.
Defrosting
The fridge defrosts automatically.
The rear wall of the fridge covers with frost when the compressor is running, and defrosts when the compressor is off. The water from the thawing frost evaporates by itself.
Defrosting the freezer compartment
During use and when the freezer compartment door is opened, moisture is deposited in the freezer compartment as frost. Remove this frost from time to time with the soft plastic scraper. Under no circumstances, use hard or pointed objects to remove frost.
The freezer compartment should always be defrosted when the layer of frost has reached a thickness of approximately 4 millimetres; however, at least once a year. A good time for defrosting is when the appliance is empty or contains only a little food.
Warning!
Do not use electrical heating appliances or any other mechanical or artificial devices to speed up the defrosting process, with the exception of those recommended in these operating instructions.
Do not use defrosting sprays; they can be hazardous to your health and/or contain substances that damage plastics.
Caution!
Do not touch frozen food with wet hands. Your hands could stick to the food and cause skin abrasions.
Remove frozen food, wrap it in several layers of newspaper, and store it, covered, in a cool place.
Switch off the appliance and unplug it, or pull the fuse or switch off the circuit breaker.
Remove the stopper from the meltwater outlet and place a bowl underneath it to catch the meltwater.
Tip:
You can speed up the defrosting water in the freezer compartment and closing the doors. Remove pieces of ice that have fallen before they completely defrost.
After defrosting, thoroughly clean the freezer compartment
(see "Cleaning and Care" section).
Switching off the appliance
To switch off the appliance, turn the temperature regulator to position "0".
If the appliance is not going to be used for an extended period:
Remove all refrigerated packages.
Switch off the appliance by turning the temperature regulator to position “0”. Remove the mains plug or switch off or turn out the circuit breaker or fuse. Clean thoroughly (see section “Cleaning and Care”). Leave the door open to avoid the build up of odour.
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
Warning!
The appliance may not be connected to the mains during cleaning.
Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapour can lead to the damage of plastic parts.
The appliance must be dry before it is placed back into service.
Important!
Ethereal oils and organic solvents can attack plastic parts, e.g.
lemon juice or the juice from orange peel;
butyric acid;
cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance parts.
Do not use any abrasive cleansers.
Remove frozen food and the food from the refrigerator. Wrap frozen food in several layers of newspaper. Store it in a cool place, well covered.
Defrost the freezer compartment prior to cleaning
(see @Defrosting@ section).
Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also be used.
After cleaning wipe with fresh water and rub dry.
Accumulation of dust at the condenser increases energy consumption.
For this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.
Check the water drain hole on the rear wall of the fridge.
After everything is dry place appliance back into service.
Energy Saving Tips
Do not install the appliance near cookers, radiators or other sources of warmth. High ambient temperatures cause longer, more frequent operation of the compressor.
Ensure sufficient air circulation and exhaust at the appliance base and at the back wall of the appliance. Never cover air vent openings.
Do not place warm foods into the appliance. Allow warm foods to cool first.
Only leave the door open as long as necessary.
Do not set the temperature any colder than necessary.
Put frozen food in the fridge to defrost. The cold from the frozen food will then be used to cool the fridge.
Always keep the heat-emitting condenser, the metal grille on the rear wall of your appliance, clean.
Troubleshooting
Correcting Malfunctions
Spare parts:
The following spare parts can be ordered from your local AEG Service
Force Centre. You can fit these yourself without any special skill or training, e.g.:
butter/cheese compartment,
egg holders,
door racks,
fruit and vegetable drawers,
storage racks
A malfunction may be caused by only a minor fault that you can rectify yourself using the following instructions. Do not perform any other work on the appliance if the following information does not provide assistance in your specific case.
Important!
Repairs to refrigerators/freezers may only be performed by competent service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your specialist dealer or your local Service Force Centre.
| Symptom | Possible Cause | Remedy |
| Appliance does not work. | Appliance is not switched on. | Switch on the appliance. |
| Mains plug is not plugged in or is loose. | Insert mains plug. | |
| Fuse has blown or is defective. | Check fuse, replace if necessary. | |
| Socket is defective. | Mains malfunctions are to be corrected by an electrician. | |
| Appliance cools too much. | Temperature is set too cold. | Turn the temperature regulator to a warmer setting temporarily. |
| The food is too warm. | Temperature is not properly adjusted. | Please look in the “initial Start Up” section. |
| Door was open for an extended period. | Open the door only as long as necessary. | |
| A large quantity of warm food was placed in the appliance within the last 24 hours. | Turn the temperature regulation to a colder setting temporarily. | |
| The appliance is near a heat source. | Please look in the “installation location” section. | |
| Interior lighting does not work. | Light bulb is defective. | Please look in the “changing the Light Bulb “section. |
| Heavy build-up of frost, possibly also on the door seal. | Door seal is not air-tight(possibly after reversing the door). | Carefully warm the leaking sections of the door seal with a hair dryer(on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly. |
| Unusual noises. | Appliance is not level. | Readjust the feet. |
| The appliance is touching the wall or other objects. | Move the appliance slightly. | |
| A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall. | If necessary, carefully bend the component out of the way. | |
| The compressor does not start immediately after changing the temperature setting. | This is normal, no error has occurred. | The compressor starts after a period of time. |
| Water on the floor or storage shelves. | Water drain hole is blocked. | See the “cleaning and care” section. |
Changing the light bulb
Warning!
There is a risk of electric shocks! Before changing the light bulb, switch off the appliance and unplug it, or pull the fuse or the circuit breaker.
Light bulb data: 220~240 V, max. 15 W
To switch off the appliance, turn the temperature regulator to position "0".
Unplug the mains plug.
To change the light bulb, undo the screw.
Press the light bulb cover as shown and slide it backwards.
Change the defective light bulb.
Refit the light bulb cover and the screw.
Put the refrigerator back into operation.
Noises during Operation
The following noises are characteristic of refrigeration appliances:
Clicks
Whenever the compressor switches on or off, a click can be heard.
Humming
As soon as the compressor is in operation, you can hear it humming.
Bubbling/Splashing
When refrigerant flows into thin tubes, you can hear
bubbling or splashing noises. Even after the compressor has been switched off, this noise can be heard for a short time.
bubbling or splashing noises. Even after the compressor has been switched off, this noise can be heard for a short time.
It is prohibited to dispose of this appliance in domestic household waste. For disposal there are several possibilities:
It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities:
- The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user.
- The manufacturer will take back the old appliance for disposal at least free of charge to the user.
- As old products contain valuable resources, they can be sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak into the groundwater and find their way into the food chain.
Meaning of crossed out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste; use separate collection facilities.
Contact your local government for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed of at the end of life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
4. Before connecting the appliance
6. Switching on and adjusting the temperature
5) Meat, salami, ham and dairy products 6) Prepared dishes, pastries and preserves 7) Frozen and chilled foods
Advice:
Switching off the appliance
TEKA INDUSTRIAL, S.A.
C/ Cajo, 17
39011 Santander (Spain)
Tel.: +34 942 355050
Fax: +34 942 347694
mail@teka.com
www.teka.com
35708 Haiger (Germany)
Tel.: +49 2771 8141 0
Fax: +49 2771 8141 10
info@teka-kuechentechnik.de
- DEAR CUSTOMER
- ADVICE
- CONTENTS
- IMPORTANT SAFETY INSTRUCTIONS
- INTENDED USE
- PRIOR TO INITIAL START-UP
- IMPORTANT
- REFRIGERANT
- SAFETY OF CHILDREN
- DAILY OPERATION
- IN CASE OF MALFUNCTION
- REMOVE TRANSPORT PACKAGING
- INSTALLATION
- INSTALLATION LOCATION
- YOUR REFRIGERATOR NEEDS AIR
- REVERSING THE DOOR
- WARNING
- CHANGING OVER THE FREEZER COMPARTMENT DOOR
- DESCRIPTION OF THE APPLIANCE
- STARTING UP AND TEMPERATURE REGULATION
- INTERIOR ACCESSORIES
- STORAGE SHELVES/WIRE TRAYS
- CORRECT STORAGE
- TIP
- CAUTION
- TIPS
- PREPARATION OF ICE CUBES
- DEFROSTING
- DEFROSTING THE FREEZER COMPARTMENT
- SWITCHING OFF THE APPLIANCE
- IF THE APPLIANCE IS NOT GOING TO BE USED FOR AN EXTENDED PERIOD
- CLEANING AND CARE
- ENERGY SAVING TIPS
- TROUBLESHOOTING
- CORRECTING MALFUNCTIONS
- CHANGING THE LIGHT BULB
- NOISES DURING OPERATION
- CLICKS
- HUMMING
- BUBBLING/SPLASHING
- BUBBLING OR SPLASHING NOISES. EVEN AFTER THE COMPRESSOR HAS BEEN SWITCHED OFF, THIS NOISE CAN BE HEARD FOR A SHORT TIME
- IT IS PROHIBITED TO DISPOSE OF THIS APPLIANCE IN DOMESTIC HOUSEHOLD WASTE. FOR DISPOSAL THERE ARE SEVERAL POSSIBILITIES
- BEFORE CONNECTING THE APPLIANCE
- SWITCHING ON AND ADJUSTING THE TEMPERATURE
Brand : TEKA
Model : TS 138
Category : Refrigerator
