USER MANUAL Aeris 124 CH SWISSVOICE

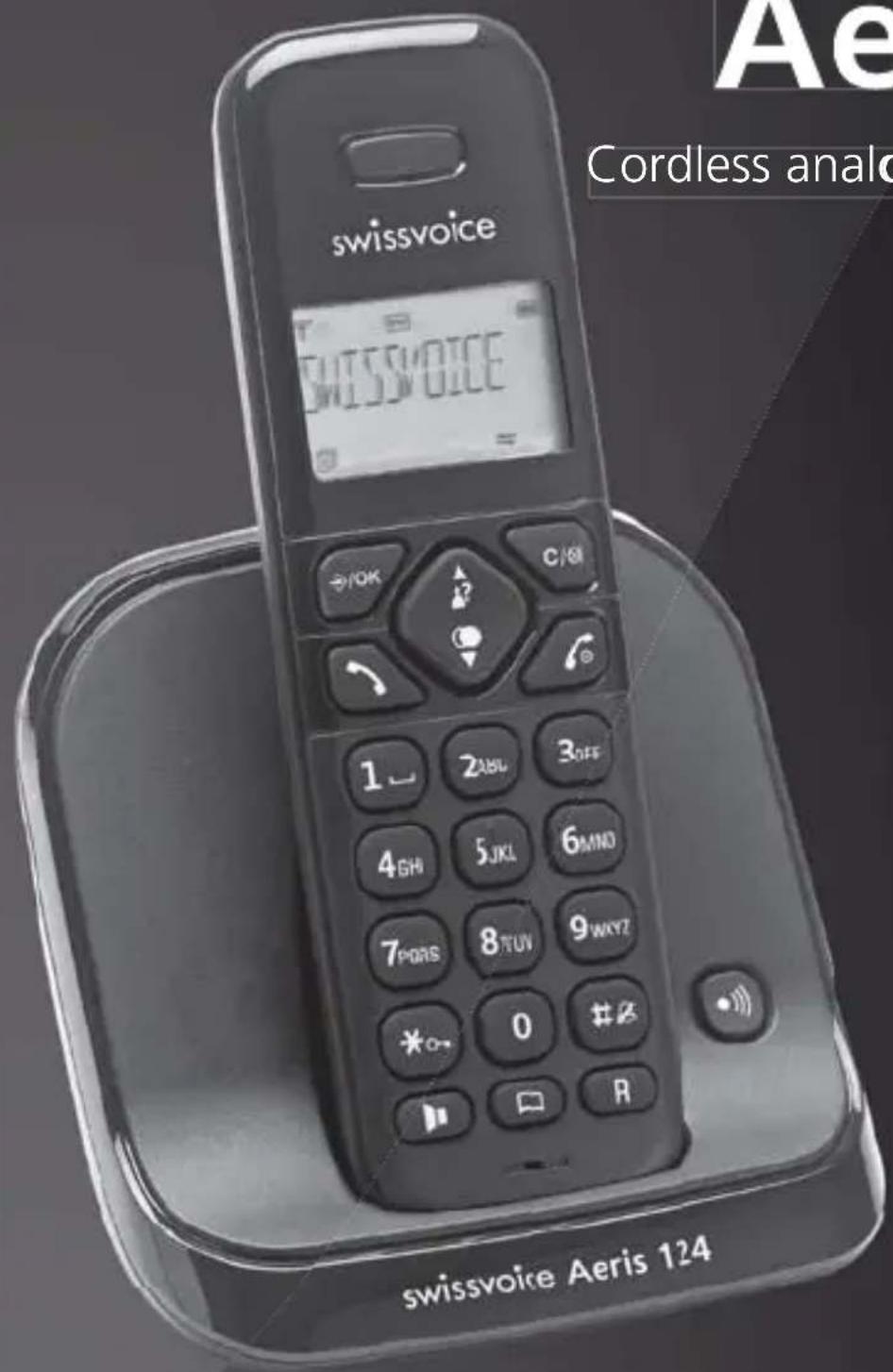

La conformità con la direttiva sopra menzionata è confermata dal marchio CE sull’apparecchio. Aeris 124 Aeris 124 47Welcome to Swissvoice The Aeris 124 is a cordless telephone designed for connection to an analog telephone network. International DECT (GAP)-standard digital technology offers excellent voice quality. You can register up to 5 handsets to your base and make internal calls free of charge. Please read these operating instructions carefully to familiarise yourself with and take full advantage of the benefits of your new Aeris 124. Aeris 124 48 Aeris 124Contents Keys 50 Display symbols 51 Battery advice 52 Telephoning 54 Accepting a call 54 Turn off the ringer 54 Set speaker/loudspeaker volume 54 Switch handset off 54 Redial 55 Mute the handset microphone 55 Keypad lock 55 Paging – Locate mislaid handsets 55 Phonebook 55 Call list 56 Voicebox (network answering machine) 57 Extending the Aeris 124 57 Telephoning with several call partners 58 Handset settings 59 Base station settings 59 Reset 59

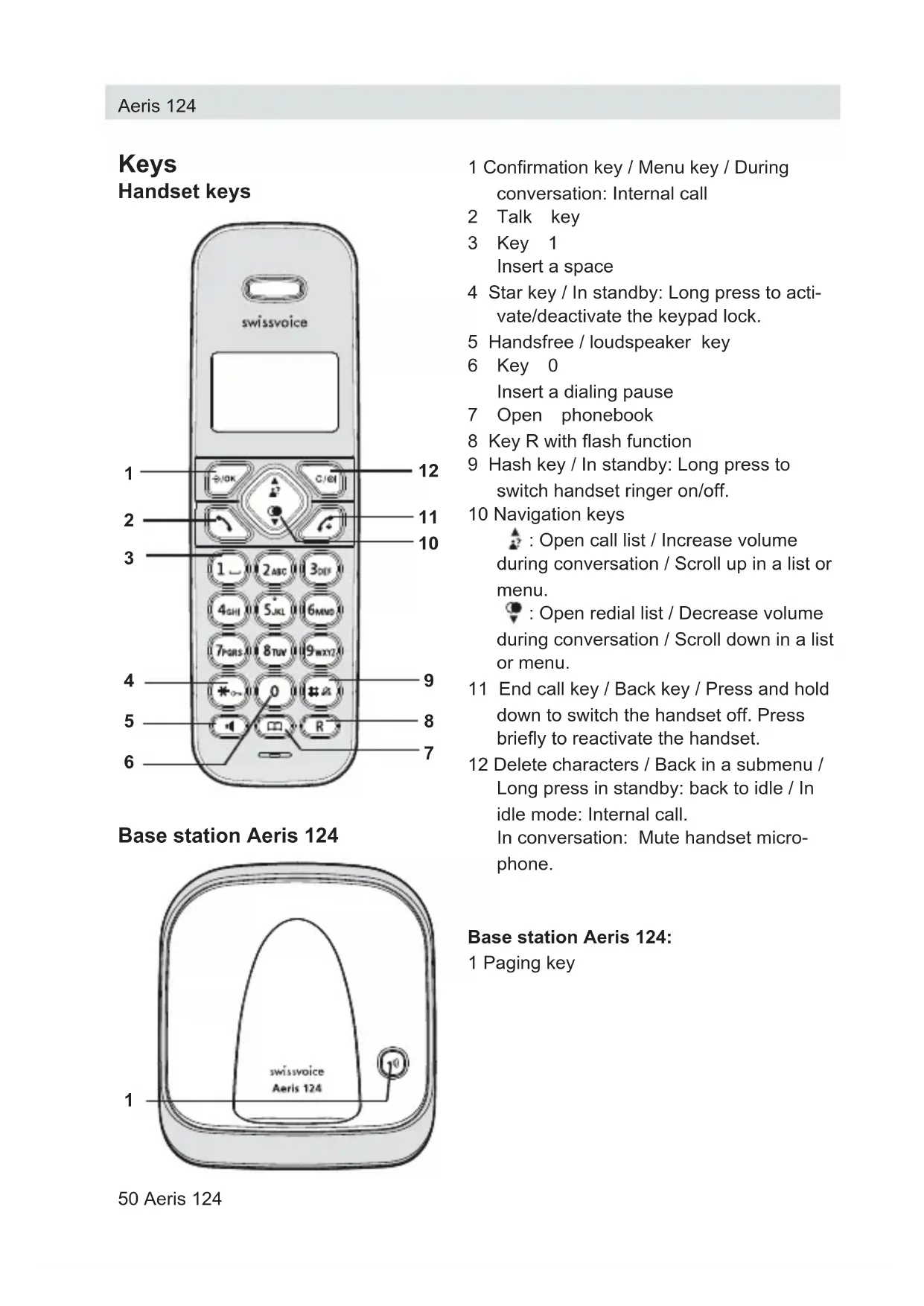

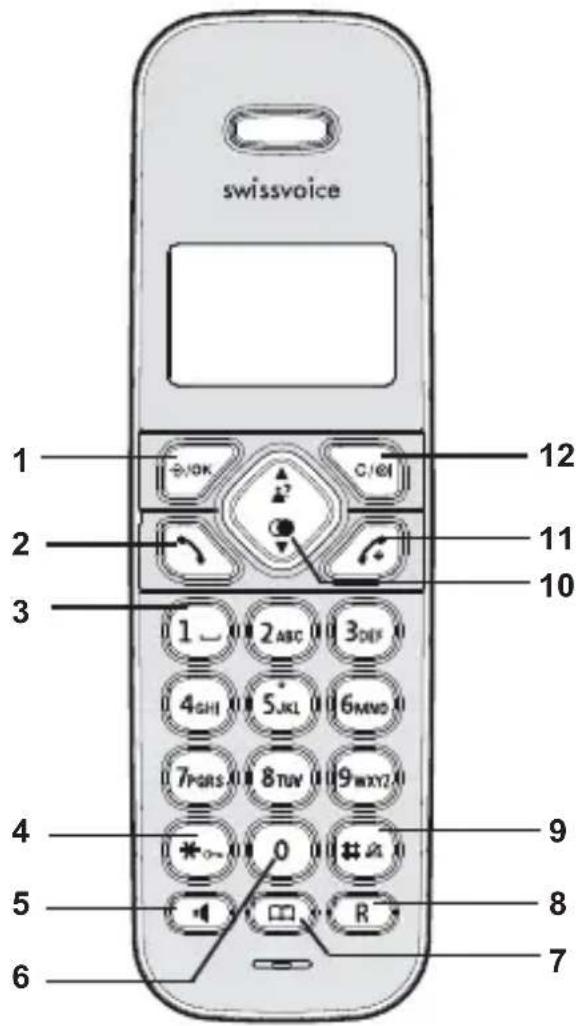

1 Confirmation key / Menu key / During conversation: Internal call 2 Talk key 3 Key 1 Insert a space 4 Star key / In standby: Long press to acti- vate/deactivate the keypad lock. 5 Handsfree / loudspeaker key 6 Key 0 Insert a dialing pause 7 Open phonebook 8 Key R with flash function 9 Hash key / In standby: Long press to switch handset ringer on/off. 10 Navigation keys : Open call list / Increase volume during conversation / Scroll up in a list or menu. : Open redial list / Decrease volume during conversation / Scroll down in a list or menu. 11 End call key / Back key / Press and hold down to switch the handset off. Press briefly to reactivate the handset. 12 Delete characters / Back in a submenu / Long press in standby: back to idle / In idle mode: Internal call. In conversation: Mute handset micro- phone. Base station Aeris 124: 1 Paging keyDisplay symbols Scroll up/down in a list or menu. Symbol is displayed when the handset is within range of the base station. Flashes when the handset is out of range or not registered to the base. Internal call in progress. Flashes for incoming internal calls. Call in progress. Handsfree/loudspeaker activated. Ringer switched off. Alarm set. Kepad locked. You have new messages in your voicebox (network answering machine). Batteries fully charged. Batteries empty. Aeris 124 Aeris 124 51Aeris 124 52 Aeris 124 Range / Location To obtain the best possible range, we recommend positioning the telephone in a loca- tion central to your sphere of activity. Avoid positioning the telephone in niches, recesses and behind steel doors. The maximum range between base station and handset is approximately 300 meters outdoors. Depending on the surrounding conditions as well as spatial and structural factors, the range may be smaller. Silent zones can occur due to the digital transmis- sion in the frequency range used – even within the range, depending on the structural environment. In this case the transmission quality may be reduced through the increased incidence of short breaks in transmission. Normal call quality can be restored if you move slightly out of the silent zone. If the range is exceeded, the call will be disconnected unless you move back into range within ten seconds. Battery advice Use only the original batteries (2 x NiMH, AAA, 1.2 V 500mAh) as well as the original power supply (6 V DC / 300 mA) for Aeris 124. The handset operating times (standby 100 hours/active 10 hours) and charging times apply only if the battery is charged to the defined minimum capacity (1.2 V / 500 mAh). Charging is electronically controlled to ensure optimal charging and care of batteries in different charge states. Full capacity is achieved only after several charging cycles. Note: Using other rechargeable batteries or non-rechargeable batteries/primary cells can be dangerous and cause malfunctions or damage to the telephone. Do not short-circuit the batteries (danger). In particular, avoid inadvertent short-circuits during storage and transport e.g. bunch of keys, metal panels or similar objects, and make sure the batteries do not come into contact with greasy materials. When not in the handset, therefore, batteries should be stored only in insulating packaging. Ensure also that the contacts do not touch greasy parts. Rechargeable batteries can become warm while recharging. This is a normal occurrence and is not dangerous.Connecting the phone

• Before you can start using your telephone you must plug in the telephone connec- tor cable and the mains cable.

• Insert the batteries in the battery compartment. Make sure the polarity is correct.

• To charge the batteries, insert the handset in the base station. The animated bat- tery symbol on the handset signals the charging procedure. The batteries will take around 14 hours to fully charge (initial charge). Set language Default setting on delivery: - German in Switzerland - French in France - Polish in Poland The language of the display texts can be changed in the menu HS Settings

• Scroll through the list using the navigation keys.

• Select date and time format. Press OK.

• Enter date and time and press OK.

• Press the End call key. Accepting a call

• Incoming calls are signalled by a ring tone on the handset.

• Press the Talk key or key and conduct your conversation. End the call

• Press the End call key. Turn off the ringer Press key for approx. 3 seconds in standby mode: the ringer is switched off. To turn the ringer on, press again key for approx. 3 seconds. When a call is signalled (you hear the ringtone), press key . The ringer is turned off for this call. Set speaker/loudspeaker volume You can adjust the speaker/loudspeaker volume during a conversation (5 levels avail- able). Select the desired volume using the Navigation keys. Switch handset off

• Press and hold the End call key (approx. 3 sec).

• Press and hold again the End call key to reactivate the handset. Please note:Calls cannot be made if the battery is almost discharged or the handset is out of range of the base station. Aeris 124 54 Aeris 124Redial The Redial list contains up to 5 entries.

• Press the navigation key and select the desired entry.

• Press the Talk key. Edit redial list

• Open the Redial list, press left softkey.

• Select a function from the list:

Add to PB – Add number to the phonebook.

Delete – Delete the entry.

Delete All – Delete the entire redial list. Mute the handset microphone You can temporarily mute the handset microphone to talk to someone else in the room without the caller hearing. Press key . To reactivate the microphone, press key again. Keypad lock Activate keypad lock

• Press the Star key approx. 3 sec. Deactivate keypad lock

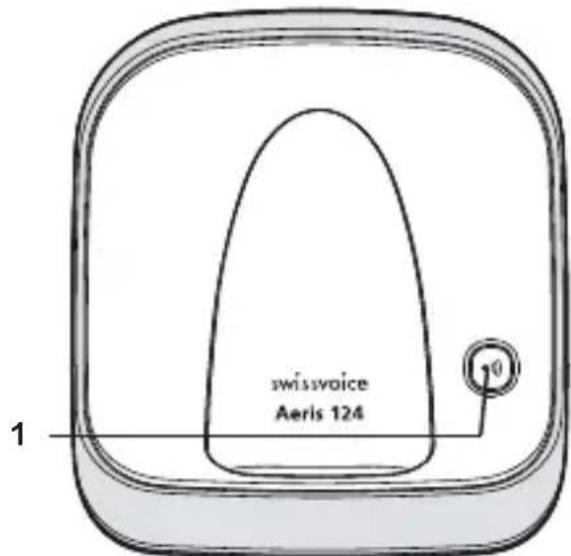

• Press again the Star key approx. 3 sec. Paging – Locate mislaid handsets All registered handsets ring for a short time, when the Paging key on the base is pressed. To stop the ring press the End call key on the handset or the Paging key on the base. Phonebook You can store up to 20 names and numbers in the phonebook on each handset. Names can be up to 12 letters long and numbers up to 20 digits. You can combine different numbers in groups with the same ringer melody. Aeris 124 Aeris 124 55Aeris 124 56 Aeris 124 Digits / Characters Different characters are printed on each key. The entries in the phonebook are sorted alphabetically. Press and hold key to insert a pause inside a phone number. „P“ appears on the display. Add new entries in the phonebook

• Select Phonebook and press OK to confirm.

• Press left softkey. Select Add and press OK to confirm.

• Enter the desired name, number and ringer melody.

• Press OK to confirm. Edit phonebook

• Press left softkey. Select a function from the list:

Add – as described above.

View – View number and melody of the selected entry.

Edit – Select the desired entry and edit it.

Delete - Delete entry.

Delete All – Delete the entire phonebook.

PB Status – View the number of free space. Call list The caller’s number is displayed on the handset. The call list can contain up to 10 entries. New calls are displayed by New Calls

Call a number from the call lists

• Select the desired entry from the list.

• Press the Talk key, the number is dialled or press left softkey and select an edit function from the list. To use this function, the caller's number must be transmitted (CLIP). Contact your network operator for further information.Edit call list

• Open the call list, press the softkey under More.

• Select a function from the list:

Add to PB – Add number to the phonebook.

Delete – Delete entry fom the call list.

Delete All – Delete the entire call list. Voicebox (network answering machine) You can forward the incoming calls to your operator’s network answering machine (Voicebox). This function must be enabled by your network operator. New Voicebox messages are signalled on your handset display by (dependent on network operator). Extending the Aeris 124 The delivered handset is already registered on to base station. In standby the internal number of the handset is displayed. You can register up to 5 handsets to your base station. If you register your Aeris 124 handset with a "third party" base station or a "third party" handset on your Aeris 124 base station (GAP), you may not be able to use some func- tions or only to a limited extent. Register new handsets Accessory handsets must be registered to the base station.

• Press on the base station approx. 5 seconds before declaration, then release the key.

• Press , select Registration and press OK.

• Select the desired base station. Press OK. The handset seeks the base station you have entered (flashing display).

• Once the base station has been found, you are requested to enter the system PIN (0000 on delivery). Press OK.

• If the registration is successful you will hear a confirmation signal. If the caller's number is suppressed, only Call is displayed. Aeris 124 Aeris 124 57Telephoning with several call partners During a call you can make a second internal call (enquiry call), switch between call partners (brokering) or simultaneously converse (3-way conference call) without the need for two telephone lines. Internal conversation / Internal call

• Select the desired internal party and press OK. If you receive an external call while you are on the phone to an internal call partner, you will hear an incoming call alert. End the internal call by pressing the End call key. Press the Talk key. You are connected to the external party. Call transfer to another handset You are conducting an external call and you want to transfer it to another handset.

• Press . Select the desired internal party and press OK.

• Press the End call key to transfer the call to the other handset. Conference You are conducting an external call.

• Press , select the desired internal party.

• Press the Star key approx. 3 sec. when the internal party responds. The three call partners are connected.

• Any teleconference partner can press the End call key to leave the conference and end the call. Aeris 124 58 Aeris 124Handset settings

• Press , select HS Settings and press OK.

• Select a function from the following list: - Alarm – The activated alarm is displayed in standby mode by . The alarm sounds for 30 seconds or can be deactivated immediately by pressing any key. The volume is the same as for the ringtone.

Ring Setup – Select the desired ringer melody for internal and external calls.

Tone Setup – Activate or deactivate the following options: Key Tone – Every time a key is pressed, a brief beep is heard. Battery Tone – The batteries are almost empty. Insert the handset in the base station for charging. Out of Range – A warning beep is sounded if you exceed the maximum range. - Language – Choose the language for the display texts. - Rename HS – To better distinguish between handsets, you can give each hand- set a name.

HS display – Select time or handset name for idle mode display. - Auto Answer – Just pick up the handset from the base to answer a call (without pressing any key). - Date & Time – Set the desired date and time format and enter date and time. Base station settings The system PIN on delivery is 0000.

• Press , select BS Settings and press OK.

• Select a function from the following list: - Delete HS – Select the handset you want to deregister. - Dial Mode – Tone: Normal dialling procedure on analog lines. Pulse: May be required for connecting older telephone systems. Please refer to the relevant documentation. - Flash Time – Select short

- Change PIN – You can modify the PIN code (0000 on delivery). Reset

• Press , select Default and press OK.

• Enter the PIN code (0000 on delivery).

• Confirm twice to reset your phone. Aeris 124 Aeris 124 59Aeris 124 60 Aeris 124 Appendix Using Internet/cable telephone adapters on an analog port When using an analog telephone on the analog connection of an Internet or cable tele- phone adapter, not all the described features (in particular calling line display) may function in the same way as with a standard analog telephone line. This does not cause the Aeris 124 to malfunction. Several factors can cause a failure of specific features to function:

• The Internet/cable telephony provider may not provide the function on its Internet/cable telephony connection.

• The adapter used to convert Internet/cable telephony to analog telephony (usually supplied by the provider) may not forward the functions to connected telephones or may forward them in a non-analog format. If this happens, please check the Aeris 124 on an analog fixed line and/or contact your Internet/cable telephony provider. Care Your telephone is a sophisticated product in terms of design and construction, and should therefore be handled with care. To clean the telephone, wipe first with an antistatic cloth or a damp, soft leather cloth and then dry using a dry cloth. Recycling (environmental protection) At the end of the product's life cycle, the telephone must not be disposed of in normal domestic waste. Please take it to a collection point for processing elec- trical and electronic equipment: see symbol on the product, in the user manual and/or packaging. Some materials used in this product can be recycled if you take it to a recycling depot. By recycling parts or raw materials from used products you will be making an important contribution to environmental protection. Please contact your local authority if you require information about collection points in your neighbourhood.Disposing of the rechargeable battery By law, all used batteries and accumulators must be recycled and not disposed of in domestic waste. Please dispose of them according to the official regulations. Take them to a recycling depot. The batteries/accumulators will be recycled since they may, for example, contain nickel cadmium (Ni - Cd), lead (Pb), cadmium (Cd) or mercury (Hg). The batteries and accumulators are labelled with symbols and information on their contents, e.g.: Warranty conditions Your telephone is subject to a guarantee from the date of purchase in accordance with the legal provisions of the country in which the telephone was purchased. As evidence of the date of purchase, please keep the receipt or the warranty card completed by the retailer. All defects attributable to material and manufacturing faults will be corrected free of charge within the warranty period, either by repairing or replacing the defective equipment. The warranty does not cover expendable materials (battery cells), defects which affect the value or use of the equipment only insignificantly, and damage caused by incorrect use, ordinary wear and tear, or manipulation by third parties. This warranty does not cover consequential damage caused by the use, failure or defectiveness of the product. In particular, no liability whatsoever is accepted for dam- age to property and pecuniary loss. To claim under this warranty, please contact the retailer where you purchased your telephone. Approval and conformity This analog telephone DECT complies with the basic requirements contained in the R&TTE Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and is suitable for connection and operation in the member state indicated on the base station and/or packaging. The declaration of conformity may be viewed at: www.swissvoice.net
