Operating Instructions

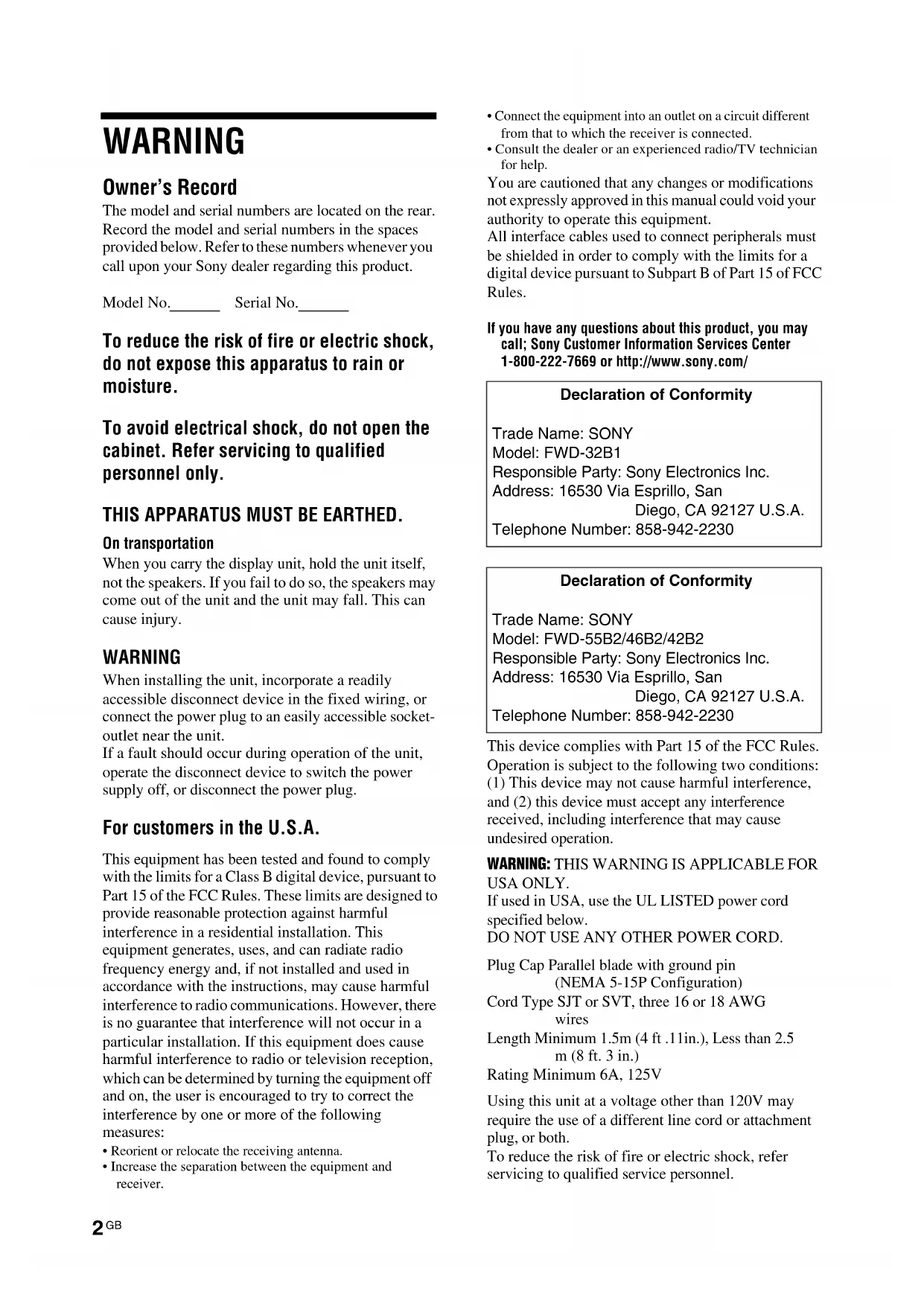

GB WARNING Owner’s Record

The model and serial numbers are located on the rear.

Record the model and serial numbers in the spaces

provided below. Refer to these numbers whenever you

call upon your Sony dealer regarding this product.

To reduce the risk of fire or electric shock,

cabinet. Refer servicing to qualified

When you carry the display unit, hold the unit itself,

not the speakers. If you fail to do so, the speakers may

come out of the unit and the unit may fall. This can

WARNING When installing the unit, incorporate a readily

accessible disconnect device in the fixed wiring, or

connect the power plug to an easily accessible socket-

outlet near the unit.

If a fault should occur during operation of the unit,

operate the disconnect device to switch the power

supply off, or disconnect the power plug.

For customers in the U.S.A.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the

interference by one or more of the following

measures: • Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications

not expressly approved in this manual could void your

authority to operate this equipment.

All interface cables used to connect peripherals must

be shielded in order to comply with the limits for a

digital device pursuant to Subpart B of Part 15 of FCC Rules.

If you have any questions about this product, you may

call; Sony Customer Information Services Center

1-800-222-7669 or http://www.sony.com/

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

WARNING: THIS WARNING IS APPLICABLE FOR USA ONLY.

DO NOT USE ANY OTHER POWER CORD.

Plug Cap Parallel blade with ground pin

(NEMA 5-15P Configuration)

Cord Type SJT or SVT, three 16 or 18 AWG

Length Minimum 1.5m (4 ft .11in.), Less than 2.5

Rating Minimum 6A, 125V Using this unit at a voltage other than 120V may

require the use of a different line cord or attachment

To reduce the risk of fire or electric shock, refer

servicing to qualified service personnel.

Declaration of Conformity

Trade Name: SONY Model: FWD-32B1

Responsible Party: Sony Electronics Inc.

Diego, CA 92127 U.S.A.

Declaration of Conformity

Trade Name: SONY Model: FWD-55B2/46B2/42B2

Responsible Party: Sony Electronics Inc.

Diego, CA 92127 U.S.A.

Telephone Number: 858-942-22303

GB GB IMPORTANT INFORMATION If a monitor is not positioned in a sufficiently stable

location, it can be potentially hazardous due to falling.

Many injuries, particularly to children, can be avoided

by taking simple precautions such as:

• Using cabinets or stands recommended by the

manufacturer of the monitor.

• Only using furniture that can safely support the monitor.

• Ensuring the monitor is not overhanging the edge of the

supporting furniture.

• Not placing the monitor on tall furniture (for example,

cupboards or bookcases) without anchoring both the

furniture and the monitor to a suitable support.

• Not standing the monitors on cloth or other materials

placed between the monitor and supporting furniture.

• Educating children about the dangers of climbing on

furniture to reach the monitor or its controls.

For customers in Canada

This class B digital apparatus complies with Canadian

For the customers in Europe

The manufacturer of this product is Sony Corporation,

1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan.

The Authorized Representative for EMC and product

safety is Sony Deutschland GmbH, Hedelfinger

Strasse 61, 70327 Stuttgart, Germany. For any service

or guarantee matters please refer to the addresses

given in separate service or guarantee documents.

WARNING: THIS WARNING IS APPLICABLE FOR OTHER COUNTRIES.

1. Use the approved Power Cord (3-core mains lead) /

Appliance Connector / Plug with earthing-contacts

that conforms to the safety regulations of each

country if applicable.

2. Use the Power Cord (3-core mains lead) / Appliance

Connector / Plug conforming to the proper ratings

If you have questions on the use of the above Power

Cord / Appliance Connector / Plug, please consult a

qualified service personnel.

Dette utstyret kan kobles til et IT-

strφmfordelingssystem.

The socket-outlet should be installed near the

equipment and be easily accessible.4

GB For the customers in the USA (FWD-32B1

Lamp in this product contains mercury. Disposal

of these materials may be regulated due to

environmental considerations. For disposal or

recycling information, please contact your local

authorities or the the Telecommunications

Industry Association (www.eiae.org).

For the Customers in Brazil only

For the customers in Taiwan only5

GB GB Table of Contents

Recommendations on Installation 8

Useful buttons on the Remote Control18

Using the Wide Mode18

Using the ID MODE button 19

Connecting the Speakers (FWD-55B2/46B2/42B2)20

Connecting the AC Power Cord 20

Overview of the Menus 22

Picture/Sound Settings23

Location and Function of Parts and Controls

• A nameplate indicating operating voltage, power

consumption, etc. is located on the rear of the unit.

• Should any solid object or liquid fall into the cabinet,

unplug the unit and have it checked by qualified personnel

before operating it any further.

• Unplug the unit from the wall outlet if it is not to be used

for several days or more.

• To disconnect the AC power cord, pull it out by grasping

the plug. Never pull the cord itself.

Be sure to unplug the power cord before cleaning the display.

On cleaning the display

Do not allow hard objects to scrape, or pound the display

screen surface, or allow objects to hit the screen surface

because that can damage the screen surface.

The display screen has a special surface treatment.

Follow the instructions below to prevent impair performance

because of improper handling when cleaning.

• Gently remove any dust from the screen surface with a soft

cloth. A cleaning cloth or cloth for wiping glasses is

• If it is excessively dirty, clean the screen surface with a

soft cleaning cloth slightly dampened with water.

• Never use alcohol, benzine, thinner, acid or alkaline

cleaning solvent, abrasive cleaners, or chemically-treated

cloths because they will damage the screen surface.

Cleaning the cabinet

• Gently wipe off stains using a dry, soft cloth. Wipe off

grimy stains using a cloth slightly moistened with a mild

detergent, then wipe the area again using a dry, soft cloth.

• Do not use alcohol, benzine, thinner or insecticide. Doing

so may damage the finish of the surface or remove the

markings on the unit.

• There is a danger that the screen will be damaged if wiped

with a cloth that is dirty.

• Allowing the unit to come into prolonged contact with

rubber or plastic products may alter the unit or cause the

protective coating to come off.

• Keeping the LCD panel facing toward the sun for a long

time will damage the panel. Take this into account when

you install the unit outdoor or by a window.

• Do not forcefully press or scratch the LCD screen. Do not

place objects on the screen. Doing so may disrupt the

display or damage the LCD screen.

• You may find that the screen is showing horizontal stripes

or that it has afterimage. The screen may also look darker

when using the unit in a cool environment. These do not

indicate a screen malfunction. The screen will return to

normal when the ambient temperature is higher.

• If a static image is displayed for a long time, screen burn

or a residual image may occur. A residual image will

disappear over time. If ghosting occurs, use the

screensaver function, or use some kind of video or

imaging software to provide constant movement on the

screen. If light ghosting (image burn-in) occurs,it may

become less conspicuous, but once burn-in occurs, it will

never completely disappear.

• The panel surface, cabinet or frame may warm up during

use.This does not a problem.

Bright spots and dark spots on the LCD

Although the LCD screen is manufactured by high

technology with an effective resolution of at least 99.99%, it

may show dark spots (pixel defects) or bright spots (red,

blue, green, etc.) that are continuously lit or flashing. These

are phenomenon of LCD screens that generated sometimes

by pixel defects. These may occur after the device has been

used for an extended period of time.

These are not screen malfunctions.

• Always verify that the unit is operating properly before

use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO,

COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

• Allow adequate air circulation to prevent internal heat

build-up. Do not place the unit on surfaces (rugs, blankets,

etc.) or near materials (curtains, draperies) that may block

the ventilation holes.

• Do not install the unit in a location near heat sources such

as radiators or air ducts, or in a place subject to direct

sunlight, excessive dust, mechanical vibration or shock.

• When you install multiple equipment with the unit, the

following problems, such as malfunction of the remote

control, noisy picture, noisy sound, may occur depending

on the position of the unit and other equipment.

Do not throw away the carton and packing materials.

They make an ideal container in which to transport the unit.

When shipping the unit, repack it as illustrated on the carton.

If you have any questions on this unit, contact your

authorized Sony dealers.

On the illustrations

The illustrations of the display in the Operating Instructions

are of the FWD-46B2.

GB Recommendations on

Provide an ample amount of space around

the display • To prevent internal heat buildup from sealing off the display, make sure to ensure proper ventilation by leaving open the minimum amount of space around the display, as illustrated below.• The ambient temperature must be 0 °C to 40 °C (32 °F to

°F). Be careful when installing the display near a ceiling. The temperature there can become much higher than the normal, lower-level room temperature.• When using the stand, you use the applicable Tabletop Stand SU-S02 (not supplied).For the fitting method, see the installation manual of the Tabletop Stand.• Consult with Sony qualified personnel for wall mount installation.• Regarding the installation of hardware such as brackets, screws, or bolts, we cannot specify the products. Actual installation is up to the authorized local dealers. Consult with qualified Sony personnel for installation.• While the display is on, a certain amount of heat builds up inside. This can cause burns. Avoid touching the top or rear of the display when it is powered on or just after it has entered standby mode. When using the Tabletop Stand

Side Units: cm (inches)25 (9 7 /8) 10 (4) 10

) 10 (4)When moving or installing the display when it is attached to the tabletop stand (not supplied), do so with at least 2 people. Note9

GB GB When mounting the display horizontally

When mounting the display vertically

Location and Function of Parts and Controls

• Lights up in green when the display is switched on.

• Lights up in red when the display is in standby mode. Lights up in orange when the

display enters the power saving mode while a signal is input from a PC.

When the 1 indicator blinks in red, see page 37.

When the “LED” option in the “Multi Display” settings is set to “Off” and the “Position”

option is not set to the right-bottom, the indicator does not light up in green even when the

display is turned on, except for the case of no signal or an unsupported signal.

2 Remote control sensor Remote control light receptor.

Screw holes conforming to VESA standard.

Pitch: 200 mm × 200 mm (FWD-32B1)

400 mm × 400 mm (FWD-55B2/46B2/42B2)

Use screws with the proper thread and length, and tighten to the proper torque.

Diameter of thread: M6

Thread length: 10 mm

2 Speaker installation holes

(FWD-55B2/46B2/42B2)

For attaching the speakers SS-SPG02 (not supplied).

Operate when the main power switch is “ON” ( side).

Press to select a signal to be input from the INPUT connector.

The signal to be input switches as follows each time you press the INPUT button.

Press to set your choice.

6 +/–/F/f (volume/menu

item selection) button

Press to control speaker volume. When the menu is displayed, press to select the menu

item or set a value.

Press to set your choice.

Press to show menus.

8AC IN socket Connect the supplied AC power cord to this socket and to a wall outlet (page 20).

Once you connect the AC power cord and turn on main power switch, the

lights up in red and the display goes into the standby mode.

9 / (main power) switch Turn the main power switch to “ON”(press the side) when setting up the display.

When the main power switch is turned “OFF” (press the side), the power consumption

(FWD-55B2/46B2/42B2)

Connect the speakers SS-SPG02 (not supplied) to this socket. For more details on

connecting the speakers, see the operating manual that came with the speakers. For details

on how to route the speaker cords, see page 21.

This is the audio monitor output terminal for external devices. Outputs an audio of the

signal currently indicated on the screen.

• Settings assigned in “Sound Mode” or “Speaker Out” will not be reflected.

• The noise reduction status set by the remote control is not reflected.

qs VIDEO VIDEO IN (BNC): Connects to the video output of a piece of video equipment.

VIDEO OUT (BNC): Connects to the video input of a piece of video equipment. Pictures

input from VIDEO IN will be output. Output regardless of whether the power is on or off

(including standby).

AUDIO IN (Stereo mini jack): Connects to the audio output of a piece of video

) IN: Connects to the component signal output of a

piece of video equipment or PC. .

AUDIO IN: Inputs an audio signal. Connects to the audio signal output of a piece of

video equipment or PC. Use the same connector as in qs VIDEO

HD15 (RGB/COMPONENT) IN: Connects to the analog RGB signal or component

signal output of a piece of video equipment or PC (page 42).

HD15 (RGB/COMPONENT) OUT: Connects to the analog RGB signal or component

signal input of a piece of video equipment or PC (page 42). Signals input from the HD15

(RGB/COMPONENT) IN connector above will be output.

AUDIO IN: Inputs an audio signal. Connects to the audio signal output of a piece of

video equipment or PC.

• When the display is not connected to an AC power or is in the standby mode, no signal is

output from the HD15 (RGB/COMPONENT) OUT.

• When inputting a component signal, be sure not to input sync signals to pins 13 and 14. If you

do so, the picture may not be displayed properly.

qg HDMI HDMI IN: HDMI (High-Definition Multimedia Interface) provides an interface between

the display and any HDMI-equipped audio/video equipment, as well as PC. You can

enjoy enhanced or high-definition video, and two-channel digital audio.

The appropriate mode for a piece of audio/video equipment or PC is automatically

selected in accordance with the connected equipment.

Be sure to use only an HDMI cable (not supplied) that bears the HDMI logo. We recommend

that you use a Sony HDMI cable (high speed type).

HDMI, High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing

LLC in the United States and other countries.15

GB GB Parts Description

DVI IN: Connects to the digital signal output terminal of the video equipment or PC.

Supports HDCP copy protection.

AUDIO IN: Inputs an audio signal. Connects to the audio signal output of a piece of

video equipment, etc.

qj REMOTE (STRAIGHT)

• This connector enables remote control of the display using the RS-232C protocol. For

details, contact your authorized Sony dealer.

When using this connector, select “RS-232C” in “Network Port”. (page 31)

(10BASE-T/100BASE-TX)

Serves to connect the display to a network, using a 10BASE-T/100BASE-TX LAN cable.

You can assign various settings and control the display via the network from a PC.

For safety, do not connect the connector for peripheral device wiring that might have

excessive voltage to this port. Follow the instructions for this port.

When using this connector, select “LAN” in “Network Port”. (page 31)

GB Remote Control You cannot use the S VIDEO button, button, the OPTION1 button and the OPTION2 button on this display. Button Description • The 5 button and button have a tactile dot. Use the tactile dot as a reference when operating the display. • Insert two size AA (R6) batteries (supplied) by matching the 3 and # on the batteries to the diagram inside the remote control’s battery compartment. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. When you dispose of the battery, you must obey the law in the relative area or country. Note

1 ON (power-on) button

Press to turn the display on.

Operate when the main power switch on the rear of the display is

Press to select the signal input to the DVI port.

Press to select the signal input to the HDMI IN connector from a

piece of video equipment.

Press to switch between the input signals from VIDEO IN and

Selects “Picture Mode”. Each press toggles between “Vivid”,

“Standard”, “Custom”, and “Conference”.

Press the F/f/G/g buttons to move the selected menu item and set

Pressing sets the selected menu or setting items.

Press to change the aspect ratio (page 18).

Press to show the menu on the screen. Press again to hide the menu

(page 22). NotesCaution

Push and slide to open17

GB GB Installing batteries

Two size AA (R6) batteries are supplied for Remote Control RM-FW002.

To avoid risk of explosion, use size AA (R6) manganese or alkaline batteries.

9 ID MODE (ON/0-9/SET/C/OFF) buttons

You can operate a specific display by entering the "Index Number" of

that display without affecting other displays installed at the same

Press to show the “Index Number” on the screen.

• 0-9 button: Press to enter the “Index Number” of the display you want

Adjusts the picture (contrast) level.

Press to adjust the volume.

Press to mute the sound. Press again to restore sound.

Press to display the currently selected input, the type of the input

signal and the “Aspect” setting on the screen. Press again to hide

them. If this displayed information is left undisturbed for a short time,

it will disappear automatically.

Press to select the input signal of the HD15 (RGB/COMPONENT)

connector. The RGB signal or component signal is selected

automatically or manually in accordance with the menu settings.

Press to change the display to the standby mode.18

GB Useful buttons on the Remote Control

You can change the aspect ratio of the screen.

You can also access the “Aspect” settings in the “Screen”

For input from video equipment such as Video, DVD,

etc. (other than PC input)

If the input resolution is higher than the panel resolution

× 1,080)*, the display of “Real” is the same as

GB GB Using the ID MODE button

You can operate a specific display by entering the

"Index Number" of that display without affecting

other displays installed at the same time.

Display’s “Index Number” appears in black

characters on the lower left menu on the screen.

(Every display is allocated an individual preset

“Index Number” from 1 to 255.)

2 Input the “Index Number” of the display you

want to operate using the 0 - 9 buttons on

The input number appears right next to the “Index

Number” of each display.

The characters on the selected display change to

green while the others change to red.

You can operate the specified display indicated

with green characters only.

Only the operation of ON (power-on) button and

STANDBY/ID MODE-OFF button is effective to

other displays, as well.

4 When all of the setting changes have been

completed, press OFF button.

The display returns to the normal screen.

Press the C button to clear the current input “Index

Number”. Return to Step 2, and input a new “Index

Tip To change the “Index Number” of the display, see “Index Number” in “Control Setting” on page 28. Index Number : 117

Index Number Index Number : 117 117

GB Before you start • First make sure that the power of each piece of equipment is turned off.• Use cables suitable for the equipment to be connected.• Connect the cables, fully inserting them into the connectors or jacks. A loose connection may cause hum and other noise.• To disconnect the cable, pull it out by grasping the plug. Never pull the cable itself.• See the instruction manual of the equipment to be connected, too.• Insert the plug securely into the AC IN socket.• Use one of the two AC plug holders (supplied) to securely hold the AC plug. Connecting the

Connect the speakers SS-SPG02 (not supplied).

Please be sure to connect the speakers correctly. For

more details on connecting the speakers, see the

operating manual of the speakers. For details on how

to route the speaker cords, see page 21.

Connecting the AC Power Cord

1 Plug the AC power cord into the AC IN

socket. Then, attach the AC plug holder

(supplied) to the AC power cord.

2 Slide the AC plug holder over the cord until

it connects to the AC IN socket cover.

To remove the AC power cord

Release the clips of the AC plug holder from the lock

of the AC IN socket cover, then hold the plug and pull

out the AC power cord.

AC IN socketAC power cord AC plug holder

Using the cable holders

You can neatly bundle the cables with the cable holders (×6 FWD-32B1: ×3) provided. Attach the cable holders as

shown in the illustrations below.

GB Overview of the Menus

To exit the menu, press MENU button.

To change the on-screen language

Select the desired language for on-screen settings and

messages from “English”, “Deutsch”, “Français”,

“Español”, “Italiano” or “ ”.

“English” (English) is set for the default setting

The settings provide you access to the following features: * Menu icons displayed at the bottom of the screen may not work, depending on the settings. Using the Settings

Settings Allows you to set/change

For the setting method, see “Overview of the Menus” (page 22).

*: Not selected during PC input.

Menu Function and operation

You can choose a picture quality to match your picture type and surrounding brightness.

To change from one “Picture Mode” option to another, you can also use PICTURE

button (page 16) on the remote control instead.

Enhances picture sharpness, and maximizes contrast.

Adjusts in more detail.

Adjusts the picture quality for video conferencing under fluorescent lights.

“Conference” may not be effective depending on the environment of use or your video

conference system. In this case, adjust the picture using “Picture Mode Adjust.”

(page 23), or switch to a “Picture Mode” setting other than “Conference”.

You can adjust picture quality for each “Picture Mode” in more detail.

• “Backlight”, “Noise Reduction” and “CineMotion” settings are common for all

• During PC input, you cannot adjust “Chroma”, “Phase”, “Sharpness”, “Noise

Reduction” or “CineMotion”.

Adjusts LCD screen brightness.

Adjusts to increase or decrease contrast.

Adjusts picture brightness.

Adjusts color intensity.

Adjusts the color tones of the picture.

“Phase” is available if the video signal's color system is NTSC.

Adjusts to sharpen or soften the picture.

Reduces noise from connected equipment. Higher settings are effective when there is a

Select “Auto” or “Off”. If you select “Auto”, it optimizes the screen display

automatically by detecting picture content and applying a reverse 3-2 or 2-2 pull-down

process. The picture will appear clearer and more natural.

• “CineMotion” may not be correctly processed depending on the input signal pattern.

• The setting of “CineMotion” is invalid when displaying 1080/50i, 1080/60i or 1080/

24psf signal with “Aspect” set to “Wide Zoom” or “Zoom”.

Select “On” or “Off”. Select “On” to enhance contrast by making white brighter and

You cannot set “Dynamic Picture” when “Picture Mode” is set to “Conference”.

Balances the light and dark portions of pictures. Higher settings have larger gamma

You cannot set “Gamma Correct.” when “Picture Mode” is set to “Conference”.

White tone can be adjusted to suit your preference. Default settings are set when shipped

Restores the default settings by selecting “Reset” on the tone adjusting screen.

Enables a broader range of white tone to be set than above.

Select “On” or “Off”. If you select “On”, then the picture quality is adjusted to emphasize

• You can set “Brightness Boost” when “Picture Mode” is set to “Vivid”.

• When “Brightness Boost” is set to “On”, you cannot adjust the “Backlight”,

“Contrast”, “Brightness” or “Color Temp.” settings.

• When “Brightness Boost” is set to “On”, with “Backlight” set to “Max” and “ECO Mode” set to “Off”, the brightness is at its maximum.

Select “Cancel” or “OK”. If you select “OK”, it resets all settings of “Picture Mode

Adjust” to default settings.

Menu Function and operation

You can adjust the sound output from the speakers SS-SPG02 (not supplied) with various

“Sound Mode” settings. For FWD-32B1, you can adjust the sound output from the

Enhances treble and bass.

For more detailed adjustment.

You can adjust sound tone in detail.

You can set “Treble” and “Bass” when the “Sound Mode” is set to “Custom”.

Adjusts to increase or decrease treble.

Adjusts to increase or decrease base.

Adjusts left/right speaker balance.

Select the surround mode according to the type of picture.

When you want to get an even richer stereo sound from movies or music programs.

When you want to get a richer sound from ordinary monaural programs or news telecasts

by using simulated stereo sound.

Select “Cancel” or “OK”. If you select “OK”, it resets all settings of “Sound Mode

Adjust.” to default settings.

Menu Function and operation26

For the setting method, see “Overview of the Menus” (page 22).

If no signal is being input, “Aspect” and “Adjust Screen” cannot be set.

Menu Function and operation

Allows you to make settings for connecting multiple displays to form a video wall.

• During video input, “Multi Display” displays a picture as close as possible to the

current “Aspect” setting. But during PC input, it displays with “Aspect” set to “Full

• When “Position” is set to the right-bottom, the 1 indicator lights up even if “LED” is

set to “Off”. The indicator also lights up even when the display is off (standby), errors

are detected, or the display is in sleep mode including the case of no signal or

Do settings to form a video wall.

Uses a single screen.

Settings to connect 2, 3 or 4 displays both vertically and horizontally.

Settings to connect 2, 3 or 4 displays horizontally.

Settings to connect 2, 3 or 4 displays vertically.

Settings for the screen position of each display.

You can select a picture output format. The picture position is automatically adjusted,

and you can get a suitable picture output.

Shows full signal on each screen.

Shows one large picture with multi display naturally. Part of the signal will go behind the

LED Select “On” or “Off”. If you select “On”, the 1 indicator on the front panel (page 10) to

be continually turned on.

* Not selected during PC input.

** Selected during PC input.

Menu Function and operation

Change the screen’s aspect ratio. For details, see page 18.

• To change from one “Aspect” option to another, you can also use button on the

• Select “Zoom” to display movies and other DVD content with black bands, using the

entire viewable area of the screen for video input.

You cannot set “Aspect” while using the “Multi Display” function.

Enlarges to fill screen with minimum distortion.

Enlarges the picture, keeping the same aspect ratio.

Enlarges the picture horizontally to fill the screen when the picture source is 4:3

(Standard definition). When the picture source is 16:9 (High definition), it displays in the

same 16:9 aspect ratio.

Enlarges the picture to fill the screen in the vertical direction, keeping the same aspect

ratio. A black frame may appear around the picture.

Enlarges the picture to fill the screen.

Displays the picture in its original number of dots.

If the input resolution is higher than the panel resolution (1,920 × 1,080, FWD-32B1:

1366 × 768), the display of “Real” is the same as “Full 1”.

Adjust screen size and position.

“Auto Adjustment”, “Phase” and “Pitch” are not available when the PC signal is digitally

input using a DVI IN or HDMI IN connector.

Select “Cancel” or “OK”. If you select “OK”, the display automatically adjusts the

position and phase of the picture when it receives an input signal from the connected PC.

Note that “Auto Adjustment” may not work well with certain input signals. In such cases,

manually adjust the options below.

To adjust correctly, adjust while the entire screen displays a bright picture.

Adjusts the phase when the screen flickers.

Adjusts the pitch when the picture has unwanted vertical stripes.

Adjusts the size of the picture horizontally.

Adjusts the picture position left and right.

Adjusts the picture size vertically.

Adjusts the picture position up/down.

Select “Cancel” or “OK”. Select “OK” to reset all settings of “Adjust Screen” to default

For the setting method, see the section of “Overview of the Menus” (page 22).

Menu Function and operation

Select from the language settings shown. Select “English”, “Deutsch”, “Français”,

“Español”, “Italiano” or “ ”.

You can adjust time, display the built-in clock, or set the timer to make the display

power on/off at a predetermined time.

If the main power switch is left turned off or the AC power cord removed for a long

time, the built-in clock may lose or gain time significantly.

In this case, reset the clock to the right time.

Sets the day of the week and the hour of the day.

Select “On” or “Off”. If you select “On”, when the remote control’s DISPLAY

button is pressed, it shows the current time which was set.

Sets the day of the week and the hour of the day.

This cannot be used unless the “Timer Setting” has been set.

Reduces power consumption by changing the brightness of the backlight. Selecting

“High” reduces power consumption more than “Low”.

Select “On” or “Off”. If you select “On”, the input signal and “Aspect” setting

information show on the screen for about 5 seconds when the display is turned on.

When you switch the input signal, the input signal information shows for about 5

You can display the input signal and “Aspect” setting information by pressing

DISPLAY button on the remote control.

Select “On” or “Off”. If you select “On”, sound is output from the speakers.

Enter more detailed settings.

This menu is used for settings of operation of the display and the remote control.

You can change the index number of the display if necessary. Select to set the index

number of the display with F/f buttons on the display, and press button to

confirm the setting.

The “Index Number” cannot be set with the remote control.

Set to control the display from the remote control or from the display.

When this item is operated, the available modes will differ depending on whether

you select by the remote control or the display. When setting this item with

button on the remote control, you can select only “Display+Remote” or “Remote

Only”. When setting this item with button on the display, you can select only

“Display+Remote” or “Display Only”.

Enables operation of the display with the control buttons on the display and the

Enables operation of the display with the control buttons on the display. You can

only use buttons on the display to enter this setting.

Enables operation of the display with the remote control. You can only use the

remote control to enter this setting.

Select “On” or “Off”. If you select “On”, it saves settings such as picture size and

position for each input signal, and the last settings are automatically applied.

The “Auto Screen Adjust” function only works during RGB input.

Select “On” or “Off”. When “On” is selected, the display automatically goes into

standby mode or power saving mode if no signal is input from the DVI, the HDMI,

the HD15 (RGB/COMPONENT) or the COMPONENT input connectors for about

If no signal is input from the VIDEO connector for about 5 minutes, the display

automatically goes into standby mode.

• This function is available when “Screen Saver” is set to “Off”.

• If “DPMS” is set to “On”, you can select the settings for activating the power

DPMS Select “On” or “Off”. When “On” is selected, the display automatically goes into

power saving mode if no signal is input from the DVI, the HDMI or the HD15

(RGB) input connectors for about 30 seconds.

When “Off” is selected, the display automatically goes into standby mode if no

signal is input from the DVI, the HDMI or the HD15 (RGB) input connectors for

• While in the standby mode, press the 1 button on the display or the ON button

on the remote control to turn the display on. In the power saving mode, the

display is turned on automatically when a signal is input.

• This function is available when “Screen Saver” is set to “Off”.

• This function is available when “Auto Shut Off” is set to “On”.

Displays image with overscan.

Displays image with justscan.

During DTV signal input, it may display a screen like when a PC signal is input.

Example: 480P → 720 × 480/60

Menu Function and operation

Set the type of signal input at pin 13 of the HD15 (RGB/COMPONENT) IN

• “Sync Mode” is available only when analog RGB signal is input to HD15

• There are some inputs for which only “H/Comp” can be selected. In this case,

input horizontal/vertical synchronization signals through the pin 13 or 14 of the

• This display does not support the three value sync format of 576/60p.

• When “Video” is selected in “Sync Mode”, you can only set the 575/50i and 480/

Sets a video signal input.

RGB/YUV Sets the type of signal for a piece of video equipment or PC connected to the HD15

(RGB/COMPONENT) connector of the display.

Automatically sets whether an analog RGB signal or a component signal is input

from a connected device.

RGB Set when an analog RGB signal is input from a connected device.

YUV Set when a component signal is input from a connected device.

Select “NTSC” or “PAL” to set the color system. Select “Auto” to set the color

system automatically.

“Color System” is available when the input signal is from a VIDEO IN connector

(Composite video signal).

Set whether a 1280 × 720/60, 720 × 480/60 or 1920 × 1080/60 RGB input signal is

displayed as a PC signal or a video signal.

Select “HD15”, “DVI” or “HDMI” according to the input connector, and then

select “PC” or “Video” for each. The following input connectors are valid for each

setting “HD15”, “DVI” or “HDMI”.

“HD15”: HD15 (RGB/COMPONENT) IN connector

“DVI”: DVI IN connector

“HDMI”: HDMI IN connector

HD15/DVI/HDMI Screen Saver

This is a setting to prevent or reduce screen burn or after-image that can occur by

Displays an all-white screen. (Stops automatically after about 30 minutes and the

Turns on a screensaver for the time set in “Timer Setting” in standby (page 10).

(The display is blank during screensaver operation.) When the set time has passed,

the display returns to the regular standby state.

Changes the menu screen's orientation to match the display's installation

Show the menu screen horizontally.

Show the menu screen vertically.

Menu Function and operation

Sets which terminal connects to the PC when the display is remote controlled by the

• You cannot use REMOTE (STRAIGHT) and REMOTE ( ) simultaneously.

• Select “LAN” when performing “IP Address Setup” or “Speed Setup”.

RS-232C Select when connecting the display and PC via the REMOTE (STRAIGHT)

LAN Select when connecting the display and PC via the REMOTE ( ) connector.

Sets an IP address to enable communication between the REMOTE ( ) connector

of the display and a device such as a PC connected with a LAN cable.

For details on how to make the settings, see the section of “Preparations for Using

the Network Functions” (page 32).

Sets a communication speed between the REMOTE ( ) connector of the display

and a device such as a PC connected with a LAN cable.

For details on how to make the settings, see the section of “Preparations for Using

the Network Functions” (page 32).

Adjusts the time from when the display is switched on until it actually turns on. Sets

to “Off”, and 1 to 120 seconds. This suppresses a sudden load fluctuation to the

power equipment when multiple units are connected.

If you connect HDMI control compatible equipment to the HDMI input connector

of the display, then the equipment can be controlled together.

You should use the remote control to switch on/off the display and connected

Select “On” or “Off”. If you select “On”, then HDMI equipment control works, and

it can be set to “Auto Device Off” and “Auto Display On”.

• If it does not work, also set HDMI settings on the connected equipment.

• To control it, the connected equipment must be HDMI control compatible, and

it must be set to enable HDMI equipment control.

• Depending on the HDMI equipment, this may not operate together with this

device in some cases.

Select “On” or “Off”. If you select “On”, then when the display’s power is switched

off, the connected HDMI equipment’s power is also switched off together.

Select “On” or “Off”. If you select “On”, then when connected HDMI equipment

play or other control is selected, the display’s power also turns on together.

Displays the “Date”, “Model Name”, “Serial Number”, “Operation Time”,

“Software Version” and “IP Address” of your display.

Select “Cancel” or “OK”. If you select “OK”, then all adjustments and settings reset

The items included in the “Information” option and the “Index Number” will not be

Menu Function and operation

GB Preparations for Using

the Network Functions

• The software specifications of this display are

subject to change for improvements without notice.

• Screens shown by application software may differ

slightly from the illustrations shown in this manual.

• For safety, connect the port of this display only to a

network where there is no danger of excessive

voltage or voltage surges.

• The steps described in this manual are guaranteed

only for use under the following environment

Microsoft Internet Explorer 7.0 or later

• To ensure security on the network, setting a user

name and password is recommended. For

information on how to make these settings, see the

section “Setup screen” (page 35).

For security settings, refer to your network

Setting an IP address

The display can be connected to a network with

10BASE-T/100BASE-TX LAN cable.

When connected to a LAN, the IP addresses of the

display can be set using one of the following two

methods. Consult your network administrator

regarding details about IP address selection.

• Assigning a fixed IP address to the display

Normally this method should be used. Note that in

default setting, the display is set to obtain an IP

address automatically.

• Automatically obtaining an IP address

If the network to which the display is connected has

a DHCP server, you can have the DHCP server

automatically assign an IP address. Note that in this

case the IP address may change every time the

display in which the display is installed is turned on.

Before setting the IP address, connect the LAN cable

to the display to establish the network. After about 30

seconds, turn on the display, and then start making the

• Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States of America and/

• All other product names, company names, etc. mentioned in this manual are trademarks or registered trademarks

of their respective owners.33

GB GB Assigning a fixed IP address to the display

1 Press MENU to bring up the main menu.

2 Select “Setup” with F/f and press .

3 Select “Advanced Setup” with F/f and

4 Select “IP Address Setup” with F/f and

5 Select “Manual” with F/f and press .

6 Select an desired item to set from “IP Address”, “Subnet Mask”, “Default

Gateway”, “Primary DNS”, “Secondary

DNS” with F/f and press .

7 Set the three digit value (0 to 255) for each

of the four box with F/f on the display or

numeric keys on the remote control and

8 Set the three digit value (0 to 255) for each

of the four boxes and press . Repeat the

same procedure as step 6 and select the

next desired item to set with F/f and press

9 After values are set for all the desired

items, select “Execute” with F/f, then

Select “Execute” and press . An IP address is set

Automatically obtaining an IP address

1 Press MENU to bring up the main menu.

2 Select “Setup” with F/f and press .

3 Select “Advanced Setup” with F/f and

4 Select “IP Address Setup” with F/f and

5 Select “DHCP” with F/f and press .

Select “Execute” and press . An IP address is

When “Cancel” is selected, the setting will not be

executed. When an IP address is not set properly, the following error codes will be displayed in accordance with the error cause.Error 1: Communication errorError 2: The specified IP address is already used for other equipmentError 3: IP address errorError 4: Gateway address errorError 5: Primary DNS address errorError 6: Secondary DNS address errorError 7: Subnet mask error Checking the automatically assigned IP

1 Press MENU to bring up the main menu.

2 Select “Setup” with F/f and press .

3 Select “Information” with F/f and press

4 Select “IP Address” with F/f and press

The IP address currently acquired is displayed.

Tip When an IP address cannot be acquired properly, the previously acquired IP address is shown in “Information” and in “Manual” of “IP Address Setup”. Setting a communication speed

1 Press MENU to bring up the main menu.

2 Select “Setup” with F/f and press .

3 Select “Advanced Setup” with F/f and

4 Select “Speed Setup” with F/f and press

5 Select a desired communication speed to

set from “Auto”, “10Mbps Half”, “10Mbps

Full”, “100Mbps Half”, or “100Mbps Full”

with F/f and press .

When “Auto” is selected, a communication speed

appropriate for your network configuration is

6 Select “Execute” with F/f and press to

reflect the setting.

Controlling the display You can make various display settings on the screen of the PC.Make sure that the display, PC, and router or hub are properly connected with the network cable. Then turn on power to the display, the PC, and the router or hub.There are four display screens, divided by function: Information screen, Configure screen, Control screen, and Setup screen.For details on the functions of buttons, see instructions for each function of the display. 1 Start the browser of the PC (Internet

Explorer 7.0 or later).

2 Enter the IP address that was assigned to

the display in the previous page as

“http://xxx.xxx.xxx.xxx”, then press the

ENTER key on the keyboard.

When a user name and password have

been set, the “Network Password” screen

appears. Enter the user name and

password that were set, and then proceed

3 Click the function tab at the top of the

screen and select the desired screen.

Setting items on respective screens When using the LAN function of the display Information screen This screen shows the model name, serial number and other display information, as well as the power status and the input signal selection.The screen is for information only. There are no items that can be set. Configure screen TimerLets you make settings for the timer function.Click “Apply” when done.Screen SaverLets you make settings for the screensaver function.Click “Apply” when done.Before setting the “Timer” function, make sure to configure the time setting on the Setup screen (page 35). Control screen POWERSwitches the display on or off.INPUTLets you select the input signal.PICTURE MODELets you select the picture mode.ASPECTLets you switch the aspect ratio of the image.Contrast +/– buttonsAdjust the screen contrast.Brightness +/– buttonsAdjust the picture brightness.Chroma +/– buttonsAdjust the color intensity. Note35

GB GB Phase +/– buttons

Adjust the color balance.

Resets the settings from “Contrast” to “Phase” to their

factory default values.

• If the input signal is Video and the color system of the

video signal is not NTSC, “Phase” is not available.

• “Chroma” and “Phase” are not available for PC input.

• “Normal” at the ASPECT setting corresponds to “4:3” for

video input or “Real” for PC input.

This screen lets you set up the Network Password. The

factory default settings are as follows:

After you have made any changes or entered

information, click “Apply” at the bottom of each

screen to enable the settings.

Special characters cannot be used in the text fields.

Enter owner information here.

Enter information about the display installation

Do not use spaces when entering the information.

Doing so may cause the file name to display

You can enter auxiliary information here.

Enter the time, day of the week, year, month, and day.

Internet Protocol (TCP/IP)

Select “Specify an IP address” to enter each value in

the IP address’s numeric string.

Select “Obtain an IP address (DHCP)” to acquire an

IP address automatically from the DHCP server. Note

that in this case the IP address may change every time

the display in which the display is installed is turned

The IP address can be set from the menu of the

display. For details, see “IP Address Setup” (page 31).

The administrator and user name and password

information can be entered here. The administrator

name is fixed to “root”.

Each can be a maximum of 8 characters long.

Once a user name and password are set, the “Network

Password” screen appears whenever the display

control screen of the display is called up. To ensure

security on the network, setting a user name and

password is recommended.

When a display function error has occurred, an error

report is immediately sent by e-mail (error

The status of the display can be reported via email

according to the selected time interval.

Enter the target e-mail address here. Up to four

addresses can be specified, for simultaneous sending

of an error report. The maximum length for each

address is 64 characters.

Enter the allocated mail address here.

The maximum length for the address is 64

Outgoing Mail Server (SMTP):

Enter the mail server address here.

The maximum length for the address is 64

Requires the use of POP Authentication before

Send e-mail (POP before SMTP):

If POP authentication is required when connecting

to the SMTP server, select this check box.

Incoming Mail Server (POP3):

When POP authentication is used for the “POP

Enter the mail account name here.

Enter the mail password here.

To test whether mail can be sent successfully to

the specified address(es), select this check box

and click “Apply”. A test mail will be sent.

GB If any of the following items is not set or not set

• Mail account address and mail server address

Gives access to advanced settings to enable use of

various applications on the network. Make the settings

as required by the respective application.

Lets you make settings for the Advertisement and

Broadcast functions on the network.

Lets you make settings for the ID Talk function. ID Talk is a protocol that allows network-based control of

the display. Controlled items includes various settings

and adjustments such as color temperature and

gamma. For information about supported ID Talk

commands, contact your local Sony dealer.

SNMP The display is a network equipment which supports

SNMP (Simple Network Management Protocol).

Besides standard MIB-II, Sony Enterprise MIB is also

supported. This screen allows making settings for

For information about supported SNMP commands,

contact your local Sony dealer.

Returning to default settings

To reset all settings made on the “Setup” screen to the

factory default condition, reset to the default settings

by assigning the “All Reset” setting, and then assign

the appropriate settings of the network again.

GB GB Troubleshooting

Check whether the 1 indicator is flashing red.

The self-diagnosis function is activated.

1 Check how many times the 1 indicator flashes and how long it stops flashing.

For example, the indicator flashes 2 times, stops flashing for 3 seconds, and flashes 2 times.

2 Press 1 (POWER) switch on the display and the main power switch to switch off the power, then

disconnect the power cord.

Inform your dealer or Sony service center of how the indicator flashes (the number of flashes and the duration

When it is not flashing

1 Check the items in the table below.

2 If the problem still persists, have your display serviced by qualified personnel.

Problem Possible Remedies

The power switch and control

buttons on the display do not work.

• Check the settings of “Control Setting” (page 28).

The power will not come on even if

the 1 (POWER) switch is turned

ON, or the ON (power-on) button on

the remote control is turned ON.

• Check that the main power switch is not turned “OFF” (page 13).

No video signal is output from the

HD15 (RGB/COMPONENT) OUT

device is in standby status or the AC power supply is switched off.

• Check the connection between the video equipment and the display.

• Check if “Timer Setting” is activated (page 28).

• Check if the “Auto Shut Off” function is set to “On” (page 29).

• Check if the room temperature is not more than 40°C.

The display turns on or off

No color/Dark picture/The

picture is too bright/Color is not

correct/The picture gradually

becomes dark/Horizontal noise

appears on the picture

• Press PICTURE to select the desired “Picture Mode” (page 16).

• Adjust the “Picture Mode Adjust.” options in the “Picture/Sound”

settings (pages 23, 24).

• Check the condition of the signal cable.

• Check if the room temperature is not more than 40°C.

• Check the settings in “ECO Mode” (page 28).

The whole screen is tinged

• Check the settings of “RGB/YUV” (page 30).38

Picture displayed, no sound.

• Check the volume control.

• Press on the remote control or + so that “Muting”

disappears from the screen (page 17).

• Check the setting of “Speaker Out” (page 28).

Remote control does not operate.

• Check the polarity of the batteries or replace the batteries.

• Point the remote control at the remote control sensor of the display.

• Keep the remote control sensor area clear from obstacles.

• Check the settings of “Control Setting” (page 28).

• Fluorescent lamps can interfere with remote control operation; try

turning off the fluorescent lamps.

Cannot connect to the network.

• Plug the cable firmly into the REMOTE connector.

• Check the network settings of the PC.

• Reset to the default settings by assigning the “All Reset” setting on

the “Setup” setting menu, and then assign the appropriate settings of

• Check the settings of “Network Port” (page 31).

The display control screen (the

Web screen displaying the

display’s GUI) does not appear.

• Click the refresh or reload button on your Web browser.

• Make sure the IP address is correct.

a) VGA is a registered trademark of International Business

Machines Corporation, U.S.A.

b) Macintosh is a trademark of Apple Inc., registered in the

U.S. and other countries.

c) VESA is a registered trademark of the Video Electronics

Standards Association.

d) VESA Coordinated Video Timing

• For HDTV signals, input the tri-level sync signal to the

2nd pin of HD15 (RGB/COMPONENT) IN connector.

• If colors appear too light after input of a DVD signal to the

display, adjust “Chroma” in the “Picture/Sound” settings.

• When the phase is readjusted, the resolution will be

• The signals from the Macintosh computer will not be

guaranteed for recognizing the digital RGB input.

• You cannot input the signal indicated with * to DVI IN.

• Composite synchronous signals correspond to no.2, 4, 5,

7, 12, 13 and 14 in the signal table shown in the left.

• Video signals without color burst signal are not

480 / 60 (e.g.) The selected input signal is a PC

480 / 60I (e.g.) The selected input signal is

NTSC (e.g.) The selected input signal is video

Not Supported Signal The selected input signal is

non-supported signal.

No Signal There is no input signal.

Component The selected input signal is

HD15 The selected input is HD15.

“RGB/YUV” is set to “Auto”.

HD15 RGB The selected input is HD15.

“RGB/YUV” is set to “RGB”.

HD15 Component The selected input is HD15.

“RGB/YUV” is set to “YUV”.

DVI The selected input signal is DVI.

HDMI The selected input signal is

Video The Composite Video signal is

GB GB Specifications

Panel system a-Si TFT Active Matrix LCD Panel

Sampling rate 13.5 MHz to 162 MHz

Color system NTSC/PAL Input signal See page 39.

Pixel pitch FWD-32B1

0.51 (horizontal) mm × 0.51

FWD-46B2: 46-inch (diagonal

D-sub 9 pin (female) (× 1)

(DVI Specification Rev. 1.0

*Same as for COMPONENT General

100 V to 240 V AC, 50/60 Hz,

FWD-55B2: 1.5 A (Maximum)

FWD-46B2: 1.3 A (Maximum)

FWD-42B2: 1.4 A (Maximum)

FWD-32B1: 110 W (Maximum)

FWD-55B2: 150 W (Maximum)

FWD-46B2: 130 W (Maximum)

FWD-42B2: 135 W (Maximum)

0.5 W (maximum in standby mode)

Operating conditions

Humidity: 20% to 90%

Storing/transporting conditions

Humidity: 20% to 90%

(including optional stands)

(w/h/d, excluding projections)

(including optional stands)

(w/h/d, excluding projections)

1,053.6 mm × 656.3 mm × 292.6 mm

(including optional stands)

(w/h/d, excluding projections)

(including optional stands)

(w/h/d, excluding projections)

Approx. 13.4 kg (29.5 lb.)

(including optional stands)

Approx. 29.5 kg (65 lb.)

(including optional stands)

Approx. 22.4 kg (49.4 lb.)

Approx. 24.2 kg (53.4 lb.)

(including optional stands)

Approx. 20.2 kg (44.5 lb.)

Approx. 22 kg (48.5 lb.)

(including optional stands)

Supplied accessories

Size AA (R6) manganese batteries (2)

Operating instructions (1)

Optional accessories

Display stand SU-S02
