USER MANUAL DVPFX780B SONY

010COV.book Page 1 Thursday, February 9, 2012 10:52 AMmaster page=left

DVPFX780CEK\020REG.fm

WARNING To reduce the risk of fire or

electric shock, do not

expose this apparatus to

To avoid electrical shock,

do not open the cabinet.

Refer servicing to qualified

The mains lead must be

changed only at a qualified

Batteries or batteries

installed apparatus shall

excessive heat such as

sunshine, fire or the like.

This appliance is classified as a

CLASS 1 LASER product. The

CLASS 1 LASER PRODUCT MARKING is located on the

CAUTION The use of optical instruments

with this product will increase

eye hazard. As the laser beam

used in this CD/DVD player is

harmful to eyes, do not attempt to

disassemble the cabinet.

Refer servicing to qualified

Disposal of Old Electrical &

Electronic Equipment

(Applicable in the European

Union and other European

countries with separate collection

This symbol on the product or on

its packaging indicates that this

product shall not be treated as

household waste. Instead it shall

be handed over to the applicable

collection point for the recycling

of electrical and electronic

equipment. By ensuring this

product is disposed of correctly,

you will help prevent potential

negative consequences for the

environment and human health,

which could otherwise be caused

by inappropriate waste handling

of this product. The recycling of

materials will help to conserve

natural resources. For more

detailed information about

recycling of this product, please

contact your local Civic Office,

your household waste disposal

service or the shop where you

purchased the product.

Disposal of waste batteries

(applicable in the European

Union and other European

countries with separate collection

This symbol on the battery or on

the packaging indicates that the

battery provided with this

product shall not be treated as

On certain batteries this symbol

might be used in combination

with a chemical symbol. The

chemical symbols for mercury

(Hg) or lead (Pb) are added if the

battery contains more than

0.0005% mercury or 0.004%

By ensuring these batteries are

disposed of correctly, you will

help prevent potentially negative

consequences for the

environment and human health

which could otherwise be caused

by inappropriate waste handling

of the battery. The recycling of

the materials will help to

conserve natural resources.

In case of products that for

safety, performance or data

integrity reasons require a

permanent connection with an

incorporated battery, this battery

should be replaced by qualified

To ensure that the battery will be

treated properly, hand over the

product at end-of-life to the

applicable collection point for the

recycling of electrical and

electronic equipment.

For all other batteries, please

view the section on how to

remove the battery from the

product safely. Hand the battery

over to the applicable collection

point for the recycling of waste

For more detailed information

about recycling of this product or

battery, please contact your local

Civic Office, your household

waste disposal service or the

shop where you purchased the

Do not take apart or remodel the

player. Doing so can result in

electric shock. Consult your

nearest Sony dealer or Sony

Service Center for exchange of

rechargeable batteries, internal

010COV.book Page 2 Thursday, February 9, 2012 10:52 AMDVP-FX780

DVPFX780CEK\020REG.fm

GB Precautions • Install this system so that the mains lead can be unplugged from the wall socket immediately in the event of trouble.• The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.• Excessive sound pressure from earphones and headphones can cause hearing loss.The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.If you have any questions or problems concerning your player, please consult your nearest Sony dealer. Copyrights, trademarks

and software licence

information • Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.• All other trademarks are trademarks of their respective owners.• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR DECODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM About this manual • In this manual, “disc” is used as a general reference for the DVDs or CDs unless otherwise specified by the text or illustrations.• Icons, such as , listed at the top of each explanation indicate what kind of media can be used with the function being explained.For details, see “Playable Media” (page 19).• NEED-to-know information (to prevent incorrect operation) is listed under the b icon. NICE-to-know information (tips and other useful information) is listed under the z icon.

IMPORTANT NOTICE Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this. 010COV.book Page 3 Thursday, February 9, 2012 10:52 AMmaster page=left

GB Table of Contents

010COV.book Page 4 Thursday, February 9, 2012 10:52 AMDVP-FX780

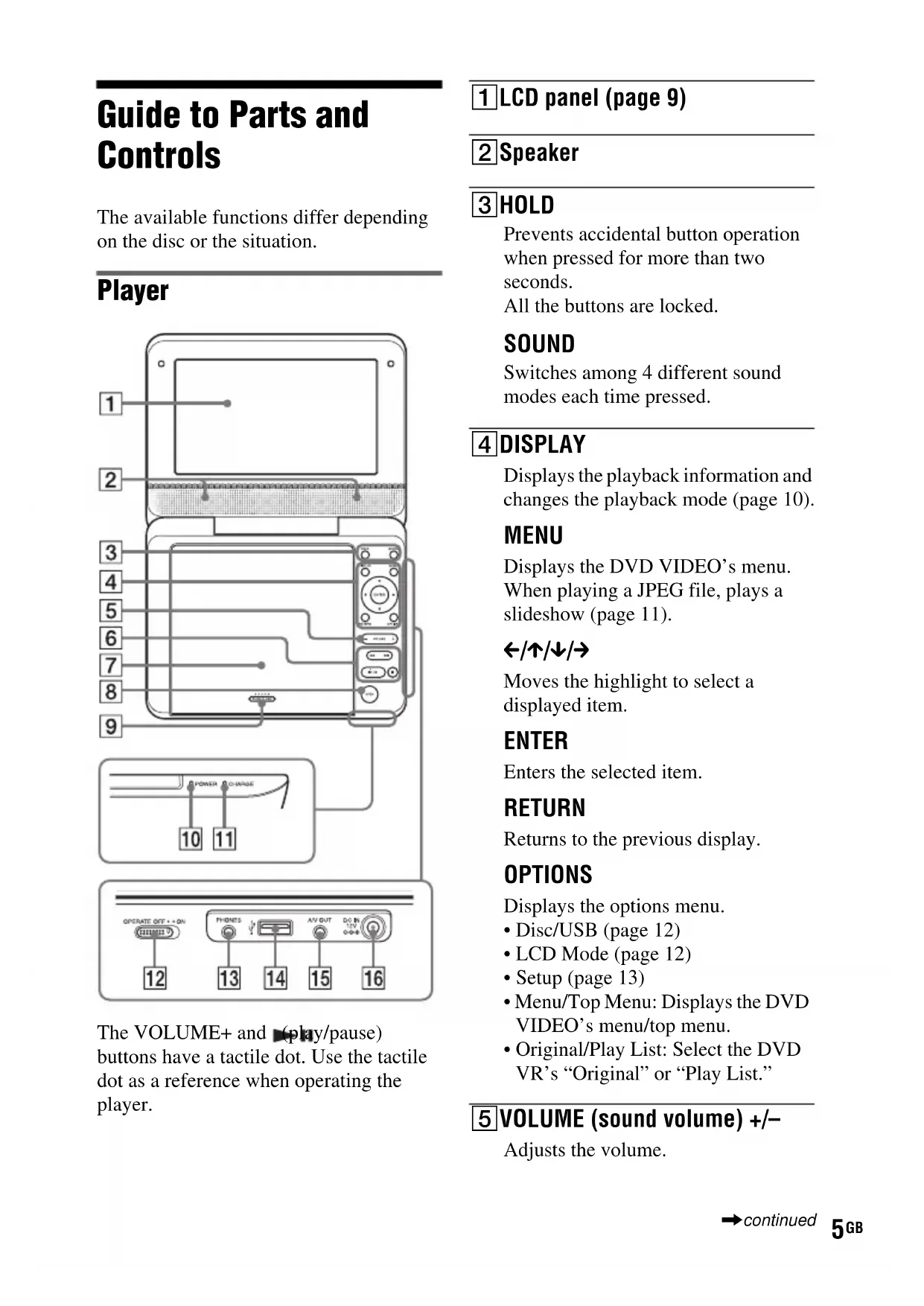

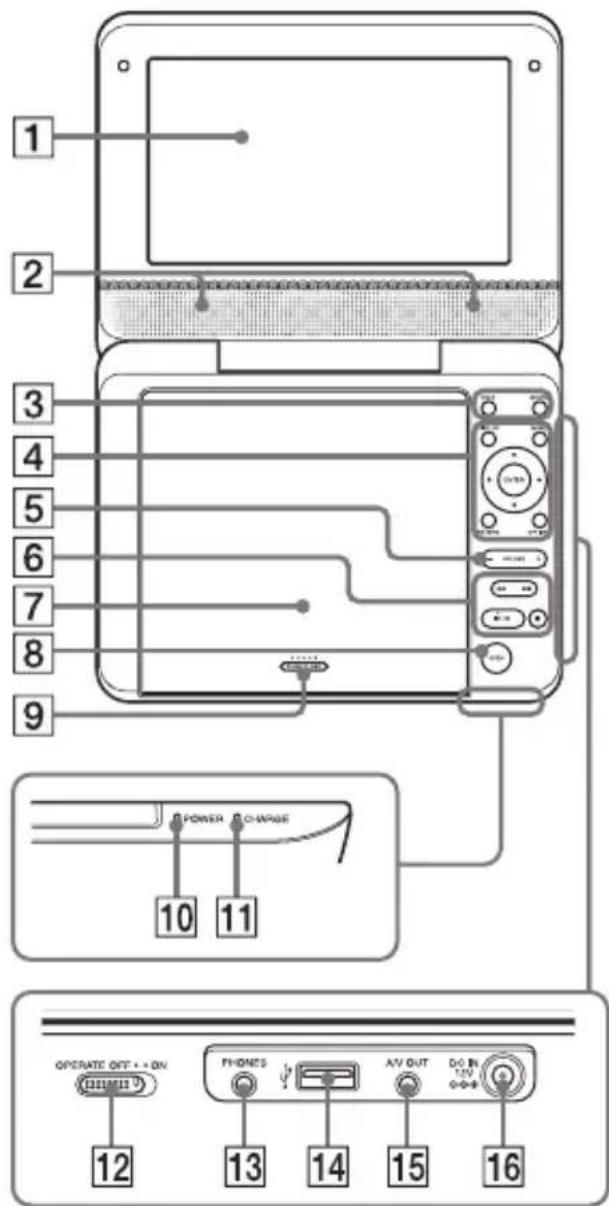

The available functions differ depending

on the disc or the situation.

The VOLUME+ and (play/pause)

buttons have a tactile dot. Use the tactile

dot as a reference when operating the

A LCD panel (page 9)

C HOLD Prevents accidental button operation

when pressed for more than two

All the buttons are locked.

SOUND Switches among 4 different sound

modes each time pressed.

D DISPLAY Displays the playback information and

changes the playback mode (page 10).

MENU Displays the DVD VIDEO’s menu.

When playing a JPEG file, plays a

slideshow (page 11).

Moves the highlight to select a

ENTER Enters the selected item.

RETURN Returns to the previous display.

• Menu/Top Menu: Displays the DVD VIDEO’s menu/top menu.

• Original/Play List: Select the DVD VR’s “Original” or “Play List.”

E VOLUME (sound volume) +/–

Adjusts the volume. ,continued 010COV.book Page 5 Thursday, February 9, 2012 10:52 AMmaster page=Left_2

Skips to the previous/next chapter,

• Fast reverses/fast forwards (m/

M) when pressed for more than

one second during playback. Press

repeatedly to change the speed.

• Slow reverses/slow forwards ( /

) when pressed for more than one

second during pause. Press

repeatedly to change the speed

(play/pause) (page 9)

Starts, pause or re-starts playback.

L OPERATE switch (page 9)

Turns the player on or off.

M PHONES (headphone) jack

N USB jack (type A) (page 12)

Connect a USB device to this jack.

O A/V OUT jack (page 8)

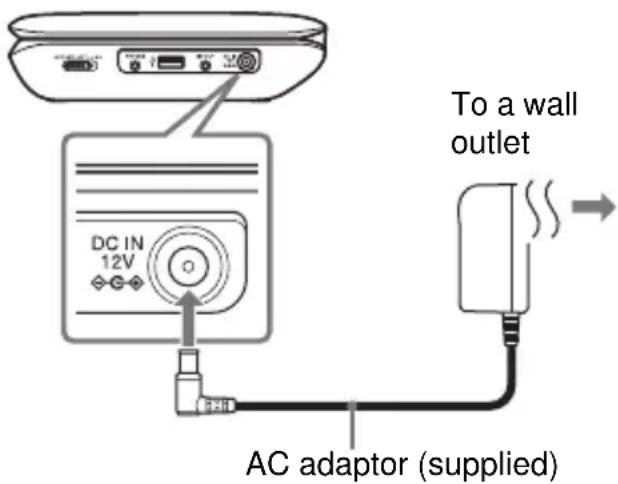

P DC IN 12V jack (page 7, 8)

Connect the AC adaptor or car battery

010COV.book Page 6 Thursday, February 9, 2012 10:52 AMDVP-FX780

Accessories Check that you have the following items:• AC adaptor (1)• Car battery adaptor (1)• Audio/video adaptor (1) Charging the Battery Charge the rechargeable battery before using the player for the first time, or when the battery is depleted. 1 Connect the AC adaptor. The CHARGE indicator lights up while charging. b Charge the battery in an ambient temperature of between 5 °C to 35 °C. Charging time and playing time Charging time: approx. 4 hoursPlaying time: approx. 4 hoursTimes indicated are under the following conditions:•Charging time–moderate temperature (20 °C)– power-off• Playing time–moderate temperature (20 °C)–headphone use–backlight set to minimumDepending on the ambient temperature or rechargeable battery condition, charging time may be longer, or playing time may be reduced. To check the battery level When the player is stopped, the battery indicator is displayed. When the battery is empty, is displayed or the CHARGE indicator flashes.AC adaptor (supplied)To a wall outletFull Empty 010COV.book Page 7 Thursday, February 9, 2012 10:52 AMmaster page=left DVP-FX780

G:\Project_2010_Aug\Feiyu_20111219_FX780-

FX980_EC1\2_target\FX780_EC1\4411681211\4411681211DVPFX780CEK\01GB- DVPFX780CEK\050GET.fm 8

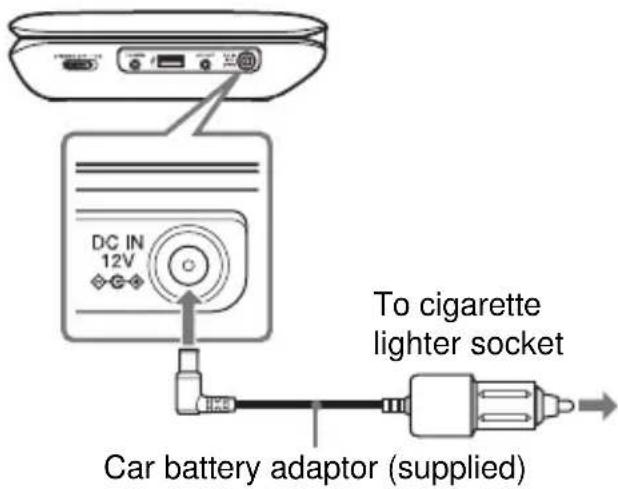

GB Using the Car Battery

Adaptor The car battery adaptor (supplied) is for a 12 V car battery, negative earth (do not use it with a 24 V car battery, positive earth). 1 Connect the car battery adaptor.

After using the player in a car Disconnect the car battery adaptor from a cigarette lighter socket. b • The driver should not connect or disconnect the car battery adaptor while driving.• Arrange the cord so as not to interfere with the driver. Also, do not place the LCD panel where the driver can watch.• Clean the cigarette lighter socket. If it is dirty, it may cause contact failure or malfunction.• Use the car battery adaptor with the car engine running. If it is used with the car engine off, the car battery may become depleted.• Do not leave the player or accessories in the car.

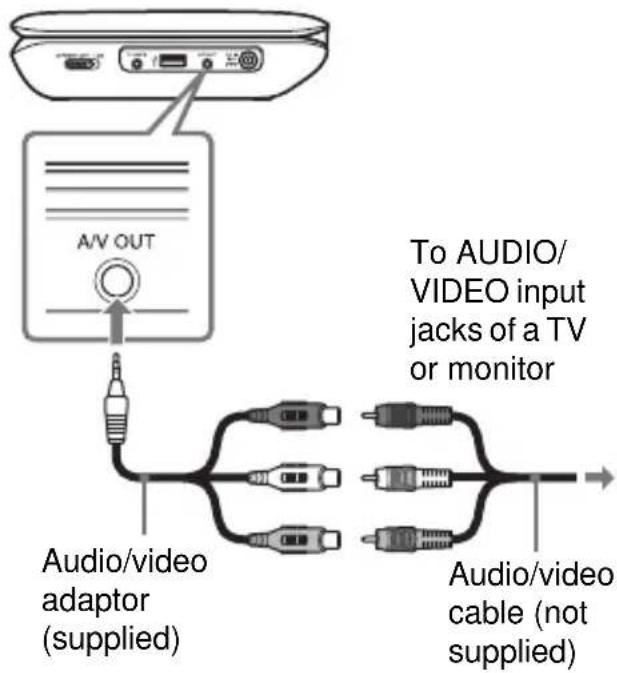

Connecting to a TV You can enjoy images on your TV or monitor. 1 Connect the player to your TV or

monitor using the audio/video

b • Refer to the instructions supplied with the equipment to be connected.• Before connecting, turn off the player.To cigarette lighter socketCar battery adaptor (supplied)To AUDIO/VIDEO input jacks of a TV or monitorAudio/video adaptor (supplied)Audio/video cable (not supplied) 010COV.book Page 8 Thursday, February 9, 2012 10:52 AMDVP-FX780

For playable discs, see “Playable Media” (page 19).Charge the battery in advance or connect the AC adaptor. 1 Open the LCD panel, and turn on

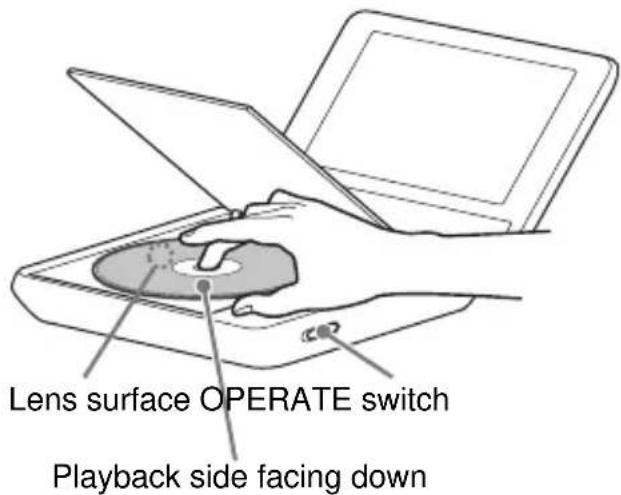

2 Press OPEN to open the disc lid,

and place the disc. Place with the playback side down and push gently until it clicks. Do not touch the lens surface. 3 Close the disc lid, and press

. The player starts playback. Depending on the disc, a menu may appear. Press C/X/x/c to select the item, and press ENTER. Notes on the screen saver • A screen saver image appears when you leave the player in pause or stop mode without operation for more than 15 minutes. The image disappears when you press . For the setup of “Screen Saver,” see page 13.• The player goes to standby, 15 minutes after starting the screen saver function. Press to come out of standby mode. To resume playback from the point

where you stopped the disc (Resume

Play) When you press again after you stop playback, the player starts playback from the point when you pressed x. b • Depending on the stop point, Resume play may not start from exactly the same point.• The resume point is cleared when:– you open the disc lid.– you press OPTIONS and select USB. To play VIDEO CDs with PBC Functions When you start playing a VIDEO CD with PBC (Playback Control) functions, the menu appears. Press C/X/x/c to enter numbers. See steps 2 to 3 of “To enter numbers” (page 10). works for starting playback only. For the setup of “PBC,” see page 14.Lens surface OPERATE switchPlayback side facing down,continued 010COV.book Page 9 Thursday, February 9, 2012 10:52 AMmaster page=left DVP-FX780

You can check the playback information

and change the playback mode.

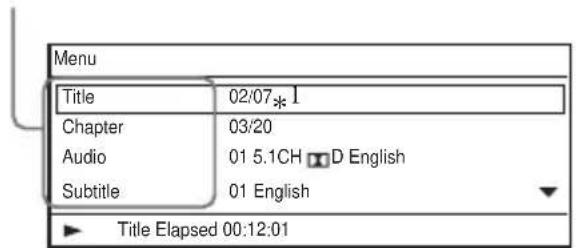

1 Press DISPLAY while playing a

Example: When playing a DVD VIDEO

2 Select and adjust each of the

following items by pressing X/x

1 When a DVD (VR mode) is played, “PL” (playlist) or “ORG” (original) is displayed next to the title number. *

You can also select the number using X/x.

3 Select “SET,” and press ENTER. Select point A and point B by pressing ENTER. b • When a CD or VIDEO CD is played, only the available items are displayed.• Depending on the disc, you may not be able to set some items.• The Repeat setting will be cancelled after Title Search or Chapter Search. To enter numbers

1 Press X/x to select an item, and press

The numeric entry display appears.

2 Select each number by pressing C/c

3 Select “OK,” then press ENTER.

Numeric entry finishes and the display

Title Elapsed 00:12:01 Items *

010COV.book Page 10 Thursday, February 9, 2012 10:52 AMDVP-FX780

GB Playing MP3, JPEG,

and Video Files For playable files, see “Playable Media” (page 19).When you set a DATA media, a list of albums appears. Depending on the disc, playback starts automatically. 1 Press X/x to select the album,

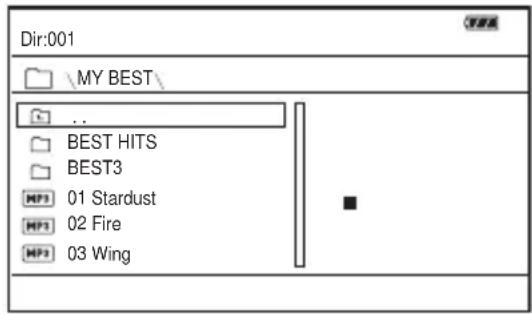

and press ENTER. Example: The list of MP3 files 2 Press X/x to select the file, and

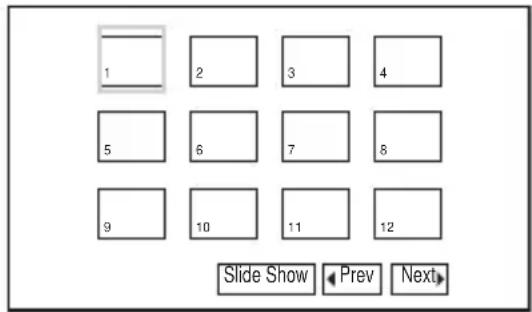

press ENTER. Playback starts from the selected file. Playing JPEG files To rotate a JPEG image Press C/X/x/c while viewing the image file. Rotate every file.C/c: Rotates the image 90 degrees counter clockwise/clockwise.X/x: Reverses the image vertically (up and down)/horizontally (left and right).To display the list of thumbnailsPress MENU.The image files in the album appear in 12 sub-screens.To play a Slide ShowSelect the “Slide Show” at the list of thumbnails, and press ENTER.To exit the list of thumbnailsPress MENU to return to the list of albums. . . MY BESTDir:00101 StardustBEST303 Wing02 FireBEST HITS 1234

010COV.book Page 11 Thursday, February 9, 2012 10:52 AMmaster page=left DVP-FX780

G:\Project_2010_Aug\Feiyu_20111219_FX780-

FX980_EC1\2_target\FX780_EC1\4411681211\4411681211DVPFX780CEK\01GB- DVPFX780CEK\060PLY.fm 12

GB Playing data on a USB device

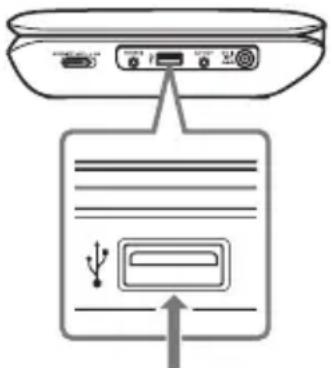

1 Connect a USB device to the USB jack. 2 Press OPTIONS.

3 Press X/x to select “USB” and press ENTER.To disconnect a USB devicePress OPTIONS to select “Disc” and press ENTER, then disconnect the USB device. b • Do not disconnect the USB device while its access indicator is flashing. Doing so may cause data corruption or loss of data.• USB devices which can connect to the player are flash memory and digital still camera. Other devices (USB hub, etc.) cannot be connected. When an unsupported device is connected, an error message appears.• Some USB devices may not work with this player.• The player can recognise Mass Storage Class (MSC) devices that are FAT-compatible.• Set LUN setting on a digital still camera to “Single.” Refer to the instructions supplied with the digital still camera. Adjusting the Picture

You can adjust the picture displayed on the LCD screen. 1 Press OPTIONS.

2 Press X/x to select “LCD Mode” and press ENTER.

3 Select and adjust each of the

following items by pressing C/

X/x/c and ENTER. • LCD Aspect: Change the picture size.• Backlight: Adjust the brightness.• Contrast: Adjust the difference between light and dark areas.• Hue: Adjust the red and green colour balance.• Color: Adjust the richness of colours.• Default: Return all settings to the factory defaults.To turn off the menu displayPress OPTIONS or RETURN. b Depending on the disc, the screen size you can select differs. USB device

010COV.book Page 12 Thursday, February 9, 2012 10:52 AMDVP-FX780

master page=rightG:\Project_2010_Aug\Feiyu_20111219_FX780-

FX980_EC1\2_target\FX780_EC1\4411681211\4411681211DVPFX780CEK\01GB- DVPFX780CEK\070ADV.fmSettings and Adjustments 13

GB Settings and Adjustments Using the Setup Display You can change the settings of the player. The default settings are underlined.Some discs have stored playback settings, which take priority. 1 Press OPTIONS when the player

is in stop mode. During Resume Play, you cannot use the setup display. Press x twice and press OPTIONS. 2 Press X/x to select “Setup,”

3 Press X/x to select the setup

category and press ENTER. : General Setup:Audio Setup: Language Setup: Parental Control 4 Select and adjust each of the

following items by pressing X/x

and ENTER. To turn off the setup displayPress OPTIONS or RETURN. General Setup ◆ TV Display (DVD only)◆ Angle Mark (DVD VIDEO only)Displays the angle mark when you can change the viewing angles during playback of DVDs recorded with multi-angles.Select “On” or “Off.”◆ Screen SaverThe screen saver image appears. For this function, see page 9.Select “On” or “Off.” 4:3 Pan ScanSelect this when you connect a 4:3 screen TV. Automatically displays a wide picture on the entire screen and cuts off the portions that do not fit. 4:3 Letter BoxSelect this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen. 16:9 Select this when you connect a wide-screen TV or a TV with a wide mode function.,continued 010COV.book Page 13 Thursday, February 9, 2012 10:52 AMmaster page=left

◆ PBC (VIDEO CD only)

This function is available for VIDEO CDs

with the PBC (Playback Control) function.

For this function, see page 9.

Each function returns to its original factory

settings. Note that all of your settings will

◆ Audio DRC (DVD only)

Makes low sounds clear when the volume

is turned down when playing a DVD that

conforms to “Audio DRC” (Dynamic

◆ OSD (On-Screen Display)

Switches the language of the sound track.

You can limit playback of a DVD that has

the parental control function.

See steps 2 to 3 of “To enter numbers”

◆ Password (DVD VIDEO only)

Enter or change a password. Set the

password of 4-digit.

To change the password

Select “Password” using X/x and press

ENTER. Select “Change” and press

ENTER. Enter your current password and

If you forget your password

Enter “1369” for the current password.

◆ Parental Control (DVD VIDEO only)

Set the limitation level. The lower the

value, the stricter the limitation.

To set the parental control, you need to set

To set the parental control

Select “Parental Control” using X/x and

press ENTER. Select the limitation level

and press ENTER. Enter your password.

To play a disc for which Parental

Insert the disc and press . The

display for entering your password

appears. Enter your password.

010COV.book Page 14 Thursday, February 9, 2012 10:52 AMDVP-FX780

master page=rightG:\Project_2010_Aug\Feiyu_20111219_FX780-

GB Additional Information

If you experience any of the following

difficulties while using the player, use this

troubleshooting guide to help remedy the

problem before requesting repairs. Should

any problem persist, consult your nearest

The power is not turned on. , Check that the AC adaptor is connected securely (page 7)., Check that the rechargeable battery is sufficiently charged (page 7). The battery cannot be charged or

charging time is long. , If the CHARGE indicator flashes while the AC adaptor is connected, the ambient temperature may not be appropriate. Charge the battery in an ambient temperature of between 5 °C to 35 °C., Charging takes longer if the player is turned on. Before charging, turn off the player., If you have not used the player for more than a year, the battery may have been deteriorated. Consult your nearest Sony dealer. Picture

The black points appear and the red,

blue, green points remain on the LCD. , This is a structural property of the LCD and not malfunction. Sound

There is no sound. , The player is in pause mode or in slow play mode., The player is in fast forward or fast reverse mode. Operation

Nothing happens when buttons are

, Press HOLD for more than two seconds to enable button operation (page 5 ). You can also cancel the HOLD function by turning off the player. The disc does not play. , If the disc is turned over, a “No Disc” or “Cannot play this disc.” message appears. Insert the disc with the playback side facing down (page 9)., The disc is not set until it clicks (page 9)., The disc is dirty or flawed (page 18)., The disc that cannot be played is inserted. Check the region code matches the player, and that the disc has been finalised (page 19)., Parental Control has been set. Change the setting (page 14)., Moisture has condensed inside the player

The disc does not start playing from the

beginning. , Repeat Play (page 10) is selected., Resume play has taken effect (page 9)., The Playlist of the created disc is automatically played. To play original titles, press x twice, and press OPTIONS to select “Original.”,continued 010COV.book Page 15 Thursday, February 9, 2012 10:52 AMmaster page=left

“ ” appears and the player does not

function according to the button.

, Depending on the disc, you may not be

able to perform certain operations. Refer

to the operating instructions supplied

“Copyright Lock” appears and the

screen turns blue when playing a DVD

, When images that contain copy

protection signals are played, a blue

screen and the message may appear

instead of the images (page 19).

The MP3, JPEG, or video file cannot be

, The file format does not conform.

, The extension does not conform.

, The file is damaged.

, The file size is too large.

, When the selected file is not supported,

“Data Error” appears and the file will not

, Because of the compression technology

used for video files, playback may take

The player does not operate properly or

the power does not turn off.

, When static electricity, etc., causes the

player to operate abnormally, set the

OPERATE switch to “OFF” and

disconnect the adaptor and leave for 30

There is no picture or sound on the

connected equipment.

, Re-connect the connecting cable

, The connecting cable is damaged.

, Check the setting of a connected TV or

USB The player does not recognise a USB

device connected to the player.

, Re-connect the USB device securely

, The USB device is damaged.

, Press OPTIONS to select “USB”

010COV.book Page 16 Thursday, February 9, 2012 10:52 AMDVP-FX780

Additional Information

Do not use the monitor unit and

headphones while driving, cycling, or

operating any motorised vehicle. Doing so

may create a traffic hazard and is illegal in

some areas. It can also be potentially

dangerous to play your headsets at high

volume while walking, especially at

pedestrian crossings. You should exercise

extreme caution or discontinue use in

potentially hazardous situations.

Should any solid object or liquid fall into

the cabinet, unplug the player and have it

checked by qualified personnel before

operating it any further.

• If you are not going to use the player for

a long time, be sure to disconnect the

player from the wall outlet. To

disconnect the AC adaptor, grasp the

plug itself; never pull the cord.

• Do not touch the AC adaptor with wet

hands. Doing so may cause shock hazard.

• Do not connect the AC adaptor to a

traveller’s electric transformer, which

may generate heat and cause a

On temperature increases

Heat may build up inside the player during

charging or if it is being used for a long

time. This is not a malfunction.

• Do not place the player in a confined

space such as a bookshelf or similar unit.

• Do not cover the ventilation of the player

with newspapers, tablecloths, curtains,

etc. And do not place the player on a soft

surface, such as a rug.

• Do not place the player and adaptors in a

location near heat sources, or in a place

subject to direct sunlight, excessive dust,

sand, moisture, rain, or mechanical

shock, or in a car with its windows

• Do not place the player in an inclined

position. It is designed to be operated in

a horizontal position only.

• Keep the player and discs away from

equipment with strong magnet, such as

microwave ovens, or large loudspeakers.

• Do not drop or apply strong shock.

Do not place heavy objects on the player

• If the player is brought directly from a

cold to a warm location, or is placed in a

very damp room, moisture may condense

on the lenses inside the player. Should

this occur, the player may not operate

properly. In this case, remove the disc

and leave the player for about half an

hour until the moisture evaporates. Wipe

off moisture attached to the LCD surface

with tissue etc. Turn on the power again

• Keep the lens on the player clean and do

not touch it. Touching the lens may

damage the lens and cause the player to

malfunction. Leave the disc lid closed

except when you insert or remove discs.

• The disc may be still spinning when the

disc lid is opened. Wait until the spinning

stops before removing the disc.

On Liquid Crystal Display

• Although manufactured with high

precision technology, the LCD may

occasionally display dots of various

colours. That is not a malfunction.

• Do not place or drop any object onto the

LCD surface. Also, do not apply pressure

from hands or elbows.

• Do not damage the LCD surface with a

sharp edged tool. ,continued 010COV.book Page 17 Thursday, February 9, 2012 10:52 AMmaster page=left

GB On rechargeable battery

• Because of the battery’s limited life, its

capacity gradually deteriorates over time

and repeated use. Exchange an old one

with a new one when the battery holds

about only half the normal period.

• To prevent battery deterioration, charge

the battery at least once every half a year

• Certain countries may regulate disposal

of the battery used to power this product.

Please consult with your local authority.

On AC adaptor and car battery adaptor

• Use the supplied adaptors for the player,

as other adaptors may cause a

• Do not disassemble or reverse-engineer.

• Do not touch the metal parts, as it may

cause a short and damage the adaptors,

especially if touched by other metal

Do not turn up the volume while listening

to a section with very low level inputs or

no audio signals. If you do, the speakers

may be damaged when a peak level section

• Preventing hearing damage: Avoid using

headphones at high volumes. Hearing

experts advice against continuous, loud,

and extended play. If you experience a

ringing in your ears, reduce the volume

• Showing consideration for others: Keep

the volume at a moderate level. This will

allow you to hear outside sounds and still

be considerate to the people around you.

• Clean the cabinet, panel, and controls

with a soft cloth slightly moistened with

a mild detergent solution. Do not use any

type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

• Wipe the LCD surface with the soft dry

cloth lightly. To prevent dirt buildup,

wipe it frequently. Do not wipe the LCD

surface with a wet cloth. If water enters,

a malfunction may result.

• If picture/sound is distorted, the lens may

be covered with dust. In this case, use a

commercially-available blower brush for

camera lenses to clean the lens.

Avoid touching the lens directly during

cleaning. Do not use cleaning discs or

Notes About the Discs

• To keep the disc clean, handle the disc by

its edge. Do not touch the surface.

• Do not use the following discs:

– A disc that has a non-standard shape

(e.g., card, heart).

– A disc with a label or sticker on it.

– A disc that has cellophane tape or

sticker adhesive on it.

010COV.book Page 18 Thursday, February 9, 2012 10:52 AMDVP-FX780

Additional Information

Some recordable media cannot be played on the

player due to the recording quality or physical

condition of the media, or the characteristics of

the recording device and authoring software.

The disc will not play if it has not been

correctly finalised. For more information, refer

to the operating instructions for the recording

Images with CPRM (Content Protection for

Recordable Media) protection may not be

played. “Copyright Lock” appears.

DATA CDs must be recorded according to

ISO 9660 Level 1, or its extended format,

DATA DVDs must be recorded according to

Playable file format

• To play a complex hierarchy of folders may

take some time. Create albums as follows:

– The number of hierarchies in the media

should be no more than two.

– The number of albums in the media should

– The number of files in one album should be

– The total number of albums and files in the

media should be 600 or less.

• The player plays the files in an album in the

order the media was recorded.

• The player will play any file in the above table,

even if the file format differs. Playing such

data may generate noise that can result in

• Some DATA discs created in Packet Write

format cannot be played.

• Some DATA discs created in multiple sessions

may not be playable.

• Some JPEG files cannot be played.

• The player cannot play the JPEG file that is

larger than 3264 (width) x 2448 (height) in

normal mode, or larger than 2000 (width) x

1200 (height) in progressive JPEG.

• Some video files cannot be played.

• The player cannot play a video file of size

more than 720 (width) × 576 (height)/2 GB.

• The player may not play certain video files that

are longer than 3 hours.

Icon Characteristics

• VIDEO CDs (including

Xvid “.avi” ,continued 010COV.book Page 19 Thursday, February 9, 2012 10:52 AMmaster page=left DVP-FX780

G:\Project_2010_Aug\Feiyu_20111219_FX780-

GB • The player supports MP3 or AAC audio format for MPEG-4 video files.• The player supports only MP3 audio format for Xvid video files.• The player may not play the high bit rate video file on the DATA CD smoothly. It is recommended to play the high bit rate video file using the DATA DVD.• The player can display a file or album name up to 14 characters. Special character appears as “

.” • The player can display only the currently playing album name. Any album located on the upper layer is displayed as “\..\.”• Playback information of some files may not be displayed correctly. Notes on commercial discs

It is the system that is used to protect

copyrights. The region code is shown on

the DVD VIDEO packages according to

the region of sale. DVD VIDEOs labelled

“ALL” or “2” will play on the player.

DVD and VIDEO CD playback operations

Some playback operations of DVDs and

VIDEO CDs may be intentionally set by

software producers. Since the player plays

DVDs and VIDEO CDs according to the

disc contents the software producers

designed, some playback features may not

be available. Also, refer to the instructions

supplied with the DVDs and VIDEO CDs.

This product is designed to playback discs

that conform to the Compact Disc (CD)

DualDiscs and some music discs encoded

with copyright protection technologies do

not conform to the Compact Disc (CD)

standard. Therefore, these discs may not be

compatible with this product.

System Laser: Semiconductor laserSignal format system: PAL (NTSC) Inputs/Outputs A/V OUT (audio/video output): MinijackPHONES (headphones):Stereo minijackUSB: USB jack Type A (For connecting USB memory) Liquid Crystal Display Panel size (approx.): 18 cm/7 inches wide (diagonal)Driving system: TFT active matrix Resolution: 480 × 234

General Power requirements:DC 12 V 0.95 A (AC Adaptor)DC 12 V 1.5 A (Car battery adaptor)Power consumption (DVD VIDEO Playback):6 W (when used with a headphone) Dimensions (approx.): 200 × 42.5 × 155 mm (width/height/depth) incl. projecting partsMass (approx.): 775 g Operating temperature: 5 °C to 35 °C Operating humidity: 25% to 80% AC Adaptor: 110-240 V AC, 50/60 Hz Car Battery Adaptor: 12 V DC Supplied accessories See page 7.Specifications and design are subject to change without notice. ALL

010COV.book Page 20 Thursday, February 9, 2012 10:52 AMDVP-FX780

Additional Information

Charging time and playing time

010COV.book Page 21 Thursday, February 9, 2012 10:52 AMmaster page=left

010COV.book Page 2 Thursday, February 9, 2012 11:34 AMDVP-FX780

010COV.book Page 4 Thursday, February 9, 2012 11:34 AMDVP-FX780

D DISPLAY (afficher)

(lecture/pause) (page 9)

010COV.book Page 6 Thursday, February 9, 2012 11:34 AMDVP-FX780

010COV.book Page 10 Thursday, February 9, 2012 11:34 AMDVP-FX780

010COV.book Page 11 Thursday, February 9, 2012 11:34 AMmaster page=gauche DVP-FX780

010COV.book Page 12 Thursday, February 9, 2012 11:34 AMDVP-FX780

010COV.book Page 14 Thursday, February 9, 2012 11:34 AMDVP-FX780

010COV.book Page 16 Thursday, February 9, 2012 11:34 AMDVP-FX780

010COV.book Page 18 Thursday, February 9, 2012 11:34 AMDVP-FX780

010COV.book Page 20 Thursday, February 9, 2012 11:34 AMDVP-FX780

010COV.book Page 22 Thursday, February 9, 2012 11:34 AMmaster page=BLANK_L DVP-FX780

010COV.book Page 22 Thursday, February 9, 2012 10:52 AMmaster page=left

(CLASS 1 LASER PRODUCT)

010COV.book Page 2 Thursday, February 9, 2012 11:42 AMDVP-FX780

010COV.book Page 4 Thursday, February 9, 2012 11:42 AMDVP-FX780

010COV.book Page 6 Thursday, February 9, 2012 11:42 AMDVP-FX780

010COV.book Page 10 Thursday, February 9, 2012 11:42 AMDVP-FX780

010COV.book Page 11 Thursday, February 9, 2012 11:42 AMmaster page=left DVP-FX780

010COV.book Page 12 Thursday, February 9, 2012 11:42 AMDVP-FX780

010COV.book Page 14 Thursday, February 9, 2012 11:42 AMDVP-FX780

010COV.book Page 16 Thursday, February 9, 2012 11:42 AMDVP-FX780

010COV.book Page 18 Thursday, February 9, 2012 11:42 AMDVP-FX780

010COV.book Page 19 Thursday, February 9, 2012 11:42 AMmaster page=left

010COV.book Page 20 Thursday, February 9, 2012 11:42 AMDVP-FX780

010COV.book Page 21 Thursday, February 9, 2012 11:42 AMmaster page=left

010COV.book Page 22 Thursday, February 9, 2012 11:42 AMDVP-FX780

010COV.book Page 23 Thursday, February 9, 2012 11:42 AMmaster page=left

010COV.book Page 2 Thursday, February 9, 2012 11:58 AMDVP-FX780

010COV.book Page 4 Thursday, February 9, 2012 11:58 AMDVP-FX780

010COV.book Page 6 Thursday, February 9, 2012 11:58 AMDVP-FX780

010COV.book Page 10 Thursday, February 9, 2012 11:58 AMDVP-FX780

010COV.book Page 11 Thursday, February 9, 2012 11:58 AMmaster page=left DVP-FX780

010COV.book Page 12 Thursday, February 9, 2012 11:58 AMDVP-FX780

010COV.book Page 14 Thursday, February 9, 2012 11:58 AMDVP-FX780

010COV.book Page 16 Thursday, February 9, 2012 11:58 AMDVP-FX780

010COV.book Page 18 Thursday, February 9, 2012 11:58 AMDVP-FX780

010COV.book Page 20 Thursday, February 9, 2012 11:58 AMDVP-FX780

010COV.book Page 21 Thursday, February 9, 2012 11:58 AMmaster page=left

010COV.book Page 22 Thursday, February 9, 2012 11:58 AMDVP-FX780

010COV.book Page 23 Thursday, February 9, 2012 10:52 AMmaster page=left

CLASS 1 LASER PRODUCT si

010COV.book Page 2 Thursday, February 9, 2012 1:12 PMDVP-FX780

010COV.book Page 4 Thursday, February 9, 2012 1:12 PMDVP-FX780

DVD VR. ,segue 010COV.book Page 5 Thursday, February 9, 2012 1:12 PMmaster page=Left_2

010COV.book Page 6 Thursday, February 9, 2012 1:12 PMDVP-FX780

010COV.book Page 10 Thursday, February 9, 2012 1:12 PMDVP-FX780

010COV.book Page 11 Thursday, February 9, 2012 1:12 PMmaster page=left DVP-FX780

010COV.book Page 12 Thursday, February 9, 2012 1:12 PMDVP-FX780

conforme a “Audio DRC” (Dynamic

◆ OSD (On-Screen Display)

010COV.book Page 14 Thursday, February 9, 2012 1:12 PMDVP-FX780

010COV.book Page 16 Thursday, February 9, 2012 1:12 PMDVP-FX780

010COV.book Page 18 Thursday, February 9, 2012 1:12 PMDVP-FX780

010COV.book Page 20 Thursday, February 9, 2012 1:12 PMDVP-FX780

010COV.book Page 21 Thursday, February 9, 2012 1:12 PMmaster page=left

010COV.book Page 22 Thursday, February 9, 2012 1:12 PMmaster page=BLANK_L DVP-FX780

010COV.book Page 23 Thursday, February 9, 2012 11:58 AMmaster page=left

CLASS 1 LASER PRODUCT

010COV.book Page 2 Thursday, February 9, 2012 1:21 PMDVP-FX780

010COV.book Page 4 Thursday, February 9, 2012 1:21 PMDVP-FX780

010COV.book Page 6 Thursday, February 9, 2012 1:21 PMDVP-FX780

Title Elapsed 00:12:01 Items *

010COV.book Page 10 Thursday, February 9, 2012 1:21 PMDVP-FX780

010COV.book Page 11 Thursday, February 9, 2012 1:21 PMmaster page=left DVP-FX780

010COV.book Page 12 Thursday, February 9, 2012 1:21 PMDVP-FX780

Audio Setup (Geluid set-up)

” (Aan) of “Off” (Uit).

Language Setup (Taal set-up)

◆ OSD (On-Screen Display)

Schakelt tussen de weergavetaal op het

010COV.book Page 14 Thursday, February 9, 2012 1:21 PMDVP-FX780

010COV.book Page 16 Thursday, February 9, 2012 1:21 PMDVP-FX780

• Niet demonteren of reverse-engineering.

010COV.book Page 18 Thursday, February 9, 2012 1:21 PMDVP-FX780

DVD-R DL's in VR (Video

010COV.book Page 20 Thursday, February 9, 2012 1:21 PMDVP-FX780

Laser: Semigeleider laser

010COV.book Page 21 Thursday, February 9, 2012 1:21 PMmaster page=left

010COV.book Page 22 Thursday, February 9, 2012 1:21 PMDVP-FX780

010COV.book Page 24 Thursday, February 9, 2012 11:58 AMmaster page=left

Sony Corporation Printed in China

To find out useful hints, tips and information about

Sony products and services please visit:

Pour découvrir des conseils, des tuyaux et des

010COV.book Page 24 Thursday, February 9, 2012 10:52 AM
