USER MANUAL DVPFX740DTB SONY

GB WARNING To reduce the risk of fire or

electric shock, do not

expose this apparatus to

To avoid electrical shock,

do not open the cabinet.

Refer servicing to qualified

The mains lead must be

changed only at a qualified

Batteries or batteries

installed apparatus shall

excessive heat such as

sunshine, fire or the like.

This label is located on the

This appliance is classified as a

CLASS 1 LASER product. The

CLASS 1 LASER PRODUCT MARKING is located on the

• The use of optical instruments

with this product will increase

eye hazard. As the laser beam

used in this CD/DVD player is

harmful to eyes, do not attempt

to disassemble the cabinet.

Refer servicing to qualified

• Danger of explosion if battery

is incorrectly replaced. Replace

only with the same or

Disposal of Old Electrical &

Electronic Equipment

(Applicable in the European

Union and other European

countries with separate collection

This symbol on the product or on

its packaging indicates that this

product shall not be treated as

household waste. Instead it shall

be handed over to the applicable

collection point for the recycling

of electrical and electronic

equipment. By ensuring this

product is disposed of correctly,

you will help prevent potential

negative consequences for the

environment and human health,

which could otherwise be caused

by inappropriate waste handling

of this product. The recycling of

materials will help to conserve

natural resources. For more

detailed information about

recycling of this product, please

contact your local Civic Office,

your household waste disposal

service or the shop where you

purchased the product.

Disposal of waste batteries

(applicable in the European

Union and other European

countries with separate collection

This symbol on the battery or on

the packaging indicates that the

battery provided with this

product shall not be treated as

On certain batteries this symbol

might be used in combination

with a chemical symbol. The

chemical symbols for mercury

(Hg) or lead (Pb) are added if the

battery contains more than

0.0005% mercury or 0.004%

By ensuring these batteries are

disposed of correctly, you will

help prevent potentially negative

consequences for the

environment and human health

which could otherwise be caused

by inappropriate waste handling

of the battery. The recycling of

the materials will help to

conserve natural resources.

In case of products that for

safety, performance or data

integrity reasons require a

permanent connection with an

incorporated battery, this battery

should be replaced by qualified

To ensure that the battery will be

treated properly, hand over the

product at end-of-life to the

applicable collection point for the

recycling of electrical and

electronic equipment.

For all other batteries, please

view the section on how to

remove the battery from the

product safely. Hand the battery

over to the applicable collection

point for the recycling of waste

For more detailed information

about recycling of this product or

battery, please contact your local

Civic Office, your household

waste disposal service or the

shop where you purchased the

Do not take apart or remodel the

player. Doing so can result in

electric shock. Consult your

nearest Sony dealer or Sony

Service Center for exchange of

rechargeable batteries, internal

01US01COV.book Page 2 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT

master page=rightE:\DTP\20090811\FM\GB\01US01WAR-CEK.fm

GB GB Precautions • Install this system so that the mains lead can be unplugged from the wall socket immediately in the event of trouble.• The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.• Excessive sound pressure from earphones and headphones can cause hearing loss.The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.If you have any questions or problems concerning your player, please consult your nearest Sony dealer. Copyrights, licencing and

trademarks • This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.• Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.• “DVD+RW,” “DVD-RW,” “DVD+R,” “DVD+R DL,” “DVD-R,” “DVD VIDEO,” and “CD” logos are trademarks.• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.• DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under licence.• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR DECODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM About this manual • In this manual, “disc” is used as a general reference for the DVDs or CDs unless otherwise specified by the text or illustrations.• Icons, such as , listed at the top of each explanation indicate what kind of media can be used with the function being explained.For details, see “Playable Media” (page 33).• NEED-to-know information (to prevent incorrect operation) is listed under the b icon. NICE-to-know information (tips and other useful information) is listed under the z icon.

IMPORTANT NOTICE Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this. 01US01COV.book Page 3 Tuesday, August 11, 2009 6:19 PMmaster page=left

GB Table of Contents

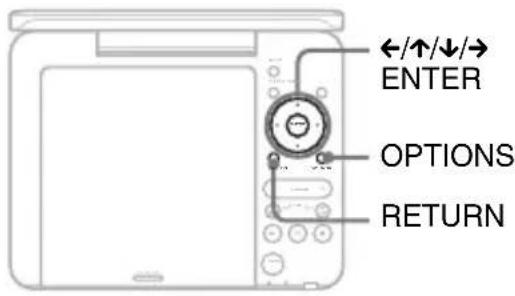

Adjusting the Picture Size and Quality

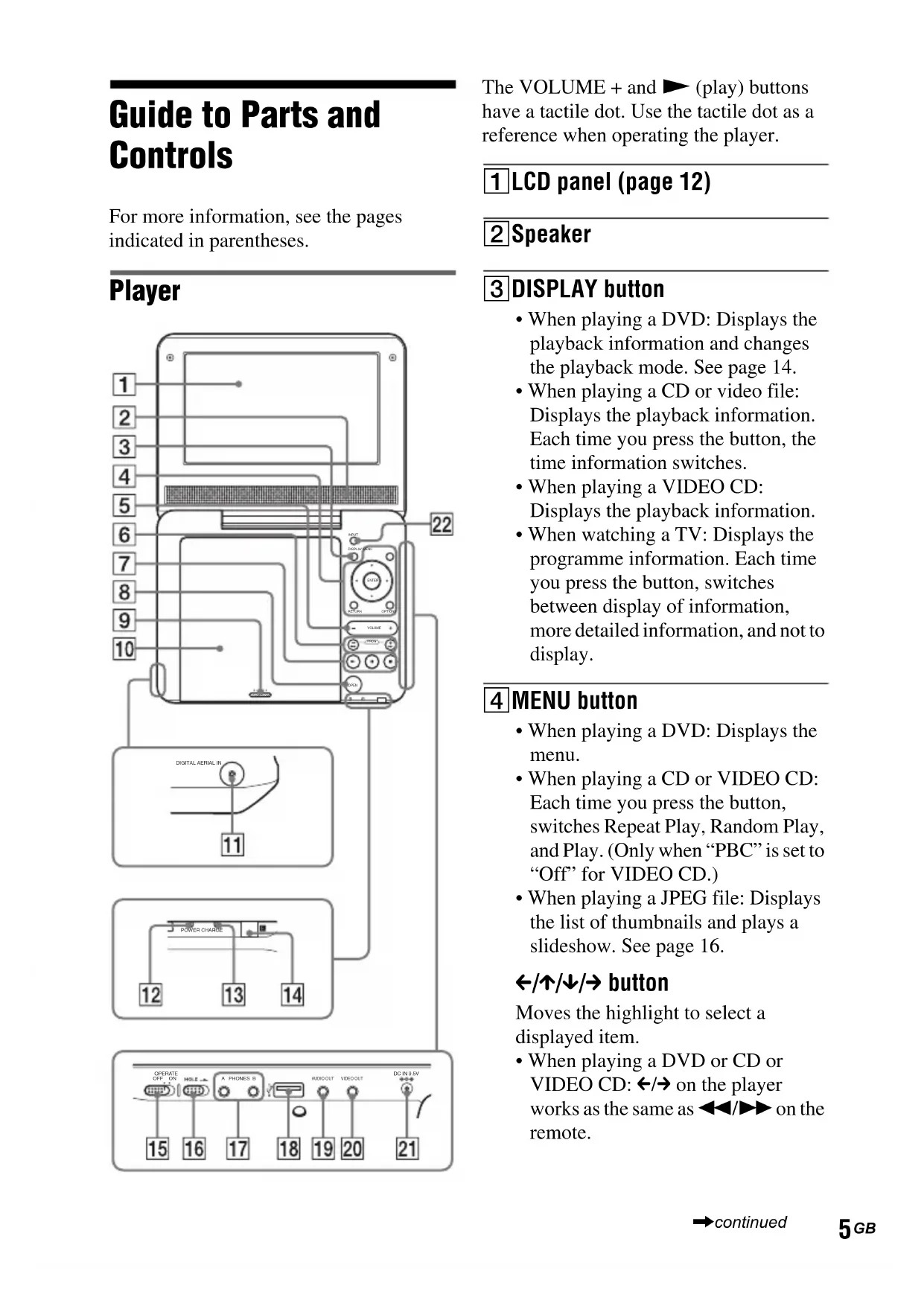

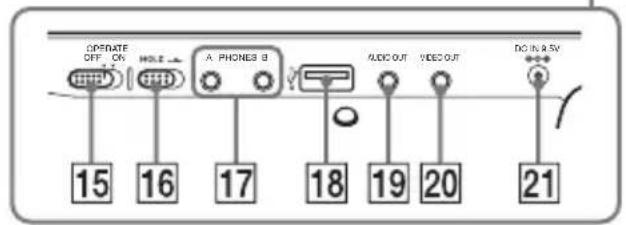

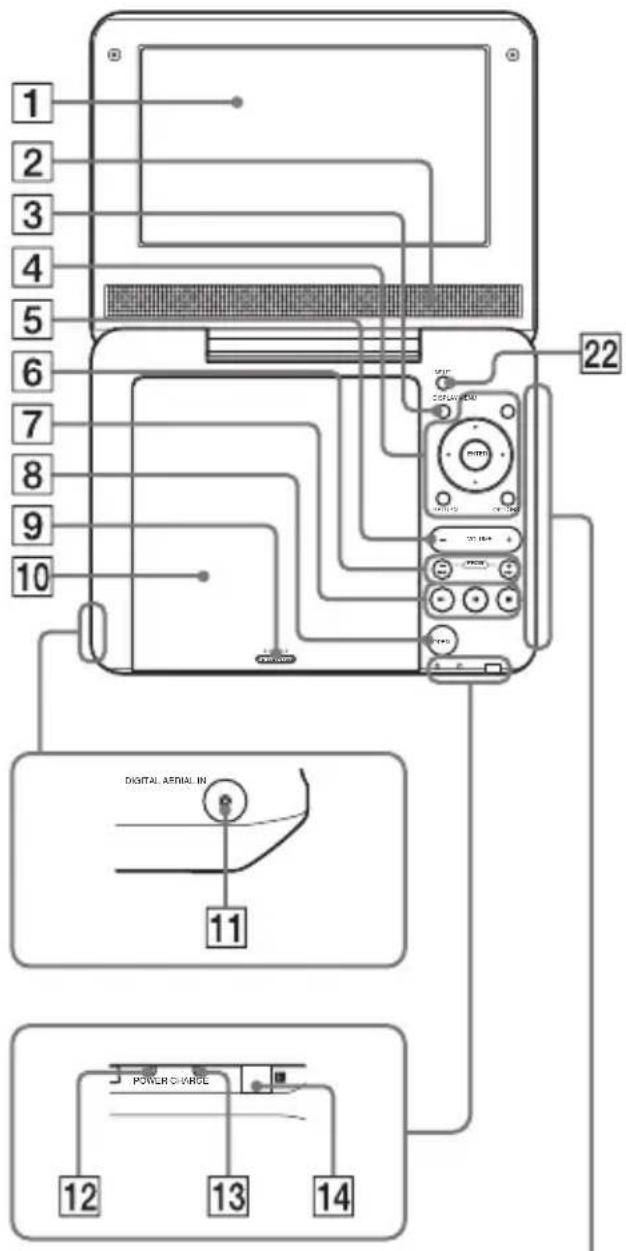

GB Guide to Parts and

For more information, see the pages

indicated in parentheses.

The VOLUME + and N (play) buttons

have a tactile dot. Use the tactile dot as a

reference when operating the player.

A LCD panel (page 12)

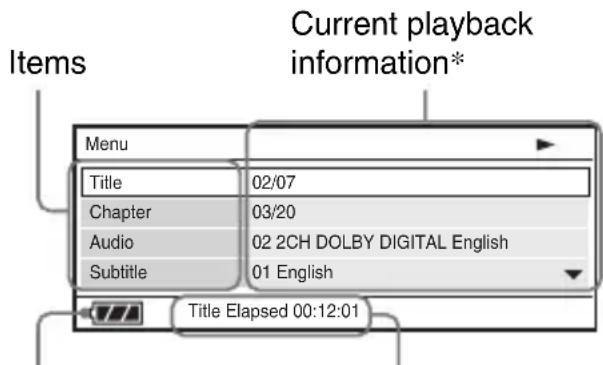

• When playing a DVD: Displays the

playback information and changes

the playback mode. See page 14.

• When playing a CD or video file:

Displays the playback information.

Each time you press the button, the

time information switches.

• When playing a VIDEO CD:

Displays the playback information.

• When watching a TV: Displays the

programme information. Each time

you press the button, switches

between display of information,

more detailed information, and not to

• When playing a DVD: Displays the

• When playing a CD or VIDEO CD:

Each time you press the button,

switches Repeat Play, Random Play,

and Play. (Only when “PBC” is set to

“Off” for VIDEO CD.)

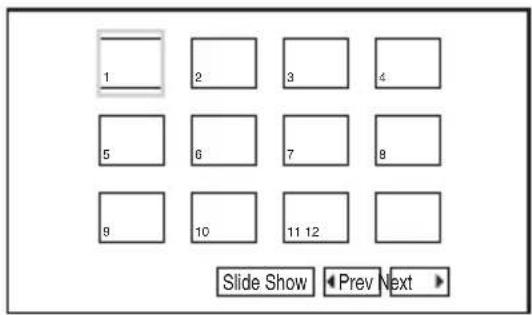

• When playing a JPEG file: Displays

the list of thumbnails and plays a

slideshow. See page 16.

Moves the highlight to select a

• When playing a DVD or CD or

VIDEO CD: C/c on the player

works as the same as m/M on the

POWER CHARGEINPUTDISPLAY MENURETURN OPEN PUSH CLOSEOPTIONSENTERVOLUME PROG DIGITAL AERIAL IN DC IN 9.5V VIDEO OUTAUDIO OUT A PHONES B OPERATE ONOFF

01US01COV.book Page 5 Tuesday, August 11, 2009 6:19 PMmaster page=left

Enters the selected item.

• When playing a DVD or CD or

VIDEO CD: ENTER on the player

works as the same as N.

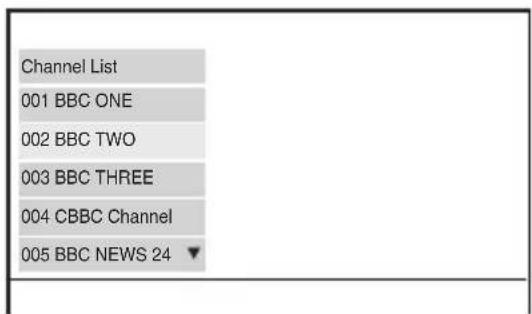

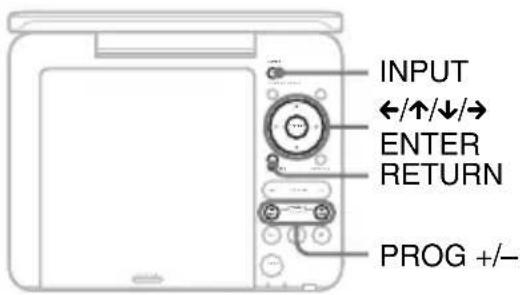

• When watching a TV: Displays the

Channel List. See page 19.

Returns to the previous display.

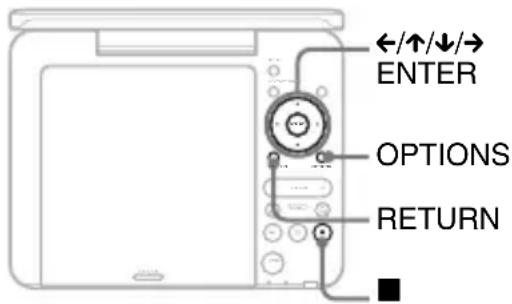

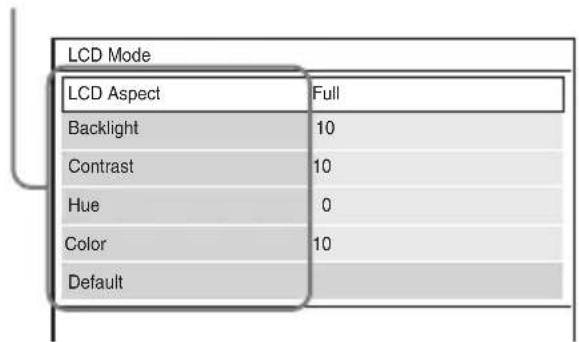

Displays the menu for adjusting the

LCD screen (page 17) and using the

setup display (page 20, 23).

E VOLUME (sound volume) +/–

F . (previous)/PROG – button

Skips to the beginning of the current

chapter/track/scene.

To go to the beginning of the previous

chapter/track/scene, press twice.

• When watching a TV: Selects a

channel you want to watch.

> (next)/PROG + button

Skips to the next chapter/track/scene.

• When watching a TV: Selects a

channel you want to watch.

G N (play) button (page 12)

Starts or re-starts playback.

X (pause) button (page 12)

Pauses or re-starts playback.

When operating by the remote, point it

at the remote sensor .

O OPERATE switch (page 12)

Turns the player on or off.

To avoid accidental button operation

of the player, set the HOLD switch to

the direction of the arrow.

All the buttons on the player are

locked, while the buttons on the

remote remain operable.

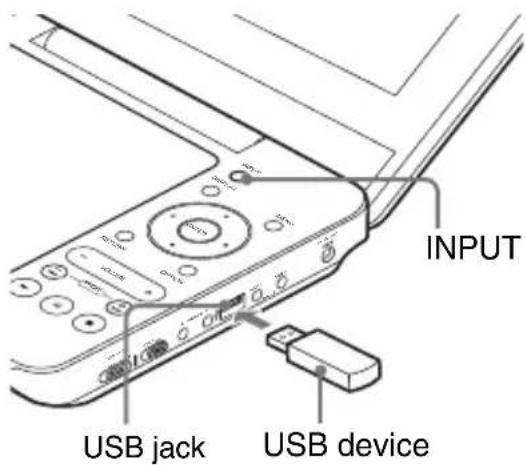

Q PHONES (headphone) jack A, B R USB jack (type A) (page 16)

Connect a USB device to this jack.

T VIDEO OUT jack (page 11)

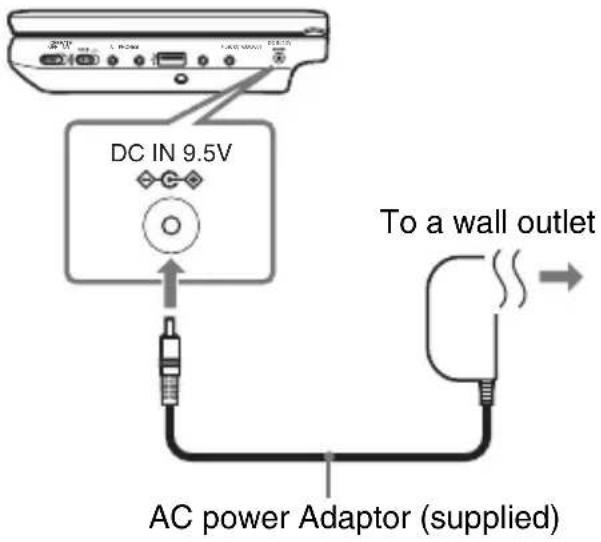

Connect the AC power adaptor or car

01US01COV.book Page 6 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT

the button. Select a mode by pressing

• “Disc” mode (default): When

playing an inserted disc.

• “USB” mode: When playing DATA

files on a connected USB device.

• “TV” mode: When watching a TV.

The number 5, N and AUDIO buttons

have a tactile dot. Use the tactile dot as a

reference when operating the player.

W Colour buttons (red/green/

Activates the function indicated in the

same colour on the screen.

Enters the title/chapter numbers, etc.

• When playing a DVD VIDEO or CD

or VIDEO CD: Search directly by

entering the title/chapter/track

number using the number buttons,

and press ENTER. (Only when

“PBC” is set to “Off” for VIDEO CD.)

To switch a title or chapter, press

• When watching a TV: Selects a

Clears the entry field.

Displays the top menu.

• When playing a DVD VR: Switches

between “Original” and “Play List”

on the disc created Playlist. During

playback, you cannot switch. Press

x twice, and press TOP MENU.

Z . PREV/> NEXT buttons

Skips to the previous/next chapter, etc.

wj m/M (scan/slow) buttons

Fast reverses/ fast forwards when

pressed during playback.

Press repeatedly to change the speed.

• When playing a DVD: Slow

reverses/ slow forwards when

pressed during pause. Press

repeatedly to change the speed.

• When playing a VIDEO CD or video

file: Slow forwards when pressed

during pause. Press repeatedly to

9 ,continued 01US01COV.book Page 7 Tuesday, August 11, 2009 6:19 PMmaster page=left

Briefly fast forwards the current scene

wl PROG (programme) +/– buttons

Selects a TV channel.

• When playing a DVD VIDEO: Each

time you press the button, the

language of the sound track

switches. Depending on the disc, the

choice of language varies.

• When playing a DVD VR: Each time

you press the button, the type of

sound tracks recorded on a disc

switches between main, sub and

• When playing a CD or VIDEO CD:

Each time you press the button, the

mode switches between stereo and

monaural (left/right).

• When playing a DivX video file:

Each time you press the button, the

audio signal switches. If “No Audio”

appears, the player does not support

• When watching a TV: Each time you

press the button, the audio selecting

screen appears or disappears. Press

C/c to switch between stereo and

monaural. Press X/x to select a

• When playing a DVD: Each time

you press the button, the subtitle

switches. Depending on the disc, the

choice of language varies.

• When playing a DivX video file:

Press the button during playback.

Press X/x and ENTER while

displaying subtitle information.

• When watching a TV: Each time you

press the button, the subtitle

selecting screen appears or

disappears. Press C/c to display or

not to display the subtitle. Press X/x

to select a subtitle language.

• When playing a DVD VIDEO:

Changes the angle. When “ ”

(Angle Mark) appears, you can

change angles. Depending on the

disc, you may not be able to change

• When watching a TV: Each time you

press the button, add or delete the

current channel on the Favourite List

Toggles between TV and radio

channels with each press.

This button function is not available in

Displays the Teletext screen.

This button function is not available in

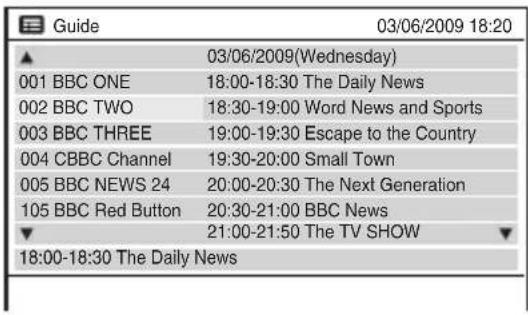

Displays the EPG (Electronic

Accessories Check that you have the following items:• AC power adaptor (1)• Car battery adaptor (1) • Audio/video cord (mini plug × 2 y phono plug × 3) (1)• Remote (with battery) (1)• Aerial (1) To replace the remote battery When the battery becomes depleted, operation is not possible. Change the battery. 1 Prepare a new battery (lithium battery CR2025). 2 Pull out the battery holder (2) while pressing the lock lever (1). 3 Remove the old battery.

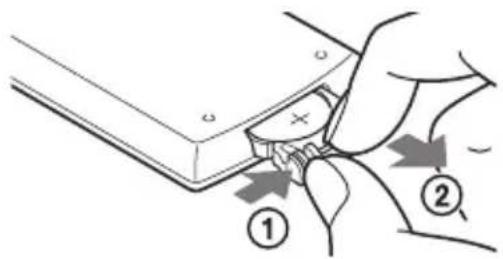

4 Insert the new battery in the battery holder with the 3 side up and then push the holder until it clicks. Charging the

Rechargeable Battery Charge the rechargeable battery before using the player for the first time, or when the battery is depleted. 1 Connect the AC power adaptor. When charging begins, the CHARGE indicator lights up in orange.When charging ends, the CHARGE indicator lights off.Disconnect the AC power adaptor. z If the POWER indicator lights up instead of the CHARGE indicator, the OPERATE switch is set to “ON.” Set the OPERATE switch to “OFF,” and make sure that the CHARGE indicator lights up.

Charge the battery in an ambient temperature of between 5°C to 35°C.DC IN 9.5VVIDEO OUTAUDIO OUT A PHONES B OPERATE ONOFF DC IN 9.5V AC power Adaptor (supplied)To a wall outlet ,continued

01US01COV.book Page 9 Tuesday, August 11, 2009 6:19 PMmaster page=leftDVP-FX740DT 4-126-491-11(1) E:\DTP\20090811\FM\GB\01US04GET-CEK.fm 10

GB Charging time and playing time Charging time: approx. 5 hoursPlaying time: approx. 5 hoursTimes indicated are under the following conditions:– Moderate temperature (20°C)– Headphone use– Backlight set to minimumDepending on the ambient temperature or rechargeable battery condition, charging time may be longer, or playing time may be reduced. To check the battery level When the player is stopped, the battery indicator is displayed. When the battery is empty, is displayed or the CHARGE indicator flashes. Set the OPERATE switch to “OFF,” connect the AC power adaptor, and recharge the battery. Using the Car Battery

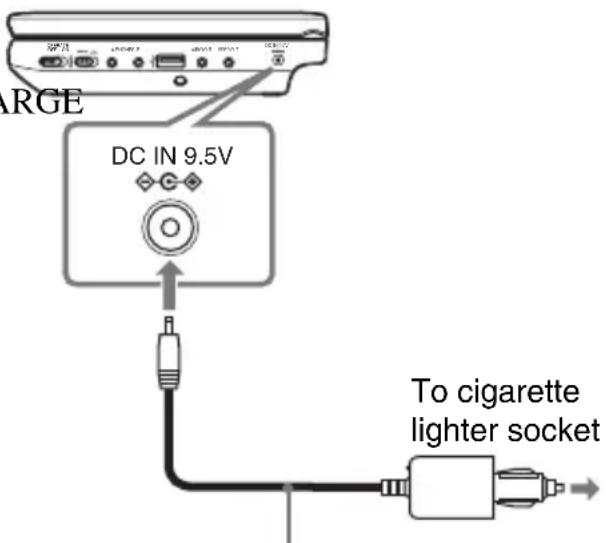

Adaptor The car battery adaptor (supplied) is for a 12V car battery, negative earth (do not use it with a 24V car battery, positive earth). 1 Start the engine.

2 Connect the car battery adaptor.

3 Turn on the player.

b • The driver should not connect or disconnect the car battery adaptor while driving.• Arrange the cord so as not to interfere with the driver. Also, do not place the LCD panel where the driver can watch.• Clean the cigarette lighter socket. If it is dirty, it may cause contact failure or malfunction.• Use the car battery adaptor with the car engine running. If it is used with the car engine off, the car battery may become depleted.Full Empty

DC IN 9.5V VIDEO OUTAUDIO OUT A PHONES BONOFF OPERATE DC IN 9.5V To cigarette lighter socketCar battery adaptor (supplied) 01US01COV.book Page 10 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT 4-126-491-11(1)

master page=rightE:\DTP\20090811\FM\GB\01US04GET-CEK.fm Preparations 11

GB After using the player in a car

1 Turn off the player.

2 Disconnect the car battery adaptor.

3 Turn off the engine.

b • Do not disconnect the car battery adaptor or turn off the car engine before you turn off the player. Doing so may damage the player.• Disconnect the car battery adaptor after use. If it is left connected, the car battery may become depleted.• Do not leave the player or accessories in the car.

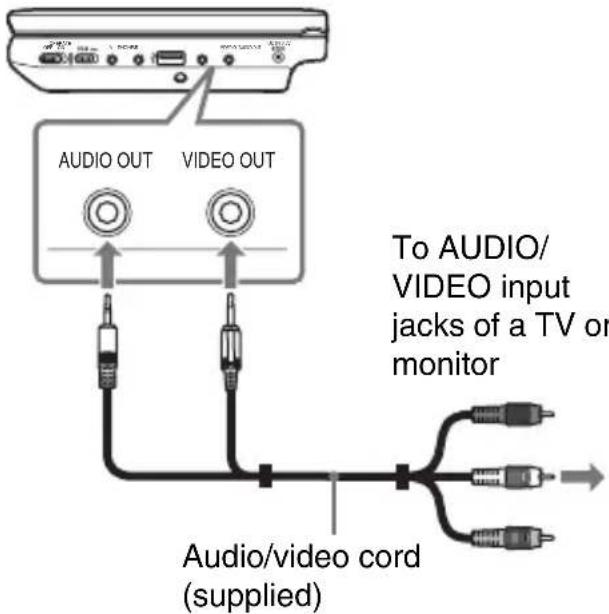

Connecting to a TV By connecting the player to your TV or monitor, you can increase your viewing options. 1 Connect the player to your TV or

monitor using the audio/video

z The player can connect to an AV amplifier in the same way as a TV. Although connecting is the same as a TV, the yellow plug of the audio/video cord is not used. b

• Refer to the instructions supplied with the equipment to be connected.• Before connecting, turn off the player and the equipment to be connected, then unplug from their wall sockets.DC IN 9.5VVIDEO OUTAUDIO OUT A PHONES B OPERATE ONOFF VIDEO OUTAUDIO OUT To AUDIO/VIDEO input jacks of a TV or monitorAudio/video cord (supplied) 01US01COV.book Page 11 Tuesday, August 11, 2009 6:19 PMmaster page=leftDVP-FX740DT 4-126-491-11(1) E:\DTP\20090811\FM\GB\01US05PLY1-CEK.fm 12

Depending on the disc, some operations may be different or restricted. Refer to the operating instructions supplied with the disc.Connect the AC power adaptor. 1 Open the LCD panel.

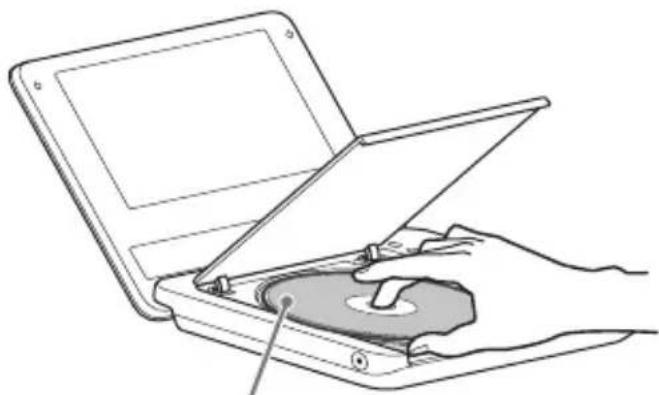

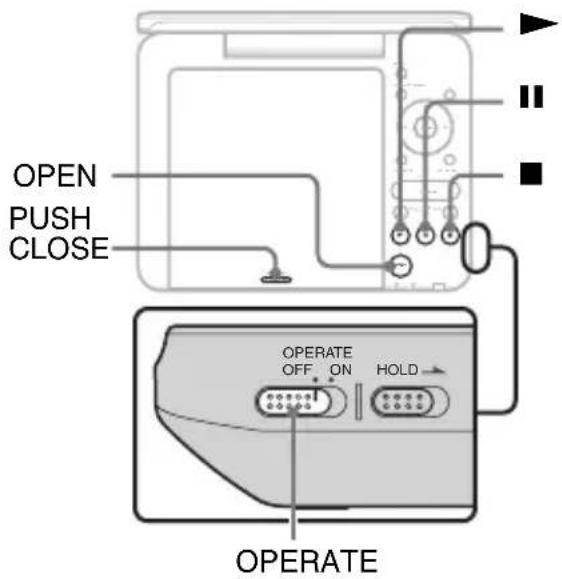

2 Slide the OPERATE switch to

“ON.” The player turns on and the POWER indicator lights up in green. 3 Press OPEN to open the disc lid.

4 Insert the disc to be played. Place with the playback side down and push gently until it clicks. 5 Push the PUSH CLOSE on the

disc lid to shut the disc lid.

6 Press N. The player starts playback.Depending on the disc, a menu may appear. Press C/X/x/c to select the item, and press ENTER. To stop playback Press x. To pause playback Press X. z When you play back a disc after enjoying images by “USB” or “TV,” press INPUT to select “Disc.” See page 7. b

• Discs created on DVD recorders must be correctly finalised to play on the player. For more information about finalising, refer to the operating instructions supplied with the DVD recorder.• The disc may be still spinning when the disc lid is opened. Wait until the spinning stops before removing the disc.INPUTDISPLAY MENURETURN OPEN PUSH CLOSE OPTIONSENTERVOLUME PROG HOLD OPERATE ONOFF

N OPEN PUSH CLOSE OPERATE X Playback side facing down 01US01COV.book Page 12 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT

GB Notes on the screen saver

• A screen saver image appears when you

leave the player in pause or stop mode

without operation for more than 15

minutes. The image disappears when you

press N. For the setup of “Screen

Saver,” see page 24.

• The player goes to standby, 15 minutes

after starting the screen saver function.

Press N to come out of standby mode.

To resume playback from the point

where you stopped the disc (Resume

When you press N again after you stop

playback, the player starts playback from

the point when you pressed x.

z • To play from the beginning of the disc, press x twice, and press N.• When turning power on again after power off, resume play starts automatically. b • Depending on the stop point, Resume play may not start from exactly the same point.• The resume point is cleared when:– you turn off the player (including standby mode) for a DVD (VR mode).– you open the disc lid.– you press INPUT and switch the mode. To play VIDEO CDs with PBC Functions

PBC (Playback Control) allows you to

menu. When you start playing a VIDEO CD with PBC functions, the menu appears.

Select an item using the number buttons on

the remote, and press ENTER. Then,

follow the instructions in the menu (press

N when “Press SELECT.” appears).

About various playback operations

2 only when “PBC” is set to “Off.” To Operation

Press C/c repeatedly on

the player to select the

repeatedly (page 7).

repeatedly (page 5).

repeatedly (page 5).

Press C/c repeatedly on

the player to select the

speed (page 5). ,continued 01US01COV.book Page 13 Tuesday, August 11, 2009 6:19 PMmaster page=leftDVP-FX740DT 4-126-491-11(1) E:\DTP\20090811\FM\GB\01US05PLY1-CEK.fm 14

GB Using the Playback

While playing a DVD, you can check the

current playback information. The

playback information display also allows

you to set a title/chapter or change sound/

subtitle, and so on.

When entering the numbers, operate the

number buttons on the remote.

1 Press DISPLAY while playing a

The current playback information

Example: When playing a DVD VIDEO * When a DVD (VR mode) is played, “PL” (playlist) or “ORG” (original) is displayed next to the title number. 2 Press X/x to select items and press

• Title: Select the title number by

pressing X/x or number buttons.

• Chapter: Select the chapter number

by pressing X/x or number buttons.

• Audio: Select the sound by pressing

• Subtitle: Select the subtitle by

• Angle: Select the angle by pressing

• T.Time: Time appears while playing

a title. “00:00:00” will appear by

pressing ENTER. Enter the desired

time code by pressing the number

• C.Time: Time appears while playing

a chapter. “00:00:00” will appear by

pressing ENTER. Enter the desired

time code by pressing the number

• Repeat: Select “ Chapter,” “

Title,” “ All,” or “Off” by

• Time Disp.: “Title Elapsed” is

displayed. Select “Title Elapsed,”

“Title Remain,” “Chapter Elapsed,”

or “Chapter Remain” by pressing X/

b Depending on the disc, you may not be able to set some items. Menu TitleChapterAudioSubtitle02/0703/2002 2CH DOLBY DIGITAL English01 EnglishTitle Elapsed 00:12:01Current playback information*ItemsElapsed or remaining timeBattery status 01US01COV.book Page 14 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT 4-126-491-11(1)

master page=rightE:\DTP\20090811\FM\GB\01US05PLY1-CEK.fm Playback 15

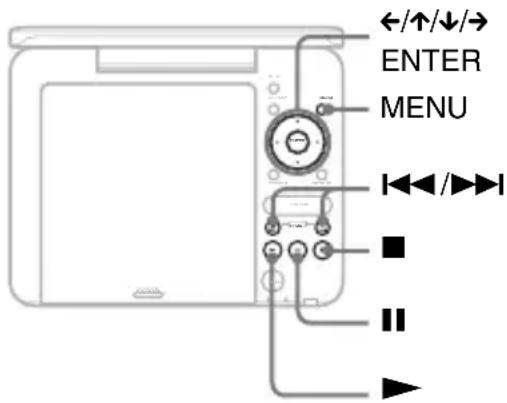

GB Playing MP3, JPEG,

and Video Files You can play MP3, JPEG, and video files. For details on playable files, see “Playable Media” (page 33).When you set a DATA media, a list of albums appears.DATA CDs recorded in KODAK Picture CD format automatically start playing when inserted. 1 Press X/x to select the album,

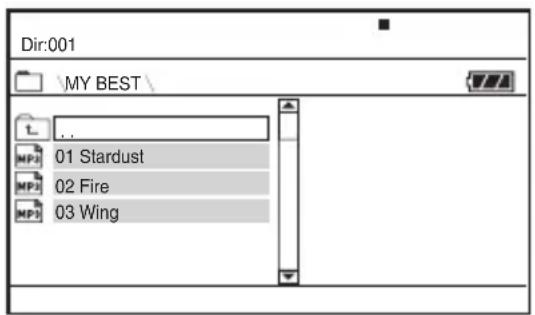

and press ENTER. The list of files in the album appears.Example: The list of MP3 files• To go to the next or previous page, press > or .. • To return to the list of albums, press X/x to select and press ENTER. 2 Press X/x to select the file, and

press ENTER. Playback starts from the selected file.To go to the next or previous file Press > or .. To stop playbackPress x.The display will return to the list of files.To pause playback (MP3 only)Press X.To restart playback, press X again. z If the number of viewing times is preset, you can play the DivX video files as many times as the preset number. The following occurrences will be counted as one time:– when x is pressed.– when the player is turned off (including standby mode).– when the disc lid is opened.– when another file is played.– when INPUT is pressed and the mode is switched.– when the USB device is disconnected. b Depending on the file, playback may take time to start or may not be able to start. For details on playable files, see “Playable Media” (page 33). Selecting a JPEG file To rotate a JPEG image Press C/X/x/c while viewing the image file. Rotate every file.c: Rotates the image 90 degrees clockwise.C: Rotates the image 90 degrees counter clockwise.X: Reverses the image vertically (up and down).x: Reverses the image horizontally (left and right).

INPUT DISPLAY MENU RETURN OPEN PUSH CLOSE OPTIONS ENTER VOLUME PROG MENU

Press MENU when an image file is

The image files in the album appear in 12

sub-screens with the displayed file in the

• To go to the previous or next list of

thumbnails, select “bPrev” or

“NextB” at the bottom of the screen,

• To exit the list of thumbnails, press

Playing a Slide Show

1 While displaying the image file you

want to start a slideshow, press

The list of thumbnails appears.

2 Press C/X/x/c to select “Slide

Show” at the bottom of the screen,

Press x to return to the list of files.

Press MENU to return to the list of

Playing data on a USB device

You can play back DATA files on a USB

2 Press X/x to select “USB” and

3 Connect a USB device to the USB jack.

To disconnect a USB device

Make sure that the access indicator on the

USB device is off, and disconnect the USB

About supported Sony USB devices

The following Sony USB Memory Stick

reader/writer and USB flash drive “Micro

Vault” are supported: MSAC-US40,

USM-J series, USM-JX series, USM-J/B

series, USM-L series, and USM-LX series.

b • Do not disconnect the USB device while its access indicator is flashing. Doing so may cause data corruption or loss of data.• USB devices which can connect to the player are flash memory and multiple card readers. Other devices (digital still camera, USB hub, etc.) cannot be connected. When an unsupported device is connected, an error message appears. 1234

GB Adjusting the Picture

You can adjust the picture displayed on the LCD screen. 1 Press OPTIONS. The menu display appears.

2 Press X/x to select “LCD Mode” and press ENTER. The “LCD Mode” display appears. 3 Press X/x to select items and

press ENTER. • LCD Aspect: Change the picture size. Select “Normal” or “Full” by pressing X

*. • Backlight: Adjust the brightness by pressing C / c.• Contrast: Adjust the difference between light and dark areas by pressing C / c.• Hue: Adjust the red and green colour balance by pressing C / c.• Color: Adjust the richness of colours by pressing C / c.• Default: Return all settings to the factory defaults. 4 Press ENTER. * In “Normal,” pictures are displayed in their original configuration, retaining the aspect ratio. 4:3 pictures are displayed with black bands on both sides of the screen. 4:3 letter box pictures are displayed with bands on all sides of the screen.In “Full,” pictures are adjusted to fill the entire screen. 16:9 pictures are displayed in their original configuration. (Black band recorded in a 16:9 picture cannot be erased.) 4:3 pictures appear stretched. To turn off the menu display Press OPTIONS or RETURN. b

Depending on the disc, the screen size you can select differs.INPUTDISPLAY MENURETURN OPEN PUSH CLOSE OPTIONSENTERVOLUME PROG C/X/x/c

ENTER OPTIONS RETURN LCD Mode

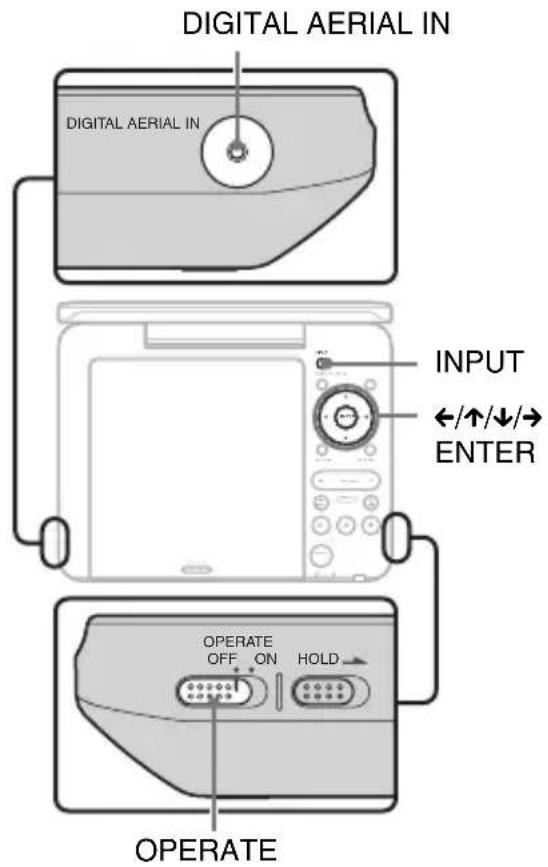

GB Watching TV Setting the channel When you watch TV on the player for the first time, set the area and language. 1 Connect the aerial cable to

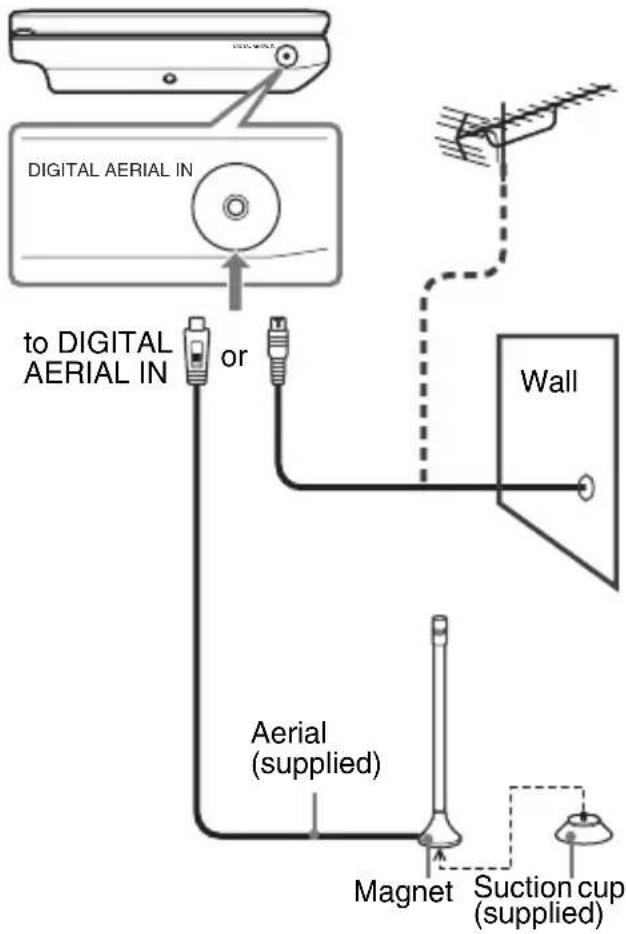

DIGITAL AERIAL IN on the

player. The supplied aerial must be connected for outdoor use. Reception may vary depending on location. 2 Slide the OPERATE switch to

3 Press INPUT. The Mode selection display appears. 4 Press X/x to select “TV” and

press ENTER. The easy setup display appears. 5 Press X/x to select the

language and press ENTER. The country selection display appears. 6 Press X/x to select the country

Channel scanning starts, and the received channels are registered in the Channel List.INPUTDISPLAY MENURETURN OPEN PUSH CLOSEOPTIONSENTERVOLUME PROG HOLD OPERATE ONOFF DIGITAL AERIAL IN DIGITAL AERIAL IN INPUT OPERATE C/X/x/c

ENTER DIGITAL AERIAL IN DIGITAL AERIAL IN

to DIGITAL AERIAL IN Wall

2 Press X/x to select “TV” and

press ENTER. The received channel is displayed. 3 Press PROG +/– to select a

z You can also select a channel by X/x. To select a channel by Channel List or

1 Press ENTER while watching TV. The Channel List is displayed. Pressing C/c while the Channel List is displayed switches to the Favourite List. 2 Press X/x to select the channel, and press ENTER. To use a EPG

1 Press GUIDE while watching TV. The EPG display of the current channel appears. 2 Press X/x to select a channel, and press c. 3 Press X/x to select a programme, and press ENTER.The programme information, signal strength and signal quality are displayed. To close the EPG screen

Press GUIDE or RETURN.INPUTDISPLAY MENURETURN OPEN PUSH CLOSE OPTIONSENTERVOLUME PROG INPUT RETURN C/X/x/c

18:30-19:00 Word News and Sports

001 BBC ONE 18:00-18:30 The Daily News

03/06/2009(Wednesday)

19:00-19:30 Escape to the Country

19:30-20:00 Small Town004 CBBC Channel

1 Press OPTIONS while watching

TV. The option menu display appears. 2 Press X/x to select “TV Setup”

3 Select and adjust each of the

following items by pressing X/x

and ENTER. The remote is necessary for some settings.To turn off the setup displayPress OPTIONS or RETURN. Digital Channel List ◆ Channel OptionsYou can set a channel in the Channel List to be skipped, locked or deleted.• Green button: Skip a channel. Pressing repeatedly toggles between skipping and not skipping.• Yellow button: Lock a channel. The display for entering the password appears. Enter your DTV password (page 21). Pressing repeatedly toggles between locked and unlocked.• Blue button: Delete a channel.◆ Channel SortYou can sort channels in the Channel List. 1 Press X/x to select “Channel Sort” and press ENTER. 2 Press X/x to select sorted channels and press ENTER.The order of two selected channels changes places. 3 Repeat step 1 to sort other channels.

Tuning ◆ Replace ChannelsYou can replace the Channel List. 1 Press X/x to select “Replace Channels” and press ENTER. 2 Press X/x to select the country and press ENTER. 3 Press C/c to select “Yes” and press ENTER.Channel scanning starts. The present Channel List is deleted, and the received channel is registered in the new Channel List.◆ Add New ChannelsYou can add a new channel to the Channel List. 1 Press X/x to select “Add New Channels” and press ENTER. 2 Press C/c to select “Yes” and press ENTER.Channel scanning starts. If a new channel is found, it is added to the Channel List.◆ Manual TuningYou can search for a channel manually and set to the Channel List. 1 Press X/x to select “Manual Tuning” and press ENTER. 2 Enter a frequency using the number buttons and press x. 3 Press c/X/x to select a bandwidth and press ENTER. 01US01COV.book Page 20 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT

4 Press ENTER to start channel

If a channel is received, it is added to

b When you set “Tuning”, the “Digital Channel List” setting might be cleared. In this case, set again. Features

All default settings are “English.”

b If you select a language in a TV broadcast that is not included, a language included in TV broadcast will be automatically selected. ◆ Local Time Setting

Set the clock of the player.

Set the aspect ratio of the connected TV.

Select “4:3 Pan Scan,” “4:3 Letter Box” or

This setting is effective only in the TV

z When you watch TV on the LCD screen of this player, sets “LCD Aspect” of “LCD Mode” (page 17). ◆ Password/Lock

Sets the DTV password for limitation of

digital TV programmes.

This setting is effective only in the TV

1 Set “DTV Password.”

number buttons on the remote.

2 Set a “DTV Age Limit.”

Select the limitation age.

If you forget your DTV password

Enter “1369” in “Old Password,” and enter

your new password in “New Password”

and “Verify Password.”

All functions returns to their original

factory settings. Your DTV password is

necessary for this setting (page 21). Note

that all of your settings will be lost. When

you perform this operation, the easy setup

display appears (page 18).

Selecting by direct menu

You can select a function directly from the

option menu display. You can operate the

function without the remote control.

This option menu is the same function as

This option menu is the same function as

the GUIDE button on the remote.

Sets the TV Display setting (page 21).

This option menu is the same function as

Switches the language of the

Switches the language of the

Subtitle Switches the subtitle

GMT Offset Selects the time according to

the area. “Auto” (default) is

Sets Summer Time when

selecting by “GMT Offset”

excluding “Auto.” Select

“On” or “Off” (default). ,continued 01US01COV.book Page 21 Tuesday, August 11, 2009 6:19 PMmaster page=left

This option menu is the same function as

the SUBTITLE button on the remote.

This option menu is the same function as

the AUDIO button on the remote.

This option menu is the same function as

the TV/RADIO button on the remote.

01US01COV.book Page 22 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT 4-126-491-11(1)

master page=rightE:\DTP\20090811\FM\GB\01US07ADV4-CEK.fm Settings and Adjustments 23

GB Settings and Adjustments Using the Setup Display By using the setup display, you can make various settings to items such as picture and sound.Some discs have stored playback settings, which take priority.For TV setup, see “Using the TV Setup Display” (page 20). 1 Press OPTIONS when the player

is in stop mode. The menu display appears.During Resume Play, you cannot use the setup display. Press x twice to clear Resume Play, and press OPTIONS. 2 Press X/x to select “Setup,”

and press ENTER. The setup display appears. 3 Press X/x to select the setup

category and press ENTER. : General Setup (page 23)Makes the player-related settings.: Audio Setup (page 24)Makes the audio settings according to playback conditions.: Language Setup (page 25)Makes the language settings for the on-screen display or sound track.: Parental Control (page 25)Sets the parental control limit. 4 Select and adjust each of the

following items by pressing X/x

and ENTER. To turn off the setup displayPress OPTIONS or RETURN. General Setup The default settings are underlined.◆ TV Display (DVD only)Selects the aspect ratio of the connected TV.

INPUTDISPLAY MENURETURN OPEN PUSH CLOSE OPTIONSENTERVOLUME PROG C/X/x/c

setup category items

4:3 Pan ScanSelect this when you connect a 4:3 screen TV. Automatically displays a wide picture on the entire screen and cuts off the portions that do not fit. 4:3 Letter BoxSelect this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen. 16:9 Select this when you connect a wide-screen TV or a TV with a wide mode function. ,continued

01US01COV.book Page 23 Tuesday, August 11, 2009 6:19 PMmaster page=left

b Depending on the disc, “4:3 Letter Box” may be selected automatically instead of “4:3 Pan Scan” or vice versa. ◆ Angle Mark (DVD VIDEO only) Displays the angle mark when you can change the viewing angles during playback of DVDs recorded with multi-angles. ◆ Screen Saver

The screen saver image appears when you

leave the player in pause or stop mode for

15 minutes. The screen saver will help

prevent your display equipment from

becoming damaged (ghosting). Press N

to turn off the screen saver.

◆ PBC You can enjoy playing interactive

programmes using the PBC (Playback

Control) function of a VIDEO CD if

available (page 13).

◆ DivX Displays the registration code for the

player. For more information, go to

Each function returns to its original factory

settings. Note that all of your settings will

The default setting is underlined.

◆ Audio DRC (Dynamic Range Control)

Makes the sound clear when the volume is

turned down when playing a DVD that

conforms to “Audio DRC.”

On Display the angle mark.

Off Turn off the PBC function.

Standard Standard sound.

Makes low sounds clear even

if you turn the volume down.

Wide Range Gives you the feeling of

being at a live performance.

01US01COV.book Page 24 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT

master page=rightE:\DTP\20090811\FM\GB\01US07ADV4-CEK.fm

Settings and Adjustments

◆ OSD (On-Screen Display)

Switches the language for the disc’s menu.

When you select “Original,” the language

given priority in the disc is selected.

◆ Subtitle (DVD VIDEO only)

Switches the subtitle language.

When you select “Off,” no subtitle is

◆ Audio (DVD VIDEO only)

Switches the language of the sound track.

When you select “Original,” the language

given priority in the disc is selected.

b If you select a language in “Disc Menu,” “Subtitle,” or “Audio” that is not recorded on the disc, one of the recorded languages will be automatically selected. Parental Control

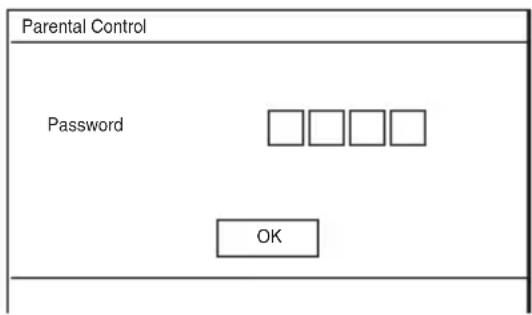

You can limit playback of a DVD that has

the parental control function.

When you operate this setting, use the

◆ Password (DVD VIDEO only)

Enter or change a password. Set the

password for the parental control function.

Enter your 4-digit password using the

number buttons on the remote.

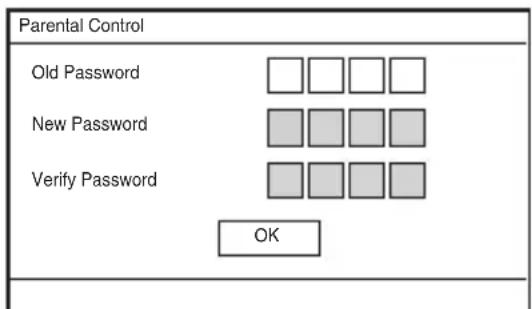

To change the password

1 Press X/x to select “Password,” and

2 Check “Change” is selected and press

The display for entering the password

3 Enter your current password in “Old

Password,” your new password in

“New Password” and “Verify

Password,” and press ENTER.

If you make a mistake entering your

Press CLEAR, or press C to return one by

one before pressing ENTER in step 3, and

re-enter the password.

If you forget your password Enter “1369” in “Old Password,” and enter your new password in “New Password” and “Verify Password.”Parental ControlVerify PasswordOld PasswordNew Password OK ,continued 01US01COV.book Page 25 Tuesday, August 11, 2009 6:19 PMmaster page=left

Set the limitation level. The lower the

value, the stricter the limitation.

To set the parental control, you need to set

To set the parental control (limited

1 Press X/x to select “Parental Control,”

2 Press X/x to select the limitation level,

3 Enter your password, and press

To play a disc for which Parental

Insert the disc and press N, the display

for entering your password appears. Enter

your password using the number buttons

on the remote, and press ENTER.

• When you play discs which do not have the

Parental Control function, playback cannot be

limited on the player.

• Depending on the disc, you may be asked to

change the parental control level while playing

the disc. In this case, enter your password, then

change the level. If the Resume Play mode is

cancelled, the level returns to the previous

level. Parental ControlPassword OK

01US01COV.book Page 26 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT 4-126-491-11(1)

master page=rightE:\DTP\20090811\FM\GB\01US09ADD-CEK.fm Additional Information 27

GB Additional Information

If you experience any of the following

difficulties while using the player, use this

troubleshooting guide to help remedy the

problem before requesting repairs. Should

any problem persist, consult your nearest

The power is not turned on. , Check that the AC power adaptor is connected securely (page 9)., Check that the rechargeable battery is sufficiently charged (page 9). The rechargeable battery cannot be

charged. , You cannot charge the rechargeable battery when power is turned on. Set the OPERATE switch to “OFF” (page 9). Picture

There is no picture/picture noise

appears. , The disc is dirty or flawed (page 32)., The brightness is set at minimum. Adjust the brightness of the LCD (page 17)., When “USB” is displayed, press INPUT and select “Disc” (page 7). The black points appear and the red,

blue, green points remain on the LCD. , This is a structural property of the LCD and not malfunction. Sound

There is no sound. , The player is in pause mode or in slow play mode., The player is in fast forward or fast reverse mode. The sound volume is low. , The sound volume is low on some DVDs. The sound volume may improve if you set “Audio DRC” in “Audio Setup” to “TV Mode” (page 24). Operation

Nothing happens when buttons are

, The HOLD switch is set in the direction of the arrow (page 6 ).

The disc does not play. , If the disc is turned over, a “No Disc” or “Cannot play this disc.” message appears. Insert the disc with the playback side facing down (page 12)., The disc is not set until it clicks (page 12)., The disc that cannot be played is inserted. Check the region code matches the player, and that the disc has been finalised (page 33)., When “USB” is displayed, press INPUT and select “Disc” (page 7)., Parental Control has been set. Change the setting (page 25)., Moisture has condensed inside the player

The player starts and stops playing the

disc automatically. , The disc features an auto playback function., While playing discs with an auto pause signal, the player stops playback at the auto pause signal.,continued 01US01COV.book Page 27 Tuesday, August 11, 2009 6:19 PMmaster page=left

GB The disc does not start playing from the

, Repeat Play or Random Play is selected

, Resume play has taken effect (page 13).

, The Playlist of the created disc is

automatically played. To play original

titles, press TOP MENU to set

“Original” (page 7).

Playback may take time to start.

, Playback may take time to start in DVD

The subtitles disappear.

, When you change playback speed, or

skip scenes during playback, the subtitles

may disappear temporarily.

“ ” or “ ” appears and the player

does not function according to the

, Depending on the disc, you may not be

able to perform certain operations. Refer

to the operating instructions supplied

“Copyright Lock” appears and the

screen turns blue when playing a DVD

, Images taken from digital broadcasts, etc.,

may contain copy protection signals, such

as complete copy protection signals, single

copy signals, and restriction-free signals.

When images that contain copy protection

signals are played, a blue screen may

appear instead of the images. It may take a

while when looking for playable images.

(For player that cannot play images that

contain a copy protection only.)

C/c does not work on menu display.

, Depending on the disc, you may not be

able to use C/c on the player for the disc

menu. In this case, use C/c on the remote.

The remote does not function.

, The battery in the remote is weak.

, There are obstacles between the remote

, The distance between the remote and the

, The remote is not pointed at the remote

sensor on the player.

, Direct sunlight or strong illumination is

striking the remote sensor.

, When the AUDIO/SUBTITLE/ANGLE

buttons do not work, select and operate it

The MP3, JPEG, or video file cannot be

, The file format does not conform.

, The extension does not conform.

, The file is damaged.

, The file size is too large.

, When the selected file is not supported,

“Data Error” appears and the file will not

, Because of the compression technology

used for DivX/MPEG-4 video files,

playback may take time to start.

The file or album names are not

displayed correctly.

, The player can only display numbers and

alphabet. Other characters are displayed

The player does not operate properly or

the power does not turn off.

, When static electricity, etc., causes the

player to operate abnormally, set the

OPERATE switch to “OFF” and press

ENTER on the player. If you perform

this operation, some settings may return

to their original factory settings.

01US01COV.book Page 28 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT

master page=rightE:\DTP\20090811\FM\GB\01US09ADD-CEK.fm

Additional Information

There is no picture or sound on the

connected equipment.

, Re-connect the connecting cord securely

, The connecting cord is damaged.

, Check the setting of a connected TV or

, When “USB” is displayed, press INPUT

and select “Disc” (page 7).

USB The player does not recognize a USB

device connected to the player.

, Re-connect the USB device securely

, The USB device is damaged.

, Press INPUT to select “USB” (page 16).

TV There is no picture for digital TV

, Re-connect the aerial cable securely.

, The connecting cable is damaged.

, Channel is used only for data (no picture

, A scrambled channel is selected.

, Digital text service is not supported.

The channel is not found or stored or

, Make sure that your aerial is properly

connected to the player.

, Check your aerial installation.

, Data service is not supported.

, Inactive channels cannot be received.

The picture is breaking up.

, The signal strength is low.

, Check your aerial installation.

There is no picture using the supplied

, Check for reception strength.

, Adjust the direction of the aerial.

, Check that the region you are in has

DVB-T broadcasts or not.

, In a DVB-T broadcast region reception

may be difficult in the following places:

- A heavily built up area

- In an underground location, such as a

01US01COV.book Page 29 Tuesday, August 11, 2009 6:19 PMmaster page=left

Do not use the monitor unit and

headphones while driving, cycling, or

operating any motorized vehicle. Doing so

may create a traffic hazard and is illegal in

some areas. It can also be potentially

dangerous to play your headsets at high

volume while walking, especially at

pedestrian crossings. You should exercise

extreme caution or discontinue use in

potentially hazardous situations.

Should any solid object or liquid fall into

the cabinet, unplug the player and have it

checked by qualified personnel before

operating it any further.

• If you are not going to use the player for

a long time, be sure to disconnect the

player from the wall outlet. To

disconnect the AC power adaptor, grasp

the plug itself; never pull the cord.

• Do not touch the AC power adaptor with

wet hands. Doing so may cause shock

• Do not connect the AC power adaptor to

a traveler’s electric transformer, which

may generate heat and cause a

On temperature increases

• Heat may build up inside the player

during charging or if it is being used for

a long time. This is not a malfunction.

• Do not place the player directly on your

lap. The temperature of the bottom of the

player rises during normal operation. The

heat can cause discomfort.

• Do not place the player in a confined

space such as a bookshelf or similar unit.

• Do not cover the ventilation of the player

with newspapers, tablecloths, curtains,

etc. And do not place the player on a soft

surface, such as a rug.

• Do not place the player and adaptors in a

location near heat sources, or in a place

subject to direct sunlight, excessive dust,

sand, moisture, rain, or mechanical

shock, or in a car with its windows

• Do not place the player in an inclined

position. It is designed to be operated in

a horizontal position only.

• Keep the player and discs away from

equipment with strong magnet, such as

microwave ovens, or large loudspeakers.

• Do not drop or apply strong shock.

Do not place heavy objects on the player

• If the player is brought directly from a

cold to a warm location, or is placed in a

very damp room, moisture may condense

on the lenses inside the player. Should

this occur, the player may not operate

properly. In this case, remove the disc

and leave the player for about half an

hour until the moisture evaporates. Wipe

off moisture attached to the LCD surface

with tissue etc. Turn on the power again

• Keep the lens on the player clean and do

not touch it. Touching the lens may

damage the lens and cause the player to

malfunction. Leave the disc lid closed

except when you insert or remove discs.

• Turn off the power before disconnecting

the AC power adaptor, the car battery

adaptor. Failure to do so may cause a

01US01COV.book Page 30 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT

master page=rightE:\DTP\20090811\FM\GB\01US09ADD-CEK.fm

Additional Information

GB On Liquid Crystal Display

• Although manufactured with high

precision technology, the LCD may

occasionally display dots of various

colours. That is not a malfunction.

• Do not place or drop any object onto the

LCD surface. Also, do not apply pressure

from hands or elbows.

• Do not damage the LCD surface with a

On rechargeable battery

• Certain countries may regulate disposal

of the battery used to power this product.

Please consult with your local authority.

• Because of the battery’s limited life, its

capacity gradually deteriorates over time

and repeated use. Exchange a new one

when the battery holds about only half

• The battery may not be charged to its

fullest capacity when charged for the first

time, or when it has not been used for a

long time. The capacity recovers after

being charged and discharged several

On AC power adaptor and car battery

• Use the supplied adaptors for the player,

as other adaptors may cause a

• Do not disassemble or reverse-engineer.

• Do not touch the metal parts, as it may

cause a short and damage the adaptors,

especially if touched by other metal

• The aerial must be connected for outdoor

use. Use in all locations is not

• Do not connect the aerial to anything

Do not turn up the volume while listening

to a section with very low level inputs or

no audio signals. If you do, the speakers

may be damaged when a peak level section

• Preventing hearing damage: Avoid using

headphones at high volumes. Hearing

experts advice against continuous, loud,

and extended play. If you experience a

ringing in your ears, reduce the volume

• Showing consideration for others: Keep

the volume at a moderate level. This will

allow you to hear outside sounds and still

be considerate to the people around you.

• Clean the cabinet, panel, and controls

with a soft cloth slightly moistened with

a mild detergent solution. Do not use any

type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

• Wipe the LCD surface with the soft dray

cloth lightly. To prevent dirt buildup,

Do not wipe the LCD surface with a wet

cloth. If water enters, a malfunction may

• If picture/sound is distorted, the lens may

be covered with dust. In this case, use a

commercially-available blower brush for

camera lenses to clean the lens.

Avoid touching the lens directly during

On cleaning discs, disc/lens cleaners

Do not use cleaning discs or disc/lens

cleaners (including wet or spray types).

These may cause the apparatus to

01US01COV.book Page 31 Tuesday, August 11, 2009 6:19 PMmaster page=left

GB Notes About the Discs

• To keep the disc clean, handle the disc by

its edge. Do not touch the surface.

• Do not expose the disc to direct sunlight

or heat sources such as hot air ducts, or

leave it in a car parked in direct sunlight

as the temperature may rise considerably

• After playing, store the disc in its case.

• Clean the disc with a cleaning cloth.

Wipe the disc from the centre out.

• Do not use solvents such as benzine,

thinner, disc/lens cleaners, or anti-static

spray intended for vinyl LPs.

• If you have printed the disc’s label, dry

the label before playing.

• Do not use the following discs:

– A disc that has a non-standard shape

(e.g., card, heart).

– A disc with a label or sticker on it.

– A disc that has cellophane tape or

sticker adhesive on it.

01US01COV.book Page 32 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT

master page=rightE:\DTP\20090811\FM\GB\01US09ADD-CEK.fm

Additional Information

• Notes about recordable media

Some recordable media cannot be played on

the player due to the recording quality or

physical condition of the media, or the

characteristics of the recording device and

The disc will not play if it has not been

correctly finalised. For more information,

refer to the operating instructions for the

recording device. Note that some playback

functions may not work with some

DVD+RWs/+Rs/+R DLs, even if they have

been correctly finalised. In this case, view the

disc by normal playback.

• For player that cannot play images that

contain a copy protection only

Images in DVD (VR mode) with CPRM*

protection may not be played if they contain a

copy protection signal. “Copyright Lock”

* CPRM (Content Protection for Recordable

Media) is a coding technology that protects

the copyright of images.

Type Disc Logo Icon Characteristics

• CD-Rs/CD-RWs in music

• VIDEO CDs containing

• CD-Rs/CD-RWs in video

USB devices containing

MP3, JPEG, or video files.

01US01COV.book Page 33 Tuesday, August 11, 2009 6:19 PMmaster page=left

GB Notes on MP3, JPEG, and video

The player can play the following files:

• MP3 files with the extension “.mp3”*

• JPEG image files that conform to the

DCF (Design rule for Camera File

system) image file format.

• DivX video files with the extension

• MPEG-4 video files (simple profile) with

the extension “.mp4”*

• DATA CDs must be recorded according

to ISO 9660 Level 1, or its extended

• DATA DVDs must be recorded

according to UDF (Universal Disk

Files in mp3PRO format cannot be played.

Files with the extension “.jpe” or “.jpeg” can

be played by changing the extension to “.jpg.”

Files with copyright protection (Digital Right

Management) cannot be played. Files in

MPEG-4 AVC format cannot be played.

• To play a complex hierarchy of folders may

take some time. Create albums as follows:

– The number of hierarchies in the disc is no

– The number of albums in the disc is 50 or

– The number of files in one album is 100 or

• The player plays the file in an album in the

order the media was recorded.

• The player will play any file in the above table,

even if the file format differs. Playing such

data may generate noise that can result in

• Some DATA discs created in Packet Write

format cannot be played.

• Some DATA discs created in multiple sessions

may not be playable.

• Some JPEG files cannot be played.

• The player cannot play the JPEG file that is

larger than 3078 (width) x 2048 (height) in

normal mode, or larger than 2000 (width) x

1200 (height) in progressive JPEG. (Some

progressive JPEG files cannot be displayed

even if the size is within this specified

• The player may not play a combination of two

or more DivX/MPEG-4 video files.

• The player cannot play a DivX/MPEG-4 video

file of size more than 720 (width) × 576

• The player may not play certain DivX/MPEG-

4 video files that are longer than 3 hours.

• Depending on the DivX/MPEG-4 video file,

normal playback may not be possible. The

picture may be unclear, playback may not

appear smooth, the sound may skip, etc. You

are recommended to create the file at a lower

bit rate. If the sound is still noisy, check the

audio format. (MP3 is recommended for DivX

video files, and MPEG-4 video file should be

AAC LC.) Note, however, the player does not

conform to WMA (Windows Media Audio)

• The player may not playback the high bit rate

video file on the DATA CD smoothly. You are

recommended to playback using DATA DVD.

• The player can display a file or album name up

to 14 characters. Special character appears as

• The player can display only the currently

playing album name. Any album located on

the upper layer is displayed as “\..\.”

• Playback information of some files may not be

displayed correctly.

01US01COV.book Page 34 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT 4-126-491-11(1)

GB Notes on commercial discs

It is the system that is used to protect

copyrights. The region code is shown on

the DVD VIDEO packages according to

the region of sale. DVD VIDEOs labelled

“ALL” or “2” will play on the player.

DVD and VIDEO CD playback operations

Some playback operations of DVDs and

VIDEO CDs may be intentionally set by

software producers. Since the player plays

DVDs and VIDEO CDs according to the

disc contents the software producers

designed, some playback features may not

be available. Also, refer to the instructions

supplied with the DVDs and VIDEO CDs.

Music discs encoded with copyright

protection technologies

This product is designed to playback discs

that conform to the Compact Disc (CD)

Various music discs encoded with

copyright protection technologies are

marketed by some record companies.

Please be aware that among those discs,

there are some that do not conform to the

CD standard and may not be playable by

Audio material side of DualDiscs

A DualDisc is a two-sided disc product

which mates DVD recorded material on

one side with digital audio material on the

However, since the audio material side

does not conform to the Compact Disc

(CD) standard, playback on this product is

System Laser: Semiconductor laserSignal format system: PAL (NTSC)Transmission standards: DVB-TDigital Channel coverage: VHF/UHF Outputs VIDEO (video output): MinijackOutput 1.0 Vp-p/75 ohmsAUDIO (audio output)Stereo minijackOutput 2.0 Vrms/47 kilohmsRecommended load impedance over 47 kilohmsPHONES (headphones) A/B:Stereo minijack USB: USB jack Type A (For connecting USB memory)DIGITAL AERIAL IN:75 ohm external terminal for VHF/UHF Liquid Crystal Display Panel size: 7 inches wide (diagonal)Driving system: TFT active matrix Resolution: 480 × 234 (effective pixel rate: more than 99.99%) General Power requirements:DC 9.5 V (AC power Adaptor/Car battery adaptor)DC 7.4 V (rechargeable battery)Power consumption (DVD VIDEO Playback):7 W (when used with a headphone) Dimensions (approx.): 200 × 39.5 × 155 mm (width/height/depth) incl. projecting partsMass (approx.): 880 g Operating temperature: 5 ° C to 35 ° C Operating humidity: 25 % to 80 % AC Power Adaptor: 110-240 V AC, 50/60 Hz Car Battery Adaptor: 12 V DC Supplied accessories See page 9.Specifications and design are subject to change without notice. ALL

01US01COV.book Page 35 Tuesday, August 11, 2009 6:19 PMmaster page=left

Charging time and playing time

01US01COV.book Page 36 Tuesday, August 11, 2009 6:19 PMDVP-FX740DT

master page=rightD:\Project_2009\2009_Feiyu_Li\Feiyu_20090609_FX740_EC1\10_Target_FX740_E C1_20090707\FM\GB\01US01COVIX.fm

01US01COV.book Page 37 Wednesday, July 8, 2009 10:34 AMmaster page=gauche

01US01COV.book Page 2 Tuesday, August 11, 2009 6:17 PMDVP-FX730

G Bouton N (lecture) (page 13)

01US01COV.book Page 6 Tuesday, August 11, 2009 6:17 PMDVP-FX730

Bouton CLEAR (Effacer)

01US01COV.book Page 8 Tuesday, August 11, 2009 6:17 PMDVP-FX730

Slide Show 11 12 Prev Next

01US05PLY2-CKK.fm Page 23 Tuesday, September 29, 2009 11:35 AMmaster page=left

01US05PLY2-CKK.fm Page 24 Monday, August 17, 2009 2:42 PMDVP-FX740DT

01US01COV.book Page 26 Tuesday, August 11, 2009 6:17 PMDVP-FX730

01US01COV.book Page 28 Tuesday, August 11, 2009 6:17 PMDVP-FX730

01US01COV.book Page 30 Tuesday, August 11, 2009 6:17 PMDVP-FX730

01US09ADD-CEK.fm Page 32 Monday, August 17, 2009 2:48 PMDVP-FX730

01US01COV.book Page 34 Tuesday, August 11, 2009 6:17 PMDVP-FX730

* CPRM (Content Protection for Recordable

01US01COV.book Page 36 Tuesday, August 11, 2009 6:17 PMDVP-FX730

01US01COV.book Page 38 Tuesday, August 11, 2009 6:17 PMDVP-FX730

01US01COV.book Page 2 Tuesday, August 11, 2009 6:12 PMDVP-FX730

01US01COV.book Page 6 Tuesday, August 11, 2009 6:12 PMDVP-FX730

Slide Show 11 12 Prev Next

01US01COV.book Page 18 Tuesday, August 11, 2009 6:12 PMDVP-FX730

01US01COV.book Page 25 Tuesday, August 11, 2009 6:12 PMmaster page=left

01US01COV.book Page 26 Tuesday, August 11, 2009 6:12 PMDVP-FX730

01US01COV.book Page 30 Tuesday, August 11, 2009 6:12 PMDVP-FX730

01US01COV.book Page 31 Tuesday, August 11, 2009 6:12 PMmaster page=left

01US01COV.book Page 32 Tuesday, August 11, 2009 6:12 PMDVP-FX730

01US01COV.book Page 33 Tuesday, August 11, 2009 6:12 PMmaster page=left

01US01COV.book Page 34 Tuesday, August 11, 2009 6:12 PMDVP-FX730

01US01COV.book Page 35 Tuesday, August 11, 2009 6:12 PMmaster page=left

* CPRM (Content Protection for Recordable

01US01COV.book Page 36 Tuesday, August 11, 2009 6:12 PMDVP-FX730

01US01COV.book Page 38 Tuesday, August 11, 2009 6:12 PMDVP-FX730

01US01COV.book Page 2 Tuesday, August 11, 2009 6:15 PMDVP-FX730

01US01COV.book Page 6 Tuesday, August 11, 2009 6:15 PMDVP-FX730

U Conector DC IN 9.5 V

Slide Show 11 12 Prev Next

a DIGITAL AERIAL IN Pared

18:30-19:00 Word News and Sports

001 BBC ONE 18:00-18:30 The Daily News

03/06/2009(Wednesday)

19:00-19:30 Escape to the Country

19:30-20:00 Small Town004 CBBC Channel

01US01COV.book Page 22 Tuesday, August 11, 2009 6:15 PMDVP-FX740DT

01US01COV.book Page 24 Tuesday, August 11, 2009 6:15 PMDVP-FX730

01US01COV.book Page 26 Tuesday, August 11, 2009 6:15 PMDVP-FX730

01US01COV.book Page 28 Tuesday, August 11, 2009 6:15 PMDVP-FX730

01US01COV.book Page 29 Tuesday, August 11, 2009 6:15 PMmaster page=left

01US01COV.book Page 30 Tuesday, August 11, 2009 6:15 PMDVP-FX730

01US01COV.book Page 32 Tuesday, August 11, 2009 6:15 PMDVP-FX730

01US01COV.book Page 33 Tuesday, August 11, 2009 6:15 PMmaster page=left

* CPRM (Content Protection for Recordable

01US01COV.book Page 34 Tuesday, August 11, 2009 6:15 PMDVP-FX730

01US01COV.book Page 36 Tuesday, August 11, 2009 6:15 PMDVP-FX730

CLASS 1 LASER PRODUCT si

01US01COV.book Page 2 Tuesday, August 11, 2009 7:08 PMDVP-FX730

01US01COV.book Page 6 Tuesday, August 11, 2009 7:08 PMDVP-FX730

01US01COV.book Page 8 Tuesday, August 11, 2009 7:08 PMDVP-FX730

01US01COV.book Page 13 Tuesday, August 11, 2009 7:08 PMmaster page=left

Slide Show 11 12 Prev Next

reader/writer USB Sony e unità flash USB

“Micro Vault”: MSAC-US40, USM-J

series, USM-JX series, USM-J/B series,

USM-L series, e USM-LX series.

18:30-19:00 Word News and Sports

001 BBC ONE 18:00-18:30 The Daily News

03/06/2009(Wednesday)

19:00-19:30 Escape to the Country

19:30-20:00 Small Town004 CBBC Channel

01US01COV.book Page 25 Tuesday, August 11, 2009 7:08 PMmaster page=left

01US01COV.book Page 26 Tuesday, August 11, 2009 7:08 PMDVP-FX730

◆ OSD (On-Screen Display)

password in “Nuova Password” e

“Conferma Password”.

. ,Segue 01US01COV.book Page 29 Tuesday, August 11, 2009 7:08 PMmaster page=left

01US01COV.book Page 30 Tuesday, August 11, 2009 7:08 PMDVP-FX730

01US01COV.book Page 31 Tuesday, August 11, 2009 7:08 PMmaster page=left

01US01COV.book Page 32 Tuesday, August 11, 2009 7:08 PMDVP-FX730

01US01COV.book Page 33 Tuesday, August 11, 2009 7:08 PMmaster page=left

01US01COV.book Page 34 Tuesday, August 11, 2009 7:08 PMDVP-FX730

* CPRM (Content Protection for Recordable

01US01COV.book Page 35 Tuesday, August 11, 2009 7:08 PMmaster page=left

01US01COV.book Page 37 Tuesday, August 11, 2009 7:08 PMmaster page=left

01US01COV.book Page 38 Tuesday, August 11, 2009 7:08 PMDVP-FX740DT

master page=rightD:\Project_2009\2009_Feiyu_Li\Feiyu_20090609_FX740_EC1\10_Target_FX740_E C1_20090707\FM\GB\01US01COVIX.fm

01US01COV.book Page 37 Wednesday, July 8, 2009 10:34 AMmaster page=left

Sony Corporation Printed in China

E:\DTP\20090929\14_Target_20090817\FM\GB\01US10BCO-CEK.fm

To find out useful hints, tips and information about

Sony products and services please visit:

Pour découvrir des conseils, des tuyaux et des

01US10BCO-CEK.fm Page 38 Tuesday, September 29, 2009 11:49 AM
