Product Type	Permanent polarization electrostatic headset microphone
Brand	Sennheiser
Model	HS253
Polar Pattern	Omnidirectional
Frequency Range	20 Hz - 20,000 Hz (±3 dB)
Transmission Factor (1 kHz)	5 mV/Pa (±3 dB)
Nominal Impedance	1000 Ω
Minimum Load Impedance	4.7 kΩ
Equivalent Noise Level (A-weighted)	26 dB
Equivalent Noise Level (CCIR-weighted)	39 dB
Maximum Sound Pressure Level	142 dB
Power Supply	18 kΩ / 7.5 V (via special connector)
Connector	Special 3-pin (compatible with SK 50/SK 250/SK 5012)
Cable Length	1.6 m
Microphone Diameter	4.8 mm
Weight (with cable)	34.4 g
Color	Anthracite or beige (depending on variant)
Diaphragm	Patented tandem, humidity-resistant (perspiration, saliva)
Supplied Accessories	Instruction manual, warranty document
Optional Accessories	Caps MZC2-1 (short) and MZC2-2 (long), windscreens MZW 2 and MZW 02
Maintenance and Cleaning	Clean with a soft dry cloth. Avoid excessive moisture and shocks.
Safety	Use only the recommended power supply. Do not open or modify the microphone.
Spare Parts and Repairability	Caps, windscreens, and cable available as options. Contact Sennheiser for any repairs.

Frequently Asked Questions - HS253 SENNHEISER

How to mount the cap to adjust the highs?

Place the cap on the capsule up to the second notch. Use the short cap MZC2-1 or the long cap MZC2-2 depending on the desired effect.

What wind protection accessories are available?

Two windscreens: MZW 2 (approx. 20 dB reduction) and MZW 02 foam (additional 10 dB reduction). Place the MZW 2 first, then the MZW 02 over it.

What is the humidity resistance of the HS253?

Thanks to the patented tandem diaphragm, the microphone is particularly insensitive to humidity such as perspiration or saliva, ensuring reliability during prolonged use.

Is the microphone compatible with Sennheiser transmitters?

Yes, it is compatible with the SK 50, SK 250 and SK 5012 transmitters via its special 3-pin connector.

What is the polar pattern of the microphone?

The HS253 has an omnidirectional polar pattern, capturing sound from all directions.

How to clean the microphone?

Use a soft dry cloth. Avoid chemicals and excessive moisture. For the foam windscreen, you can wash it in lukewarm soapy water and let it dry.

What is the weight of the microphone?

The microphone with cable weighs approximately 34.4 grams, making it light and comfortable to wear.

Can I use this microphone for live singing?

Yes, it is optimized for live speech and singing transmission, with a response curve adapted for close-miking.

What is the cable length?

The cable is 1.6 meters long, providing sufficient freedom of movement for most uses.

Where to find the response curves?

The response curves are provided on page 38 of the instruction manual, showing the influence of caps and windscreens.

USER MANUAL HS253 SENNHEISER

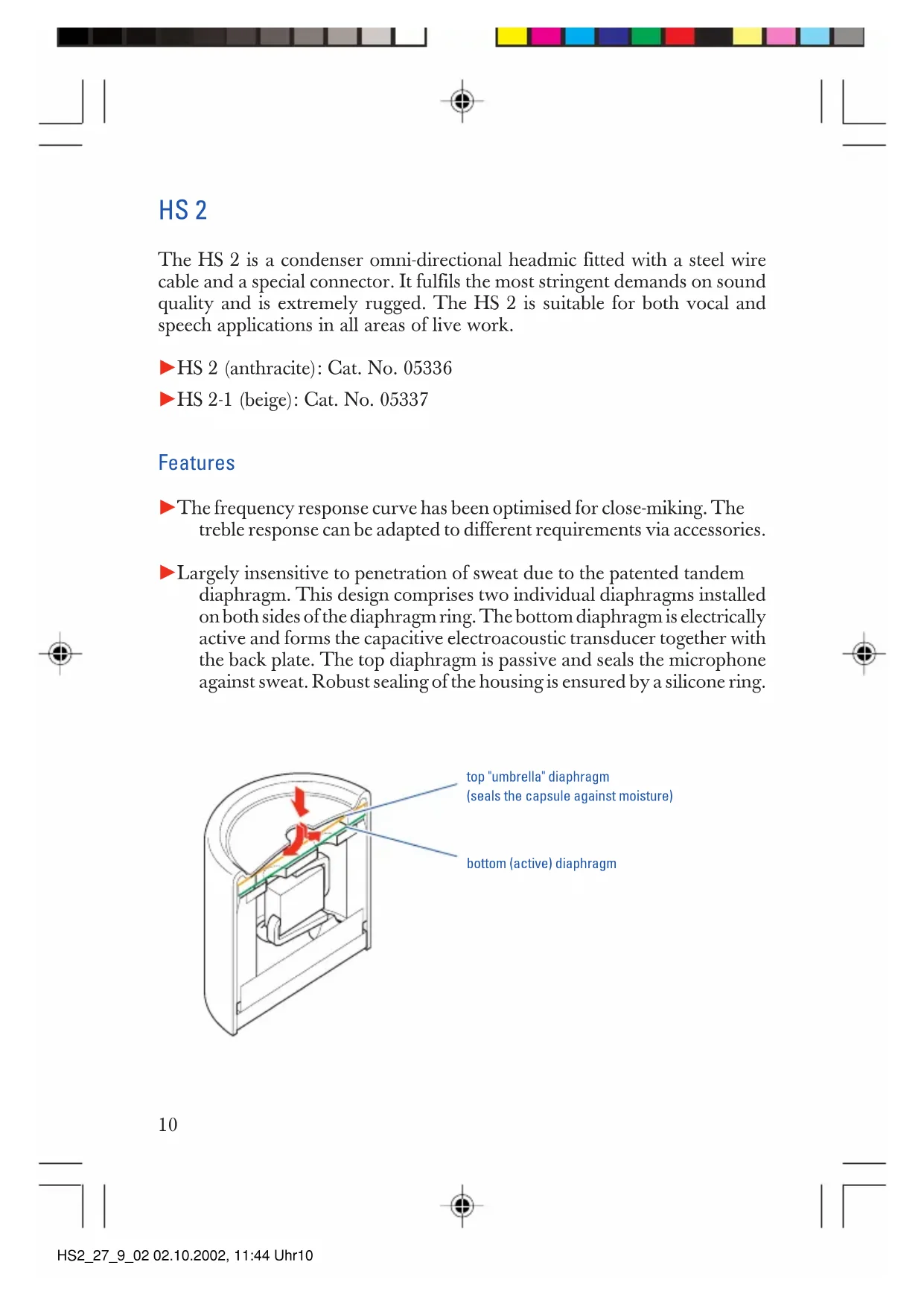

The HS 2 is a condenser omni-directional headmic fitted with a steel wire cable and a special connector. It fulfils the most stringent demands on sound quality and is extremely rugged. The HS 2 is suitable for both vocal and speech applications in all areas of live work.

HS2 (anthracite):Cat.No.05336
HS 2-1 (bcige): Cat. No. 05337

Features

The frequency response curve has been optimised for close-miking. The treble response can be adapted to different requirements via accessories.

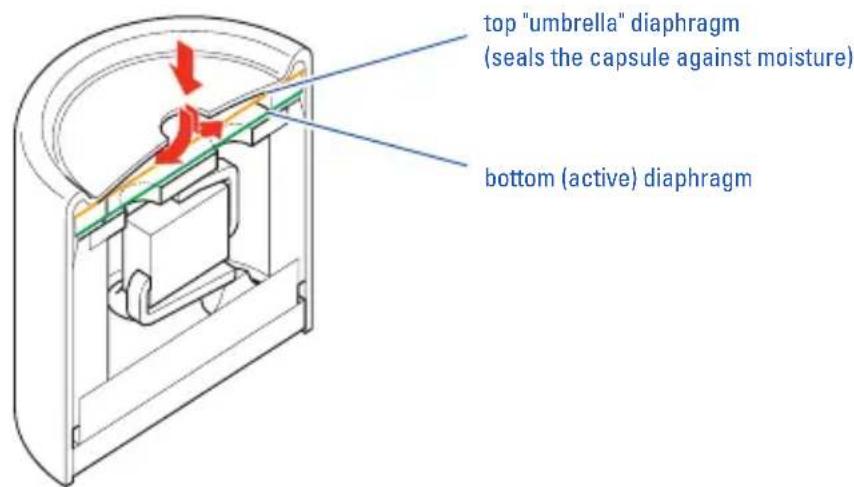

Largely insensitive to penetration of sweat due to the patented tandem diaphragm. This design comprises two individual diaphragms installed on both sides of the diaphragm ring. The bottom diaphragm is electrically active and forms the capacitive electroacoustic transducer together with the back plate. The top diaphragm is passive and seals the microphone against sweat. Robust sealing of the housing is ensured by a silicone ring.

10

Adapting the treble response to different requirements

Two caps with different lengths are available as accessories. With these caps you can influence the treble response.

Slide the cap onto the microphone head until it locks into place. Please refer to the frequency responses curves on page 38.

Short cap: MZC2-1 Cat. No. 76612
Long cap: MZC2-2 Cat. No. 74645

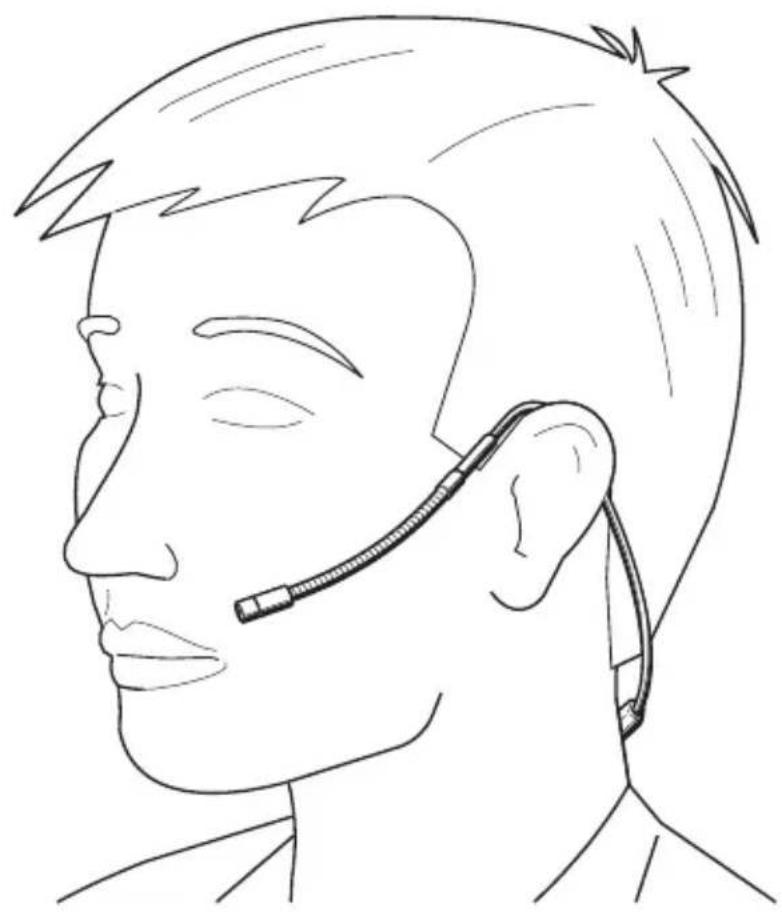

Attachment of the microphone

Windshields

Wind noise impairs the quality of outdoor recording and close-miking. The MZW 2 and MZW 02 windshields considerably reduce the wind noise.

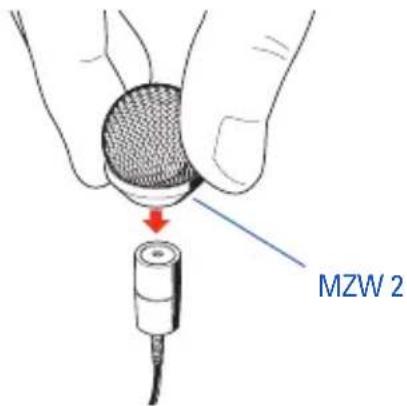

Please first use the MZW 2 windshield. This windshield reduces the wind noise by approx. 20dB

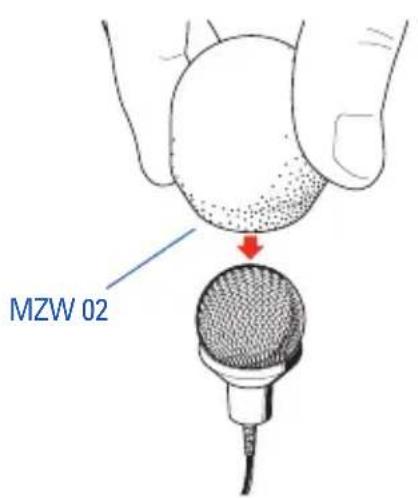

You may further reduce the wind noise by 10 dB by using the additional MZW 02 foam windshield.

MZW 2 and MZW 02 are available as accessories.

Technical data

HS 2 HS 2-1

Pick-up pattern omni-directional omni-directional

Frequency response 20-20000 Hz 20-20000 Hz

$$ \pm 3 \mathrm {d B} \pm 3 \mathrm {d B} $$

Sensitivity 5mV / Pa 5mV / Pa

(free field, no load) (1kHz) ±3 dB

$$ \pm 3 \mathrm {d B} $$

Nominal impedance 1000 Ω1000 Ω

Min. terminating impedance 4.7 kΩ

$$ 4. 7 \mathrm {k} \Omega $$

Equivalent noise level

A-weighted (DIN IEC 651) 26 dB 26 dB

CCIR-weighted (CCIR 468-1) 39 dB 39 dB

Max. sound pressure level 142 dB 142 dB

Power supply 18k /7.5V

$$ 1 8 \mathrm {k} \Omega / 7. 5 \mathrm {V} $$

Connector

3-pin special

3-pin special

connector for

connector for

SK 50 / SK 250 /

SK 50 / SK 250 /

SK 5012

SK 5012

Colour anthracite

Cable length 1.6 m

beige

Diametre of the microphone 4.8 mm 4.8 mm

Weight (incl. cable) 34.4 g

1.6 m

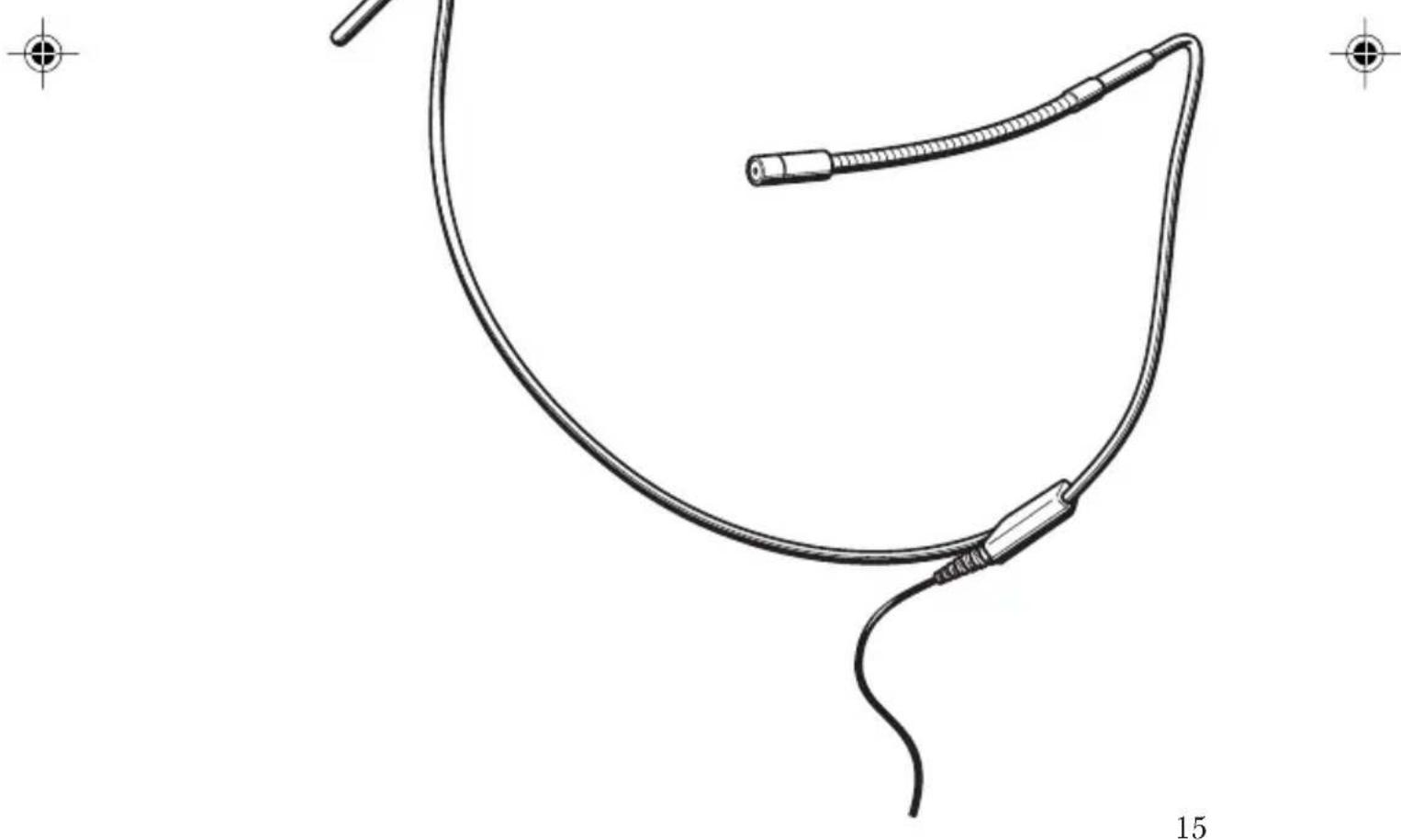

Delivery includes:

Instructions for use 1

Document of warranty 1 1

SENNHEISER

NOTICE D'EMPLOI

HS 2

HS2

HS2 (anthracite): N° Ref. 05336
HS 2-1 (bcige): N° Ref. 05337

Pointsforts

N^ Ref. 76612

Capuchon long :

MZC2-2

N^ Ref. 74645

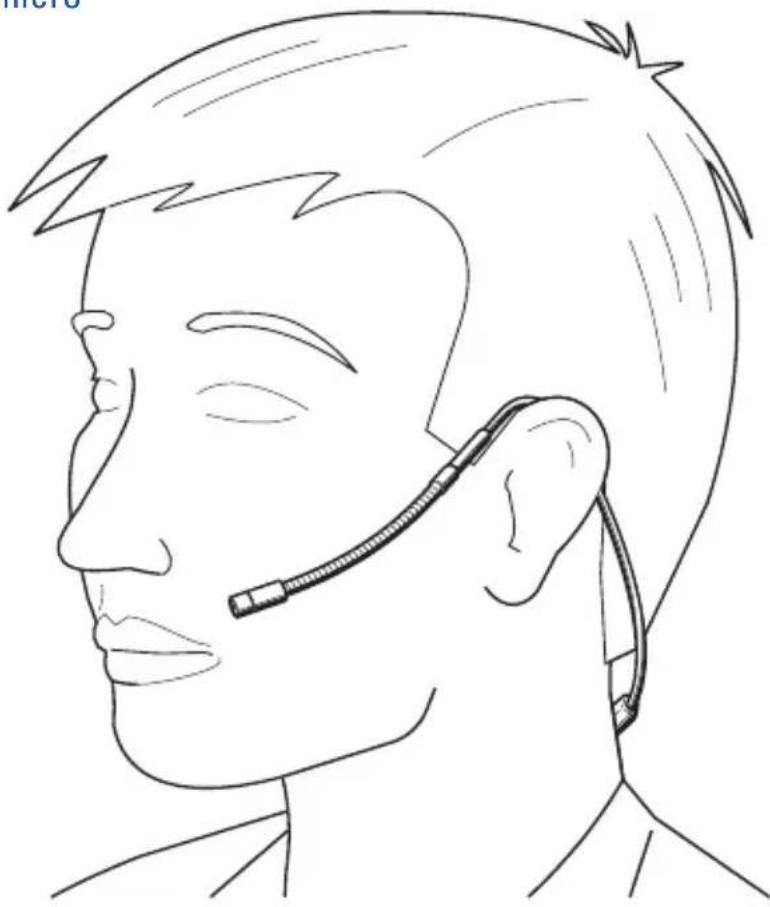

Fixation du micro

Bonnettes

Frequency response curves of the microphone

Microphone placed in the corner of the mouth, distance to the mouth 3 cm

capsuleonly with MZC2-1 with MZC2-2
with MZW 2 with MZW 2 and MZW 02

Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations.

Certification

Printed in Germany Publ. 10/02 88040/A01
