USER MANUAL PS1129 SEH

Quick Installation Guide

Illustration of a wireless router device with two ports and indicator lights (no text or symbols visible)

Illustration of an electronic device with ports and a central display (no text or symbols visible)

Line drawing of a desktop computer tower with visible ports and cables (no text or symbols)

Content

en

• Information about a Fast Operational Readiness .....3
- Printing in Windows.... 3
- Printing in Mac OS X 4
• Information about the Assignment of IP Addresses .... 5
• Information about the Print Server Administration ... 6

Information about further printing methods in other operating systems as well as additional information about the print server administration can be found in the User Manual.

Inhalt

Title: Print Server – PS Series

Version: 1.1

Order number: MHAB-QI-IV-SEH

All trademarks, registered trademarks, logos and product names are property of their respective owners.

Keep the documentation for further reference during the life cycle of the product. SEH Computertechnik GmbH has endeavoured to ensure that the information in all manuals is correct. If you detect any inaccuracies please inform us at the address indicated below. SEH Computertechnik GmbH will not accept any liability for any error or omission. The information in this manual is subject to change without notification. All rights are reserved. Copying, other reproduction or translation without the prior written consent from SEH Computertechnik GmbH is prohibited.

Information about a Fast Operational Readiness – Printing in Windows –

Print server and client must be in the same local network segment.

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

1 Read and observe the safety regulations and carry out the hardware installation, see: Hardware Installation Guide.

② Start the Product CD on the Windows client.

3 Select the Print Server – Tools menu.

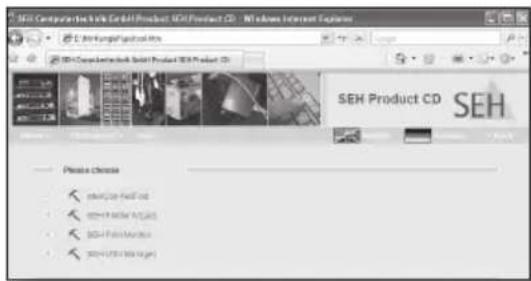

SEH ComputerTech & Inc. GmbH Product SEH Product CD - NT Online Internet Explorer SEH ComputerTech & Inc. GmbH Product SEH Product CD Please choose SEH Product CD SEH SEH Product SEH SEH Product SEH SEH Product SEH

4 Start the SEH Printer Wizard.

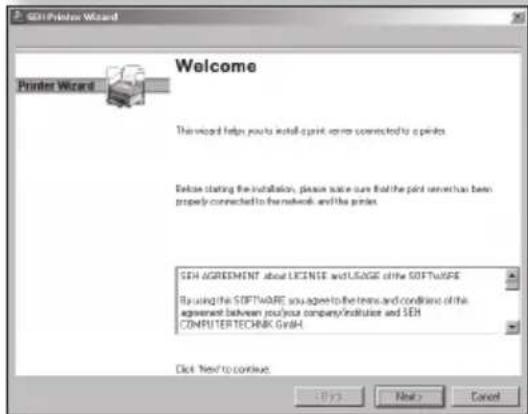

Follow the instructions of the SEH Printer Wizard.

GSI Printer Wizard Welcome Printer Wizard This wizard helps you to install a print error connected to a printer. Before starting the installation, please note sure that the print server has been properly connected to the network and the printer. GEN AGREEMENT about LICENSE and USAGE of the SOFTWARE By using the SOFTWARE, you agree to the terms and conditions of this agreement between you/you company/institute and SEN COMPUTERTECHNIK GmbH. Click Next to continue. OK Next Cancel

The SEH Printer Wizard supports 32-bit systems. If you want to install the print server on a 64-bit system, use the Windows default printer installation. Contact the manufacturer of your operating system for further information.

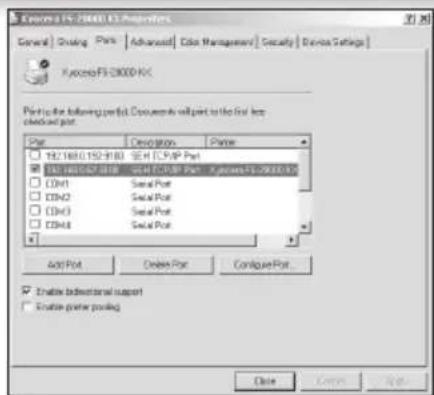

Kycena FS-2000-F3 Properties General | Continuing Port | Advanced | Color Management | Security | Device Settings | Kycena FS-2000-F3 Port to the following port: Documents will part to the final key checked port. Port Design Printer 197.168 (152-318) SEHTCPIP Port CD41100000000000000000000000000000000000000000000000000000000000000000000000000000000 CD41111111111111111111111111111111111111111111111111111111111111111 CD4112222222222222222222222222222222222222222222222 CD413333333333333333333333333333333333333333333333333333333333 CD44444444444444444444444444444444444444444444444 Add Port Cancel Port Configure Port. Enable Directional support Enable prior pooling. Close Cancel Help

Printer and print server will be created on the Windows client and displayed in the Printer Properties dialog. The operational readiness will be established.

Information about a Fast Operational Readiness – Printing in Mac OS X –

Print server and client must be in the same local network segment.

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

1 Read and observe the safety regulations and carry out the hardware installation, see: Hardware Installation Guide.

② Start Print & Fax on the Mac client.

Print & Fax

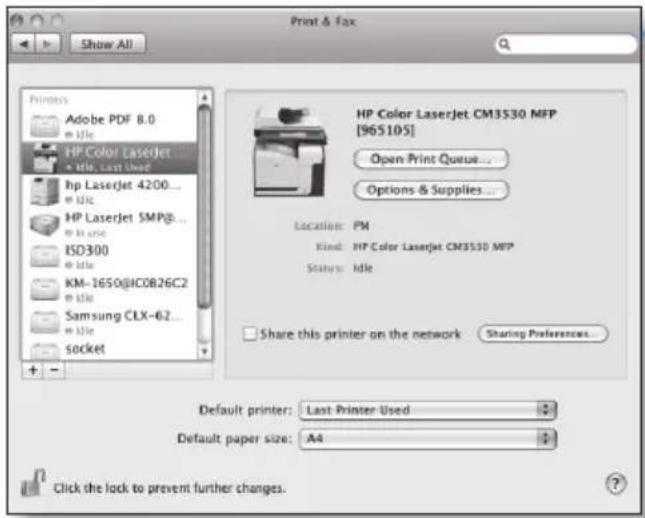

Print & Fax Show All Printers Adobe PDF 8.0 HP Color LaserJet Mile, Last Used hp LaserJet 4200... Mile HP LaserJet SMP@... Mile use ISD300 Mile KM-1650@IC0B26C2 Mile Samsung CLX-62... Mile Socket HP Color LaserJet CM3530 MFP [965105] Open Print Queue... Options & Supplies... Location: PM Kind: HP Color LaserJet CM3530 MFP Status: Idle Share this printer on the network Sharing Preferences... Default printer: Last Printer Used Default paper size: A4 Click the lock to prevent further changes.

3 Click

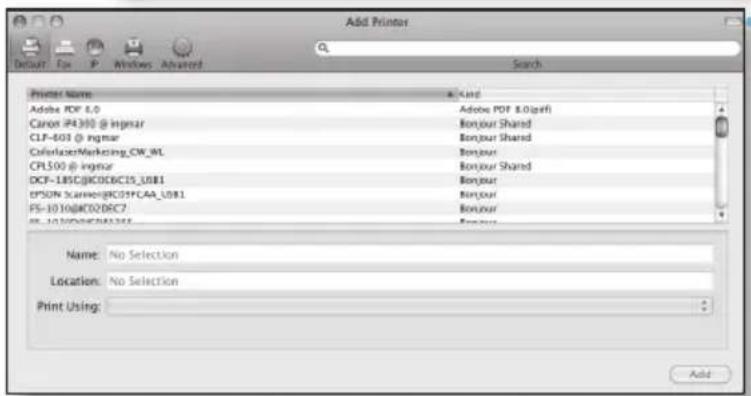

Add Printer Default F P Windows Advanced Search Printer Name: Adobe PDF 6.0 Canon IP300 @ imgmar CLF-603 @ imgmar CoefactorMarketing_CW_9L CPL500 @ imgmar DCF-185C@KOSBC15_UBI1 EPSUN Scanning@KOSFCAA_UBI1 FS-1010@KOS2DEC7 FL-1010@KOSCAE5 Name: No Selection Location: No Selection Print Using: Add

4 Select the printer/print server from the list.

Define a name, location, and printer driver.

Click Add,

Define the Installable Options (if required).

▶ Printer and print server will be created on the Mac client and displayed in the list. The operational readiness will be established.

SEH print servers are shipped without an IP address. When you install the print server for the first time, the print server checks whether an IP address can be obtained from the boot protocols BOOTP or DHCP. If this is not the case, the print server assigns itself an IP address via ZeroConf from the address range (169.254.0.0/16) which is reserved for ZeroConf. A freely definable IP address can be saved manually in the print server, if necessary.

Automatic Assignment of IP Addresses

ZeroConf/BoYour IntegCun

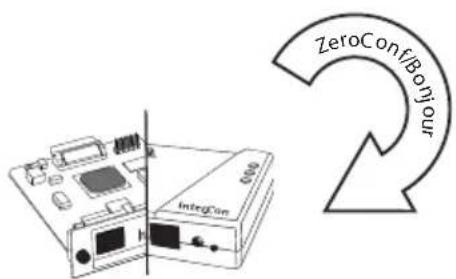

The print server assigns itself an IP address via ZeroConf from the address range 169.254.0.0/16.

DHCP/BOOTP 192.168.0.67

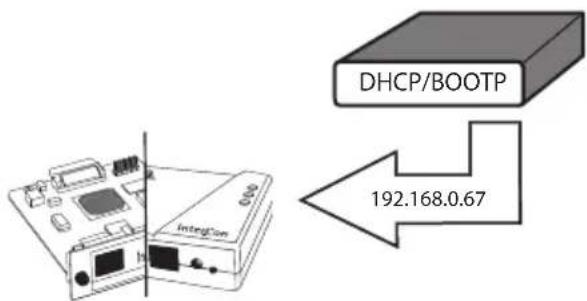

If the boot protocols have been enabled (factory default setting) and a DHCP server is available in the network, the print server obtains its IP address via the DHCP server.

Displaying the IP Address

192.168.0.67

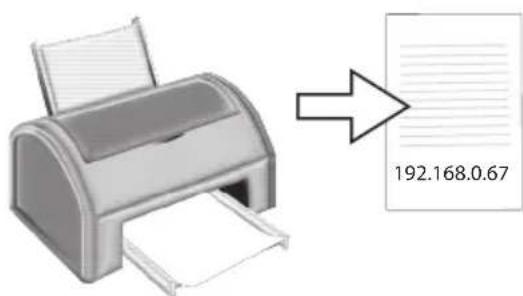

The IP address can be found on the status page of the print server.

To print a status page, press the status button of the print server.

Manual Assignment of IP Addresses

1 Start the Product CD on the client.
2 Select the Print Server – Tools menu.
3 Install the InterCon-NetTool on the client. Start the installation routine.
4 Start the InterCon-NetTool on the client.

5 Mark the print server in the print server list and start the IP Wizard.

6 Follow the instructions of the IP Wizard. Enter the preferred IP address and save it.

Internet Explorer.exe Safari.app Firefox.exe

SEH General • Theme • Theme Status • General • Theme Post • ID(s) • 2nd/2nd • App# • 3rd • 5th Configuration • General • Theme Post • TCRP • Microsoft Windows • 3rd/3rd • App# • DNS INTERCON® Please choose via https://www. Intercon SEH Comparisons GmbH Sending 11 33647 Betefeld, Germany Phone: [phone] Fax: [phone] Support: +09-05/21 84226-29 Search Guide to Education Support Contacts & Information Sales Contacts & Information http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http: http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http:// www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.sch-fastech.com/sccts/ http://www.scl-fastech.com/sccts/ http://www.scl-fastech.com/sccts/ http://www.scl-fastech.com/sccts/ http://www.scl-fastech.com/sccts/ http://www.scl-fastech.com/sccts/ http://www.scl-fastech.com/sccts/ http://www.scl-fastech.com/sccts/ http://www.scl-fostech.com/sccts/ http://www.scl-fostech.com/sccts/ http://www.scl-fostech.com/sccts/ http://www.scl-fostech.com/sccts/ http://www.scl-fostech.com/sccts/ http://www.scl-fostech.com/sccts/ http://www.scl-fostech.com/sccts/ http://www.scl-fostech.mslv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv-vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/vv/cns/

Administration via the Print Server Homepage

1 Start the browser software on the client.
2 Enter the IP address of the print server as URL

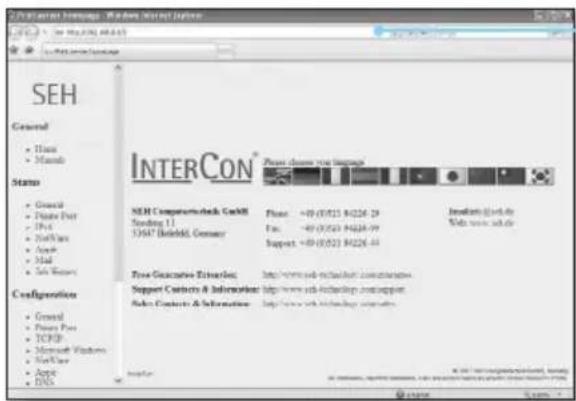

3 The Print Server Homepage is displayed. Carry out the desired action.

Illustration of a CD or DVD next to a blank PDF cover (no text or symbols on the object)

InterCon-NetTool.exe

SolarCom Net Font File Edit Access Installation Search Options Help Properties... Printer Panel... Change passwords... Default Settings... Print Status Page... Download... Password Update... Connector Launch Browser IP Address NetView Name Type Version 182 160 815 344 ICB97A0 182 160 800 248 ICB9A9B 182 160 800 838 ICB9A1E 182 160 800 956 ICB9C5F 182 160 800 198 ICB9C7B 182 160 800 214 ICB9E1B 182 160 800 310 ICB9E2J 182 160 815 347 ICB9I8B 182 160 800 367 ICB9I8D 182 160 800 216 ICB9A3 182 160 800 367 182 160 800 367 182 160 800 367 182 160 800 367 182 160 800 367 182 160 800 367 182 160 800 367 183 160 800 367 183 160 800 367 183 160 800 367 183 160 800 367 183 160 800 367 183 160 800 367 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3

Administration via the InterCon-NetTool

1 Start the Product CD on the client.
2 Select the Print Server – Tools menu.
③ Install the InterCon-NetTool on the client. Start the installation routine.
4 Start the InterCon-NetTool on the client.
5 Mark the print server in the print server list and carry out the desired action.

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Administration via Printserver Homepage

Illustration of a CD and DVD disc (no text or symbols on the disc itself)

InterCon-NetTool.exe

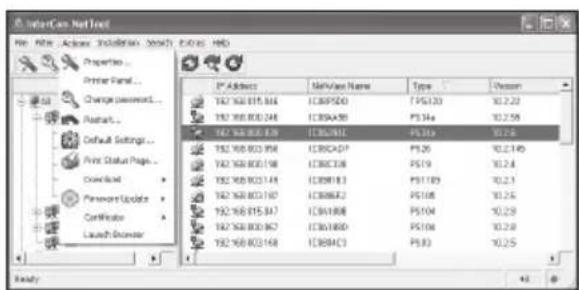

SolarCom Net Text File Name: Access Installation Search Options: HFD Property... Printer Panel... Change password... Instant... Default Settings... Print Status Page... Download... Password Update... Configure... Launch Browser IP Address 192 708.815.344 192 708.800.248 192 708.803.678 192 708.803.956 192 708.803.198 192 708.803.145 192 708.803.190 192 708.815.347 192 708.800.367 192 708.803.168 Network Name ICBSPS20 ICBSPS30 ICBSPS40 ICBSPS50 ICBSPS60 ICBSPS70 ICBSPS80 ICBSPS90 ICBSPS100 ICBSPS110 ICBSPS120 ICBSPS130 ICBSPS140 ICBSPS150 ICBSPS160 ICBSPS170 ICBSPS180 ICBSPS190 ICBSPS200 ICBSPS210 ICBSPS220 ICBSPS230 ICBSPS240 ICBSPS250 ICBSPS260 ICBSPS270 ICBSPS280 ICBSPS290 ICBSPS300 ICBSPS310 ICBSPS320 ICBSPS330 ICBSPS340 ICBSPS350 ICBSPS360 ICBSPS370 ICBSPS380 ICBSPS390 ICBSPS400 ICBSPS410 ICBSPS420 ICBSPS430 ICBSPS440 ICBSPS450 ICBSPS460 ICBSPS470 ICBSPS480 ICBSPS490 ICBSPS500 ICBSPS510 ICBSPS520 ICBSPS530 ICBSPS540 ICBSPS550 ICBSPS560 ICBSPS570 ICBSPS580 ICBSPS590 ICBSPS600 ICBSPS610 ICBSPS620 ICBSPS630 ICBSPS640 ICBSPS650 ICBSPS660 ICBSPS670 ICBSPS680 ICBSPS690 ICBSPS700 ICBSPS710 ICBSPS720 ICBSPS730 ICBSPS740 ICBSPS750 ICBSPS760 ICBSPS770 ICBSPS780 ICBSPS790 ICBSPS800 ICBSPS810 ICBSPS820 ICBSPS830 ICBSPS840 ICBSPS850 ICBSPS860 ICBSPS870 ICBSPS880 ICBSPS890 ICBSPS900 ICBSPS910 ICBSPS920 ICBSPS930 ICBSPS940 ICBSPS950 ICBSPS960 ICBSPS970 ICBSPS980 ICBSPS990 ICBSPS1000

Administration via InterCon-NetTool

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Illustration of a CD and DVD disc (no text or symbols on the disc itself)

InterCon-NetTool.exe

SailCom Net Font File Edit Access Installation Search Exports Help Property... Printer Panel... Change password... Restart... Default Settings... Print Status Page... Download Password Update... Certificate Launch Address IP Address 192 308 815 844 192 308 800 244 192 308 802 678 192 308 803 858 192 308 803 856 192 308 803 198 192 308 802 144 192 308 803 190 192 308 815 847 192 308 800 867 192 308 802 168 MolView Name ICBSP5D0 ICBSP4A9 ICBSP4C1 ICBSP4C7 ICBSP4C8 ICBSP4C9 ICBSP4C10 ICBSP4C11 ICBSP4C12 ICBSP4C13 ICBSP4C14 ICBSP4C15 ICBSP4C16 ICBSP4C17 ICBSP4C18 ICBSP4C19 ICBSP4C20 ICBSP4C21 ICBSP4C22 ICBSP4C23 ICBSP4C24 ICBSP4C25 ICBSP4C26 ICBSP4C27 ICBSP4C28 ICBSP4C29 ICBSP4C30 ICBSP4C31 ICBSP4C32 ICBSP4C33 ICBSP4C34 ICBSP4C35 ICBSP4C36 ICBSP4C37 ICBSP4C38 ICBSP4C39 ICBSP4C40 ICBSP4C41 ICBSP4C42 ICBSP4C43 ICBSP4C44 ICBSP4C45 ICBSP4C46 ICBSP4C47 ICBSP4C48 ICBSP4C49 ICBSP4C50 ICBSP4C51 ICBSP4C52 ICBSP4C53 ICBSP4C54 ICBSP4C55 ICBSP4C56 ICBSP4C57 ICBSP4C58 ICBSP4C59 ICBSP4C60 ICBSP4C61 ICBSP4C62 ICBSP4C63 ICBSP4C64 ICBSP4C65 ICBSP4C66 ICBSP4C67 ICBSP4C68 ICBSP4C69 ICBSP4C70 ICBSP4C71 ICBSP4C72 ICBSP4C73 ICBSP4C74 ICBSP4C75 ICBSP4C76 ICBSP4C77 ICBSP4C78 ICBSP4C79 ICBSP4C80 ICBSP4C81 ICBSP4C82 ICBSP4C83 ICBSP4C84 ICBSP4C85 ICBSP4C86 ICBSP4C87 ICBSP4C88 ICBSP4C89 ICBSP4C90 ICBSP4C91 ICBSP4C92 ICBSP4C93 ICBSP4C94 ICBSP4C95 ICBSP4C96 ICBSP4C97 ICBSP4C98 ICBSP4C99 ICBSP4C100

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Illustration of a CD and DVD disc (no text or symbols visible)

InterCon-NetTool.exe

Select Com Net Font File Edit Access Installation Search Exports HBD Properties... Printer Panel... Change password... Abstract... Default Settings... Print Status Page... Download... Password Updates... Certificate Launch Browser IP Address NetView Name Type Version 192 308 815 344 ICBP520 TP5120 10.2.22 192 308 800 248 ICBN4A9 PS144 10.2.58 192 308 800 839 ICBN4A1 IP519 10.2.6 192 308 800 856 ICBN4A7 PS16 10.2.149 192 308 800 878 ICBN4A8 PS19 10.2.4 192 308 800 874 ICBN4A3 PS1789 10.2.1 192 308 800 870 ICBN4A2 PS168 10.2.6 192 308 815 347 ICBN4B8 PS104 10.2.9 192 308 800 867 ICBN4B5 PS106 10.2.9 192 308 800 868 ICBN4C3 PS183 10.2.5 Ready

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Proprieta KONICA NMDLTA magulator 2400W Generate Condcine Puts Avanzake Settope solve About KONICA NMDLTA magulator 2400W Junka change alle seguenti port, I document seawno stampall cullle prime port files selected Ports Descritome Graspante CDM2 Porta minielle CDM4 Porta minielle FLE Stampa cullle USB Virtual panel port to... Canon MFS790 Series (Kcp. USB Virtual panel port to... Canon MFS790 Series http: SIEH HTTP Port KONICA NMDLTA magalock V5 Local Port Appurals ports Elevations Confirm ports Ange support disk console Advanced distances OK Apply Apply

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Illustration of a CD or DVD next to a blank flatboard labeled 'Product CD' (no other text or symbols)

InterCon-NetTool.exe

SolarCom Net Load File Edit Access Installation Search Excl. HFD Properties... Printer Panel... Change password... Restart... Default Settings... Print Status Page... Download Password Update... Controller Launch Estimator IP Address 192 308 815 344 192 308 800 244 192 308 802 638 192 308 803 958 192 308 803 958 192 308 803 1198 192 308 803 1198 192 308 803 150 192 308 803 150 192 308 815 347 192 308 800 367 192 308 803 168 Molivex Name ICBSPSD0 ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPCAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAS ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPAP ICBSPA1 ICBSPAP1 ICBSPAP1 ICBSPAP1 ICBSPAP1 ICBSPAP1 ICBSPAP1 ICBSPAP1 ICBSPAP1 ICBSPAP1 ICBSPAP1 ICBSPAP1 ICBSPAP1 ICBSPAP1 ICBSPAP1

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Windows F5.200000 Proportion Search | Sharing | Port | Advanced | Color Management | Security | Server Settings | Kylower F5.200001.SZ Port to the following ports: Documents will port to the first line checked port Port Description Printer 132 100.0 132 0100 SDH TCP/IP Port ENGLISH SYSTEMS - NEW TCP/IP Port Energetes F5.200001.SZ COM1 Social Port COM2 Social Port COM3 Social Port COM4 Social Port Add Port... Delete Port... Configure Port □ Create Directional Support □ Create Prime Hosting Close ...

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Illustration of a CD or DVD next to a blank flatboard labeled 'Product CD' (no additional text or symbols)

InterCon-NetTool.exe

SailCare Net Load File Name: Access Installation Search Options HFD Property... Printer Panel... Change password... Restart... Default Settings... Print Status Page... Download Password Updates Certificate Launch Browser IP Address 192 708.015.044 192 708.003.248 192 708.003.038 192 708.003.054 192 708.003.198 192 708.003.174 192 708.003.160 192 708.015.047 192 708.003.067 192 708.003.168 MeValue Name ICBPS2D ICBPS4D ICBPS6D ICBPS8D ICBPS9D ICBPS10D ICBPS11D ICBPS12D ICBPS13D ICBPS14D ICBPS15D ICBPS16D ICBPS17D ICBPS18D ICBPS19D ICBPS20D ICBPS21D ICBPS22D ICBPS23D ICBPS24D ICBPS25D ICBPS26D ICBPS27D ICBPS28D ICBPS29D ICBPS30D ICBPS31D ICBPS32D ICBPS33D ICBPS34D ICBPS35D ICBPS36D ICBPS37D ICBPS38D ICBPS39D ICBPS40D ICBPS41D ICBPS42D ICBPS43D ICBPS44D ICBPS45D ICBPS46D ICBPS47D ICBPS48D ICBPS49D ICBPS50D ICBPS51D ICBPS52D ICBPS53D ICBPS54D ICBPS55D ICBPS56D ICBPS57D ICBPS58D ICBPS59D ICBPS60D ICBPS61D ICBPS62D ICBPS63D ICBPS64D ICBPS65D ICBPS66D ICBPS67D ICBPS68D ICBPS69D ICBPS70D ICBPS71D ICBPS72D ICBPS73D ICBPS74D ICBPS75D ICBPS76D ICBPS77D ICBPS78D ICBPS79D ICBPS80D ICBPS81D ICBPS82D ICBPS83D ICBPS84D ICBPS85D ICBPS86D ICBPS87D ICBPS88D ICBPS89D ICBPS90D ICBPS91D ICBPS92D ICBPS93D ICBPS94D ICBPS95D ICBPS96D ICBPS97D ICBPS98D ICBPS99D ICBPS100D
