USER MANUAL PS113 SEH

Quick Installation Guide

Illustration of a wireless network device with two ports and a beige case (no text or symbols visible)

Illustration of an electronic device with ports and a central display (no text or symbols visible)

Line drawing of a desktop computer tower with visible ports and cables (no text or symbols)

Content

en

• Information about a Fast Operational Readiness .....3
- Printing in Windows.... 3
- Printing in Mac OS X 4
• Information about the Assignment of IP Addresses .... 5
• Information about the Print Server Administration ... 6

Information about further printing methods in other operating systems as well as additional information about the print server administration can be found in the User Manual.

Inhalt

Title: Print Server – PS Series

Version: 1.1

Order number: MHAB-QI-IV-SEH

All trademarks, registered trademarks, logos and product names are property of their respective owners.

Keep the documentation for further reference during the life cycle of the product. SEH Computertechnik GmbH has endeavoured to ensure that the information in all manuals is correct. If you detect any inaccuracies please inform us at the address indicated below. SEH Computertechnik GmbH will not accept any liability for any error or omission. The information in this manual is subject to change without notification. All rights are reserved. Copying, other reproduction or translation without the prior written consent from SEH Computertechnik GmbH is prohibited.

Information about a Fast Operational Readiness – Printing in Windows –

Print server and client must be in the same local network segment.

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

1 Read and observe the safety regulations and carry out the hardware installation, see: Hardware Installation Guide.

② Start the Product CD on the Windows client.

3 Select the Print Server – Tools menu.

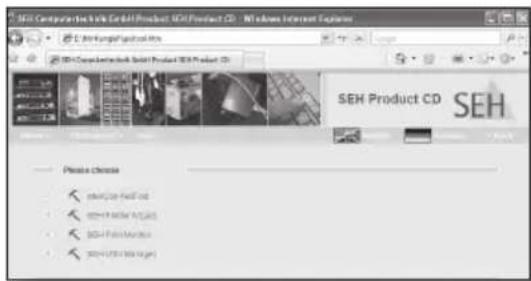

SEH ComputerTech & Inc. GmbH Product SEH Product CD - NT Online Internet Explorer SEH ComputerTech & Inc. GmbH Product SEH Product CD Please choose sehProduct SEH sehProduct SEH sehProduct SEH sehProduct SEH

4 Start the SEH Printer Wizard.

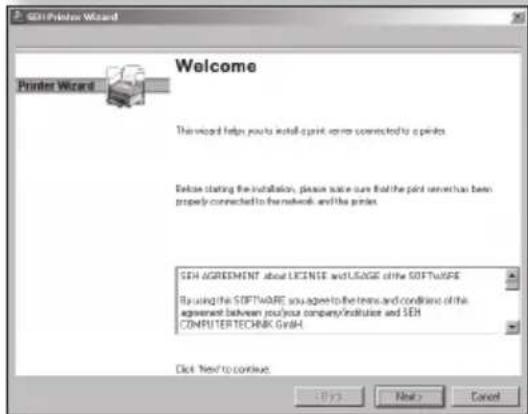

Follow the instructions of the SEH Printer Wizard.

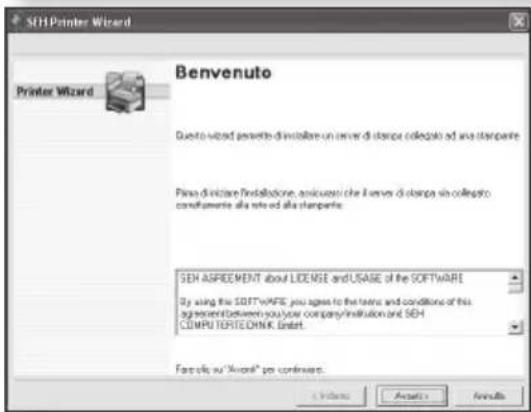

GSI Printer Wizard Welcome Printer Wizard This wizard helps you to install a print error connected to a printer. Before starting the installation, please note sure that the print server has been properly connected to the network and the printer. GEN AGREEMENT about LICENSE and USAGE of the SOFTWARE By using the SOFTWARE, you agree to the terms and conditions of this agreement between you/you company/institute and SEN COMPUTERTECHNIK GmbH. Click Next to continue. OK Next Cancel

The SEH Printer Wizard supports 32-bit systems. If you want to install the print server on a 64-bit system, use the Windows default printer installation. Contact the manufacturer of your operating system for further information.

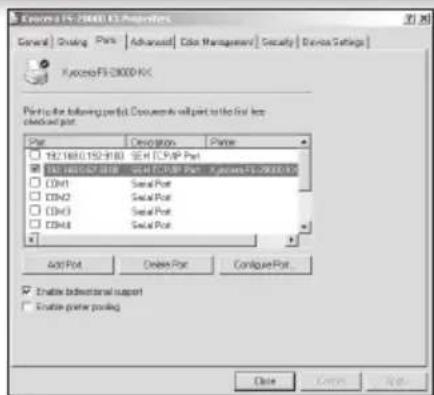

Kycena FS-2000-F3 Properties General | Continuing Port | Advanced | Color Management | Security | Device Settings | Kycena FS-2000-F3 Port to the following port: Documents will part to the final key checked port. Port Design Printer 197.168 (152-318) SEHTCPIP Port CD41100000000000000000000000000000000000000000000000000000000000000000000000000000000 CD41111111111111111111111111111111111111111111111111111111111111111 CD4112222222222222222222222222222222222222222222222 CD413333333333333333333333333333333333333333333333333333333333 CD44444444444444444444444444444444444444444444444 Add Port Cancel Port Configure Port. Enable Directional support Enable prior pooling. Close Cancel Help

Printer and print server will be created on the Windows client and displayed in the Printer Properties dialog. The operational readiness will be established.

Information about a Fast Operational Readiness – Printing in Mac OS X –

Print server and client must be in the same local network segment.

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

1 Read and observe the safety regulations and carry out the hardware installation, see: Hardware Installation Guide.

② Start Print & Fax on the Mac client.

Print & Fax

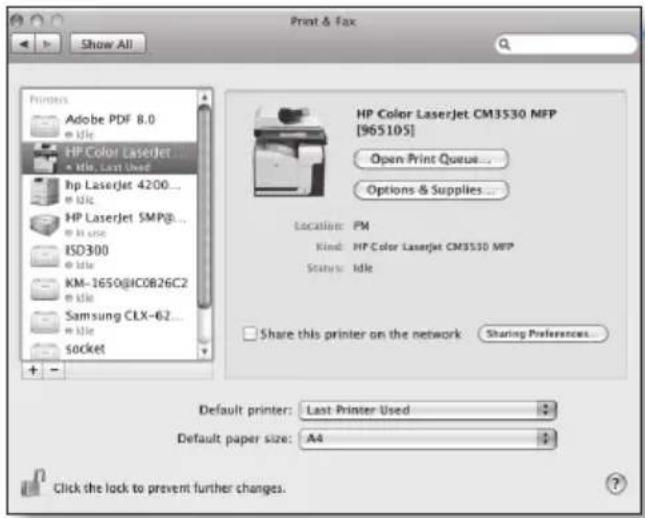

Print & Fax Show All Printers Adobe PDF 8.0 HP Color LaserJet Mile, Last Used hp LaserJet 4200... Mile HP LaserJet SMP@... Mile use ISD300 Mile KM-1650@IC0B26C2 Mile Samsung CLX-62... Mile Socket HP Color LaserJet CM3530 MFP [965105] Open Print Queue... Options & Supplies... Location: PM Kind: HP Color LaserJet CM3530 MFP Status: Idle Share this printer on the network Sharing Preferences... Default printer: Last Printer Used Default paper size: A4 Click the lock to prevent further changes.

3 Click

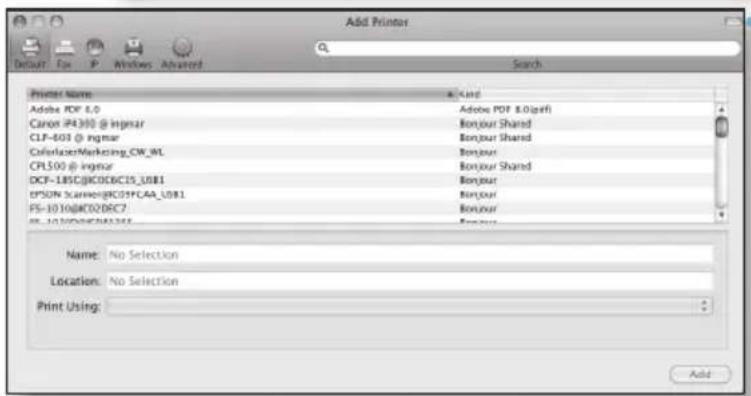

Add Printer Default Fx P Windows Advanced Search Printer Name: Adobe PDF 6.0 Canon iP4300 @ imgmar CLF-603 @ imgmar CoefactorMarketing_CW_9L CPL500 @ imgmar DCF-185C@K006C15_UBI1 EPSUN Scameng@K03FCAA_UBI1 FS-1010@K02DEC7 FL-1010@K02EFA35E Name: No Selection Location: No Selection Print Using: Add

4 Select the printer/print server from the list.

Define a name, location, and printer driver.

Click Add,

Define the Installable Options (if required).

▶ Printer and print server will be created on the Mac client and displayed in the list. The operational readiness will be established.

SEH print servers are shipped without an IP address. When you install the print server for the first time, the print server checks whether an IP address can be obtained from the boot protocols BOOTP or DHCP. If this is not the case, the print server assigns itself an IP address via ZeroConf from the address range (169.254.0.0/16) which is reserved for ZeroConf. A freely definable IP address can be saved manually in the print server, if necessary.

Automatic Assignment of IP Addresses

ZeroConf/BoYour IntegCon

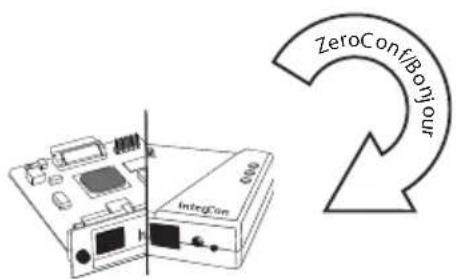

The print server assigns itself an IP address via ZeroConf from the address range 169.254.0.0/16.

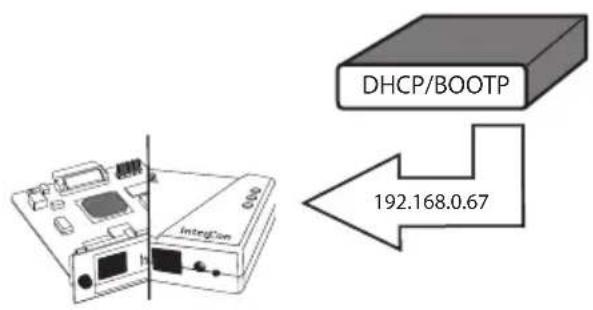

DHCP/BOOTP 192.168.0.67

If the boot protocols have been enabled (factory default setting) and a DHCP server is available in the network, the print server obtains its IP address via the DHCP server.

Displaying the IP Address

192.168.0.67

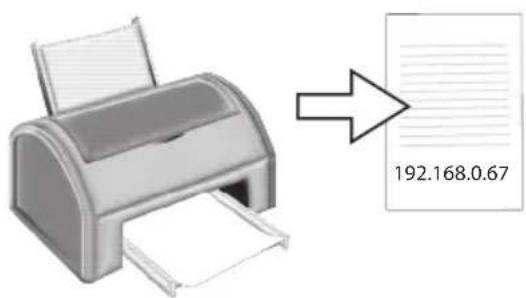

The IP address can be found on the status page of the print server.

To print a status page, press the status button of the print server.

Manual Assignment of IP Addresses

1 Start the Product CD on the client.
2 Select the Print Server – Tools menu.
3 Install the InterCon-NetTool on the client. Start the installation routine.
4 Start the InterCon-NetTool on the client.

5 Mark the print server in the print server list and start the IP Wizard.

6 Follow the instructions of the IP Wizard. Enter the preferred IP address and save it.

Internet Explorer.exe Safari.app Firefox.exe

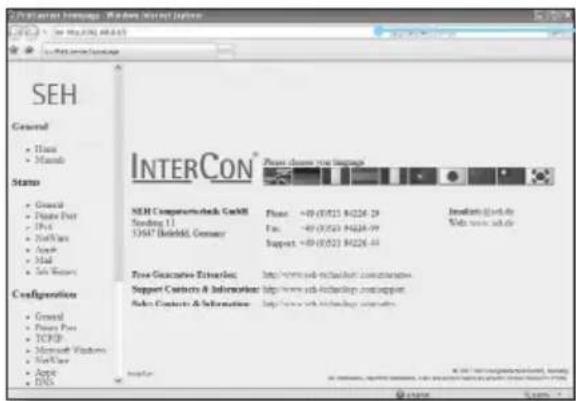

SEH General • Theme • Theme Status • General • Theme Post • DSC • 2nd Class • App# • 3rd • 5th Configuration • General • Theme Post • TCRP • Microsoft Windows • 3rd Class • App# • DSC INTERCON® Please choose via https://www.elseh.com/ SEH Comparisons GmbH Sending 11 33647 Betefeld, Germany Phone: [phone] Fax: [phone] Support: +09-05/21 84226-29 Focus Guidance Education: http://www.sch-freder.com/construction/ Support Contacts & Information: http://www.sch-freder.com/construction/ Sales Contacts & Information: http://www.sch-freder.com/construction/ Search: www.rscf.com.cn

Administration via the Print Server Homepage

1 Start the browser software on the client.
2 Enter the IP address of the print server as URL
3 The Print Server Homepage is displayed. Carry out the desired action.

Illustration of a CD or DVD next to a blank PDF cover (no text or symbols on the object)

InterCon-NetTool.exe

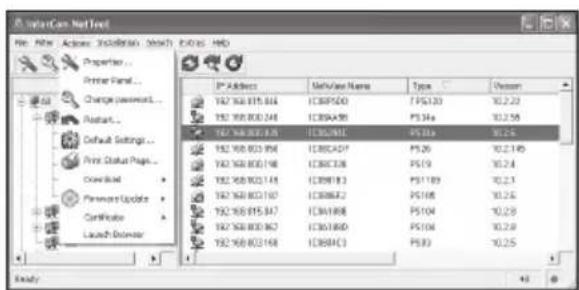

SolarCam Net Font File Edit Access Installation Search Entries Help Properties... Printer Panel... Change passwords... Default Settings... Print Status Page... Download... Password Update... Connector Launch Browser IP Address NetView Name Type Version 182 160 815 344 ICB97A0 182 160 800 248 ICB9A9B 182 160 800 838 ICB9A1E 182 160 800 956 ICB9C4F 182 160 800 198 ICB9C1B 182 160 800 214 ICB9E1B 182 160 800 310 ICB9E2J 182 160 815 347 ICB9I8B 182 160 800 367 ICB9I8D 182 160 800 216 ICB9A3 182 160 800 367 182 160 800 367 182 160 800 367 182 160 800 367 182 160 800 367 182 160 800 367 182 160 800 367 183 160 800 367 183 160 800 367 183 160 800 367 183 160 800 367 183 160 800 367 183 160 800 367 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3 183 16O4C3

Administration via the InterCon-NetTool

1 Start the Product CD on the client.
2 Select the Print Server – Tools menu.
③ Install the InterCon-NetTool on the client. Start the installation routine.
4 Start the InterCon-NetTool on the client.
5 Mark the print server in the print server list and carry out the desired action.

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Administration via Printserver Homepage

Illustration of a CD and DVD disc (no text or symbols on the disc itself)

InterCon-NetTool.exe

SolarCom Net Text File Name: Access Installation Search Options: HFD Property... Printer Panel... Change password... Instant... Default Settings... Print Status Page... Download... Password Update... Configure... Launch Browser IP Address 192 768 815 344 192 768 800 248 192 768 800 378 192 768 800 356 192 768 800 198 192 768 800 148 192 768 800 190 192 768 815 347 192 768 800 367 192 768 800 168 Networks Name/View Name Type TPS120 PS14a PS13a PS12a PS16 PS19 PS1189 PS108 PS104 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS102 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS103 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS104 PS105 PS105 PS105 PS105 PS105 PS105 PS105 PS105 PS105 PS105 PS105 PS105 PS105 PS105 PS105 PS105 PS105

Administration via InterCon-NetTool

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

ZeroConf/BoYour Intel/Com

Illustration of a CD and DVD disc (no text or symbols on the disc itself)

InterCon-NetTool.exe

SailCom Net Font File Edit Access Installation Search Exports Help Property... Printer Panel... Change password... Restart... Default Settings... Print Status Page... Download... Password Updates... Certificate Launch Border IP Address 182 368 815 844 182 368 800 244 182 368 802 878 182 368 803 894 182 368 803 956 182 368 803 198 182 368 802 144 182 368 803 190 182 368 815 847 182 368 800 867 182 368 802 168 MolView Name ICBSP5D0 ICBSP4A9 ICBSP4C1 ICBSP4C7 ICBSP4C8 ICBSP4C9 ICBSP4C10 ICBSP4C11 ICBSP4C12 ICBSP4C13 ICBSP4C14 ICBSP4C15 ICBSP4C16 ICBSP4C17 ICBSP4C18 ICBSP4C19 ICBSP4C20 ICBSP4C21 ICBSP4C22 ICBSP4C23 ICBSP4C24 ICBSP4C25 ICBSP4C26 ICBSP4C27 ICBSP4C28 ICBSP4C29 ICBSP4C30 ICBSP4C31 ICBSP4C32 ICBSP4C33 ICBSP4C34 ICBSP4C35 ICBSP4C36 ICBSP4C37 ICBSP4C38 ICBSP4C39 ICBSP4C40 ICBSP4C41 ICBSP4C42 ICBSP4C43 ICBSP4C44 ICBSP4C45 ICBSP4C46 ICBSP4C47 ICBSP4C48 ICBSP4C49 ICBSP4C50 ICBSP4C51 ICBSP4C52 ICBSP4C53 ICBSP4C54 ICBSP4C55 ICBSP4C56 ICBSP4C57 ICBSP4C58 ICBSP4C59 ICBSP4C60 ICBSP4C61 ICBSP4C62 ICBSP4C63 ICBSP4C64 ICBSP4C65 ICBSP4C66 ICBSP4C67 ICBSP4C68 ICBSP4C69 ICBSP4C70 ICBSP4C71 ICBSP4C72 ICBSP4C73 ICBSP4C74 ICBSP4C75 ICBSP4C76 ICBSP4C77 ICBSP4C78 ICBSP4C79 ICBSP4C80 ICBSP4C81 ICBSP4C82 ICBSP4C83 ICBSP4C84 ICBSP4C85 ICBSP4C86 ICBSP4C87 ICBSP4C88 ICBSP4C89 ICBSP4C90 ICBSP4C91 ICBSP4C92 ICBSP4C93 ICBSP4C94 ICBSP4C95 ICBSP4C96 ICBSP4C97 ICBSP4C98 ICBSP4C99 ICBSP4C100

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Illustration of a CD and DVD disc (no text or symbols visible)

InterCon-NetTool.exe

Select Com Net Font File Edit Access Installation Search Exports HBD Properties... Printer Panel... Change password... Abstract... Default Settings... Print Status Page... Download... Password Updates... Certificate Launch Browser IP Address NetView Name Type Version 192 308 815 344 ICBP520 TP5120 10.2.22 192 308 800 248 ICBN4A9 PS144 10.2.58 192 308 800 839 ICBN4A1 IP519 10.2.6 192 308 800 856 ICBN4A7 PS16 10.2.149 192 308 800 878 ICBN4A8 PS19 10.2.4 192 308 800 874 ICBN4A3 PS1789 10.2.1 192 308 800 870 ICBN4A2 PS168 10.2.6 192 308 815 347 ICBN4B8 PS104 10.2.9 192 308 800 867 ICBN4B5 PS106 10.2.9 192 308 800 868 ICBN4C3 PS183 10.2.5 Ready

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

SEH Company-Check In-SEH Product SEH Product CD - MT values Internet Explorer SEH Company-Check In-SEH Product SEH Product CD SEH Product CD SEH Product Description Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the products

Proprieta KONICA NMDLTA magulator 2400W Generate Condcine Puts Avanzake Settope solve About KONICA NMDLTA magulator 2400W Junka change alle seguenti port, I document seawno stampall cullle prime port files selected Ports Descritome Graspante CDM2 Porta module CDM4 Porta module FLE Stampa cullle USB Virtual panel port to... Canon MFS790 Series (Kcp. USB Virtual panel port to... Canon MFS790 Series http... SIEHTF RTK KONICA NMDLTA magalock V5 Local Port Appurals ports Elevations Confirm ports Ange support disk console Advanced distances OK Anvuto Apply

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Illustration of a CD and DVD disc (no text or symbols on the disc itself)

InterCon-NetTool.exe

SolarCom Net Load File Edit Access Installation Search Excl. HFD Properties... Printer Panel... Change password... Restart... Default Settings... Print Status Page... Download Password Update... Controller Launch Estimator IP Address 192 308 815 344 192 308 800 244 192 308 802 638 192 308 803 958 192 308 803 958 192 308 803 158 192 308 803 158 192 308 803 150 192 308 815 347 192 308 800 367 192 308 803 168 MolView Name ICBSPSD0 ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPAD ICBSPCAD PS120 PS14a PS14b PS14c PS14d PS14e PS14f PS14g PS14h PS14i PS14j PS14k PS14l PS14m PS14n PS14o PS14p PS14q PS14r PS14s PS14t PS14u PS14v PS14w PS14x PS14y PS14z PS14s PS14t PS14u PS14v PS14w PS14x PS14y PS14z PS14s PS14t PS14u PS14v PS14w PS14x PS14y PS14z PS14s PS14t PS14u PS14V PS14o PS14o PS14o PS14o PS14o PS14o PS14o PS14o PS14o PS14o PS14o PS14o PS14o

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Windows F5.20000 (E:\Properties) Search | Sharing | Port | Advanced | Color Management | Security | Server Settings | Kylower F5.20000.12 Port to the following ports: Documents will port to the first line checked port. Port Description Printer 132 100.0 132 0100 SDH TCP/IP Port ENGLISH SYSTEMS - NEW TCP/IP Port Supercis F5.20000.12 COM1 Social Port COM2 Social Port COM3 Social Port COM4 Social Port Add Port... Delete Port... Configure Port... □ Create Directional Support □ Create Prime Hosting Close ...

Illustration of a CD or DVD next to a blank flatboard labeled 'Product CD' (no additional text or symbols)

InterCon-NetTool.exe

SailCare Net Load File Edit Access Installation Search Options Help Property... Printer Panel... Change password... Restart... Default Settings... Print Status Page... Download Password Updates Certificate Launch Browser IP Address 192 708.015.044 192 708.003.248 192 708.003.038 192 708.003.054 192 708.003.198 192 708.003.174 192 708.003.160 192 708.015.047 192 708.003.067 192 708.003.168 MeValue Name ICBPS2D ICBPS4D ICBPS6D ICBPS8D ICBPS9D ICBPS10D ICBPS11D ICBPS12D ICBPS13D ICBPS14D ICBPS15D ICBPS16D ICBPS17D ICBPS18D ICBPS19D ICBPS20D ICBPS21D ICBPS22D ICBPS23D ICBPS24D ICBPS25D ICBPS26D ICBPS27D ICBPS28D ICBPS29D ICBPS30D ICBPS31D ICBPS32D ICBPS33D ICBPS34D ICBPS35D ICBPS36D ICBPS37D ICBPS38D ICBPS39D ICBPS40D ICBPS41D ICBPS42D ICBPS43D ICBPS44D ICBPS45D ICBPS46D ICBPS47D ICBPS48D ICBPS49D ICBPS50D ICBPS51D ICBPS52D ICBPS53D ICBPS54D ICBPS55D ICBPS56D ICBPS57D ICBPS58D ICBPS59D ICBPS60D ICBPS61D ICBPS62D ICBPS63D ICBPS64D ICBPS65D ICBPS66D ICBPS67D ICBPS68D ICBPS69D ICBPS70D ICBPS71D ICBPS72D ICBPS73D ICBPS74D ICBPS75D ICBPS76D ICBPS77D ICBPS78D ICBPS79D ICBPS80D ICBPS81D ICBPS82D ICBPS83D ICBPS84D ICBPS85D ICBPS86D ICBPS87D ICBPS88D ICBPS89D ICBPS90D ICBPS91D ICBPS92D ICBPS93D ICBPS94D ICBPS95D ICBPS96D ICBPS97D ICBPS98D ICBPS99D ICBPS100D
