USER MANUAL Elite Fresh Extreme EP7202 ROWENTA

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

5-MISE HORS TENSION

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Diagram showing hands holding a device with upward arrows indicating motion or force direction, labeled in Chinese.

Diagram showing a monitor on top and a bear-shaped object below, with a downward arrow indicating motion (no text or symbols)

Diagram of a hand pressing down on a curved pipe with directional arrows indicating flow (no text or labels)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

Illustration of hands assembling a cylindrical object with a tool, no text or symbols present

CLIC!

Simple line drawing of a tool interacting with a surface, showing motion and an upward arrow (no text or symbols)

7-EPILATION DES JAMBES

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person's arm and foot with a small object, no text or symbols present

Diagram showing a device emitting exhaust smoke from a vertical line, with an upward arrow indicating motion (no text or symbols)

Line drawing of a person receiving an injection from a bottle (no text or symbols)

Line drawing of a person performing a neck massage or stretching exercise (no text or symbols)

Illustration of two hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram showing a mechanical or electrical component with an upward arrow and labeled parts in Chinese.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with three upward arrows (no text or symbols)

Diagram of a mechanical component with a threaded end and an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a textured top and an arrow indicating direction (no text or symbols)

IMPORTANT

Illustration of a hand using a tool to press or adjust a component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward motion (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a surface (no text or symbols)

Illustration of a hand using a tool to spray or spray onto a surface with a faucet (no text or symbols)

Illustration of a hand spraying water from a pipe into a sink (no text or symbols)

Illustration of a hand using a tool to clean or spray liquid from a faucet (no text or symbols)

• Nettoyage de la Tête Exfoliation

Simple line drawing of a mechanical component with a diagonal bar and a curved base (no text or symbols)

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning symbol with skull, battery pack, and bottle on diagonal line

Simple line drawing of a container being poured into a bottle (no text or symbols)

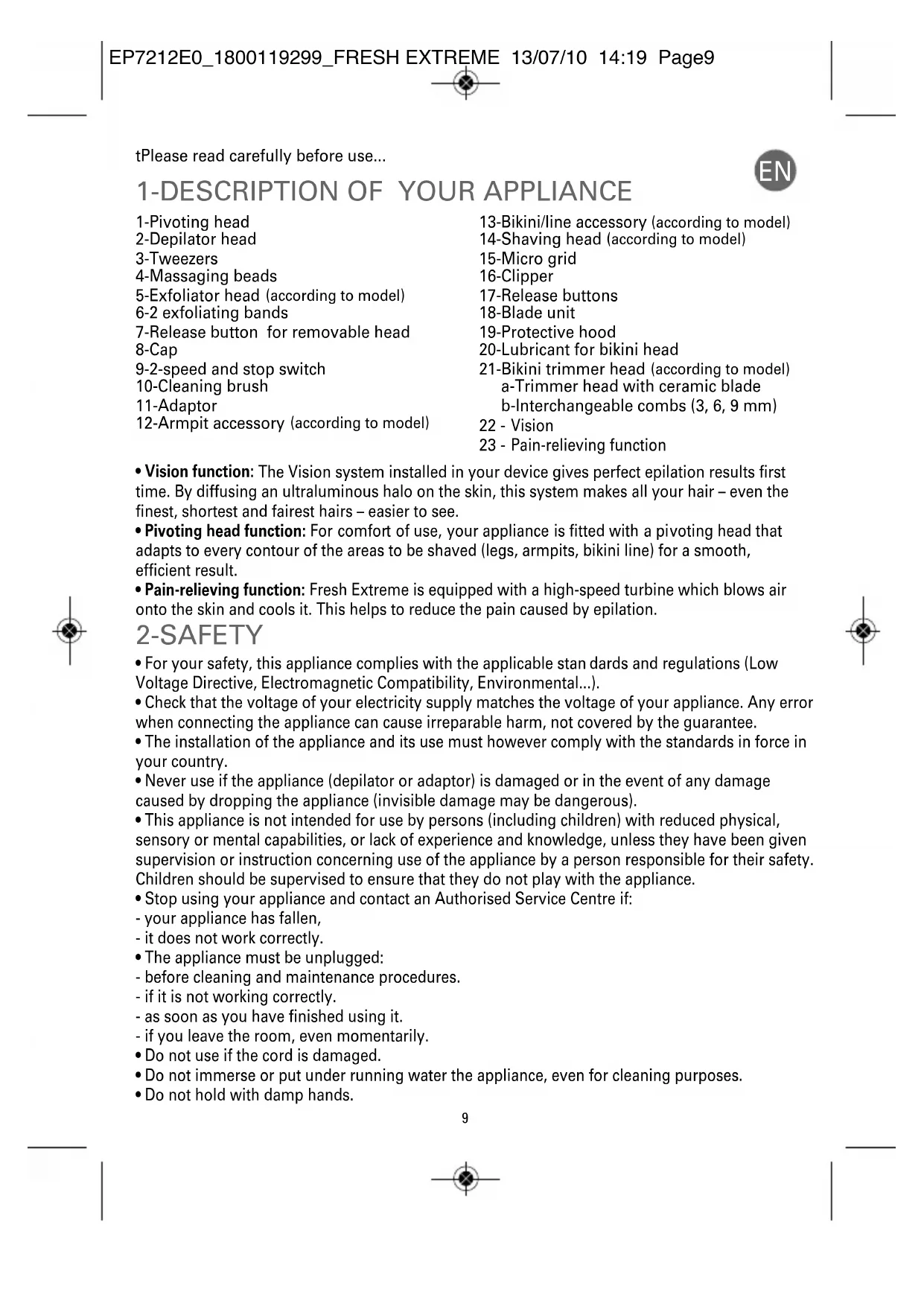

tPlease read carefully before use...

1-DESCRIPTION OF YOUR APPLIANCE

1-Pivoting head

2-Depilator head

3-Tweezers

4-Massaging beads

5-Exfoliator head (according to model)

6-2 exfoliating bands

7-Release button for removable head

8-Cap

9-2-speed and stop switch

10-Cleaning brush

11-Adaptor

12-Armpit accessory (according to model)

13-Bikini/line accessory (according to model)

14-Shaving head (according to model)

15-Micro grid

16-Clipper

17-Release buttons

18-Blade unit

19-Protective hood

20-Lubricant for bikini head

21-Bikini trimmer head (according to model) a-Trimmer head with ceramic blade b-Interchangeable combs (3, 6, 9 mm)

22 - Vision

23 - Pain-relieving function

• Vision function: The Vision system installed in your device gives perfect epilation results first time. By diffusing an ultraluminous halo on the skin, this system makes all your hair – even the finest, shortest and fairest hairs – easier to see.
• Pivoting head function: For comfort of use, your appliance is fitted with a pivoting head that adapts to every contour of the areas to be shaved (legs, armpits, bikini line) for a smooth, efficient result.
• Pain-relieving function: Fresh Extreme is equipped with a high-speed turbine which blows air onto the skin and cools it. This helps to reduce the pain caused by epilation.

2-SAFETY

• For your safety, this appliance complies with the applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Environmental...).
• Check that the voltage of your electricity supply matches the voltage of your appliance. Any error when connecting the appliance can cause irreparable harm, not covered by the guarantee.
• The installation of the appliance and its use must however comply with the standards in force in your country.
• Never use if the appliance (depilator or adaptor) is damaged or in the event of any damage caused by dropping the appliance (invisible damage may be dangerous).
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Stop using your appliance and contact an Authorised Service Centre if:

• your appliance has fallen,

• it does not work correctly.
  • The appliance must be unplugged:
• before cleaning and maintenance procedures.
• if it is not working correctly.
• as soon as you have finished using it.
• if you leave the room, even momentarily.
• Do not use if the cord is damaged.

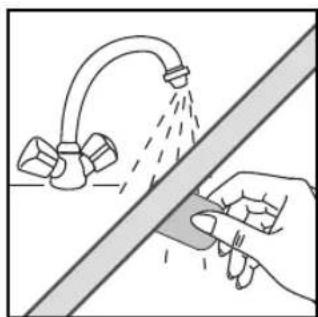

• Do not immerse or put under running water the appliance, even for cleaning purposes.
• Do not hold with damp hands.

• Do not unplug by pulling on the cord, rather pull out by the plug.
• Do not use an electrical extension lead.

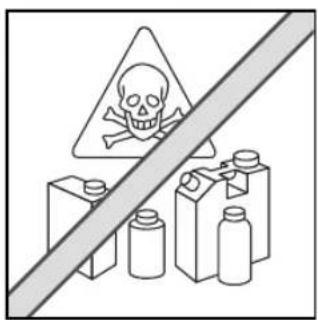

• Do not clean with abrasive or corrosive products.
• Do not use at temperatures below 0^ and above 35^ .
• When the depilator is in use, it must not come into contact with eyelashes, hair, clothes or any other objects, in order to avoid any danger of injury or blockage.
• Do not use the depilator:
• on your face
• on broken, burnt or sore skin
• on sensitive areas (varicose veins, moles, birthmarks, warts...)
• if you suffer from skin complaints, (eczema, inflam-mations, acne...).

If using on the bikini line, only use this appliance for the external area. Do not use it for more intimate zones (pubic lips).

For hygiene reasons, it is advised that you do not allow anyone else to use your appliance.

GUARANTEEYour appliance is designed for use in the home only. It should not be used for professional purposes. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. The guarantee becomes null and void in the case of improper usage.

3-PREPARATION OF THE SKIN

Your skin must be clean and dry.

• Do not apply either cream or hydrating milk before depilation.
• If you previously used a razor for depilation:
• the first few times you use the depilator, your skin may feel more sensitive, as shaving has made your hair thicker and stronger. This sensation will lessen the more you use your depilator: the hair will grow back less quickly and become thinner.
• Your depilator will be much more effective and easier to use if you use it regularly. We advise you to use your depilator as soon as your hair starts to grow back.

4-SWITCH ON

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

5-SWITCH OFF

Diagram showing a device with labeled arrows indicating direction of movement or force, possibly illustrating a physical or electrical concept.

6-PEELING (according to model)

Peeling will enable you to limits growth of subcutaneous hair if practised regularly.

We strongly recommend that you use the Exfoliator Head 2 days before using your epilator to avoid irritating your skin.

• And not to use a peeling gel or cream at the same time.
• Never carry out peeling on sensitive areas (armpits / bikini line / face).
  • After peeling, we advise you to wipe over the area with a moist flannel to remove any dead skin. Dry the skin thoroughly afterwards.

- Method:

• Press the release button to remove the epilator head.
• Clip the Exfoliator Head to the epilator.
• Select speed 1.

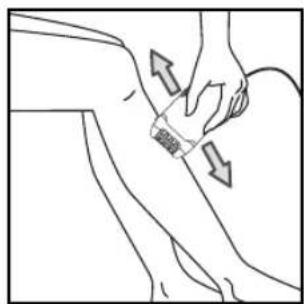

• Start exfoliating with a slow, gentle up and down movement.

Diagram showing hands holding a component with Chinese text labels and arrows indicating movement or assembly.

Simple line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

Line drawing of a hand holding a small object with directional arrows indicating movement or force (no text or symbols)

When using the Micro-Peeling function for the first time or if your skin is very delicate, we recommend:

1. skin is wet before peeling, use cotton wool or a flannel to do this
2. making slow and gentle rotating movements when using the appliance
3. not to use the appliance more than twice on the same area.

- Replacing the exfoliating band

• Press the release button to remove the Exfoliator Head from the epilator.

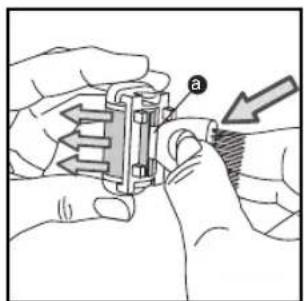

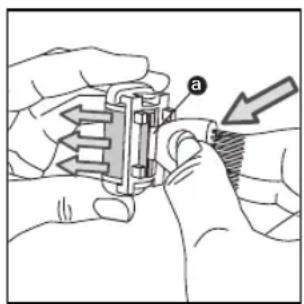

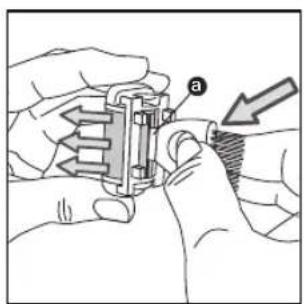

• Using the plastic end of the cleaning brush unclip the band as follows:

• Turn the Exfoliator Head over and hold it in place by gripping the edges between your thumb and forefinger.

• Turn the band so that its groove comes round to the central position.
• Insert the end of the cleaning brush in the groove and push to eject the band.

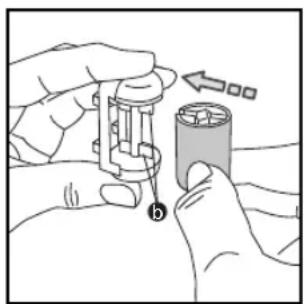

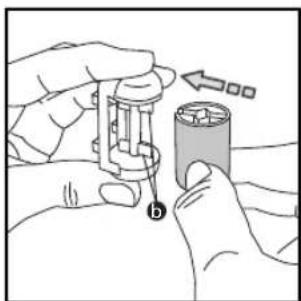

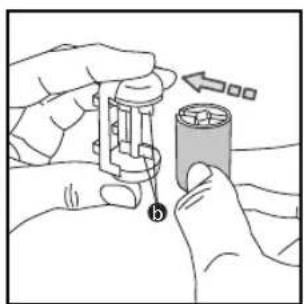

• Insert the new band by slotting the fins (b) of the exfoliator unit in the groove of the band and pushing until it clicks!

Diagram of a device with an upward arrow and directional arrows indicating motion (no text or symbols)

Illustration of hands using a mechanical tool to adjust or install a component (no text or symbols visible)

Illustration of hands assembling a cylindrical battery with a plug (no text or symbols)

CLIC!

Simple line drawing of a car with an upward arrow and motion lines, no text or symbols present.

7-LEG HAIR REMOVAL

For optimum epilation, we recommend that you tilt the e pilator slightly towards your skin in the direction of epilation, as shown in the diagram.

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person's seatbelt with a belt buckle (no text or symbols)

• Select speed 1 or 2.
• The switch must always remain visible during use.
• Shave against the lie of the hair, slowly and without pressing, with the shaver perpendicular to your skin.

8-HAIR REMOVAL FROM SENSITIVE AREAS

CLIC!

We recommend that you use the "sensitive areas" accessory when removing hair in the armpits and around the bikini line. This accessory has been designed to reduce the number of active tweezers, for a more gentle hair removal.

For optimum epilation, we recommend that you tilt the epilator slightly towards your skin in the direction of epilation, as shown in the diagram.

Diagram showing a device emitting exhaust smoke from a vertical line, with an upward arrow indicating motion (no text or symbols)

• Preparing the area where you want to remove hair:

• If the hairs are long trim to approximately 1cm.
• Dry the area thoroughly to ensure any trace of deodorant or perspiration are removed.

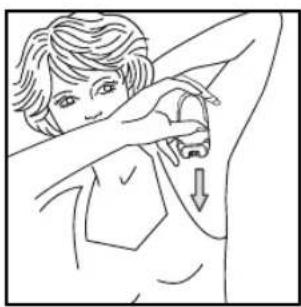

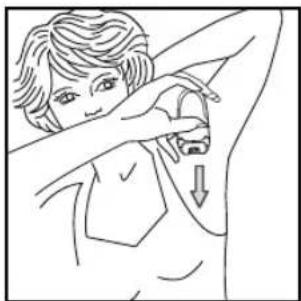

1) Armpit epilation:

• Fit the armpit accessory (12) onto the epilator head and push in until you hear a click.
• Select speed 1.

Line drawing of a person receiving a swab or bandage, no text or symbols present

Line drawing of a person performing a hand gesture with an arrow indicating direction (no text or symbols)

First from bottom to top...

... Then from top to bottom.

Important:

a) Keep your arm raised and stretched throughout the hair removal process.
b) Stretch the skin to make it easier.

2) Bikini line epilation:

• Fit the bikini line accessory (13) onto the epilator head and push in until you hear a click.
• Select speed 1.

Important:

Make sure the skin is stretched properly.

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram showing a mechanical component with an upward arrow and labeled parts, likely indicating a process or assembly.

Shave against the lie of the hair, slowly and without pressing, with the shaver perpendicular to your skin.

B-With the shaver head (according to model):

- Operating instructions:

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with upward arrows (no text or symbols)

• Remove the epilator head by pressing the ejection button.
• Fit the shaver head (14) onto the appliance.
• Set the switch to position 2.
• After use, stop the appliance.
• Remove the shaver head by pressing the ejection button.

9-TRIM AND EVEN OUT HAIR IN THE BIKINI AREA (according to model)

Put the bikini line trimmer head in place (21). Your bikini line trimmer head is equipped with 3 combs to lift long hairs for cutting by the blade.

Choose the desired comb before switching the appliance on.

IMPORTANT

For your first use, we advise you to use the comb for the longest cutting length.

• If you want a hair length of approximately 9 mm, use the largest comb.
• If you want a hair length of approximately 3 mm, use the smallest comb.
• If you want a hair length of approximately 6 mm, use the medium-sized comb.

Diagram of a mechanical component with a threaded tip and arrow indicating direction (no text or symbols)

Slide the comb into the two grooves on the trimmer head (a), then set the switch to 2.

Hold the appliance upright so that you can see the appliance name, and move it slowly against the hair.

IMPORTANT

If your skin becomes irritated, apply some talc after use.

• For a neat bikini outline

If you want a closer shave, use the bikini line trimmer head without the comb:

Stop the appliance by pressing 0 and unplug it.

Push to remove the comb (b).

Then switch on the machine by selecting speed 1 or 2.

Hold the appliance upright and move it slowly against the hair.

Diagram of a mechanical component with a gear-like top and an arrow indicating direction (no text or symbols)

IMPORTANT For greater effectiveness, pull hair outward with the other hand to make it stand out. This will give you a more precise shave with little irritation.

10-CLEANING THE APPLIANCE

- Cleaning the epilator head

1. Unplug the epilator.
2. Press the release button on the head and remove the epilator head.

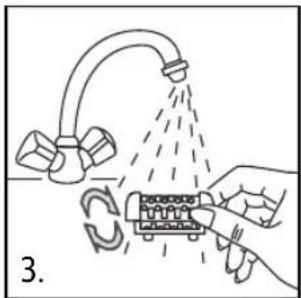

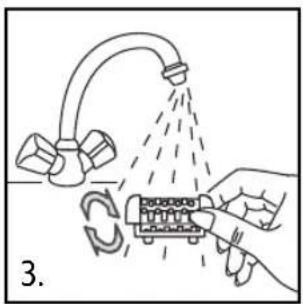

3. Rinse the epilator head under cold running water by turning it for 5 to 10 seconds.

1. 2 1

2.

Illustration of a hand using a tool to spray liquid onto a mechanical component (no text or symbols)

Hand holding a tool interacting with a curved mechanical component, no text or symbols visible

Illustration of hands fastening a cable connector with arrows indicating motion (no text or symbols)

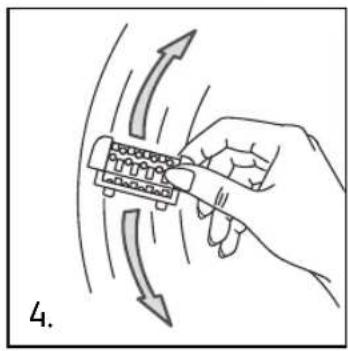

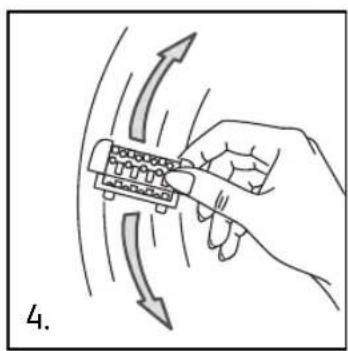

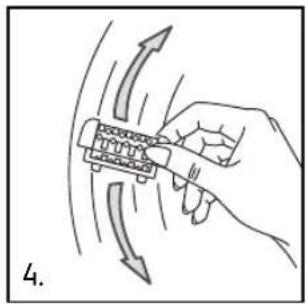

1. Shake the epilator head vigorously and dry it with a towel before fitting it to the epilator again.

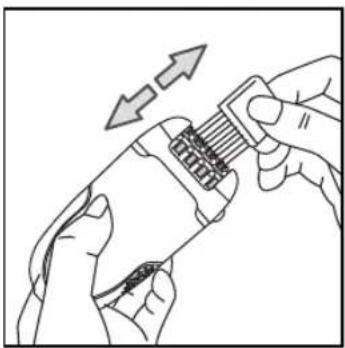

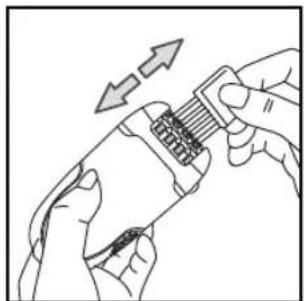

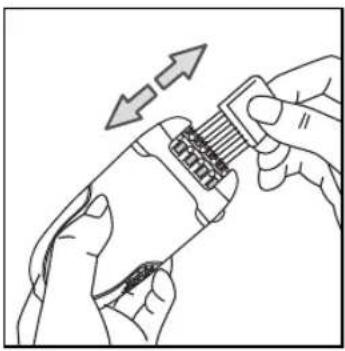

You can also use the small cleaning brush supplied.

- Cleaning the shaving head (according to model)

- Stop and unplug the device.

- Remove the protective hood (19).

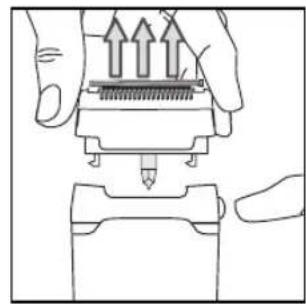

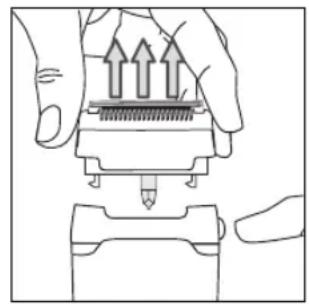

To do so: press the release buttons and pull upwards. You will remove the protective hood (19) from the blade block (18).

- Carefully remove the hairs by blowing on and around the micro grid (15)

Diagram of a hand using a tool to press or install a mechanical component, showing motion arrows (no text or symbols)

Never use the small brush for cleaning the micro grid (15).

Diagram of a hand pressing down on a mechanical component with arrows indicating downward motion (no text or symbols)

You can also run the protective hood (19) and the blade block (18) under running cold water to remove all the hair. Shake the parts well and then dry them using a towel without pressing down on the micro grid before reassembling them.

- Put the protective hood (19) back on the blade block (18). You will hear a click.

DO NOT PRESS ON THE MICRO GRID WHEN PUTTING IT BACK INTO PLACE.

Do not apply alcohol to the body of the appliance in order to avoid damaging its colours. Do not use a metal or sharp tool.

- Clean the trimmer head (according to model)

Stop the appliance and unplug it.

Press the release button to remove the epilator head.

Remove the comb and clean hair from the trimmer head with the brush.

Rinse the trimmer head under cold tap water for 5 or 10 seconds.

Shake the trimmer head vigorously and dry it with a towel.

Illustration of a hand using a showerhead to spray liquid onto a small object (no text or symbols present)

IMPORTANT Systematically clean the appliance's trimmer head after each use.

The appliance must not be submerged in water. It must not be used in the shower or bath.

- Cleaning sensitive areas accessory

ALCOOL 70° ALCOOL 90°

Illustration of a hand spraying water from a faucet (no text or symbols)

Line drawing of a hand spraying water from a faucet (no text or symbols)

Illustration of a hand using a tool to clean or spray water from a faucet (no text or symbols)

- Cleaning the Exfoliator Head

We recommend that you change the exfoliating band after three sessions of exfoliation or when it is worn out.

Do not clean the band under running water.

ALCOOL 75° ALCOOL 90°

Simple line drawing of a rope being inserted into a cable (no text or symbols)

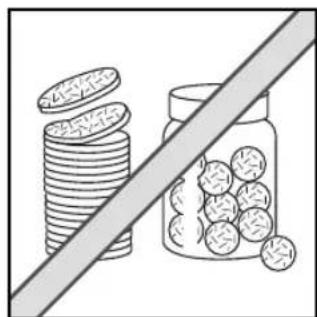

Illustration of stacked coins and a jar with scattered coins, separated by a diagonal line (no text or symbols)

Illustration of a warning sign with skull and battery components (no text or symbols)

11-LUBRICATION (according to model)

To keep your appliance working effectively, the blades should be oiled regularly (notably after washing in water) using the lubricant supplied or, if you have none, with the type of oil used for sewing machines.

Stop the appliance and unplug it.

Clean the trimmer head with the brush.

Lubricate the blades : one drop is enough.

Run the trimmer for a few seconds.

Clean the excess oil off with a cloth.

Simple line drawing of a container being poured into a bottle (no text or symbols)

IMPORTANT

Avoid applying alcohol to the body of the appliance so as not to fade its colours.

12-SKIN CARE

Small red spots may appear. They will disappear quickly.

For this reason it is preferable to use your depilator in the evening.

If necessary, apply calming cream after depilation.

13-ENVIRONNEMENT PROTECTION FIRST!

① Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

5-AUSSTECKEN

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Diagram showing hands holding a device with Chinese text labels indicating 'Close-up' and 'Close Back'

Simple line drawing of a monitor and keyboard with a downward arrow indicating compression (no text or symbols)

Diagram of a hand holding a small object with directional arrows indicating motion or force (no text or symbols)

Diagram of a device with an upward arrow and directional arrows indicating movement or force (no text or symbols)

Illustration of hands operating a mechanical switch or connector (no text or symbols visible)

Illustration of hands assembling a cylindrical component with a tool, no text or symbols present

CLIC!

Diagram showing a device emitting exhaust smoke from a surface with an upward arrow (no text or symbols)

Line drawing of a hand holding a cylindrical object with a bandage (no text or symbols)

Line drawing of a person's seatbelt with arrows indicating movement (no text or symbols)

Illustration of a medical or laboratory procedure showing an upward arrow and a device emitting particles (no text or symbols)

Line drawing of a person receiving a medical or cosmetic procedure (no text or symbols)

Line drawing of a person performing a hand gesture with an arrow indicating movement (no text or symbols)

Line drawing of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram showing a mechanical or electrical component with an upward arrow and labeled parts, likely indicating a process or assembly.

Line drawing of hands holding a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram of hands assembling a mechanical component with arrows indicating upward motion (no text or symbols)

Diagram of a mechanical component with a gear-like top and arrow indicating direction (no text or symbols)

Diagram of a hand holding a small object with an arrow pointing upward, labeled 'b' (no text or symbols on the object itself)

Illustration of a hand using a showerhead to clean water from a sink (no text or symbols)

Hand holding a tool interacting with a curved mechanical component (no text or symbols visible)

Illustration of hands using a screwdriver to adjust a component (no text or symbols visible)

Illustration of a hand using a tool to press or adjust a mechanical component (no text or symbols visible)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward force (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a small object (no text or symbols present)

Illustration of a hand spraying water from a faucet onto a sink (no text or symbols)

Line drawing of a hand pouring liquid from a pipe into a tank (no text or symbols)

Illustration of a hand cleaning a showerhead with a diagonal line (no text or symbols)

Simple line drawing of a hook being inserted into a cable, no text or symbols present

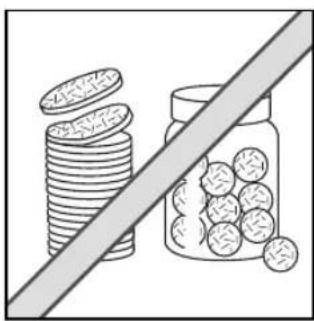

Illustration of stacked coins and a jar with scattered coins, separated by a diagonal line (no text or symbols)

Safety warning symbol with skull, battery, and plastic containers below a diagonal stripe

11-WARTUNG

Simple line drawing of a container being poured into a bottle (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating flow or movement.

5-MESSA FUORI TENSIONE

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Line drawing of hands holding a small electronic component with three leads (no text or symbols visible)

Simple line drawing of a monitor and a chair with a downward arrow indicating motion (no text or symbols)

Line drawing of a hand holding a small object with directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical component with an upward arrow and bidirectional arrow indicating motion (no text or symbols)

Illustration of hands using a mechanical tool to adjust or install a component (no text or symbols visible)

Illustration of hands assembling a cylindrical component with a battery (no text or symbols visible)

CLIC

Simple line drawing of a car with an upward arrow and motion lines, no text or symbols present.

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person's lower body with a small object near the chin, no text or symbols present

Diagram showing a hand holding a device with an upward arrow, next to a vertical line and dashed line (no text or symbols)

1) Armpit epilation:

• Fit the armpit accessory (12) onto the epilator head and push in until you hear a click.
• Selezionate la velocità 1.

Line drawing of a person receiving a medical or cosmetic procedure (no text or symbols)

Line drawing of a person performing a stretching exercise with an arrow indicating movement (no text or symbols)

• Fit the bikini line accessory (13) onto the epilator head and push in until you hear a click.
• Selezionate la velocità 1.

Importante : Tendere la pelle

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram showing a mechanical component with an upward arrow and Chinese text labels

Line drawing of hands holding a mechanical component with arrows indicating motion (no text or symbols)

Mechanical component diagram showing a downward arrow indicating force or motion (no text or symbols present)

Diagram of hands assembling a mechanical component with arrows indicating upward motion (no text or symbols)

Diagram of a hairpin with a textured cap and handle, showing a downward arrow (no text or symbols)

Diagram of a hairbrush with a textured brush tip and an arrow indicating direction (no text or symbols)

IMPORTANTE

Illustration of hands holding a component with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or spray a showerhead with a hose (no text or symbols present)

Hand holding a tool interacting with a curved mechanical component (no text or symbols visible)

Illustration of hands holding a device with an arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust a component (no text or symbols visible)

Diagram of a hand pressing down on a mechanical component with arrows indicating force or movement (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a surface, with no text or symbols present.

Line drawing of a hand spraying water from a faucet (no text or symbols)

Line drawing of a hand spraying water from a faucet (no text or symbols)

Illustration of a hand cleaning a faucet with a diagonal line (no text or symbols)

Simple line drawing of a hook being lifted by a string, no text or symbols present

Illustration of stacked coins and a glass jar with scattered round objects, separated by a diagonal line (no text or symbols)

Warning symbol with skull and warning triangle over battery and plastic containers (no text or labels)

Simple line drawing of a container being poured into a bottle (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

5-APAGADO

Diagram showing a device with labeled parts and directional arrows indicating motion or flow

Line drawing of hands holding a small electronic component with three upward arrows (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

Line drawing of a hand pressing down on a curved surface with directional arrows indicating movement (no text or symbols)

Simple line drawing of a device with an upward arrow and directional arrows, no text or symbols present.

Illustration of hands assembling or adjusting a mechanical component with a tool (no text or symbols visible)

Diagram showing hands installing a battery component with an arrow indicating direction and labeled step number ①

CLIC!

Simple line drawing of a rocket launching upward, with no text or symbols present

7-DEPILACION DE LAS PIERNAS

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person applying a medical or surgical tool to another person's arm (no text or symbols present)

Diagram showing a hand holding a device with motion lines and an upward arrow, no text or symbols present.

Line drawing of a person receiving a medical or cosmetic procedure (no text or symbols)

Line drawing of a person performing a stretching or abdominal exercise (no text or symbols)

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present

Illustration of hands holding a small electronic component with three upward arrows (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

Illustration of a hand using a tool to press or install a component with three upward arrows (no text or symbols present)

Diagram of a mechanical component with a threaded end and an arrow indicating direction (no text or symbols)

Diagram of a hairbrush with a textured brush tip and an arrow indicating direction (no text or symbols)

IMPORTANTE

Illustration of a hand using a showerhead to lift a submerged object, with no visible text or symbols.

Hand holding a tool interacting with a curved mechanical component (no text or symbols visible)

Illustration of hands using a tool to adjust a component with directional arrows (no text or symbols)

Illustration of a hand using a tool to adjust a mechanical component (no text or symbols visible)

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Illustration of a hand using a showerhead to clean or spray the showerhead (no text or symbols present)

Illustration of a hand using a tool to clean or disinfect the surface of a showerhead (no text or symbols present)

Simple line drawing of a container being poured into a bottle (no text or symbols)

12-CUIDADO DE LA PIEL

Diagram showing a hairdryer with labeled parts and directional arrows indicating movement or flow.

5-DESLI GAR

Diagram showing a medical device with labeled parts and directional arrows indicating movement or flow.

6-LIMPEZA DA PELE (consoante o modelo)

Diagram showing hands holding a device with Chinese text labels and directional arrows indicating movement or operation.

Simple line drawing of a monitor and a bear on a surface, with a downward arrow indicating motion (no text or symbols)

Line drawing of a hand pressing down on a car wheel (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

Illustration of hands using a tool to adjust a battery (no text or symbols visible)

CLIC!

Simple line drawing of a car with an upward arrow and motion lines, no text or symbols present.

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person's arm and foot with a small object, no text or symbols present

Diagram showing a hand holding a device with motion arrows and a vertical line, no text or symbols present.

Line drawing of a person performing breast surgery (no text or symbols)

Line drawing of a person performing a hand gesture with an arrow indicating movement (no text or symbols)

Line drawing of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram showing a mechanical component with an upward arrow and Chinese text labels on its body.

É indispensável:

esticar bem a pele.

Diagram of a mechanical component with a threaded end and an arrow indicating direction (no text or symbols)

Diagram of a hand holding a cupbell with an arrow pointing to it, no text or symbols present

IMPORTANT

Illustration of a hand washing a showerhead with a valve, no text or symbols present

Hand holding a tool interacting with a mechanical component, showing motion lines (no text or symbols)

Illustration of hands using a tool to adjust or install a component, with no visible text or symbols.

Illustration of a hand using a tool to press or adjust a mechanical component (no text or symbols visible)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward force (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a small object (no text or symbols present)

Line drawing of a hand using a tool to spray liquid into a faucet (no text or symbols)

Line drawing of a hand spraying water from a faucet (no text or symbols)

Illustration of a hand using a tool to clean or spray water from a showerhead (no text or symbols)

Diagram of a mechanical assembly with a tool and diagonal line (no text or symbols)

Illustration of stacked coins and a jar with scattered coins, separated by a diagonal line (no text or symbols)

Warning symbol with skull, warning triangle, and safety icons including batteries and pills

Simple line drawing of a container being piped with liquid, no text or symbols present

Diagram showing a device with labeled parts and directional arrows indicating motion or flow

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Diagram showing hands holding a device with Chinese labels indicating 'Close-up' and 'Close Back'

Diagram showing a device with a screen and a downward arrow, no text or symbols present

Line drawing of a hand pressing down on a car seatbelt (no text or symbols)

Diagram of a mechanical assembly with an upward arrow and a left-pointing arrow (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands using a tool to adjust a cylindrical object with a label (no text or symbols present)

CLIC!

Simple line drawing of a hand holding a device with an arrow pointing upward (no text or symbols)

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person's seatbelt with arrows indicating movement (no text or symbols)

Diagram showing a device emitting sound waves from a vertical line, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a person receiving a medical or cosmetic procedure (no text or symbols present)

Line drawing of a person performing a hand gesture with one finger raised (no text or symbols)

Line drawing of hands performing a manual task with directional arrows (no text or symbols)

Diagram showing a mechanical or electrical component with an upward arrow and labeled parts, likely indicating a process or assembly.

Line drawing of hands holding a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with three upward arrows (no text or symbols)

Diagram of a mechanical component with a threaded shaft and arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a textured top and an upward arrow, labeled 'b' (no text or symbols on the diagram itself)

Σημαντική σημείωση

Illustration of a hand using a tool to clean or spray liquid from a water tank (no text or symbols)

Hand holding a mechanical component with curved arrows indicating motion (no text or symbols)

Illustration of hands inserting a USB into a connector (no text or symbols)

Illustration of a hand using a tool to press or adjust a component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward force (no text or symbols)

Line drawing of a hand using a showerhead to spray liquid onto a small object (no text or symbols)

Illustration of a hand spraying water from a faucet (no text or symbols)

Illustration of a hand pouring liquid from a pipe into a sink (no text or symbols)

Illustration of a hand using a tool to clean or disinfect water from a faucet (no text or symbols)

Diagram of a mechanical assembly with a tool and diagonal line (no text or symbols)

Illustration of stacked coins and a jar with scattered coins, separated by a diagonal line (no text or symbols)

Safety warning symbol with skull, battery pack, and product packaging

Simple line drawing of a container being poured into a bottle (no text or symbols)

Σημαντική σημείωση

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

5- ELEKTRİK BAĞLANTISINI

Diagram showing a device with labeled arrows indicating direction of movement or interaction, including number 1 and number 2.

Illustration of hands holding a small electronic component with three upward arrows (no text or symbols)

Simple line drawing of a device with an arrow indicating downward motion (no text or symbols)

Line drawing of a hand pressing down on a curved surface with directional arrows indicating movement (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands using a mechanical tool to adjust or install a component (no text or symbols visible)

Illustration of hands assembling a battery with a hand holding the plug (no text or symbols visible)

CLIC!

Simple line drawing of a rocket on a surface with an upward arrow and motion lines (no text or symbols)

7- BACAKLARIN EPİLASYONU

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of a hairdryer with an upward arrow indicating motion (no text or symbols)

Line drawing of a person receiving a swab or bandage (no text or symbols)

Line drawing of a person performing a hand gesture with an arrow indicating direction (no text or symbols)

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram showing a mechanical component with an upward arrow and Chinese text labels below it.

Line drawing of hands holding a mechanical component with arrows indicating motion (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of hands holding a mechanical component with three upward arrows and a base, no text or symbols present

Diagram of a mechanical component with a threaded tip and arrow indicating direction (no text or symbols)

Diagram of a hairbrush with a textured brush tip and an arrow indicating direction (no text or symbols)

Illustration of hands holding a component with arrows indicating direction (no text or symbols)

Illustration of a hand spraying water onto a mechanical component (no text or symbols)

Hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of hands holding a device with an arrow indicating direction (no text or symbols)

Diagram of a hand using a tool to adjust a mechanical component (no text or symbols visible)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward force (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a small object (no text or symbols present)

Illustration of a hand using a spray gun to spray liquid from a faucet (no text or symbols)

Illustration of a hand spraying water from a faucet onto a surface, with no text or symbols present.

Illustration of a hand using a tool to clean or spray water from a faucet (no text or symbols)

Diagram showing a mechanical component with a diagonal line intersecting it, no text or symbols present

Illustration of stacked coins and a jar with scattered coins, separated by a diagonal line (no text or symbols)

Safety warning symbol with skull, battery pack, and plastic bottles against a diagonal stripe

11-YAĞLAMA (modele göre)

Simple line drawing of a container being poured into a bottle (no text or symbols)

ÖNEMLİ

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

Diagram showing a device with two directional arrows labeled 1 and 2, indicating movement or flow.

Diagram showing hands holding a device with upward arrows indicating motion or force direction, labeled in Chinese.

Simple line drawing of a monitor and a bearhead with a downward arrow (no text or symbols)

Diagram of a hand pressing down on a curved pipe with directional arrows indicating flow (no text or labels)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

Illustration of hands assembling a battery with a magnified view showing internal components (no text or symbols)

CLIC!

Diagram showing a device emitting particles from a surface with an upward arrow, no text or symbols present

7-EPILERING AF BENENE

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Diagram showing a device emitting exhaust smoke from a vertical line, with an upward arrow indicating motion (no text or symbols)

Line drawing of a person applying a product to another person's arm (no text or symbols)

Line drawing of a person performing a neck stretch or massage (no text or symbols)

Line drawing of two hands performing a manual task on a cutting board (no text or symbols)

Diagram showing a mechanical or electrical component with an upward arrow and labeled parts in Chinese.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Hand holding a mechanical component with three upward arrows indicating motion (no text or symbols)

Diagram of a mechanical component with a threaded end and an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a threaded end and an arrow indicating direction (no text or symbols)

VIGTIGT

Illustration of a hand using a tool to press or adjust a component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating force or movement (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a small object (no text or symbols present)

Illustration of a hand using a tool to spray or spray liquid onto a surface with a faucet (no text or symbols)

Illustration of a hand spraying water from a showerhead into a sink (no text or symbols)

Illustration of a hand using a tool to clean or disinfect water from a faucet (no text or symbols)

Diagram of a cable being inserted into a wire, showing rope routing and cable termination (no text or symbols)

Illustration of stacked coins and a jar with scattered coins, separated by a diagonal line (no text or symbols)

Safety warning symbol with skull, warning triangle, and battery icons

Simple line drawing of a container being poured into a bottle (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Illustration of a human leg with a belt buckle and directional arrows indicating movement (no text or symbols)

• Toimi nii:

Illustration of hands holding a connector with four upward arrows pointing to its top terminal (no text or symbols present)

Diagram showing a device with a screen and a base, no text or symbols present

Line drawing of a person applying pressure to their lower leg, showing hand placement and motion arrows (no text or symbols)

Diagram showing a vehicle chassis with an upward arrow and a left-pointing arrow indicating motion (no text or symbols)

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols present)

Illustration of hands assembling a cylindrical component with arrows indicating assembly (no text or symbols)

CLIC!

Diagram showing a car with motion lines and an upward arrow, no text or symbols present

7-SÄÄRTE EPILEERIMINE

Line drawing of a hand holding a cylindrical object with a plug, no text or symbols present

Line drawing of a person applying a cable to their lower body (no text or symbols)

Diagram of a hand holding a device with motion arrows indicating movement (no text or symbols)

Illustration of a person receiving a medical or cosmetic procedure on another person's arm (no text or symbols present)

Illustration of a person receiving a medical or cosmetic procedure with an arrow indicating direction (no text or symbols present)

Line drawing of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols)

Illustration of hands holding a connector with three upward arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating a process or operation (no text or symbols present)

Line drawing of a hand pressing down on a mechanical component with three upward arrows (no text or symbols)

Diagram of a hairbrush with a textured brush applying material to a connector (no text or symbols)

Diagram of a hairbrush with a rack of teeth being inserted, showing the brush tip and upward arrow (no text or symbols)

Illustration of hands installing or adjusting a component with upward arrows (no text or symbols)

Illustration of a hand using a showerhead to clean a component with a circular arrow indicating rotation (no text or symbols)

Hand holding a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of hands holding a connector with arrows indicating direction (no text or symbols)

Diagram of a hand using a tool to press or adjust a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating force or movement (no text or symbols)

Illustration of a hand using a showerhead to clean or spray a component (no text or symbols present)

Simple line drawing of a container being poured into a container with a droplet (no text or symbols)

Illustration of a hand using a tool to spray or spray onto a surface with a curved object (no text or symbols)

Illustration of a hand using a tool to spray or spray liquid onto a surface with a pipe (no text or symbols)

Illustration of a hand using a tool to clean or disinfect a showerhead (no text or symbols present)

Diagram of a hand using a tool to tie a cable or cable with a grid pattern (no text or symbols)

Illustration of stacked coins and a jar with scattered coins, separated by a diagonal line (no text or symbols)

Safety warning symbol with skull, crossbones, and battery components on a diagonal stripe

12- NAHAHOOLDUS

Diagram showing a device with labeled parts and directional arrows indicating flow or movement.

Diagram showing a device with two directional arrows labeled 1 and 2, indicating movement or flow.

6-PīLINGS (atbilsto i modelim)

Diagram showing hands holding a device with three upward arrows indicating direction or movement, labeled in Chinese.

Diagram showing a device with a screen and a downward arrow, no text or symbols present

Line drawing of a person applying pressure on their back with arrows indicating direction (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling a mechanical component with a downward arrow (no text or symbols)

Illustration of hands assembling a cylindrical device with a labeled component (no text or symbols present)

CLIC!

Diagram showing a device emitting particles from a surface with an upward arrow, no text or symbols present

7- KĀJU EPILĀCIJA

Illustration of a human leg with a bandage and directional arrows indicating movement (no text or symbols)

Line drawing of a hand holding a cylindrical object with a plug, no text or symbols present

Line drawing of a person applying a cable to their lower body, showing a hand holding the cable (no text or symbols)

Diagram of a handheld device emitting sound waves, with an upward arrow indicating motion (no text or symbols present)

Illustration of a person receiving a medical or cosmetic procedure on another person's arm (no text or symbols present)

Line drawing of a person receiving a medical or surgical procedure with an arrow indicating direction (no text or symbols present)

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

KLIKŠ!

Illustration of hands holding a small electronic component with three upward arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating a process or operation (no text or symbols present)

Line drawing of a hand pressing down on a mechanical component with upward arrows indicating motion (no text or symbols)

Diagram of a hairbrush with a textured brush applying material to a connector (no text or symbols)

Diagram of a hairbrush with a rack of teeth being inserted, showing the brush tip and upward arrow (no text or symbols)

Illustration of a hand using a showerhead to lift a component, with no text or symbols present.

Hand holding a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of hands using a tool to adjust a component with directional arrows (no text or symbols)

Diagram of a hand using a tool to press or adjust a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward force (no text or symbols)

Illustration of hands using a showerhead to spray liquid onto a small electronic component (no text or symbols present)

Line drawing of a container with liquid being poured into it, no text or symbols present

Illustration of a hand using a tool to spray or spray onto a surface with a curved pipe (no text or symbols)

Illustration of a hand using a spray gun to prevent a showerhead on a faucet (no text or symbols present)

Illustration of a hand using a tool to clean or disinfect a showerhead, with no text or symbols present.

Diagram of a hand using a screwdriver to install a component on a diagonal line (no text or symbols)

Illustration of stacked coins and a jar with coins, separated by a diagonal line (no text or symbols)

Safety warning symbol with skull, warning box, and battery components

12-ĀDAS KOPŠANA

Var rasties mazi sarkani punktini. Tie ātri vien izzudis.

Diagram showing a device with labeled parts and directional arrows indicating flow or movement.

Diagram showing a device with labeled arrows indicating direction of movement or force, including '1' and '2' annotations.

Line drawing of a human leg with a bandage and directional arrows indicating movement (no text or symbols)

Line drawing of hands holding a connector with three upward arrows indicating motion (no text or symbols)

Diagram showing a device with a screen and a downward arrow, no text or symbols present

Line drawing of a person's lower body with arrows indicating movement or pressure points (no text or symbols)

Diagram showing a vehicle chassis with an upward arrow and a left-pointing arrow indicating motion (no text or symbols)

Illustration of hands using a mechanical tool to adjust or install a component (no text or symbols visible)

Illustration of hands assembling a cylindrical device with a pin (no text or symbols)

CLIC!

Diagram showing a car with motion lines and an upward arrow, no text or symbols present

7-KOJŲ PLAUKELIŲ ŠALINIMAS

Line drawing of a hand holding a cylindrical object with a plug, no text or symbols present

Line drawing of a person using a device to grip a small object, with an upward arrow indicating motion (no text or symbols)

- Pasirinkite I arba 2 greitj.

Diagram of a handheld device emitting sound waves, with an upward arrow indicating motion (no text or symbols present)

Illustration of a person receiving a medical or cosmetic procedure on another person's arm (no text or symbols present)

Line drawing of a person performing a medical or cosmetic procedure with an arrow indicating direction (no text or symbols)

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

SPRAGTELÉJIMAS!

Line drawing of hands holding a connector with three upward arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Line drawing of hands assembling a mechanical component with an upward arrow indicating motion (no text or symbols)

Diagram of a hairbrush with a textured brush applying material to its base, labeled 'a' (no text or symbols on the diagram itself)

Diagram of a hairbrush with a textured brush and an arrow indicating direction (no text or symbols)

Illustration of hands holding a connector with three upward arrows indicating direction (no text or symbols)

Illustration of a hand using a showerhead to lift a component, with no text or symbols present.

Hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of hands inserting a USB into a connector (no text or symbols)

Diagram of a hand using a tool to press or adjust a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward force (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a mechanical component (no text or symbols present)

Simple line drawing of a container being poured into a bottle, with a droplet falling (no text or symbols)

Illustration of a hand using a tool to spray or spray onto a pipe with two valves (no text or symbols present)

Illustration of a hand using a tool to spray liquid onto a faucet (no text or symbols)

Illustration of a hand using a tool to clean or spray liquid from a showerhead (no text or symbols)

Diagram of a mechanical assembly with a tool and a diagonal line intersecting (no text or symbols)

Illustration of stacked coins and a jar with scattered coins, separated by a diagonal line (no text or symbols)

Safety warning sign with skull, warning box, and battery pack labeled in English

12-ODOS PRIEŽIŪRA

Diagram showing a device with labeled parts and directional arrows indicating motion or sequence

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

6-KUORINTA (mallista riippuen)

Diagram showing hands holding a device with Chinese text labels and arrows indicating motion or movement

Simple line drawing of a monitor and a base with a downward arrow indicating motion (no text or symbols)

Diagram of a hand pressing down on a car seatbelt, showing motion arrows (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling a mechanical component with a labeled part (no text or symbols present)

Illustration of hands assembling a cylindrical component with an arrow indicating assembly (no text or symbols present)

CLIC!

Simple line drawing of a device emitting particles from a surface, with an upward arrow indicating motion (no text or symbols)

7-SÄÄRTEN EPILOINTI

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person's arm and foot with a small object, no text or symbols present

Diagram showing a device emitting exhaust smoke from a vertical line, with an upward arrow indicating motion (no text or symbols)

Line drawing of a person receiving an injection from a bottle (no text or symbols)

Line drawing of a person performing a neck massage or stretching exercise (no text or symbols)

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram showing a mechanical or electrical component with an upward arrow and labeled parts in Chinese.

2) Bikinirajan epilointi:

Diagram of a mechanical device with a downward arrow indicating force or motion (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with three upward arrows (no text or symbols)

Diagram of a hand holding a small mechanical component with a textured top and arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a textured top and an arrow indicating direction (no text or symbols)

TÄRKEÄÄ

Illustration of a hand using a tool to press or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward motion (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a surface, with no text or symbols present.

Illustration of a hand using a tool to spray or spray onto a faucet (no text or symbols present)

Illustration of a hand using a tool to spray liquid onto a surface with two blocks (no text or symbols)

Illustration of a hand using a tool to clean or spray water from a curved pipe (no text or symbols)

Diagram of a mechanical assembly with a tool and diagonal line (no text or symbols)

Illustration of stacked coins and a jar with coins, separated by a diagonal line (no text or symbols)

Safety warning symbol with skull, warning box, and battery/capacitor icons

Simple line drawing of a container being poured into a bottle, with a droplet hanging from the side (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

6-PEELING (BEROENDE PÅ MODELL)

Diagram showing hands holding a device with upward arrows indicating movement or force, labeled in Chinese.

Simple line drawing of a device with a screen and base, no text or symbols present

Line drawing of a hand pressing down on a car seatbelt (no text or symbols)

Diagram of a device with an upward arrow and left-pointing arrow, no text or symbols present

Illustration of hands assembling or adjusting a mechanical component with a tool (no text or symbols visible)

Illustration of hands holding a cylindrical battery with a small object inserted, no text or symbols present

CLIC!

Simple line drawing of a tool interacting with a surface, showing motion and an upward arrow (no text or symbols)

7-EPILERING AV BENEN

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person's arm and foot with a small object, no text or symbols present

Diagram showing a hairpin emitting vapor or smoke from a vertical barrier, with an upward arrow indicating motion (no text or symbols)

Line drawing of a person applying a product to another person's arm (no text or symbols)

Line drawing of a person performing a neck stretch or massage (no text or symbols)

Illustration of two hands performing a manual task on a cutting board (no text or symbols visible)

Diagram showing a mechanical or electrical component with an upward arrow and labeled parts in Chinese.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Hand holding a mechanical component with three upward arrows emerging from it, no text or symbols visible

Diagram of a mechanical component with a threaded tip and arrow indicating direction (no text or symbols)

Diagram of a hand holding a tool with a gear-like component and an upward arrow, labeled 'b' (no text or symbols on the diagram itself)

VIKTIGT

Illustration of a hand using a tool to press or adjust a component, showing motion arrows (no text or symbols)

Diagram of a hand pressing down on a component with arrows indicating downward motion (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a surface, with no text or symbols present.

Illustration of a hand spraying water from a faucet (no text or symbols)

Illustration of a hand spraying water from a pipe into a sink (no text or symbols)

Illustration of a hand using a tool to clean or spray water from a curved pipe (no text or symbols)

Simple line drawing of a mechanical component with a diagonal bar and a curved base (no text or symbols)

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning symbol with skull, battery pack, and plastic bag on diagonal line

11-SMÖRJNING (BEROENDE PÅ MODELL)

Simple line drawing of a container being poured into a bottle (no text or symbols)

VIKTIGT

17-Knapper for uttak

18-Bladenhet

19-Beskyttelsesdeksel

20-Smøreolje til bikinitrimmers hode

21-Bikinihode (Avhengig av modell)

a. Klippehode med blad i keramikk

b. 3 demonterbare kammer (3-6-9 mm)

22 - Sikt

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

5-KOPLE FRA

Diagram showing a device with labeled arrows indicating direction of movement or force, and numbered annotations 1 and 2.

6-PEELING (AVHENGIG AV MODELL)

Ved regelmessig peeling vil du redusere utvekst av hår under huden.

Diagram showing hands holding a device with upward arrows indicating motion or force direction, labeled in Chinese.

Diagram showing a device with a screen and a base, no text or symbols present

Line drawing of a hand pressing down on a car seatbelt (no text or symbols)

Simple line drawing of a device with an upward arrow and left-pointing arrow (no text or symbols)

Close-up of hands assembling a mechanical component with a labeled part (a), no visible text or symbols

Diagram showing a hand holding a test tube with an arrow pointing to a cylindrical object labeled '试' (test), likely illustrating a procedure or measurement.

CLIC!

Simple line drawing of a device emitting particles from a surface, with an upward arrow indicating motion (no text or symbols)

7-FJERNING AV HÅR PÅ BENA

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person's arm and foot with a small object, no text or symbols present

Diagram showing a device emitting exhaust smoke from a vertical line, with an upward arrow indicating motion (no text or symbols)

Line drawing of a person receiving an injection from a bottle (no text or symbols)

Line drawing of a person performing a hand gesture with an arrow indicating movement (no text or symbols)

Illustration of hands performing a manual task with directional arrows (no text or symbols)

Diagram showing a mechanical or electrical component with an upward arrow and labeled parts in Chinese.

2) Hårfjerning langs bikinilinjen: - Klipse tilbehøret for bikinilinjen (13) på epilatorhodet. - Velg hastighet 1.

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Hand holding a mechanical component with three upward arrows, no visible text or symbols

Diagram of a mechanical component with a gear-like top and arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a textured top and an arrow indicating upward motion (no text or symbols)

VIKTIG

10-VEDLIKEHOLD AV APPARATET

Illustration showing two hand positions: one with a mechanical component and directional arrows, the other with a mechanical component being inserted (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, showing motion arrows (no text or symbols)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward force (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a surface, with no text or symbols present.

Illustration of a hand spraying water from a faucet (no text or symbols)

Illustration of a hand spraying water from a pipe into a sink (no text or symbols)

Illustration of a hand using a tool to clean or spray water from a curved pipe (no text or symbols)

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning symbol with skull, battery pack, and bottles on a diagonal stripe

11-SM∅RING (AVHENGIG AV MODELL)

Simple line drawing of a container being poured into a bottle (no text or symbols)

13-LA OSS TENKE MILJ∅

Diagram showing a device with labeled parts and directional arrows indicating flow or movement.

Diagram showing a device with labeled arrows indicating direction of movement or force, possibly illustrating a physical or electrical concept.

Illustration of hands holding a mechanical component with arrows indicating upward motion (no text or symbols)

Simple line drawing of a device with a monitor and base, no text or symbols present

Line drawing of a hand pressing down on a curved surface with directional arrows indicating motion (no text or symbols)

Diagram showing a car with motion lines and an upward arrow, no text or symbols present

7-ONTHAREN VAN DE BENEN

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person's seatbelt being adjusted for a piece, showing no text or symbols

Diagram showing a hand holding a device with an upward arrow, no text or symbols present

Line drawing of a person receiving a medical or cosmetic procedure (no text or symbols present)

Line drawing of a person performing a neck stretch or massage (no text or symbols)

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with an upward arrow and internal components (no text or symbols)

Line drawing of hands holding a small electronic component with three upward arrows (no text or symbols)

Mechanical component diagram showing a downward arrow indicating force or direction (no text or symbols present)

Illustration of hands assembling a mechanical component with arrows indicating upward motion (no text or symbols)

Diagram of a mechanical component with a threaded end and an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a gear-like component and an arrow indicating direction (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a mechanical component (no text or symbols)

Hand holding a mechanical component with curved arrows indicating motion (no text or symbols)

Illustration of hands holding a connector with an arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to press or adjust a component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a small object (no text or symbols present)

Illustration of a hand using a spray gun to spray liquid onto a surface with a faucet (no text or symbols)

Line drawing of a hand using a showerhead to spray liquid onto a surface with two kitchen fixtures (no text or symbols)

Illustration of a hand using a tool to clean or spray water from a faucet (no text or symbols)

Diagram showing a cable being inserted into a socket, with no visible text or symbols

Illustration of stacked coins and a jar with scattered coins, separated by a diagonal line (no text or symbols)

Warning symbol with skull, warning triangle, and safety icons including plastic bottles and containers

11-SMEERMIDDEL VOOR BIKINILIJN TRIMKOP

Simple line drawing of a container being poured into a bottle (no text or symbols)
