Brand	Energy Sistem
Model	Universal 2100 Basic
Product type	Universal infrared remote control
Compatible devices	TV, VCR, satellite receiver, DVD, VCR/CTV combo
Power supply	Alkaline batteries (number according to compartment)
Approximate dimensions	20 cm × 5 cm × 2 cm
Approximate weight	150 g (with batteries)
Programming methods	By device code (4 digits) or by automatic search in the library
Number of codes that can be stored	Up to 4 devices (3 or 4 depending on secondary mode)
Main functions	On/Off, volume, channels, secondary functions (via Shift key)
Low battery indicator	LED flashes slowly twice after a command
Infrared range	Approximately 10 meters (estimate)
Care and cleaning	Dust with a soft, dry cloth; do not use corrosive products
Safety	Do not expose to dust, direct sunlight, humidity, high temperatures or mechanical shocks
Spare parts and repairability	Not intended for user maintenance; do not disassemble

Frequently Asked Questions - Unniversal 2100 Basic ENERGY SISTEM

How to install the batteries in the Universal 2100 Basic remote control?

Remove the battery compartment cover on the back of the remote control. Insert alkaline batteries respecting the + and - polarity indicated in the compartment. Close the cover. If batteries are low, the LED flashes twice slowly.

How to program the remote control by device code?

Turn on your device (e.g. TV). Press the corresponding mode key (TV). Hold down the CH+ and VOL- keys for 2 seconds until the LED turns on. Enter the 4-digit code for your brand (found in the list). The LED turns off. Test the functions.

What if no code from the list works for my device?

Use the automatic search method. Turn on the device, press the mode key, then hold CH+ and VOL- for 2 seconds. Enter the corresponding magic code (e.g., 0001 for TV). Point the remote at the device and slowly press the O key until the device turns off. Immediately press the mode key to confirm.

Why is my remote not responding?

Check that the device is on and its main switch is activated. Make sure the batteries are installed correctly (polarity) and are sufficiently charged. Ensure you have selected the correct mode (TV, VCR, etc.).

How to use the secondary functions?

Secondary functions are indicated by symbols in a different color. Press the Shift key first, then the desired function key. Refer to the table of secondary functions in the manual.

Can I control more than 4 devices with this remote?

Yes, by using the secondary device mode. After programming the main devices, press Shift then the mode key to access a second set of codes. You can thus control up to 7 or 8 devices (depending on modes).

What does the flashing LED during programming mean?

If the LED flashes twice, it indicates an error: either an incorrect code or the end of the code library has been reached. Restart the procedure from the beginning.

How to maintain my remote control?

Clean it with a soft, dry cloth. Avoid exposure to dust, direct sunlight, humidity, high temperatures and shocks. Do not mix new and old batteries. Do not disassemble the device.

Does the remote work with all televisions?

The remote is compatible with most TVs and audio-video devices using infrared. It contains a code library for many brands. If your device is not in the list, use the automatic search.

How can I save the codes I found?

Once programming is successful, note the codes in the space provided on the label on the back of the remote. This way, you can easily find them if needed (battery change, etc.).

USER MANUAL Unniversal 2100 Basic ENERGY SISTEM

Universal Remote Control (URC)

Operatinginstructions

TélécommandeUniverselle(TCU)

Mode D'emploi

For English Reader Page 1-3

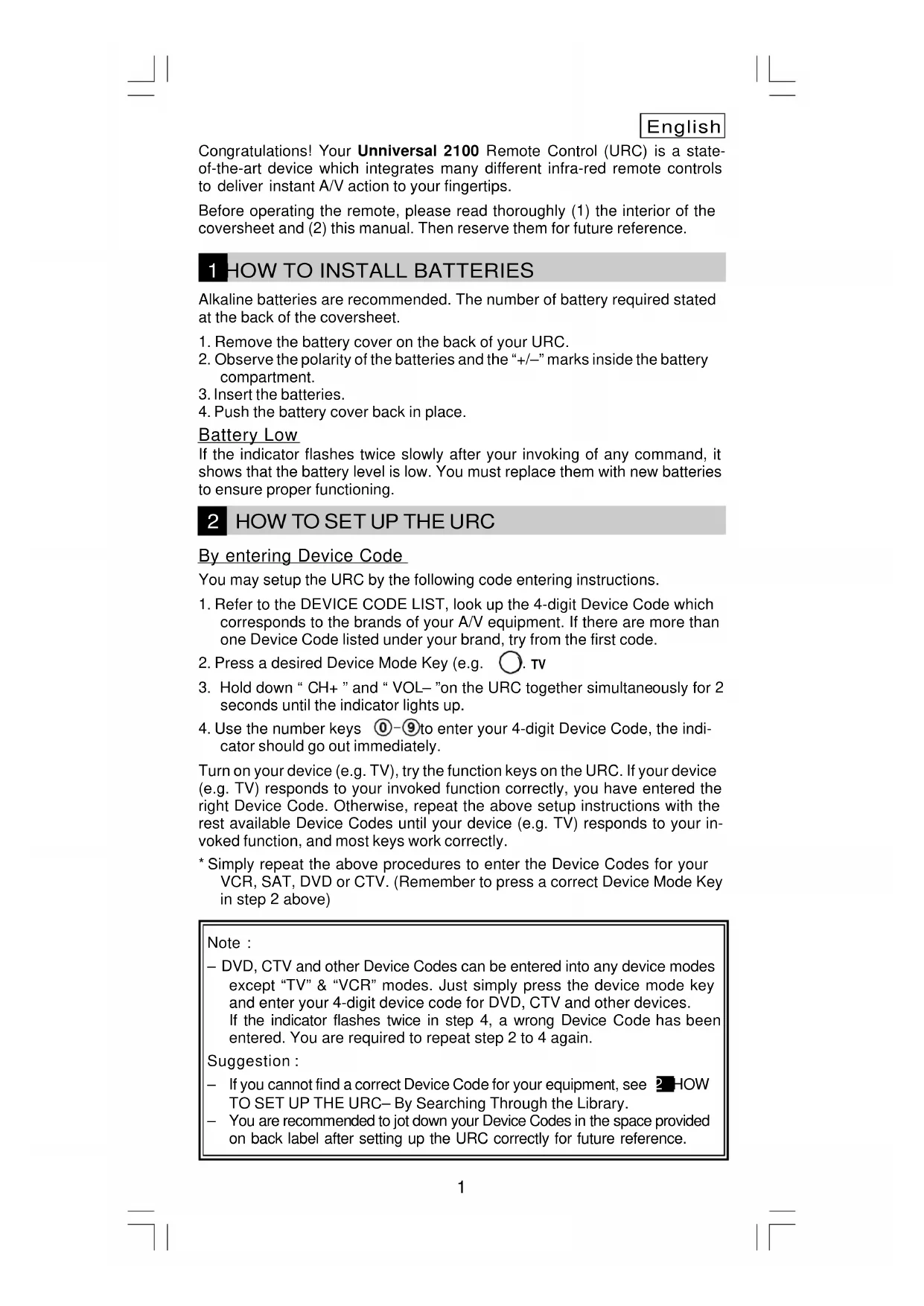

Congratulations! Your Ununiversal 2100 Remote Control (URC) is a state-of-the-art device which integrates many different infra-red remote controls to deliver instant A/V action to your fingertips.

Before operating the remote, please read thoroughly (1) the interior of the coversheet and (2) this manual. Then reserve them for future reference.

1 HOW TO INSTALL BATTERIES

Alkaline batteries are recommended. The number of battery required stated at the back of the coversheet.

1. Remove the battery cover on the back of your URC.
2. Observe the polarity of the batteries and the + / - marks inside the battery compartment.
3. Insert the batteries.
4. Push the battery cover back in place.

Battery Low

If the indicator flashes twice slowly after your invoking of any command, it shows that the battery level is low. You must replace them with new batteries to ensure proper functioning.

2 HOW TO SET UP THE URC

By entering Device Code

You may setup the URC by the following code entering instructions.

1. Refer to the DEVICE CODE LIST, look up the 4-digit Device Code which corresponds to the brands of your A/V equipment. If there are more than one Device Code listed under your brand, try from the first code.
2. Press a desired Device Mode Key (e.g. TV
3. Hold down "CH+ " and "VOL- "on the URC together simultaneously for 2 seconds until the indicator lights up.
4. Use the number keys ① - ⑨ to enter your 4-digit Device Code, the indicator should go out immediately.

Turn on your device (e.g. TV), try the function keys on the URC. If your device (e.g. TV) responds to your invoked function correctly, you have entered the right Device Code. Otherwise, repeat the above setup instructions with the rest available Device Codes until your device (e.g. TV) responds to your invoked function, and most keys work correctly.

• Simply repeat the above procedures to enter the Device Codes for your VCR, SAT, DVD or CTV. (Remember to press a correct Device Mode Key in step 2 above)

Note :

DVD, CTV and other Device Codes can be entered into any device modes except "TV" & "VCR" modes. Just simply press the device mode key and enter your 4-digit device code for DVD, CTV and other devices. If the indicator flashes twice in step 4, a wrong Device Code has been entered. You are required to repeat step 2 to 4 again.

Suggestion :

• If you cannot find a correct Device Code for your equipment, see 2. HOW TO SET UP THE URC- By Searching Through the Library.
• You are recommended to jot down your Device Codes in the space provided on back label after setting up the URC correctly for future reference.

By Searching Through the Library

If you cannot identify a correct Device Code for your equipment from the Device Code list, you may search the code through the library:-

1. Turn on your device manually (e.g. TV).
2. Press a desired Device Mode Key (e.g. ):TV
3. Hold down " CH+ " and "VOL-" on the URC together simultaneously for 2 seconds until the indicator lights up.
4. Enter a corresponding Magic Search Code from following table. The indicator should go out immediately.

DEVICE TYPE:	TV	VCR	SAT	CTV	DVD
MAGIC SEARCH CODE:	0001	0002	0003	0004	0005

(e.g. press device mode key, then press TV

CH+ " and " VOL- ", and

enter TV Magic Search Code 0001.)

1. Press the same desired device mode key again as in step 2 above. (e.g. )
2. Hold down "CH+ " & "VOL- " together simultaneously for 2 seconds until the indicator lights up, and your URC is ready to start searching.
3. Aim the URC at your device (e.g. TV), press the " key repeatedly, slowly and patiently until the device has been turned off.

Once your device has been turned off, immediately press Device Mode Key (e.g. to lock in code and the indicator should go out. TV

• Simply repeat the above setup procedures to search the Device Code for your VCR, SAT, DVD or CTV. (Remember to press a correct Device Mode Key and correct Magic Search Code in step 2-5 above)

IMPORTANT:

If the power on/off function of your device is not infra-red controlled - you need to follow steps 2 to 6 above and start searching :-
- Press " " and another important function key alternately until your device responds to the expected function, press the same Device Mode Key (e.g. the code.

) to lock it.

e.g. Press " 山 " & " 山 "alternately, or ;

Press “ ” & “ ”alternately

Note:

DVD, CTV and other device codes can be searched and locked into any device modes except "TV" & "VCR" modes. Just simply press the corresponding device mode key in step 2 & 5 and enter an appropriate Magic Search Code for your DVD, CTV and other devices.
Each time you press the " ", the URC will skip to the next code and send out a POWER signal trying to turn off your device.

If you failed to stop pressing “ ” in time when your device has been turned off, turn on your device again immediately. Before the indicator goes out, press “ ” on the URC to skip backward. Repeat the step 7 above and lock in code.

• If the indicator flashes twice after your pressing of “ ” key, you are already at the last code of the library. Press “CH+” and “VOL-” to resume the URC and repeat carefully the above procedures to search again.

3 OPERATING THE URC

Normal Operation

Once you have set up the URC for your A/V equipment, it works like your original remote controls. To operate, just aim it at your equipment, press an appropriate device mode key and invoke the desired function by pressing a corresponding key on the URC. The indicator flashes during signal transmission and as confirmation of key touch.

Punch Through

Punch through allows you to operate TV's volume and mute functions without having to switch the device modes repeatedly even when your URC is in other operating modes.

Symbols of secondary function are printed in different colors on the panel, and a SECONDARY FUNCTION TABLE is included in the interior page of the coversheet. To invoke a secondary function, press followed by a corre-SHIFT

sponding function key.

Secondary Device Mode

1. If you intend to operate more than 3 (or 4) equipment with your URC, you may search/enter the additional device codes.

Following all standard procedures in setting up the URC (See 2 HOW TO SET UP THE URC), press followed by a desired device mode key

enter a secondary device mode. All settings will be stored in the shift bank of such device mode.

1. To invoke functions stored inside the shift back of a device mode, press followed by the device mode key, your URC will stay on that particular operating mode.

5 MAINTENANCE

1. Do not expose your URC to dust, strong sun light, humidity, high temperature, or mechanical shock.
2. Do not use old and new batteries together as old batteries tend to leak.
3. Do not use corrosive or abrasive cleansers on your URC.
4. Keep the unit dust free by wiping it with a soft, dry cloth.
5. Do not disassemble your URC, it contains no user-serviceable parts.

6 TROUBLESHOOTING

Q. My URC does not work at all!

A. Check your A/V device, if the device's main switch is turned off, your URC could not operate your device.
A. Check whether your batteries are inserted properly and are in correct +/- marks.
A. Check whether you have pressed the corresponding device mode key for your device.
A. If the batteries are low, replace the batteries.
Q. If several Device Codes listed under the brand of my A/V device, how can I select the correct Device Code?
A. To seek the correct Device Code for your A/V device, test the code one by one until most keys work properly.
Q. My A/V equipment responds only to some of the commands.
A. You have set a code for which only some commands work properly but some do not. Try other codes until most keys work properly.

Français

T B V I S I O N 0301

TVTEXT 2791

UHER 0051 0461 190

2551 2631 279

ULTRAFOX 2201

ULTRAVOX 070121912201

2551 2571 2581

2631 2791

UMA 005

UNIC LINE 2551 2771 2791

UNIMOR 0051

UNITED 2551 2791

UNIVERSUM 0051 0301 1281

UNIVOX255125712761

2791

URANYA 0301

VANGUARD 0301

VECO 0301

VESTEL 0051 0061 0071

168125512791

VEXA 005103012551

2791
