USER MANUAL SB3300 PHILIPS

GB Instruction book. 19-25

Before using the appliance for the first time, please read the safety advice on page 20 carefully.

D

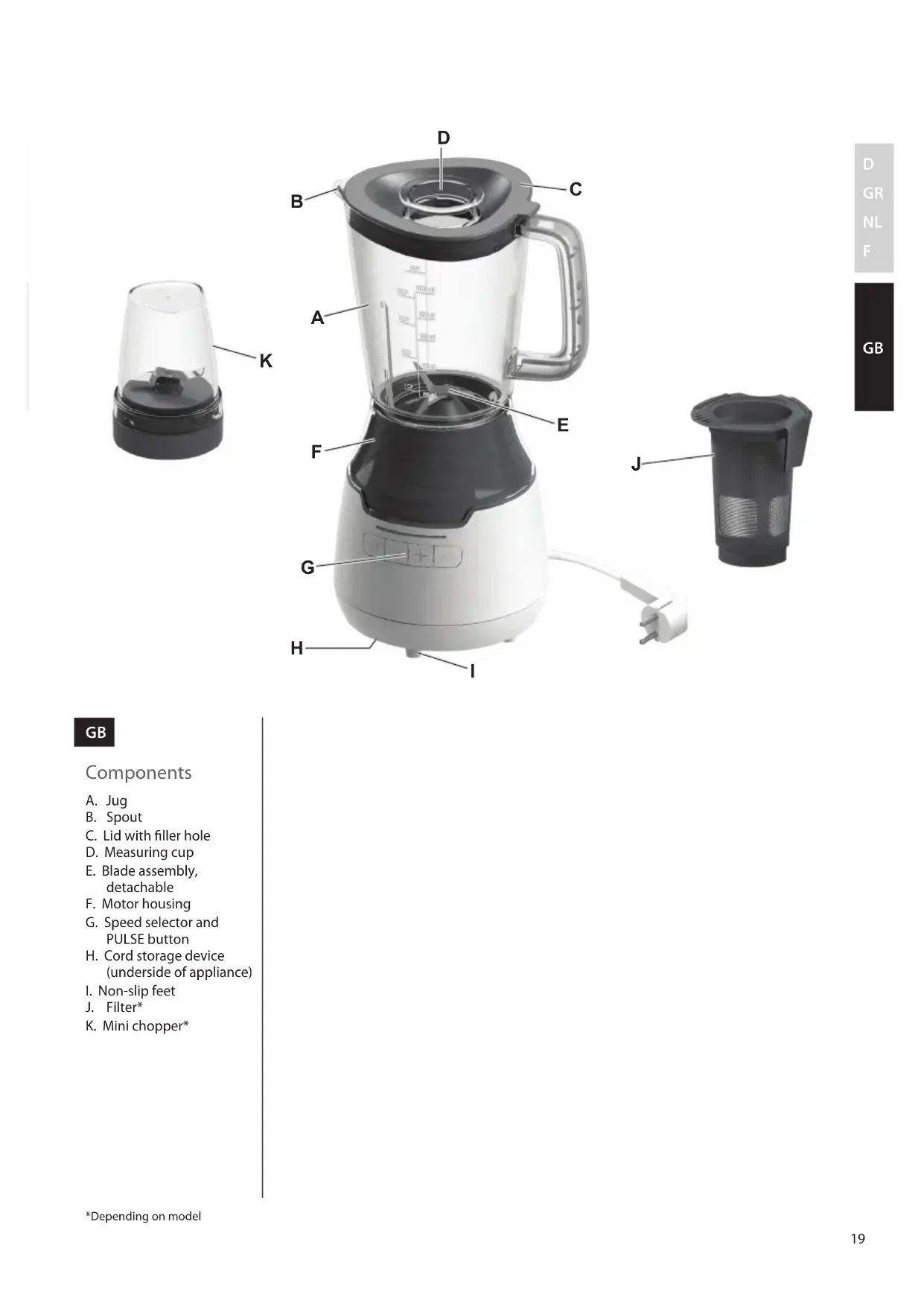

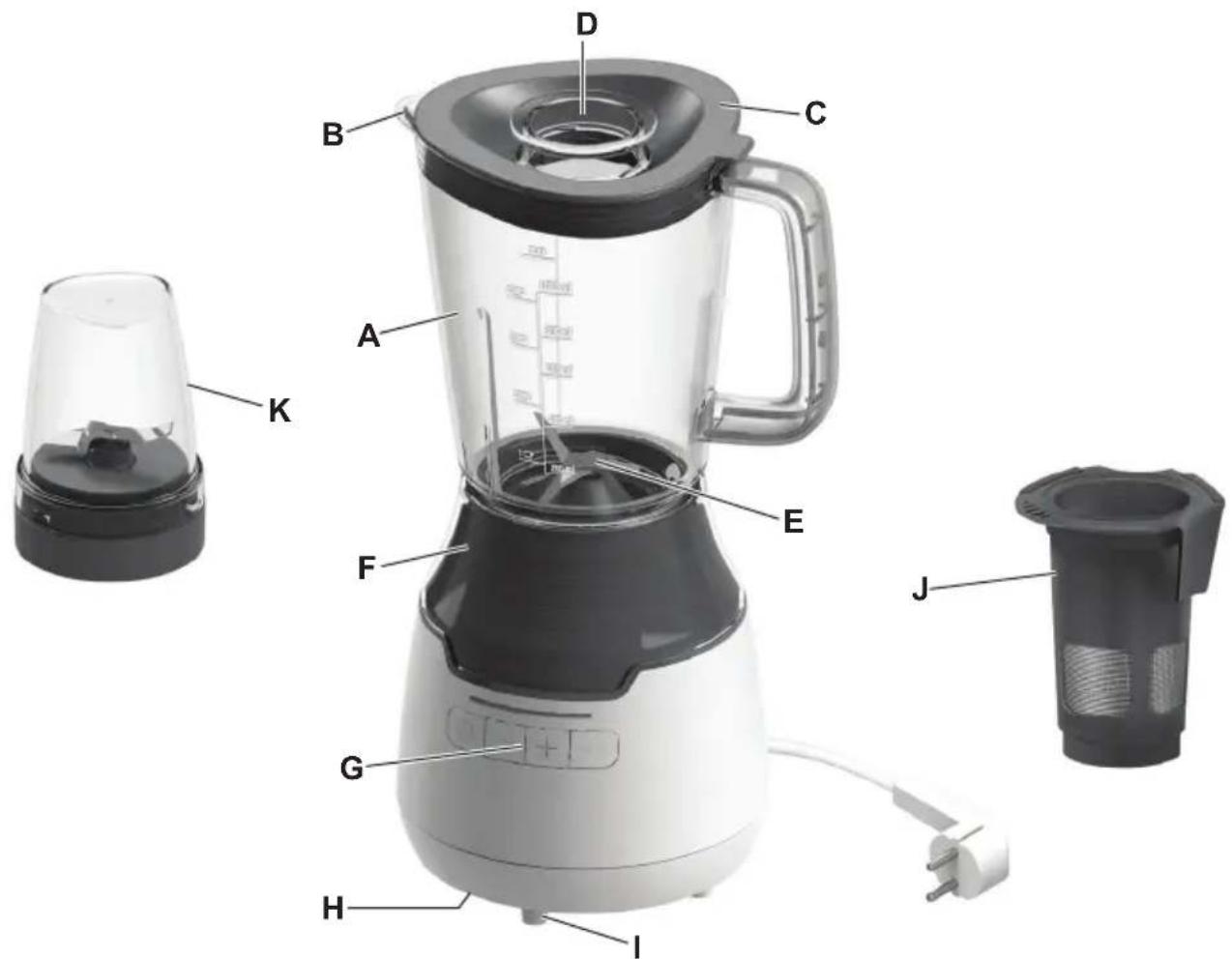

Teile EApntnata

A. Jug
B. Spout
C. Lid with filler hole
D. Measuring cup
E.Blade assembly, detachable
F. Motor housing
G. Speed selector and PULSE button
H. Cord storage device (underside of appliance)
I. Non-slip feet
J. Filter
K. Mini chopper

GB

Read the following instruction carefully before using the appliance for the first time.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
  The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if
• the supply cord is damaged,
• the housing is damaged.
• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.

If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
Always place the appliance on a flat, level surface.
Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
- Never touch the blades or inserts with your hand or any tools while the appliance is plugged in.
- The blades and inserts are very sharp! Danger of injury! Caution when assembling, disassembling after use or when cleaning! Ensure that the appliance is disconnected from the mains supply.
- Do not immerse the appliance in water or any other liquid.
- Do not let the blender run for more than 2 minutes at a time using heavy loads. After running for 2 minutes with heavy loads, the blender should be left to cool for at least 10 minutes.

• Do not exceed the maximum filling volume as indicated on the appliances.
• Never process boiling liquids (max 90 degrees).
• Do not use this appliance to stir paint. Danger, could result in an explosion!
• Never operate appliance without lid.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

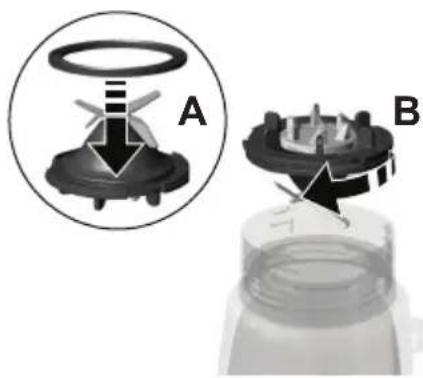

1. Before using the blender for the first time, wash all parts except for the motor housing. Assembling: place the rubber seal on the blade assembly and (A) insert it holding the blender downwards. Turn the blade assembly clockwise (B) to fasten. Caution! The blades are very sharp!

1. Processing hot liquids: allow hot liquids to cool down until lukewarm before filling the jug. Fill the jug only half full and start processing on low speed. The blender jug can become very warm - take care to protect your hands and to ventilate steam out through the filler hole. Always replace the lid before use.

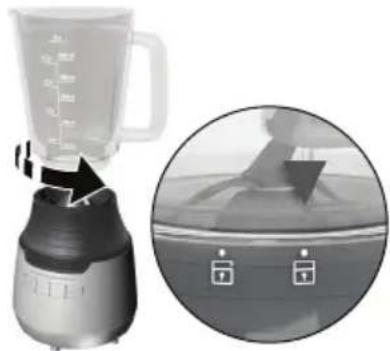

1. Place the blender on a flat surface and lock the jug into position on the motor housing. When the arrow is aligned with the "Locked" indicator, the jug is locked in position. Put the ingredients in the jug. (Do not exceed the maximum level as indicated on the jug.)

1. Start the blender by pressing the on/off button. Start at low speed, then progress to a higher speed if required. To increase the speed press the + button, press the - button to decrease it. To use the PULSE function, press the PULSE button.

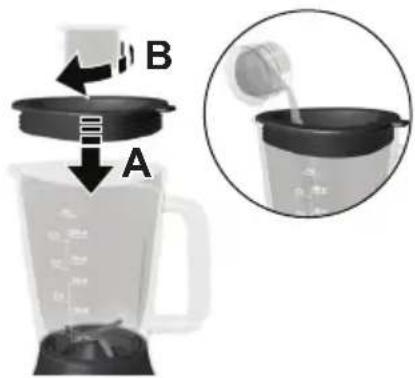

1. Close the lid and (A) insert the measuring cup in the filler hole and (B) lock into position. (You can use the measuring cup to add ingredients while the blender is running. Close the filler hole immediately after, to avoid splashing.) Caution! When processing hot liquids, see paragraph 4.

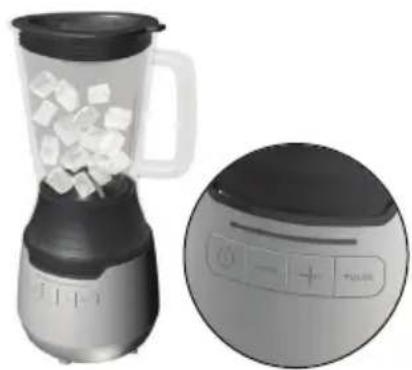

1. Ice crushing: press the PULSE button for 3-5 seconds several times until you obtain a satisfactory result. You can add more ice through the filler hole while the blender is running.

Cleaning and care

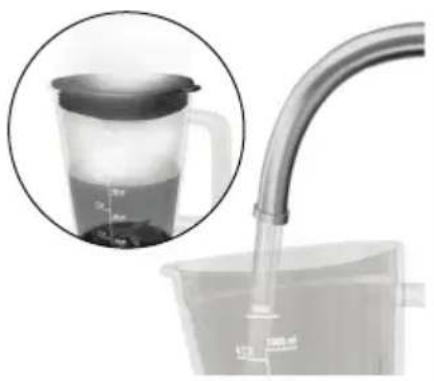

1. Quick cleaning: Pour warm water into the jug, add a few drops of detergent. Mix water and detergent by pushing the PULSE button briefly. Finally, rinse the jug under running water.

1. Thorough cleaning: Turn the blender off and unplug the power cord. Wipe the motor housing with a damp cloth. Never immerse the motor housing in water or clean it under running water!

1. Remove the lid and jug. Turn the blade assembly counter-clockwise and remove it. Rinse the blade assembly in water and detergent. Caution! Handle carefully, the blades are very sharp! The lid, jug and measuring cup can be washed in the dishwasher.

Additional features

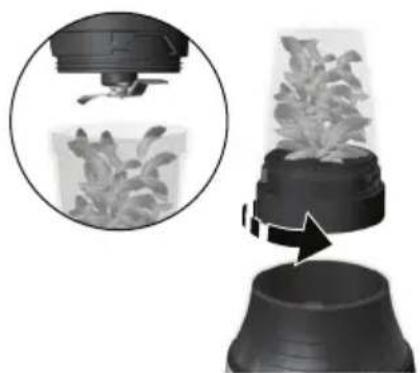

1. Fill the mini chopper with adequate ingredients. Place the mini chopper on the motor housing, press the on/off button to start and regulate the speed with + + , - - or PULSE. After use, clean the mini chopper container and the blade assembly. Note: The mini chopper is not dishwasher proof. Caution! The blades are very sharp!

1. To make juice: Insert the filter* (see Filter guide for position) before use. Place the filter in the jug with the wide part facing up. Make sure it fits correctly. Add fruits in the filter (do not use the blender to mash large seeds such as those in plums or avocados). Close the lid.

1. Cleaning instruction, filter: Take out the filter. Clean the filter and rinse it under running water (the filter is not dishwasher proof).

Maximum Processing time with heavy load	2 min	Whisking/Whipping quantities and Processing Times
		Ingredients	Quantity	Time	Speed
		Cream	200-400 g 50~60 sec 1
		Note: The temperature of the cream should be between 4 and 8 Degree Celsius.

Recommended blending speed
Recipe Ingredients Quantity Time Speed
Pureeing raw vegetables	Carrots 40 g		20~30 sec 4
	Potatos 40 g
	Onions 40 g
	Water 120 g
Strawberries margaritas (Cocktail)	Tequila 240 ml		≤120 sec 4
	Triple sec 60 ml
	Frozen strawberries 225 g
	Frozen Lemonade concentrate 145 g
	Ice cubes 150 g
Pineapple-apricots Smoothie	Pineapple in slices 250 g		≤120 sec 4Dried Apricots
	Yoghurt	300 g
Milkshake	Milk	150-300 ml	20~30 sec 3
	Vanilla Ice cream	200-400 g
	Banana	1/4 - 1/2 pcs
	Chocolate syrup	30-60 g
Potato leek soup	Potatoes	200 g	50~60 sec 3Leek
	Water 400 g
Pancake (Batters)	Wheat flour	110 g	40~50 sec 2
	Salt	1 Pinch
	Eggs	2 pcs
	Milk	200 ml
	Water 75 ml
	Butter	50 g

Chopping quantities and Processing Times
Ingredients	Quantity	Quality	Time	Quality	Time	Quality	Time	Speed
Bread crumbs	100-200 g	Coarse	3 sec	Medium	3~5 sec	Fine	5~10 sec	Pulse
Almonds	100-200 g		3 sec		3~5 sec		5~10 sec	Pulse
Peppar	20-100 g		3 sec		5 sec		5~10 sec	Pulse

Troubleshooting
Symptom Cause Solution
The blender does not switch on.	Components are not fixed properly. Check if all the components are properly locked into position.
	The speed selector is not on the right position.	Choose the appropriate speed. To use PULSE function, make sure the speed selector is on PULSE position.
	The jug is overfilled. Empty the jug so you do not exceed the maximum level.
	The plug is not properly connected to the power outlet.	Check the connection of the plug to the outlet or try another outlet.
	Power outage. Wait until power outage is over.
	Functional problem. Contact authorized service.

Mini Chopper* guide

The mini chopper allows you to make small quantities of food, for example baby meals, easily and without mess. The chopper can also be used for grinding and chopping spices, for example.

Filter* guide

The filter may be used in three different positions:A. Foam separator: In this position, the juice will be served separately from the foam, making the juice lighter and tastier.B. Partial separator: partially separates the content.C. Full opening: allows for pouring of whole juice.Please note: you must select position before fitting the filter into the jug.

*Depending on model

Disposal

Packaging materials

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE< , >PS< , etc. Please dispose the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
