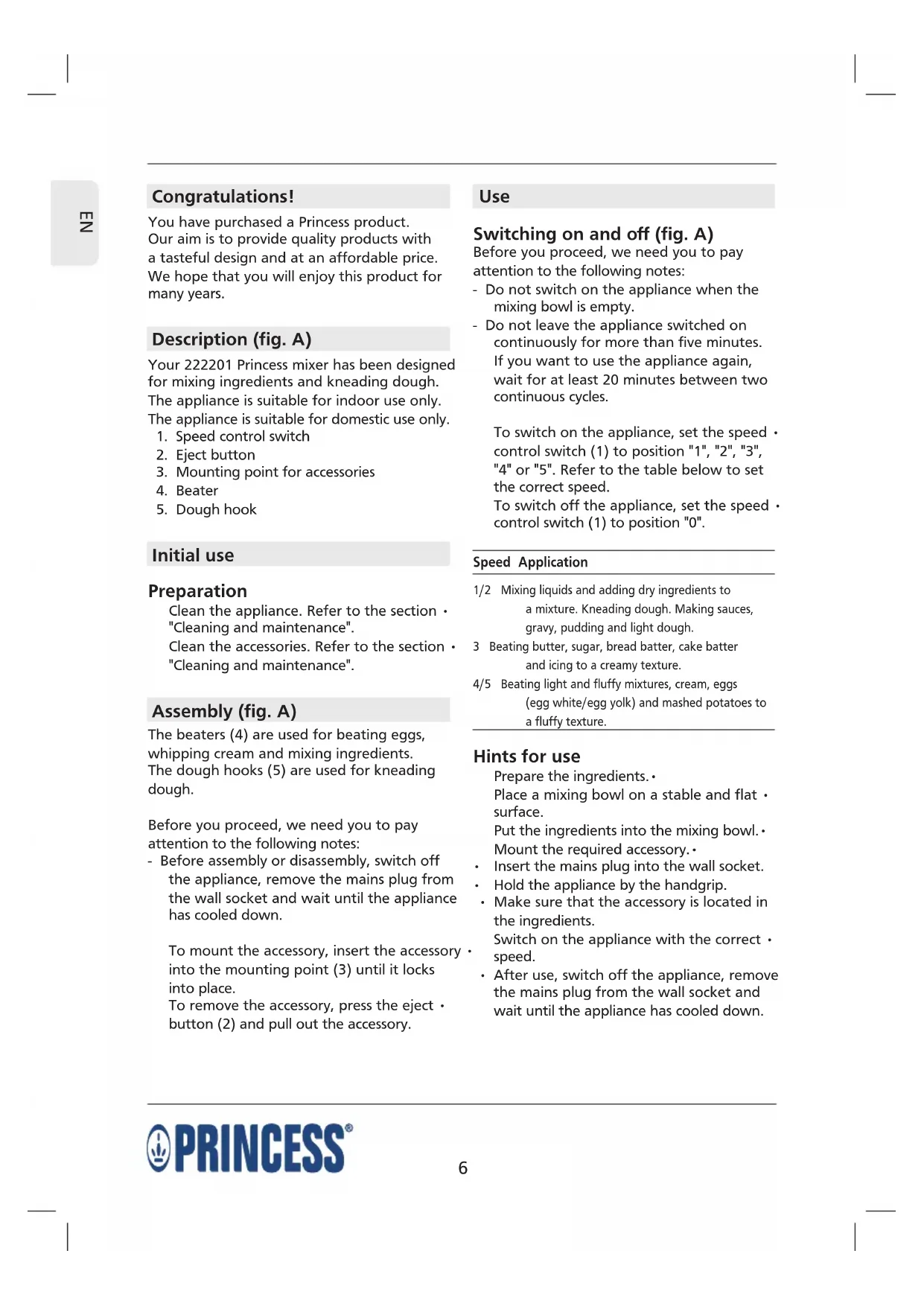

USER MANUAL Nice Price 222201 PRINCESS
You have purchased a Princess product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years.
Description (fig. A)
Your 222201 Princess mixer has been designed for mixing ingredients and kneading dough. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.
- Speed control switch
- Eject button
- Mounting point for accessories
- Beater
- Dough hook
Initial use
Preparation
Clean the appliance. Refer to the section
"Cleaning and maintenance".
Clean the accessories. Refer to the section
"Cleaning and maintenance".
Assembly (fig. A)
The beaters (4) are used for beating eggs, whipping cream and mixing ingredients. The dough hooks (5) are used for kneading dough.
Before you proceed, we need you to pay attention to the following notes:
- Before assembly or disassembly, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
To mount the accessory, insert the accessory into the mounting point (3) until it locks into place.
To remove the accessory, press the eject - button (2) and pull out the accessory.
Use
Switching on and off (fig. A)
Before you proceed, we need you to pay attention to the following notes:
- Do not switch on the appliance when the mixing bowl is empty.
- Do not leave the appliance switched on continuously for more than five minutes. If you want to use the appliance again, wait for at least 20 minutes between two continuous cycles.
To switch on the appliance, set the speed control switch (1) to position "1", "2", "3", "4" or "5". Refer to the table below to set the correct speed.
To switch off the appliance, set the speed control switch (1) to position "0".
Speed Application
1/2 Mixing liquids and adding dry ingredients to a mixture. Kneading dough. Making sauces, gravy, pudding and light dough.
3 Beating butter, sugar, bread batter, cake batter and icing to a creamy texture.
4/5 Beating light and fluffy mixtures, cream, eggs (egg white/egg yolk) and mashed potatoes to a fluffy texture.
Hints for use
Prepare the ingredients.
Place a mixing bowl on a stable and flat surface.
Put the ingredients into the mixing bowl. Mount the required accessory.
- Insert the mains plug into the wall socket.
- Hold the appliance by the handgrip.
- Make sure that the accessory is located in the ingredients.
Switch on the appliance with the correct speed.
After use, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
Cleaning and maintenance
The appliance must be cleaned after each use.
Before you proceed, we need you to pay attention to the following notes:
- Before cleaning or maintenance, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
- Do not immerse the appliance in water or other liquids.
Before you proceed, we would like you to focus your attention on the following notes:
- Do not use aggressive or abrasive cleaning agents to clean the appliance.
- Do not use sharp objects to clean the appliance.
- Do not clean the appliance in the dishwasher. It is not recommended to wash the removable parts of the appliance or the accessories in a dishwasher.
Regularly check the appliance for possible damage.
Clean the outside of the appliance with a damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth. Clean the accessories:
- Clean the mixing bowl in soapy water.
- Clean the beaters and the dough hooks in soapy water.
- Rinse the accessories under running water.
- Thoroughly dry the accessories.
Assemble the appliance.
Refer to the section "Assembly".
Put the appliance and the accessories in the original packaging.
Store the appliance with the accessories in a dry and frost-free place, out of the reach of children.
Safety instructions
General safety
Read the manual carefully before use. Keep the manual for future reference.
Only use the appliance and the accessories for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual.
Children should be supervised to ensure that they do not play with the appliance.
The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.
Do not use the appliance near bathtubs, showers, basins or other vessels containing water.
- Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.
- This appliance is intended to be used in domestic and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed-and-breakfast type environments.
Electrical safety
- Before use, always check that the mains voltage is the same as the voltage on the rating plate of the appliance.
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.
- Connect the appliance to an earthed wall socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 × 1 ~mm^2 ).
For additional protection, install a residual - current device (RCD) with a rated residual operating current that does not exceed 30mA .
Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.
Always fully unwind the mains cable and the extension cable.
Make sure that the mains cable does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.
Keep the mains cable away from heat, oil and sharp edges.
Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.
Do not pull the mains cable to disconnect the mains plug from the mains.
Disconnect the mains plug from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.
Safety instructions for mixers
Do not use the appliance outdoors.
Keep the appliance away from heat sources.
Do not place the appliance on hot surfaces or near open flames.
Do not use the appliance with an empty mixing bowl.
Before switching on the appliance, make sure that the accessory is located in the ingredients.
Make sure that your hands are dry before touching the appliance.
Do not touch moving parts. Keep your hands away from the moving parts during use and during cleaning and maintenance.
Do not leave the appliance unattended. during use.
U.K. Wiring instructions
The wires in the mains lead are coloured in accordance with the following code:
BLUE NEUTRAL
BROWN
LIVE
GREEN/YELLOW
EARTH
As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.
The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.
If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board.
Warning! This appliance must be earthed.
Disclaimer
Subject to change; specifications can be changed without further notice.
