USER MANUAL Professional Mixer PRINCESS

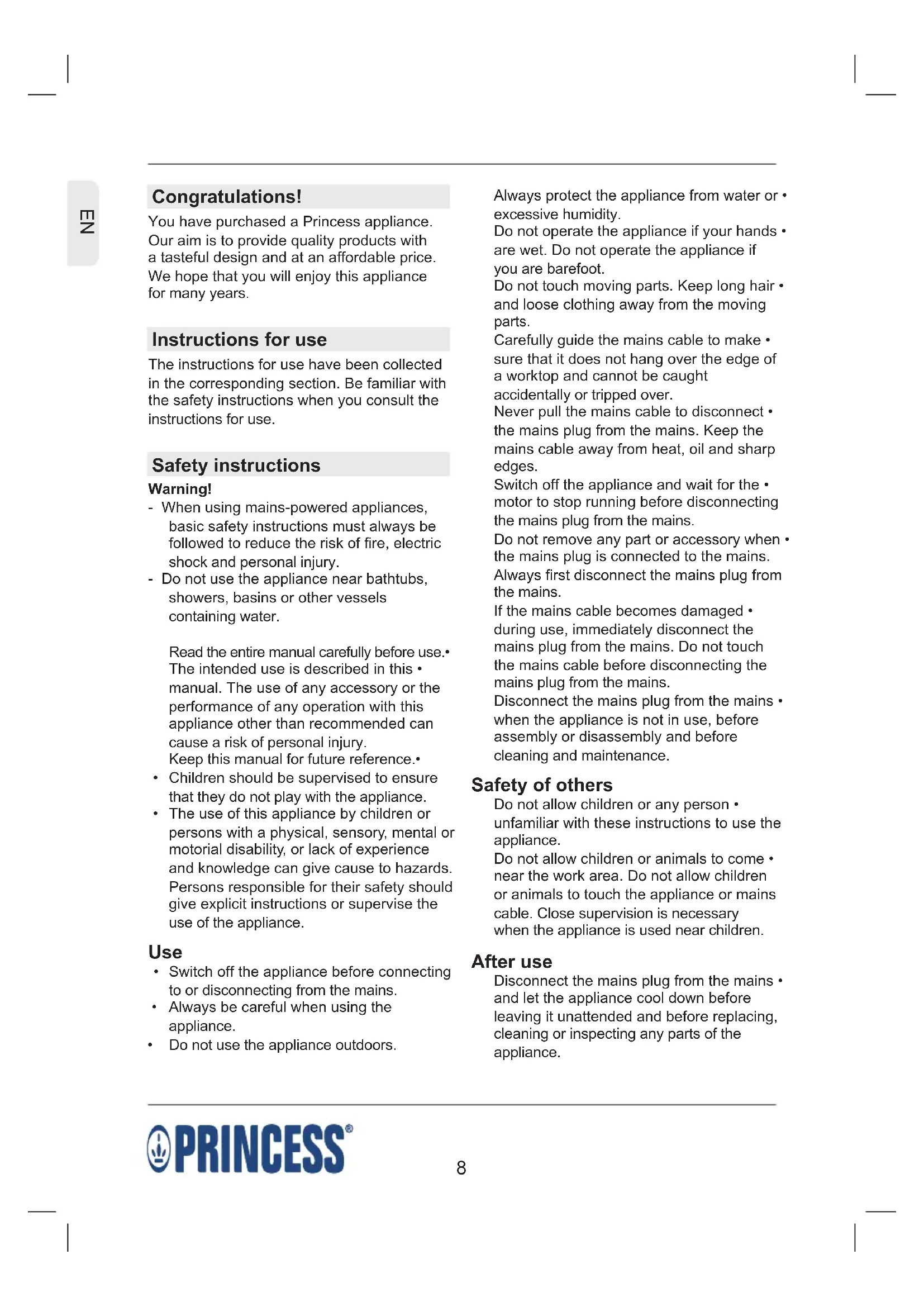

Always protect the appliance from water or • excessive humidity. Do not operate the appliance if your hands • are wet. Do not operate the appliance if you are barefoot. Do not touch moving parts. Keep long hair • and loose clothing away from the moving parts. Carefully guide the mains cable to make • sure that it does not hang over the edge of a worktop and cannot be caught accidentally or tripped over. Never pull the mains cable to disconnect • the mains plug from the mains. Keep the mains cable away from heat, oil and sharp edges. Switch off the appliance and wait for the • motor to stop running before disconnecting the mains plug from the mains. Do not remove any part or accessory when • the mains plug is connected to the mains. Always first disconnect the mains plug from the mains. If the mains cable becomes damaged • during use, immediately disconnect the mains plug from the mains. Do not touch the mains cable before disconnecting the mains plug from the mains. Disconnect the mains plug from the mains • when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance. Safety of others Do not allow children or any person • unfamiliar with these instructions to use the appliance. Do not allow children or animals to come • near the work area. Do not allow children or animals to touch the appliance or mains cable. Close supervision is necessary when the appliance is used near children. After use Disconnect the mains plug from the mains • and let the appliance cool down before leaving it unattended and before replacing, cleaning or inspecting any parts of the appliance. Congratulations! You have purchased a Princess appliance. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this appliance for many years. Instructions for use The instructions for use have been collected in the corresponding section. Be familiar with the safety instructions when you consult the instructions for use. Safety instructions Warning! - When using mains-powered appliances, basic safety instructions must always be followed to reduce the risk of fire, electric shock and personal injury. - Do not use the appliance near bathtubs, showers, basins or other vessels containing water. Read the entire manual carefully before use.• The intended use is described in this • manual. The use of any accessory or the performance of any operation with this appliance other than recommended can cause a risk of personal injury. Keep this manual for future reference.• Children should be supervised to ensure • that they do not play with the appliance. The use of this appliance by children or • persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance. Use Switch off the appliance before connecting • to or disconnecting from the mains. Always be careful when using the • appliance. Do not use the appliance outdoors.•9

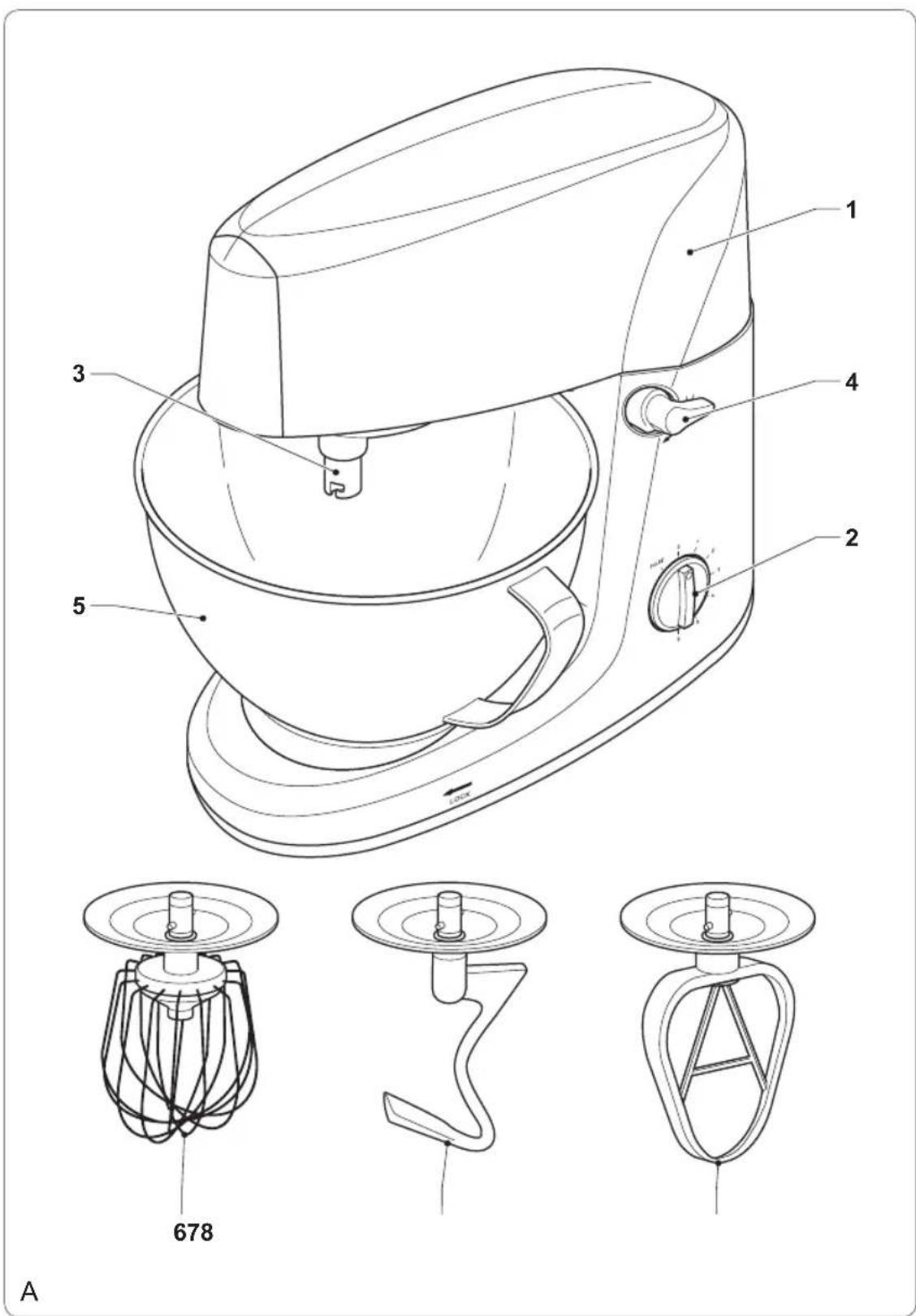

If the appliance is immersed in water or • other liquids, immediately disconnect the mains plug from the mains and do not use the appliance again. U.K. Wiring instructions The wires in the mains lead are coloured in accordance with the following code: BLUE NEUTRAL BROWN LIVE As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. If a 13Amp (BS1363) plug is used, a 5Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board. This is a double-insulated appliance and does not need an earth connection. Warning! On no account should either the live or neutral wires be connected to the earth terminal. Description (fig. A) Your 220101 Princess mixer has been designed for mixing ingredients and kneading dough. The appliance can only be used as a stand mixer. The appliance is suitable for domestic use only.

3. Mounting point for accessories

Store the appliance in a dry place when not • in use. Make sure that children do not have access to stored appliances. Inspection and repairs Before use, check the appliance for • damaged or defective parts. Inspect the appliance for breakage of parts, damage to switches and other conditions that can affect the operation. Do not use the appliance if any part is • damaged or defective. Have any damaged or defective part • repaired or replaced by an authorised repair agent. Never attempt to remove or replace any • parts other than those specified in this manual. Before use, check the mains cable for wear • or damage. Do not use the appliance if the mains cable • or mains plug is damaged or defective. If the mains cable or mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Safety instructions for mixers Before use, always check that the mains • voltage is the same as the voltage on the rating plate of the appliance. Connect the appliance to an earthed wall • socket. Make sure that water cannot enter the • contact plugs of the mains cable. Place the appliance on a stable and flat • surface. Keep the appliance away from heat • sources. Do not place the appliance on hot surfaces or near open flames. Do not use the appliance with an empty • mixing bowl. Before switching on the appliance, make • sure that the accessory is located in the ingredients. Do not leave the appliance switched on • continuously for more than 10 minutes. Do not touch moving parts. Keep your • hands away from the moving parts during use and during cleaning and maintenance. Do not leave the appliance unattended • during use.10

Use Switching on and off (fig. A) The speed control knob (2) can be used for setting the mixing speed. Refer to the table below to set the correct mixing speed. Speed Function Low Mixing liquids and adding dry ingredients to a mixture. Kneading dough. Making sauces, gravy, pudding and light dough. Medium Beating butter, sugar, bread batter, cake batter and icing to a creamy texture. High Beating light and fluffy mixtures, cream, eggs (egg white and/or egg yolk) and mashed potatoes to a fluffy texture. Warning! - Do not switch on the appliance when the mixing bowl is empty. - Do not leave the appliance switched on continuously for more than 10 minutes. Allow the appliance to cool down before switching it on again. To switch on the appliance with continuous • low speed, turn the speed control knob (2) to the ’1’ or ’2’ position. To switch on the appliance with continuous • medium speed, turn the speed control knob (2) to the ’3’ or ’4’ position. To switch on the appliance with continuous • high speed, turn the speed control knob (2) to the ’5’ or ’6’ position. To switch on the appliance in pulse mode, • turn the speed control knob (2) to the ’PULSE’ position. To switch off the appliance, turn the speed • control knob (2) to the ’0’ position. Hints for use (fig. A - C) Prepare the ingredients.• Place the appliance on a stable and flat • surface. Place the mixing bowl (5) onto the bottom • of the appliance. Put the ingredients into the mixing bowl (5).• Initial use Preparation Clean the appliance. Refer to the section • ”Cleaning and maintenance”. Assembly Warning! - Before assembly, always switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down. Mounting the mixing bowl (fig. A & B) Turn the release lever (4) clockwise and tilt • the mixer head (1) upwards until it locks into place. Place the mixing bowl (5) onto the bottom • of the appliance as shown. Lock the mixing bowl (5) by turning it • clockwise. Turn the release lever (4) clockwise and tilt • the mixer head (1) downwards until it locks into place. Mounting and removing the accessories (fig. A & C) The whisk (6) is used for beating eggs, whipping cream and mixing ingredients. The dough hook (7) is used for kneading dough. The A-beater (8) is used for creaming cake mixtures, making pastry or gently stirring ingredients together for fillings. Turn the release lever (4) clockwise and tilt • the mixer head (1) upwards until it locks into place. To mount the accessory, insert the accessory • into the mounting point (3) as shown and turn the accessory counterclockwise. To remove the accessory, turn the accessory • clockwise and pull out the accessory. Turn the release lever (4) clockwise and tilt • the mixer head (1) downwards until it locks into place.11

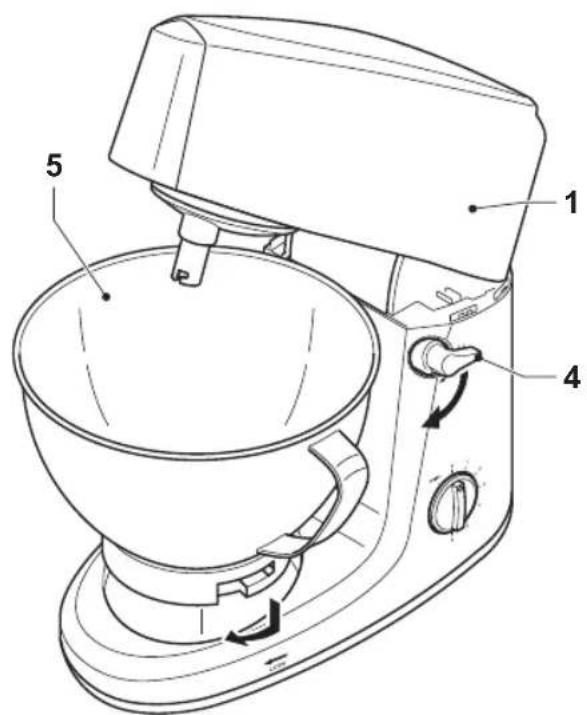

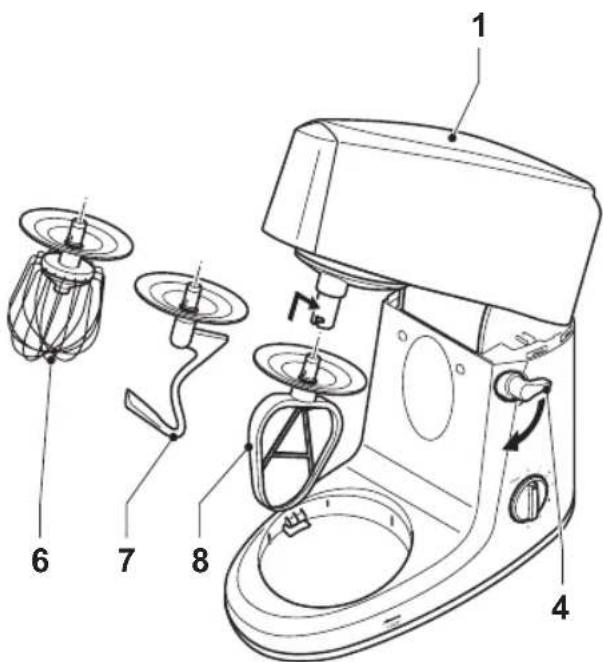

Disclaimer Subject to change; specifications can be changed without further notice. Turn the release lever (4) clockwise and tilt • the mixer head (1) upwards until it locks into place. Mount the required accessory (6/7/8).• Turn the release lever (4) clockwise and tilt • the mixer head (1) downwards until it locks into place. Make sure that the accessory (6/7/8) is • located in the ingredients. Insert the mains plug into the wall socket.• Switch on the appliance.• Set the mixing speed. • Refer to the section ”Switching on and off”. After use, switch off the appliance, remove • the mains plug from the wall socket and wait until the appliance has cooled down. Cleaning and maintenance The appliance must be cleaned after each use. Warning! - Before cleaning or maintenance, always switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not immerse the appliance in water or other liquids. Caution! - Do not use aggressive or abrasive cleaning agents to clean the appliance. - Do not use sharp objects to clean the appliance. Regularly check the appliance for possible • damage. Clean the housing with a soft, damp cloth.• Clean the mixing bowl in soapy water.• Clean the whisk, the dough hook and the • A-beater in soapy water. Rinse the accessories under running water.• Thoroughly dry the accessories.• After cleaning, put the appliance in the • original packaging. Store the appliance in a dry and frost-free • place, out of the reach of children.12

© Princess 2010 08/10
