USER MANUAL AutoMax 300C FELLOWES

Please read these instructions before use.

Do not discard: keep for future reference.

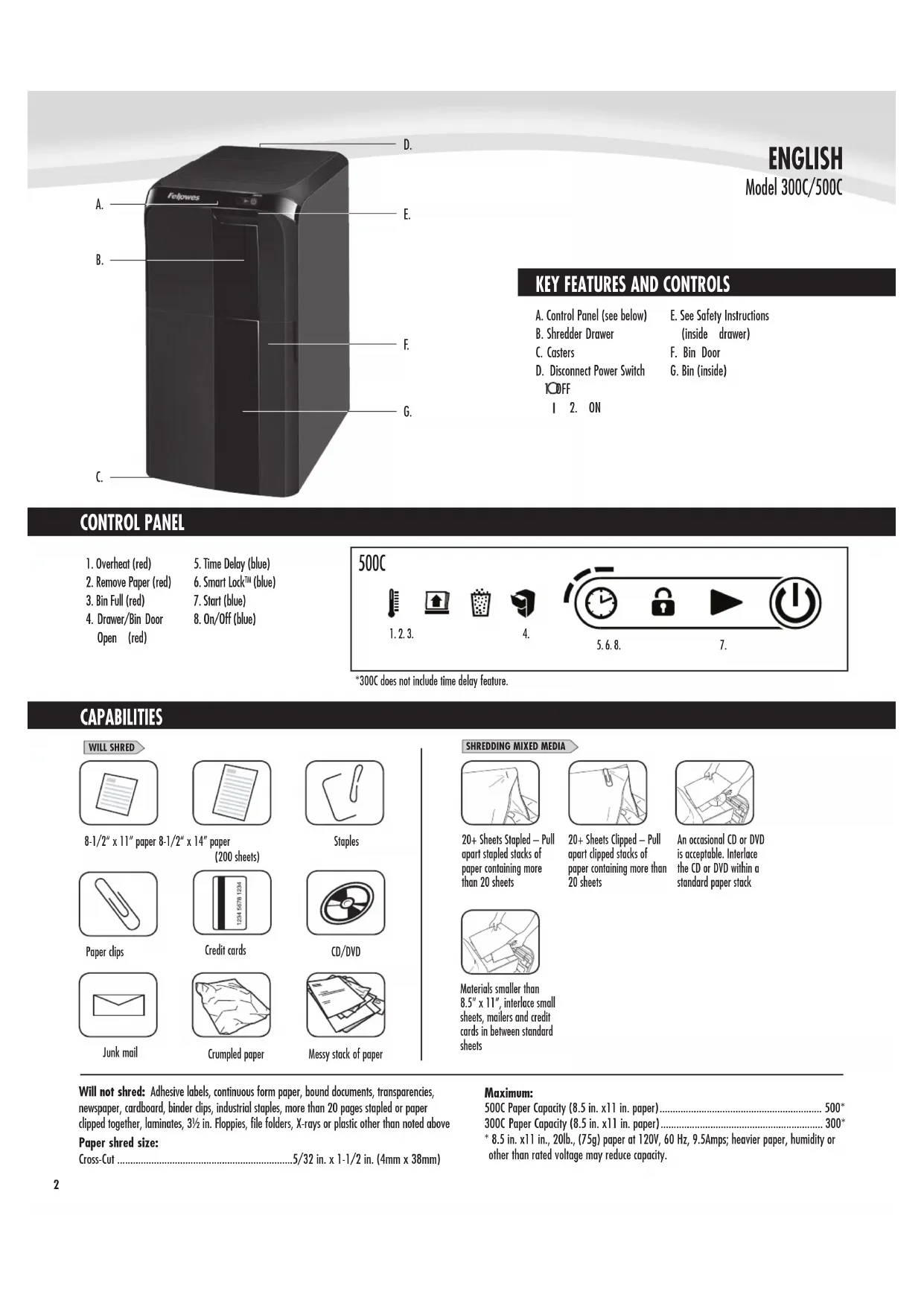

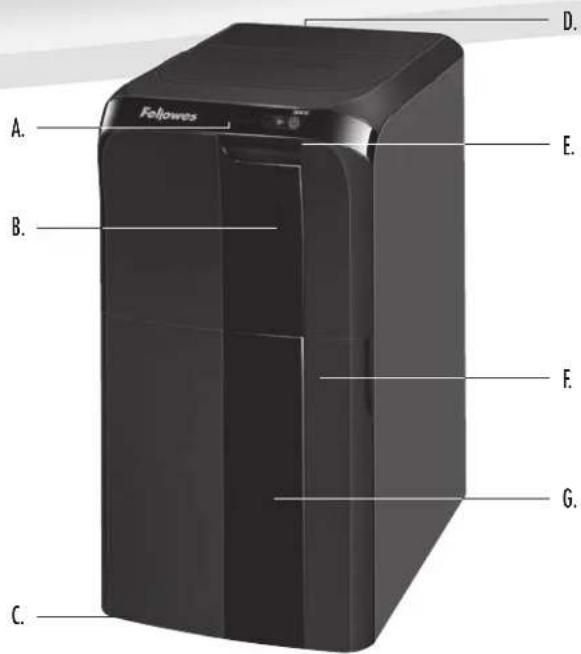

A. Control Panel (see below)
B. Shredder Drower
C. Casters
D. Disconnect Power Switch OFF

E. See Safety Instructions
(inside drawer)
F. Bin Door
G. Bin (inside)

1. ON

CONTROL PANEL

1. Overheat (red)
2. Remove Paper (red)
3. Bin Full (red)

4. Drawer/Bin Door Open (red)

5. Time Delay (blue)

6. Smart LockTM (blue)
   7.Start (blue)
7. On/Off (blue)

500C

1.2.3.

4.

5.6.8.

7.

*300C does not include time delay feature.

CAPABILITIES

WILL SHRED

8-1/2" x 11" paper 8-1/2" x 14" paper

(200 sheets)

Paper clips

Junk mail

Credit cards

Crumpled paper

Staples

CD/DVD

Messy stack of paper

SHREDDING MIXED MEDIA
20+ Sheets Stapled - Pull apart stapled stacks of paper containing more than 20 sheets

20+ Sheets Clipped - Pull apart clipped stacks of paper containing more than 20 sheets

An occasional CD or DVD is acceptable. Interlace the CD or DVD within a standard paper stack

Materials smaller than 8.5^ × 11^ ,interlace small sheets, mailers and credit cards in between standard sheets

Will not shred: Adhesive labels, continuous form paper, bound documents, transparencies, newspaper, cardboard, binder clips, industrial staples, more than 20 pages stapled or paper clipped together, laminates, 3 12 in. Floppies, file folders, X-rays or plastic other than noted above

Paper shred size:

Cross-Cut .5/32 in. x 1-1/2 in. (4mm x 38mm)

Maximum:

500C Paper Capacity (8.5 in. x11 in. paper) 500
300C Paper Capacity (8.5 in. x11 in. paper) 300
8.5 in. x11 in., 20lb., (75g) paper at 120V, 60 Hz, 9.5Amps; heavier paper, humidity or other than rated voltage may reduce capacity.

WARNING: IMPORTANT SAFETY INSTRUCTIONS - Read Before Using!

Operation, maintenance, and service requirements are covered in the instruction manual. Read the entire instruction manual before operating shredders.
- Keep away from children and pets. Keep hands away from paper entry. Always set to off or unplug when not in use.
- Keep foreign objects - gloves, jewelry, clothing, hair, etc. away from shredder openings. If object enters top opening, switch to Reverse (R) to back out object.
- Never use aerosol products, petroleum based lubricants or other flammable products on or near shredder. Do not use canned air on shredder.
- Avoid touching exposed cutting blades, gears and tacks under shredder head or feed arms.

Unplug shredder before cleaning or servicing.

• Do not use if damaged or defective. Do not disassemble shredder.
• Do not place near or over heat source or water.
  This shredder has a Disconnect Power Switch (D) that must be in the ON(1) position to operate shredder. In case of emergency, move switch to OFF (0) position. This action will stop shredder immediately.
• Shredder must be plugged into a properly grounded wall outlet or socket of the voltage and amperage designated on the label. The grounded outlet or socket must be installed near the equipment and easily accessible. Energy converters, transformers, or extension cords should not be used with this product.
• FIRE HAZARD - Do NOT shred greeting cards with sound chips or batteries.
  For indoor use only.

Plug in and put disconnect power switch in ON (1) position

Press ON to activate

Open drawer and add paper. (Note: Pull firmly to open drawer)

Close drawer

Press start (to begin shredding. Drawer will lock automatically

After turning the disconnect power switch on, the shredder will run through a start up cycle before ready for use.

ADVANCED PRODUCT FEATURES

JamGuard System™

Prevents shredding interruptions for jam free operation

SmartLockTM

Engages with each shred cycle to protect confidential information

Energy Saving Sleep Mode Feature shuts down the shredder after 2 minutes of inactivity

JAMGUARD SYSTEMTM

In the event of a paper jam

PAPER JAM
Shredder will automatically reverse paper and Remove Paper icon will illuminate

Lock icon will turn off and shredder drawer will unlock

Open drawer and remove paper. (Note: Pull firmly to open drawer)

Separate shredded stack, turn stack around so clean, un-shredded edge goes into drawer first

Close drawer and press start to resume shredding

SMARTLOCK™

Engages with each shred cycle to protect confidential information

ENGAGE SMARTLOCK
Open drawer and add paper. (Note: Pull firmly to open drawer)

Close drawer and press Start to begin shredding

Smart Lock automatically engages. Drawer will lock and Lock icon on control panel will illuminate

When shred job is complete, Lock icon will turn off and shredder drawer will unlock

Feature shuts down the shredder after 2 minutes of inactivity

WHEN IN SLEEP MODE
To get out of sleep, open drawer and load paper. (Note: Pull firmly to open drawer)

Press On

DELAYED START (ON 500C ONLY)

Allows you to delay shredding for 30, 60 or 90 minutes.

DELAYED START

Open drawer and add paper. (Note: Pull firmly to open drawer)

Close drawer and press clock icon on control panel

Press once for 30 minute delay (one LED will illuminate)

Press twice for 60 minute delay (two LEDs will illuminate)

Press three times for 90 minute delay (three LEDs will illuminate)

Press four times to reset clock

**To cancel Delayed Start, press and hold Clock icon for 2 seconds

PRODUCT MAINTENANCE

OILING SHREDDER

All cross-cut shredders require oil for peak performance. Under or over oiling a machine could lead to issues such as diminished sheet capacity, intrusive noise when shredding and it could ultimately stop running. To avoid these problems, we recommend you oil your Fellowes® AutoMax™ shredder once per month.

FOLLOW OILING PROCEDURE BELOW

Apply a light coat of oil between two sheets of paper

Open paper feed drawer and place oiled sheets in drawer

Close the paper feed
drawer and press start to
shred the oiled sheets

* Only use a non-aerosol vegetable oil in long nozzle container such as Fellowes 35250.

CLEANING AUTO-START INFRARED SENSORS

Paper detection sensors are designed for maintenance free operation. However, on rare occasions the sensors may become blocked by paper dust causing the motor to run even if there is no paper present. (Note: two paper detection sensors are located at the bottom of the paper drawer).

TO CLEAN THE SENSORS

Turn off and unplug shredder

Locate Auto-start infrared sensor

Dip cotton swab in rubbing alcohol

Using cotton swab, wipe away any contamination from the paper sensors

TROUBLESHOOTING

Overheat Indicator: When the Overheat Indicator is illuminated, the shredder has exceeded its maximum operating temperature and needs to cool down. This indicator will remain illuminated and the shredder will not operate for the duration of the recovery time.

Drawer/Bin Door Open: The shredder will not run if the bin is open. When illuminated, close the bin to resume shredding.

Bin Full: When illuminated, the shredder waste bin is full and needs to be emptied. Use Fellowes waste bag 3608401.

Remove Paper: When illuminated, see Paper Jam section under Advanced Product Features.

If a critical situation occurs while SmartLock™ is engaged and the shredder drawer needs to be accessed, follow the steps below.

Locate the access screw on the back of the machine and turn counter clockwise with a 6mm allen wrench.

The service hatch will begin to rise. Keep turning until the hatch panel is easily removed from the top of the machine.

To replace the service hatch, position hatch panel back on top of the machine. Hold panel in place while turning the allen wrench clockwise until you feel resistance.

• Shredder will not run if the hatch is not in place. Always replace the hatch to resume shredding.

Operation, maintenance, and service requirements are covered in the instruction manual. Read the entire instruction manual before operating shredders.

Unplug shredder before cleaning or servicing.

• Avoid touching exposed cutting blades, gears and tacks under shredder head or feed arms.

In case of a power outage, SmartLock™ will remain engaged. Once power is restored, shred cycle will automatically resume.

LIMITED PRODUCT WARRANTY

Limited Warranty: Fellowes, Inc. ("Fellowes") warrants the parts of the machine to be free of defects in material and workmanship and provides service and support for 2 years from the date of purchase by the original consumer. Fellowes warrants the cutting blades of the machine to be free from defects in material and workmanship for 20 years from the date of purchase by the original consumer. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling, failure to comply with product usage standards, shredder operation using an improper power supply (other than listed on the label), or unauthorized repair. Fellowes reserves the right to charge the consumers for any

additional costs incurred by Fellowes to provide parts or services outside of the country where the shredder is initially sold by an authorized reseller. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTIBILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any consequential or incidental damages attributable to this product. This warranty gives you specific legal rights. The duration, terms, and conditions of this warranty are valid worldwide, except where different limitations, restrictions, or conditions may be required by local law. For more details or to obtain service under this warranty, please contact us or your dealer.
