Product Type	In-ear headphones
Brand	Ferrari by Logic3
Model	Scuderia R100i
Compatibility	iPod nano (4,5,6), iPod classic (120/160 GB), iPod touch (2,3,4), iPod shuffle (3), iPhone, iPhone 3G/3GS/4/4S, iPad, iPad 2, iPad 3, Blackberry, Windows, Android smartphones
Remote control type	3 buttons (R100i model) or 1 button
Remote control functions	Play/Pause, volume +/-, next/previous track, fast forward/rewind, call, voice control
Built-in microphone	Yes
Box contents	Scuderia R100i earphones, 5 pairs of ear tips, carrying pouch
Weight (estimated)	Approximately 20 g
Power supply	None (passive, powered by connected device)
Maintenance	Clean with a dry cloth only
Safety precautions	Do not use near water, do not expose to moisture, keep out of reach of children (choking hazard), do not modify the product
Spare parts available	Ear tips of different sizes
Product registration	Recommended at http://www.Ferrari-by-Logic3.com/register
Technical support	[e-mail], [phone]

Frequently Asked Questions - Scuderia R100i Ferrari by Logic3

Are the Scuderia R100i earphones compatible with my iPhone 14?

The earphones are certified Made for iPod/iPhone/iPad and are compatible with iPhone 3G/3GS/4/4S. For newer models, audio function works, but the 3-button remote may not be fully supported. Test them with your device.

How to use the 3-button remote?

Press the center button once for play/pause. Use the + and - buttons for volume. Press twice to skip to the next track, three times for the previous track. For fast forward, press twice and hold. The remote also allows answering calls.

What size of ear tips should I choose?

Try the 5 provided sizes. The ideal tip comfortably blocks the ear canal without plugging it completely. A good fit improves sound isolation and bass quality.

How to clean the earphones?

Use a soft dry cloth. Do not use liquid or abrasive products. Remove the tips and clean them separately with a little soapy water if necessary, then dry them thoroughly.

Can I use these earphones in the rain or during sports?

No, the earphones are not water-resistant. Avoid any exposure to moisture, rain, or excessive sweat to prevent damage.

How to make a call with the remote?

When receiving a call, press the center button once to answer. To hang up, press it again. The built-in microphone allows you to speak without taking the device out of your pocket.

Do the earphones come with a warranty?

Yes, but the exact duration is not stated in the manual. Register your product on the Ferrari by Logic3 website to benefit from after-sales service. Contact support if needed.

How can I get a manual translated into another language?

On the product page (notice-facile.com), select the desired language and your email address. A translated version will be sent to you by email.

What to do if I lose an ear tip?

You can order replacement ear tips from Ferrari by Logic3 customer service. They are available in multiple sizes. Contact [e-mail].

How to properly insert the earphones into the ear?

Moisten the tips slightly to ease insertion. With the opposite hand, pull the ear lobe upward and backward. Gently insert the earphone into the ear canal without pushing too deep. Remove by gently twisting.

USER MANUAL Scuderia R100i Ferrari by Logic3

Line drawing of a shield with a stylized animal figure inside, mounted on a circular base (no text or symbols)

THE SCUDERIAL FERRARI COLLECTION

Ferrari

OFFICIAL LICENSEE

Thank you for purchasing the Ferrari by Logic3 Scuderia R100i/R100 Earphones. As with all Ferrari by Logic3 products it has been built to the highest manufacturing standards and tested throughout its development, to ensure you get the best possible product.

Please read through and familiarize yourself with this manual before you use the Ferrari by Logic3 Scuderia R100i/R100 Earphones.

PRODUCT REGISTRATION:

For your benefit, Logic3 recommends that You register Your Product online to record Your Product serial number and date of purchase, as this information will allow us to better serve Your needs. Please visit http://www.ferrari-by-logic3.com/register

COMPATIBILITY

*3 button remote works with:

Made for

iPod 📁 iPhone 📄 iPad

• The remote is supported only by iPod nano (4 ^th / 5 ^th / 6 ^th generation), iPod classic (120GB/160GB), iPod touch (2 ^nd /3 ^rd /4 ^th generation) and iPod shuffle (3rd generation), iPhone, iPhone3 / 3GS, 4 / 4S, iPad / iPad 2 / new iPad
  • Audio is supported by all iPod models.
• Requires software version 1.0.3 for iPod nano (4th generation), 2.0.4 for iPod classic (120GB), and 2.2 or later for iPod touch (2nd generation)

• 1 button remote works with:

• The remote is supported by most Blackberry, Windows and Android smart phones.

CONTENTS

Check the packaging for the items shown below.

Please retain the packing materials, as this will provide the safest way to transport this product.

If any part of the product appears to be damaged, do not attempt to use it. Please contact Ferrari by Logic3 immediately via e-mail: [e-mail] or via telephone: [phone]

Scuderia R100i/R100

□ X5 Eartips

Carry Case

WARNING: To avoid danger of suffocation, keep plastic bags out of the reach of children.

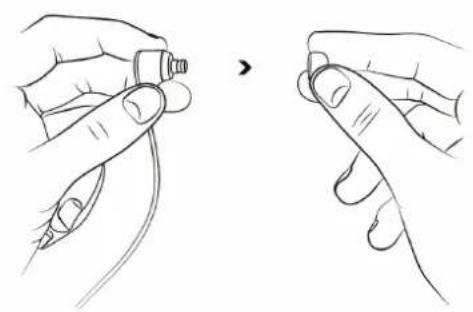

Set up of R100

①

Illustration of two hands holding a small electronic component, showing the change from left to right (no text or symbols present)

②

Illustration showing a sequence of small icons transforming into a finger, illustrating a process (no text or symbols present)

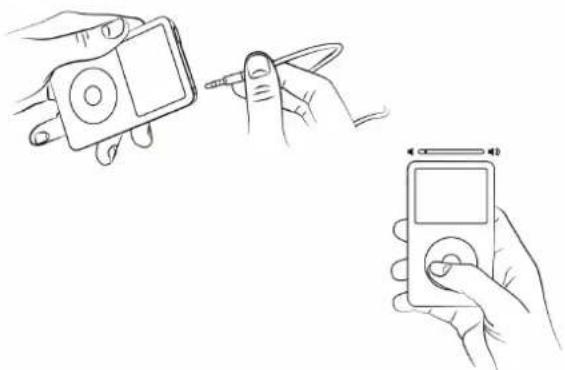

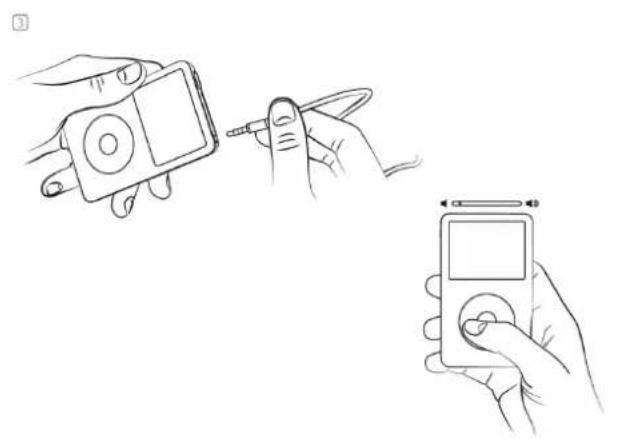

3

Line drawings of hands holding a device and a handheld device (no text or symbols)

4

Line drawings of ear ear components including a finger, ear with ear cap, and ear with ear cap (no text or symbols)

Important Logic3 Performance and safety tips listen responsibly

To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your earphones. After placing earphones in your ears, gradually turn up the volume until you reach a comfortable listening level.

Get the most out of your equipment and enjoy great audio performance even at safe levels. Our earphones will allow you to hear more details at lower volume levels than ever before.

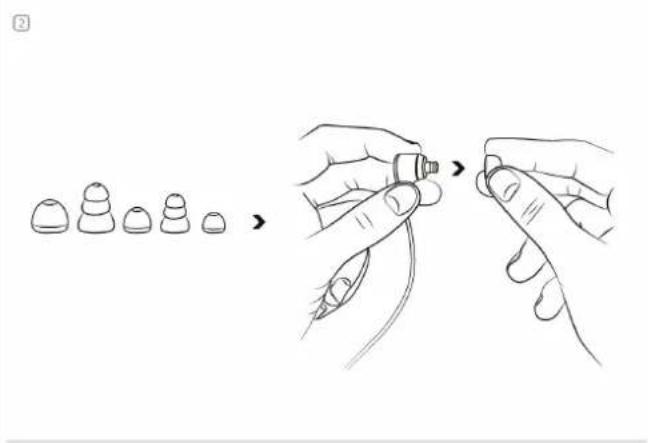

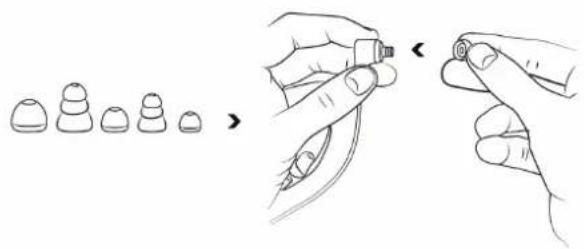

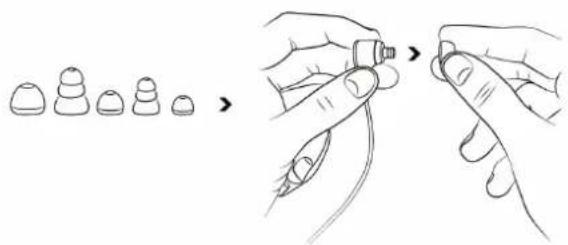

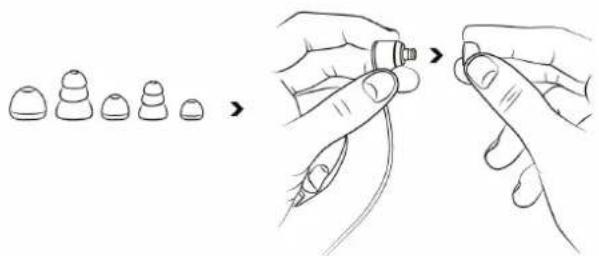

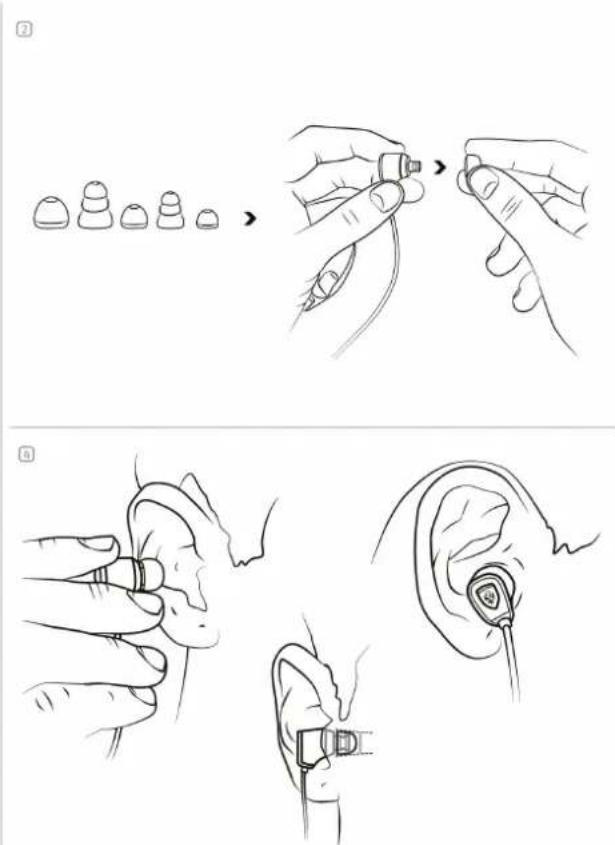

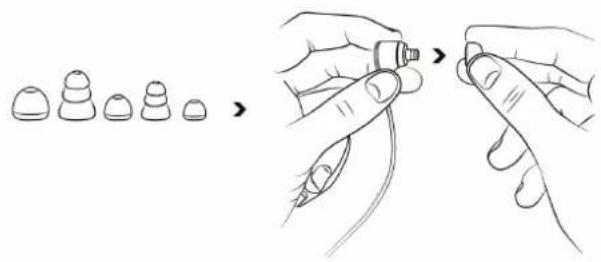

Eartip selection

The tips on the ends of your Scuderia R100i/R100 make the difference between good sound and great sound. With the right fit, you'll get better isolation from unwanted outside noise, increased bass response, better tonal balance and the earphones will stay in your ears better. Of course, the right fit will also feel more comfortable. We supply several sizes and designs of eartips. Getting the perfect fit with the correct tip is a matter of experimentation.

Listen

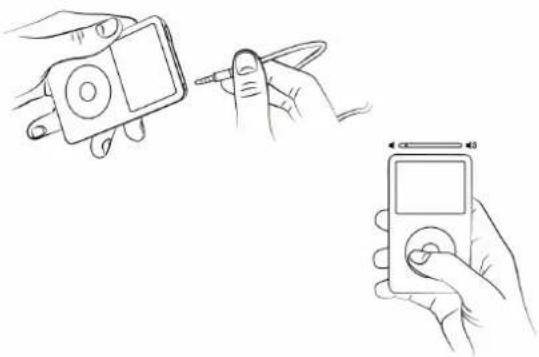

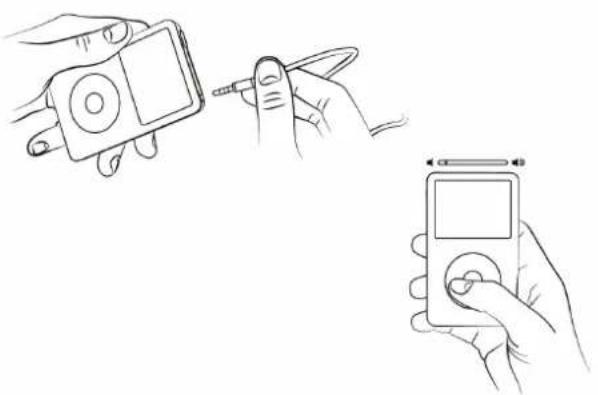

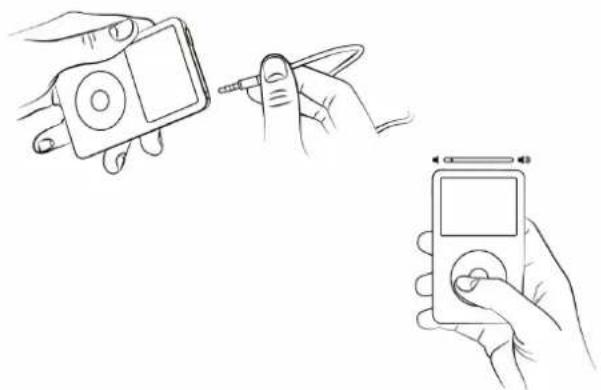

Turn down the volume on your music player before inserting Scuderia R100 earphones.

IMPORTANT: Left and Right Earphone: Having the correct earphone side in the correct ear does affect the listening experience.

Note the "L" and "R" markings on the side of each earphone. "L" is for the left ear, "R" is for the right ear.

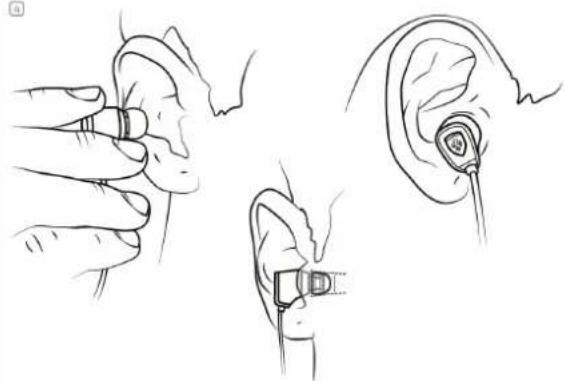

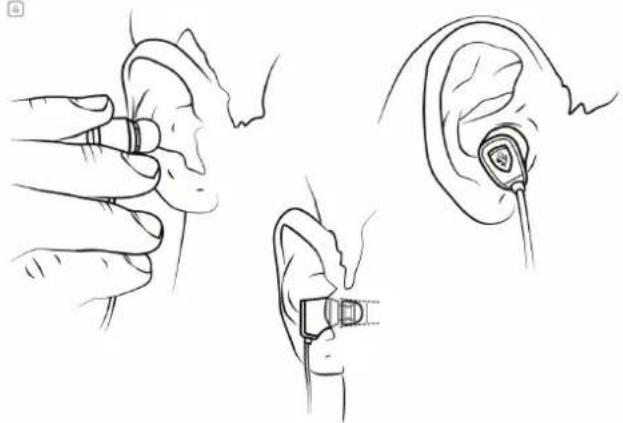

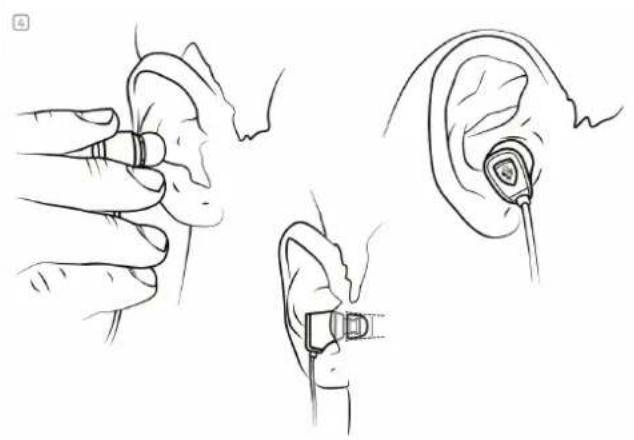

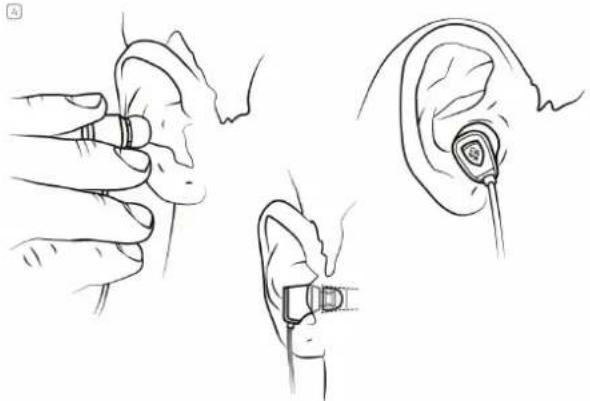

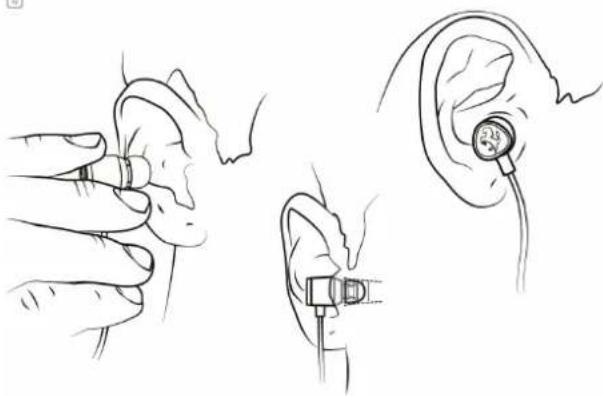

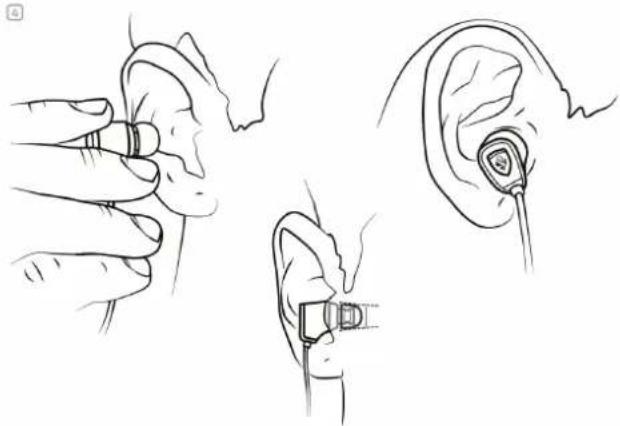

Proper insertion and removal of eartips

1. You may wish to lightly moisten your eartips for easier insertion.
2. Using your right hand, grasp the right earphone.
3. With your left hand, pull up and back on your right ear to straighten your ear canal.
4. Carefully insert your right earphone, rubber eartip first, so that it seals completely and comfortably in your ear.

DO NOT insert the eartip so deeply that your ear canal feels completely "plugged."

1. Repeat this procedure for your left ear.
2. When you've finished your listening session, remove your in-ear earphones slowly with a twisting motion to gradually break the seal.

REMOTES

Using the 1 Button remote

Command	Action
Play/Pause	Press the Play/Pause Button once

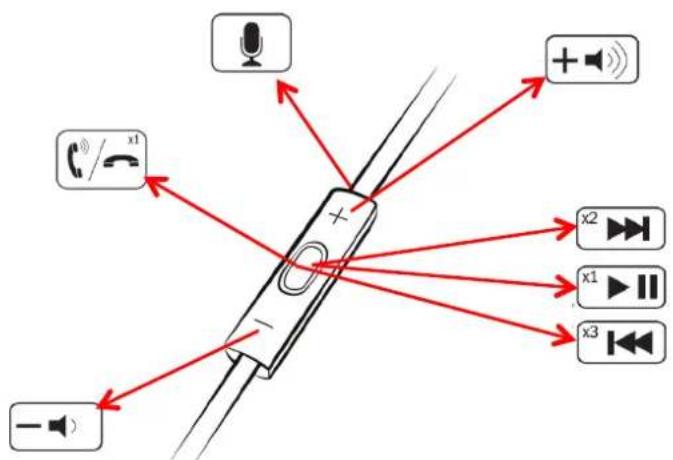

\*3 Button Remote (Applicable to R100i)

Scuderia R100i has a built-in 3 button remote feature for use with music phones and newer iPod. The 3 button remote has a call answer button and microphone so you can easily switch between listening to music and talking on your phone. It also features music and video playback control for iPod, iPhone and iPad.
    L["+"]

Command	Action
Play/Pause	Press the Play/Pause Button once
Volume Controls	Press the Volume Up (+) or Volume Down (-)
Next Track	Double Press the Play/Pause Button
Previous Track	Triple Press the Play/Pause Button within 10 seconds of the track starting. To restart the current track, Triple Press the Play/Pause Button after 10 seconds
Search Fast Forward	Double Press and Hold the Play/Pause Button
Search Rewind	Triple Press and Hold the Play/Pause Button
*Hear song Title/Artist	Press and Hold the Play/Pause Button
*Hear playlist menu	Press the Play/Pause Button until you hear a beep; release the button to hear the playlist menu. When you hear the then name of the playlist you want, press the Play/Pause button to select it. To move quickly through the playlist menu press + or – (when you are in the playlist menu)
*Exit Playlist menu	Press and Hold the Play/Pause Button

* Applicable to iPod 3G Shuffle

SAFETY INFORMATION

1. Read these instructions – for all components before using this product.
2. Keep these instructions – for future reference.
3. Heed all warnings – on the product and in the owner's guide.
4. Follow all instructions.
5. Do not use this apparatus near water or moisture – Do not use this product near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool or anywhere else that water is present.
6. Clean only with a dry cloth. Unplug this product from the wall outlet before cleaning.
7. Only use attachments/accessories specified by the manufacturer.
8. Make no modifications to the product or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and system performance, and will void the warranty.
9. Unplug this apparatus when unused for long periods of time.
10. Do not place any naked flame sources, such as lighted candles, on or near the apparatus.
11. Contains small parts that may be a choking hazard. Not suitable for children under age 3.
12. To prevent risk of fire or electric shock, avoid overloading wall outlets and using extension cords.
13. Do not let objects or liquids enter the product – as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

Illustration of two hands holding a cable or wire, showing a change in tip position (no text or symbols present)

2

Line drawing showing a hand holding a small object with a pen, alongside a sequence of small objects (no text or symbols)

3

Line drawings of hands holding a device and a digital device (no text or symbols)

4

Line drawings of ear anatomy showing hand placement, ear with ear cap, and ear with ear cap (no text or labels)

UTILISATION DE LA TÉLÉCOMMANDE À 3 BOUTONS (COMPATIBLE AVEC LE MODÈLE R100I)

Line drawing showing two hands holding a small object, one pointing at a curved line (no text or symbols)

Line drawing showing a hand holding a small object with an arrow indicating direction (no text or symbols)

Line drawings showing hands using a device to interact with a music player (no text or symbols present)

Line drawings of ear ear components including a finger, ear with ear cap, and ear with ear plug (no text or symbols)

Illustration of two hands holding a medical or surgical tool, showing a close-up of the tip and handle (no text or symbols present)

②

Illustration showing a hand holding a medical device with a close-up of its tip, alongside a sequence of small anatomical shapes (no text or symbols)

③

Line drawings of hands holding a device and a digital device (no text or symbols)

4

Line drawings of ear ear components including a finger, ear with connector, and ear with ear cap (no text or symbols)

Illustration of two hands holding a small object, showing a change in tip position (no text or symbols present)

2

Illustration showing a sequence of small icons transforming into a finger with a cable, illustrating a process (no text or symbols present)

3

Line drawings of hands using a device to interact with a screen (no text or symbols present)

4

Line drawings of ear ear components including a hand, ear ear with ear cap, and ear ear with ear cap (no text or symbols)

USO DE LOS MANDOS A DISTANCIA DE 3 BOTONES (APPLICABLE AL MODELO R1001)

* Aplicable a iPod 3G Shuffle

Line drawing showing two hands holding a small electronic component, no text or symbols present

2

Illustration showing a hand holding a small object with a tool, alongside two separate images of small objects (no text or symbols present)

3

Line drawings of hands holding a device and a digital audio player (no text or symbols)

有

Line drawings of ear anatomy showing hand placement, ear insertion, and ear positioning (no text or symbols)

HET GEBRUIK VAN DE 3-KNOPS AFSTANDSBEDIENINGEN (VAN TOEPASSING OP R100I)
