USER MANUAL Scuderia P200 Ferrari by Logic3

Line drawing of a car tire with a shield emblem on the head (no text or symbols)

THE SCUDERIA FERRARI COLLECTION

Thank you for purchasing the Ferrari by Logic3 Scuderia P200 Headphones. As with all Ferrari by Logic3 products it has been built to the highest manufacturing standards and tested throughout its development, to ensure you get the best possible product.

Please read through and familiarize yourself with this manual before you use the Ferrari by Logic3 Scuderia P200 Headphones.

Product Registration:

For your benefit, Logic3 recommends that You register Your Product online to record Your Product serial number and date of purchase, as this information will allow us to better serve Your needs. Please visit http://www.ferrari-by-logic3.com/register

Compatibility

3 button remote works with:

Made for

iPod

iPhone

iPad

• The remote is supported only by iPod nano (4 ^th / 5 ^th / 6 ^th generation), iPod classic (120GB/160GB), iPod touch (2 ^nd /3 ^rd /4 ^th generation) and iPod shuffle (3rd generation), iPhone, iPhone3 / 3GS, 4 / 4S, iPad / iPad 2 / new iPad
  • Audio is supported by all iPod models.
• Requires software version 1.0.3 for iPod nano (4th generation), 2.0.4 for iPod classic (120GB), and 2.2 or later for iPod touch (2nd generation)

• 1 button remote works with:

• The remote is supported by most Blackberry, Windows and Android smart phones.

Contents

Check the packaging for the items shown below.

Please retain the packing materials, as this will provide the safest way to transport this product.

If any part of the product appears to be damaged, do not attempt to use it. Please contact Ferrari by Logic3 immediately via e-mail: [e-mail] or via telephone: [phone]

Scuderia P200

□ 1&3 button remote control

□ Carry Case

□ Airline Adapter

□ 6.3mm Jack

WARNING: To avoid danger of suffocation, keep plastic bags out of the reach of children.

①

Line drawing of a mechanical device with a handle and base, showing a curved arm and a small tool (no text or symbols)

②

Line drawing of two hands holding a device with a pen, no text or symbols present

Line drawing of a hand holding a handheld electronic device (no text or symbols visible)

③

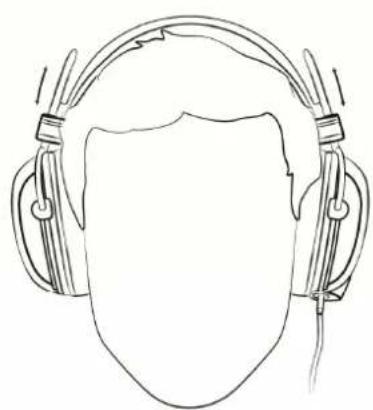

Line drawing of a person wearing a headboard (no text or symbols)

Important Logic3 Performance and safety tips listen responsibly

To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your Headphones. After placing Headphones in your ears, gradually turn up the volume until you reach a comfortable listening level.

Get the most out of your equipment and enjoy great audio performance even at safe levels. Our headphones will allow you to hear more details at lower volume levels than ever before.

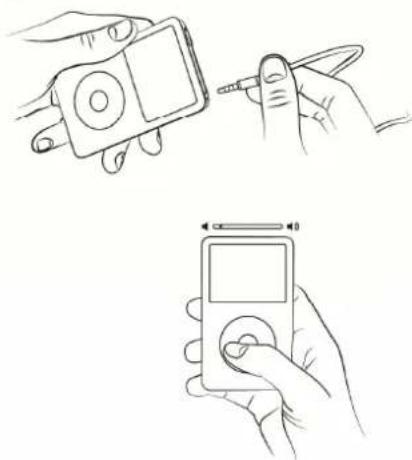

Plug the Scuderia P200 into the 3.5mm (1/8") stereo plug on your music player.

Listen

Turn down the volume on your music player before inserting Scuderia P200 Headphones.

IMPORTANT: Left and Right Headphone: Having the correct earphone side in the correct ear does affect the listening experience.

Note the "L" and "R" markings on the side of each Headphone. "L" is for the left ear, "R" is for the right ear.

Remotes

Using the 1 Button remote

Command Action
Play/Pause Press the Play/Pause Button once

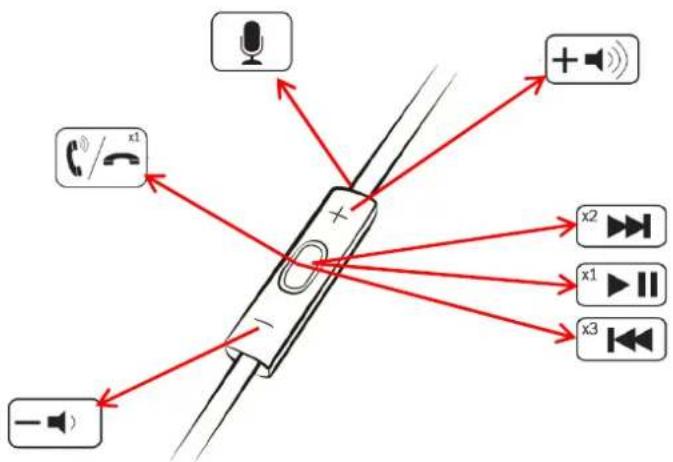

3 Button Remote

Scuderia P200 has a built-in 3 button remote feature for use with music phones and newer iPod. The 3 button remote has a call answer button and microphone so you can easily switch between listening to music and talking on your phone. It also features music and video playback control for iPod, iPhone and iPad.

Using the 3 button controls

Command Action
Play/Pause Press the Play/	Pause Button once
Volume Controls	Press the Volume Up (+) or Volume Down (-)
Next Track Double Press the Play/Pause Button
Previous Track	Triple Press the Play/Pause Button within 10 seconds of the track starting. To restart the current track, Triple Press the Play/Pause Button after 10 seconds
Search Fast Forward	Double Press and Hold the Play/Pause Button
Search Rewind	Triple Press and Hold the Play/Pause Button
*Hear song Title/Artist Press and Hold the Play/Pause Button
*Hear playlist menu	Press the Play/Pause Button until you hear a beep; release the button to hear the playlist menu. When you hear the then name of the playlist you want, press the Play/Pause button to select it. To move quickly through the playlist menu press + or – (when you are in the playlist menu)
*Exit Playlist menu	Press and Hold the Play/Pause Button

* Applicable to iPod 3G Shuffle

1. Read these instructions – for all components before using this product.
2. Keep these instructions – for future reference.
3. Heed all warnings – on the product and in the owner's guide.
4. Follow all instructions.
5. Do not use this apparatus near water or moisture – Do not use this product near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool or anywhere else that water is present.
6. Clean only with a dry cloth. Unplug this product from the wall outlet before cleaning.
7. Only use attachments/accessories specified by the manufacturer.
8. Make no modifications to the product or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and system performance, and will void the warranty.
9. Unplug this apparatus when unused for long periods of time.
10. Do not place any naked flame sources, such as lighted candles, on or near the apparatus.
11. Contains small parts that may be a choking hazard. Not suitable for children under age 3.
12. To prevent risk of fire or electric shock, avoid overloading wall outlets and using extension cords.
13. Do not let objects or liquids enter the product – as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

FR - Introduction

Line drawing of a mechanical device with a handle and base, showing internal components and a small tool (no text or symbols)

②

Line drawings of hands using a device to interact with a screen (no text or symbols present)

3

Line drawing of a person wearing a headband (no text or symbols)

Diagram illustrating the wireless signal transmission system with labeled components including microphone, phone, and audio output signals.

Line drawing of a medical device with a central bulb and attached tubing, no text or symbols present.

2

Line drawings of hands using a handheld device to interact with a screen (no text or symbols present)

③

Line drawing of a person wearing a headband (no text or symbols)

Line drawing of a mechanical device with a handle and base, showing a curved component and a tool (no text or symbols)

②

Line drawing of two hands holding a device with a screen and pen, no text or symbols present

Line drawing of a hand holding a handheld electronic device with a screen and scroll (no text or symbols)

③

Line drawing of a person wearing a headboard (no text or symbols)

Diagram illustrating the wireless signal transmission system with labeled components including microphone, phone, and audio output signals.

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

2

Line drawing of two hands holding a handheld device (no text or symbols)

Line drawing of a hand holding a digital music player with a scroll wheel (no text or symbols)

3

Line drawing of a person wearing a headband (no text or symbols)

Line drawing of a mechanical device with a handle and base, showing a curved arm and a small tool (no text or symbols)

②

Line drawing of two hands holding a device, one pointing at it (no text or symbols)

Line drawing of a hand holding a handheld electronic device with a screen and scroll (no text or symbols)

③

Line drawing of a person wearing a headband with earphones (no text or symbols)

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

②

Line drawing of two hands holding a device with a pen, no text or symbols present

Line drawing of a hand holding a handheld electronic device with a screen and scroll (no text or symbols)

③

Line drawing of a person wearing a headband (no text or symbols)

Diagram illustrating the wireless device's signal transmission and sound output, with labeled components like microphone, phone, and audio.

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

②

Line drawing of two hands holding a device with a pen, no text or symbols present

Line drawing of a hand holding a handheld electronic device with a screen and scroll (no text or symbols)

3

Line drawing of a person wearing a headband (no text or symbols)

Diagram illustrating the connection between a device and multiple audio/video signals, labeled with icons for microphone, x1, x2, x3, and speaker.

Declaration of Conformity

Logic3 declare that the product described in this Instruction Manual has been tested and assessed and is in conformity with the relevant provisions of the following directives and National Laws and regulations adopting these directives.

The EMC Directive 2004/108/EEC

EN50332 - Measurement of Maximum Sound Pressure

RoHS – Restriction of Hazardous Substances Directive

REACH – Registration, Evaluation, Authorisation & Restriction of Chemicals.....

Issued in:

Watford, Hertfordshire, United Kingdom.

Date: 01/08/2012

Signature:

M L

FERRARI by Logic3

[e-mail]

www.ferrari-by-logic3.com

Logic3 plc, Rhodes Way, Watford, WD24 4YW, UK
