USER MANUAL Carre NOVA

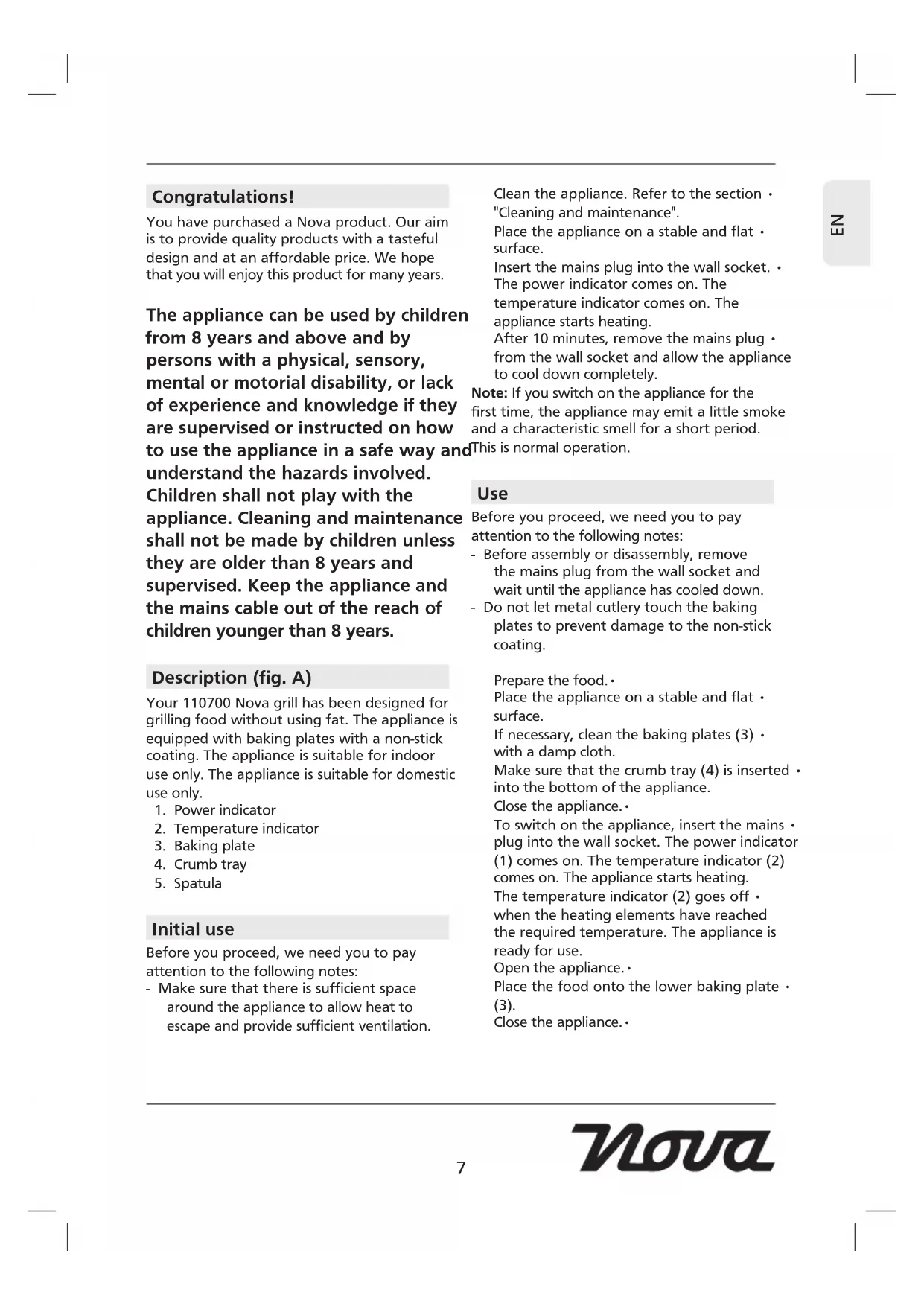

Congratulations! You have purchased a Nova product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years. The appliance can be used by children from 8 years and above and by persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge if they are supervised or instructed on how to use the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and the mains cable out of the reach of children younger than 8 years. Description (fig. A) Your 110700 Nova grill has been designed for grilling food without using fat. The appliance is equipped with baking plates with a non-stick coating. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

Initial use Before you proceed, we need you to pay attention to the following notes: - Make sure that there is sufficient space around the appliance to allow heat to escape and provide sufficient ventilation. Clean the appliance. Refer to the section • "Cleaning and maintenance". Place the appliance on a stable and flat • surface. Insert the mains plug into the wall socket. • The power indicator comes on. The temperature indicator comes on. The appliance starts heating. After 10 minutes, remove the mains plug • from the wall socket and allow the appliance to cool down completely. Note: If you switch on the appliance for the first time, the appliance may emit a little smoke and a characteristic smell for a short period. This is normal operation. Use Before you proceed, we need you to pay attention to the following notes: - Before assembly or disassembly, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not let metal cutlery touch the baking plates to prevent damage to the non-stick coating. Prepare the food.• Place the appliance on a stable and flat • surface. If necessary, clean the baking plates (3) • with a damp cloth. Make sure that the crumb tray (4) is inserted • into the bottom of the appliance. Close the appliance.• To switch on the appliance, insert the mains • plug into the wall socket. The power indicator (1) comes on. The temperature indicator (2) comes on. The appliance starts heating. The temperature indicator (2) goes off • when the heating elements have reached the required temperature. The appliance is ready for use. Open the appliance.• Place the food onto the lower baking plate • (3). Close the appliance.•8

Bake the food until it is ready for • consumption. The required baking time depends on your wishes. Small pieces will grill or fry better and more quickly than large pieces. Experiment with the required baking time to achieve the best results. Stay close to the appliance in order to • check from time to time whether the food is ready and to make sure that the food does not burn. Open the appliance when the food is ready • for consumption. Remove the food from the baking plate (3) • using a flat wooden or plastic spatula. Preferably use the supplied spatula (5). Close the appliance to retain the heat for • further use. To switch off the appliance, remove the • mains plug from the wall socket. The power indicator (1) goes off. Allow the appliance to cool down • completely. Cleaning and maintenance The appliance must be cleaned after each use. Before you proceed, we need you to pay attention to the following notes: - Before cleaning or maintenance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not immerse the appliance in water or other liquids. Before you proceed, we would like you to focus your attention on the following notes: - Do not use aggressive or abrasive cleaning agents to clean the appliance. - Do not use sharp objects to clean the appliance. Regularly check the appliance for possible • damage. Clean the outside of the appliance with a • soft, damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth. Clean the baking plates after each use:• - Remove any residues with a paper towel. - Clean the baking plates with a soft, damp cloth and a few drops of washing- up liquid. - Thoroughly dry the baking plates. Clean the crumb tray after each use:• - Remove the crumb tray from the appliance. - Clean the crumb tray in soapy water. - Thoroughly dry the crumb tray. - Insert the crumb tray into the appliance. Clean the spatula in soapy water. Thoroughly • dry the spatula. Put the appliance and the accessories in • the original packaging. Store the appliance in a dry and frost-free • place, out of the reach of children. Safety instructions General safety Read the manual carefully before use. Keep • the manual for future reference. Only use the appliance and the accessories • for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual. Do not use the appliance if any part or any • accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Do not use the appliance near bathtubs, • showers, basins or other vessels containing water. Do not immerse the appliance in water or • other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again. This appliance is intended to be used in • indoor only and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed-and- breakfast type environments.9

Electrical safety Before use, always check that the mains • voltage is the same as the voltage on the rating plate of the appliance. Connect the appliance to an earthed wall • socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 x 1.5 mm

For additional protection, install a residual • current device (RCD) with a rated residual operating current that does not exceed 30 mA. The appliance is not intended to be • operated by means of an external timer or separate remote-control system. Make sure that water cannot enter the • contact plugs of the mains cable and the extension cable. Always fully unwind the mains cable and • the extension cable. Make sure that the mains cable does not • hang over the edge of a worktop and cannot be caught accidentally or tripped over. Keep the mains cable away from heat, oil • and sharp edges. Regularly check the mains cable and the • mains plug for signs of damage. Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Do not pull the mains cable to disconnect • the mains plug from the mains. Disconnect the mains plug from the mains • when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance. Safety instructions for grills Do not use the appliance outdoors.• Place the appliance on a stable and flat • surface. Place the appliance on a heat-resistant and • splash-proof surface. Do not place the appliance on a hob.• Do not cover the appliance.• Make sure that there is sufficient space • around the appliance to allow heat to escape and provide sufficient ventilation. Make sure that the appliance does not • come into contact with flammable material. Keep the appliance away from heat sources. • Do not place the appliance on hot surfaces or near open flames. Beware of steam and splashes when putting • food on the hot baking plates. Caution: Hot grease can splash from the • baking plates. Do not use charcoal or similar combustible • fuels. Do not pour cold water onto the hot • baking plates. The water will splash and damage the baking plates. Always be careful when touching the • appliance. Use oven gloves if you need to touch the appliance during or shortly after use. Beware of hot parts. The surfaces marked • with a caution symbol for hot surfaces are liable to become hot during use. The accessible surfaces can become hot when the appliance is operating. The outer surface can become hot when the appliance is operating. The baking plates become very hot during • use. Do not touch the hot baking plates. Make sure that your hands are dry before • touching the appliance. Do not leave the appliance unattended • during use. Do not move the appliance while it is • switched on or is still hot. Remove the mains plug from the wall socket and wait until the appliance has cooled down. Do not use the appliance near birds (e.g. • tropical birds such as parrots). The baking plates are finished with a non-stick coating based on PTFE. Upon heating, the coating may release small amounts of gases which are fully harmless for people. However, the nervous systems of birds are extremely sensitive to these gases. U.K. Wiring instructions The wires in the mains lead are coloured in accordance with the following code: BLUE NEUTRAL BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or and is coloured GREEN or GREEN/YELLOW. If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board. Warning! This appliance must be earthed. Disclaimer Subject to change; specifications can be changed without further notice.11
