Product type	Built-in hob
Brand	Hotpoint-Ariston
Model	PF 604 (WH)HA
Power supply	220-230 V / 380-400 V ~ 3N 50/60 Hz
Maximum power absorbed	5600 W
Number of cooking zones	4
Type of cooking zones	Standard and rapid electric plates (identifiable by red dot)
Controls	6 rotary positions (off, 1-6)
Operating indicator light	Yes, per zone
Surface material	Stainless steel
Safety	Manual shut-off; do not leave unattended; do not clean with steam cleaner
Cleaning	Damp sponge, oil on warm plates; avoid abrasive detergents
Installation	Built-in by professional; requires cutout and ventilation
Certifications	CE, directives 2006/95/EEC, 2004/108/EEC, 2002/96/EEC
Weight	Approximately 15 kg (estimated)
Dimensions (W x D x H)	Approximately 60 x 51 x 5 cm (estimated)

Frequently Asked Questions - PF 604 (WH)HA HOTPOINT-ARISTON

How to install my Hotpoint-Ariston PF 604 (WH)HA hob?

Installation must be carried out by a qualified professional. The hob is built into a worktop with a cutout of the indicated dimensions (see manual). Ensure adequate ventilation under the hob and observe safety distances from adjacent furniture (at least 600 mm). Use all the fixing brackets provided.

What type of electrical connection is required?

The hob operates on 220-230 V or 380-400 V three-phase 3N, 50/60 Hz, with a maximum power of 5600 W. The power cable is not supplied; it must be sized according to the connection. Install a suitable standardized plug or make a direct connection with an all-pole switch (contact opening of at least 3 mm). Earth connection is mandatory.

How to clean the electric plates?

Clean the plates with a damp cloth when they are still warm, then lightly grease them with a little oil. For the stainless steel surface, use a damp sponge and wipe with paper towel. Avoid abrasive detergents, scouring powders, and metal sponges. Never use a steam or high-pressure cleaner.

Can I use copper pans?

It is recommended to use pans with a flat bottom and a diameter at least equal to that of the plate. Copper pans are not explicitly prohibited, but their bottom must be perfectly flat and suitable for electric plates. Avoid unstable or deformed pans.

What to do if a plate does not heat up?

First check that the control knob is correctly positioned (not at 0) and that the indicator light is on. If the plate remains cold, cut off the power supply and contact customer service. Do not attempt to repair it yourself. Have the model (Mod.) and serial number (S/N) from the rating plate ready.

How to adjust the power of the plates?

Turn the control knob clockwise or counterclockwise to select one of the 6 positions: 0 (off), 1 (gentle cooking, vegetables, fish), 2-5 (intermediate cooking), 6 (maximum power for searing or boiling). The rapid plates (red dot) heat up faster.

Is it safe to leave the hob on unattended?

No, it is dangerous to leave the hob unattended, especially with oil or fat. This can cause a fire. Always turn off the plates after use and never leave objects on the cooking surfaces.

How to extinguish a small fire on the hob?

Never use water. Immediately turn off the appliance and cover the flame with a lid or fire blanket. If the fire persists, call the fire department. Keep a suitable fire extinguisher nearby.

Where to find the serial number for support?

The serial number (S/N) and model (Mod.) are on the rating plate attached to the appliance or its packaging. You will need them for any technical support request.

Can I install the hob above an oven?

Yes, provided that the oven has cooling ventilation. If the oven does not have forced ventilation, provide air openings in the cabinet. The electrical connections of the hob and the oven must be separate. Observe a minimum distance of 20 mm between the underside of the hob and the oven.

USER MANUAL PF 604 (WH)HA HOTPOINT-ARISTON

Electrical connections

Description of the appliance, 13

Overall view

Precautions and tips, 14

General safety

Disposal

Practical Advice on Using the Electric Hot Plates

Maintenance and care, 15

Switching the appliance off

Cleaning the appliance

Technical data

Assistance

GB

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not store items on the cooking surfaces.

Never use steam cleaners or pressure cleaners on the appliance.

The appliance is not intended to be operated by means of an external timer or separate remote control system.

! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips).
! The appliance must be installed by a qualified professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.

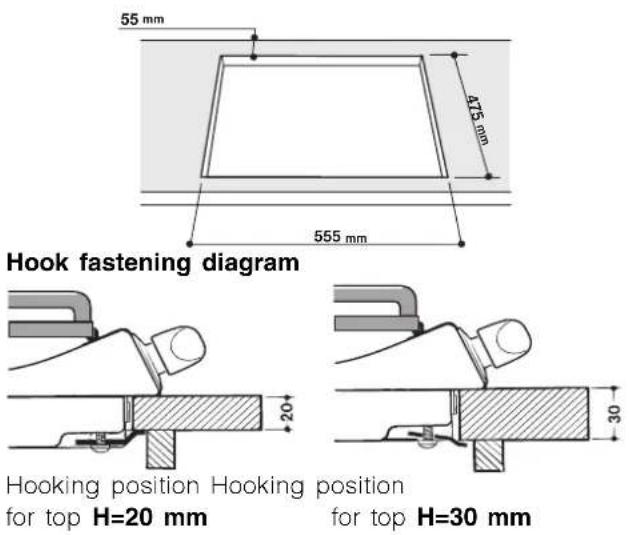

Fitting the appliance

It is possible to install them next to furniture which is higher than the working board. For a correct installation of the cooking top the following precautions must be followed:

• Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600 mm from the edge of the hob.
• Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650~mm from the hob.

• Place the wall cabinets adjacent to the hood at a minimum height of 420mm from the hob (see figure).

• If the hob is installed beneath a wall cabinet, the latter must be situated at a minimum of 700mm above the hob (see figure).

• The installation cavity should have the dimensions indicated in the figure. Fastening hooks are provided, allowing you to fasten the hob to tops that are between 20 and 40 mm thick. To ensure the hob is securely fastened to the top, we recommend you use all the hooks provided.

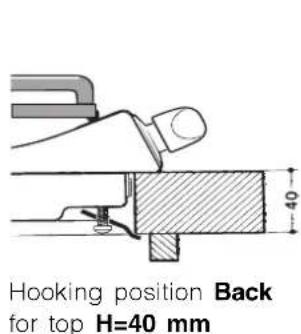

! Use the hooks contained in the "accessory pack"
- Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of 20 mm from the lower part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 × 560 mm (see diagrams).

GB

Where a hob is installed above an oven without a forced ventilation cooling system, adequate ventilation must be provided inside the cabinet by means of air holes through which air can pass (see figure).

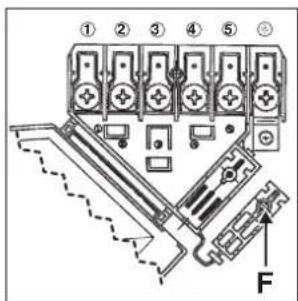

Electrical connection

The electric hobs are supplied without power supply cable since the cable must be sized according to the type of electrical connection used (see attached connection diagram). Follow these steps to connect the cable:

• Open the terminal box by removing the screws "V" and opening the cover (see figure).
• Connect the wires as shown in the diagram.
  Fix the cable using the cable clamp "F", replace the cover and fasten it using the screws "V" (see figure).

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate.

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker).

The supply cable must not come into contact with surfaces with temperatures higher than 50^ .

The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

Before connecting to the power supply, make sure that:

The appliance is earthed and the plug is compliant with the law.
- The socket can withstand the maximum power of the appliance, which is indicated on the data plate.
The voltage is in the range between the values indicated on the data plate.
- The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
The manufacturer declines any liability should these safety measures not be observed.
If the appliance is to be installed above a built-in electric oven, the electrical connection of the hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier.

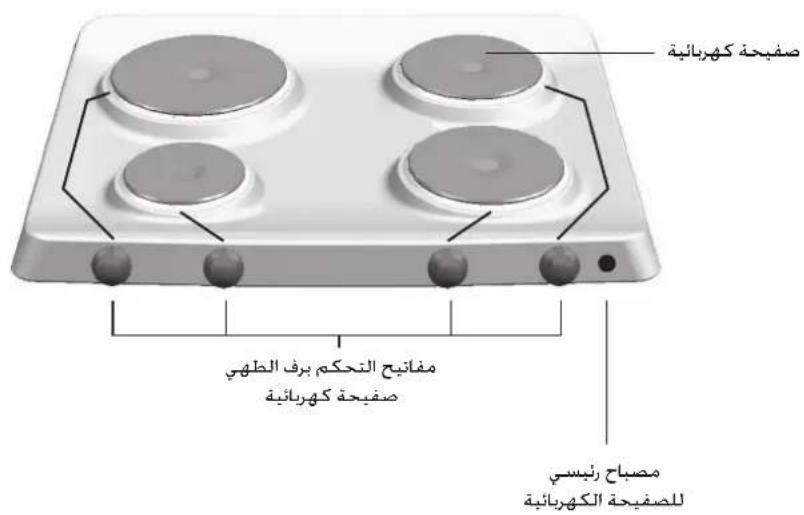

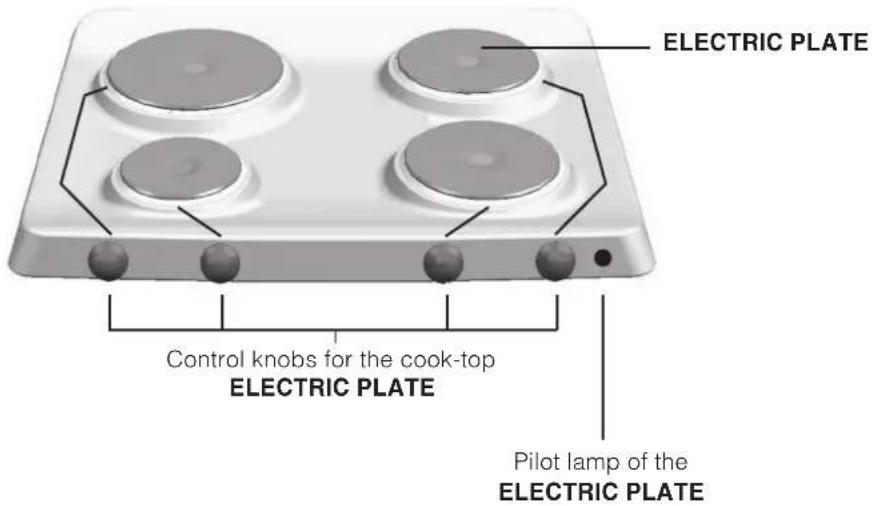

Description of the appliance

Overall view

GB

The ELECTRIC PLATE vary in diameter and power: "normal" and "fast". The latter can be identified by a red boss in the center of the hot plate itself.
! The position of the corresponding electric hot plate is indicated on each control knob.
- The ELECTRIC PLATE ON indicator light switches on whenever the knob is moved from the 'off'

position.

The ELECTRIC PLATE control knob is a device used to regulate power. The knob may be turned clockwise or anticlockwise and set to six different positions:

Setting	Normal or Fast Plate
0	Off
1	Low
2 - 5	Medium
6	High

! Please refer to the "Practical advice on using the appliance" section for a list of the relative positions and their recommended uses.

GB

This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

• This manual is for a class 3 built-in cooktop.
  These instructions are only valid for the countries the symbols for which appear on the manual and the serial plate.
• This appliance is designed for non-professional use in the home.
• This appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• Do not touch the appliance with bare feet or with wet or damp hands and feet.
• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.
• Ensure that power supply cables of other electrical appliances do not come into contact with the hot parts of the hob.
• The openings and slots used for ventilation and heat dispersion must never be covered.
• Make sure the knobs are in the "●"/"o" position when the appliance is not in use.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Never carry out any cleaning or maintenance work without having unplugged the plug from the mains.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).
  Always make sure pan handles are turned towards the centre of the hob in order to avoid accidental burns.
• Do not leave the electric plate switched on without a pan placed on it.
• Do not use cookware with uneven or deformed bottoms.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes

responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.
- Do not let children play with the appliance.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Practical Advice on Using the Electric Hot Plates

In order to avoid heat loss and damage to the hot plate, use cookware with a flat bottom the diameter of which is not less than that of the hot plate.

Setting	Setting
0	Off
1	Cooking vegetables, fish
2	Cooking potatoes (using steam) soups, chickpeas, beans.
3	Continuing the cooking of large quantities of food, minestrone.
4	For roasting (average)
5	For roasting (above average)
6	For browning and reaching a boil in a short time

Before using the hot plates for the first time, you should heat them at maximum temperature for approximately 4 minutes, without any pans. During this initial stage, their protective coating hardens and reaches its maximum resistance.

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents, stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface.
! Never use steam cleaners or pressure cleaners on the appliance.
- It is usually enough to wash the hob with a damp sponge and dry it with absorbent kitchen roll.
The electric hobs should be cleaned using a damp cloth and then rubbed with oil while still warm.
- Stainless steel may become marked if it comes into contact with very hard water or harsh detergents (containing phosphorous) for long periods of time. After cleaning, it is advisable to rinse thoroughly and dry. It is also recommended that drops of water be dried.

Technical characteristic

DATA PLATE

Electrical connections

voltage of 220-230V/380-400V~ 3N 50/60Hz (see data plate) maximum power absorbed 5600W

This appliance conforms to the following European Economic Community directives: 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments - 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments. - 2002/96/EC and subsequent amendments.

Assistance

Communicating:

• appliance model (Mod.)
• serial number (S/N)

This information is found on the data plate located on the appliance and/or on the packaging.

IT

Italiano, 1

GB

English, 9

FR

Français, 16

DE

Deutsch, 23

UA

KZ

AR

PF 604/HA

PF 604 IX/HA

Sommaire

Avertissements, 17

Installation, 18-19

Positionnement

Raccordement electrique

Description de I'appareil, 20

Vued'ensemble

！NoJoxeHHBidiNObiHoi eNEKtpnHoi nNTKN Bka3aHO Ha pyKax KepyBaHH.

CbitnoBn iHdkatop YBIMKHEHOI ENEKTPNCHOI IINTN 3aropaeTbcra, KOJI Bn NOBeptTaTe pyky 3 NONOKeHHA «BIMKHeHOI

Pyka KepyBaHH ENEKTPNUHOI PINTOIO BnKOpNCTOBYeTbCdIa peYnIOBaHH NOtXHcOti. Pyk MoxHa NoBepTaTu 3a RoDHHNKoBOcO CTpiKOIO a60 npOTn Hei Ta BCTaHOBNIoBaTu B WicTB p3Hnx noJoxKeHb.

Kayinci3dkke KoibIaTbIH KaIbI TaIaTap

BykypbInfbl3KnackkaXataTBH Kocankbl Typmbictbk 3neKtp KypbInfbicbl 60bn Ta6bnaabbl.
- Ra3 Kypblfblnapbl Dypbc Kbi3MeT aTKapy ywiH aya aHaIbIMbIH petke KeItipy Kepek. OcbI KOHdbipblnapbl opHaTkah Ke3e «OpHaJnactbipy» naparpaΦbIHda CnnaTTanFaH TanaTAP caKTanybiH TeKcepHi3.
Backapy 6yibIMhbIH nacnopTbIK kectecihde XHe HycKaMaCbIHDa KeJItipIreH endepre fHa JapamdbI 60JbIN Ta6bIaDbI.
- ByI 6yIbIM yI wapTTapbIHda KcicBn EmeC Typrbla naIdaIaNHyf aPhaJIFaH.
- ByiIMbI KeWre, 6actbIpMa actbHda opHaTyra TbiBIM caJIbHaDbI, eITKeHi OFaH XaHbip XaHe HaxkaIaIbIH ecepI eTe kayinti BoIbn caHaJaDbI.
- BybIMFa cy KOJImHeH, KaIaHaKar HemeCe IbIMKblI aKaIeH KaKbIHdAmHaHbI3.
BiybIM TaFamdbIK eHIMdepdi daibHdayra apHaanfah, OHbl OcbI TexHNkaNbIK HycKaynbIKTa KepceTinreH epexepepre cekec TK epecek aandaap faHa naDanaHa anaDbI.
BaKa TyPmbTbIK 3NeKtpOka6DbIKTapDbIH 3NeKtp KyaTbI eTKi3RIUTePimeH, 6yBIMHbIH bICTbIK 6eNikTePimeH KaKbIH baJNaHbICKa TcneH3.
- XeIeTkiu TopnapbI kHe bICTbIKtbi 6acatbIH TecikTepei kannnHaB3.
- BybIM naHnHaHbImaHaHda, TyTkanaIapbl «●»/«O» XaRaBbHda 6onybH bInFn TEKcepH3.
BvibMbHbBnKacbIH TOK Ke3iHeh cybipy yuH JeJI uHypbIHah TapTnHaB13, BnKaHbH e3iHeh xCTan cybipbl3.
- BymbHbI Ta3anay Hemece TexHkaIbIK XyMbICTap Xacay yuIH wTenCeIbdi BUNKaHbI TOK Ke3iHeH cybpblbI3.
KHeIeMneTihKaFdaHda,6YbIMhBih iWki MExHaHn3MDeepiH e3 6etIHue KHeHdey KymbICTapbIH Kypri3y yuH aUyFA Tbibim caJIbHaDbI. TexHnKaJIbIK KbI3MeT KepcTeTy optaJIbIKTapbHa xa6apnaCbHbI3dAp (TexHnKaJIbIK KbI3MeT KepcTeYi kappa).
- DyXOBka uKaΦbHbIH aUbIK TypFAH eciriHe aybip 3aTTapDbI KOIMaHbI3.
Iicipy naheiniHderi kactpeT TyTkanaPb ci3diH 6aikaycbIsda konblHb3 Tnin KetneinHde 6oIbIn TypybH KaadaFanaHb13.
- Erep ra3 xhe 3neKtp KOHOpKaIapbI bICTbIK 6oNbIn Typca, nicipy naHeJIiHi, WbIHb KaKnafBnH (erep on 6oNca) xannahb3.
bICTbIKKa 1bIDamCbI3 bIDICTbI naJaHa6aHbI3.

ytnnbdey

• OpaTbIH 3aTtapdbI KOIO: opaTbIH 3aTtapdbI KaITa eHDey 6oBbIHwa xepriniKti HOpMaTHBTEpDi caKaTaHbI3.
  3JNeKtpOnDbjXeHe 3JKeKtpnI 3JKeKtpOxa6dbkTapbIH KaTt aEhDey 6oBbHwa 2002/96CE EyponaIbIK DInpeKTINBke cAikcec 3JKeKtpOxa6dbkTap kAimri KaN aKobICbIMen 6ipre NaKTbIPbIMaybl KepeK. NaIaIaNHyfKaIpaMcbI3 3aTTap OApDbI KpaIbIH MaTePnaIaDapDbI KaTt aEhdei XeHe peKnyepaunaydbIOHTaIIaHDbpy, CObIMeH KaTAP KopUarAH opTaHbIH XeHe DeHCaybIK Kayincizdir I yuH IN 6eJeK xHaHnybI KepeK. BapNbIK Xa6DbIKTapdaftbIK KObIC ce6etIH eWipreh 6eRi, OApDbIH 6eLek KaTAt eHdEnetIHir H KepCteTtH 6eRi. TyPmbICTbIK 3JKeKtpOxa6dbkTapbIH dYpbIC KaTAt eHDey TypaJIb HAkTb IAkapaTTbl any YuHIN TYtBiHyybI nap apHaBIs MeMneKeTTIK YbIMdapFa Hemece dyKeHRe xa6apLnacybl KepeK.

Bapnbik Typmbictbik 3neKtp 6yibimdapbIH XeTeKwI eHdipuyinep ecki 3neKtp 6yibimdapbIH XnHay XaHe KaIta Ehdey 6oBHua Kye Jkacay XaHe BaCapy 6oBuHwa KeMeK 6pepi.

3NeKtp KOHΦopKaJIapbIH naIaIaNHy 6oIbIHwa KapaNaIbIM KeHeCTep

KbIydbIH DnCnepcncbIH KHe KOHΦopKaIapDbIH 63bIyBH 60IbIPMac yIiH KOHΦopKa dIaMeTpIeH KiIi 60MaIbIH dIaMeTpni, TaBaHbI Teric bIbIC naIdaNaHbIbI3.

Куи	Кадимri жени жылдан конфорka
0	Косьлган
1	Көністэр с-men балык озірney
2	Картоны 6уfas niçípy, copna, Фасонь дайындан
3	Улken келем'deri taram'dap'dы озірney жени устay
4	Кы貂у (opтышa)
5	Кы貂у (kaTTыразк)
6	КыТырпak Бүлүнша Кы貂у, Кайнүлүнша

！3nEkpKoHΦopKaanapbIH aJfaw naJaHaHaHda
OnapdbMaKcMaJIbIK TeMnepaTypaJa,ewKaHda bIbIC
KoIma,waamamEn 4 MNHyTTaN KbI3DbIpbIn any KepeK.
OcbI npocetIH 6actankbI onepauncaHda KOpraHbc
XaMbIJIbICb KaTbINaHbIn, MaKcMaJIbIK 6epiKTikke JeTeDi.

TexHnKaIbIK Kbl3MeT KOpCety XHe KyTin yCTay

KZ

TexHnKaJIbIK CnNaTtAmacBHBHKeCTeCI

3neKtpre KaJFaHyb

KepHey 220-230V/380-400V~ 3N 50/60Hz (aknapaTTbIK Kectere Kapa) MaKcImaJIbIK TITbIHbIH KyaT 5600W

BvN 6yNbIM KeNeci EyponaNbIK KaybImactbIK DnpeKtNBacbHa caikec eHdpinreH
-12/12/06 XbIFbI 2006/95/CEE (TMeH KePHey) XeHe OHbIH KeNeci e3repictepi
-15/12/04 Kblfbl 2004/108/CEE (aNektpomarHnTTiK caikeCTiri), OHbH Keenei e3repictepi
-22/07/93xblfbl 93/68/CEE OHbIH Keleci e3repictepi
-2002/96/CEE XaHe OHbIH KeNeci e3repicTepi.

Kemek

KepcetiH3:

AnnapaTbHb3dbH MoDeiH
- OhbiH cepnIbIK HemipiH

Ocbaknapa ci3iH annapaTbIb3dbH aknapaTbIK keCTecHHe KHe/HemecopepMaKaKpeTinreH.

Aii

jglal gbiically ciall jnlly cialll 1

a 1

:Jai

.(Mod.)

.(S/N)

g 100000000000000000000000000000000000000000000000000000

ailljlo jki lai yj jy j

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

aill jolll aill y 111 111 111 111 111 111

#

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

1

1

aannnnae aennnnne

AR

gall baiol pniu o1 g aily ysiil ayalal sail liao 1 jia c alil uay jiaclll iac olil yjiaclll ojai jay jaiia e iiai jaiy

aagai aagai gaaagaae 30=

a glll a gill gial 20=

aolal 2
4.2.1.11

40=

"alall lglal aja" gdo ygall

20 20

jJ 10

2.9g 1

aJ 45 560 x Jc n sia la Lai jn

yio 00000000000000000000000000000000000000000000000000000000000

a. Jiaocall gai jol oJ iuiill clogla bia 1e jll!

gagall

jia jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie

(1)

J 1

j_4j_2

sill Joln jnl 1jil jil jll jll n

jglal gaiy i jglal y glal jg 600

a 650 62

420 420

700 7

ailll lllllll 1 k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j k j kj

jaiiia aiaa i jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii

y 1 y

.

jglalgaballyclibiooll jjllblicioill 12

AR

Lg

AR

gaaal

a

jgl

Iolc ojbi

ilusig jia jilw

aoll aolal
