Product type	Gas cooker
Brand	Hotpoint-Ariston
Model	CP65SG1 HA
Oven dimensions (HxWxD)	31 x 43.5 x 43.5 cm
Oven volume	58 liters
Burners	4 burners: Rapid (3.00 kW), Semi-rapid (1.65 kW), Auxiliary (1.00 kW), Triple Crown (3.25 kW)
Oven burner	2.60 kW
Grill	Infrared electric
Rotisserie	Included
Ignition	Electronic built into knobs
Safety	Flame safety device on all burners
Power supply	230 V ~ 50 Hz (see rating plate)
Gas supply	Natural gas or LPG (adaptable)
Timer	Mechanical (buzzer)
Oven light	25 W lamp (E14 base)
Material	Enamel and stainless steel
Cleaning	Manual cleaning with sponge and mild detergent
Gas tap maintenance	By authorized technician
Repairability index	Not specified

Frequently Asked Questions - CP65SG1 HA HOTPOINT-ARISTON

How to light a hob burner?

Press the corresponding burner knob and turn it counterclockwise to the large flame symbol. The electronic ignition activates when fully pressed. Hold for 2-3 seconds to activate the flame safety device.

What to do if the burner goes out after releasing the knob?

This may be a thermocouple issue. Try again by holding the knob pressed longer (up to 6 seconds for the oven). If the problem persists, check that the burner is dry and the holes are not blocked.

How to adapt the cooker to another gas type?

Replace the burner injectors with those suitable for the new gas (see specifications table). Also adjust the minimum burner settings. This operation must be carried out by a professional.

What is the maximum oven temperature?

The oven can reach 275°C (position 8). The intermediate positions range from 150°C (position 1) to 275°C.

How to use the rotisserie?

Place the drip tray on the first shelf, install the rotisserie cradle on the 3rd shelf, insert the spit into the drive at the back of the oven, then turn the oven knob to the grill position. The motor rotates as long as the grill is on.

How to clean the hob burners?

The grates, caps and crowns are removable. Wash them in hot water with a non-abrasive detergent. Make sure they are completely dry before reassembling.

How to replace the oven light bulb?

Unplug the appliance, remove the glass cover, unscrew the defective bulb and replace it with an identical bulb (230 V, 25 W, E14 base). Reassemble the cover and plug back in.

What to do if the oven does not ignite?

Check that the gas is on and the power supply works. If the electronic ignition does not spark, use manual ignition (match). If the problem persists, contact customer service.

What pan diameters to use on each burner?

Rapid burner: 24-26 cm, Semi-rapid: 16-20 cm, Auxiliary: 10-14 cm, Triple Crown: 24-26 cm. Use flat-bottomed pans with lids.

How to maintain the oven door gaskets?

Clean the gaskets regularly with a damp sponge and mild soap. Check their condition periodically. If damaged, have them replaced by an authorized technician.

USER MANUAL CP65SG1 HA HOTPOINT-ARISTON

Italiano, 1 English, 14

Francais, 26

Positioning and levelling

Electrical connection

Gas connection

Adapting to different types of gas

Technical data

Table of burner and nozzle specifications

Description of the appliance, 20

Overall view

Control panel

Start-up and use, 21-23

Using the hob

Using the oven

Oven cooking advice table

Precautions and tips, 24

General safety

Disposal

Respecting and conserving the environment

Care and maintenance, 25

Switching the appliance off

Cleaning the appliance

Gas tap maintenance

Replacing the oven light bulb

Assistance

! Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe installation and operation of the appliance.
Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.
The appliance must be installed by a qualified professional in accordance with the instructions provided.
! Any necessary adjustment or maintenance must be performed after the cooker has been disconnected from the electricity supply.

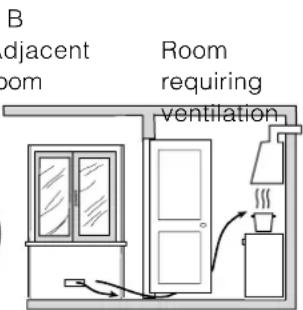

Room ventilation

The appliance may only be installed in permanently ventilated rooms, in accordance with current national legislation and any subsequent amendments in force. The room in which the appliance is installed must be ventilated adequately in order to provide as much air as is needed by the normal gas combustion process (the flow of air must not be lower than 2m^3 /h per kW of installed power).

The air inlets, protected by grilles, should have a duct with an inner cross section of at least 100~cm^2 and should be positioned so that they are not liable to even partial obstruction (see figure A).

These inlets should be enlarged by 100% with a minimum of 200~cm^2 - whenever the surface of the hob is not equipped with a flame failure safety device. When the flow of air is provided in an indirect manner from adjacent rooms (see figure B), provided that these are not communal parts of a building, areas with increased fire hazards or bedrooms, the inlets should be fitted with a ventilation duct leading outside as described above.

A
Ventilation opening for.
comburent air

Increase in the gap between the door and the flooring

! After prolonged use of the appliance, it is advisable to open a window or increase the speed of any fans used.

Disposing of combustion fumes

The efficient disposal of combustion fumes should be guaranteed using a hood which is connected to a safe and efficient natural suction chimney, or using an electric fan which begins to operate automatically every time the appliance is switched on (see figure).

Fumes channelled straight outside

Fumes channelled through a chimney or a branched flue system (reserved for cooking appliances)

The liquefied petroleum gases are heavier than air and collect by the floor, therefore all rooms containing LPG cylinders must have openings leading outside so that any leaked gas can escape easily.

LPG cylinders, therefore, whether partially or completely full, must not be installed or stored in rooms or storage areas which are below ground level (cellars, etc.). Only the cylinder being used should be stored in the room; this should also be kept well away from sources of heat (ovens, chimneys, stoves) which may cause the temperature of the cylinder to rise above 50^ .

Positioning and levelling

The appliance may be installed alongside any cupboards whose height does not exceed that of the hob surface.
! Make sure that the wall which is in contact with the back of the appliance is made from a nonflammable, heat-resistant material (T 90^

To install the appliance correctly:

• Place it in the kitchen, the dining room or the studio flat (not in the bathroom).
• If the top of the hob is higher than the cupboards, the appliance must be installed at least 600mm away from them.

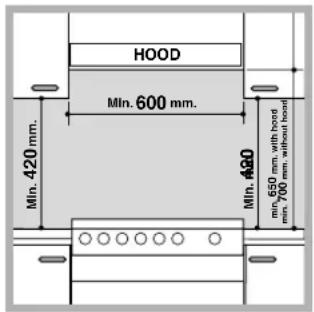

• If the cooker is installed underneath a wall cabinet, there must be a minimum distance of 420 mm between this cabinet and the top of the hob.

This distance should be increased to 700 mm if the wall cabinets are flammable (see figure).

• Do not position blinds behind the cooker or less than 200 mm away from its sides.
• Any hoods must be

installed in accordance with the instructions listed in the relevant operating manual.

Levelling

If it is necessary to level the appliance, screw the adjustable feet into the places provided on each corner of the base of the cooker (see figure).

Electrical connection

Install a standardised plug corresponding to the load indicated on the appliance data plate (see Technical data table).

The appliance must be directly connected to the mains using an omnipolar switch with a minimum contact opening of 3mm installed between the appliance and the mains. The switch must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the switch). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50^ at any point.

Before connecting the appliance to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated by the data plate.
  The voltage is in the range between the values indicated on the data plate.

• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

• Only available in certain models

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only.
! The manufacturer declines any liability should these safety measures not be observed.

Gas connection

Connection to the gas network or to the gas cylinder may be carried out using a flexible rubber or steel hose, in accordance with current national legislation and after making sure that the appliance is suited to the type of gas with which it will be supplied (see the rating sticker on the cover: if this is not the case see below). When using liquid gas from a cylinder, install a pressure regulator which complies with current national regulations. To make connection easier, the gas supply may be turned sideways*: reverse the position of the hose holder with that of the cap and replace the gasket supplied with the appliance.

! Make sure that the gas supply pressure is consistent with the values indicated in the Table of burner and nozzle specifications (see below). This will ensure the safe operation and durability of your appliance while maintaining efficient energy consumption.

Gas connection using a flexible rubber hose

Make sure that the hose complies with ccurrent national legislation. The internal diameter of the hose must measure: 8mm for a liquid gas supply; 13mm for a methane gas supply.

Once the connection has been performed, make sure that the hose:

• Does not come into contact with any parts which reach temperatures of over 50^ .
• Is not subject to any pulling or twisting forces and that it is not kinked or bent.
• Does not come into contact with blades, sharp corners or moving parts and that it is not compressed.
• Is easy to inspect along its whole length so that its condition may be checked.
  Is shorter than 1500mm
• Fits firmly into place at both ends, where it will be fixed using clamps which comply with current national legislation.

If one or more of these conditions is not fulfilled or if the cooker must be installed according to the conditions listed for class 2 - subclass 1 appliances (installed between two cupboards), the flexible steel

hose must be used instead (see below).

Connecting a flexible jointless stainless steel pipe to a threaded attachment

Make sure that the hose and gaskets comply with current national legislation.

To begin using the hose, remove the hose holder on the appliance (the gas supply inlet on the appliance is a cylindrical threaded 1/2 gas male attachment).

! Perform the connection in such a way that the hose length does not exceed a maximum of 2 metres, making sure that the hose is not compressed and does not come into contact with moving parts.

Checking the tightness of the connection

When the installation process is complete, check the hose fittings for leaks using a soapy solution. Never use a flame.

Adapting to different types of gas

It is possible to adapt the appliance to a type of gas other than the default type (this is indicated on the rating label on the cover).

Adapting the hob

Replacing the nozzles for the hob burners:

1. Remove the hob grids and slide the burners off their seats.
2. Unscrew the nozzles using a 7 mm socket spanner (see figure), and replace them with

nozzles suited to the new type of gas (see Burner and nozzle specifications table).
3. Replace all the components by following the above instructions in reverse.

Adjusting the hob burners' minimum setting:

1. Turn the tap to the minimum position.
2. Remove the knob and adjust the regulatory screw, which is positioned inside or next to the tap pin, until the flame is small but steady.

If the appliance is connected to natural gas, the adjustment screw must be loosened in an anticlockwise direction.

1. While the burner is alight, quickly change the position of the knob from minimum to maximum and vice versa several times, checking that the flame is not extinguished.

! The hob burners do not require primary air adjustment.

Adapting the oven

Replacing the oven burner nozzle:

1. Open the oven door fully.

1. Remove the sliding oven base (see figure).

1. Loosen the burner fixing screws and take out the oven burner after removing the screw V.

1. Unscrew the nozzle using a special nozzle socket spanner (see figure) or with a 7mm socket spanner, and replace it with a new nozzle that is suited to the new type of gas (see Burner and nozzle specifications table).

Adjusting the gas oven burner's minimum setting:

1. Light the burner (see Start-up and Use).
2. Turn the knob to the minimum position (MIN) after it has been in the maximum position (MAX) for approximately 10 minutes.
3. Remove the knob.
4. Tighten or loosen the adjustment screws on the outside of the thermostat pin (see figure) until the flame is small but steady.

! If the appliance is connected to natural gas, the adjustment screw must be loosened in an anticlockwise direction.

1. Turn the knob from the MAX position to the MIN position quickly or open and shut the oven door, making sure that the burner is not extinguished.

! Be careful of the spark plug wires and the thermocouple tubes.

! The oven burner does not require primary air adjustment.

! After adjusting the appliance so it may be used with a different type of gas, replace the old rating label with a new one which corresponds to the new type of gas (these labels are available from Authorised Technical Assistance Centres).

Should the gas pressure used be different (or vary slightly) from the recommended pressure, a suitable pressure regulator must be fitted to the inlet hose in accordance with current national regulations relating to "regulators for channelled gas".

TECHNICAL DATA

Oven dimensions 31x43,5x43,5 cm (HxWxD)

Volume It. 58

Power supply voltage and see data plate frequency

may be adapted for use with any type of gas shown on the data plate

This appliance conforms to the following European Economic

Community directives:

• 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments

• 2004/108/EEC dated 15/12/04

(Electromagnetic Compatibility) and subsequent amendments

-93/68/EEC dated 22/07/93 and subsequent amendments.

• 2009/142/EEC dated 30/11/09 (Gas)

and subsequent amendments.

• 2002/96/EC and subsequent amendments.

Table of burner and nozzle specifications

GB

Table 1 Liquid gas Natural gas
BURNER	Diameter (mm)	Heating power kW (H.s.* )		By-pass 1/100 (mm)	Nozzle 1/100 (mm)	Flow * g/h	Nozzle 1/100 (mm)	Flow * I/h
.C Rapid	0100	3.00	0.7	40 86	218 21	16 286
.B Semi-rapid	575	1.65	0.4	30 64	120	118 96	157
.A Auxiliary	55	1.00	0.4	30	50	73	71	95
D. Triple Ring	130	3.25	1.3	57	91	236	232	124
Gas oven		2.60	0.7	49	78	189	186	113
Supply pressure	Nominal (mbar)					28-30	37
	Minimal (mbar)					20	25
	Maximised (mbar)					35	45

• At 15°C and 1013 mbar - dry gas
  Propane P.C.S. = 50.37 MJ/kg
  * Butane P.C.S. = 49.47 MJ/kg
  Natural P.C.S. = 37.78 MJ/m

Description of the appliance

GB

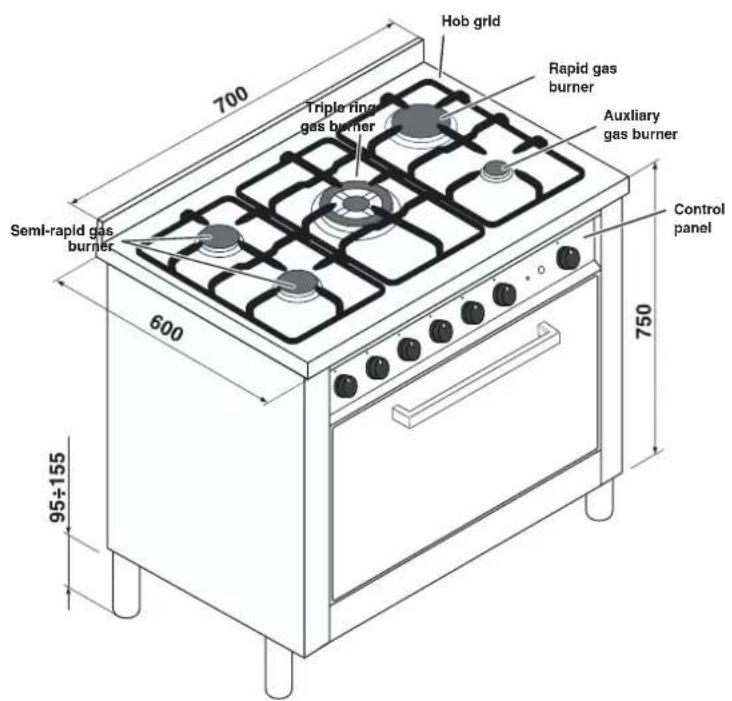

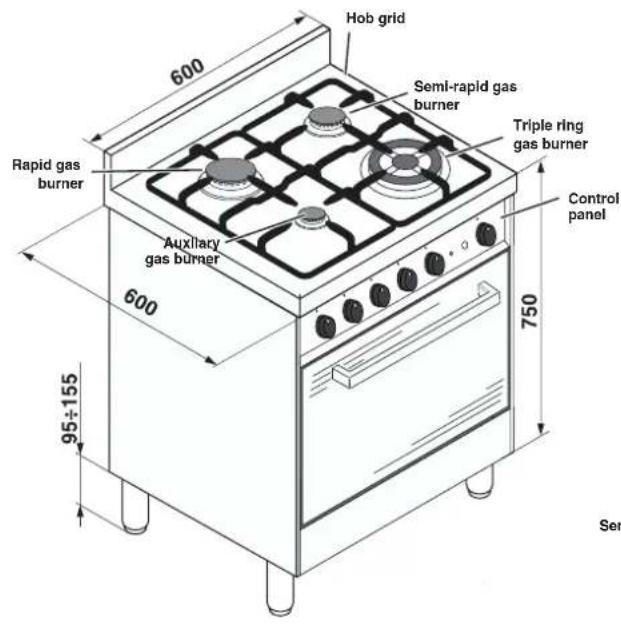

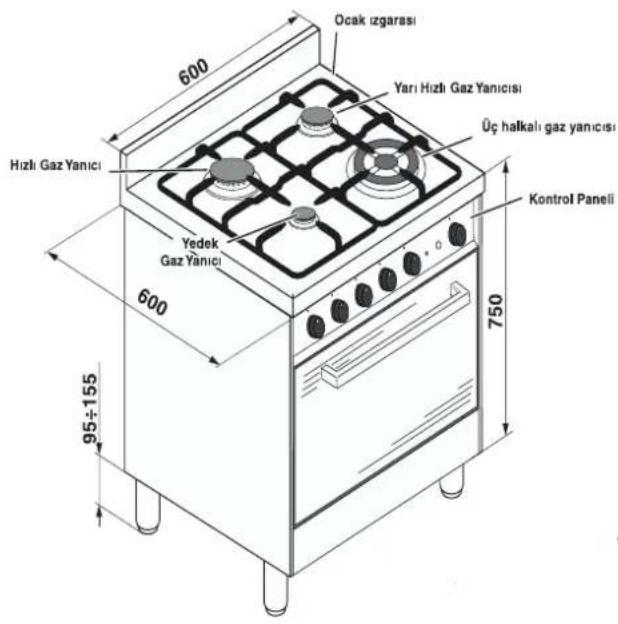

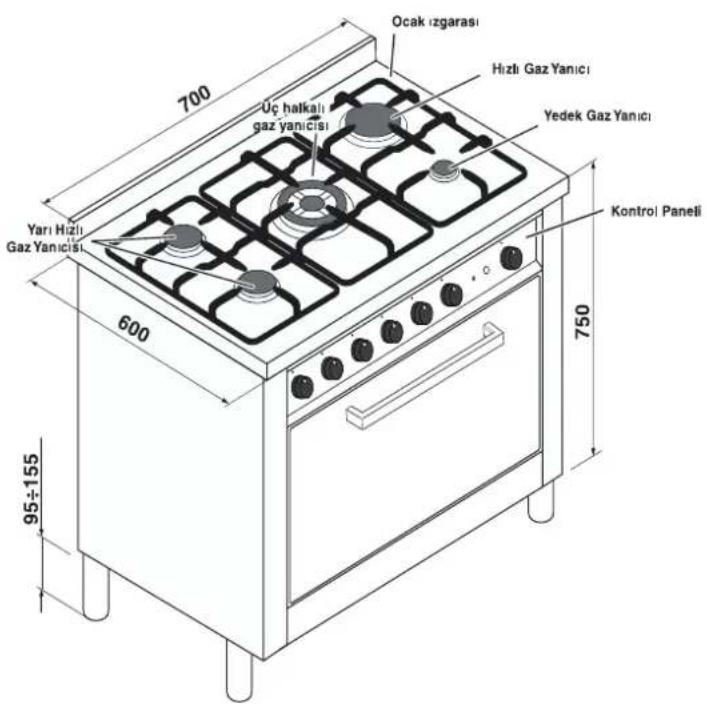

Overall view

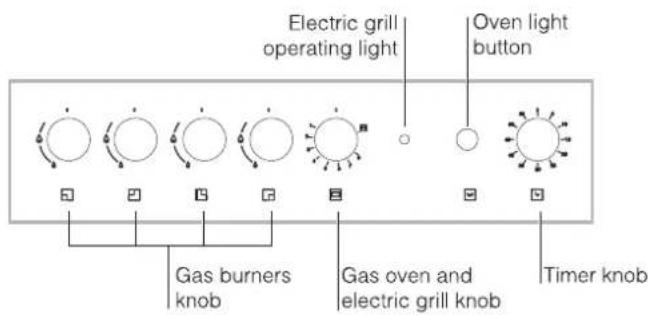

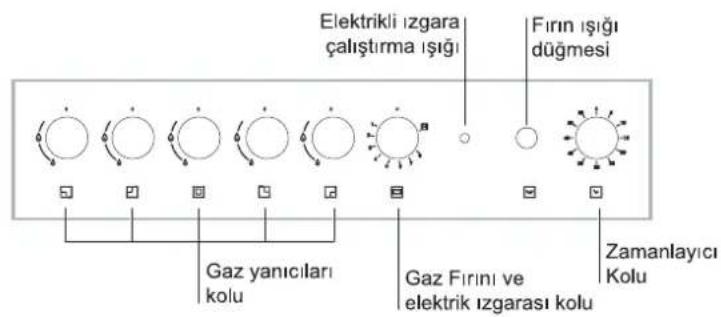

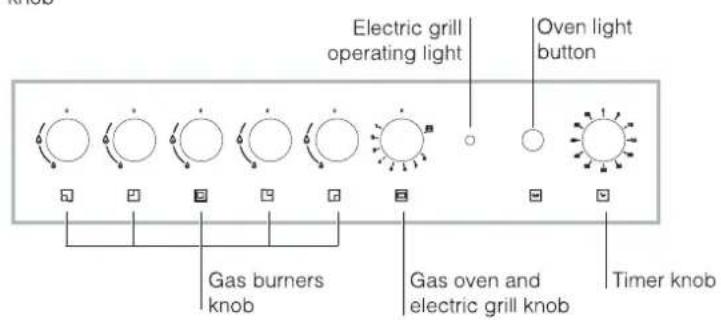

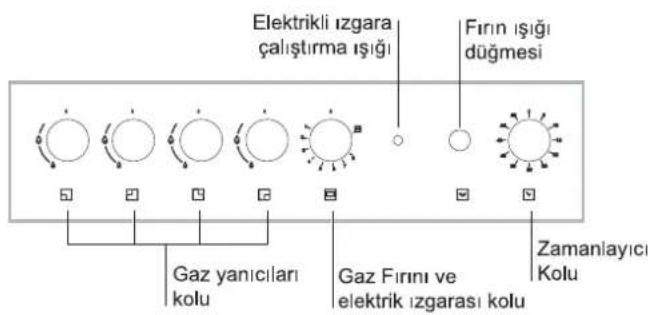

Control panel

Using the hob

Lighting the burners

For each BURNER knob there is a complete ring showing the strength of the flame for the relevant burner.

To light one of the burners on the hob:
1. Bring a flame or gas lighter close to the burner.
2. Press the BURNER knob and turn it in an anticlockwise direction so that it is pointing to the

maximum flame setting
3. Adjust the intensity of the flame to the desired level by turning the BURNER knob in an anticlockwise direction. This may be the minimum

setting 品 the maximum setting or any position in between the two.

The appliance is fitted with an electronic lighting device which is integrated into the knob. Simply light the desired burner by turning the corresponding knob in an anti-clockwise direction, until it is aligned with the large flame symbol, press

it all the way in to activate the electronic ignition and hold it in that position until the burner is lit. The burner might be extinguished when the knob is released. If this occurs, repeat the process, holding the knob down for a longer period of time.

If the flame is accidentally extinguished, switch off the burner and wait for at least 1 minute before attempting to relight it.

The appliance is equipped with a flame failure safety device; press and hold the BURNER knob for approximately 2-3 seconds to keep the flame alight and to activate the device.

To switch the burner off, turn the knob until it reaches the stop position .

Practical advice on using the burners

For the burners to work in the most efficient way possible and in order to save on the amount of gas consumed, it is recommended that only pans which have a lid and a flat base are used. They should also be suited to the size of the burner.

To identify the type of burner, please refer to the diagrams contained in the "Burner and nozzle specifications".

Burner	Ø Cookware Diameter (cm)
Fast (R)	24 - 26
Semi Fast (S)	16 - 20
Auxiliary (A)	10 - 14
Triple Crown (TC)	24 - 26

! Make sure the pans do not overlap the edges of the hob while it is being used.
For models equipped with a reducer grid, the latter must be used only for the auxiliary burner, when pans with a diameter of less than 12cm are used.

WARNING! The glass lid can break in if it is heated up. Turn off all the burners and the electric plates before closing the lid. Applies to the models with glass cover only.

Using the oven

The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away.
! Never put objects directly on the bottom of the oven; this will prevent the enamel coating from being damaged.

The oven knob

This is the device which is used to select the various oven functions and the most suitable cooking temperature for the foods (temperatures between 150^ and 275^ are also indicated on the knob). The electronic oven ignition device is built into the control knob. To light the burner, press the knob in fully and turn it in an anticlockwise direction until it reaches position 8. Given that the oven is fitted with a safety device, after the burner has been lit

the oven knob should be held in that position for approximately 6 seconds, in order to allow the gas to pass through until the safety thermocouple heats up. The electronic oven burner ignition device should not be activated for more than 15 seconds. If after 15 seconds the burner has not been ignited, release the oven knob, open the oven door and wait for at least one minute before attempting to ignite the burner again.

The cooking temperature is selected by aligning the value indication with the reference mark on the control panel; the complete range of temperatures which are available for selection is displayed below. The oven will automatically reach the set temperature, which is kept constant by the corresponding monitoring device (the thermostat) controlled by the knob.

Position 1 (minimum)	Position 2	Position 3	Position 4
150° - 155°C	155°C	175°C	195°C
Position 5	Position 6	Position 7	Position 8
215°C	235°C	260°C	275°C

Switching the oven on manually

In the event of a momentary lapse in the electricity supply, the oven burner may be ignited manually:

a) Open the oven door.
b) Bring a match or lighter close to the opening, press the oven knob and turn it in an anticlockwise direction until it reaches position 8.
c) When the burner has been lit successfully, close the oven door.

! If the burner flame is accidentally extinguished, shut off the oven knob, open the oven door and wait for at least one minute before attempting to light the burner again.

The grill knob

Your oven is fitted with an electric grill. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking in the juices to keep them tender. The grill is also highly recommended for dishes that require a high surface temperature: such as beef steaks, veal, rib steak, fillets, hamburgers etc...

The grill is controlled by a thermostat which adjusts its operation.

By turning the oven knob until it reaches the

position, the rotisserie spit motor is activated as well as the infrared grill. This motor will remain active as long as the grill is operating.

The rotisserie spit

To activate the rotisserie spit, proceed as follows:

a) Place the dripping pan on the 1st rack.

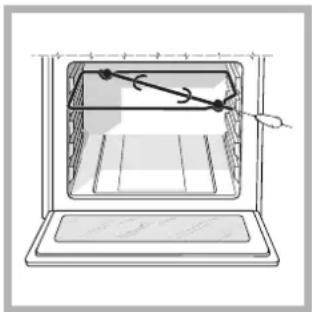

b) Position the rotisserie support on the 3rd rack and insert the spit towards the rear, threading it through the hole provided.
c) Start the rotisserie by turning the oven

knob to the

position.

The GRILL indicator light shows when the grill is operating.
! Always use the grill with the oven door shut; this achieves better cooking results and saves energy (approximately 10% ).

Oven light

The light may be switched on at any moment by pressing the OVEN LIGHT button.

Timer

To activate the Timer proceed as follows:

1. Turn the TIMER knob in a clockwise direction for almost one complete revolution to set the buzzer.
2. Turn the TIMER knob in an anticlockwise direction to set the desired length of time.

Oven cooking advice table

Food to be cooked	Wt. (Kg)	Cooking position of shelves from bottom	Temperature (°C)	Pre-heating time (min.)	Cooking time (min.)
Pasta
Lasagne	2,5	3	210	-	75-80
Cannelloni	2,5	3	210	-	75-80
Pasta bakes	2,5	3	210	-	75-80
Meat
Veal	1,7	3	230	-	85-90
Chicken	1,5	3	220	-	110-115
Turkey	3,0	3	MAX	-	95-100
Duck	1,8	3	230	-	120-125
Rabbit	2	3	230	-	105-110
Pork	2,1	3	230	-	100-110
Lamb	1,8	3	230	-	90-95
Fish
Mackerel	1,1	3	210-230	-	55-60
Dentex	1,5	3	210-230	-	60-65
Trout baked in paper	1,0	3	210-230	-	40-45
Pizza and Cake
Neapolitan	1,0	3	MAX	15	30-35
Biscuits	0,5	3	180	15	30-35
Tarts	1,1	3	180	15	30-35
Chocolate cake	1	3	200	15	45-50
Raised Cakes	1	3	200	15	50-55
Grill cooking
Toasted sandwiches	n°4	4			10
Pork chops	1,5	4			30
Mackerel	1,1	4			35

NB: cooking times are approximate and may vary according to personal taste.
When cooking using the grill, the dripping pan must always be placed on the 1st oven rack from the bottom

GB

GB

This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
- The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
- Do not touch the appliance with bare feet or with wet or damp hands and feet.
- The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.
- The instruction booklet accompanies a class 1 (insulated) or class 2 - subclass 1 (recessed between 2 cupboards) appliance.
- When the appliance is in use, the heating elements and some parts of the oven door become extremely hot. Make sure you don't touch them and keep children well away.
- Make sure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
- The openings used for the ventilation and dispersion of heat must never be covered.
Always use oven gloves when placing cookware in the oven or when removing it.
- Do not use flammable liquids (alcohol, petrol, etc...) near the appliance while it is in use.
- Do not place flammable material in the lower storage compartment or in the oven itself. If the appliance is switched on accidentally, the materials could catch fire.
Always make sure the knobs are in the position and that the gas tap is closed when the appliance is not in use.
- When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.
- Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.

• If the appliance breaks down, under no circumstances should you attempt to perform the repairs yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact Assistance.
• Do not rest heavy objects on the open oven door.
• If the cooker is placed on a pedestal, take all necessary precautions to ensure that the appliance does not slide off this pedestal.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.
• Do not let children play with the appliance.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection.

Exhausted appliances may be collected by the public waste collection service, taken to suitable collection areas in the area or, if permitted by current national legislation, they may be returned to the dealers as part of an exchange deal for a new equivalent product.

All major manufacturers of household appliances participate in the creation and organisation of systems for the collection and disposal of old and disused appliances.

Respecting and conserving the environment

• Always keep the oven door closed when using the GRILL mode: this will achieve improved results while saving energy (approximately 10% ).
• Check the door seals regularly and wipe them clean to ensure they are free of debris so that they adhere properly to the door, thus avoiding heat dispersion.

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Never use steam cleaners or pressure cleaners on the appliance.
- The stainless steel or enamel-coated external parts and the rubber seals may be cleaned using a sponge which has been soaked in lukewarm water and neutral soap. Use specialised products for the removal of stubborn stains. After cleaning, rinse well and dry thoroughly. Do not use abrasive powders or corrosive substances.
- The hob grids, burner caps, flame spreader rings and burners may be removed to make cleaning easier; wash them in hot water and non-abrasive detergent, making sure all burnt-on residue is removed before drying them thoroughly.
- Clean the terminal part of the flame failure safety devices* frequently.
- The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products.
- Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack.
- The accessories can be washed like everyday crockery, and are even dishwasher safe.

! Do not close the cover when the burners are alight or when they are still hot.

Inspecting the oven seals

Check the door seals around the oven regularly. If the seals are damaged, please contact your nearest Authorised After-sales Service Centre. We recommend that the oven is not used until the seals have been replaced.

Gas tap maintenance

Over time, the tap may become jammed or difficult to turn. If this occurs, the tap must be replaced.

! This procedure must be performed by aThis procedure must qualified technololan who has been authorised byqualified tool the manufacturer.the manufacturer.

Replacing the oven light bulb

1. After disconnecting the oven from the electricity mains, remove the glass lid covering the lamp socket (see figure).
2. Unscrew the light bulb and replace it with a similar one: voltage 230 V, wattage 25 W,

cap E 14.

1. Replace the lid and reconnect the oven to the electricity supply.

Assistance

! Never use the services of an unauthorised technician.

Please have the following information to hand:

• The type of problem encountered.
  The appliance model (Mod.).
  The serial number (S/N).

The latter two pieces of information can be found on the data plate located on the appliance.

FR

IT

GB

Italiano, 1 English, 14

Français, 26

ESPT

Genel BakisGenel Bakis

Kontrol PaneliKontrol Paneli
