USER MANUAL Viva Collection HR1398 PHILIPS

Register your product and get support at

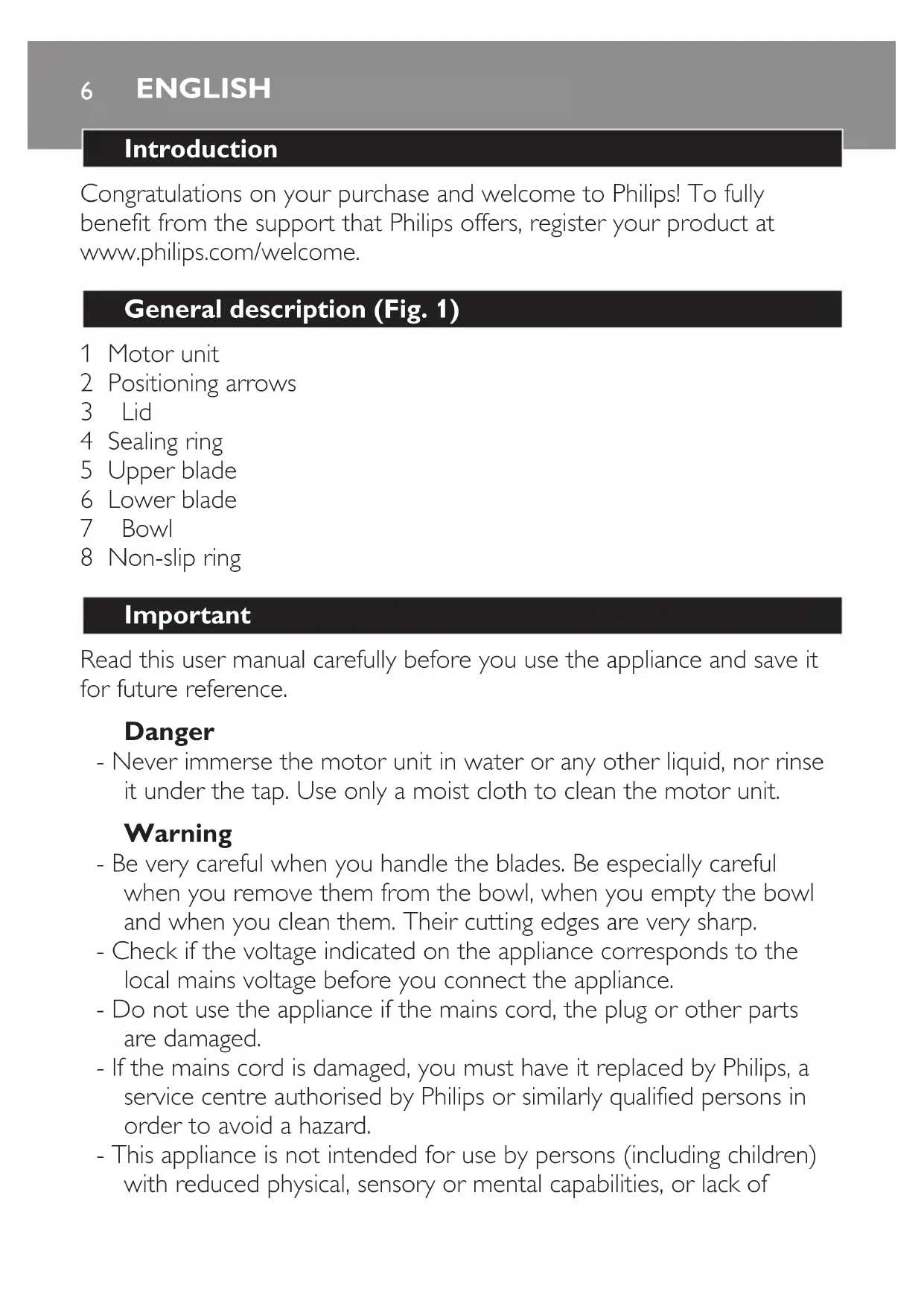

Congratulations on your purchase and welcome to Philips! To fully

benefit from the support that Philips offers, register your product at

www.philips.com/welcome.

Read this user manual carefully before you use the appliance and save it

for future reference.

- Never immerse the motor unit in water or any other liquid, nor rinse

it under the tap. Use only a moist cloth to clean the motor unit.

- Be very careful when you handle the blades. Be especially careful

when you remove them from the bowl, when you empty the bowl

and when you clean them. Their cutting edges are very sharp.

- Check if the voltage indicated on the appliance corresponds to the

local mains voltage before you connect the appliance.

- Do not use the appliance if the mains cord, the plug or other parts

- If the mains cord is damaged, you must have it replaced by Philips, a

service centre authorised by Philips or similarly qualified persons in

order to avoid a hazard.

- This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

ENGLISHexperience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person

responsible for their safety.

- Children should be supervised to ensure that they do not play with

- Do not allow children to use the chopper without supervision.

- Do not exceed the quantities and processing times indicated in the

- Cut large ingredients into pieces of approximately 2cm before you

- Never fill the bowl with ingredients that are hotter than 80°C/175°F.

- If the ingredients stick to the wall of the bowl, remove the motor unit,

open the lid and loosen them with a spatula or add some liquid.

- Never use any accessories or parts from other manufacturers or that

Philips does not specifically recommend. If you use such accessories

or parts, your guarantee becomes invalid.

- This appliance is intended for household use only.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding

electromagnetic fields (EMF). If handled properly and according to the

instructions in this user manual, the appliance is safe to use based on

scientific evidence available today.

- Thoroughly clean the parts that come into contact with food before

you use the appliance for the first time (see chapter ‘Cleaning’).

1 Place the upper blade onto the lower blade (1) and turn it

anticlockwise until it locks into place (2) (Fig. 2).

2 Place the assembled blade unit onto the pin in the centre of the

ENGLISH 73 Put the ingredients in the bowl (Fig. 4).

See the table below for the recommended quantities and processing

You will achieve the best results if you stick to the quantities and

processing times in the table.

Maximum quantities and processing times

Chopping dry ingredients

Ingredients Max. quantity Time

Onions, diced 100g 3-4 pulses

Parsley 60g 10 pulses

Lean beef (high quality),

Nuts/almonds 300g 30 sec.

Blending wet ingredients

Ingredients Max. quantity Time

Tomatoes, cut into 4

Milk shake 800ml 30 sec.

Baby food 600g + liquid 45 sec.

Pesto 300g 30-60 sec.

Smoothie 500g 30 sec.

Hot vegetable soup 1000ml 40 sec.

4 Put the lid on the bowl (Fig. 5).

5 Plug in the motor unit and place it on the lid (Fig. 6).

Make sure that the positioning arrows on the lid and on the motor unit

are directly opposite each other.

ENGLISH86 Push down the motor unit to start the chopping process.

The appliance works as long as you keep the motor unit pushed down.

- When you chop soft ingredients (e.g. onions, parsley or lean beef), we

advise you to press the motor unit briefly several times in a row

(‘pulsing’). For 1 pulse, press down the motor unit for one second and

then release it for 1 second.

7 When the chopping process is finished, wait until the blades stop

8 Remove the motor unit, the lid and the blade unit before you

Never use scouring pads, abrasive cleaning agents or aggressive liquids

such as alcohol, petrol or acetone to clean the appliance.

Never immerse the motor unit in water and never clean it in the

1 Unplug the appliance and disassemble it.

For extra thorough cleaning, you can also remove the sealing ring and

2 To remove the upper blade from the lower blade, turn it clockwise

and pull it upwards.

3 Clean the bowl, the lid, the blades, the sealing ring and the non-slip

ring in the dishwasher or in warm water with some washing-up

4 Clean the motor unit with a moist cloth.

- Do not throw away the appliance with the normal household waste

at the end of its life, but hand it in at an official collection point for

recycling. By doing this you help to preserve the environment (Fig. 7).

ENGLISH 9Guarantee and service

If you need service or information or if you have a problem, please visit

the Philips website at www.philips.com/support or contact the Philips

Consumer Care Centre in your country. You find its phone number in the

worldwide guarantee leaflet. If there is no Consumer Care Centre in your

country, go to your local Philips dealer.

Frequently asked questions

This chapter lists the questions most frequently asked about the

appliance. If you cannot find the answer to your question, contact the

Consumer Care Centre in your country.

Can I clean all parts in

Yes, except the motor unit.

liquids in the bowl?

No, let hot liquids cool down to 80°C/175°F.

It is very common for the appliance to give off

an unpleasant smell or emit some smoke the

first few times it is used. This phenomenon will

stop after you have used the appliance a

number of times. The appliance may also give

off an unpleasant smell or emit some smoke if

it has been used too long. In this case you have

to stop operating the appliance and let it cool

down for 60 minutes.

unit is blocked. What

Remove the motor unit and the lid from the

appliance. Use a spatula to dislodge the

ingredients that block the blade unit. You may

also need to process a smaller quantity.

ENGLISH10Question Answer

not work when I push

Check if the motor unit is placed correctly on

the lid. The positioning arrows on the lid and

the motor unit should be directly opposite

Yes, you can use the appliance with the lower

blade only to process small amounts up to

- sugar or vanilla sugar to taste

1 Put all ingredients in the bowl and blend approx. 30 seconds until

the mixture is smooth and creamy.

Kiwi-strawberry smoothie

- 100g frozen banana

- 100g frozen strawberries

- 150ml pineapple juice

1 Cut the banana into 2cm-slices and put them in the freezer for 1

day together with the strawberries. The banana and the

strawberries should be used right from the freezer.

2 Peel the kiwis and cut them into pieces.

3 Put all ingredients in the bowl and blend approx. 30 seconds until

the mixture is smooth.

1 Cut the cheese into small pieces (1cm) and peel the garlic.

2 Wash the leaves of the basil and shake them dry.

3 Put all ingredients in the bowl and blend until you have a

You can store the pesto in the fridge for approx. 1 week.

- 500g vegetables (carrots, courgette, onions, potatoes)

- herbs to taste (parsley, thyme, lovage)

1 Wash the courgette and peel the carrots, onions, potatoes and

2 Cut all vegetables into pieces and cook them with the stock cube,

water and herbs for approx. 15 minutes.

Let the cooked vegetables cool down a bit.

3 Add the cream and blend approx. 40 seconds until it is smooth.

Milkshake 800 ml 30 sec.
