Brand	Konig
Model	HAVTR700BL
Product type	Analog radio
Mains power supply	AC 230V ~ 50 Hz
Battery power supply	DC 9V (6 C/UM-2 1.5V batteries, not included)
Power consumption	2 Watts
Weight (without batteries)	Approximately 1.8 kg
Frequency bands	FM, MW, LW
FM	87.5 – 108 MHz
MW	525 – 1615 kHz
LW	148.5 – 283.5 kHz
FM antenna	Telescopic (retractable)
MW/LW antenna	Built-in ferrite (rotate the device)
Speaker	Built-in
Volume control	Rotary with on/off function
Tone control	Rotary (bass left, treble right)
Carrying handle	Built-in on top
Recommended battery type	Alkaline C/UM-2 for optimal performance
Cleaning	Soft damp cloth (no solvents)
Safety	Complete safety instructions included
Warranty	Warranty void if modified or misused

Frequently Asked Questions - HAVTR700BL KONIG

How to turn on the Konig HAVTR700BL radio?

To turn on the radio, rotate the Volume knob clockwise until it stops. To turn off, rotate it counterclockwise.

How to change the frequency band (FM/MW/LW)?

Use the FM/MW/LW selector located on top of the device to choose the desired band. The frequency is displayed on the dial.

How to improve radio reception?

For FM band, fully extend the telescopic antenna and orient it. For MW/LW, a ferrite antenna is built-in: simply change the device's position if reception is poor.

What to do if the sound is low or distorted?

First check the volume setting. If the problem persists, the batteries may be exhausted: replace the 6 C/UM-2 batteries observing polarity. In mains mode, make sure the cord is properly plugged.

How to clean the Konig HAVTR700BL radio?

Always unplug the device before cleaning. Use a soft, slightly damp cloth (no abrasive detergents or solvents such as alcohol or ammonia).

Can I use rechargeable batteries?

The manual recommends using alkaline batteries for longer life. Rechargeable NiMH batteries can be used if they are the same size (C/UM-2), but their voltage is slightly lower, which may reduce performance.

How to adjust the tone?

Rotate the Tone knob: to the left to boost bass, to the right to boost treble. This allows you to adjust the sound to your preferences.

What to do if condensation forms on the device?

If you move the radio from a cold place to a warm place, condensation may form. Do not turn it on and wait about one hour for the moisture to evaporate before using it.

Where to find the complete user manual?

The manual is provided with the device. You can also download it free in PDF format from the website notice-facile.com by searching for the Konig model HAVTR700BL.

How to recycle the device at end of life?

Do not dispose of the device with household waste. Take it to a collection point for recycling of electrical and electronic equipment (WEEE). Used batteries must be placed in a designated container.

USER MANUAL HAVTR700BL KONIG

MANUAL DE USO (p. 33)

Radio de做生意 retro

HASZNÁLATI UTMUTATO (o. 39.)

Formatervezett retro rádio

KÄYTTOOHJE (s. 45)

Design retroradio

BRUKSANVISNING (s.51)

Design Retro Radio

NAVOD KPOUZITI (s. 57)

Rádio s retro designem

MANUAL DE UTILIZARE (p. 63)

Radio cu Design Retro

ERXEIPIAIO XPHH2H2 (69)

Petpo Paioqwvo

BRUGERVEJLEDNING (p. 75)

Design Retro Radio

VEILEDNING (p. 81)

Design retro-radio

ENGLISH

INSTRUCTION MANUAL SAFETY INSTRUCTIONS

A triangle with a lightning symbol draws the user's attention to "dangerous voltage" without insulation in the cabinet which may be high enough to entail a risk of electric shock.

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PART INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

A triangle with an exclamation mark draws the user's attention to important instructions for use and maintenance in the accompanying manual, which should be studied.

FURTHER INFORMATION

Beware of small pieces and batteries, do not swallow them. It may be hazardous to your health and lead into suffocation. Please, Make sure to keep small devices and batteries out of the reach of children.

Important advice regarding hearing protection Caution:

You care for your hearing, and so do we.

Therefore, use caution while using this appliance.

Our recommendation: Avoid high volumes.

Children should be supervised while using headphones; make sure that the appliance is not set to high volume

Caution!

High volumes may cause irreparable damage to children's ears.

NEVER let allow anyone, especially children, to put objects into the holes, slots or openings on this devise. The device must only be opened by a qualified assistant.

Only use the appliance for its intended purpose.

This device may only be used in housings and business premises.

Please keep this instruction manual for further reference

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal.

The materials are recyclable as mentioned in its marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.

Do not obstruct the ventilation of the device. Make sure, that no curtains, newspapers, furniture or any other type of object are blocking the ventilation system of the apparatus. The ventilation system must be clear of objects at all times! Overheating may lead into serious damage of the device and reduce its performance and lifespan.

Heat and warmth

Do not expose the appliance to direct sunlight. Make sure that the appliance is not subject to direct heat sources such as heaters or open fire. Make sure that the ventilation slots of the appliance are not covered.

Moisture and cleaning

This appliance is not waterproof! Do not immerse player in water. Do not allow player to come in contact with water. If water gets inside the player it may cause serious damage. Do not use cleaning agents that contain alcohol, ammoniac, benzene or abrasives as these could damage the player. For cleaning, use a soft, moistened cloth.

Professional recycling

Batteries and packaging should not be disposed of in the trash. Batteries must be handed over to a collection centre for used batteries. Separating disposable packaging materials is ecologically friendly.

IMPORTANT SAFETY INSTRUCTIONS

For best achievement please read carefully the operating instructions before the first start-up, in order that a problem-free operation are guaranteed for many years.

1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the unit is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference.
3. HEED WARNINGS - All warnings on the unit and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS - All operating instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be used near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
6. VENTILATION - Openings in the device serve its proper ventilation, are necessary for the operation and prevent overheating. The unit should be situated so that its location or position does not interfere with its proper ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. HEAT - The unit should be situated away from heat sources such as radiators, stoves, or other appliances (including amplifiers) that produce heat.
8. POWER SOURCE - The unit should be connected to power supply only of the type described in the operating instructions or as marked on the unit.
9. POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.
10. NON-USE - During longer periods of non-use please disconnect from mains power supply and antenna.

11. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

12. DAMAGE REQUIRING SERVICE - The unit should be serviced by qualified service personnel when:

a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the unit enclosure.
c. The unit has been exposed to rain or moisture.
d. The appliance has been dropped, or the enclosure damaged. Only use controls and adjustments as specified in the manual.
e. The unit does not appear to operate normally.
f. The device displays serious changes in its performance

1. SERVICING - The user should not attempt to service the unit beyond that described in the user operating instructions. All other servicing should be referred to qualified service personnel.
2. CLEANING - Disconnect from mains power supply before cleaning. Do not use liquid or spray cleaners, only use a damp cloth. Follow the care and maintenance instructions in this manual.
3. LIGHTNING - During lightning and longer periods of non-use please disconnect from mains power supply and antenna.
4. SAFETY CHECK - After servicing the unit ask the customer service for a safety check.
5. OVERLOAD - To avoid fire and electric shock do not overload wall outlets and convenience receptacles.
6. ELECTROSTATIC DISCHARGE - Disconnect from mains power supply and remove batteries if unit malfunctions. Reconnect after a short time.

NOTES ABOUT THIS INSTRUCTION MANUAL

1. This instruction manual is published by the manufacturer without any warranty. Corrections and changes of this instruction manual for the removal of typographic mistakes and editorial inaccuracies as well as due to (technical) improvements (changes) of the devices can be done by the manufacturer at any time without announcement. Changes of this kind are considered in future versions of this user manual. All rights reserved.
2. All figures are only for illustration and do not always show the exact representation of the product.
3. This unit is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit.

FURTHER NOTES ON THE DEVICE

Setting a safe volume level

If you continually listen to loud music, your hearing gradually adapts to it and gives you the impression that the volume is lower.
- What seems normal to you can be already for long time too loud and unhealthy.
- To protect yourself from this, set the volume to a low level.
- Increase the volume slowly.
- Damage to your hearing can be extensive and cannot be reversed.
- If you notice a hearing problem, please consult a doctor.

Condensation

• Condensation may occur when moving the device from a cold to a warm environment. If there is moisture inside the player, it may not operate properly.

Don't turn on the device and wait about one hour for the moisture to evaporate.

Saving energy

During nonuse of the unit it is advisable to turn off the player with the power switch.
If the unit is not used for a long period of time, it should be unplugged from the AC socket.

Unpacking

• Take out carefully the unit from the packing. Please keep the packing for further use.
• Carefully remove possible protection cardboards and slipcovers.

LOCATION OF CONTROLS AND FUNCTION

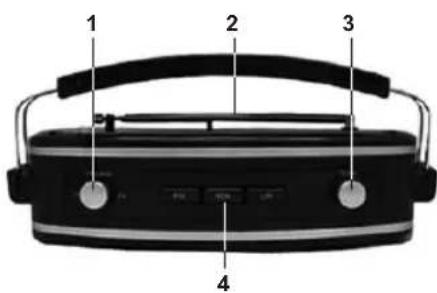

Top view

1. On / Volume / Off: On / Off switch and volume control
2. Telescopic antenna
3. Tone: Tone control
4. FM/MW/LW: Frequency band, select FM, MW or LW

Front view

1. Handle
2. Speaker
3. OPEN: Battery compartment
4. Frequency dial and tuning knob
5. AC 230V 50Hz : Socket for power cord

POWER SUPPLIES

Battery operation

1. Open the battery compartment lid by pressing the two brackets (OPEN) at the same time. Remove the lid and insert 6 batteries (C/UM-2). Please observe correct polarities when inserting the batteries.
2. Close the battery compartment by pushing in the two tabs of the lid into the corresponding recesses and flap it towards the device, until the brackets audibly snap in.

Important:

• Important: If the device is operated exclusively with AC power or during non-use of more than one month, please remove the batteries in order to avoid any damage by leaking batteries.
• Replace the batteries if the volume of the device becomes lower or the sound becomes distorted.

Battery Safety Precautions

• Follow the battery manufacturer's safety, usage and disposal instructions.
• Only use batteries of the same type and size.
• Insert the batteries observing the polarity (+/-). Failure to properly align the battery polarity can cause personal injury and/or property damage.
• Do not mix battery types (e.g. alkaline, zinc/carbon, rechargeable batteries) or exhausted and new batteries.
• To avoid fire and explosion do not recharge normal batteries. Keep batteries away from children and pets
• We recommend the use of alkaline batteries for a longer lifetime of the batteries.

Mains operation

The device is designed for mains power supply AC 230V~50Hz. Do not connect the device to any other power supply to avoid damage that is not covered by your warranty.

1. Connect the smaller plug to the AC socket at the rear of the device. Make sure that the plug is completely inserted.
2. Insert the mains plug to a wall outlet.

GENERAL OPERATING INSTRUCTIONS

On/Off

Switch on the device by turning the volume control Volume clockwise, until you overcome the point of resistance.

Switch of the device by turning the volume control Volume counter clockwise, until you overcome the point of resistance.

Volume control

Increase or decrease the volume by rotating the volume control Volume to the left or right.

RADIO OPERATION

Select with the FM, MW or LW buttons the desired frequency band.

Advice for better reception

• FM: Fully extend the telescopic antenna and turn it for better reception.
• MW and LW: The device has a built-in antenna. Change the position of the device if reception is poor.

Frequency adjustment

• Tune in the desired station by rotating the frequency scale. Rotating clockwise increases and rotating counter clockwise decreases the frequency.
• The current adjusted frequency for selected band can be read on the frequency scale.

Tone control

Adjust the tone by rotating the knob Tone. By rotating to the left the bass is intensified, rotating to the right intensifies the treble.

CLEANING AND MAINTENANCE

• Please observe also the safety advices.
• Before cleaning always pull the power plug.
• Clean the housing with a soft and moist cloth and a mild detergent.
• Never use abrasive detergents or sharp utensils.

TROUBLESHOOTING

If a fault occurs, first check the points listed below before taking the unit for repair. If you are unable to solve a problem by following these tips, consult your dealer or authorized service center.

WARNING: Never open the device. Always refer service or maintenance to authorized customer service personnel.

PROBLEM	POSSIBLE CAUSE	SOLUTION
GENERAL No sound	Power cord not connected or no batteries inserted. Volume is set too low. Adjust the volume. Batteries are exhausted. Replace the batteries inserted incorrectly. Change to	Connect the power cord correctly or insert batteries. Batteries. the correct polarity.
RADIO Poor reception	Weak signal. Adjust antenna: Interferences by other appliances (TV sets, VCRs, computers, etc.)	FM: telescopic antenna. AM/LW: adjust unit. Keep distance to other electric appliances.

TECHNICAL SPECIFICATIONS

General

Power supply AC 230V 50Hz

Battery operation DC 9V (6 batteries C/UM-2 1.5V)

(Batteries not included)

Power consumption 2 Watt

Dimensions 30 (L) x 8 (W) x 21 (H) cm

Weight approx. 1.8kg (without batteries)

Radio

Frequency band FM: 87.5-108 MHz

MW:

525-1615

LW:

148.5-283.5

Antenna FM: telescopic antenna

MW/LW: built-in ferrite antenna

Subject to changes without prior notice.

Safety precautions:

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.
