USER MANUAL Daily Collection HD7451 PHILIPS

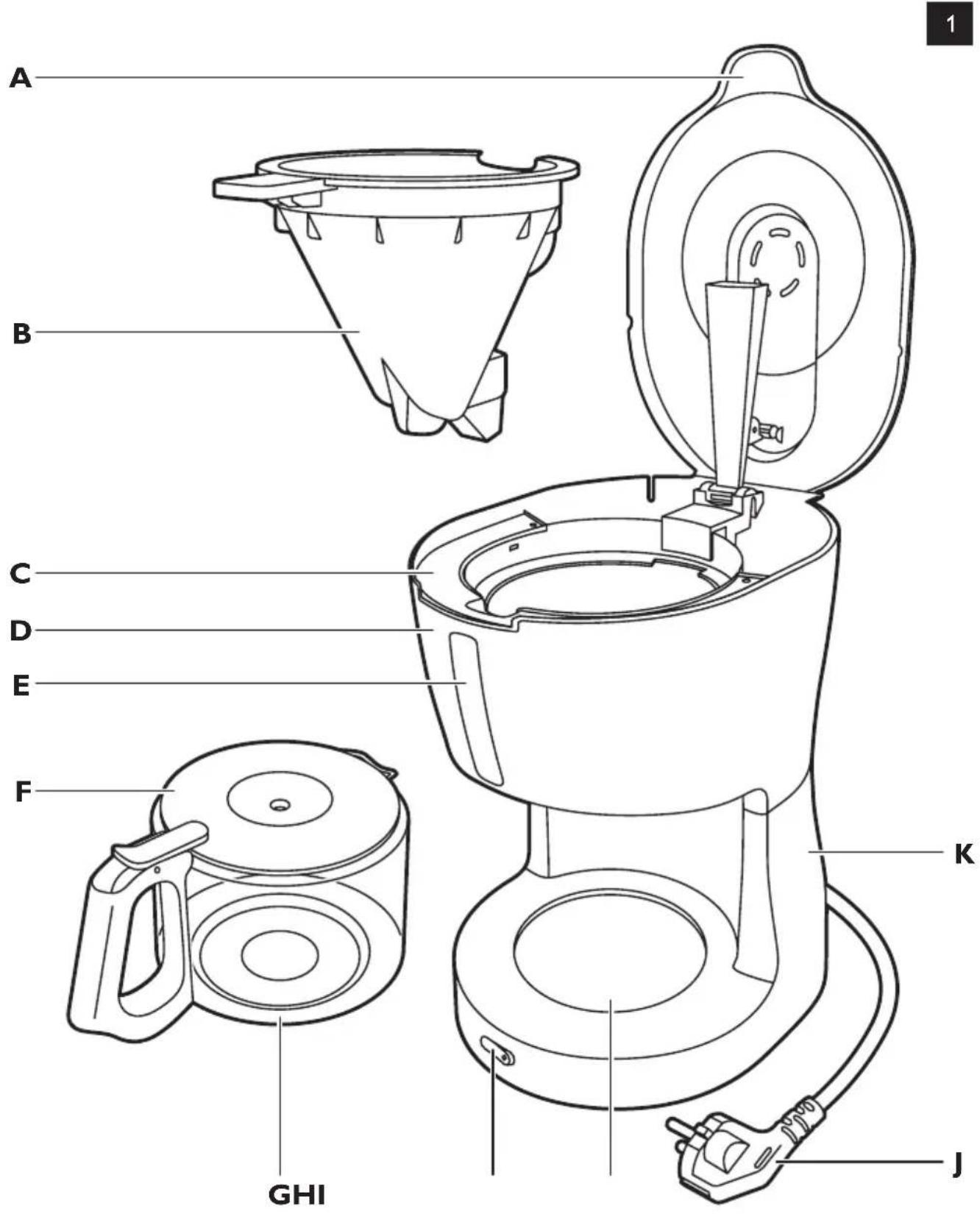

A B D C E F J K G H I

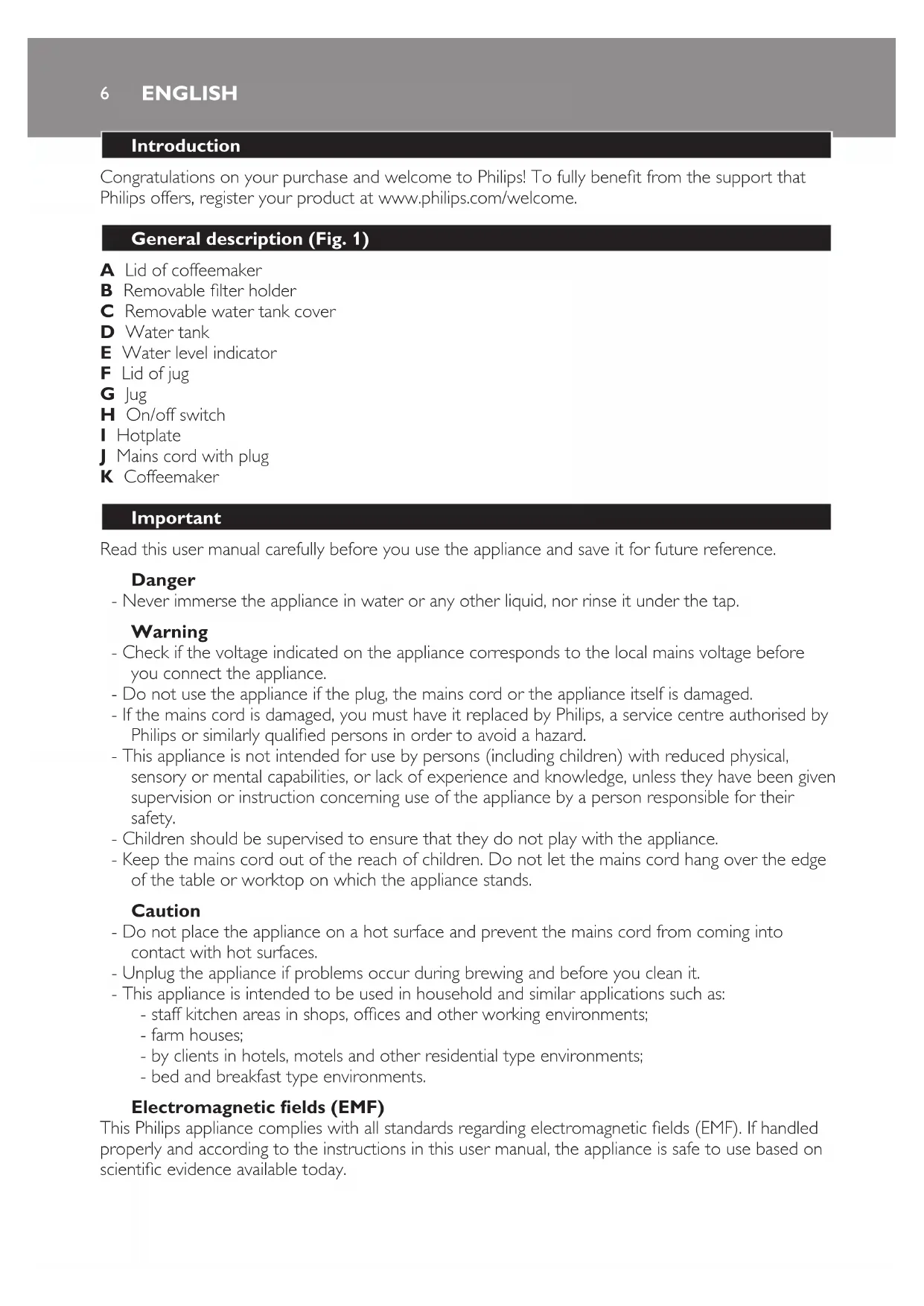

Congratulations on your purchase and welcome to Philips! To fully benet from the support that

Philips offers, register your product at www.philips.com/welcome.



 Lid of coffeemaker

 Removable lter holder

 Removable water tank cover

 Mains cord with plug

Read this user manual carefully before you use the appliance and save it for future reference.

- Never immerse the appliance in water or any other liquid, nor rinse it under the tap.

- Check if the voltage indicated on the appliance corresponds to the local mains voltage before

you connect the appliance.

- Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.

- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by

Philips or similarly qualied persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their

- Children should be supervised to ensure that they do not play with the appliance.

- Keep the mains cord out of the reach of children. Do not let the mains cord hang over the edge

of the table or worktop on which the appliance stands.

- Do not place the appliance on a hot surface and prevent the mains cord from coming into

contact with hot surfaces.

- Unplug the appliance if problems occur during brewing and before you clean it.

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, ofces and other working environments;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.



This Philips appliance complies with all standards regarding electromagnetic elds (EMF). If handled

properly and according to the instructions in this user manual, the appliance is safe to use based on

scientic evidence available today.



1 Place the appliance on a at and stable surface.

2 Push excess cord into the opening in the back of the appliance. To x the cord, push it into

the narrow part of the opening (Fig. 2).

Note: Make sure that the cord does not come into contact with hot surfaces.

3 Put the mains plug in an earthed wall socket.

4 Clean the detachable parts (see chapter ‘Cleaning’).

5 Reassemble all parts.

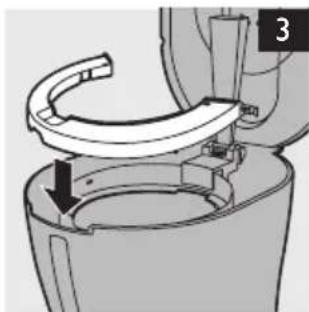

- Make sure the water tank cover is placed correctly (Fig. 3).

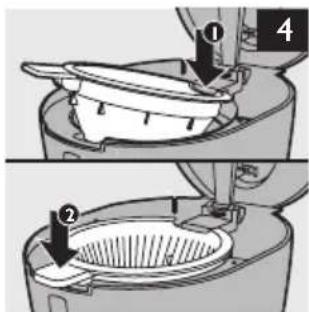

- Make sure the lter holder is placed correctly. First place the back of the lter holder under the

rim of the hinge (1) and then push down the handgrip (2) until the lter holder locks into

6 Flush the appliance (see section ‘Flushing the appliance’ below).



Note: Do not put a lter and ground coffee in the lter holder.

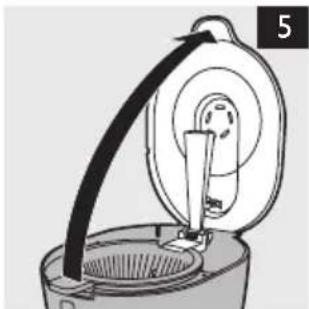

1 Open the lid of the coffeemaker (Fig. 5).

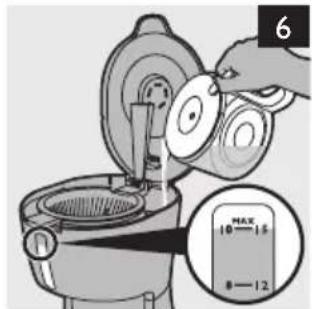

2 Fill the water tank with fresh cold water up to the MAX indication (Fig. 6).

Note: Do not switch on the appliance when the lid is still open.

3 Close the lid (Fig. 7).

4 Put the jug on the hotplate (Fig. 8).

Note: Make sure you put the jug on the hotplate with the spout facing into the appliance.

5 Press the on/off switch to switch on the appliance (Fig. 9).

, The power-on light goes on.

6 Let the appliance operate until all the water has run into the jug.

7 Switch off the appliance. Let it cool down for at least 3 minutes before you start brewing

1 Open the lid of the coffeemaker (Fig. 5).

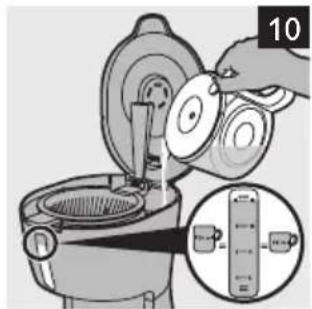

2 Fill the water tank with fresh cold water up to the required level (Fig. 10).

- The indications on the left side of the water level window correspond to large cups (120ml).

- The indications on the right side of the water level window correspond to small cups (80ml).

3 Make sure the lter holder is placed correctly. First place the back of the lter holder under

the rim of the hinge (1) and then push down the handgrip (2) until the lter holder locks into

Note: If the lter holder is not placed correctly, the drip stop cannot function properly. The drip stop

prevents coffee from dripping through the lter onto the hotplate when the jug is removed.

4 Take a paper lter (type 1x4 or no. 4) and fold the sealed edges to prevent tearing and

5 Put the paper lter in the lter holder (Fig. 12).

 7Note: Some versions come with a permanent lter. In this case you do not need to use paper lters.

6 Put ground coffee (lter-ne grind) in the lter (Fig. 13).

- For large cups: use one heaped measuring spoon of ground coffee for each cup.

- For small cups: use one level measuring spoon of ground coffee for each cup.

7 Close the lid of the coffeemaker. (Fig. 7)

8 Place the jug with the lid closed on the hotplate (Fig. 8).

Note: Make sure you put the jug on the hotplate with the spout facing into the appliance. If the spout of

the jug sticks out from under the lter holder, the coffee may cool down.

Note: If you do not place the jug properly on the hotplate, the drip stop prevents the coffee from owing

into the jug. This may cause the lter to overow.

9 Press the on/off switch to switch on the appliance (Fig. 9).

, The power-on light goes on.

10 Let the water pass through the lter into the jug.

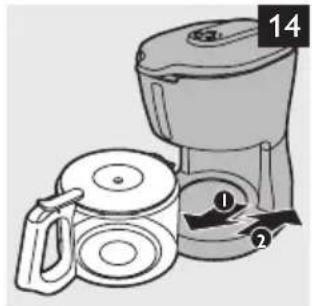

Note: If you want to remove the jug during brewing, the drip stop prevents coffee from dripping through

the lter onto the hotplate. Place back the jug as soon as possible to prevent the lter from

overowing (Fig. 14).

11 You can leave the jug on the hotplate to keep the coffee warm and to preserve its avour.

Note: Make sure you put the jug on the hotplate with the spout facing into the appliance. If the spout of

the jug sticks out from under the lter holder, the coffee may cool down.

12 After use, press the on/off switch to switch off the appliance.

Note: The appliance does not switch off automatically.

Note: If you want to brew another jug of coffee right away, let the appliance cool down for 3 minutes

13 Remove the lter holder and throw away the paper lter and its contents. If you have used

the permanent lter, empty and rinse it.

Tip: After the brewing cycle is completed, you can pour the hot coffee into a thermos jug to keep it hot

Never immerse the appliance in water or any other liquid, nor rinse it under the tap.

1 Unplug the appliance and let it cool down.

2 Clean the outside of the appliance with a moist cloth.

3 Remove the lter holder.

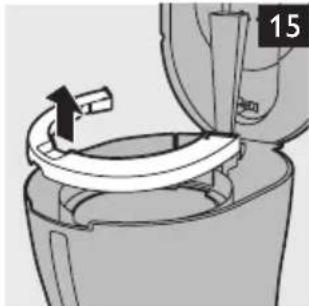

4 Remove the water tank cover (Fig. 15).

5 Remove the lid from the jug.

6 Clean the lter holder, the water tank cover, the jug and the lid of the jug in hot water with

some washing-up liquid or in the dishwasher.

7 After cleaning, rinse the jug with fresh hot water and reattach all parts.

- For instructions on how to reattach the water tank cover and lter holder, see chapter ‘Before

Regular descaling prolongs the life of the appliance and guarantees optimal brewing results and a

constant brewing time for a long time.

In case of normal use (two full jugs of coffee every day), descale the appliance:

- 2 or 3 times a year if you use soft water (up to 18dH);

- 4 or 5 times a year if you use hard water (over 18dH).

Contact your local water board for information about the water hardness in your area.

You can use white vinegar with 4% acetic acid or a liquid descaler to descale the coffeemaker.

Note: If the appliance starts to produce more steam, this can be an indication that scale is building up.

Never use vinegar with an acetic acid content of 8% or more, natural vinegar, powder descalers

or tablet descalers to descale the appliance, as this may cause damage.

Descaling takes approx. 30 to 60 minutes.

1 Fill the water tank with one litre of white vinegar (4% acetic acid) (Fig. 16).

Note: Do not put a lter and ground coffee in the lter holder.

Note: You can also use an appropriate liquid descaler. In this case, follow the instructions on the package

2 Press the on/off switch to switch on the appliance and let it complete the brewing cycle (see

chapter ‘Using the appliance’) (Fig. 9).

3 Empty the jug over a sink (Fig. 17).

Note: For extra through descaling and to make sure that there is no scale left in the appliance, repeat

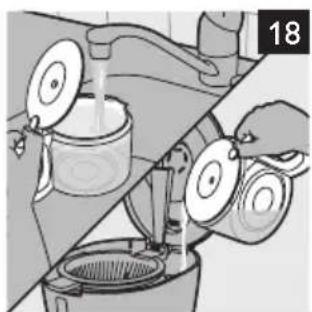

4 Let the appliance complete two more brewing cycles with fresh cold water to remove any

vinegar/descaler and scale residues (Fig. 18).

5 Clean the jug and the lter holder (see chapter ‘Cleaning’).

You can order a new jug from your local Philips dealer or a Philips service centre under type

number HD7989/20 (black) and HD7989/00 (grey).

- Do not throw away the appliance with the normal household waste at the end of its life, but

hand it in at an ofcial collection point for recycling. By doing this, you help to preserve the

environment (Fig. 19).



If you need service or information or if you have a problem, please visit the Philips website at

or contact the Philips Consumer Care Centre in your country (you nd its

phone number in the worldwide guarantee leaet). If there is no Consumer Care Centre in your

country, go to your local Philips dealer.

 9

This chapter summarises the most common problems you could encounter with the appliance. If

you are unable to solve the problem with the information below, contact the Consumer Care

Centre in your country.

Problem Possible solution

The appliance does not work. Plug in and switch on the appliance.

Make sure that the voltage indicated on the appliance

corresponds to the local mains voltage.

Fill the water tank with water.

In all other cases, contact the Philips Consumer Care Centre.

Water leaks out of the appliance. Do not ll the water tank beyond the MAX level.

In all other cases, contact the Philips Consumer Care Centre.

The appliance takes a long time

Descale the appliance (see chapter ‘Descaling’).

The appliance produces a lot of

noise and steam during the

Make sure that the appliance is not blocked by scale. If

necessary, descale the appliance (see chapter ‘Descaling’ ).

The lter overows when

I remove the jug from the

appliance while it is brewing

If you remove the jug from the hotplate while the appliance is

brewing coffee, place the jug back onto the hotplate as soon

as possible to prevent the lter from overowing. Also note

that the coffee does not reach its full taste before the end of

the brewing cycle. Therefore we advise you not to

remove the jug and pour out the coffee before the end of the

Coffee grounds end up in the jug. Make sure that the water tank cover is in place before you

put the ground coffee in the lter.

Do not put too much ground coffee in the lter.

Place the jug correctly under the lter holder.

Unclog the opening in the bottom of the lter holder.

Use the right size of paper lter (1x4 or no. 4).

Make sure the paper lter is not torn.

The coffee is too weak Use the right proportion of coffee to water.

Make sure the paper lter does not collapse.

Use the right size of paper lter (1x4 or no. 4).

Make sure there is no water in the jug before you start to

The coffee does not taste good. Do not leave the jug with coffee on the hotplate too long,

especially not if it only contains a small amount of coffee.

The coffee is not hot enough. Place the jug properly on the hotplate.
