Product type	Condenser headset microphone
Polar pattern	Cardioid
Frequency response	50 – 18 000 Hz
Sensitivity	-55 dB (± 3 dB)
Impedance	1.5 kΩ (± 30 %)
Operating voltage	1.5 – 10 V DC
Current consumption	approx. 0.5 mA
Connection	3-pin mini-XLR
Cable length	approx. 1.2 m
Dimensions (L x W x H)	250 x 120 x 150 mm
Weight	10 g
Key features	Adjustable microphone boom, adjustable cable clip, foam windscreen included
Maintenance and cleaning	Clean with a soft, damp cloth; do not use alcohol or harsh detergents
Safety	Protect from moisture; do not open the housing; ambient temperature 5–35 °C
Spare parts and repairability	No user-serviceable parts inside; repair by a qualified technician
General information	Brand: Omnitronic; Model: HS1100 XLR; indoor use

Frequently Asked Questions - HS1100 XLR Omnitronic

How to correctly position the HS1100 XLR headset microphone?

Place the headset frame on your head so that the frame and the elastic headband are horizontal at the back of the head and go over and in front of the ears. Adjust the microphone boom to position the grille about 25 mm from the corner of the mouth, avoiding direct placement in front of the mouth to prevent plosives.

What type of connector does the headset use?

The headset is equipped with a 3-pin mini-XLR connector. It connects to a bodypack transmitter compatible with this connector type.

How to clean the headset?

Use a soft, damp (lint-free) cloth. Never use alcohol, harsh detergents, or abrasive products. The foam windscreen can be washed in warm, soapy water and air dried.

What is the required operating voltage?

The headset operates with a DC voltage of 1.5 to 10 V, typically supplied by the bodypack transmitter via the XLR cable. Current consumption is about 0.5 mA.

Can I use this headset outdoors?

It is designed for indoor use. Avoid exposure to rain, moisture, and extreme temperatures (below 5 °C or above 35 °C). Protect it from condensation during temperature changes.

What to do if the microphone produces feedback?

Check the microphone positioning: the grille should be 25 mm from the corner of the mouth, not directly in front. Move the microphone away from speakers or reduce gain. Using the windscreen can also reduce breath noises.

Is the headset repairable?

The interior contains no user-serviceable parts. Any repairs must be carried out by a qualified technician. Opening the housing is not permitted and voids the warranty.

How to install the foam windscreen?

The windscreen simply slides over the microphone grille. It helps reduce breath noises and plosives. Remove it for cleaning and replace it after drying.

What are the dimensions of the headset?

The dimensions are 250 x 120 x 150 mm (L x W x H) and the weight is only 10 g, making it very lightweight and comfortable for extended use.

Can I use a standard XLR cable with this microphone?

No, the microphone uses a specific 3-pin mini-XLR connector. You must use the supplied cable or a cable suitable for this format. Check compatibility with your transmitter.

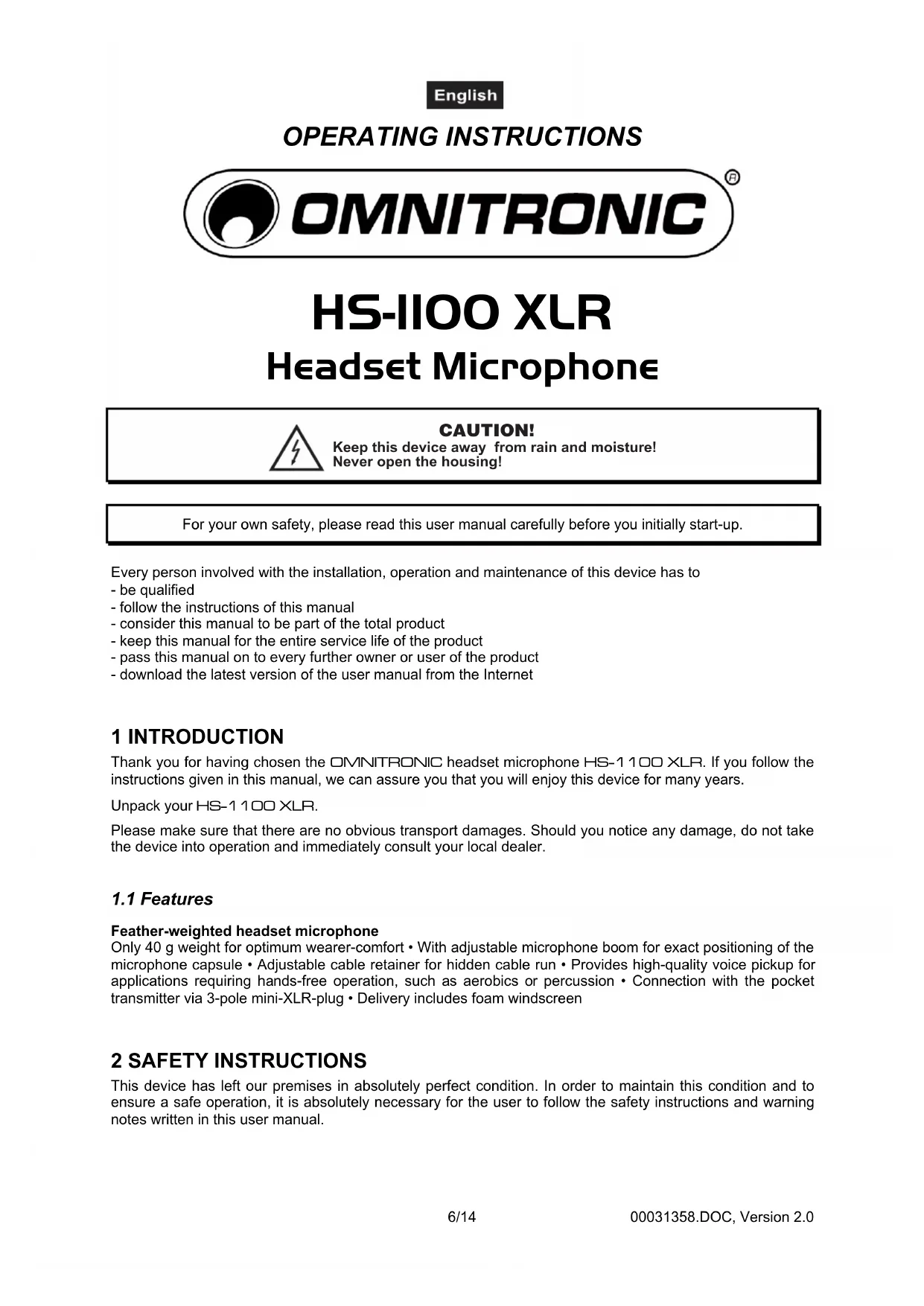

USER MANUAL HS1100 XLR Omnitronic

This user manual is valid for the article number: 13056035

You can find the latest update of this user manual in the Internet under:

CAUTION! Keep this device away from rain and moisture! Never open the housing!

For your own safety, please read this user manual carefully before you initially start-up.

Every person involved with the installation, operation and maintenance of this device has to

• be qualified
• follow the instructions of this manual
• consider this manual to be part of the total product
• keep this manual for the entire service life of the product
• pass this manual on to every further owner or user of the product
• download the latest version of the user manual from the Internet

1 INTRODUCTION

Thank you for having chosen the OMNITRONIC headset microphone HS-1 100 XLR. If you follow the instructions given in this manual, we can assure you that you will enjoy this device for many years.

Unpack your HS-1 100 XLR.

Please make sure that there are no obvious transport damages. Should you notice any damage, do not take the device into operation and immediately consult your local dealer.

1.1 Features

Feather-weighted headset microphone

Only 40g weight for optimum wearer-comfort · With adjustable microphone boom for exact positioning of the microphone capsule · Adjustable cable retainer for hidden cable run · Provides high-quality voice pickup for applications requiring hands-free operation, such as aerobics or percussion · Connection with the pocket transmitter via 3-pole mini-XLR-plug · Delivery includes foam windscreen

2 SAFETY INSTRUCTIONS

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.

Keep away from heaters and other heating sources!

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

Please note that damages caused by manual modifications on the device or unauthorized operation by unqualified persons are not subject to warranty.

3 OPERATING DETERMINATIONS

This device is a robust headset microphone for high-quality voice pickup. This product is allowed to be operated with a direct current of 1.5 - 10V via an appropriate pocket transmitter and was designed for indoor use only.

Do not operate the device in extremely hot (more than 35^ C) or extremely cold (less than 5^ C) surroundings. Keep away from direct insulation (particularly in cars) and heaters.

Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation!

Never use solvents or aggressive detergents in order to clean the device! Rather use a soft and damp cloth.

Please consider that unauthorized modifications on the device are forbidden due to safety reasons!

If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void.

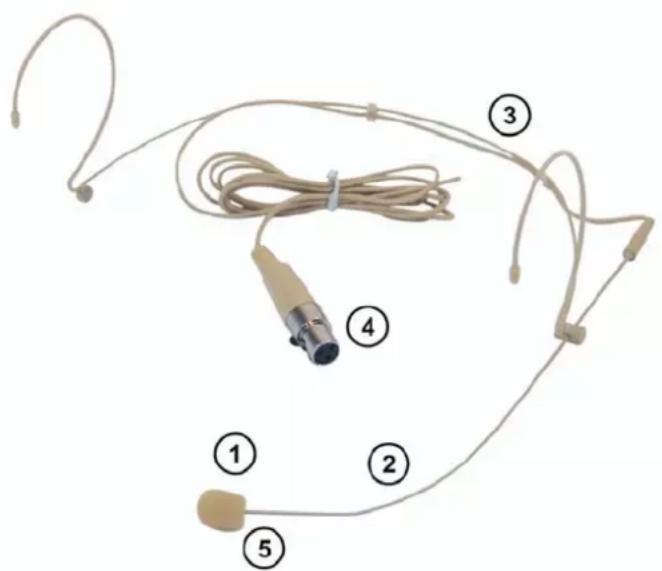

4 DESCRIPTION OF THE DEVICE

1. Microphone capsule
2. Microphone arm
3. Wireframe
4. Connection plug
5. Windshield

5 CONNECTIONS

1) Insert the microphone arm in the left or right suspension on the wireframe.
2) Place the headset wireframe around the head so that the wireframe is horizontal across the back of the head and the ends of the wireframe fit over and in front of the ears.
3) For maximum gain before feedback, position the gooseneck so that the microphone grille is within 25mm (1 inch) of the left corner of the mouth. Do NOT position it directly in front of the mouth.
4) Connect the connection cable with the pocket transmitter.
5) If breath noise or "pop noise" is audible over the sound system, install the supplied windscreen.

6 CLEANING AND MAINTENANCE

We recommend a frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents!

There are no serviceable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers.

7 TECHNICAL SPECIFICATIONS

Type: Condenser microphone
Directivity pattern: Cardioid
Frequency response: 50-18,000 Hz
Sensitivity: -55 dB (±3 dB)
Impedance:	1.5 kΩ (±30%)
Power supply: 1.5-10 V DC
Current consumption: approx. 0.5 mA
Connection: 3-pin mini XLR plug
Cable length: approx. 1.2 m
Dimensions: 250 x 120 x 150 mm
Weight: 10 g

Please note: Every information is subject to change without prior notice. 10.02.2009 ©
