USER MANUAL SCR96 LENCO

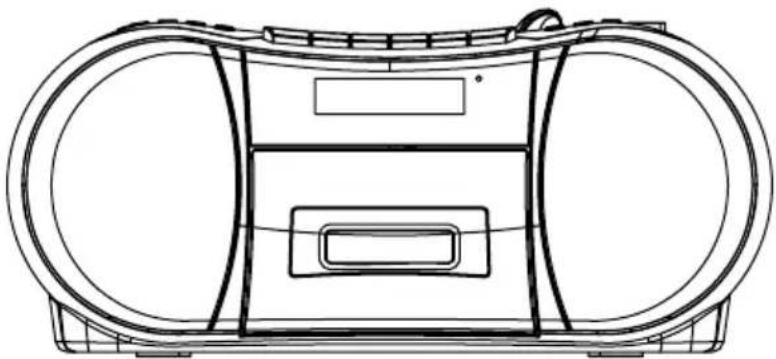

USB/MP3/CD/Cassette/Radio Portable Player

User Manual English

Lenco recommends attentive reading of the manual before operating the unit. For information and support, www.lenco.eu

WARNING

TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

LIGHTNING FLASH WITH ARROWHEAD SYMBOL -

within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

EXCLAMATION POINT - within an equilateral triangle, is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reason.

The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:

CLASS 1 LASER PRODUCT LABEL -

This label is attached to the place as illustrated to inform that the apparatus contains a laser component.

WARNING LABEL INFORMING OF RADIATION -

This label is placed inside the unit. As shown in the illustration. To warn against further measures on the unit. The equipment contains a laser radiating laser rays according to the limit of laser product of class 1.

SAFETY INSTRUCTIONS

1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference.
3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS - All operating instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be used near water, for example, near a bathtub, washbowl, .tnemesab tew a ni ro loop gnimmiw s ,butyrdnual ,knis nehctil
6. VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. HEAT - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances (including amplifiers) that produce heat.
8. POWER SOURCE - The appliance should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
9. POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.
10. POWER LINES - An outdoor antenna should be located away from power lines.
11. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
12. ESD WARNING - The display does not function properly or no reaction to operation of any the control may due to the electrostatic discharge. Switch off and unplug the set. Reconnect after a few seconds.
13. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service personnel when:

a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
c. The appliance has been exposed to rain.
d. The appliance has been dropped, or the enclosure damaged.
e. The appliance does not appear to operate normally.

1. SERVICING - The user should not attempt to service the appliance beyond that described in the user operating instructions. All other servicing should be referred to qualified service personnel.

Notes:

a. Dirty or scratched CD may cause a skipping problem. Clean or replace the CD.
b. If an error display or malfunction occurs, disconnect the AC cord and remove all the batteries. Then turn the power back on.

BEFORE OPERATION

Notes: CONCERNING COMPACT DISCS.

Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items:

a. Usable compact discs. Use only compact disc with the mark shown below.
b. CD compact disc only with digital audio signals.

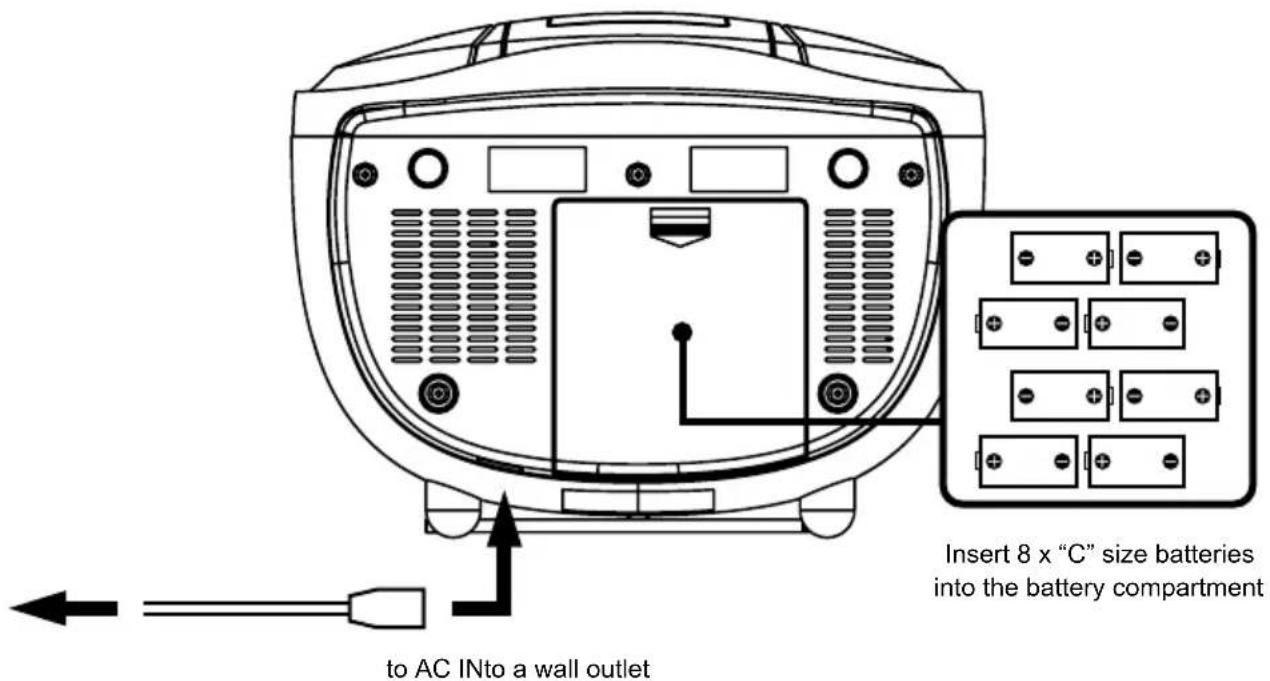

POWER SOURCES

AC POWER

You can power your portable system by plugging the detachable AC power cord into the AC inlet at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. Make sure that the AC power cord is fully inserted into the appliance.

BATTERY POWER

Insert 8 × "C" size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Notes:

• Use batteries of the same type. Never use different types of batteries together.
• To use the appliance with batteries, disconnect the AC power cord from it.

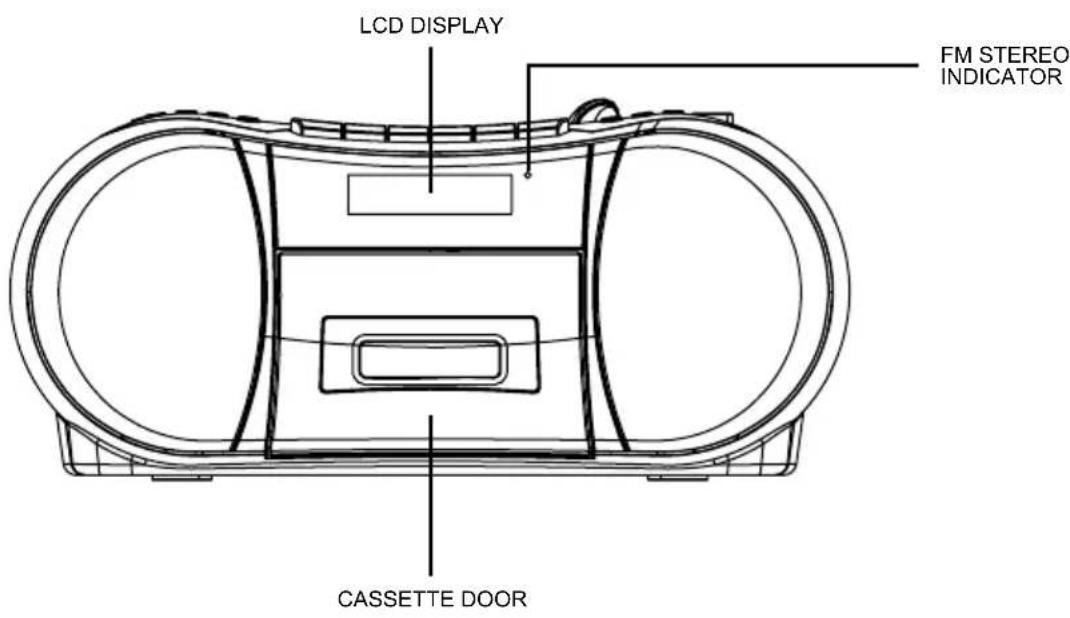

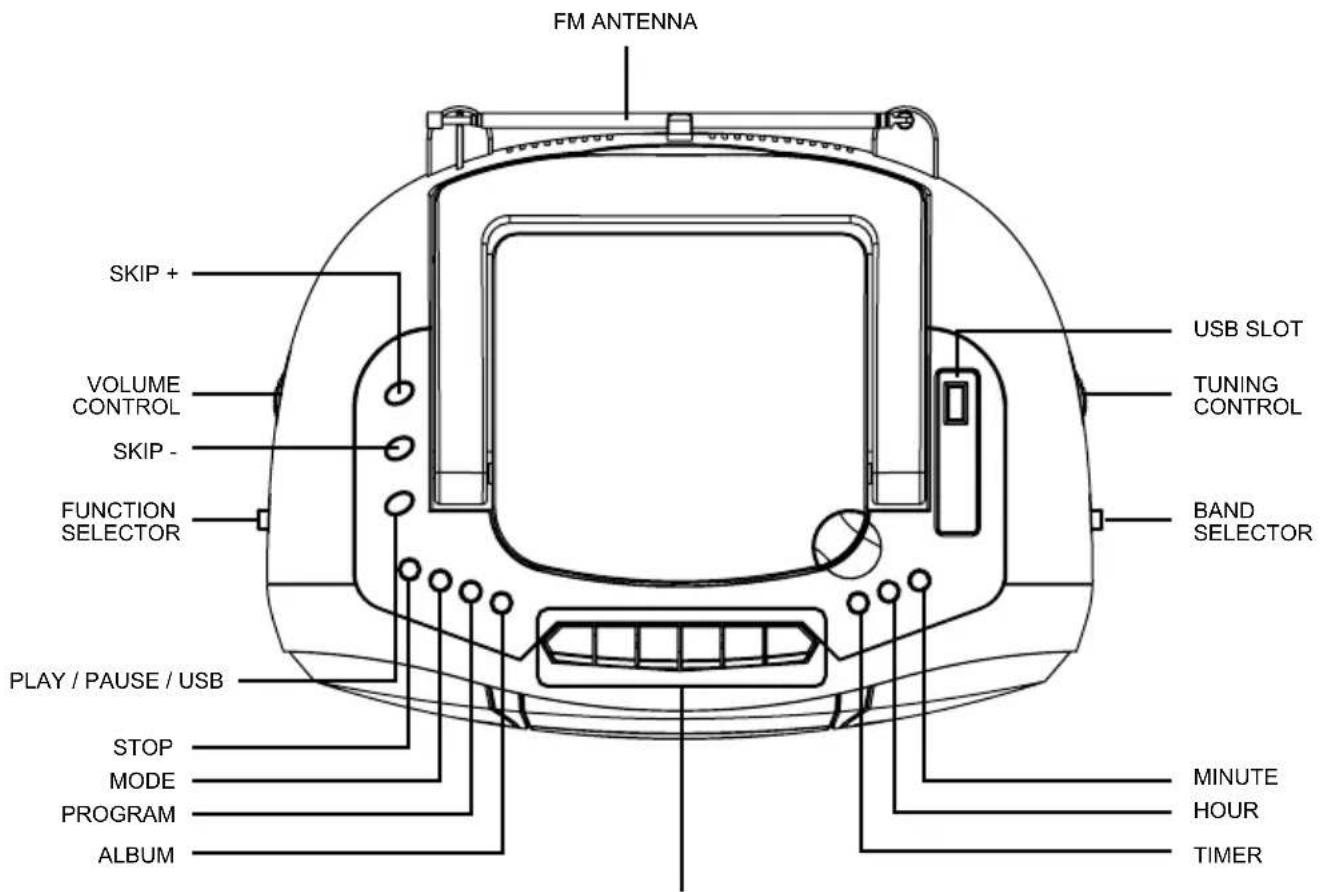

LOCATION OF CONTROL

TAPE BUTTONS - PAUSE, STOP / EJECT, FAST FORWARD, REWIND, PLAY, RECORD

RADIO OPERATION

GENERAL OPERATION

1. Set the "FUNCTION" selector to "RADIO" mode.
2. Select desired band by using the "BAND" selector.
3. Adjust radio frequency to your desired station by using the "TUNING" control.
4. Adjust the "VOLUME" control to the desired level.

FM / FM-STEREO RECEPTION

• Set the "BAND" selector to FM mode for MONO reception.
• Set the "BAND" selector to FM ST. mode for FM STEREO reception. The Stereo indicator light up to show FM ST. mode.

FOR BETTER RECEPTION

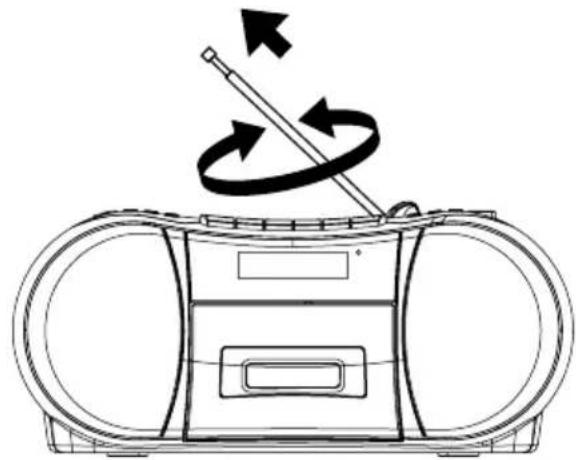

• Reorient the antenna for better reception.

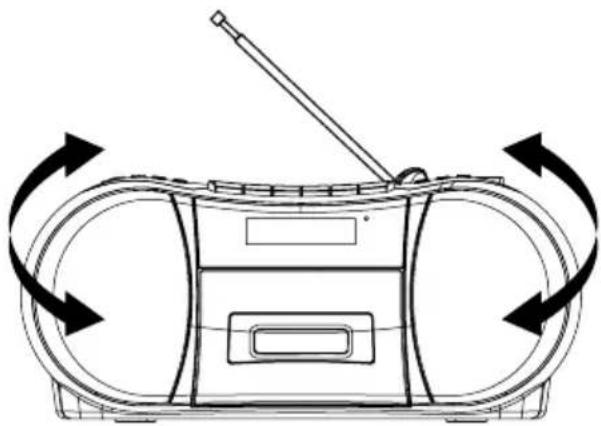

• Reorient the appliance to get better AM reception.

TAPE OPERATION

GENERAL OPERATION

PAUSE II Press to stop playing tape operation temporarily.

Press again to resume tape operation.

STOP / EJECT Press to stop tape operation.

Press again to open the cassette door after the tape spools stop turning.

FAST FORWARD & Press to start rapid tape winding either forward or reverse direction.

REWIND

PLAY Press to start playing tape.

RECORD Press it together with "PLAY" button to start recording.

PLAYBACK

1. Set the "FUNCTION" selector to "TAPE" mode.
2. Press the "STOP / EJECT" button to open the cassette door and insert your tape.
3. Close the cassette door.
4. Press the "PLAY" button to start playing tape.
5. Adjust the "VOLUME" control to the desired level.
6. Press the "PAUSE" button when you want to stop playing tape operation temporarily.
7. Press the "STOP / EJECT" button when finished.

RECORDING

1. Press the "STOP / EJECT" button to open the cassette door and insert a blank tape.
2. Select the source you want to record.

To record from radio - Set the "FUNCTION" selector to "RADIO" mode and adjust the desired station.

To record from CD / MP3 - Place a disc on the CD compartment. Set the "FUNCTION" selector to

"CD / MP3 / USB" mode and select the desired track.

To record from USB - Plug or slot in USB device to the port. (Make sure no disc on disc tray.)

Set the "FUNCTION" selector to "CD / MP3 / USB" mode and select the desired track.

1. Press the "RECORD" button together with the "PLAY" button to start recording.
2. Press the "STOP / EJECT" button when finished.

CD / MP3 OPERATION

GENERAL OPERATION

PLAY/PAUSE/USB Press to start playing CD / MP3 disc.

Press again to stop playing CD / MP3 operation temporarily.

Press again to resume playback.

SKIP +▶& Press to go to the next track or back to the previous track.

SKIP - Press and hold while playing until you find the point of the sound.

STOP Press to stop all CD / MP3 operation.

PLAYBACK

1. Set the "FUNCTION" selector to "CD / MP3 / USB" mode.
2. Open the CD door and place a CD / MP3 disc with the label up on the CD compartment.
3. Close the CD door.
4. Focus search is performed if disc is inside.
5. Press the "PLAY / PAUSE / USB" button to start playing CD / MP3 disc.
6. Adjust the "VOLUME" control to the desired level.
7. Press the "PLAY / PAUSE / USB" button again when you want to stop playback temporarily.
8. Press the "STOP" button when finished.

CD / MP3 OPERATION

PROGRAM

Be sure to press the "STOP" button before use.

1. Press the "PROGRAM" button, the display will show "P01" and flash.
2. Select desired track by using the "SKIP +" or "SKIP -" button. (You may select a desired album by pressing "ALBUM" button.)
3. Press the "PROGRAM" button again to confirm desired track into the program memory.
4. Repeat step 2 and 3 to enter additional tracks into the program memory.
5. When all the desired tracks have been programmed, press the "PLAY / PAUSE / USB" button to play the disc in the order you have programmed.
6. Press the "STOP" button twice to terminate programmed playback.

MODE

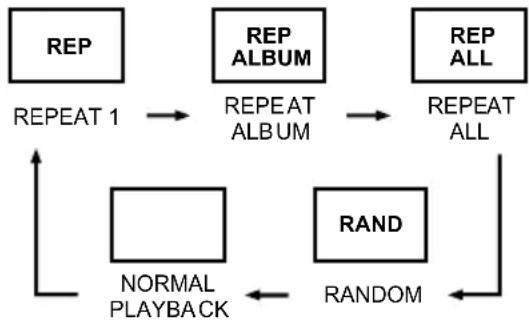

Press the "MODE" button before or during playing CD / MP3 disc, each press switches the mode function as follows:

1-REPEAT 1
2 - REPEAT ALBUM (*MP3 ONLY)
3 - REPEAT ALL
4-RANDOM
5-NORMAL PLAYBACK

USB OPERATION

GENERAL OPERATION

PLAY/PAUSE/USB Press to start playing tracks from the USB device.

Press again to stop playing USB operation temporarily.

Press again to resume playback.

SKIP +▶& Press to go to the next track or back to the previous track.

SKIP - Press and hold while playing until you find the point of the sound.

STOP Press to stop all USB operation.

PLAYBACK

1. Plug or slot in USB device to the port. (Make sure no disc on disc tray)
2. Set the "FUNCTION" selector to "CD / MP3 / USB" mode.
3. Press and hold the "PLAY / PAUSE / USB" button for a few seconds to entry USB mode.
4. Playback will start automatically from the first track.
5. Press the "STOP" button when finished.
6. Press the "PLAY / PAUSE / USB" button again, playback will start from the first t rack.

PROGRAM, MODE

The operation of PROGRAM, MODE are as the same as that of CD / MP3. Please refer to CD / MP3 OPERATION.

OTHER FEATURES

CLOCK SETTING

To adjust clock setting, make sure in CD mode.

1. Press the "TIMER" button. (Do not release "TIMER" button during time setting)
2. Press the "HOUR" button to set hour.
3. Press the "MIN" button to set minute.
4. Release all button to confirm setting. Confirmed setting will appear on the display.

Recycling

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)

If at any time in the future you should need to dispose of this product please note that: All batteries and accumulators need to be removed from this product (Removal of Waste Batteries and Accumulators).

SCR-96

Reprodctor portátil

USB/MP3/CD/casete/radio

Manual del usuario

Espanol

USB/MP3/CD/Cassette/Radio

Draagbare spelER

Handleiding

Nederlands

WAARSCHUWING: SCHOKGEVAAR-NIET OPENEN

WAARSCHUWINGSLABEL TER INFORMATIE STRALING -

PLAY/PAUSE/USB = PLAY/PAUSE/USB

STOP = STOP

MODE = MODE

PROGRAM = PROGRAM

ALBUM = ALBUM

TAPE BUTTONS - PAUSE, STOP / EJECT, FAST FORWARD, REWIND, PLAY, RECORD = KNOPPEN VOOR CASSETTEDECK - PAUSE, STOP / EJECT, VOORUITSPOELEN, TERUGSPOELEN, PLAY, RECORD

USB SLOT = USB-POORT

TUNING CONTROL = AFSTEMKNOP

BAND SELECTOR = BANDSCHAKELAAR

MINUTE = MINUUT

HOUR = UUR

TIMER = TIMER

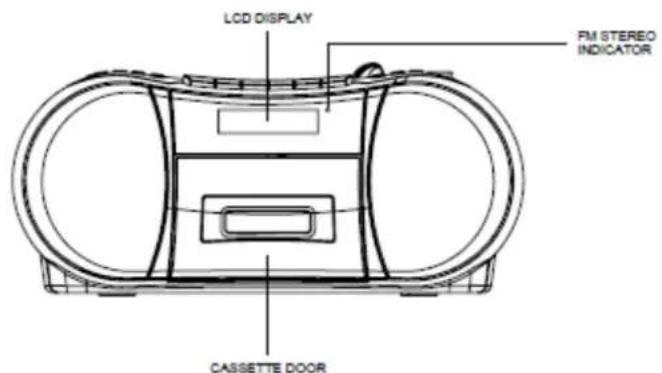

LCD DISPLAY = LCD-DISPLAY
