USER MANUAL R5800W KLIPSCH

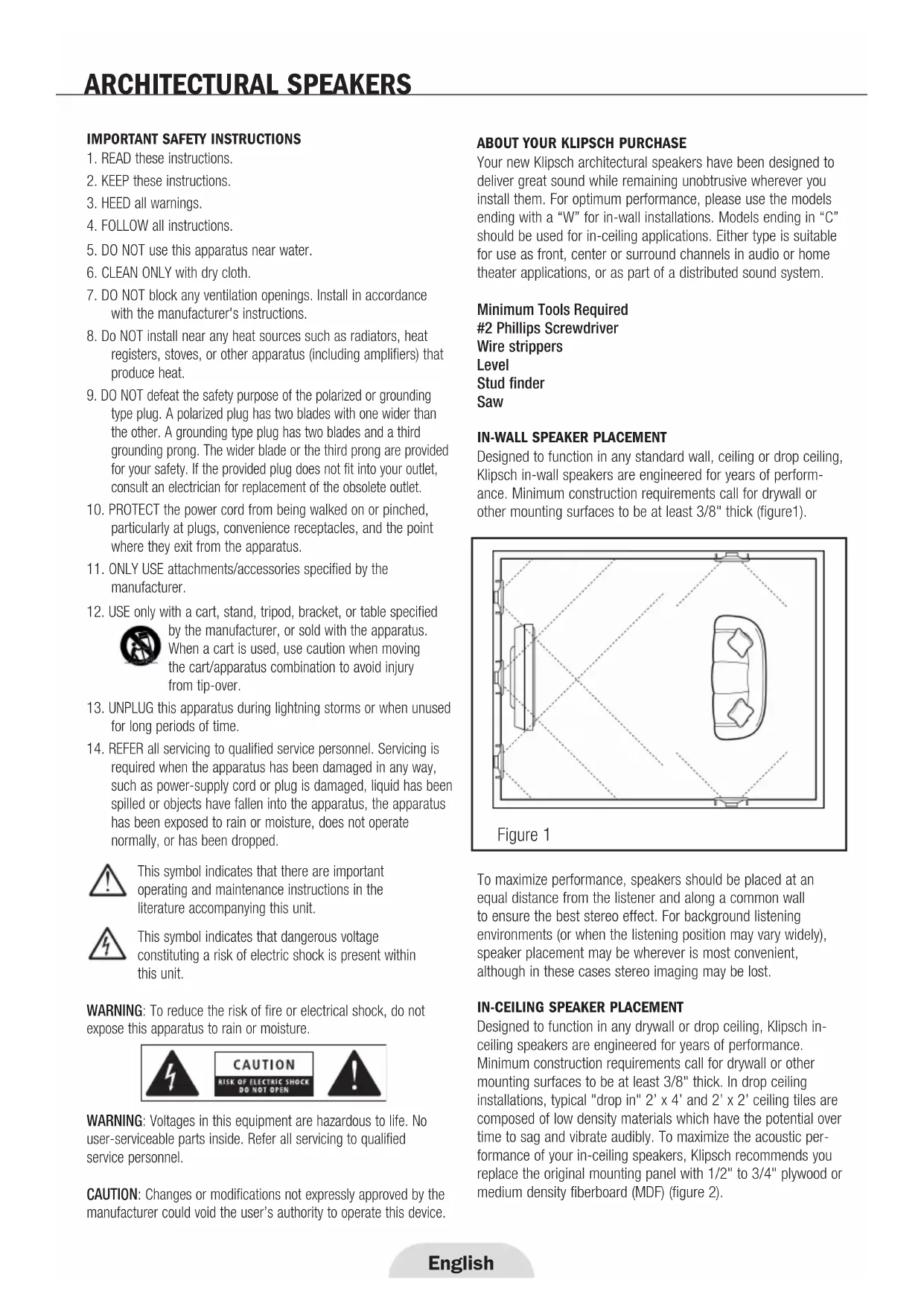

ARCHITECTURAL SPEAKERS IMPORTANT SAFETY INSTRUCTIONS

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5. DO NOT use this apparatus near water.

6. CLEAN ONLY with dry cloth.

7. DO NOT block any ventilation openings. Install in accordance

with the manufacturer's instructions.

8. Do NOT install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that

9. DO NOT defeat the safety purpose of the polarized or grounding

type plug. A polarized plug has two blades with one wider than

the other. A grounding type plug has two blades and a third

grounding prong. The wider blade or the third prong are provided

for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10. PROTECT the power cord from being walked on or pinched,

particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11. ONLY USE attachments/accessories specified by the

12. USE only with a cart, stand, tripod, bracket, or table specified

by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving

the cart/apparatus combination to avoid injury

13. UNPLUG this apparatus during lightning storms or when unused

for long periods of time.

14. REFER all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate

normally, or has been dropped.

This symbol indicates that there are important

operating and maintenance instructions in the

literature accompanying this unit.

This symbol indicates that dangerous voltage

constituting a risk of electric shock is present within

WARNING: To reduce the risk of fire or electrical shock, do not

expose this apparatus to rain or moisture.

WARNING: Voltages in this equipment are hazardous to life. No

user-serviceable parts inside. Refer all servicing to qualified

CAUTION: Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate this device.

ABOUT YOUR KLIPSCH PURCHASE Your new Klipsch architectural speakers have been designed to

deliver great sound while remaining unobtrusive wherever you

install them. For optimum performance, please use the models

ending with a “W” for in-wall installations. Models ending in “C”

should be used for in-ceiling applications. Either type is suitable

for use as front, center or surround channels in audio or home

theater applications, or as part of a distributed sound system.

Minimum Tools Required

#2 Phillips Screwdriver

IN-WALL SPEAKER PLACEMENT Designed to function in any standard wall, ceiling or drop ceiling,

Klipsch in-wall speakers are engineered for years of perform-

ance. Minimum construction requirements call for drywall or

other mounting surfaces to be at least 3/8" thick (figure1).

To maximize performance, speakers should be placed at an

equal distance from the listener and along a common wall

to ensure the best stereo effect. For background listening

environments (or when the listening position may vary widely),

speaker placement may be wherever is most convenient,

although in these cases stereo imaging may be lost.

IN-CEILING SPEAKER PLACEMENT Designed to function in any drywall or drop ceiling, Klipsch in-

ceiling speakers are engineered for years of performance.

Minimum construction requirements call for drywall or other

mounting surfaces to be at least 3/8" thick. In drop ceiling

installations, typical "drop in" 2’ x 4’ and 2’ x 2’ ceiling tiles are

composed of low density materials which have the potential over

time to sag and vibrate audibly. To maximize the acoustic per-

formance of your in-ceiling speakers, Klipsch recommends you

replace the original mounting panel with 1/2" to 3/4" plywood or

medium density fiberboard (MDF) (figure 2).

Figure 1SPEAKER INSTALLATION(for New Construction, skip to step #3)

1. Cut the appropriate size opening in the wall or ceiling using

the template provided. If the template is not available, cutout

dimensions are provided on the Klipsch website,

www.klipsch.com. Sizes listed are minimum. If accuracy of cut

cannot be achieved, you may add 1/4" to each dimension. Be

careful not to cut through any existing wiring or plumbing.

Avoid compromising any fire stops between studs.

2. Run speaker wiring (18 gauge minimum) to the openings. Be

sure to comply with all building codes in your area.

3. Attach the wire to the speaker using the wire’s color coding or

markings as a guide to maintain proper polarity.

4. Insert the speaker assembly into the opening and attach by

tightening the four Phillips screws (figure 3). The frame’s

“dog” legs will swivel out and “sandwich” the wall and frame

together. (Klipsch new construction brackets make this simple

if used prior to drywall installation.)

5. At this point, you may paint the speaker grilles before

inserting them into the speakers. Klipsch grilles are designed

to accept most types of paint. You may wish to remove the

scrim material before painting. It may be reinserted after the

paint is dry. Care should be taken to avoid excessive paint

build-up in the grille perforations.

6. Press the grille into place.

See back page for more illustrations.

OPERATING CONTROLS Mid-Bass and Tweeter Attenuator Switch

(3000 and 5000 Series)

Some models feature a Tweeter switch (3000 series) or both a

Mid-Bass and a Tweeter switch (5000 series) located on the

front baffle. The switch allows a setting of either 0dB (normal) or

–3dB in the respective frequency range. If installing in an

acoustically bright room, such as a bathroom or kitchen, you

may want to adjust the Tweeter level switch. If the speaker is

located in a corner and produces too much bass, you may need

to adjust the Mid-Bass level switch. The position of the switch

should always be checked prior to attaching the grille.

Pivoting Horn (In-Wall Models)

The 3000 and 5000 series feature a pivoting horn that allows

the horn to be toed-in. Before the grille is installed, carefully aim

the horn toward the listening area.

Swiveling Horn Tweeter (In-Ceiling Models)

Klipsch Reference in-ceiling models (3000 and 5000 Series)

feature a swiveling tweeter to aim the high frequencies. To aim

sound directly at the listening area, gently adjust the horn to the

desired angle before the grille is installed.

Do not attempt to turn the tweeter stem while adjusting the

Infrared Sensor Mount

The 2000, 3000 and 5000 Series in-wall speakers feature a

1/2’’ infrared sensor locator on the baffle.

WARRANTY–U.S. AND CANADA ONLY The Warranty below is valid only for sales to consumers in the

United States or Canada.

Figure 3ARCHITECTURAL SPEAKERS KLIPSCH, L.L.C. ("KLIPSCH") warrants this product to be free

from defects in materials and workmanship (subject to the terms

set forth below) for a period of five (5) years from the date of

purchase. During the Warranty period, KLIPSCH will repair or

replace (at KLIPSCH’s option) this product or any defective parts

(excluding electronics and amplifiers). For products that have

electronics or amplifiers, the Warranty on those parts is for a

period of two (2) years from the date of purchase.

To obtain Warranty service, please contact the KLIPSCH

authorized dealer from which you purchased this product. If

your dealer is not equipped to perform the repair of your

KLIPSCH product, it can be returned, freight paid, to KLIPSCH for

repair. Please call KLIPSCH at 1-800-KLIPSCH for instructions.

You will need to ship this product in either its original packaging

or packaging affording an equal degree of protection.

Proof of purchase in the form of a bill of sale or receipted

invoice, which is evidence that this product is within the

Warranty period, must be presented or included to obtain

This Warranty is invalid if (a) the factory-applied serial number

has been altered or removed from this product or (b) this product

was not purchased from a KLIPSCH authorized dealer. You may

call 1-800-KLIPSCH to confirm that you have an unaltered

serial number and/or you purchased from a KLIPSCH

This Warranty is only valid for the original purchaser and will

automatically terminate prior to expiration if this product is sold

or otherwise transferred to another party.

This Warranty does not cover cosmetic damage or damage due

to misuse, abuse, negligence, acts of God, accident, commercial

use or modification of, or to any part of, the product. This

Warranty does not cover damage due to improper operation,

maintenance or installation, or attempted repair by anyone other

than KLIPSCH or a KLIPSCH dealer which is authorized to do

KLIPSCH warranty work. Any unauthorized repairs will void this

Warranty. This Warranty does not cover product sold AS IS or

REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER.

KLIPSCH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WAR-

RANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE.

Some states do not allow the exclusion or limitation of incidental

or consequential damages or implied warranties so the above

exclusions may not apply to you. This Warranty gives you specific

legal rights, and you may have other rights, which vary from

WARRANTY OUTSIDE THE UNITED STATES & CANADA The Warranty on this product if it is sold to a consumer outside of

the United States or Canada shall comply with applicable law and

shall be the sole responsibility of the distributor that supplied this

product. To obtain any applicable warranty service, please contact

the dealer from which you purchased this product, or the distributor

that supplied this product.CONSIGNES DE SECURITE IMPORTANTES
