USER MANUAL Reference RF7 II KLIPSCH

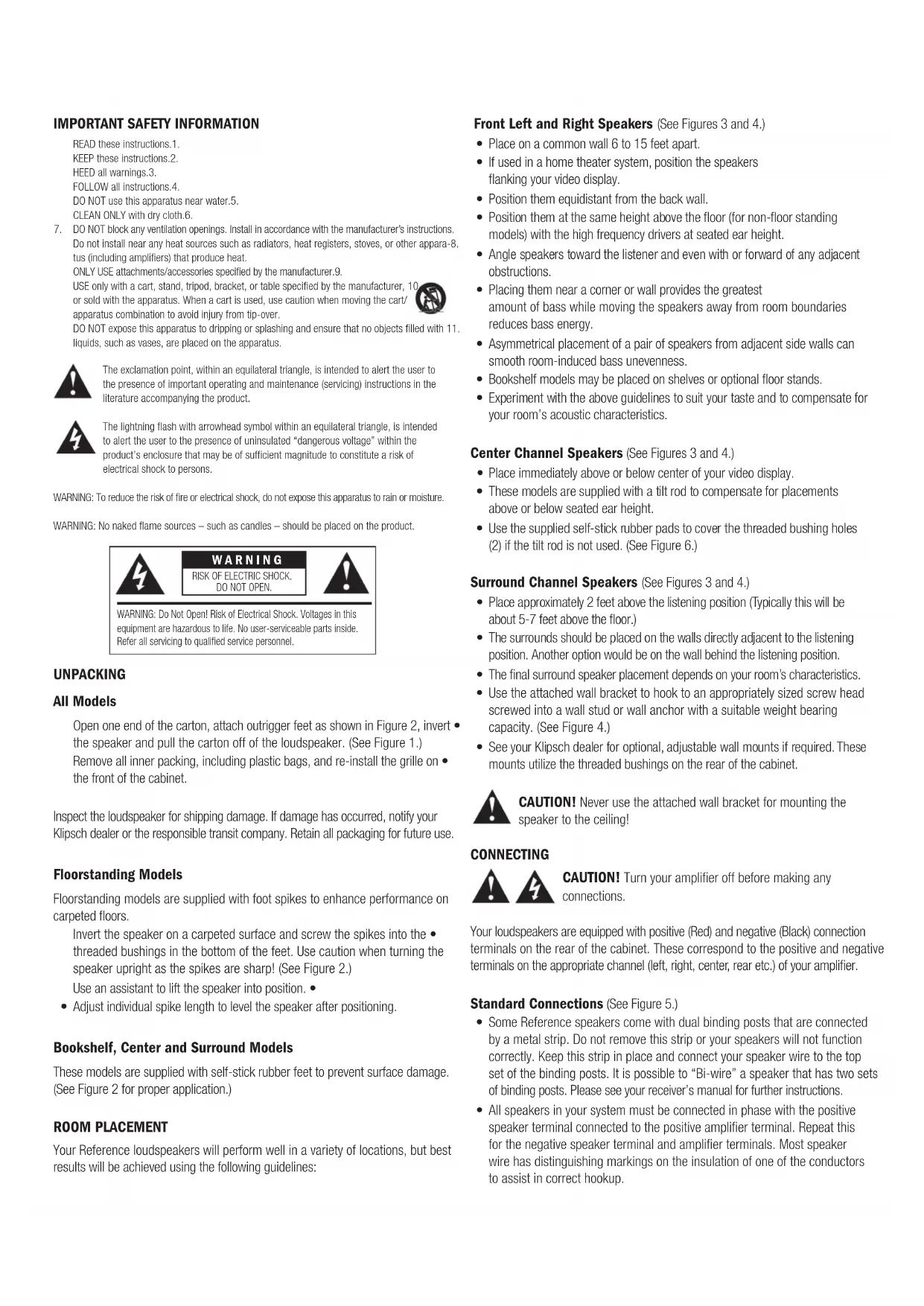

Owner's ManualIMPORTANT SAFETY INFORMATION READ these instructions.1.

KEEP these instructions.2.

HEED all warnings.3.

FOLLOW all instructions.4.

DO NOT use this apparatus near water.5.

CLEAN ONLY with dry cloth.6.

DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions.7.

Do not install near any heat sources such as radiators, heat registers, stoves, or other appara-8.

tus (including ampliﬁers) that produce heat.

ONLY USE attachments/accessories speciﬁed by the manufacturer.9.

USE only with a cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, 10.

or sold with the apparatus. When a cart is used, use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

DO NOT expose this apparatus to dripping or splashing and ensure that no objects ﬁlled with 11.

liquids, such as vases, are placed on the apparatus.

The exclamation point, within an equilateral triangle, is intended to alert the user to

the presence of important operating and maintenance (servicing) instructions in the

literature accompanying the product.

The lightning ﬂash with arrowhead symbol within an equilateral triangle, is intended

to alert the user to the presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of

electrical shock to persons.

WARNING: To reduce the risk of ﬁre or electrical shock, do not expose this apparatus to rain or moisture.

WARNING: No naked ﬂame sources – such as candles – should be placed on the product.

UNPACKING All Models

Open one end of the carton, attach outrigger feet as shown in Figure 2, invert •

the speaker and pull the carton off of the loudspeaker. (See Figure 1.)

Remove all inner packing, including plastic bags, and re-install the grille on •

the front of the cabinet.

Inspect the loudspeaker for shipping damage. If damage has occurred, notify your

Klipsch dealer or the responsible transit company. Retain all packaging for future use.

Floorstanding Models

Floorstanding models are supplied with foot spikes to enhance performance on

Invert the speaker on a carpeted surface and screw the spikes into the •

threaded bushings in the bottom of the feet. Use caution when turning the

speaker upright as the spikes are sharp! (See Figure 2.)

Use an assistant to lift the speaker into position. •

Adjust individual spike length to level the speaker after positioning.•

Bookshelf, Center and Surround Models

These models are supplied with self-stick rubber feet to prevent surface damage.

(See Figure 2 for proper application.)

ROOM PLACEMENT Your Reference loudspeakers will perform well in a variety of locations, but best

results will be achieved using the following guidelines:

Front Left and Right Speakers (See Figures 3 and 4.)

Place on a common wall 6 to 15 feet apart. •

If used in a home theater system, position the speakers •

ﬂanking your video display.

Position them equidistant from the back wall.•

Position them at the same height above the ﬂoor (for non-ﬂoor standing •

models) with the high frequency drivers at seated ear height.

Angle speakers toward the listener and even with or forward of any adjacent •

Placing them near a corner or wall provides the greatest •

amount of bass while moving the speakers away from room boundaries

reduces bass energy.

Asymmetrical placement of a pair of speakers from adjacent side walls can •

smooth room-induced bass unevenness.

Bookshelf models may be placed on shelves or optional ﬂoor stands.•

Experiment with the above guidelines to suit your taste and to compensate for •

your room’s acoustic characteristics.

Center Channel Speakers (See Figures 3 and 4.)

Place immediately above or below center of your video display.•

These models are supplied with a tilt rod to compensate for placements •

above or below seated ear height.

Use the supplied self-stick rubber pads to cover the threaded bushing holes •

(2) if the tilt rod is not used. (See Figure 6.)

Surround Channel Speakers (See Figures 3 and 4.)

Place approximately 2 feet above the listening position (Typically this will be •

about 5-7 feet above the ﬂoor.)

The surrounds should be placed on the walls directly adjacent to the listening •

position. Another option would be on the wall behind the listening position.

The ﬁnal surround speaker placement depends on your room’s characteristics.•

Use the attached wall bracket to hook to an appropriately sized screw head •

screwed into a wall stud or wall anchor with a suitable weight bearing

capacity. (See Figure 4.)

See your Klipsch dealer for optional, adjustable wall mounts if required. These •

mounts utilize the threaded bushings on the rear of the cabinet.

CAUTION! Never use the attached wall bracket for mounting the

speaker to the ceiling!

CONNECTING CAUTION! Turn your ampliﬁer off before making any

Your loudspeakers are equipped with positive (Red) and negative (Black) connection

terminals on the rear of the cabinet. These correspond to the positive and negative

terminals on the appropriate channel (left, right, center, rear etc.) of your ampliﬁer.

Standard Connections (See Figure 5.)

Some Reference speakers come with dual binding posts that are connected •

by a metal strip. Do not remove this strip or your speakers will not function

correctly. Keep this strip in place and connect your speaker wire to the top

set of the binding posts. It is possible to “Bi-wire” a speaker that has two sets

of binding posts. Please see your receiver’s manual for further instructions.

All speakers in your system must be connected in phase with the positive •

speaker terminal connected to the positive ampliﬁer terminal. Repeat this

for the negative speaker terminal and ampliﬁer terminals. Most speaker

wire has distinguishing markings on the insulation of one of the conductors

to assist in correct hookup.

WARNING RISK OF ELECTRIC SHOCK. DO NOT OPEN.WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.Use 16 gauge (AWG), two conductor, copper wire at a minimum and larger •

gauge wire for longer runs. The connection terminals on your loudspeaker will

accommodate bare wire, spade terminals or banana type plugs.

Use either pair of positive and negative terminals keeping the metal coupling •

CAUTION! With all connection types, take care that there is no

contact between the positive and negative terminals at the speaker

and ampliﬁer. Damage to your equipment may result!

When using your speakers in a home theater system, consult the owner’s manual

of your surround electronics for proper application of bass management settings.

As a general rule, compact speakers (Bookshelf, Center Channel and Sur-•

rounds) are set to the “Small,” or bass-limited setting.

Floorstanding speakers are typically set to the “Large,” or full-range setting.•

Also refer to the electronics instructions for adjusting the relative volume levels •

of the speakers so they are at the same level when in the listening position.

CARE AND CLEANING Occasional dusting or wiping of the cabinet with a damp cloth is all that is •

required. Never use abrasive or solvent type cleaners or harsh detergents.

A vacuum cleaner with a soft brush attachment may be used to clean the •

Never spray polishes or cleaners on the drive units (woofers, midranges or •

WARRANTY – U.S. AND CANADA Klipsch warrants to the original retail purchaser that this product is to be free

from defective materials and workmanship for a period of ﬁve (5) years from

the date of purchase, if it is properly used and maintained. If this product

proves defective in either material or workmanship, Klipsch, at its option,

will (a) repair the product, or (b) replace the product, at no charge for parts

or labor. If the product model is no longer available and cannot be repaired

effectively or replaced with an identical model, Klipsch at its sole option may

replace the unit with a current model of equal or greater value. In some cases,

modiﬁcation to the mounting surface may be required where a new model is

substituted. Klipsch assumes no responsibility or liability for such modiﬁcation.

To obtain a repair or replacement under the terms of this warranty, please

return to dealer ﬁrst, if possible, and they will direct you accordingly for repairs

or replacement. You will be required to submit a copy of the original receipt.

This limited warranty does not cover failure of the product resulting from •

improper installation, misuse, abuse, accident, neglect, mishandling, or

wear from ordinary use or environmental deterioration.

This limited warranty does not cover cosmetic damage, including paint •

damage, or consequential damage to other components or premises

which may result for any reason from the failure of the product.=

This limited warranty is null and void for products not used in accordance •

with Klipsch’s instructions.

This limited warranty is null and void for products with altered or missing •

serial numbers and for products not purchased from an authorized dealer.

This limited warranty terminates if you sell or otherwise transfer this •

product to another party.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, JURISDICTION TO JURISDICTION OR COUNTRY TO COUNTRY. KLIPSCH’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPLACE-

MENT OR REPAIR AS SET FORTH IN THIS WARRANTY STATEMENT. FOR CANADIAN CUSTOMERS, KLIPSCH DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, FOR THE PRODUCT. FOR U.S. CUSTOMERS, ALL EXPRESS AND IMPLIED WAR-

RANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME STATES, JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE EXCLUSION OF CERTAIN IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITIONS LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU. KLIPSCH DOES NOT ACCEPT LIABILITY FOR SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, ANY LIABILITY FOR THIRD PARTY CLAIMS AGAINST YOU FOR DAMAGES OR FOR PRODUCTS NOT BEING AVAILABLE FOR USE.

THE MAXIMUM LIABILITY FOR WHICH KLIPSCH MAY BE RESPONSIBLE WILL BE NO MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF THE CLAIM. SOME STATES, JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INDIRECT,

INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

WARRANTY OUTSIDE THE U.S. AND CANADA The Warranty on this product if it is sold to a consumer outside of the United

States and Canada shall comply with applicable law. To obtain any applicable

warranty service, please contact the dealer from which you purchased this

product, or the distributor that supplied this product.

EU COMPLIANCE INFORMATION:

Eligible to bear the CE mark, Conforms to European Union Low Voltage Directive

2006/95/EC; Conforms to European Union EMC Directive 2004/108/EC and

European Union Directive 2005/32/EC for Ecodesign requirements.

WEEE NOTICE Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive

2002/96/EC concerning waste electrical and electronic equipment

(WEEE). This label indicates that this product should not be disposed

of with household waste. It should be deposited at an appropriate

facility to enable recovery and recycling.

PRODUCT REGISTRATION Register your product online at www.klipsch.com/register

•Klipschwillkeepyouup-to-dateonnewproductsandpromotions

•Yourpersonalinformationwillneverberesold

•Thisregistrationinformationisnotusedforwarrantypurposes.

Please retain your receipt for warranty claims.Front LeftFront RightBack Surround Left Back Surround RightSurround RightSurround Left Speaker HookupCenterHDMI OutHDMI 1 HDMI 2 HDMI 3

L R L R CD TAPE TV DVDMonitor Out Video In Out In In In InCBL/SATSub Pre Out
