USER MANUAL GNA441 KRUPS

F08B F520 GNA 6GNA 9GNA 2GNA 4GNA 6GNA 9

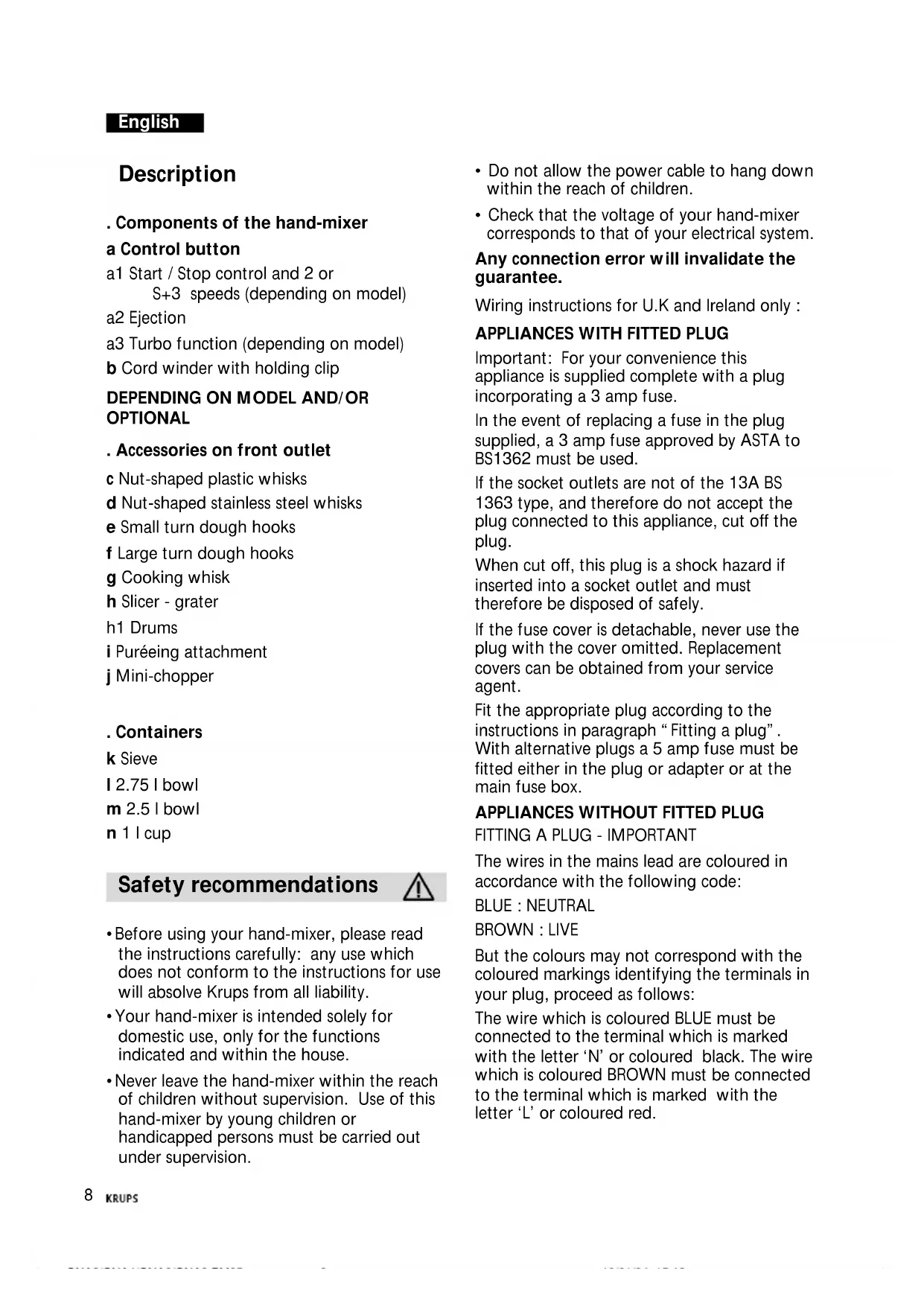

. Components of the hand-mixer

a1 Start / Stop control and 2 or

b Cord winder with holding clip

DEPENDING ON MODEL AND/OR OPTIONAL

. Accessories on front outlet

c Nut-shaped plastic whisks

d Nut-shaped stainless steel whisks

e Small turn dough hooks

f Large turn dough hooks

Safety recommendations

•Before using your hand-mixer, please read

the instructions carefully: any use which

does not conform to the instructions for use

will absolve Krups from all liability.

•Your hand-mixer is intended solely for

domestic use, only for the functions

indicated and within the house.

•Never leave the hand-mixer within the reach

of children without supervision. Use of this

hand-mixer by young children or

handicapped persons must be carried out

• Do not allow the power cable to hang down

within the reach of children.

• Check that the voltage of your hand-mixer

corresponds to that of your electrical system.

Any connection error will invalidate the

Wiring instructions for U.K and Ireland only :

APPLIANCES WITH FITTED PLUG Important: For your convenience this

appliance is supplied complete with a plug

incorporating a 3 amp fuse.

In the event of replacing a fuse in the plug

supplied, a 3 amp fuse approved by ASTA to

BS1362 must be used.

If the socket outlets are not of the 13A BS

1363 type, and therefore do not accept the

plug connected to this appliance, cut off the

When cut off, this plug is a shock hazard if

inserted into a socket outlet and must

therefore be disposed of safely.

If the fuse cover is detachable, never use the

plug with the cover omitted. Replacement

covers can be obtained from your service

Fit the appropriate plug according to the

instructions in paragraph “Fitting a plug”.

With alternative plugs a 5 amp fuse must be

fitted either in the plug or adapter or at the

APPLIANCES WITHOUT FITTED PLUG FITTING A PLUG - IMPORTANT The wires in the mains lead are coloured in

accordance with the following code:

BLUE : NEUTRAL BROWN : LIVE But the colours may not correspond with the

coloured markings identifying the terminals in

your plug, proceed as follows:

The wire which is coloured BLUE must be

connected to the terminal which is marked

with the letter ‘N’ or coloured black. The wire

which is coloured BROWN must be connected

to the terminal which is marked with the

letter ‘L’ or coloured red.

GNA2/GNA4/GNA6/GNA9.PM65 19/01/04, 15:1389

This appliance is manufactured to conform to

the Low Voltage Electrical Equipment (Safety)

Regulations 1989 and is designed to comply

with BS 3456. It complies with the

requirements of the EEC Directive (89/336/

• The power cable must never be close to or

touching the hot parts of your hand-mixer,

close to a source of heat or a sharp edge.

• Never put the hand-mixer, the power cable

or the plug into water or any other liquid.

• If the power cable or plug are damaged, do

not use the hand-mixer. In order to prevent

any risk, these must be replaced by an

approved Krups service centre (see “Krups

Service Stations” booklet).

• Unplug your hand-mixer once you have

finished using it and when you are cleaning

• Never use your hand-mixer if it is not

working correctly or if it has been damaged.

In this case, contact an approved Krups

service centre (see “Krups Service Stations”

• Any other intervention other than cleaning

and normal maintenance by the customer

must be carried out by an approved Krups

• For your own safety, only use the accessories

and spare parts from Krups which are

adapted to your hand-mixer.

• All hand-mixers are subject to rigorous

quality checks. Practical usage tests are

carried out on hand-mixers at random,

which may leave traces of use.

• This hand-mixer is designed to be used

under supervision of the user.

• Never touch the whisks, dough hooks or

drums of the slicer-grater while the

hand-mixer is operating. Never allow

long hair, scarves, the cable, etc. to hang

over the accessories when they are in

• Unplug the hand-mixer before any

handling (attaching and removing

• Do not combine accessories with different

functions at the same time (e.g. dough hook

• Caution: the blades on some accessories

are sharp. Handle all knives with care.

Before using for the first time

• Carefully clean the different accessories of

Use of accessories on front

. Whisks and dough hooks

• With the control button (a) on “0”, insert

the whisks or dough hooks until they are

fully locked in place. Always insert the

accessory fitted with a toothed ring into the

opening indicated on the hand-mixer by a

ring which is also toothed (1).

• Plug in the hand-mixer.

• Depending on the quantity being prepared,

place the ingredients into a suitable contai-

ner (Krups bowl or cup).

• Place the whisks or dough hooks into the

container and start the hand-mixer by

moving the control (a) to the right.

To prevent splashes when starting or for

delicate preparations (creams, sauces), your

hand-mixer is fitted (depending on the model)

with an anti-splash function (position “S”).

• Push the control (a) to the right into position

• To continue preparation, select a faster

Depending on the model, the hand-mixer is

fitted with a Turbo function which instantly

gives you full power (4) when you press

towards the front of the beater

• After use, return the control (a) to the “0”

• Release the whisks and dough hooks by

pushing the control (a) to the “Eject”

GNA2/GNA4/GNA6/GNA9.PM65 19/01/04, 15:13910

The cooking whisk (g) is used to make light

preparations (whipped cream, mayonnaise,

•Use it in a tall, narrow container (the cup).

•Never use it for heavy preparations such as

cake mixtures or bread dough or for making

. For the other accessories, please refer to

their instructions for use.

•Using only a damp cloth, clean the body of

•Clean the whisks / dough hooks under

running water or in the dishwasher. Rinse

What to do if your hand-mixer

•Check that the accessories are correctly in

•Check that the hand-mixer is correctly

If your hand-mixer is still not working,

contact an approved Krups service centre (see

list in the “Krups Service Stations” booklet).
