Connecting to the Camera

Connect the RJ45 network cable from the camera's LAN port to your network; e.g., the router or a LAN switch, then power on the camera. The boot sequence will take about one minute. You will need to use the camera's power adapter, unless your camera supports PoE. In that case you can connect the RJ45 cable to a PoE-enabled switch or injector to power the camera.

By default, the network camera (or video server) searches for a DHCP server on the network and obtains an IP address automatically. A very common DHCP server is a router, a device that is found on most networks.

The presence of a DHCP server on your network simplifies the installation and users with limited knowledge of TCP/IP networks can install the network camera in minutes. If no DHCP server is found, the network camera will revert to its default IP address: 192.168.1.221.

On Windows systems, you want to use the IP Installer utility that finds the camera on the network and lets you make changes to the configuration.

Once the camera is set up properly, it can be accessed with the computer's Web browser. The following sections describe the procedure for Windows, MacOS and Linux users.

Windows XP, Vista and Windows 7

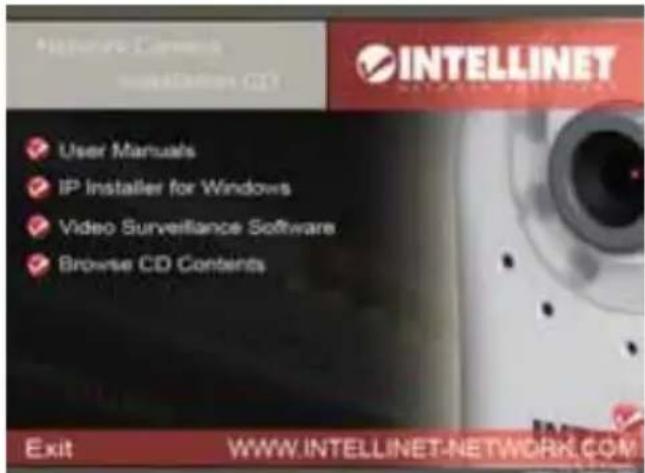

Insert the Installation CD into the CD or DVD drive. After a few moments, the CD will automatically start and display the screen to the right. If that does not happen, you need to browse the CD with Windows Explorer and double-click the autorun.exe file.

1. User Manuals

The user manual for the

INTELLINET NETWORK SOLUTIONS Network Camera is available in electronic form on the installation CD, along with user manuals in different languages.

If you encounter differences between the screen shots shown in the user manual and the actual screen contents, it is recommended that you open the manual from the CD, as it may be a newer edition than the printed version.

2. IP Installer for Windows

This utility is designed to find the network camera on your network and lets you make changes to the configuration.

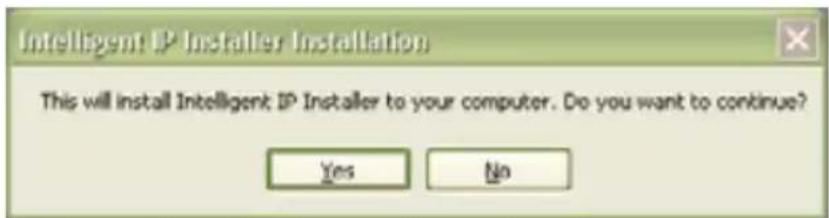

Click on "Yes" to begin the installation.

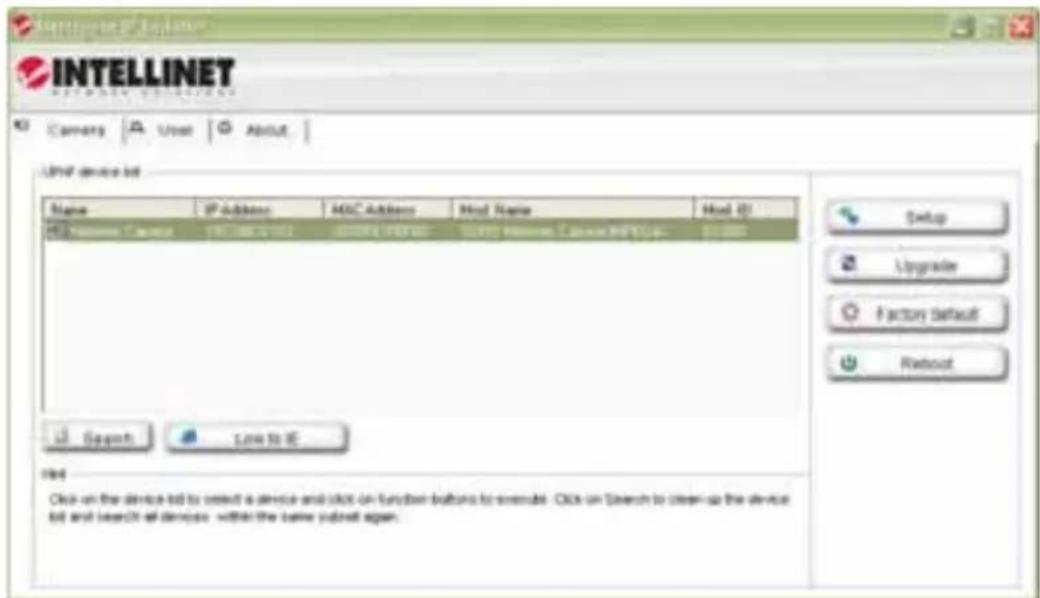

When the program starts, you are presented with the screen shown above. The IP Installer utility lists all cameras that can be found on your network. With this utility you can make changes to the configuration, perform a firmware upgrade, restore the camera to factory default values, and reboot the camera. Note: It may take up to three minutes for IP Installer to show a camera that has been recently (re-)started.

Refer to the user manual for more detailed instructions on the camera setup.

3. Video Surveillance Software

Refer to user manual on the CD for the 16-channel NVR (network video recorder).

MacOS

The installation on Apple systems running MacOS X does not involve the INTELLINET installation CD. The INTELLINET NETWORK SOLUTIONS network camera supports Apple's Bonjour service.

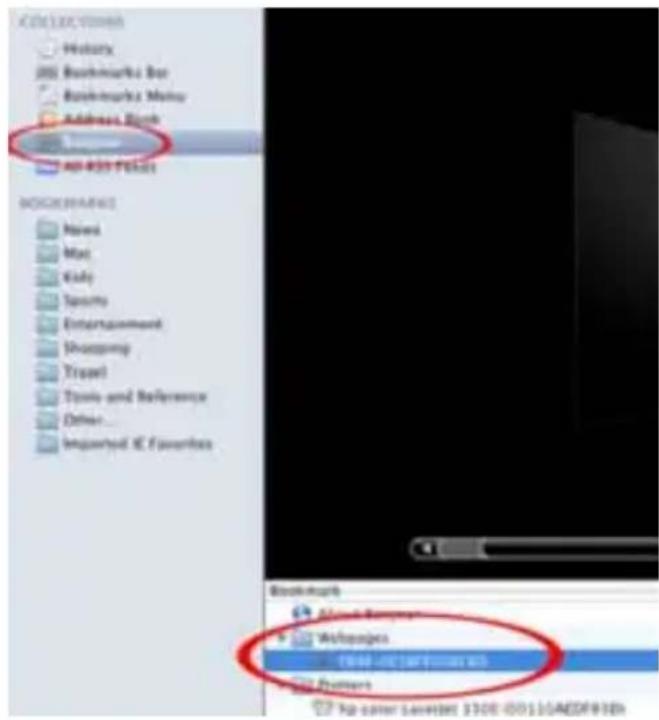

Open the Safari Web browser and open the Bookmarks toolbar, where you will find the Bonjour link.

The Network Camera is shown in the category Webpages. In order to connect to the camera, double-click the circled link.

Safari then connects to the camera and a message may appear: "An applet from xxxxx" is requesting unrestricted access to your computer."

Click on "Allow" and you will see the camera live image a few moments later.

Refer to the user manual for more detailed instructions on the camera setup.

Linux

The installation on Linux systems does not require any special software. The network camera is compatible to Web browsers such as Firefox and Konqueror.

The initial installation requires the setup of the camera's IP address. As the camera by default obtains an IP address from a DHCP server in the network (e.g., a router), you can access the camera as soon as you have obtained the IP address from the router's DHCP client log. Alternatively, you may use Bonjour (mDNSResponder), which is also available for Linux.

If no DHCP server is connected to your network, the camera reverts to its default IP address: 192.168.1.221. In order to gain access to the camera, you need to change the IP settings of your system manually. Set up the IP address to be in range of 192.168.1.xxx (where xxx is not 221). Then open your Web browser and connect to address http://192.168.1.221. Log in to the camera and click on the Settings link to open the administrator menu. Refer to section 5.2 Settings Page in the user manual for more details.

Hardware Installation and Additional Information

For additional information about the installation process, the configuration and functions of the camera or network video server, please refer to the user manual on the INTELLINET installation CD.
