USER MANUAL HK2R INVENTUM

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

DESCRIPTION OF THE APPLIANCE PAGE 19

1. SAFETY INSTRUCTIONS PAGE 19
2. BEFORE FIRST USE PAGE 20
   3.SAFETY VALVES PAGE 20
3. OPENING AND CLOSING PAGE 20
4. MAKING COFFEE PAGE 21
   6.PROBLEMS & SOLUTIONS PAGE 22
5. CLEANING & MAINTENANCE PAGE 22

DESCALING PAGE 23

GUARANTEE & AFTER SALES SERVICE

PAGE 26

NEDERLANDS

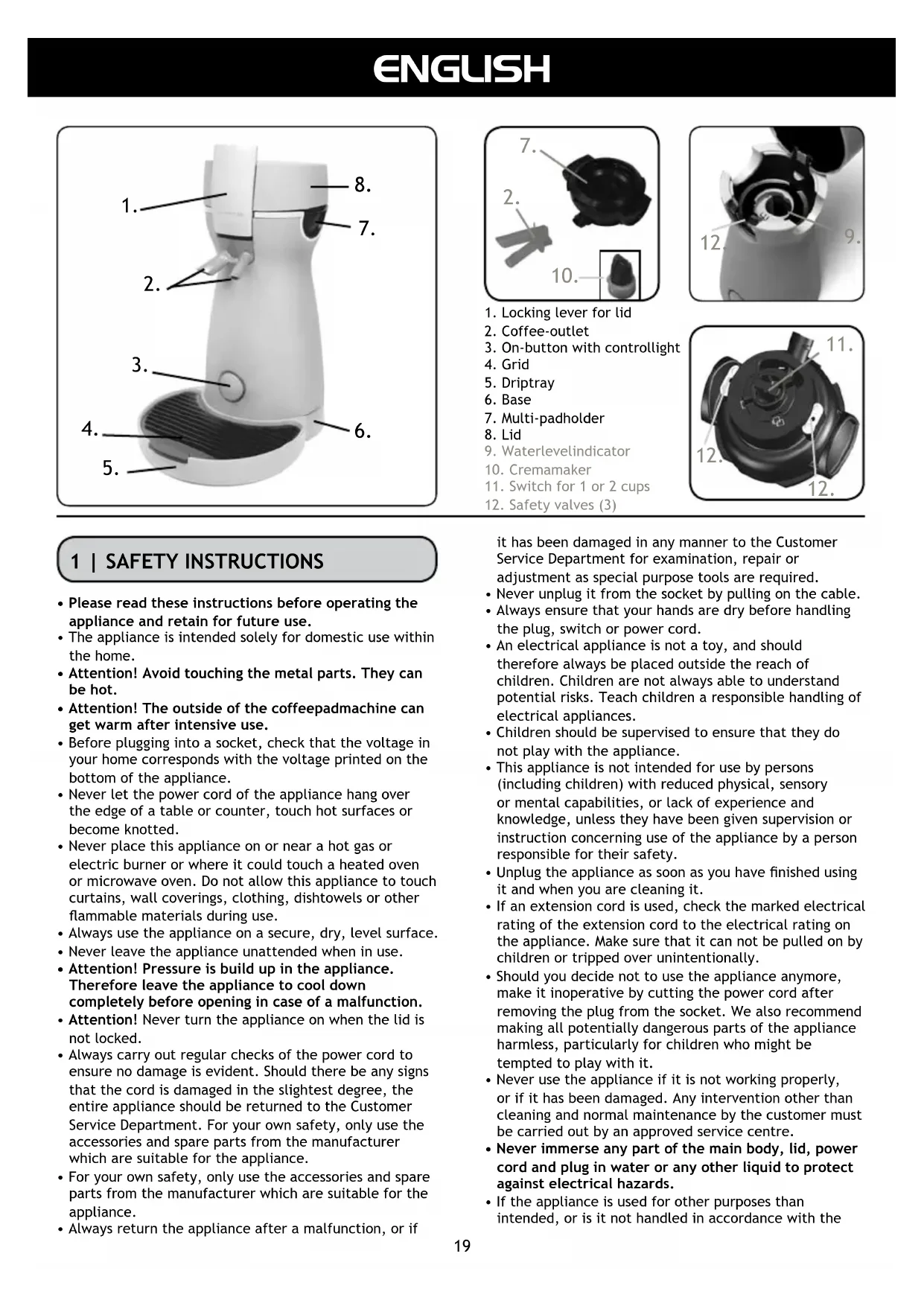

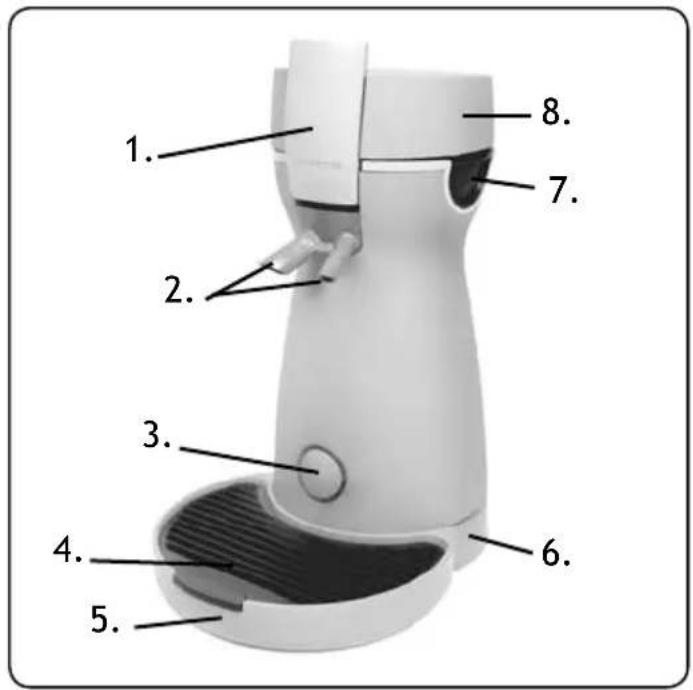

1. Locking lever for lid
2. Coffee-outlet
3. On-button with controllight
4. Grid
5. Dripray
6. Base
7. Multi-padholder
8. Lid
9. Waterlevelindicator
10. Cremamaker

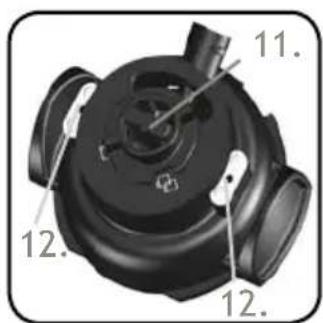

11. Switch for 1 or 2 cups
12. Safety valves (3)

1 | SAFETY INSTRUCTIONS

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
• Attention! Avoid touching the metal parts. They can be hot.
• Attention! The outside of the coffeepadmachine can get warm after intensive use.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave oven. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
• Always use the appliance on a secure, dry, level surface.
• Never leave the appliance unattended when in use.
• Attention! Pressure is build up in the appliance. Therefore leave the appliance to cool down completely before opening in case of a malfunction.
• Attention! Never turn the appliance on when the lid is not locked.
• Always carry out regular checks of the power cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to the Customer Service Department. For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Always return the appliance after a malfunction, or if

it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.

• Never unplug it from the socket by pulling on the cable.
• Always ensure that your hands are dry before handling the plug, switch or power cord.
• An electrical appliance is not a toy, and should therefore always be placed outside the reach of children. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
  Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Unplug the appliance as soon as you have finished using it and when you are cleaning it.
• If an extension cord is used, check the marked electrical rating of the extension cord to the electrical rating on the appliance. Make sure that it can not be pulled on by children or tripped over unintentionally.
• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.
• Never use the appliance if it is not working properly, or if it has been damaged. Any intervention other than cleaning and normal maintenance by the customer must be carried out by an approved service centre.
• Never immerse any part of the main body, lid, power cord and plug in water or any other liquid to protect against electrical hazards.
  If the appliance is used for other purposes than intended, or is it not handled in accordance with the

instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

2 | BEFORE FIRST USE

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Place the appliance on a flat and stable surface.

Clean the outside of the appliance with only a damp cloth and dry it with a dry cloth. Clean the parts: the multipadholder, the grid and the driptray with warm water and some washing up liquid. Make sure the parts are dry before use. For an extended explanation please read the instructions in chapter: Cleaning & Maintenance. Before plugging into a socket, check that the voltage in your home corresponds with voltage printed on the appliance.

3 | SAFETY VALVES

CAUTION: It is essential that the lid is properly closed.

The Cafemezzo makes coffee by means of steam pressure, which builds up by boiling water within the metal boiler. This steam pressure presses the water through the coffee. However, when the crema maker is clogged, the steam pressure cannot release itself. To ensure a safe product in any situation, the Cafemezzo is executed with three individual safety valves. The safety valves are all located in the pad holder. The pictures on page 19 indicate the location of the three safety valves.

When the crema maker is clogged by for example loose coffee grind, the appliance will expel the steam through the three safety valves. You will recognize this, because of a whistling sound and steam expelling from different places under the lid.

Please remove the appliance from its base or remove the plug from its socket. The appliance will cool down and the steam pressure extinguishes. When the pressure is gone, you can open the appliance and clean the crema maker as described on page 22 and 23.

Caution: the appliance has a safety lock. The safety lock will only release and therewith the machine can only be opened after all the steam pressure has extinguished.

4 | OPENING AND CLOSING

Take note of the following pictures for easy opening and closing your coffeepadmachine.

Pull the locking lever towards you. Push the locking lever down to unlock it completely.

Now open the lid and push it straight up. A hard click indicates that you have opened the lid completely. The lid will now stay open without you having to hold it. You can now easily fill the coffeepadmachine under the tap.

To close the coffeepadmachine, push the lid downwards. Lock the lid by pushing the locking lever downwards. Make sure the snap of the locking lever is engaged correctly. Now push the locking lever towards the coffeepadmachine to lock the lid completely. Attention! Check whether the lid is properly locked. Otherwise steam can escape through the lid.

See the pictures below how NOT to close the lid.

5 | MAKING COFFEE

WARNING! Throw away the very first cup of coffee. It may contain residue from the productionprocess.

Take the coffeepadmachine from the base and place it on a stable surface.

Open the lid. When you open the lid completely you will hear a click!

Take the multi-padholder out of the coffeepadmachine.

Fill the coffeepadmachine slowly under the tap with cold water. Check the waterlevel in the reservoir. Put, if necessary, extra water in. until mark = 125ml for 1 cup until mark = 250ml for 2 cups or a large mug or as much as you wish - max. 250 ml

Turn the switch on the bottom of the padholder to the number of cups you wish to make.

For 2 cups turn the switch to the left (locked). For 1 cup turn the switch loose to the right. An opening in the knob will show you which position the padholder has.

Place 1 coffeepad for 1 cup with the round side downwards in the multi-padholder or 2 coffeepads for 2 cups. Do not use holders for grounded coffee or tea.

Place the multi-padholder in the coffeepadmachine.

Close the lid and lock it tight.
WARNING! Check if the lid is properly locked. Otherwise steam can escape through the lid.

achine on the base and plug it into a socket. Press it on with the On-button. The controllight will light up.

Place 1 or 2 cups on the grid under the coffee-outlet, depending on the numbers of pads you have placed in the multi-padholder.

The coffeepadmachine will now heat up the water. When it is ready, it will make the coffee. This works automatically and cannot be stopped. Unless the coffeepadmachine is taken from the base or unplugged. ATTENTION! Pressure is build up in the appliance. Therefore leave the appliance to cool down completely before opening in case of a malfunction.

As soon as the coffee making is finished, the coffeepadmachine will automatically shut off. Attention! Rinse the pad holder after each cup of coffee you make before you make another cup of coffee.

In this coffeepadmachine it is also possible to use not only the regular coffeepads, but also regular teapads. With the multi-padholder you can also choose 1 or 2 teapads. If you wish to make tea with this coffeepadmachine, we advise to remove the cremamaker from the multi-padholder and rinse the multi-padholder with warm water. If you don't do this, you will get foam on your tea.

After using pads which contain milk(powder), for instance cappuccino-pads, you must thoroughly clean the cremamaker to prevent clogging.

Because of its low voltage of 800 Watts and compact shape, this coffeepadmachine is extremely suited to take along on a holiday.

When something unexpected happens while making coffee (e.g. because the pads are not placed correctly), take the coffeepadmachine of the base and the device will immediately shut off. Attention: if you place the device back on the base it will restart. You can leave the appliance on the base because the light will automatically go out. You can also place the device next to the base until the next use.

6 | PROBLEMS & SOLUTIONS

When a problem occurs with the coffeepadmachine, read the following instructions for a solution.

Attention! Pressure is build up in the appliance. Therefore leave the appliance to cool down completely before opening in case of a malfunction.

Problem

Steam comes through the rim of the lid.

Causes

1. The lid is not properly locked.

2. The pads are not placed correctly.

3. The cremamaker is clogged.

Solutions

Take the appliance from the base and leave it to cool down. ATTENTION! Pressure is build up in the appliance. Therefore leave the appliance to cool down completely before opening in case of a malfunction. After cooling, open the lid, refill the water and if necessary replace a pad. Check the cremamaker for obstructions. Pierce the holes in the cremamaker with a needle. For extended instructions read the chapter CLEANING & MAINTENANCE. Lock the lid properly. Read chapter MAKING COFFEE for more instructions.

Problem

No crema (foam) on the coffee.

Causes

1. The cremamaker is not placed on the multi-padholder.

2. The cremamaker is clogged.

Solutions

1. Place the cremamaker on the multi-padholder.

2. Check the cremamaker for obstructions. Pierce the holes in the cremamaker with a needle. For extended instructions read the chapter CLEANING & MAINTENANCE.

Problem

The coffeepadmachine doesn’t work.

Causes

1. The appliance is not plugged in.

2. The appliance is not placed correctly on the base.

3. The fuse in the fuse box has blown.

Solutions

1. Plug the appliance in.

2. Place the appliance correctly on the base.

3. Check the fuses in the fuse box.

Problem

Too small amount of coffee.

Causes

The reservoir was not filled with enough water.

Solutions

Fill the reservoir slowly with water. Because of the divided reservoir the water will sink slowly to the bottom of the reservoir. Therefore wait after the first time you have filled the reservoir and always check a second time that the reservoir is filled with sufficient water for the number of cups you want to make. Fill, if necessary, the reservoir with the needed amount of water.

If your problem is not solved, please contact our technical department or return the coffeepadmachine to your supplier.

7 | CLEANING & MAINTENANCE

We advise to clean the coffeepadmachine on a regular bases. Regular cleaning will prolong the life of your appliance and will guarantee optimal brewing results.

Please do as follows:

Check before cleaning if the appliance is unplugged.

Clean the outside of the appliance with only a damp cloth and dry it with a dry cloth.
Take the coffeepadmachine from the base.
Open the lid and take the multipadholder and if necessary the waterlevelindicator (see: picture) out of the coffeepadmachine.

Take the grid from the driptray and remove the driptray from the base. Clean the multi-padholder, the grid, the driptray with warm water and some washing up liquid. These parts can also be cleaned in the dishwasher.

To prevent the cremamaker on the multi-padholder from getting clogged, pierce the holes regularly with a needle.

Twist the coffee outlet left and remove it from the multi-padholder. Remove the cremamaker from the multi-padholder.

On the back of the cremamaker you will see two small holes () which you can pierce with a needle. See the pictures. Place the cremamaker with the nodge on top back into the multi-padholder. Place and twist the coffee outlet back onto the multi-padholder.

After using pads which contain milk(powder), for instance cappuccino-pads, you must thoroughly clean the cremamaker to prevent clogging.

Make sure that all the separate parts are dry before use. Place the parts back in the coffeepadmachine and on the base.

Never use any abrasives for cleaning the appliance and the parts. Never immerse any part of the main body, the base, power cord and plug in water or any other liquid to protect against electrical hazards.

DESCALING

We advise to descale your coffeepadmachine on a regular bases. The period depends on the condition of your water and the frequency of use. We advise to descale the coffeepadmachine approx. every three months. You can use a special descalingproduct for coffeemachines.

When you use a descalingproduct especially for coffeemachines, you will have to follow the instructions on the package of the descalingproduct accordingly.

• Fill the waterreservoir of the coffeepadmachine according the instructions on the package of the descalingproduct and leave it to soak for 5 minutes.
• Place if necessary a new or used coffeepad in the multipadholder with the bulging side down and press it lightly. The coffeepadmachine will be better descaled when you do this and it cannot be clogged with descendingbits.
• Close and lock the lid properly.
• Place the coffeepadmachine on the base and press it on with the On-button.
• Place a large mug or bowl under the coffee-outlet to hold the descalingmixture.
• The coffeepadmachine will now heat up and and the descalingmixture will flow through the machine out of the outlet.
• The coffeepadmachine will automatically shut off when the waterreservoir is empty.
  After the descending you will have to rinse the machine upto 3 times with 250ml of fresh cold water to make sure that there is no descalingproduct left behind in the coffeepadmachine to avoid a bad taste to the coffee.

Attention! If you haven't used the coffeepadmachine for a while, for instance if you have been away on a holiday, you should remove all the separate parts for cleaning and rinse the coffeepadmachine with fresh water. Place the cleaned parts in the machine. This prevents an additional taste.

GARANTIE & SERVICE

• This product is guaranteed for a period of 2 years from the date of purchase against mechanical and electrical defect.
• Guarantee can only be given if proof of purchase (e.g. till receipt) can be shown. Therefore keep it in a safe place. The guarantee period starts at date of purchase.

• Guarantee is not valid in case of:

• normal wear;

• damage through misuse use or when the instructions were not followed correctly;
• lack of maintenance;
• not following the operation- and safety instructions;
• incompetent montage or repairs made by yourself or others;
• using accessories and spare parts which are not suitable for the appliance; for assessment by our technical department.

The guarantee is not valid for:

normal wear;
external cables;
- (interchangeable) signal- and controllamps for assessment by our technical department.

Return to your supplier of send the appliance, including a copy proof of purchase and description of the complaint, stamped to:

Inventum Holland BV

new E.T.P. bvba

Generatorstraat 17

Passstraat 121

3903 LH VEENENDAAL

9100 Sint Niklaas

THE NETHERLANDS

BELGIUM

AVC Service GmbH

Hohenstrasse 24

70736 Fellbach

GERMANY

• Pack it carefully (preferably in the original carton).
  Ensure unit is clean.
• Enclose your name and address and quote model number on all correspondence.

When the guarantee is no longer valid or when the period of guarantee has passed, we will charge any costs that flow out of an assessment and/or repairing.

On request we will supply a statement before repairing. Without requesting a statement, we assume that you, by sending the appliance, automatically order to repair the appliance.

A guarantee period of two months is valid for repairs done by our technical department and the used spare parts, counting from the repairdate. When a malfunction occurs within this period which directly flows out of the repairs and the used spare parts, the consumer has the right of repairs without any costs.

Inventum Holland BV
