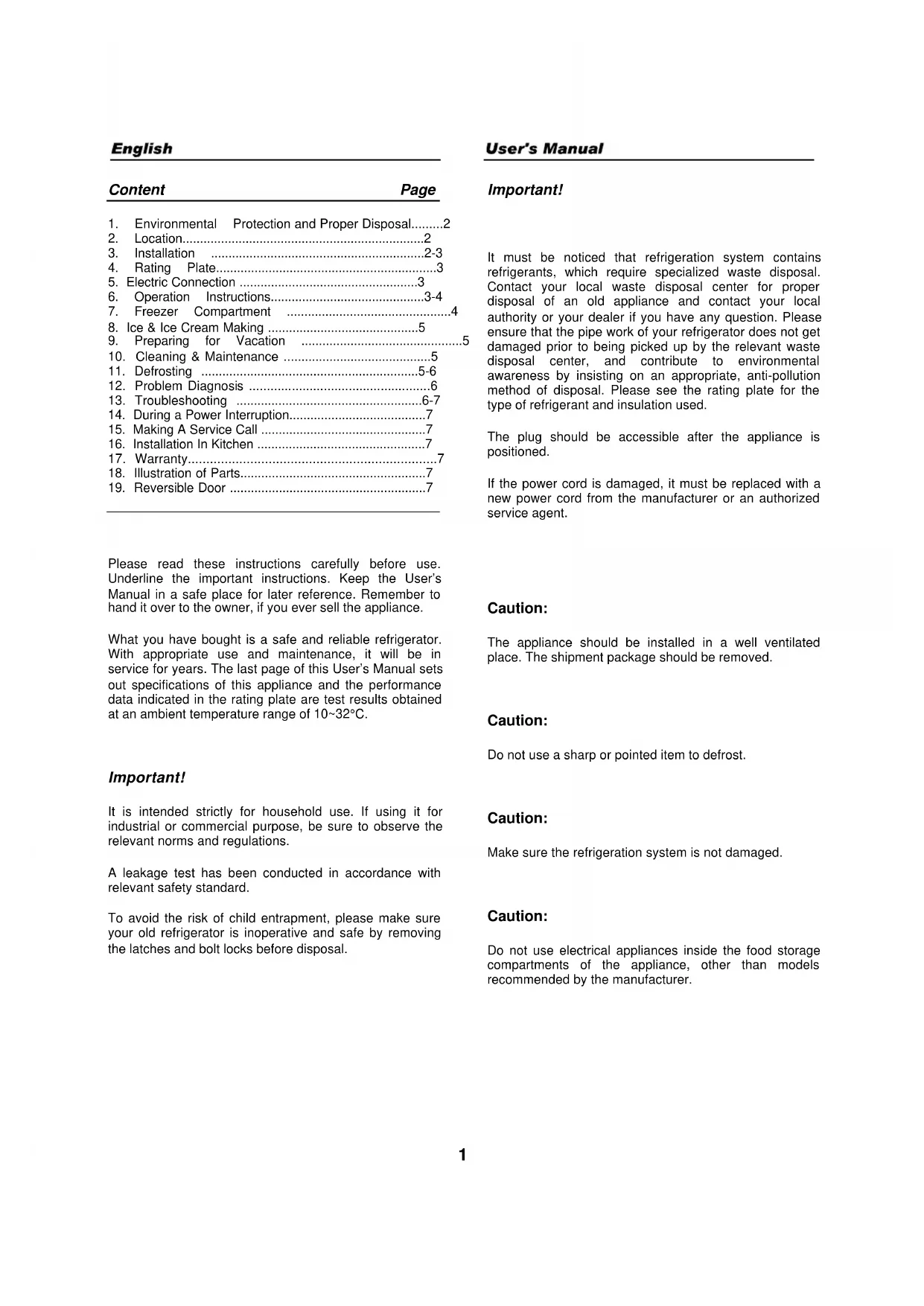

1. Environmental Protection and Proper Disposal2

7. Freezer Compartment 4

8. Ice & Ice Cream Making 5

9. Preparing for Vacation 5

14. During a Power Interruption7

19. Reversible Door 7

Please read these instructions carefully before use.

Underline the important instructions. Keep the User’s

Manual in a safe place for later reference. Remember to

hand it over to the owner, if you ever sell the appliance.

What you have bought is a safe and reliable refrigerator.

With appropriate use and maintenance, it will be in

service for years. The last page of this User’s Manual sets

out specifications of this appliance and the performance

data indicated in the rating plate are test results obtained

at an ambient temperature range of 10~32°C.

It is intended strictly for household use. If using it for

industrial or commercial purpose, be sure to observe the

relevant norms and regulations.

A leakage test has been conducted in accordance with

relevant safety standard.

To avoid the risk of child entrapment, please make sure

your old refrigerator is inoperative and safe by removing

the latches and bolt locks before disposal.

It must be noticed that refrigeration system contains

refrigerants, which require specialized waste disposal.

Contact your local waste disposal center for proper

disposal of an old appliance and contact your local

authority or your dealer if you have any question. Please

ensure that the pipe work of your refrigerator does not get

damaged prior to being picked up by the relevant waste

disposal center, and contribute to environmental

awareness by insisting on an appropriate, anti-pollution

method of disposal. Please see the rating plate for the

type of refrigerant and insulation used.

The plug should be accessible after the appliance is

If the power cord is damaged, it must be replaced with a

new power cord from the manufacturer or an authorized

The appliance should be installed in a well ventilated

place. The shipment package should be removed.

Do not use a sharp or pointed item to defrost.

Make sure the refrigeration system is not damaged.

Do not use electrical appliances inside the food storage

compartments of the appliance, other than models

recommended by the manufacturer.2

This User’s Manual is applicable to a variety of

models and there may be slight changes in certain

aspects from model to model.

1. Environmental Protection and

The appliance is packaged in a way to prevent damages

during transportation. Recyclable materials are used.

The packing box is made of corrugated board / cardboard

(mainly from recycled paper).

y Polystyrene parts (CFC-free foamed polystyrene)

y Linings and polyethylene bags

y Polypropylene straps

All these valuable materials may be taken to a waste

collecting center and used again after adequate recycling.

All waste materials should be disposed properly.

Make sure the refrigerator is kept upright during handling.

If an inclination is required, it should not exceed 45

degrees. Otherwise the appliance may get damaged

resulting not only in compromised refrigeration

To avoid product damage or personal injury, the

refrigerator should be unpacked by two persons after it is

located in a previously selected position.

Before installation, make sure the refrigerator has no

visible exterior damage.

When handling the refrigerator, do not lift it by holding the

worktop, to prevent any damage to the refrigerator.

Do not start up a refrigerator that is damaged.

Check the refrigerator carefully for:

y Damaged package due to inappropriate handling

during transportation

y Damage in the exterior

y Damage in power cord / plug

Any doubt, please contact Customer Service for a

thorough checkup of the appliance.

Take necessary measures to prevent leakage of

refrigerant at the start-up of refrigerator that may result in

environmental pollution.

a) Remove all package materials.

b) Remove items in the refrigerator.

c) Make sure to remove film and tape on the cabinet

d) Remove polystyrene chips (if any) around the

e) Take out accessories and literature in the refrigerator.

f) Clean the inside of the refrigerator with lukewarm

water and vinegar and then dry it with a soft cloth.

g) Use the spanners supplied to adjust the leveling leg

to ensure the refrigerator is stable.

Do not use detergents, sharp or pointed instruments

or soda-based cleansers to clean the refrigerator.

y Before installation, make sure the refrigeration system

is free of any damage.

y The refrigerator should be used for its intended

y The refrigerator should be positioned on the solid and

even floor to ensure refrigerant circulation and

refrigerating performance.

y If possible, position the refrigerator in a cool and dry

well ventilated room.

y Do not expose the refrigerator to direct sunshine and

make sure the ambient temperature is not extremely

y Keep the refrigerator from a heat source, such as

heating system, oven or cookers. Otherwise the

compressor will operate more frequently resulting in

extra power consumption.

If the refrigerator will be placed near a heat source, it is

recommended to install a thermal barrier between the

refrigerator and the heat source (asbestos is prohibited)

or maintain adequate space between the refrigerator and

the heat source as follows:

Cooker or electric stove 3 cm

Radiator or oven 30 cm

Another refrigerator 2 cm

Do not place any radiating apparatus, such as microwave

oven or roaster, on top of the refrigerator.

Make sure the air vent is not obstructed.

Never unplug the refrigerator by pulling on the power cord.

Always grip the plug firmly and pull it straight out from the

After the refrigerator is positioned, allow it to stand still for

at least 2 hours before starting it up to ensure stable

refrigerant circulation and faultless operation.

Before starting up the refrigerator, make sure the inner

compartment is dry (especially corners).

Depending on the chemical composition, the refrigerant

may be flammable. The leak-proofness of refrigerant

circulation system is test proven. Unauthorized

intervention of the refrigerant circulation system may

Make sure the refrigerant circulation system and the

peripheral parts of compressor are not affected.

Any intervention of the refrigerating system should

be conducted only by professional personnel.

Refrigerant getting into eyes can cause serious injury. In

this case, rinse the eyes under running water and consult

an ophthalmologist without delay.

The refrigerator should be used within an appropriate

range of room temperature by its climate type.

The range of room temperature for a specific climate type

should be observed. See the rating plate for the climate

type of your appliance.

Climate type Room temperature

A rating plate is found on the side panel or back panel of

the refrigerator, indicating important technical data.

Write down these technical data.

Write down the technical data for later reference to avoid

the need for moving the refrigerator when such data are

5. Electric Connection

The refrigerator should use a properly grounded outlet

which should be checked by a qualified electrician. The

refrigerator should always be plugged into its own

individual electrical outlet which has a voltage rating and a

fuse rating in conformity with the rating plate.

In case of nonconformity, consult the local service center

or the dealer immediately.

The refrigerator should not be connected with a converter

(such as solar cell)

Do not use an extension cord.

6. Operation instructions

a) Power on the refrigerator (or power off), and

select temperature settings

y Temperature regulator (thermostat)

y Temperature regulator is used to power on/off the

refrigerator, and select temperature settings.

Turn the temperature regulator clockwise to startup the

refrigerator. (Turn to restricted position at most, or you

may break the temperature regulator).

Compressor starts operation, till interior temperature

satisfies the settings.

c). Setting temperature

In order to adjust the setting of temperature regulator of

freezer compartment, use the key supplied by the

manufacturer and turn the temperature regulator

clockwise or anticlockwise to a desired setting.4

To select a lower temperature: Turn clockwise

To select a higher temperature: Turn anticlockwise

Turn temperature regulator counterclockwise to the lowest

setting=lightest cooling;

(Turn the regulator counterclockwise to the most will

power off the refrigerator, compressor will stop)

Turn temperature regulator counterclockwise to the

highest setting=coldest setting;

Temperature setting should conform to the following

y Ambient temperature;

y Quantity of food stored;

Through observation, you’ll soon learn how to select an

appropriate temperature setting.

Appropriate temperature setting is very important for food

storing. Microbes can get food spoiled very quickly, unless

there growth is sprouted by low temperature environment.

It is recommended to set the temperature to 5°C or lower

which may effectively eliminate food spoiling process by

Turn temperature regulator counterclockwise to the most.

The compressor should stop by then.

Unplug from wall outlet.

7. Freezer compartment (not

available in some models, only

for refrigerators with 4-star

3-star or 4-star freezer are suitable for storing deep frozen

food (already frozen before added to the freezer), storing

fresh food for a short period (2-3 weeks) by freezing it, or

making ice, ice cream and water ice.

Recommended expiration date of food must be observed.

Freezer can be used to produce ice cubes.

1 Temperature within the freezer can be adjusted by

setting temperature regulator. For fresh food and

food which needs to be stored for a long period,

-18°C or below is recommended, as microbes can

barely survive under this temperature. Once

temperature is higher than -10°C, microbes will start

to cause spoiling of food, and storage period of food

will be effectively reduced. If you need to freeze food

which is already partly or totally thawed, please cook

it before adding it to the freezer again. The high

temperature of cooking process can eliminate most

2 The higher the temperature regulator is set, the

lower the temperature within the freezer will be.

3 Normally, when food requires only short period of

storage, select a medium setting.

4 Normally, when food requires a long period of

storage, select a high setting.

y Never add caned or bottled carbon dioxide drinks to

the freezer, as carbon dioxide may expand when under

freezing, and lead to explosion hazard.

y Bottled food which needs immediate cooling should be

stored in the freezer for no more than one hour before

they’re taken out, otherwise bottles may burst.

y Ice cream or water ice should be allowed several

minutes before using, as lips and tongue may get

frostbite (chap may occur in skin). Meanwhile, avoid

touching inner walls of freezer with wet hands.

y Food to be added to freezer must be well wrapped.

y Observe expiration date of frozen food.

y Only fresh food in high quality is suitable for freezing

y Food stored in freezer should be properly sized.

y Weight of a single package of frozen food should not

y Please use reusable plastic film, aluminum film for

packing food, or put food in containers.

y Food packages should not entrap too much air inside.

y Use bungee, clip, rope or freezing-resistant tape for

sealing of food package.

y Film welding device can be used to seal the plastic

y Place the wide side of food package downward to

obtain a faster freezing process.

y Wipe the packages dry before adding them to the

freezer, as they may stick together when frozen.

y If you need to freeze food which is already partly or

totally thawed, please cook it before adding it to the

y Don’t use food which is already expired, as they may

8. Making ice cubes, ice cream

and water ice (not available in

some models, only for

refrigerators with 4-star

y Add water to ice tray to 3/4 of its volume, place it at the

bottom area of the freezer. When ice cubes are ready,

flush the ice tray with running water, then, you can

easily take out the ice cubes.

y Remove separators of the ice tray. Please note the

creamier your ice cream is, the longer it will take to

make it. When ice cream is ready, flush the ice tray

with running water, then, you can easily take out the ice

9. Preparing for Vacation

For long vacation or absence, unplug the refrigerator and

clean the refrigerator as described in “Cleaning and

Maintenance”. Leave the doors open to prevent formation

10. Cleaning and Maintenance

Unplug or disconnect the appliance before cleaning.

Keep the outside clean. Use furniture polisher or finishing

conditioner to clean the outside regularly (do not use

these cleaners to clean the inside). Wipe the door

gasket with a cloth lightly dampened with lukewarm water.

No detergent is allowed. Never use oil or grease to clean

Clean the inside regularly.

y Clean the refrigerator compartment on a monthly basis

and clean the freezer compartment after a defrost

y Take out foods from refrigerator and freezer

compartments and kept these foods in a cool place.

y Remove all detachable parts.

y Interior parts are not suitable to be washed in a

dishwasher. Wash them manually using lukewarm

water and some dish detergent. Do not use

concentrated detergent, abrasive agents and

chemicals such as acids. Mild dish detergent is

Steam cleaners are dangerous and strictly prohibited.

Wash the inner compartment with lukewarm clean water

and dry with a soft cloth. It is absolutely dry after waiting

Do not destroy or remove the rating plate of the

refrigerator. It could be needed for after-sales service or

Make sure water doesn’t get into electric parts in the

If a heat exchanger, i.e. condenser, is mounted on the

back of refrigerator, dust and lint should be removed

regularly to enable efficient heat dissipation and avoid

excessive power consumption. Use a soft brush or a

duster to clean the outside of heat exchanger.

The defrost water drains away through the gutter. The

drain hole should be cleaned regularly by use of a swab

or similar instrument.

Make sure water doesn’t run down the drain hole during

cleaning. Otherwise water may spill or splash on the

ground due to evaporation.

Freezer compartment (if applicable)

The freezer compartment, intended for storage of frozen

food, doesn’t have automatic defrosting.

The freezer compartment should be defrosted regularly.

Defrost the freezer compartment whenever the thickness

of ice layer reaches 5cm.

Unplug the refrigerator before defrosting. Take out foods

from the freezer compartment and kept these foods in a

cool place. Use an ice scraper to remove the ice. To

speed up the process, place a bowl of hot water in the

freezer compartment. Clean and reload the freezer

compartment after defrosting.

POTENTIAL SAFETY HAZARD!

Do not use electrical devices such as hair dryer,

electrical fan, steam cleaner, defrost spray or open

fire (such as candle) to defrost the freezer

The plastic parts of inner compartment may get

melted and any spark or open fire may cause fire in

presence of explosive gas.

Never use a steam cleaner to defrost the freezer

compartment – danger of electric shock!)

Take out the drawer, and wrap up the frozen foods with

newspaper or blanket.

y Keep these foods in a cool place before the defrosting

process is finished.

y Keep the door of freezer compartment open.6

y Ice and frost form on the surface of evaporator during

operation. A thick layer of ice or frost acts as heat

insulation and hinders thermal conduction.

y Defrost the freezer compartment in the shortest time

possible to avoid thawing of frozen foods.

y Do not remove the ice or frost in the freezer

compartment with a sharp or pointed item. Otherwise

the evaporator surface may get damaged.

y Wipe off defrost water from time to time with sponge.

y Place a container of hot water (do not use boiling water)

near the door of freezer compartment to speed up the

y Dry the freezer compartment and place the frozen food

y Reconnect the refrigerator after defrosting.

y Start up the refrigerator by adjusting the temperature

y Close the door of freezer compartment.

12. Problem Diagnosis

The latest manufacture techniques and state-of-the-art

refrigeration and freezing technology are adopted to

ensure safe and reliable operation of your appliance. In

doubt of fault, make sure to check first as described below

before making a service call:

The compressor (also known as refrigerating unit) doesn’t

operate all the time without stop.

The compressor is controlled by the automatic

temperature regulator represented by a temperature dial.

When the interior temperature exceeds the preset

temperature, the compressor starts automatically and

when the interior temperature falls below the present

temperature, the compressor stops automatically.

It’s normal that compressor makes noise during operation.

The noise comes from the motor. The flow of refrigerant

through the refrigerating system may make a gurgling

noise. These noises don’t mean a fault of the refrigerator.

The exterior surface may be wet when it’s cold and the

ambient temperature is low. It’s normal and the exterior

surface will become dry as the ambient temperature rises.

If the reasons of such phenomena can’t be identified and

solved, please consult the service center.

a) Problem: Refrigerator does not operate (does not

y Is the power cord in good condition? Is the refrigerator

properly plugged in the outlet?

y Is there a power interruption? (Use a small appliance to

check out, e.g. agitator or hair dryer)

y Is the refrigerator started up? (The temperature dial

should not be set at “0”.)

y Is the fuse broken? Or in poor contact?

b) Problem: The inner compartment is not cool

enough; the compressor cycles on and off

y The refrigerator/freezer compartment should stand still

for at least 2 hours after installation to stabilize the

refrigerant circulation system. See “Start-up”. If it

doesn’t work, unplug the refrigerator and tilt the

refrigerator to one side for a while or place it on an

inclined plane and then place it to the original position.

Connect the refrigerator after 2 hours. Keep the door(s)

closed for 12 hours.

y Is the door properly closed? If so, the door gasket

should press on the external cabinet securely and

Test: It should be difficult to pull out a piece of paper

caught up between the door gasket and the external

If the paper slips away easily, consult the service

y If there is thick ice in the freezer compartment. (See

“Cleaning and Maintenance”)

y Is the refrigerator exposed to direct sunshine or near a

heat source (oven, radiator, etc.)?

What to do: Do not expose the refrigerator to direct

sunshine; keep the refrigerator away from any heat

source; install a thermal barrier between the

refrigerator and the heat source (see “Location”).

y Is the inner compartment overloaded?

y Is the room well ventilated? Is the air vent obstructed?

Is the heat exchanger (condenser) on the back

c) The temperature of refrigerator compartment is

y Is the temperature regulator properly set?

y Is the door of freezer compartment properly closed?

y Is there a lot of fresh food (more than 1kg) in the

freezer compartment? (If the freezer compartment

operates for long periods, the temperature of

refrigerator compartment falls accordingly.)

d) The freezer compartment is too warm and frozen

y Is the ambient temperature too low? (If so, the

refrigerating unit will malfunction, resulting in higher

temperatures in the freezer compartment.)

What to do: Raise the ambient temperature.7

e) There is thick ice in the freezer compartment.

y Is the door of freezer compartment properly closed?

y If some food gets frozen to the inner walls, try to

remove it with a blunt instrument such as a spoon

y Defrost and clean the freezer compartment (see

“Defrosting”). A thick ice layer will impede refrigeration

performance and increase power consumption.

y Is the refrigerator solidly positioned? Is the refrigerator

rubbing against other furniture or items? Is there

anything stuck between the back of refrigerator and the

y Move the items in contact with the refrigerator out of

way and keep adequate space between the refrigerator

and the surroundings.

y Is the movable parts securely retained in place?

y Are bottles or containers in the inner compartment

rubbing against each other?

It’s normal that there is noise of refrigerant flowing

through the refrigerating system.

It’s normal that moisture forms around the door

handle in summer. Dry with a soft cloth.

The refrigerator is not user-serviceable and do not

attempt to intervene with the normal operation of the

14. During a Power Interruption

There is no need to take out the frozen foods in the

freezer compartment if the power interruption lasts no

more than 2 hours. Otherwise, take out the foods after 2

15. Making A Service Call

Servicing and repair should be conducted by authorized

professional personnel. The manufacturer is not

responsible for the risk of damages or injuries due to

failure to comply with this provision and the warranty will

The warranty and the list of service centers indicate the

authorized after-sales service providers for your

Please consult your dealer if the there is no service center

in your neighborhood.

For faults or problems caused due to improper use or

breach of the instructions contained herein, the costs and

expenses incurred in servicing and repair should be born

by the user and the dealer is not responsible for such

In order to receive prompt assistance, the following

information is necessary:

y Type and model of refrigerator (see the rating plate)

y Name and address of the dealer.

y Description of fault / problem.

16. Installation in Kitchen

If you want to place the refrigerator in the kitchen, you

should consult the relevant instructions prescribed in the

installation manual of other types of refrigerator.

The terms and conditions as well as the period of

warranty are indicated in the Letter of Warranty enclosed

hereto. The dealer will brief you of the same upon

The manufacturer reserves the right to improve the

design, construction and technology from time to time

without further notice.

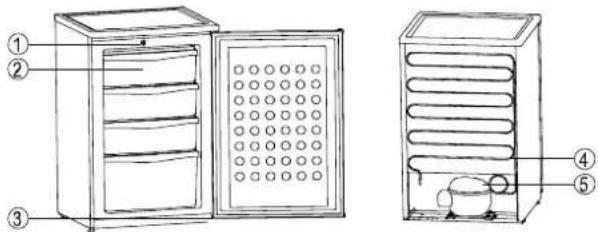

18. Illustration of Parts

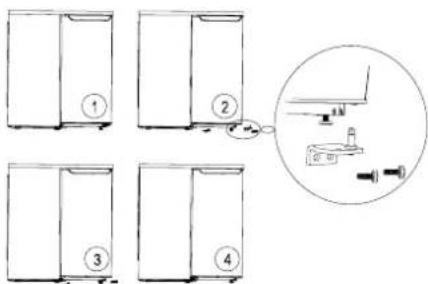

The door swing can be reversed with this refrigerator.

Take the following steps to reverse the door swing:

a. Tilt the refrigerator a little and remove the screw of

leveling leg and then the bottom hinge. Lift the

refrigerator door off.

Note: In order to prevent damage of refrigerator, do

not hold the edge of worktop with force.

b. Remove the top hinge and place it in the hole of top

hinge shaft on the other side of cabinet. Fasten the

c. Install the door.

d. Tilt the refrigerator again and fasten the bottom hinge,

screw and leveling leg.1

Radiator of oven 30 cm
