USER MANUAL LC320SLX FUNAI

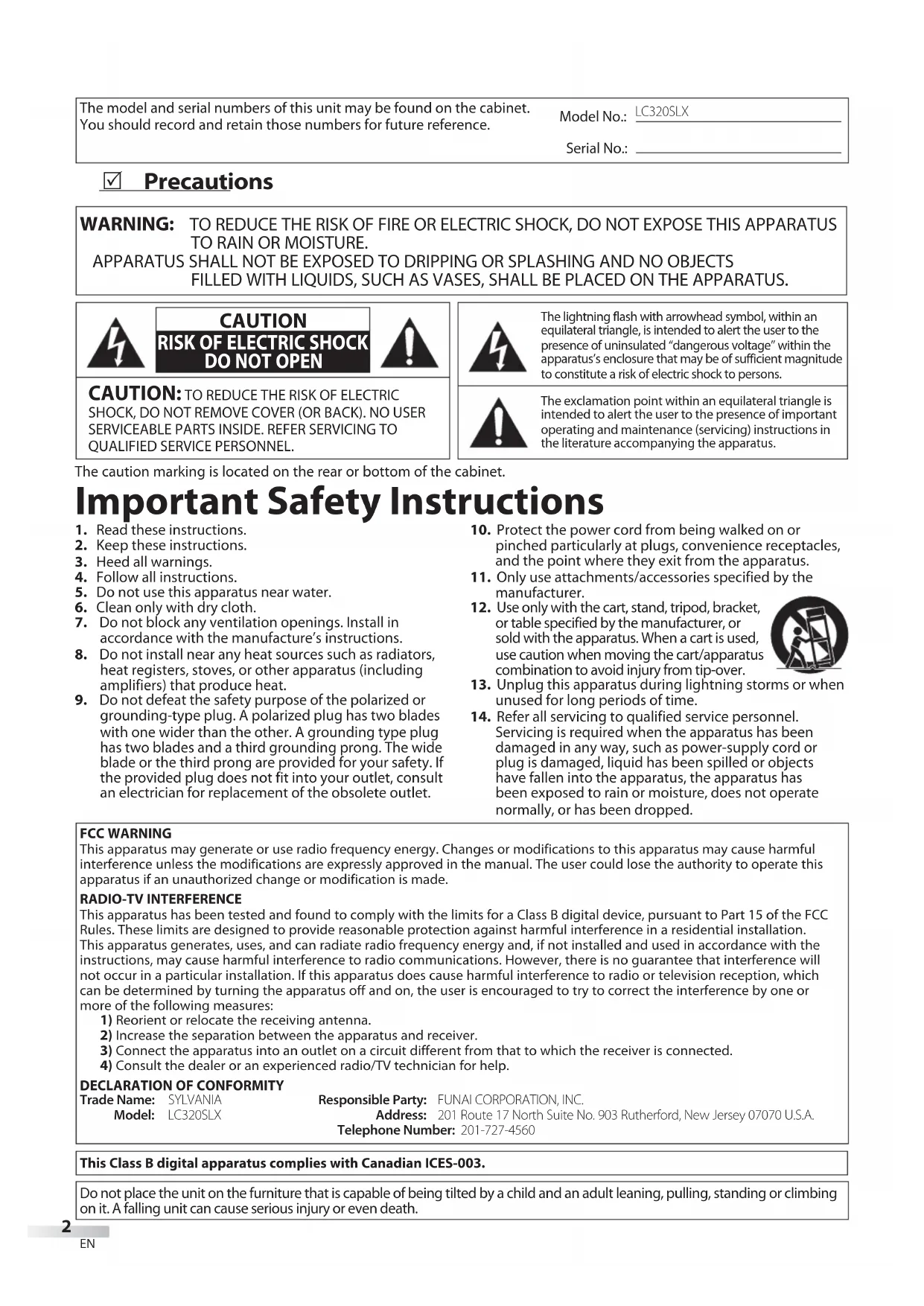

TO RAIN OR MOISTURE. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. Important Safety Instructions 1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with dry cloth.7. Do not block any ventilation openings. Install in accordance with the manufacture’s instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11. Only use attachments/accessories specified by the manufacturer.12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Precautions The model and serial numbers of this unit may be found on the cabinet.You should record and retain those numbers for future reference. Serial No.:Model No.:The caution marking is located on the rear or bottom of the cabinet.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION

FCC WARNINGThis apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.RADIO-TV INTERFERENCE This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures:1) Reorient or relocate the receiving antenna.2) Increase the separation between the apparatus and receiver.

3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.DECLARATION OF CONFORMITY

Trade Name: SYLVANIA Responsible Party: FUNAI CORPORATION, INC. Model: LC320SLX Address: 201 Route 17 North Suite No. 903 Rutherford, New Jersey 07070 U.S.A. Telephone Number: 201-727-4560This Class B digital apparatus complies with Canadian ICES-003. Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.LC320SLX3

EnglishEspañol Français CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable. LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW. This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 3.2 inches (8cm) or more around this apparatus. TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the AC power cord with wet hands.

• Do not remove this unit’s cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to this unit. For service and adjustment inside the cabinet, call a qualified dealer or an authorized service center.

• Do not pull on the AC power cord when disconnecting it from an AC outlet. Grasp it by the plug.

• Do not put your fingers or objects into the unit.

LOCATION AND HANDLING

• The openings should not be blocked by placing the unit on a bed, sofa, carpet, rug, or other similar surface.

• Do not install the unit near or over a radiator or heat register.

• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.

• Avoid a place with drastic temperature changes.

• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit. Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit.

• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.

NOTE ABOUT RECYCLING

• This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

• Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

WHEN CARRYING THIS UNIT

• At least two people are required when carrying this unit.

• Make sure to hold the upper and bottom frames of the unit firmly as illustrated. WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the instructions. Trademark Information

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• Products that have earned ENERGY STAR® are designed to protect the environment through superior energy efficiency.4

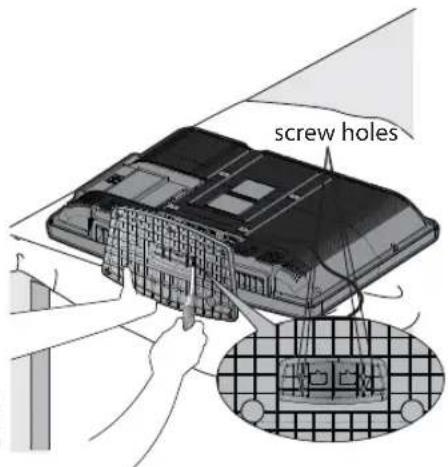

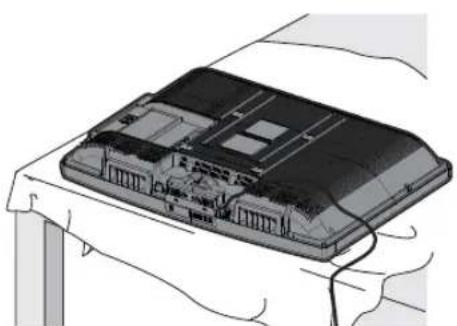

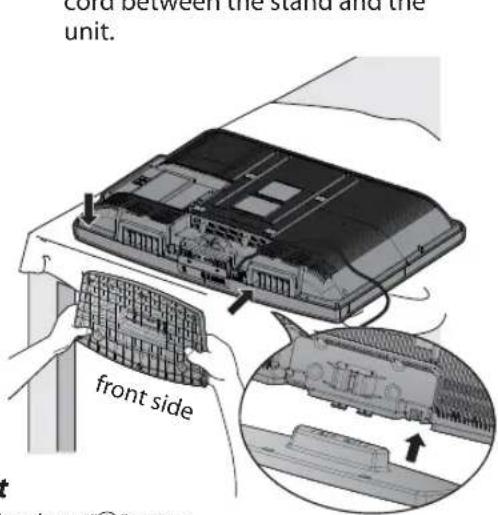

NTRODUCTION Supplied Accessories Attaching the Stand You must attach the stand to the unit to have it as a table top unit. Be sure the front and rear of the stand match the proper direction.Note:

• When attaching the stand, ensure that all screws are tightly fastened. If the stand is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit. • Make sure to use a table which can support the weight of this unit and is larger than this unit. • Make sure the table is in a stable location. Spread a thick and soft cloth over a table as shown below.Place the main unit face down onto it. Make sure not to damage the screen. At least two people are required at this step. Align the 2 stand hooks with the two hooks under the bottom of the main unit (shown by arrow ), then slide the stand in the direction as shown by arrow until it stops and the 4 mounting holes are aligned.Make sure not to put the AC power cord between the stand and the unit. Drive Phillips pan screws in the 4 threaded holes at the bottom of the stand until they are tight.To remove the stand from this unitUnscrew the Phillips pan screws indicated by above “ ” screw holes. After the screws are removed pull the stand up toward the rear of the unit. Be careful not to drop the stand when you remove it.• If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual. AAA AAA owner’s manual(1EMN24299A)quick start guide(1EMN24639)remote control(NH000UD)batteries(AAA x 2)registration card(1EMN24700)screw kit for attaching the stand(1ESA19881) front side

Symbols Used in this Manual The following is the description for the symbols used in this manual. Description refers to:

: Analog TV operation DTV : Digital TV operation• If neither symbol appears under the function heading, operation is applicable to both.5

INTRODUCTION PREPARATION WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION EnglishEspañol Français Features

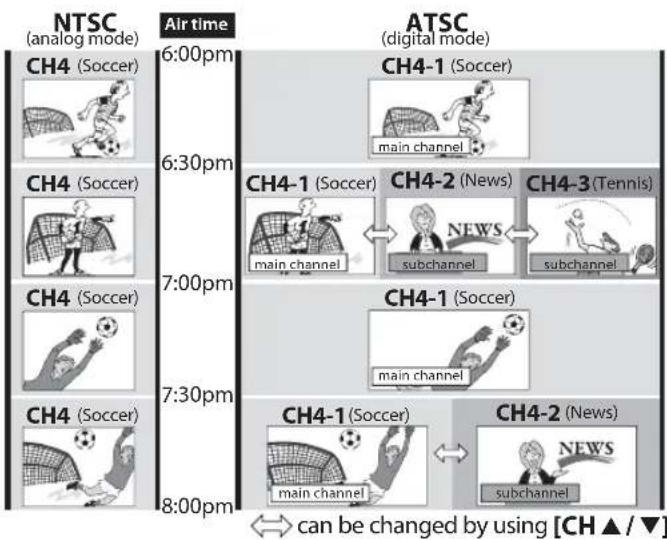

• DTV/TV/CATV - You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels.

• Information Display (DTV only) - You can display the title, contents and other information of the current DTV program on the TV screen.

• Autoscan - This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures.

• Child Lock - This feature allows you to block children’s access to inappropriate programs.

• Closed Caption Decoder - Built-in closed caption decoder displays text for closed caption supported programs.

• MTS/SAP Tuner - Audio can be selected from the remote control.

• Auto Shut Off Function - If there is no signal input from the antenna terminal and no operation for 15 minutes, the unit will turn off automatically.

• Sleep Timer - This feature will automatically turn off the power of the unit at a specific time.

• Choices for On-screen Language - Select your on-screen language: English, Spanish or French.

• Stereo Sound Function

• PLL Frequency Synthesized Tuning - Provides free and easy channel selection and lets you tune directly to any channel using the number buttons on the remote control.

• Various Adjustment for Picture and Sound - Customizes image quality to suitable for your room and sets the sound as your preference.

• HDMI Input - When using HDMI1 Input, you can enjoy this unit as a PC monitor if your PC has DVI output terminal.

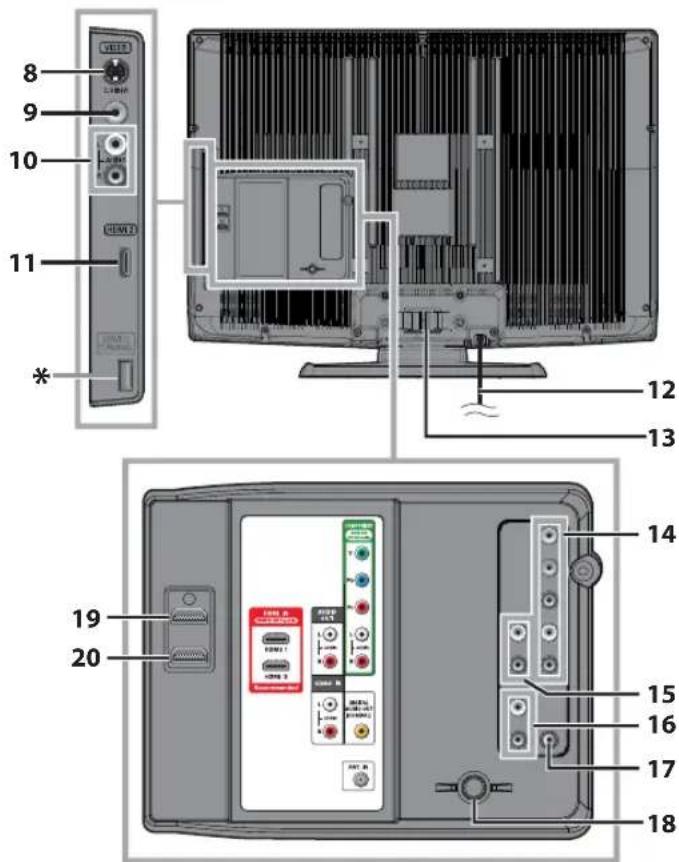

service terminal (service use only)• Use this terminal only when a software update is necessary.• User should not connect any devices to the service terminal such as digital camera, keyboard, mouse, etc. (because these will not work).• The software update is, in most cases, handled by an authorized service person or in some circumstances the user may be asked to do the software upgrade themselves. Control Panel SETUP

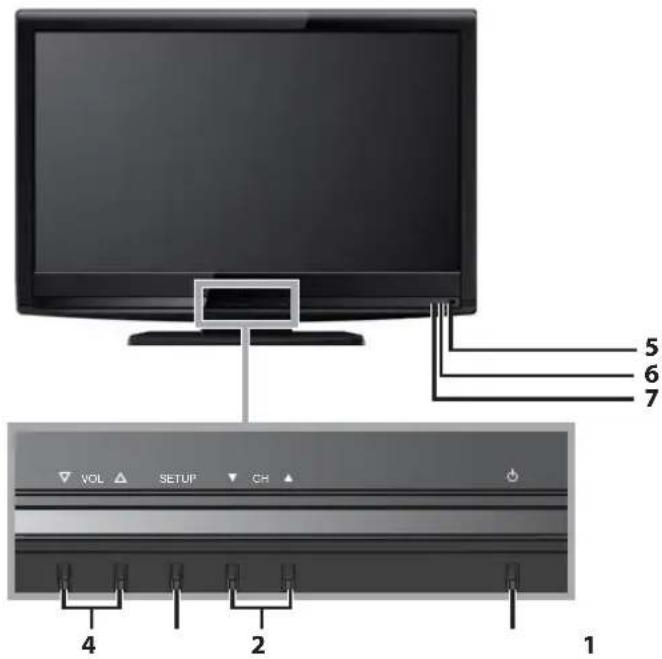

1. y (power) (p. 13)Press to turn the unit on and off.2. CH

(p. 14 / p. 15)Press to select channels or move up ( ) / down ( ) through the main menu items.3. SETUP (p. 13)Press to display the main menu.

) through the main menu items.5. Infrared sensor windowReceives infrared rays transmitted from the remote control.6. POWER ON indicatorLights up green when power is on.7. STAND BY indicatorLights up red when power is off.[Side Panel]8. S-Video Input jack (p. 10)S-Video cable connection from an external device. 9. Video Input jack (p. 11)RCA video cable connection from an external device.10. Audio Input jack (p. 10 / p. 11)RCA audio cable connection from an external device.11. HDMI 2 Input jack (p. 8 / p. 9)HDMI connection from HDMI device.[Rear Panel]12. AC power cord (p. 12)Connect to a standard AC outlet to supply power to this unit.13. Cable management (p. 12)Use this holder to bundle the cables.

Component video and Audio Input jack (p. 8 / p. 10)RCA component video cable and RCA audio cable connection from an external device.15. Audio Output jack (p. 11) RCA audio cable connection for an external device.16. Audio Input jack for HDMI1 (p. 9 / p. 12 RCA audio cable connection from a DVI device.When you connect your PC that has a DVI terminal,use a stereo mini plug-RCA conversion cable as well.(For HDMI 1 Input jack only)17. Digital audio Output jack (p. 11)Coaxial digital cable connection for a decoder or an audio receiver.18. Antenna Input jack (p. 8) coaxial cable connection for your antenna or cable TV signal.19. HDMI 1 Input jack (p. 8 / p. 9 / p. 12)HDMI connection for HDMI or DVI device.When you connect your PC that has a DVI terminal, you can enjoy this unit as a PC monitor.20. HDMI 3 Input jack (p. 8 / p. 9)HDMI connection from HDMI device.

INTRODUCTION PREPARATION WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

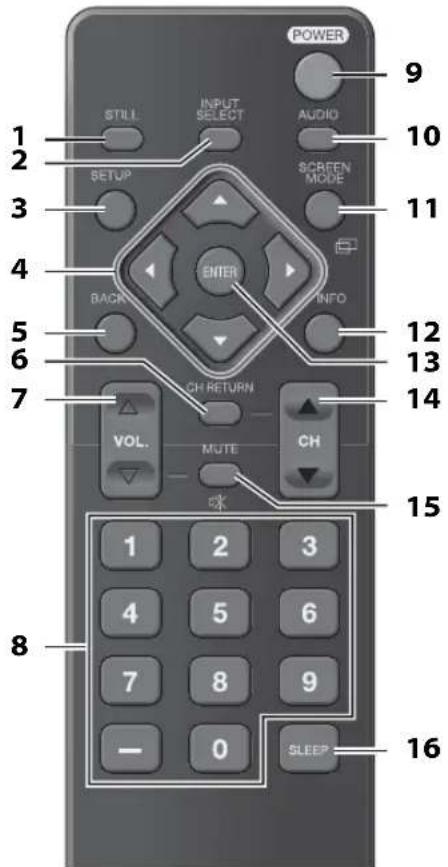

(p. 14) Press to adjust the volume.8. Number buttons (p. 14) • Press to select channels.

(hyphen) • Press to shift the subchannel from the main channel.9. POWER (p. 13) Press to turn the unit on and off.10. AUDIO (p. 15) Digital mode (DTV)• Press to select the audio language. Analog mode (TV)• Press to select the audio mode.11. SCREEN MODE (p. 17) Press to select aspect ratio available for the TV screen.12. INFO (p. 16)• Digital mode (DTV)Press to display the channel information, signal type and TV setting.• Analog mode (TV)Press to display the channel number, signal type and TV setting.• External input modePress to display the external input mode, signal type and TV setting.13. ENTER (p. 13) Press to decide the command of setting when the main menu is displayed.

s to select channels and the external input mode.15. MUTE (p. 14) Press to turn the sound on and off.16. SLEEP (p. 14) Press to activate the sleep timer.1. STILL (p. 15) Press to pause screen image. 2. INPUT SELECT (p. 15) Press to access connected external deviceslike a BD/DVD recorder.3. SETUP (p. 13) Press to display the main menu.

(cursor) (p. 13) Press to move left / right / up / down through the items.5. BACK (p. 16) Press to return to the previous menu operation.6. CH RETURN (p. 14) Press to return to previously viewed channel. Remote Control Function When using a universal remote control to operate this unit. • Make sure the component code on your universal remote control is set to our brand.Refer to the manual accompanying your remote control for more details. • We do not guarantee 100% interoperability with all universal remote controls.

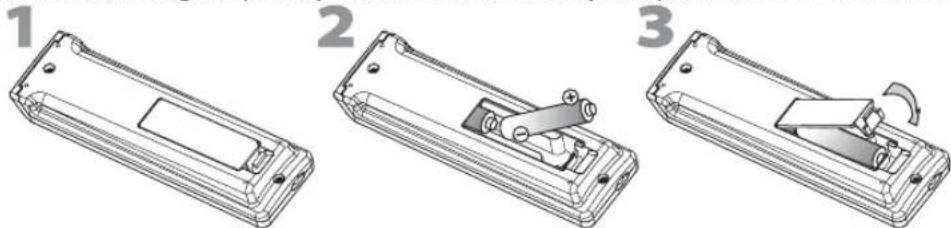

Battery Precautions:

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

• Do not mix different types of batteries together (e.g., Alkaline and Carbon-Zinc, or rechargeable batteries like ni-cad, ni-mh, etc) or old batteries with fresh ones.
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
• Do not try to recharge batteries; they can overheat and rupture. Installing the Batteries Install the batteries (AAA x 2) matching the polarity indicated inside battery compartment of the remote control.8

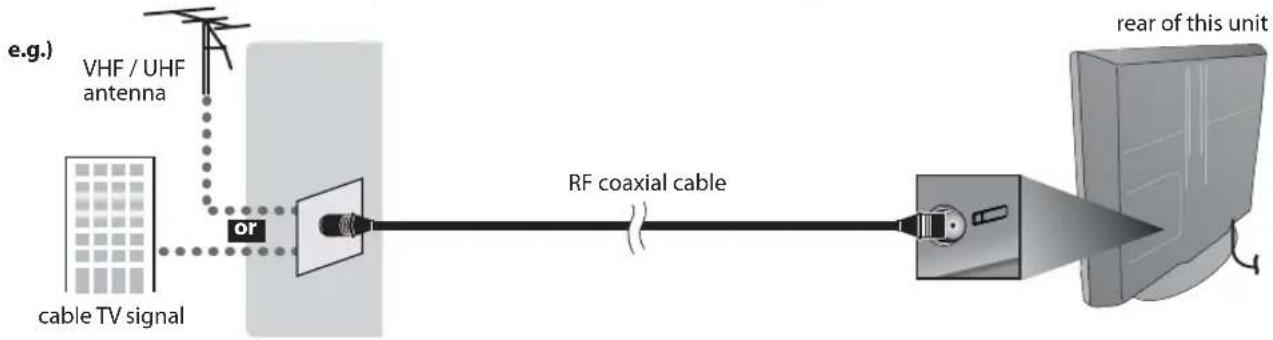

REPARATION Before you connect... Be sure your antenna or other device is connected properly before plugging in the AC power cord. Antenna Connection Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.

• Once connections are completed, turn on the unit and begin initial setup. Channel scanning is necessary for the unit to memorize all available channels in your area. Refer to “Initial Setup” on page 13. Note:
• If you have any question about the DTV’s antenna, visit www.antennaweb.org for further information.
• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters). Contact your local electronics store for these items.
• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit.

• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than settop versions.• To switch your reception source easily between antenna and cable, install an antenna selector.• If you connect to the cable system directly, contact the CATV installer. Connection to Cable Receiver or Satellite Box Use an HDMI or an RCA component video cable to connect the HDMI or the Component video Input jack of the unit to the HDMI or the component video output jack of the cable receiver / satellite box.If you connect to the unit’s Component video Input jack, connect RCA audio cables to the Audio L/R jacks below the Component video connector.COMPONENT VIDEO OUTPr/CrPb/CbYAUDIO OUT STEREO PCM

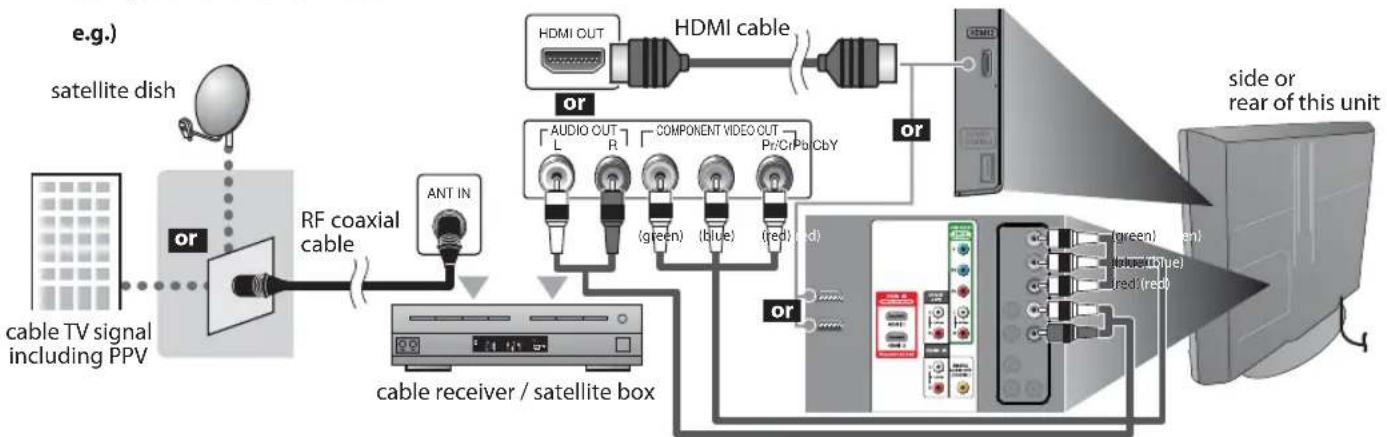

• You can also connect this unit to the cable receiver or satellite box other than the HDMI or the component video output jack because they might have different output jacks.
• Required cables and connecting methods of the cable receiver / satellite box, or the availability channel for the clear QAM may differ depending on the cable / satellite provider. For more information, please contact your cable / satellite provider. No supplied cables are used in this connection: Please purchase the necessary cables at your local store.High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.VHF / UHF antennaRF coaxial cablecable TV signalrear of this unite.g.)

satellite dish(red)(red)(blue)(blue)(green)(green)cable receiver / satellite boxcable TV signalincluding PPV side or rear of this unitHDMI cable RCA component video cable and RCA audio cableRF coaxial cablee.g.)(red)(red)(red)(blue)(blue)(blue)(green)(green)(green)(red)(blue)(green) or9

INTRODUCTION PREPARATION WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

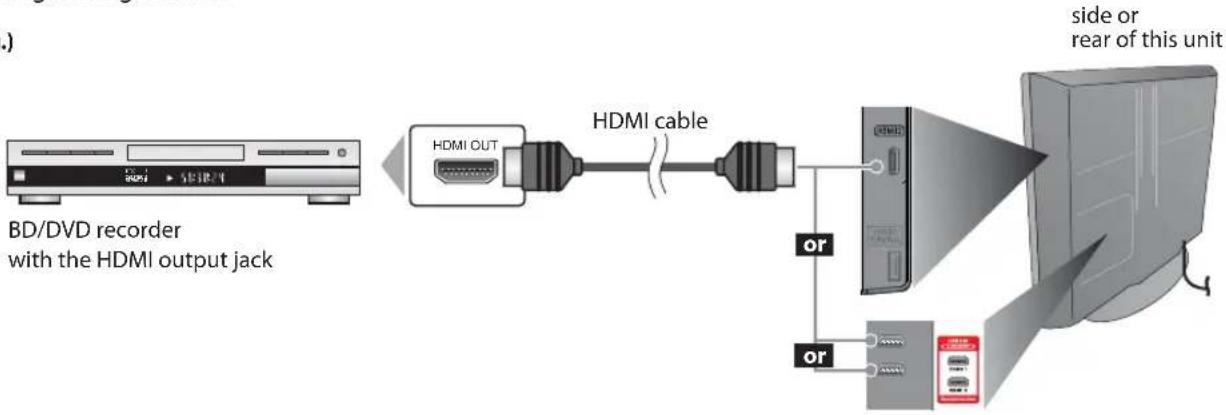

INFORMATION EnglishEspañol Français External Device Connection [HDMI Connection] HDMI connection offers the highest picture quality.HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audiothrough a single cable.e.g.)HDMI OUTCHAPTER 15REPEAT A-BTITLE 5 Note:

• This unit accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals.• This unit accepts only 2 channel audio signal (LPCM).• You need to select “PCM” for the digital audio of the device you connected or check the HDMI audio setting.There may be no audio output if you select “Bitstream”, etc.• This unit only accepts signals in compliance with EIA861. [HDMI-DVI Connection] Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack.e.g.)STEREO PCM

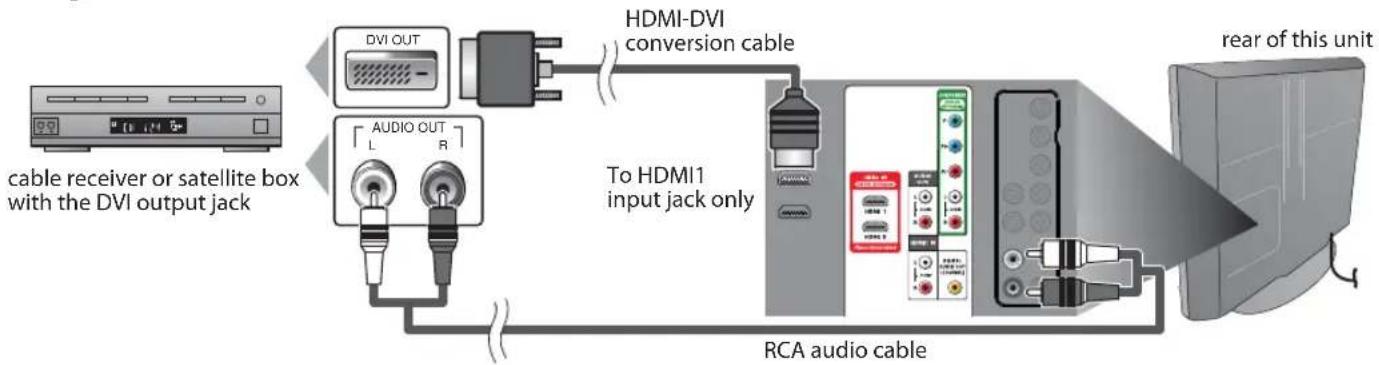

• This unit accepts 480i / 480p / 720p / 1080i video signals.• HDMI-DVI connection requires separate RCA audio connections as well.• Audio signals are converted from digital to analog for this connection.• DVI does not display 480i image that is not in compliance with EIA/CEA-861/861B. No supplied cables are used in this connection: Please purchase the necessary cables at your local store.High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.HDMI cableBD/DVD recorderwith the HDMI output jackside or rear of this unit To HDMI1input jack onlyHDMI-DVI conversion cablecable receiver or satellite box with the DVI output jackRCA audio cablerear of this unit or10

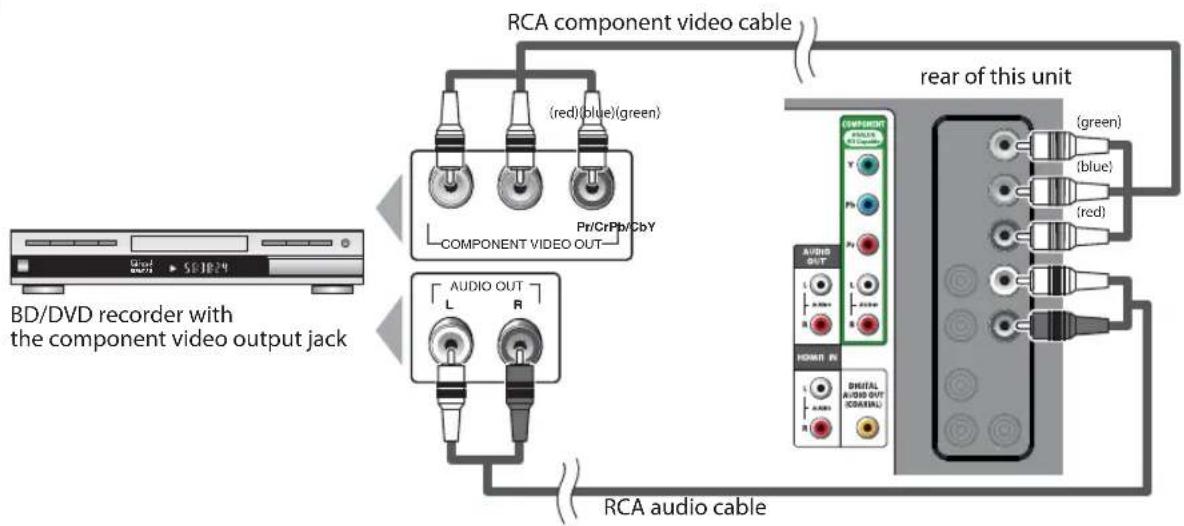

REPARATION [Component video Connection] RCA component video connection offers better picture quality for video devices connected to the unit. If you connect to the unit’s Component video Input jack, connect RCA audio cables to the Audio L/R jacks below the Component video connector. e.g.)COMPONENT VIDEO OUTPr/CrPb/CbYAUDIO OUT

CHAPTER 15REPEAT A-BTITLE 5

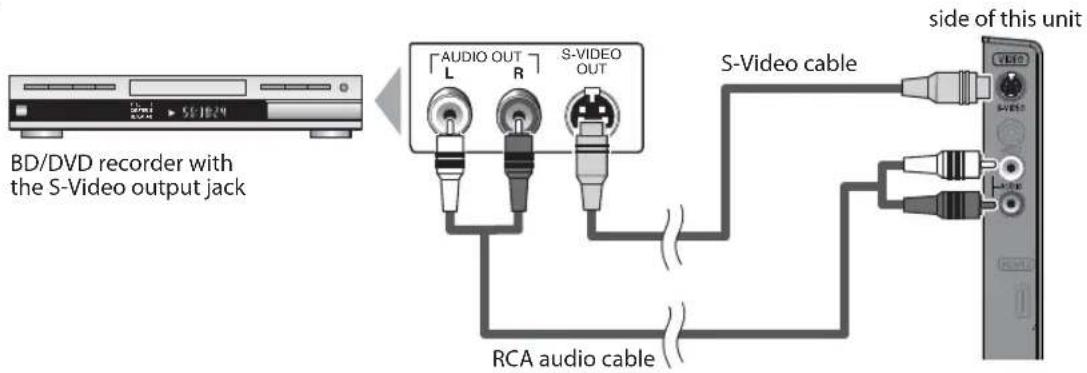

• This unit accepts 480i / 480p / 720p / 1080i video signals. [S-Video Connection] S-Video connection offers good picture quality for video devices connected to the unit. If you connect to the unit’s S-Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Video connector. e.g.)CHAPTER 15REPEAT A-BTITLE 5AUDIO OUT S-VIDEO OUT Note:

• If you connect to the S-Video Input jack and the Video Input jack at the same time, the S-Video connection will have priority. No supplied cables are used in this connection: Please purchase the necessary cables at your local store. (red)(blue)(green)BD/DVD recorder withthe component video output jackRCA component video cableRCA audio cablerear of this unit(green)(blue)(red)BD/DVD recorder withthe S-Video output jackS-Video cableRCA audio cableside of this unit11

INTRODUCTION PREPARATION WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

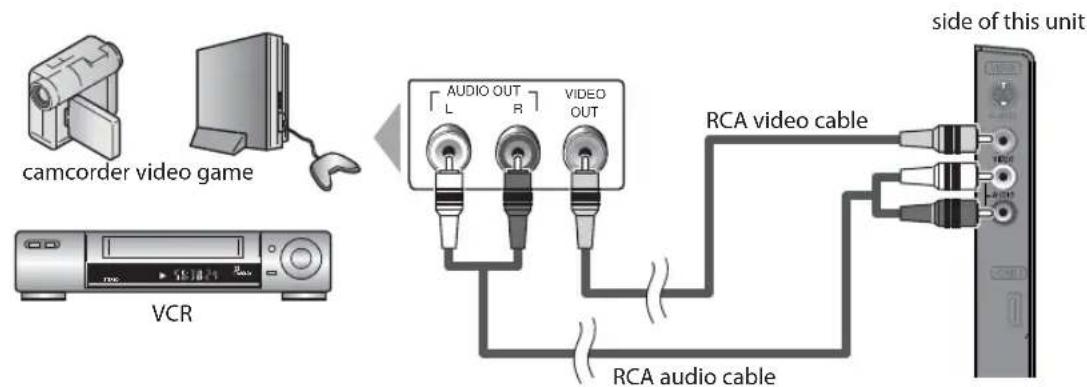

INFORMATION EnglishEspañol Français [Video Connection] RCA video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit’s Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Video connector. When the audio jack of the video device is monaural, connect an RCA audio cable to the Audio L Input jack. e.g.) AUDIO OUT VIDEO OUT STEREOSTAND-BY Note:

• If you connect to the S-Video Input jack and the Video Input jack at the same time, the S-Video connection will have priority. [Audio Output Connection] Digital (for digital broadcasting only) If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound. Use a digital audio coaxial cable to connect the unit to external digital audio devices. Analog (for both analog and digital broadcasting) If you connect this unit to an external analog audio device, you can enjoy stereo (2-channel) audio. Use an RCA audio cable to connect the unit to external analog audio devices. e.g.)DIGITAL AUDIO COAXIAL INAUDIO IN

No supplied cables are used in this connection: Please purchase the necessary cables at your local store. camcorder video game VCR RCA video cableRCA audio cableside of this unitDolby Digital decoderdigital audio coaxial cablerear of this unitstereo system RCA audio cable12

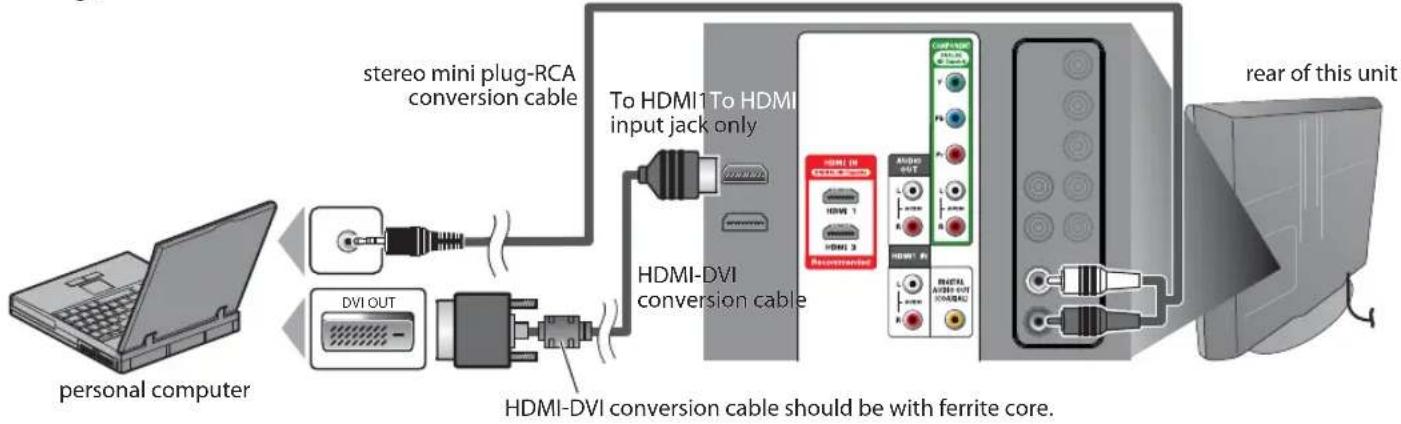

REPARATION [PC Connection] This unit can be connected to your PC that has a DVI terminal.Use an HDMI-DVI conversion cable for this connection and it requires stereo mini plug-RCA conversion cable as well. If you connect this unit to your PC, you can use this unit as a PC monitor.e.g.)DVI OUTThe following signals can be displayed:Format Resolution Refresh rate Format Resolution Refresh rateVGA 640 x 480 60Hz WXGA 1,280 x 768 60HzSVGA 800 x 600 60Hz1,360 x 768 60HzXGA 1,024 x 768 60HzOther formats or non-standard signals will not be displayed correctly. Note:

• Please purchase the HDMI-DVI conversion cable that has a ferrite core. • The following operations may reduce noise.- Attach a ferrite core to the AC power cord of your PC.- Unplug the AC power cord and use the built-in battery of your PC. Cable Management Keep the cables through this holder to avoid tangle them. Plug In the AC Power Cord Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are completed. Caution:

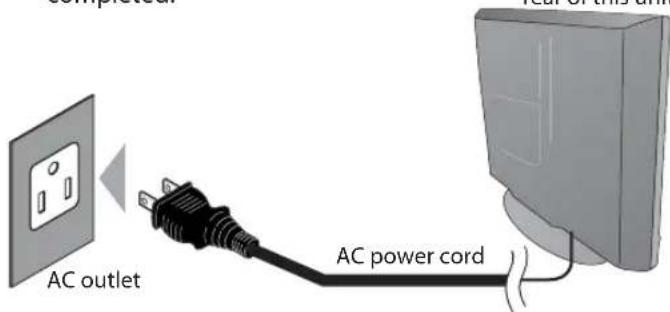

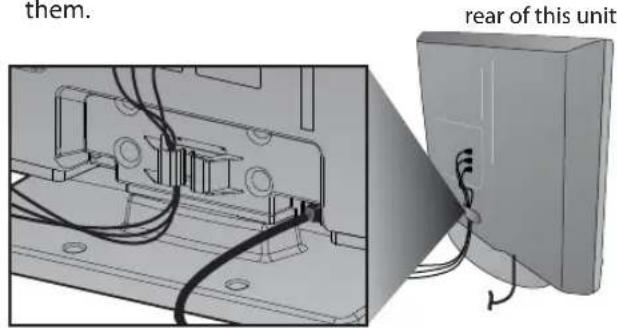

• Do not connect the AC power cord to a power supply outside the indicated voltage of this unit (AC 120V).Connecting the AC power cord to a power supply outside of this range may result in fire or electrical shocks. Note:
• Each time you plugged in the AC power cord, any operations will not be performed for a few seconds. This is not a malfunction. No supplied cables are used in this connection: Please purchase the necessary cables at your local store.rear of this unitrear of this unitAC power cordAC outletTo HDMI1To HDMI1input jack onlyinput jack onlystereo mini plug-RCA conversion cableHDMI-DVI HDMI-DVI conversion cableconversion cablerear of this unitTo HDMI1input jack onlyHDMI-DVI conversion cable should be with ferrite core.HDMI-DVI conversion cablepersonal computer13

INTRODUCTION PREPARATION WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION EnglishEspañol Français Initial Setup This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu and autoscan, which automatically scans and memorizes viewable channels.Before you begin:Make sure the unit is connected to antenna or cable. After making all the necessary connections,press [POWER] to turn on the unit.

• This operation may take a few moments. Use [Cursor

] to select the on-screen language from the choices on the right side of the TV screen. (English / Español / Français)

] to select “Antenna” for TV channels or “Cable” for CATV channels, then press [ENTER].

Initial SetupInitial SetupAntennaCable Skip Select Skip SETUPBACK BackEnter ENTER Cable Antenna

Make sure the antenna is connected to“ANT. IN” jack. Select the destination of “ANT. IN” jack. ANT.IN

• “Autoscan” will begin. Initial SetupInitial Setup Now the system is scanning for channels,please wait. Autoscan will take up to 20 minutes to complete. Skip SETUP

] to select the desired location setting, then press [ENTER]. Initial SetupInitial Setup HomeRetail Select “Retail” or “Home” for your location.Select Enter ENTER

• Select ”Retail”, the unit will be set up with predefined setting for retail displays. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification.• Select ”Home”, the unit is set to maximize the energy efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference.• When the initial setup is completed, the lowest memorized channel with the confirmation message of the location setting will be displayed on the TV screen.Note:• If you connect the cable system directly, contact the CATV installer.
• If you press [POWER] or [SETUP] during autoscan, this setting will be canceled.• The initial autoscan function can be executed for either “Antenna” or “Cable” only once. When you change the connection (Antenna / Cable), set autoscan again. Refer to page 18.• If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, “Helpful Hints” appears. Follow the instructions listed on the TV screen.Initial SetupInitial SetupRetryLaterSelect Skip SETUP Enter ENTER No channel is registered. Try Autoscan again? Verify that you have a cable connected to the "ANT. IN" jack on the back of the TV, the channel installation process searches this connection. If you are using a cable or satellite box, please confirm the input which you have connected the box and press the “INPUT SELECT” key on the remote control to select the appropriate source input.
• You must set ”Home” in step 4. Otherwise, the settings of picture and sound quality you adjusted will not be memorized after you turn off the unit.After an initial setup is completed...• If you want to scan the channels automatically again, refer to “Autoscan” on page 18.• You can add the desired channels unmemorized by “Autoscan”. Refer to “Manual Register” on page 19.• If you want to change to another language, refer to “Language Selection” on page 20.• If you want to change the location setting, refer to “Location” on page 31.These operations are accessible by remote control. Some may also be accessible by controls on the main unit.14

ATCHING TV Channel Selection Select channels by using [CH

• To select the memorized channels, use [CH

] or [the Number buttons].• To select the non-memorized channels, use [the Number buttons].To Use [the Number buttons] - When selecting analog channel 11 DTV - When selecting digital channel 11-1Be sure to press [ ] before enteringthe subchannel number.• Press [CH RETURN] to return to the previously channel.About digital TV broadcasting: With its high definition broadcast, digital broadcasting far surpasses analog broadcasting in both its picture and sound quality. Not all digital TV broadcasts are high definition (HD). To confirm whether your watching TV program is in HD, refer to the program guide, contact your cable / satellite provider or local TV stations. NTSC (analog mode) ATSC (digital mode) 6:00pm 6:30pm 7:00pm 7:30pm 8:00pm CH4-1 (Soccer) CH4-2 (News) CH4-3 (Tennis) CH4-1 (Soccer) CH4 (Soccer) CH4 (Soccer) CH4-1 (Soccer) CH4-2 (News) CH4 (Soccer) CH4 (Soccer) CH4-1 (Soccer)Air time subchannelsubchannel main channel main channel main channel main channel subchannel What is the subchannel?By using high compression technology, digital broadcasting offers a service that enables multiple signals to send simultaneously.Therefore, you can select more than one program per main channel since digital broadcasting technology distinguishes between multiple channels broadcast by a single network.Note:• “No Signal” will appear on the TV screen after the subchannel broadcast is over.• “Audio only program“ message will appear on the TV screen, when you receive only sound signal. Volume Adjustment This section describes how to adjust the volume. The mute function, which turns the sound off and on, is also described. Use [VOL.

Volume 30 The volume bar will be displayed at the bottom of the TV screen when adjusting the volume.• The volume bar will automatically disappear in a few seconds.Press [MUTE ] to turn off and on the sound.

Mute “Mute” is displayed on the TV screen for a few seconds.Press [MUTE ] again or [VOL.

] to recover the original volume. Sleep Timer The sleep timer can be set to automatically turn off the unit after an incremental period of time. Press [SLEEP] to set the sleep timer. Sleep Off Sleep timer display appears on the TV screen. Press [SLEEP] repeatedly to change the amount of time until shut off. Sleep 120min. You can set your unit to turn off after a set period of time (from 30 to 120 minutes).• Each press of [SLEEP] will increase the time by 30 minutes.• After setup, the sleep timer display can be called up for checking by pressing [SLEEP].To cancel the sleep timerPress [SLEEP] repeatedly until “Sleep Off” is displayed on the TV screen.Note:• The sleep timer display will automatically disappear in a few seconds.• When you disconnect the unit from the AC outlet or when a power failure occurs, the sleep timer setting will be canceled. can be changed by using [CH

PREPARATION WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION EnglishEspañol Français Still Mode You can pause the image shown on the TV screen. Press [STILL] to pause the image shown on the TV screen.

Still• The sound output will not be paused.• If no signal is detected or protected signal is received during still mode, the image remains paused and the sound output will be muted.• The still function will be released after 5 minutes.To cancel still mode, press any button except [POWER]. Switching Each Input Mode You can easily switch with the remote control to the DTV (ATSC) and TV (NTSC) or to access external devices when they are connected to the unit. Press [INPUT SELECT] or [CH ] repeatedly to cycle through the input modes.

• Pressing [CH ] reverses the direction of the input modes. Switching Audio Mode This section describes how to switch the audio in the analog mode and how to switch the audio language in the digital mode.

Press [AUDIO] to display the currently selected audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel.

SAP / STEREO When all audio are available

SAP / STEREO SAP / MONO

SAP / STEREOWhen stereo and monaural audio are available

MONO / STEREO MONO / STEREO

When SAP and monaural audio are available

When only monaural audio is available MONO STEREO : Outputs stereo-audioSAP : Outputs second audio programMONO : Outputs mono-audio DTV

Press [AUDIO] to display the currently selected language and the number of available languages.

11-1 English 1/3 Press [AUDIO] repeatedly to cycle through the available audio languages.

• Available languages differ depending on the broadcast. “Other” is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.Note:
• [AUDIO] does not control external audio devices.
• The information display will automatically disappear in a few seconds.(cannot be switched)16

ATCHING TV TV Screen Information You can display the currently selected channel or other information such as the audio mode on the TV screen. In the analog mode, the current channel number and the audio mode are displayed. Press [INFO].

• The current channel number, audio mode, type of resolutions for video signal, TV aspect ratio, CC and TV program rating are displayed on the top-right corner of the TV screen.• To clear the display, press [INFO] again. You can also press [BACK]. DTV In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed. Press [INFO] to display the details of the currently selected program.

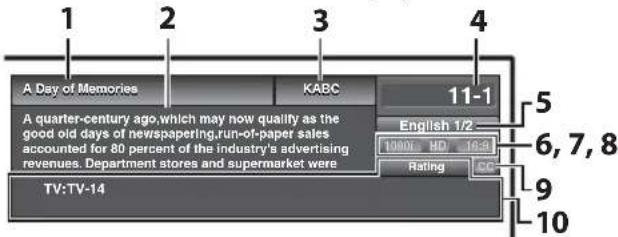

Broadcasting information The following information is displayed. 11-1 English 1/2 TV: TV-14 Rating 1080i 1080i 16:9 16:9

A Day of Memories A Day of Memories KABC KABC A quarter-century ago,which may now qualify as the good old days of newspapering,run-of-paper sales accounted for 80 percent of the industry's advertising revenues. Department stores and supermarket were

1 program title2 program guide(The program guide added to broadcasting information is displayed to a maximum of 4 lines.)3 broadcast station4 channel number5 audio languageRefer to “Switching Audio Mode” on page 15.6 effective scanning lines and scan mode7 digital TV format8 program aspect ratio9 CC (not available if closed caption is set to “Off”)10 child lock rating Note:

• When the program guide consists of more than 4 lines, use [Cursor K/ L] to scroll.• “No description provided.” is displayed when the program guide is not provided.• While the program guide is displayed, the closed caption function is interrupted.• In external input mode, the following screen is displayed;e.g.) When an external device is connected to Video Input jack.Video TV-PG DLSV 480i 480i

PREPARATION WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

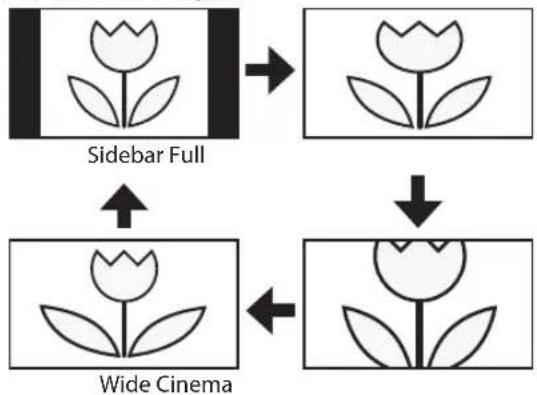

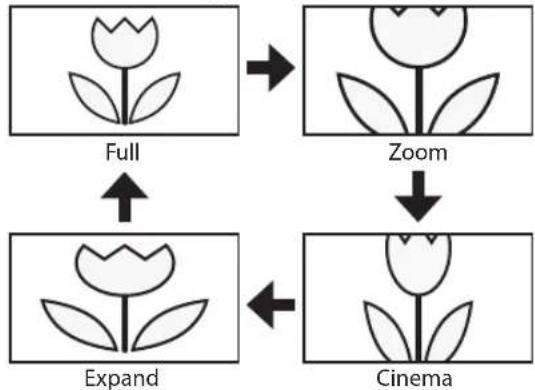

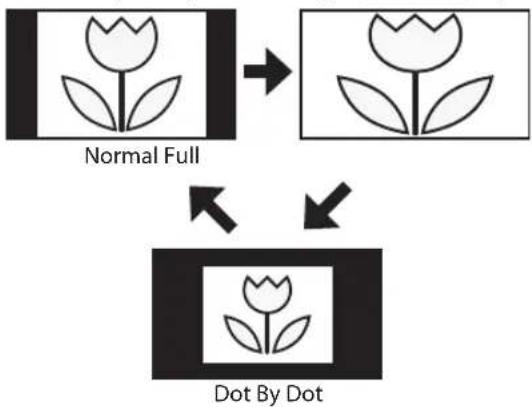

INFORMATION EnglishEspañol Français TV Screen Display Mode 4 types of display modes can be selected when the broadcasting station is sending 4:3 or 16:9 video signal. And 3 types of display modes can be selected for PC input signal. Press [SCREEN MODE ] repeatedly to switch the TV aspect ratio. For 4:3 video signalSidebarDisplay a 4:3 picture at its original size. Sidebars appear on both edges of the screen. Full Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen.CinemaDisplay a 4:3 picture at a 16:9 size; the picture is stretched horizontally and vertically to fill the screen. This crops out the top and bottom of the picture. Wide Display the picture with its center at the original size and the edges stretched horizontally to fill the screen.For 16:9 video signal Full Display a 16:9 picture at its original size. Zoom Display a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.CinemaDisplay a vertically stretched picture.ExpandDisplay a horizontally stretched picture.For PC input signal through HDMI1 Input modeNormal FullDot By DotNormalDisplay a proportionately stretched picture. Sidebars appear on both edges of the screen. Full Display a picture that is stretched out of proportion to fill the screen.Dot By DotDisplay a picture in its original size. Full Zoom ExpandCinemaSidebar FullWide Cinema18

PTIONAL SETTING Main Menu This section describes the overview of the main menu displayed when you press [SETUP]. For more details, see the reference page for each item.The main menu consists of the function setting items below. Press [SETUP].

PICTUREYou can adjust the picture quality.Refer to “Picture Adjustment” on page 21.SOUNDYou can adjust the sound quality.Refer to “Sound Adjustment” on page 22.CHANNEL• You can automatically scan the viewable channels.Refer to “Autoscan” on page 18.• You can skip the undesired channels when selecting the channels using [CH

].Refer to “Channel List” on page 19.• You can add the channels that were not scanned by the autoscan.Refer to “Manual Register” on page 19.DETAIL• You can change the display format for closed caption, which displays the dialogue of a TV program or other information across the TV screen.Refer to “Closed Caption” on page 23.• You can set the viewing limitations.Refer to ‘‘Child Lock” on page 26.• You can adjust the position, stability and clarity of the PC screen.Refer to “PC Settings” on page 30.• You can select the energy saving mode.Refer to “Energy Saving Mode” on page 31.• When you adjust the desired “PICTURE” and “SOUND” mode, you must switch the setting from “Retail” to “Home”. Refer to “Location” on page 31.• You can confirm the version of the software currently used in this unit.Refer to ”Current Software Info” on page 32.LANGUAGEYou can change the language (English, Spanish, French) displayed on the main menu.Refer to “Language Selection” on page 20. Autoscan If you switch wires (e.g., between antenna and CATV) or if you move the unit to a different area after the initial setting, or if you restore the DTV channel you deleted, you will need to perform autoscan.Before you begin: Make sure the unit is connected to antenna or cable. Press [SETUP] to display the main menu.

AutoscanAutoscan Autoscan will rescan all channels. Autoscan will take up to 20 minutes to complete. Select the destination of "ANT.IN" jack. Back AntennaCable Antenna Cable

• When aerial antenna is connected, select “Antenna”.• When connected to CATV, select “Cable”.• “Autoscan” will begin. Now the system is scanning for Channels,please wait Autoscan will take up to 20 minutes to complete. Exit SETUP 75% Analog channels 10ch Digital channels 6ch
• When the scanning and memorizing are completed, the lowest memorized channel will be displayed.Note:• After setting “Autoscan”, using [CH

• If you press [POWER] or [SETUP] during autoscan, the setting will be canceled.• Even if “Autoscan“ is completed, the channel setting will be lost if the AC power cord is unplugged before turning off the unit by pressing [POWER].• The PIN Code will be required once you set a PIN Code in the “Child Lock“. Refer to page 26.• If you want to change your PIN Code, follow the instruction of “New PIN Code”. Refer to page 29.19

INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING TROUBLESHOOTING INFORMATION EnglishEspañol Français Channel List The channels selected here can be skipped when selecting the channels using [CH

].Those channels can still be selected with [the Number buttons]. Press [SETUP] to display the main menu.

L] to select “Channel List”, then press [ENTER].

L] to select the channel you want to remove, then press [ENTER].

• The channel display for the removed channel darkens. You will not be able to select the channel again using [CH

].• To reactivate a removed channel, use [Cursor K

L] and press [ENTER]. The registered channels are highlighted.• When you remove a main channel, its subchannels are removed as well. Note:

• The channel with the “DTV” indicated on the display is ATSC. Otherwise the channel is NTSC. Press [SETUP] to exit. Manual Register This function lets you add the channels that were not added bythe autoscan due to the receptible condition at the initial setting. Press [SETUP] to display the main menu.

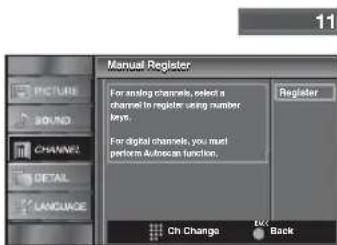

Back BACK For analog channels, select a channel to register using number keys. For digital channels, you must perform Autoscan function.

Press [SETUP] to exit. Note:

• If setup completes successfully,“Added to the channel list” is displayed.• If external input is used, it is not possible to register the channel and “Unavailable” will be displayed on the TV screen.• By using [CH

], you can select the memorized channels only.20

] to select the channel for which you want to check the digital signal strength. AntennaAntenna Back Ch Change 11-1

• If the channel is set to analog channel or external input, you cannot confirm the antenna condition. AntennaAntenna Back Ch Change

Indicator is available for digital broadcasting only. Video

Press [SETUP] to exit. Language Selection You can choose English, Spanish, or French as your on-screen language. Press [SETUP] to display the main menu.

INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING TROUBLESHOOTING INFORMATION EnglishEspañol Français Picture Adjustment You can adjust brightness, contrast, color, tint, sharpness and color temperature.Before you begin: You must set ”Home” in ”Location”. Refer to page 31.Otherwise, the settings you adjusted will not be memorized after you turn off the unit. Press [SETUP] to display the main menu.

L] to select the item you want to adjust, then press [ENTER].

PicturePicturePicture ModeBrightnessContrastColor Tint SharpnessColor Temperature Personal

L] to select the desired setting, then use [Cursor

to add red to add greenSharpness Adjust Move Enter ENTER 0Sharpness to soften to sharpenColor Temperature Adjust Move Enter ENTER Color Temp. Normal to add warm colorsto add cool colors Press [SETUP] to exit. Note:• To cancel picture adjustment, press [SETUP].• Only the “Personal” setting can be adjusted.22

PTIONAL SETTING Sound Adjustment You can adjust the sound mode, equalizer and some other sound functions.Before you begin: You must set ”Home” in ”Location”. Refer to page 31.Otherwise, the settings you adjusted will not be memorized after you turn off the unit. Press [SETUP] to display the main menu.

L] to select the sound type you want to adjust, then press [ENTER].

L] to select the desired setting, then press [ENTER]. (“Personal “, “Standard “, “Movie “, “Music “and “News “)

<>] to select the specific frequency and use [Cursor K

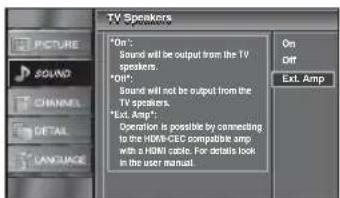

10kHzTV SpeakersSelect the audio output from the unit’s speakers, or not.If your amplifier compatible with the CEC function is connected to this unit using an HDMI cable, some part of the sound operations such as volume up can access synchronized by using this unit’s remote control.Use [Cursor K

TV Speakers TV Speakers Ext. Amp "On":Sound will be output from the TVspeakers."Off":Sound will not be output from theTV speakers."Ext. Amp":Operation is possible by connectingto the HDMI-CEC compatible ampwith a HDMI cable. For details lookin the user manual. Off

The sound will be output from the unit’s speakers. Off The sound will not be output from the unit’s speakers.Ext. AmpThis function allows you to control audio output from CEC-compatible devices with the unit’s remote control. Press [SETUP] to exit. Note:• To cancel sound adjustment, press [SETUP].• We do not guarantee 100% interoperability with other brands of CEC compliant devices.23

INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING TROUBLESHOOTING INFORMATION EnglishEspañol Français Closed Caption You can view closed captioning (CC) for TV programs, movies and news. Closed caption refers to text of dialogue or descriptions displayed on-screen. Press [SETUP] to display the main menu.

L] to select the desired closed caption, then press [ENTER].

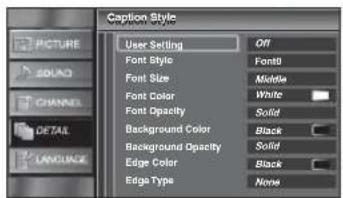

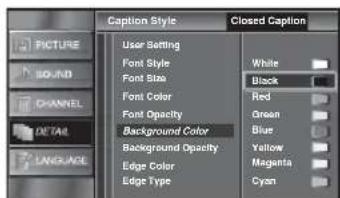

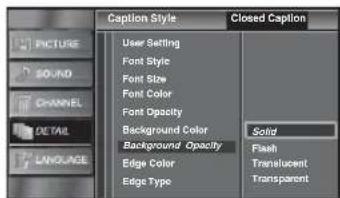

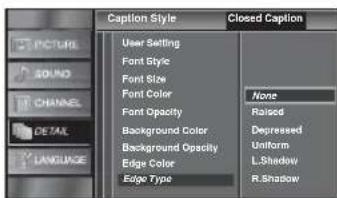

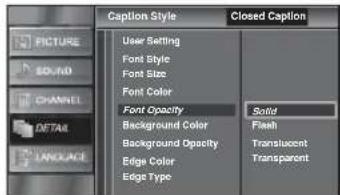

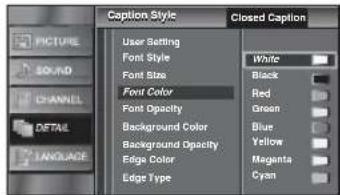

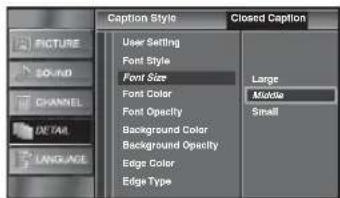

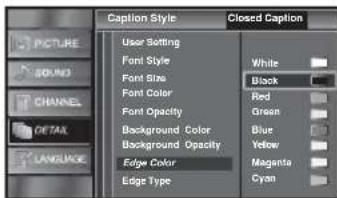

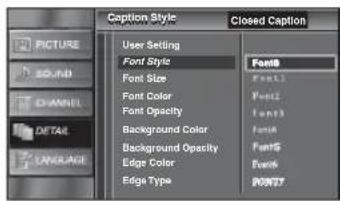

Closed CaptionClosed CaptionDigital Caption ServiceCaption StyleCaption Service Off CC1 CC2 CC3 CC4 Text1Text2Text3Text4 Caption mode CC1 and Text1; are the primary caption and text services.The captioning or text is displayed in the same language as the program’s dialogue(up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture). CC3 and Text3; serve as the preferred data channels.The captioning or text is often a secondary language. CC2, CC4, Text2 and Text4; are rarely available and broadcasters use them only in special conditions, such as when “CC1” and “CC3” or “Text1” and “Text3” are not available.• There are 3 display modes according to programs:Paint-on mode: Displays input characters on the TV screen immediately.Pop-on mode:Once characters are stored in memory, they are displayed all at once.Roll-up mode:Displays the characters continuously by scrolling (max. 4 lines). Press [SETUP] to exit.24

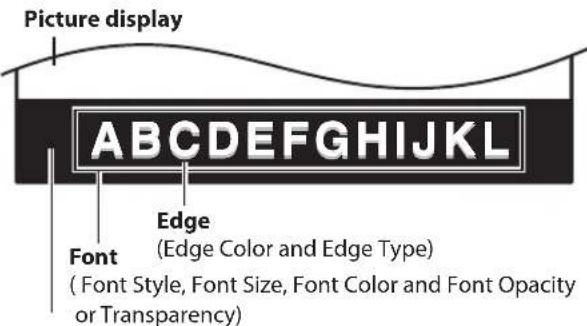

PTIONAL SETTING B. Digital Caption ServiceB. Digital Caption Service DTV In addition to the basic closed caption described on page 23, DTV has its own closed caption called digital caption service. Use this menu to change the settings for digital caption service. Use [Cursor

• “Digital Caption Service” that you can switch differs depending on the broadcast description. C. Caption StyleC. Caption Style DTV You can change the caption style such as font, color or size, etc. Use [Cursor

• The setting description for each item is shown on the next page.• Review your setting choice made on the next page by looking in the upper right corner of the displayed setting box (not all selections show the differences selected).Background( Background Color and Background Opacity or Transparency)Picture display Edge (Edge Color and Edge Type) Font ( Font Style, Font Size, Font Color and Font Opacity or Transparency)25

Press [SETUP] to exit. Note:

• To show the closed caption on your TV screen, broadcast signal must contain the closed caption data.• Not all TV programs and commercials have the closed caption or all types of the closed caption.• Captions and texts may not match the TV voice exactly.• Changing channels may delay the closed caption for a few seconds.• Adjusting or muting the volume may delay the closed caption for a few seconds.• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screen action. This is not a malfunction.• The caption or text characters will not be displayed while the main menu or functions display is shown.• If a black box appears on the TV screen, this means that the closed caption is set to the text mode. To clear the box, select “CC1”, “CC2”, “CC3”, “CC4” or “Off”.• If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are:- Automobile ignition noise- Electric motor noise- Weak signal reception- Multiplex signal reception (ghosts or screen flutter)• The unit retains the closed caption setting if the power fails.• Closed caption will not be displayed when you are using an HDMI connection.• When the unit receives special effects playback signal (i.e., Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the unit may not display the correct caption or text.26

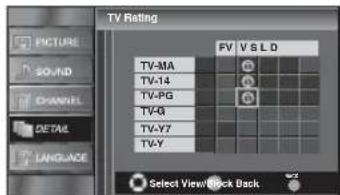

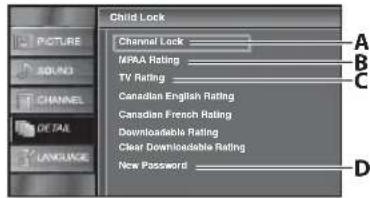

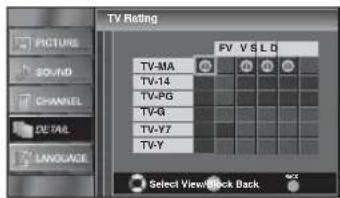

PTIONAL SETTING Child Lock Child lock reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programs inappropriate for children and any channels or external input modes can be invisible. Press [SETUP] to display the main menu.

L] to select “Child Lock”, then press [ENTER].

Use [the Number buttons] to enter the 4-digit numbers for your PIN Code. PIN Code Back BACK Enter password.Child LockChild Lock----• When you have not set up your PIN Code, enter [0], [0], [0], [0].

• When the PIN Code is correct, “Child Lock” menu is displayed.See the following description for setting each item. Channel Lock MPAA Rating TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password Child LockChild Lock

• When you select a rating and set it to “Block”, the higher ratings will be blocked automatically. The lower ratings will be available for viewing.• When you set the highest rating to “View”, all ratings turn to “View” automatically.• To block any inappropriate programs, set your limits in “MPAA Rating”, “TV Rating” and “Downloadable Rating”.• The child lock setting will be retained after a power failure (except the access code reverts to 0000).• If the rating is blocked, will appear.• “Downloadable Rating” will be available when the unit receives a digital broadcast using the new rating system.• If the broadcasting signal does not have the Downloadable Rating information, “Downloadable Rating is currently not available.” will appear.This message will also appear when you try to access “Downloadable Rating” after you have cleared the Downloadable Rating information, and the new information has not been downloaded since.• The Canadian rating systems on this unit is based on CEA-766-A and the Canadian Radio-Television and Telecommunications Commission (CRTC) policy.27

L] to select “Channel Lock”, then press [ENTER].

Cannel LockMPAA RatingTV RatingCanadian English RatingCanadian French RatingDownloadable RatingClear Downloadable RatingNew PasswordChild LockChild Lock Use [Cursor K

L] to select the desired rating, then press [ENTER] repeatedly to switch between “View” and “Block”.

Select View/Block Back BACK ENTER Channel LockChannel LockVideoComponentHDMI 1HDMI 2HDMI 3 11-1 DTV Press [SETUP] to exit. B. MPAA RatingB. MPAA Rating MPAA Rating is the rating system created by MPAA (Motion Picture Association of America). Use [Cursor K

L] to select “MPAA Rating”, then press [ENTER].

Cannel LockMPAA RatingTV RatingCanadian English RatingCanadian French RatingDownloadable RatingClear Downloadable RatingNew PasswordChild LockChild Lock Use [Cursor K

L] to select the desired rating, then press [ENTER] repeatedly to switch between “View” and “Block”.

MPAA RatingMPAA RatingRating CategoryX Mature audience onlyNC-17 No one under 17 admitted Restricted; under 17 requires accompanying parent or adult guardianPG-13 Unsuitable for children under 13PG Parental guidance suggestedG General audienceNR No rating Press [SETUP] to exit.28

PTIONAL SETTING C. TV RatingC. TV Rating

L] to select “TV Rating”, then press [ENTER].

Cannel LockMPAA RatingTV RatingCanadian English RatingCanadian French RatingDownloadable RatingClear Downloadable RatingNew PasswordChild LockChild Lock Use [Cursor K

] to select the desired rating, then press [ENTER] repeatedly to switch between “View” and “Block”.

Select View/Block Back BACK ENTER TV-MATV-14TV-PG TV-G TV-Y7 TV-Y

V S L DTV RatingTV Rating Press [SETUP] to exit. To set the sub ratings As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below.Use [Cursor K

] to select the desired rating, then press [ENTER] repeatedly to switch between “View” and “Block”. Select View/Block Back BACK ENTER TV-MATV-14TV-PG TV-G TV-Y7 TV-Y

V S L DTV RatingTV RatingRating CategoryTV-MA Mature audience only higherTV-14 Unsuitable for children under 14TV-PG Parental guidance suggestedTV-G General audienceTV-Y7Appropriate for all children 7 and olderTV-Y Appropriate for all children lower Sub Rating Category RatingFV Fantasy Violence TV-Y7V ViolenceTV-PGTV-14TV-MAS Sexual SituationL Coarse LanguageD Suggestive Dialogue TV-PG, TV-14 Note:

• Blocked sub rating will appear beside the main rating category in “TV Rating” menu.• You cannot block a sub rating (D, L, S or V) if the main rating is set to “View”.• Changing the category to “Block” or “View” automatically changes all its sub ratings to the same (“Block” or “View”).29

INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING TROUBLESHOOTING INFORMATION EnglishEspañol Français D. New PIN CodeD. New PIN Code Although the default code (0000) is supplied with the unit, you can set your own PIN Code. Use [Cursor K

Channel LockMPAA RatingTV RatingCanadian English RatingCanadian French RatingDownloadable RatingClear Downloadable RatingNew PasswordChild LockChild Lock Press [the Number buttons] to enter the new 4-digit PIN Code.• Enter PIN Code again in “Confirm password.” entry field. New PasswordNew PasswordConfirm password.Enter password.

Press [SETUP] to exit. Note:

• Make sure new PIN Code and confirm PIN Code must be exactly the same. If they are different, the space is cleared for reentering.• Your PIN Code will be erased and return to the default (0000) when a power failure occurs. If you forget the PIN Code, unplug the AC power cord for 10 seconds to restore the PIN Code to 0000.30

PTIONAL SETTING PC Settings This function lets you adjust the PC screen position during PC input through the HDMI 1 Input jack. Press [SETUP] to display the main menu.

L] to select the setting you want to adjust, then press [ENTER].

Adjust the setting. Position Reset Use [Cursor K

to move PC screen downto move PC screen up Press [SETUP] to exit. Note:

• You may not obtain an appropriate screen with“Position Reset” for some signals. In this case, adjust the settings manually.31

INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING TROUBLESHOOTING INFORMATION EnglishEspañol Français Energy Saving Mode You can set whether the power consumption is saved or not. Press [SETUP] to display the main menu.

When set to “On”, power consumption is reduced by decreasing backlight brightness.

Off Energy Saving ModeEnergy Saving Mode Select if you want to reduce the power consumption. Off The power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification. Press [SETUP] to exit. Location When you select ”Retail”, the power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification. Press [SETUP] to display the main menu.

L] to select the desired location, then press [ENTER].

LocationLocation Location Home is recommended for normal home use. In the Retail Store mode, all settings are fixed. Retail Home

Press [SETUP] to exit.32

PTIONAL SETTING Current Software Info This function shows what version of the software currently used. Press [SETUP] to display the main menu.

Home Closed CaptionChild LockPC SettingsEnergy Saving ModeLocationCurrent Software InfoDetailDetail Confirm the version of the software currently used. Current Software InfoCurrent Software Info Release Version: CS32OS_1.0 Back

Press [SETUP] to exit.33

ROUBLESHOOTING INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING TROUBLESHOOTING INFORMATION EnglishEspañol Français Question AnswerMy remote control does not work.What should I do?• Check the antenna or cable connection to the main unit.• Check the batteries of the remote control.• Check if there is an obstacle between the infrared sensor window and the remote control.• Test the signal output. If OK, then possible infrared sensor trouble.Refer to “IR Signal Check” on page 36.• Aim the remote control directly at the infrared sensor window on the front of the unit.• Reduce the distance to the unit.• Re-insert the batteries with their polarities (+/– signs) as indicated.• When there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unit.• Move the infrared-equipped device away from this unit, change the angle of the infrared sensor or turn off the infrared communication function.How come the Initial setup appears every time I turn on this unit?• Connect the RF coaxial cable to the unit directly and run the initial setup.• Make sure to complete the channel scan before turning off the unit.Why I cannot watch some TV programs.• Make sure autoscan has been completed.Refer to “Autoscan” on page 18.• Autoscan must be completed when you set up the unit for the first time or move it to a location where previously unavailable channels are broadcast.• The selected channel may not be broadcasting.• When autoscan is interrupted and not completed, some channels will not be received. Make sure to complete.Refer to “Autoscan” on page 18.• The selected channel cannot be viewed by the “Child Lock” setting.Refer to ‘‘Child Lock” on page 26.• The unit requires some kind of antenna input. An indoor antenna (VHF /UHF), an external antenna (VHF /UHF) or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the unit.How come there is no image from the connected external devices?• Check if the right input mode is selected by pressing [INPUT SELECT] or using [CH

]. Refer to “Switching Each Input Mode” on page 15.• Check the antenna or cable connection to the unit.• When using the Component Video Connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr/Cr) connectors are connected to their corresponding colored jacks on the unit.Whenever I entered channel number,it changes automatically.• Many digital channels have alternate channel numbers. The unit changes the numbers automatically to the ones signifying the broadcasting stations. These are the numbers used for analog broadcasts.Why are captions not displayed entirely?Or, captions are delayed behind the dialogue.• Captions that are delayed a few seconds behind the actual dialogue are common for live broadcasts. Most captioning production companies can display a dialogue to maximum of 220 words per minute. If a dialogue exceeds that rate, selective editing is used to insure that the captions remain up-to date with the current TV screen dialogue.How can I set the clock ? • There is no clock function on this unit. FAQ34

ROUBLESHOOTING Troubleshooting Guide If the unit does not perform properly when operated as instructed in this manual, check the following chart and all connections once before calling for service. Symptom Remedy No power

• Make sure the AC power cord is plugged in.

• Make sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the AC outlet.

• If a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself. Control button does not work.

• Press only one button at a time. Do NOT press more than one buttons at the same time. Power is ON but no screen image.

• Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.

• Check whether all the cables to the unit are connected to the correct output jack of your device like BD/DVD recorder.

• Make sure that the selected input mode is connected to the working input jack.

• Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer. No picture or sound

• Check if the power is on.

• Check if the right input mode is selected.

• Check whether all the cables to the unit are connected to the correct output jack of your device like BD/DVD recorder.

• View other TV channels. The problem might be limited to the broadcasting station.

• Turn off the unit and wait for about 1 minute, then turn on the unit again.

• Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.

• Make sure that the selected input mode is connected to the working input jack.

• Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer.

• Make sure that the sound is not muted. Press [MUTE ] so that the volume bar and current volume level will appear on the TV screen.

• Make sure that the volume is NOT set to “0” or “Mute”. If so, use [VOL.

• View other TV channels. The problem might be limited to the broadcasting station.

• Adjust “Color” in the main menu. Adjusted ‘‘PICTURE” or ‘‘SOUND” is not effective every time turn on the unit.

• You must set ”Home” in ”Location”. Refer to page 31. Otherwise, the settings you adjusted will not be memorized after you turn off the unit. Sound OK, picture poor

• Electrical interference from nearby appliances may affect picture quality.

• Adjust “Contrast” and “Brightness” in the main menu.

• View other TV channels. The problem might be limited to the broadcasting station.

• For the best picture quality, watch “high definition” wide screen programs. If the HD content is not available, watch “standard definition” programs instead. Picture OK, sound poor

• View other TV channels. The problem might be limited to the broadcasting station.

• Check if the audio cable is connected in correctly. You see a distorted picture or hear an unusual sound.

• You may be getting interference from electrical appliances, automobiles, motorcycles or uorescent lights.

• Try moving the unit to another location to see if this is the cause of the problem. Ghosts, lines or streaks in picture

• Electrical interference from nearby appliances may affect picture quality.

• View other TV channels. The problem might be limited to the broadcasting station. You see “noise” or “trash” on the screen.

• When the capabilities of the unit exceed the capabilities of the digital broadcasting, the signal will be increased to match the capabilities of the display of the unit. This may cause noise or trash. Different color marks on the TV screen

• View other TV channels. The problem might be limited to the broadcasting station.35

• This unit will memorize the volume level from the last time you adjusted it.

• If the volume of the sound from another device is higher or lower, then the loudness will change. You switch to a different input and the screen size changes.

• This unit will memorize the viewing mode from the last time you used the particular input modes. The display image does not cover the entire screen.

• If you are using the unit as a PC monitor, make sure that “Horizontal Position” and “Vertical Position” in “PC Settings” are set correctly.

• If you are watching TV or using the Video, S-Video, Component video or HDMI with 480i Input, press [SCREEN MODE ] repeatedly to switch various screen modes. Captions are displayed as a white box. No caption is displayed in the Closed Caption-supported program.

• Interference from buildings or weather conditions may cause captioning to be incomplete.

• Broadcasting station may shorten the program to insert advertisement. The closed caption decoder cannot read the information of the shortened program. No caption is displayed when playing back a disc or a cassette tape containing captions.

• The disc or cassette tape may be illegally copied, or the caption signal might not have been read during copying. Black box is displayed on the TV screen.

• The text mode is selected for caption. Select “CC1”, “CC2”, “CC3”, “CC4” or “Off”. Note:

• The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of blue, green or red. This is not to be considered a defect in the LCD screen.
• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this manual for more details on correct operations.36

NFORMATION ATSC Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards.Aspect RatioThe width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height).CEC (Consumer Electronics Control)This allows you to operate the linked functions between our brand devices with CEC feature and this unit. We do not guarantee 100% interoperability with other brands of CEC compliant devices.Component videoThis is a video signal format that conveys each of 3 principal colors of light (red, blue and green) through different signal lines. This allows the viewers to experience picture colors as original as it is. There are several signal formats, including Y / Pb / Pr and Y / Cb / Cr.Dolby DigitalThe system developed by Dolby Laboratories to compress digital sound. It offers stereo sound (2ch) or multi-channel audio. HDMI (High-Definition Multimedia Interface)Interface that supports all uncompressed, digital audio/video formats including set-top box, BD/DVD recorder or digital television, over a single cable.HDTV (High Definition TV)Ultimate digital format that produces high resolution and high picture quality. NTSC Acronym that stands for National Television Systems Committee and the name of the current analog broadcasting standards.Off the air NTSC signals will no longer be sent by broadcasting stations during 2009.Password / PIN CodeA stored 4-digit number that allows access to parental control features.SAP (Secondary Audio Program)Second-audio channel delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting.SDTV (Standard Definition TV)Standard digital format that is similar to the NTSC picture quality.S-VideoOffers higher quality images by delivering each signal, color (c) and luminance (y) independently of each other through a separate cable. Glossary Maintenance Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry.• Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces. Panel Cleaning Wipe the panel of the unit with a soft cloth. Before cleaning the panel, disconnect the AC power cord. Servicing Should your unit become inoperative, do not try to correct the problem yourself. There are no user serviceable parts inside. Turn off the unit, unplug the AC power cord and call our toll free customer support line found on the cover of this manual to locate an authorized service center. IR Signal Check If the remote control is not working properly, you can use a digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal.• With a digital camera(including built-in cell phone cameras):Point the Digital Camera towards the remote control infrared diode at the front of the remote control. Press any button on the remote control and look through the camera display. If the infrared pulsating light appears through the camera, the remote control is sending out an IR signal.37

INTRODUCTION PREPARATION WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION EnglishEspañol Français General Specifications TV format: ATSC / NTSC-M TV standard Closed caption system: §15.122 / FCC (digital CC) §15.119 / FCC (analog CC) Channel coverage (ATSC / NTSC): Terrestrial VHF: 2~13 UHF: 14~69 CATV 2~13, A~W, W+1~W+94 (analog W+1~W+84), A-5~A-1, 5A Tuning system: Channel frequency synthesized tuning system Channel access: Direct access keyboard, Programmable scan, and up / down Electrical Specification Audio Output: 5W, 8Ω x 2

• Designs and speci cations are subject to change without notice and without our legal obligation.

• If there is a discrepancy between languages, the default language will be English. Other Specifications Terminals: Antenna Input: VHF / UHF / CATV 75Ω unbalanced (F-type) Audio Input: RCA jack (L/R) x 6 500mV rms Video Input: RCA jack x 1 1V p-p (75Ω) S-Video Input: Mini DIN 4-pin jack x 1 Y: 1V p-p (75Ω) C: 286mV p-p (75Ω) Component video Input: RCA jack x 3 Y: 1V p-p (75Ω) Pb/Cb: 700mV p-p (75Ω) Pr/Cr: 700mV p-p (75Ω) HDMI Input: HDMI 19pin x 3 Coaxial Digital audio Output: RCA jack x 1 500mV p-p (75Ω) Audio Output: RCA jack (L/R) x 2 500mV rms Remote control: Digital encoded infrared light system Operating temperature: 41°F (5°C) to 104°F (40°C) Power requirements: 120V~ AC +/- 10%, 60Hz +/- 0.5% Power consumption (maximum): 155W LCD: 32 inches class (31.5 inches measured diagonally) Dimensions: <without stand> <with stand> W: 30.0 inches (760.0mm) 30.0 inches (760.0mm) H: 20.5 inches (519.3mm) 22.2 inches (563.0mm) D: 4.3 inches (107.0mm) 9.3 inches (234.0mm) Weight: 19.0 lbs. (8.6kg) 20.1 lbs. (9.1kg) If you subscribe to cable TV, the channels are displayed as 1-135. Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations.

Printed in China LIMITED WARRANTY NINETY

YEAR PARTS WARRANTY COVERAGE: This warranty obligation is limited to the terms as set forth below. WHO IS COVERED: This product warranty is issued to the original purchaser or the person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase (“Warranty Period”) from an Authorized Dealer. The original sales receipt showing the product name and the purchase date from an authorized retailer is considered such proof. WHAT IS COVERED: This warranty covers new products if a defect in material or workmanship occurs and a valid claim is received within the Warranty Period. At its option, the company will either (1) repair the product at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new, or ser- viceable used parts and is at least functionally equivalent or most comparable to the original product in current inventory, or (3) refund the original purchase price of the product. Replacement products or parts provided under this warranty are covered against defects in materials and workmanship from the date of the replacement or repair for ninety (90) days or for the remaining portion of the original product’s warranty, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes company property. When a refund is given, your product becomes company property. renewed Note: Any product sold and identified as refurbished or carries a ninety (90) day limited warranty. Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay. WHAT IS NOT COVERED - EXCLUSIONS AND LIMI- TATIONS: This Limited Warranty applies only to new company manufac- to any hardware product or any software, even if packaged or sold with the product, as manufacturers, suppliers, or publishers may provide a separate warranty for their own products pack- aged with the bundled product. The company is not liable for any damage to or loss of any pro- grams, data, or other information stored on any media contained within the product, or other additional product or part not cov- ered by this warranty. Recovery or reinstallation of programs, data or other information is not covered under this Limited Warranty. This warranty does not apply (a) to damage caused by accident, abuse, misuse, neglect, misapplication, or non-supplied product, (b) to damage caused by service performed by anyone other than company approved Authorized Service Location, (c) to a product mission, or (d) if any serial number has been removed or defaced, or (e) product, accessories or consumables sold “AS IS” without warranty of any kind by including refurbished product sold “AS IS” by some retailers. This Limited Warranty does not cover:

• Shipping charges to return defective product.

• Labor charges for installation or setup of the product, adjust- ment of customer controls on the product, and installation or repair of antenna/signal source systems outside of the product.

• Product repair and/or part replacement because of improper installation or maintenance, connections to improper voltage supply, power line surge, lightning damage, retained images or tent for extended periods, product cosmetic appearance items due to normal wear and tear, unauthorized repair or other cause not within the control of the company.

• Damage or claims for products not being available for use, or for lost data or lost software.

• Damage from mishandled shipments or transit accidents when returning product. it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or

• A product used for commercial or institutional purposes (including but not limited to rental purposes). can be provided.

• Failure to operate per Owner’s Manual.

ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR

screw holes screw holes trous de vis5

CATV 2~13, A~W, W+1~W+94
