USER MANUAL TVLHD Fantec

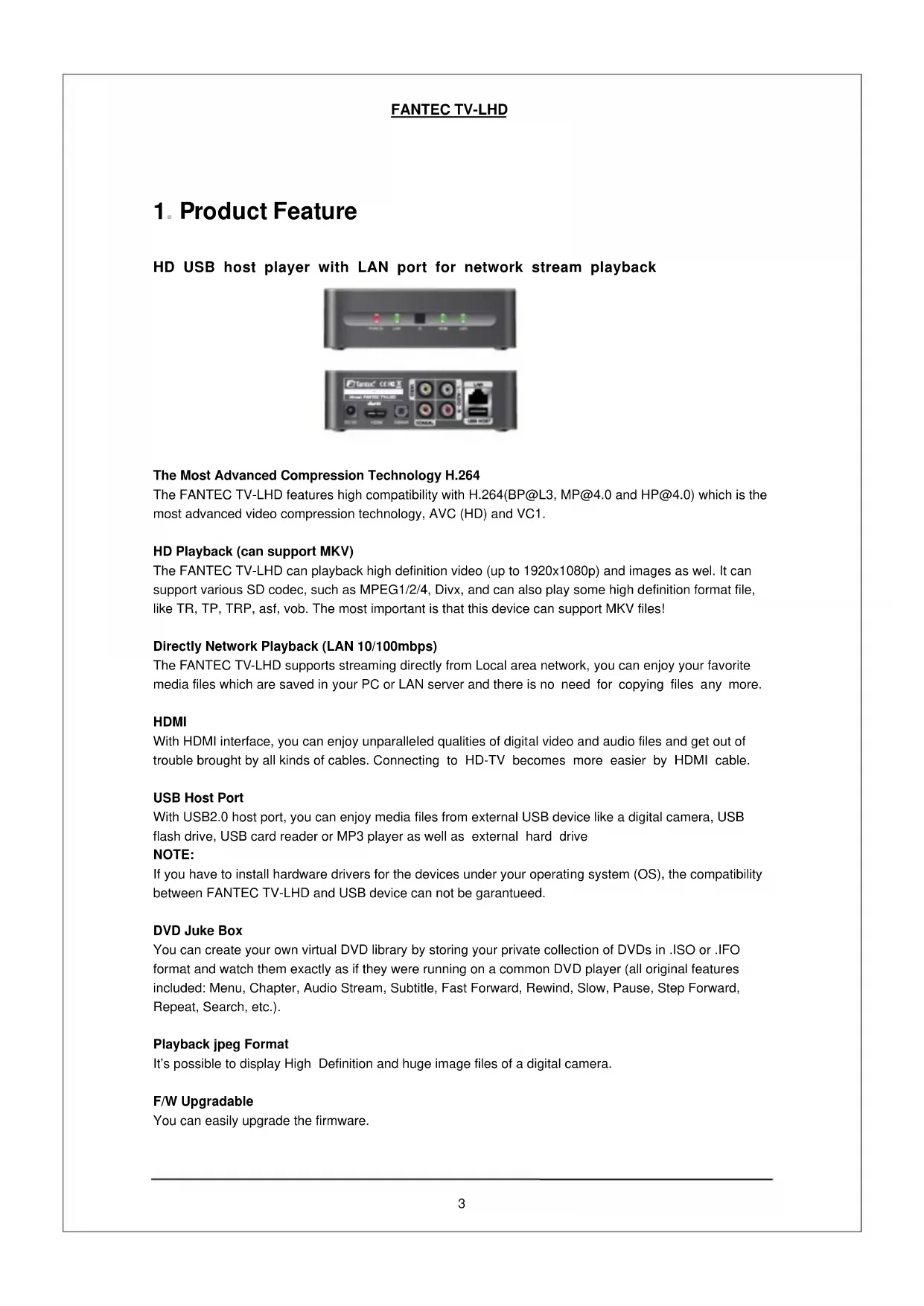

HD USB host player with LAN port for network stream playback

The Most Advanced Compression Technology H.264 The FANTEC TV-LHD features high compatibility with H.264(BP@L3, MP@4.0 and HP@4.0) which is the most advanced video compression technology, AVC (HD) and VC1. HD Playback (can support MKV) The FANTEC TV-LHD can playback high definition video (up to 1920x1080p) and images as wel. It can support various SD codec, such as MPEG1/2/4, Divx, and can also play some high definition format file, like TR, TP, TRP, asf, vob. The most important is that this device can support MKV files! Directly Network Playback (LAN 10/100mbps) The FANTEC TV-LHD supports streaming directly from Local area network, you can enjoy your favorite media files which are saved in your PC or LAN server and there is no need for copying files any more. HDMI With HDMI interface, you can enjoy unparalleled qualities of digital video and audio files and get out of trouble brought by all kinds of cables. Connecting to HD-TV becomes more easier by HDMI cable. USB Host Port With USB2.0 host port, you can enjoy media files from external USB device like a digital camera, USB flash drive, USB card reader or MP3 player as well as external hard drive NOTE: If you have to install hardware drivers for the devices under your operating system (OS), the compatibility between FANTEC TV-LHD and USB device can not be garantueed. DVD Juke Box You can create your own virtual DVD library by storing your private collection of DVDs in .ISO or .IFO format and watch them exactly as if they were running on a common DVD player (all original features included: Menu, Chapter, Audio Stream, Subtitle, Fast Forward, Rewind, Slow, Pause, Step Forward, Repeat, Search, etc.). Playback jpeg Format It’s possible to display High Definition and huge image files of a digital camera. F/W Upgradable You can easily upgrade the firmware.FANTEC TV-LHD

This player’s design and manufacture has your safety in mind. In order to safely and effectively use this player, please read the following before usage. Usage cautions User should not modify this player. If commercial hard disk is being used, the environmental temperature should be within +5° C ~ +35° C. Power The player’s power voltage: DC 5.5V. When using this player, please connect the supplied AC adapter or AC adapter cable to the player’s power jack. When placing the adapter cable, make sure it can not get damaged or be subject to pressure. To reduce the risk of electric shock, unplug the adapter first before cleaning it. Never connect the adapter to the player in a humid or dusty area. Do not replace the adapter or cable’s wire or connector. Radio interference/compatibility - If not properly shielded, almost all electronic devices will get radio interference. Under some conditions, your player might get interference. - The design of this player has followed the FCC/CE standard, and has followed the following rules: (1) This player may not cause harmful interference; (2) This player could accept some interference received including interference that may cause undesired operation. Repair If the player has a problem, you should take it to an appointed repair center and let the specialists do the repair, never repair the player yourself, you might damage the player or endanger yourself or your data. Disposing of the player When you dispose of the player, be sure to dispose it appropriately. Some countries may regulate disposal of electrical device, please consult with your local authority.FANTEC TV-LHD Others When using this player, please do not let the player come into contact with water or other liquids, if water is accidentally spilled on the player, please use a dry cloth to absorb the spillage. Electronic products are vulnerable, when using please avoid shaking or hitting the player, and do not press the buttons too hard. Do not let the player come into contact with water or other liquids. Do not disassemble the player, repair the player or change the design of the player, any damage done will not be included in the repair policy. Do not press the buttons of the player too hard. Avoid hitting the player with hard object, avoid shaking the player, and stay away from magnetic fields.

During electrostatic discharge and the strong electromagnetic field, the product will malfunction, then unplug the power cable and the product will return to normal performance next time it is powered on.FANTEC TV-LHD

TV-LHD Remote Controller Battery A/V Cable

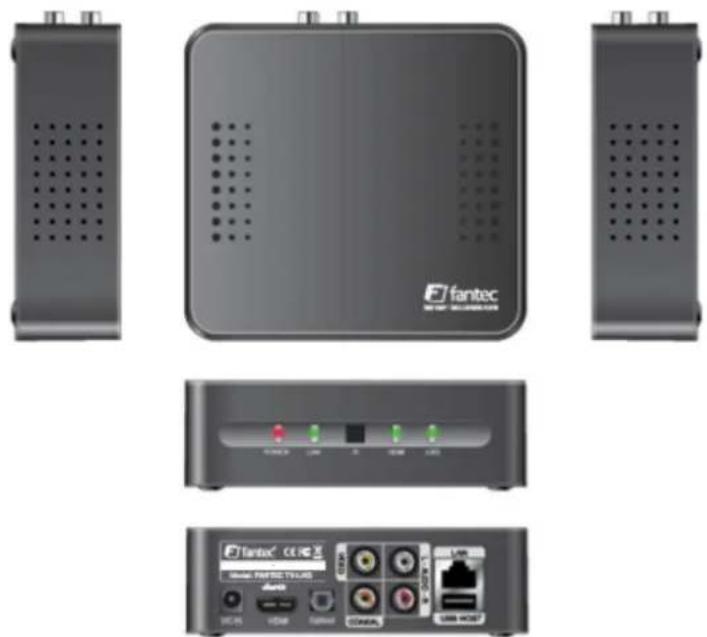

Power Adapter User GuideFANTEC TV-LHD 4-3 Part Descriptions Product part Function Description Power Input Connect the provided power adapter to this interface (DC 5.5 V/3A) USB HOST Port An external hard disk drive, external optical disk drive, memory stick etc. can be connected to this port. HDMI Output The product can be connected to a digital TV with a HDMI cable. COAXIAL Digital Audio Output You can enjoy 5.1 Channel sound by connecting the product to a home theater amp or receiver using a coaxial cable. OPTICAL Digital Audio Output You can enjoy 5.1 Channel sound by connecting the product to a home theater amp or receiver using an optical cable. Composite Video Output You can use composite cable (A/V cable) is to connect this interface to a TV. Stereo Audio Output You can use composite cable (A/V cable) is to connect this interface to a TV.

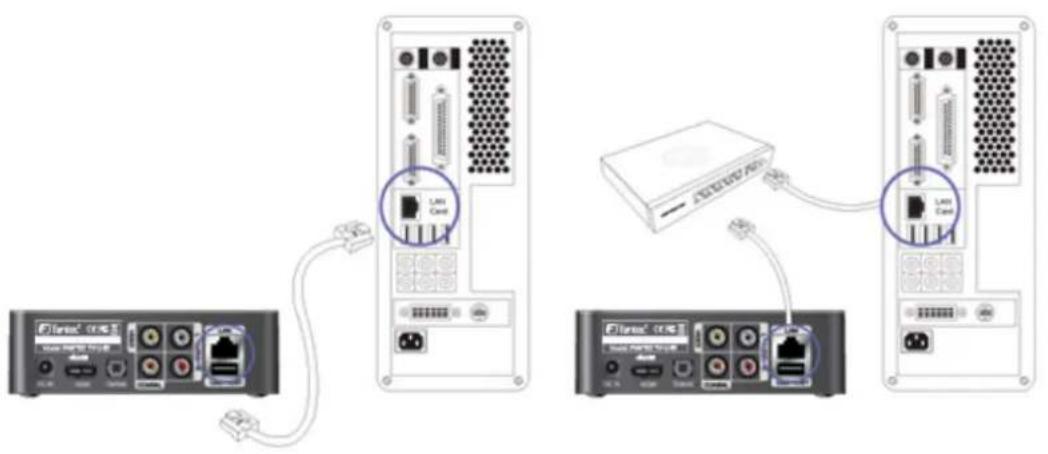

5-1 LAN Cable connection between PLAYER and a PC

1. Connection to a PC

For the connection to a hub / switch or internet router, use a direct cable. Connect the LAN port of the PLAYER to a LAN port of the hub by the use of a LAN cable.FANTEC TV-LHD 5-2 Network-based Data Sharing with a PC

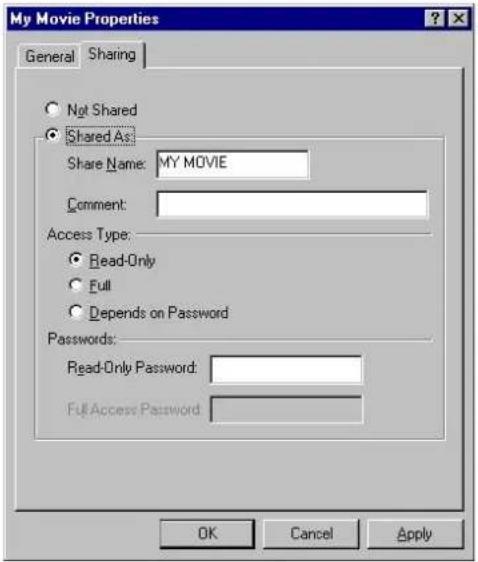

1. Data Sharing setup for Window 98 / ME

[1]. Select a folder you want to share and select “Sharing” menu using the mouse right button.

[2]. Enable “Sharing” and type “[Share Name]. For example my movie”.

1. “Share name” should be less than 12 letters.

2. Set Access Type to Read-Only.

3. Do not give passwords

10FANTEC TV-LHD [3]. If the folder is shared, you will see a hand mark on the folder icon. My Movie [4]. Go to “Control Panel-Network” and ,among the displayed items, select “ TCP/IP-LAN card name ”

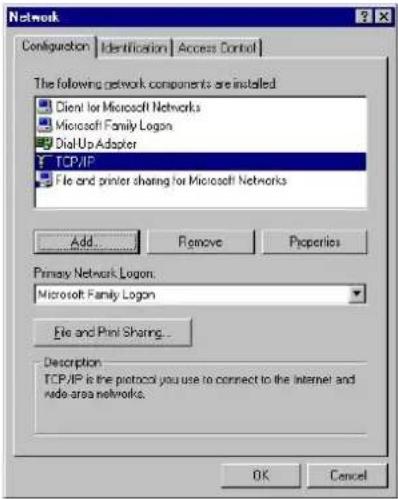

WARNING If your PC already has “Obtain IP address automatically ” enabled and the IP is automatically assigned from an internet router or DHCP server, you may not need this setup. If you want this IP setup, please obtain an available IP address and subnet mask from the router or network administrator. 11FANTEC TV-LHD [6]. Configure PLAYER’s network environment. After pressing “SETUP” button, select “IP SETUP” among the “NETWORK” setup items and IP address and subnet mask. For example) IP Address : 192.168.1.10 / Subnet Mask : 255.255.255.0

After finishing the setup, save the setup value by pressing the “Setup” button once again WARNING If IP address of your PC is automatically assigned by an internet router or DHCP server, you may not need this setup. In this case, set “IP SETUP” to Auto. Then the IP will be automatically assigned. If you want a manual setup, please obtain an available IP address and subnet mask from the router or network.

2. Data sharing setup for windows2000

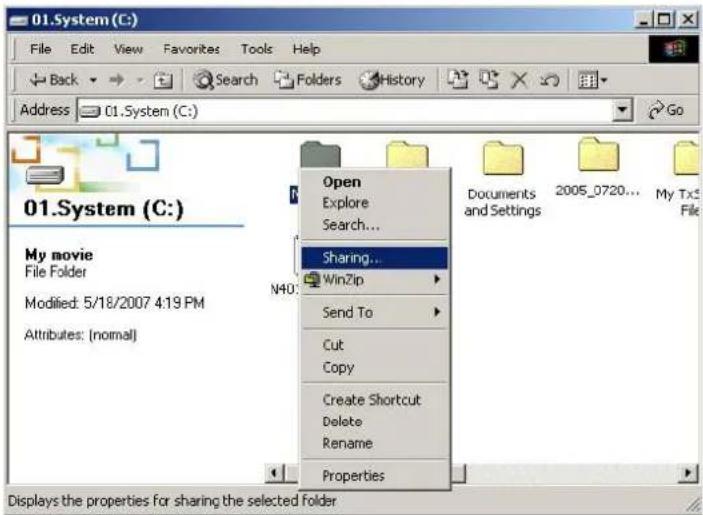

[1]. Select a folder your want to share and select “Sharing” menu using the mouse right button

[2]. Check “Sharing” and type “Share Name” Ex) My Movie WARNING Share Name” should be less than 12 letters. 12FANTEC TV-LHD [3]. In the above screen, click on “Permissions” and check, if an everyone account exists. If not, add one by clicking on “Add” button.

WARNING Set permissions to Read- Allow.

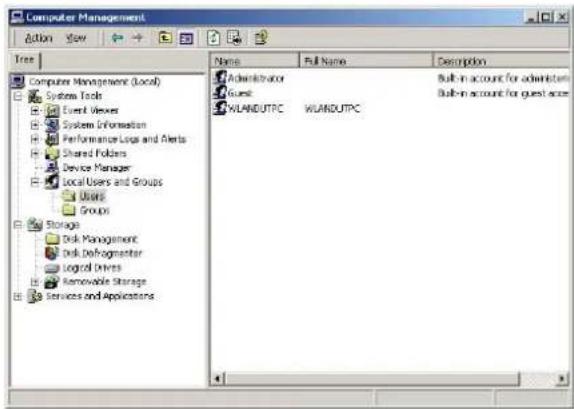

[4]. If the folder is shared, you will see a hand mark on the folder icon. MY Movie [5]. Go to “Control Panel—Administrative Tools—Computer Management—Local Users and Group” and, among the displayed items, double –click the Guest item.

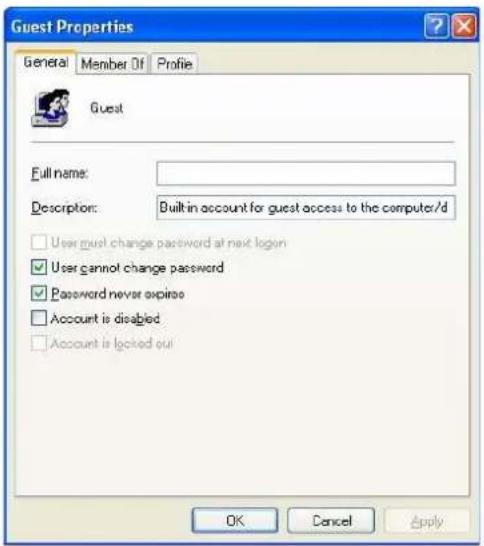

13FANTEC TV-LHD [6]. After enabling “User cannot change password” and “Password never expires”, keep the other checkboxes unchecked. Then click on “OK”.

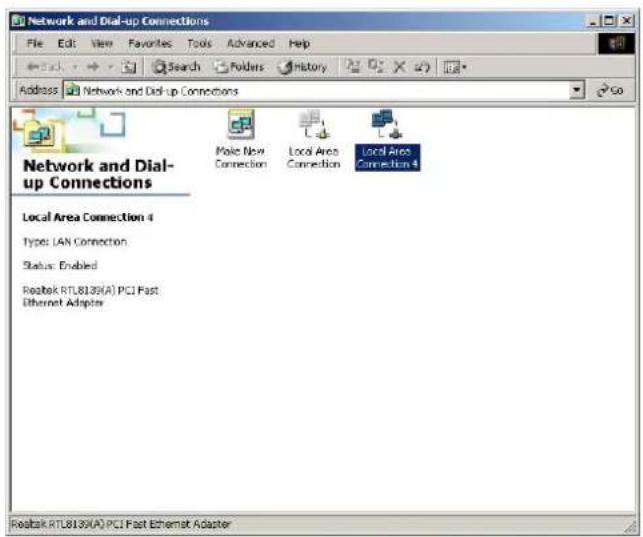

[7]. Go to “Control Panel—Network and Dial up Connections”. Select “Local Area Connection” and open its property window by using the mouse right button and selecting “Properties”.

WARNING If there are more than two “Local Area Connections”, select the LAN card that is connected to the PLAYER. 14FANTEC TV-LHD [8]. Among the displayed items, double-click “Internet Protocol(TCP/IP)”.

[9]. After checking “Specify an IP address”, Enter your IP address and subnet mask. Then click on “OK”. Ex) IP address :192.168.1.3 / Subnet Mask: 255.255.255.0

WARNING If your PC already has “Obtain IP address automatically” enabled and the IP is automatically assigned from an internet router or DHCP server, you may not need this setup. If you want a manual IP setup, please obtain an available IP address and subnet mask from the router or network administrator. 15FANTEC TV-LHD [10]. Configure PLAYER’s network environment. After pressing “Setup” Button, select items and set this to manual setup. Then enter your IP address and subnet mask. For example) IP Address : 192.168.1.10 / Subnet Mask: 255.255.255.0 After finishing the setup , save the setup value by pressing the setup button once again.

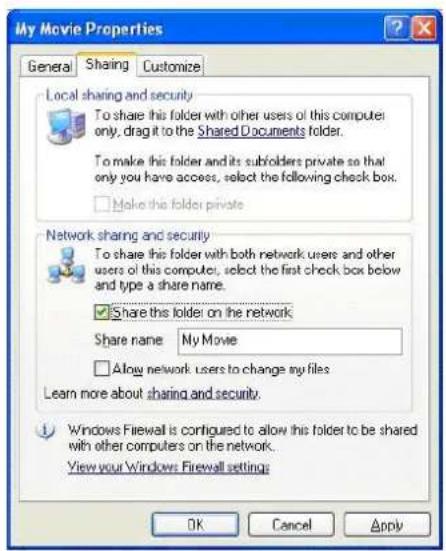

[1]. Select a folder your want to share and select “Sharing and security” menu using the mouse right button.

[2]. Checking “Sharing this folder on the network” and type “Share Name”. MY Movie

WARNING “Share Name” should be less than 12 letters. [3]. If the folder is shared, you will see a hand mark on the folder icon MY Movie [4]. Go to “Control Panel –Administrative Tools –Computer Management –Local Users and Group ” and, among the displayed items, double –click the Guest item.

WARNING The permission setting is only required for Windows XP Pro users. If you are an XP home user, go to “6” directly. If you cannot see the “Administrative Tools”, click on “Switch to Classic view” on the left corner. 17FANTEC TV-LHD [5]. After checking “User cannot change password” and “Password never expires”, keep the other checkboxes unchecked. Then click on “OK”.

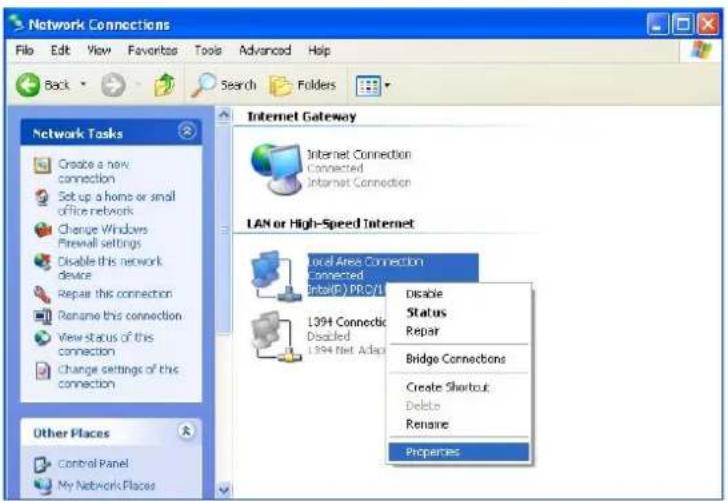

[6]. Go to “Control Panel—Network Connections”. Select “Local Area Connections” and open its property window by using the mouse right button and selecting “Properties”.

WARNING If you cannot see the “Network connections”, click on “Switch to Classic View” on the upper left corner If there are more than two “Local Area Connections”, Select the LAN card that is connected to the PLAYER.

After checking “Specify an IP address” enter your IP address and subnet mask. Then click on “OK”. For example) IP address: 192.168.1.3 / Subnet Mask: 255.255.255.0. WARNING If your PC already has “Obtain IP address automatically” enabled and the IP is automatically assigned from an Internet router or DHCP server, you may not need this setup. If you want a manual IP setup, please obtain an available IP address and subnet mask from the router or network administrator. On the following screen, click on the “Advanced” tap. If the “Internet Connection Firewall” option is checked, cancel this option NOTE If you are using Service Pack 2, consult the figure below. In the “Window Firewall” Section, click on “Settings”.

19FANTEC TV-LHD After selecting off, click on “OK”.

[8]. Configure PLAYER’s network environment. After pressing “Setup” button, select “IP SETUP” among the “NETWORK” setup items and set this to manual Setup. Then enter your IP address and subnet mask. For example) IP address:192.168.1.10 / Subnet Mask: 255.255.255.0.

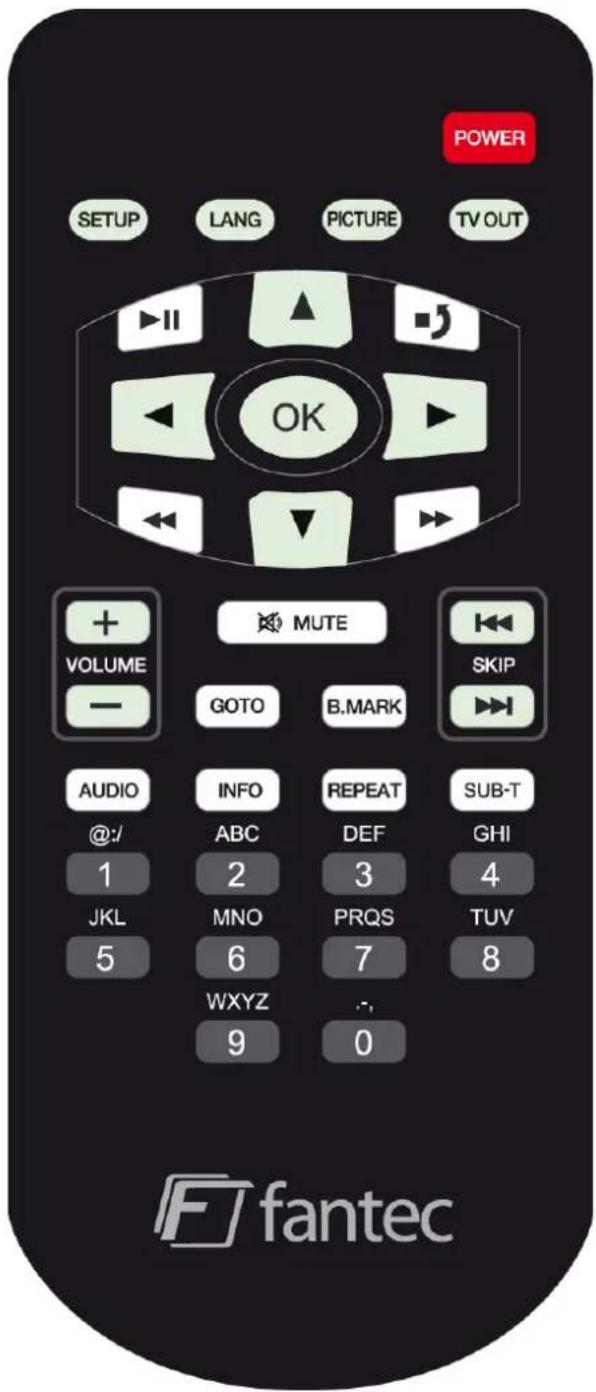

lFANTEC TV-LHD Power Turn on or Turn off power Setup Press this button, to enter Setup menu, or finishing setting up. Lang Press this button, to selet the OSD language. Picture Adjusts the brightness, contrast, and color. It selects a picture property according to the following order. (Brightness -> Contrast -> Color) Change the value of each property by using the left and right arrow button. TV out You can change different TV output mode. HDMI or A/V out. Play Start Playback or pause.

Move up and down between different options or items. DOWN Left Move back the main option or move left in setup mode. right Move right in setting up mode, to choose the right mode. Stop Stop the currently played file or go back to upper menu (Return)

Confirm your selection or setting.

Skip forward to next track or media file.

Skip backward to previous track or media file.

Forward or backward search of the current movie. (Each click doubles up the search speed: 2, 4, 8, 16 and 32 fold).

Volume down. Mute Press this button to disable or enable audio output. Goto Jump to the desired position of movie during playback. 22FANTEC TV-LHD B. Mark Supports two types: stopped points and bookmarked points (up to 9 in order). Audio Selects a specific audio source when multiple audio sources exist in a movie file. INFO Displays the information of a played file. Repeat Click once, it would repeat one track, click twice, it would loop all files i n the same folder, click 3 times, repeat function is turned off. SUB-T Selects a specific subtitle file in playback mode, if supported subtitles ar e available.

7-1 Connection with A/V (Composite) TV output

Connect the PLAYER and your TV with HDMI cable, Turn on the PLAYER and your TV, please confirm your TV is in HDMI mode, then set the PLAYER to HDMI mode by pressing “TV out” button on the remote controll until the picture appears. Connect the Player and your TV using the yellow video (A/V) cable. Turn on the player and TV. Select appropriate video input mode on your TV until you can get the initial player screen.FANTEC TV-LHD 7-3 Connection with 2 Channel of Cinch Audio

7-4 Connection with Coaxial output

Connect red and white audio (A/V) cable from FANTEC TV-LHD to the audio input jack of TV or audio device. When you have a multi channel decoder/amplifier with coaxial input, you can enjoy 5.1CH high quality sound through coaxial cable. The illustration on the top shows how to connect with coaxial cableFANTEC TV-LHD 7-5 Connection with Optical output

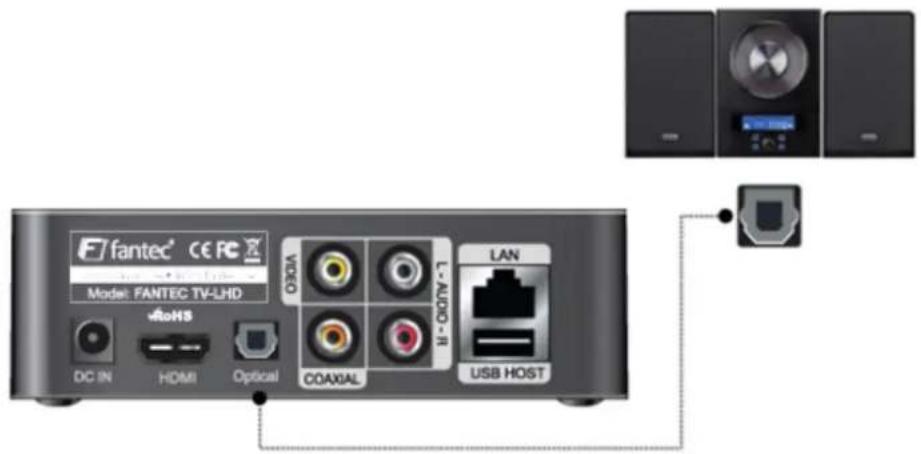

When you have a multi channel Decoder /amplifier with optical input, you can enjoy 5.1CH high quality sound through optical cable. The illustration on the top shows how to connect with optical cable.FANTEC TV-LHD

The figure below is the PLAYER’s SETUP screen

Under this option you can set your Audio output by choosing ‘Analog’ (Analog 2 channel audio output) or ‘Digital’ (Digital audio signals through the optical or coaxial output).

You can choose among following options to find your desired TV display. z 4:3 letterbox: This aspect ratio displays the content based on its horizontal length. Black horizontal bars are placed by the PLAYER at the top and bottom of the screen to be displayed in a wide mode. z 4:3 Pan-scan: This aspect ratio displays the content based on its vertical length. It fills up the screen, but some parts of the left and right side of the image are lost. z 16:9: Image output in the aspect ratio of 16:9.

Your can choose PAL or NTSC TV output systems.

You can choose proper TV output among following options: z HDMI z C/S Video = A/V out When you change TV output, there would be a window for confirmation comes out. Choose ‘Yes’ to continue output changing, choose ‘No’ to cancel output changing. NOTE: Once you choose TV output, change your TV setting accordingly. For example, if you choose HDMI as TV output, then you also need choose ‘HDMI’ output accordingly.

5. HDMI output setting

When you choose HDMI output, following 6 resolution are available. z 576i z 576p z 720p z 1080i z 1080p

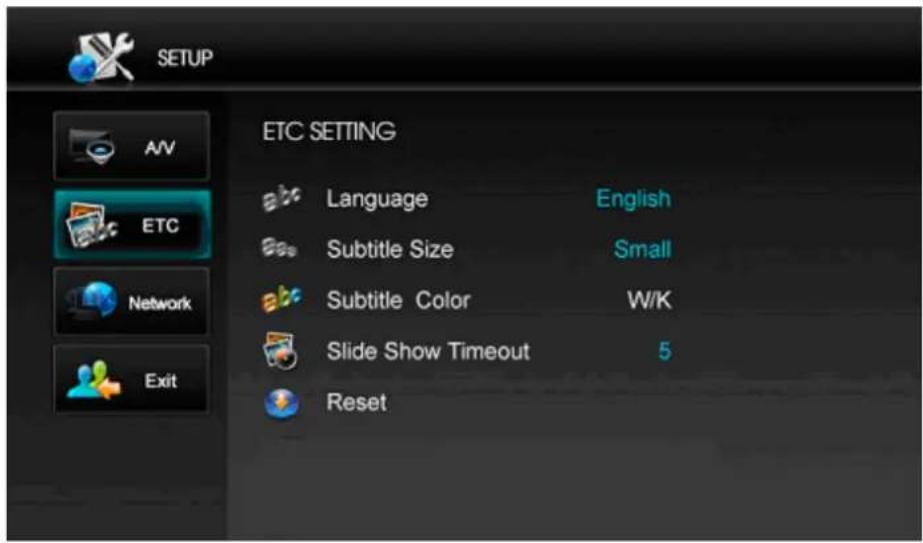

28FANTEC TV-LHD 8-2 ETC Enhanced Technical Calibration

You can choose proper language with this option. There are English, Italiano, Espanol, Russky, Francais, Deutsch, Czech, Portugues, Korean, and Simple Chinese available at this moment.

Select a subtitle size among small-subtitle, Big-subtitle, and No-subtitle. NOTE: DVD subtitles are not adjustable.

You can set different subtitle color when use this function by choosing from W/K (White/Black), Y/K (Yellow/Black), C/K (Cyan /Black), W/B (White/Blue), Y/B (Yellow/Blue), C/B (Cyan/Blue) picture as following. NOTE: DVD subtitles are not adjustable.

4. Slide Show Timeout

You can set picture slide show interval time by using this function. When you choose ‘slide show’, a time window comes out and you have o enter the time you want. Finally press ‘down arrow’ to confirm or cancel the settings. You can set interval time between “03” and “99” seconds. To STOP the slideshow, please press “OK” button during picture playback.

With this function, you can reset your player’s system setting to factory setting or your latest setting. When you choose “Factory” or “User” , there would be a confirmation window comes out for confirmation and the player has to be powered off when reset is confirmed. 29FANTEC TV-LHD 8-3 Network

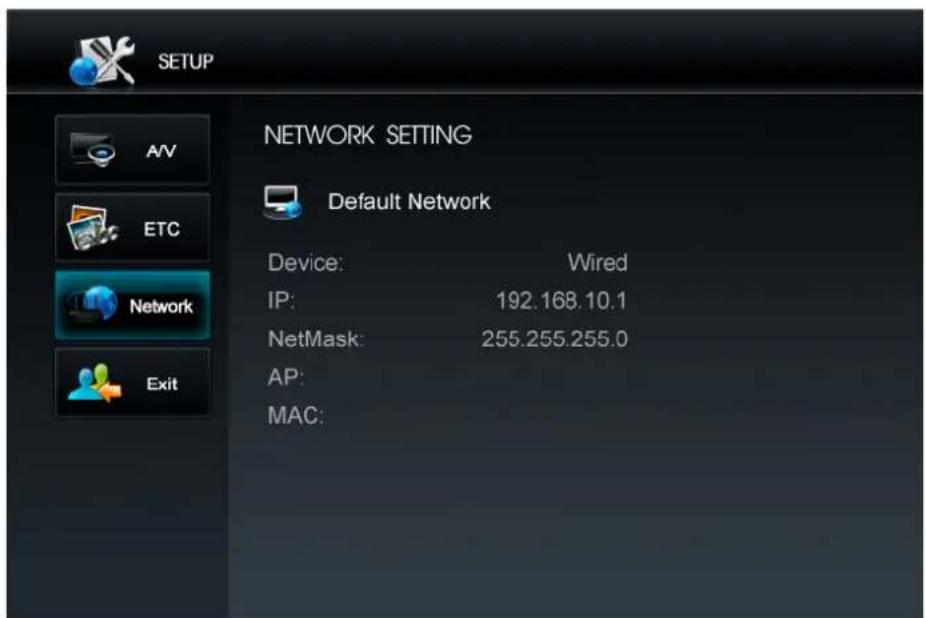

You can configure your local network by ‘Auto’ or by ‘Manual’. When you choose ‘Auto’, the player would search the local network to get a IP assigned by DHCP server and connect it automatically. If you want set LAN manually, you need to give the player a fixed ‘IP’ and ‘NetMask’ address and the player would connect accordingly to this setting. 8-4 Exit Choose this option to go back to player’s main page. 30FANTEC TV-LHD

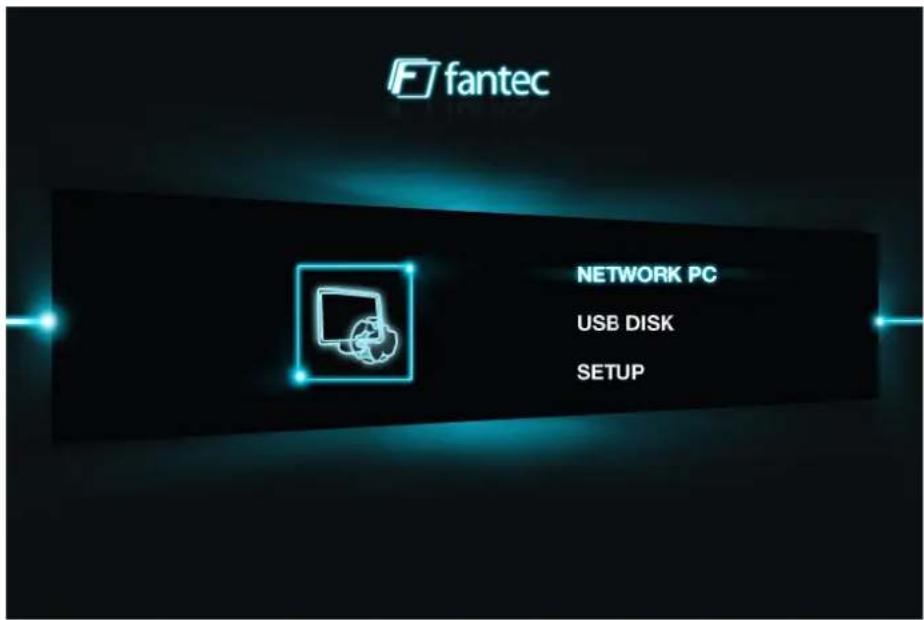

Icons and Screen Components

If you select this option, the player will search and display all available PCs, that have shared folder(s) in your local area network. See [Network- based Data Sharing] for more detail about data sharing setting.

If you select the option of USB Disk Selection, the player will search and display USB devices that are connected via the backside USB HOST port. You can play media files from an eternal HDD, optical drives, pen drive, etc. NOTE: If you have to install hardware drivers for the devices under your operating system (OS), the compatibility between FANTEC TV-LHD and USB device can not be garantueed.

You can setup video output, proper language, subtitles, slide effect, LAN etc. decribed under point no. 8 “Setup Menu”.FANTEC TV-LHD

Buttons and Function for movie playback Remote Button Function Description AUDIO Multiple Audio Selection Selects a specific audio source when multiple audio sources exist in a movie file. INFO File Info Display Displays the information of a played file. B.MARK Continuous Play Support two types: stopped points and bookmarked points (up to 9 in order) VOL Volume Adjust Adjusts volume. MUTE Sound Mute Enables/ disables sound. Remote Button Function Description GOTO Instant Jump Jumps to a desired time position during the playback. After entering a time a value using the arrow buttons or number buttons, press the (OK) button.

Playing a selected file Play a selected file. ARROW BUTTONS Up/Down Changing the position of a subtitle Left/Right Forward or backward search of the current movie. PLAY Start/Pause Start or pause the playback. STOP Stop Stop the current playback. Prev. Folder To move to upper-level folder on a file list. SKIP

Next/Prev. File Jumps to a next or previous file during playback.

Next/Prev. Page When used on a file list screen, it jumps forward/ backward to different pages SEARCH

Quick Search Forward or backward search of the current movie (Each click doubles up the search speed -2, 4, 8, 16 and 32 fold). The Player can play the following files: AVI, DAT, ISO, MKV, MPG, MPEG, TP, TRP, VOB, WMV etc. Playback order and method are determined by the selected repeat mode.FANTEC TV-LHD

Buttons and Function for music playback Remote Button Function Description BOOKMARK Continuous Play Support two types: stopped points and bookmarked points(up to 9 in order). VOL Volume Adjust Adjusts volume. MUTE Sound mute Enables/ disables sound.

Playing selected file Play a selected file. PLAY Start/Pause Start or pause the playback. STOP Stop Stop the current playback. Prev. Folder To move to a upper-level folder on a file list. SKIP Next/Prev. File Stop the current playback. Next/Prev. Page When used on a file list screen, it jumps forward/ backward to different pages. ARROW BUTTONS Up/Down File navigation during playback. Left/Right Jumping forward/ backward by 15 seconds. During playing music files, the system is in the music playback mode. During playing music files, you can search folders and files. After selecting a new file and pressing the “OK” button, the selected file will be played.FANTEC TV-LHD

Buttons and Function for photo playback Remote Button Function Description

Playing a selected file Play a selected file. PLAY Start/Pause Starts or pause the playback. STOP Stop Stop the current playback. SKIP

Prev. Folder To move to a upper-lever folder on a file lst. Next/Prev. File Jumps to a next file during playback. Next/Prev. Page When used on a file list screen, it jumps forward/ backward to different pages. JPG files can be played. The Player also provides a slideshow function. The display duration or each picture can be set in the SETUP menu.FANTEC TV-LHD

1. The latest firmware can be downloaded from www.fantec.eu1. The latest firmware can be downloaded from

2. Copy the latest firmware to an external storage device.

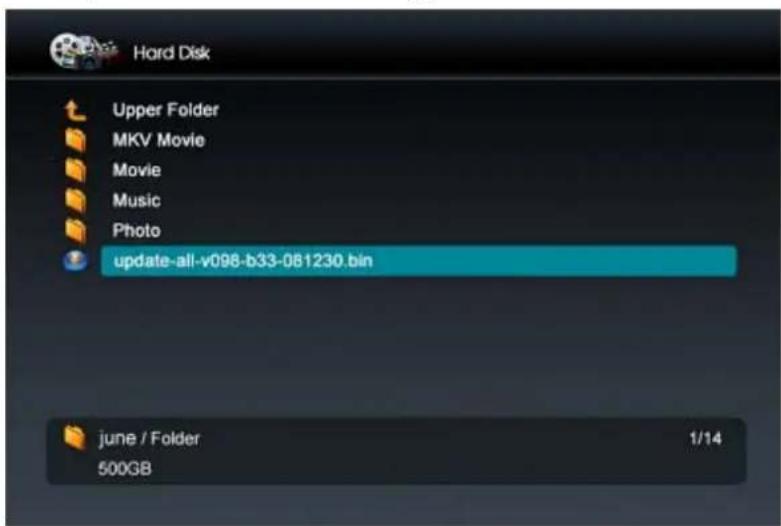

3. Connect the external storage device to your FANTEC TV-LHD, select the firmware file using the

remote control and press “OK” button to start the upgrade.

4. If a firmware warning screen appears, initiate the firmware upgrade by selecting “OK”

The firmware of the Player will is upgradedable in order to bug fix and to satisfy customers need. The current version of a firmware is shown on the right upper corner of the SETUP screen.FANTEC TV-LHD

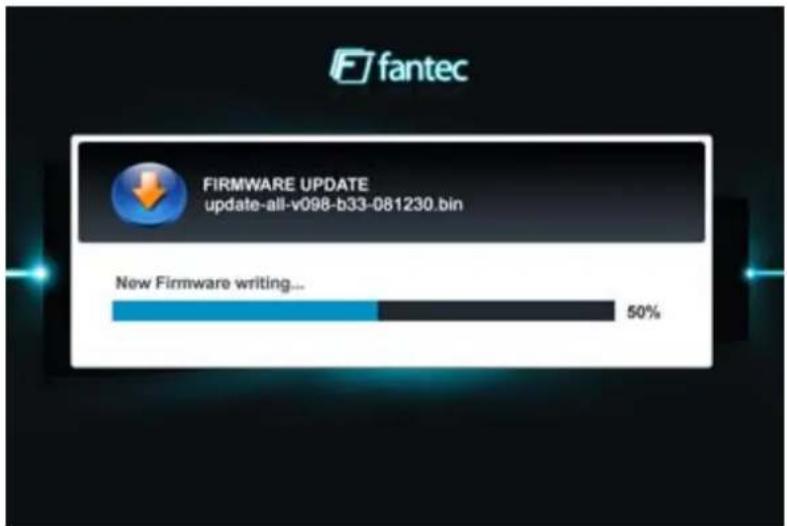

5. The firmware upgrade is in progress.

6. When the firmware upgrade is successfully completed, the system will be automatically rebooted.

Warning During firmware upgrade process , do not turn off the power or disconnect the adapter. 36FANTEC TV-LHD

When the power is on, nothing appears on the screen or the screen is flickering? When the video output mode is not properly set, nothing may appear on the screen, the screen may be in monochrome, or the screen may be flickering . Press “TV OUT” button of the remote control and change the output mode until the video output mode is properly set. The Player is PAL or NTSC mode, Please check the TV Output (NTSC/PAL). When the player is powered on, why will the TV have a short flashing, blue screen or screensaver? This is normal, when the system initializes, it will setup the corresponding parameters so it can output the correct video signal to the TV, during the initializing time, the TV will receive incorrect signals or the signals will not be stable and will cause the TV screen to flash, some TV’s will treat this as no signal, and will display a blue screen or screensaver. While playing a movie file, its subtitle is not shown? The name of a movie file has to match to the name of a subtitle file or reverse. In the case of multiple subtitles, if there is no first subtitle, subtitle cannot be shown. In this case, using the [SUB-T] button, select the second subtitle file. While playing a movie, there is no audio output? In the SETUP menu, check if the audio output mode is properly set. Check the volume level. Check if the [MUTE] function is activated. USB device is not supported? If you have to install hardware drivers for the devices under your operating system (OS), the compatibility between FANTEC TV-LHD and USB device can not be garantueed. Can the player access to the USB host port when it’s connected to PC? No, it can’t. Why do some photo formats, cannot be shown in the photo function? In the JPEG format there are different modes. The player doesn’t support all the modes. So you have to change your photo format first as follow: (1) Use Photoshop to open the photo. (2) Choose ”File” then “save as” from the menu, as the picture on the left hand side shows, select the picture format as JPEG, input the file name and click the “save” icon.FANTEC TV-LHD (3) After click on the “save” icon, a new window will appear as the picture on the right hand side shows, select “Baseline (standard)” or “Baseline optimized”. (4) Click the “OK” icon. Why when I switch to 480P, 576P, 720P, 1080I or 1080P does the TV screen display an unwatchable picture? Please check if your TV supports 480P, 576P, 720P, 1080I or 1080P output, if your TV does not support, please use the A/V signal display instead, press the TV OUT button on the remote control, then switch the TV’s video input to NTSC or PAL. I configured everything correctly, but still cannot get the network connected? Are you using a firewall such as Norton Internet Security, McAfee Personal Firewall, Zone Alarm, etc. or even the built-in firewall of Windows XP? (Don’t forget that Service Pack 2 for Windows XP or Vista automatically upgrades your firewall and turn it on by default).

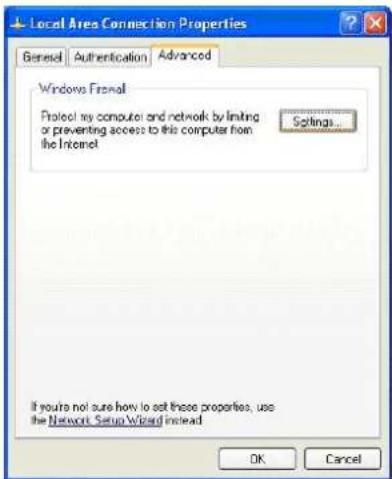

If you have a firewall, it may need to be configured or have exceptions created to allow you to see and communicate with the player on the network. To test if your firewall is preventing network communication (including PING and access shared folders), try disabling it to see if you can connect. If you can connect with the firewall disabled, you may need to add the player to the ‘Trusted’ list or configure the firewall for local intranet access. Worst-case, disable your firewall long enough to use the player, then enable it again when done.FANTEC TV-LHD
