USER MANUAL TV-FHDS Fantec

1.1 Preface....3
1.2 Packing List....4
1.3 Cautions....4
1.4 Connection....6
1.5 Power On / Off 10
1.6 Menu Language 10

2. About the Player ....11

2.1 Remote Control....11
2.2 Front Panel 13
2.3 Rear Panel 13
2.4 Side Panel.... 14

3. Setup Menu 15

3.1 Changing Audio Settings.... 15
3.2 Changing Video Settings 16
3.3 Changing Network Settings 17
3.4 Changing System Settings.... 20
3.5 Miscellaneous 22

4. Browser Menu....23

4.1 Browsing All 23
4.2 Browsing Music.... 24
4.3 Browsing Photos 25
4.4 Browsing Movies 26
4.5 A/V Streaming via Network 27
4.6 A/V Streaming via UPnP-server 29
4.7 Renaming / Deleting Files.... 31
4.8 Managing the Playlist.... 31

5. File Copy Menu 33

6. Internet Radio.... 34

7. Upgrading the Firmware 35

8. Appendixes.... 36

8.1 Specifications 36
8.2 Frequently Asked Questions.... 37
8.3 Copyrights and Trademarks...... 38
8.4 Warranty.... 39
8.5 GPL Statement.... 39

1. Introduction

1.1 Preface

Thank you very much for purchasing the product. We hope you will enjoy using it as a great home entertainment partner. The FANTEC TV-FHDS has the following functionality.

Audio Video Output

• HDMI V1.3 for high-definition video and digital audio
- Composite & component video and stereo audio for analog audio-visual connection
- S/PDIF optical interface for high-fidelity digital audio
- Adjustable video output resolution (NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p)

Multimedia Playback

• Supports major audio, video and image file formats (1080p HD video decoding)
- Movie format: AVI/MKV/TS/TP/TRP/M2TS/MPG/MP4/M4V/MOV/VOB/ISO/IFO/DAT/WMV/ASF/RM/RMVB/FLV
• Music format: MP3/OGG/WMA/WAV/AAC/FLAC
• Photo format: HD JPEG/BMP/GIF/TIF/PNG
• Photo slide show with background music

Network Feature

• A/V streaming/transmission via Ethernet (10M/100M) & Wi-Fi (802.11b/g/n, optional)
• A/V streaming via UPnP Media Server
- Internet Radio (SHOUTcast)

File Copy

• Supports copying & moving files among USB devices, Card and Network

USB 2.0 Support

• USB HOST port x 2 (for USB storage devices)
  • Memory Card slot x 1

Note: All the information contained in this manual was correct at the time of publication.

However, as our engineers are always updating and improving the product, your device's software may have a slightly different appearance or modified functionality than presented in this manual.

1.2 Packing List

Part	Quantity
Player	1
A/V cable 1
Y/Pb/Pr cable 1
Remote Control 1
Remote Control Battery 2
AC/DC adaptor 1
User Manual (printed) 1
Warranty card 1

Note:

The actual contents in the package might be different from the packing list in this manual.

1.3 Cautions

This player's design and manufacture has your safety in mind. In order to a safely and effectively use this of this player, please read the following before usage.

1.3.1 Usage Cautions

User should not modify this player. The environmental temperature should be within +5°C \~ +35°C.

1.3.2 Power

The player's power voltage: DC 5V.

When using this player, please connect the supplied AC adapter or AC adapter cable to the player's power jack. When placing the adapter cable, make sure it can not get damaged or be subject to pressure. To reduce the risk of electric shock, unplug the adapter first before cleaning it. Never connect the adapter to the player in a humid or dusty area. Do not replace the adapter or cable's wire or connector.

1.3.3 Radio Interference

• If not properly shielded, almost all electronic devices will get radio interference. Under some conditions, your player might get interference.
• The design of this player has followed the FCC/CE standard and has followed the following rules:

(1) This player may not cause harmful interference;

(2) This player could accept some interference received including interference that may cause undesired operation.

1.3.4 Repair

If the player has a problem, you should take it to an appointed repair center and let the specialists do the repair, never repair the player yourself, you might damage the player or endanger yourself or your data.

1.3.5 Disposing of the Player

When you dispose of the player, be sure to dispose it appropriately. Some countries may regulate disposal of electrical devices. Please consult with your local authority.

1.3.6 Others

When using this player, please do not let the player come into contact with water or other liquids. If water is accidentally spilled on the player, please use a dry cloth to absorb the spillage.

Electronic products are vulnerable, when using please avoid shaking or hitting the player and do not press the buttons too hard.

Do not let the player come into contact with water or other liquid.
Do not disassemble the player, repair the player or change the design of the player, any damage done will not be included in the repair policy.
Do not press the buttons of the player too hard.
Avoid hitting the player with hard object, avoid shaking the player and stay away from magnetic fields.
During electrostatic discharge and the strong electromagnetic field, the product will malfunction, then unplug the power cable and the product will return to normal performance next time it is powered on.

1.4 Connection

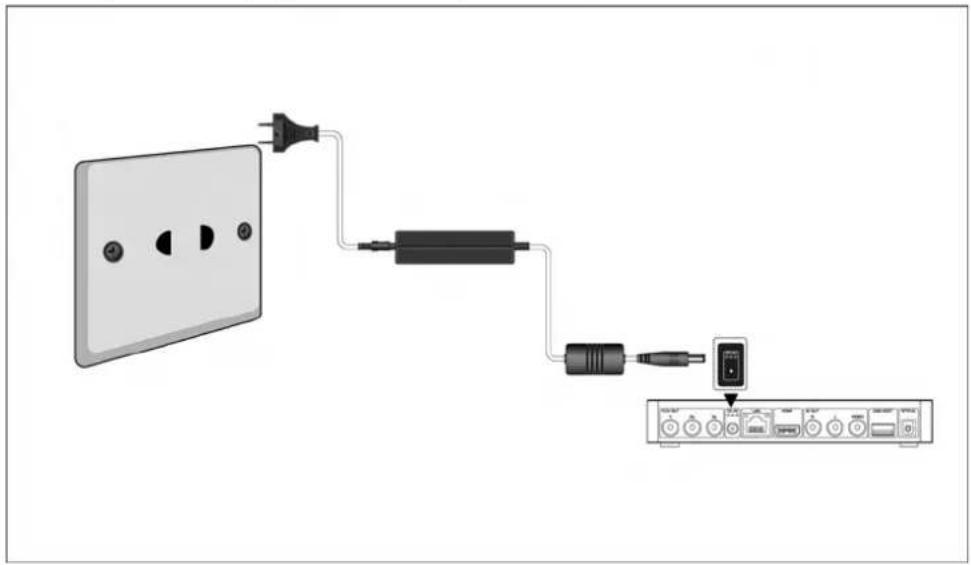

1.4.1 Connecting the Power Supply

(1) Follow the picture and connect the AC adaptor to the player's DC IN jack;
(2) Follow the picture and plug in the AC adaptor to the power outlet.

Pure electrical circuit lines without any symbols

1.4.2 Connecting a USB Device

(1) Make sure the player is powered on;
(2) Plug in the USB stick or USB HDD etc. to the USB HOST port of this player.

In this way, you can browse contents on the USB device.

1.4.3 Connecting a Memory Card

Memory cards can be used by inserting to the card slot.

(1) Follow the picture to insert the memory card into the card slot properly.
(2) Insert the card by following the arrow pointer in the picture.

In this way, you can browse content on the memory card.

1.4.4 Connecting to a TV

1.4.4.1 A/V OUT

(1) Follow the picture and plug in the 3 color connector to the player's A/V OUT jack;
(2) Follow the picture and plug in the 3 color connector to the TV's A/V IN jack.

In this way, you can enjoy the media files on TV or other display devices.

Diagram showing a computer monitor connected to an audio amplifier via cable routing (no text or labels present)

1.4.4.2 Y/Pb/Pr Component OUT

(1) Follow the picture and plug in the 3 color connector to the player's Y/Pb/Pr jack. (2) Follow the picture and plug in the 3 color connector to the TV's Y/Pb/Pr jack.

Note: Audio Connection while using Y/Pb/Pr Video out:

First method: Use the audio output from the A/V OUT jack.

Second method: Use the audio output from the S/PDIF Optical jack.

Diagram of a computer setup with monitor, cables, and audio equipment (no text or symbols)

In this way, you can also enjoy HD videos, music and photos on TV.

1.4.4.3 HDMI OUT

(1) Follow the picture and plug one connector on your HDMI cable to the player's HDMI jack. (2) Follow the picture and plug the other connector on your HDMI cable to the TV's HDMI jack.

Diagram showing connection between a computer monitor and two connected devices (no text or symbols present)

In this way, you can have the highest quality video and audio via a single cable.

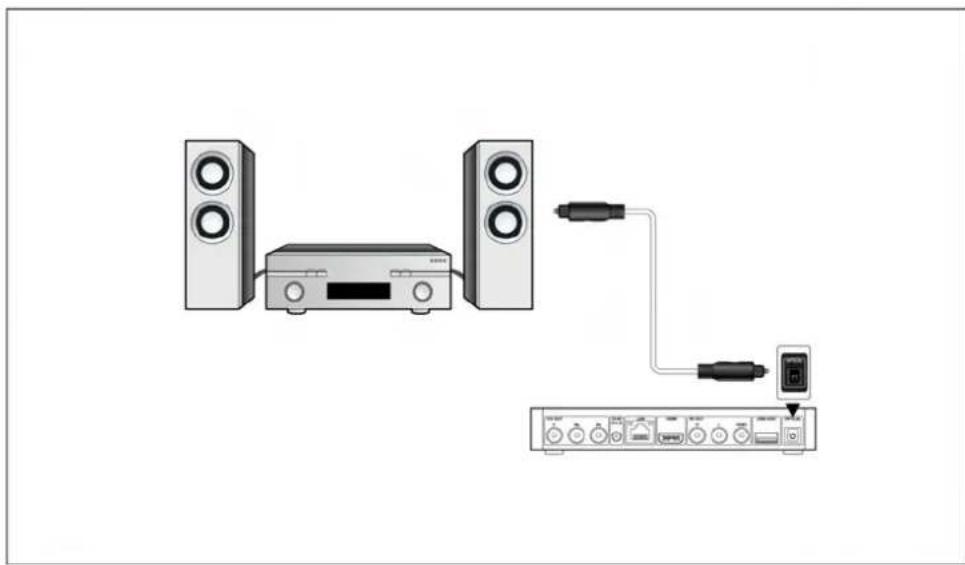

1.4.5 Connecting to a Digital Amplifier

(1) Follow the picture and plug in the RCA connector on your coaxial cable to the player's S/PDIF Coaxial jack. Or if you use optical fiber, please plug in the Toslink connector on your optical fiber to the player's S/PDIF Optical jack.
(2) Follow the picture and plug in the other connector on your coaxial cable or optical fiber to the digital audio device (digital amplifier or decoder).

Diagram showing audio equipment connections with speakers, a CD, and an audio jack (no text or labels)

In this way, you can enjoy powerful Dolby Digital or MPEG sound. (Please refer to '3.1 Changing Audio Settings' for configuration)

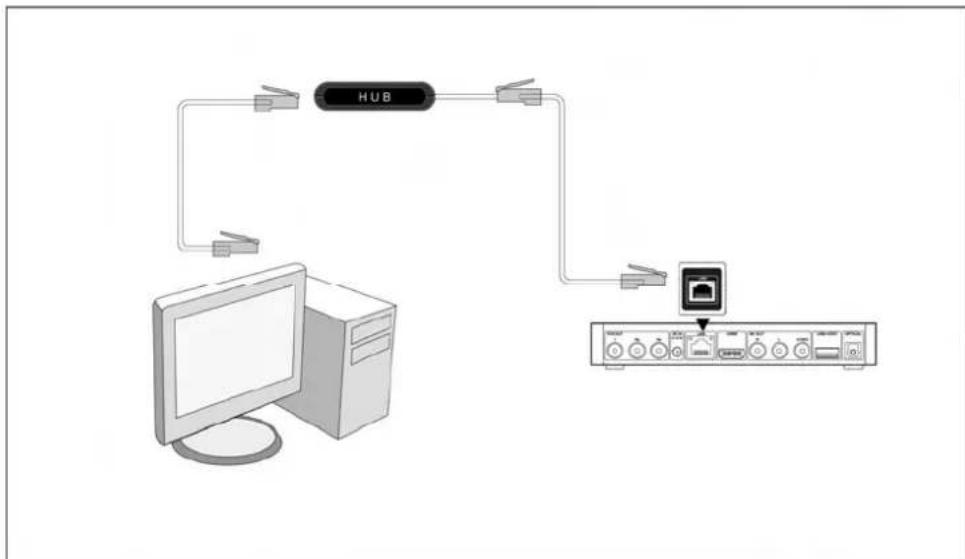

1.4.6 Connecting to LAN

To connect to a LAN (Local Area Network) you require a cat5, cat5e or cat6 network cable.
(1) Connect one of the crystal plugs on the cable to the player's RJ45 LAN socket.
(2) Connect the other crystal plug on the cable to a RJ45 LAN port on your router, switch on hub devices.


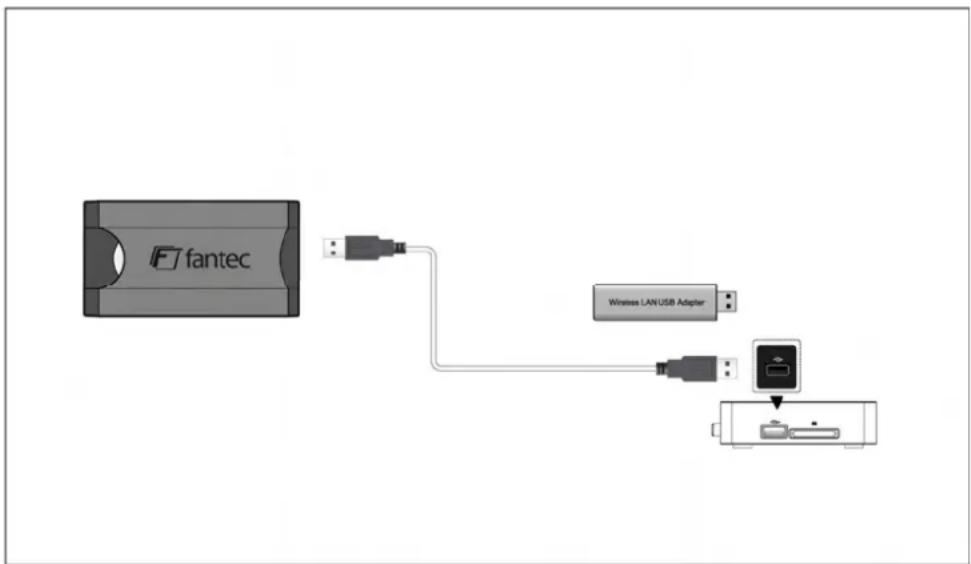

1.4.7 Connecting to a WLAN

(1) Make sure the player is powered on.
(2) Plug the Wireless LAN USB Adapter (i.e. Wi-Fi USB Dongle) to the USB HOST port of the player.

Note: The Wi-Fi Dongle is an optional accessory sold separately. (Please refer to '3.3

Changing Network Settings' for more details about wireless setup).

1.5 Power On / Off

Power On

After connecting the DC IN jack and press the power button on the front panel, the player will soon enter the home screen and the power indicator will turn blue.

Power Off

Press the power button on the front panel, the player will soon enter standby mode and the power indicator will turn red.

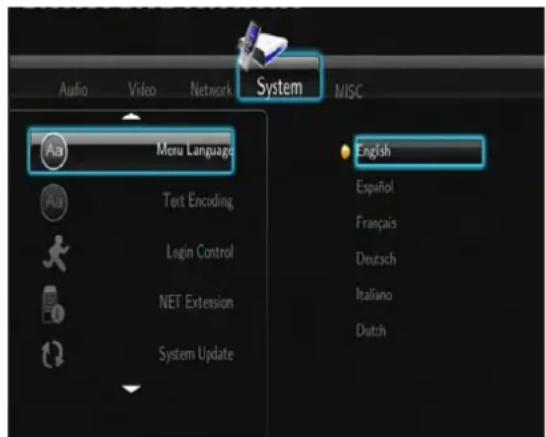

1.6 Menu Language

The system language of this player can be set to English or other languages. Change the language you wish in the setup menu, the selected language will take effect immediately.

Audio Video Network System MISC Aa Menu Language English Español Français Deutsch Italiano Dutch

2. About the Player

2.1 Remote Control

All procedures in this manual can be carried out using the remote control buttons. See the following for details on each button and its function:

1. STANDBY 2. MUTE
3. TV SYSTEM 4. BROWSER
5. Numeric buttons 6. REPEAT
7. FR 8. VOL-
9. FF 10. PLAY
11. HOME 12. Navigational buttons
13. MENU 14. PAUSE/STEP
15. SLOW 16. INS REPLAY
17. CM SKIP 18. SELECT
19. CONFIRM 20. AUDIO
21. SUBTITLE 22. ZOOM IN
23. ZOOM OUT 24. A-B
25. ANGLE	26. SETUP
27. RETURN	28. STOP
29. NEXT	30. VOL+
31. PREV	32. GOTO
33. COPY	34. MUSIC
35. INFO

No.	Button	Function
1	STANDBY	Press to enter standby mode or wake up.
2	MUTE	Press to mute audio output and press again to resume.
3	TV SYSTEM	Press to switch between NTSC, PAL, 480P, 576P, 720P, 1080I and 1080P.
4	BROWSER	Press to enter the browser menu.
5	Numeric buttons	Press to enter numeric input when changing settings.
6	REPEAT	Press to set repeat option: One
7	FR	Press to fast rewind the current playback. Press repeatedly to select speeds.
8	VOL-	Press to decrease the volume.
9	FF	Press to fast forward the current playback. Press repeatedly to select speeds.
10	PLAY	Press to begin playback.
11	HOME	Press to enter the home screen.
12	Navigational buttons	Press the arrow buttons to select menu options and the ENTER button to confirm.
13	MENU	Press to activate tools menus:Press in the browser menu to rename and delete files.Press in My_Shortcuts in NET of the browser menu to add shortcuts for network access.Press in internet radio menu to add favorite stations.
14	PAUSE/STEP	Press to pause the current playback. Press again to step to the next frame. Press the PLAY button to resume playback.
15	SLOW	Press to play back in slow motion. Press the PLAY button to resume regular playback.
16	INS REPLAY	Press to backward 10 seconds of the current playback.
17	CM SKIP	Press to advance 30 seconds of the current playback.
18	SELECT	Press to select files in browser and file copy menu.
19	CONFIRM	Press to confirm and add the selects to the playlist.
20	AUDIO	Press to select an audio track.
21	SUBTITLE	Press to set subtitle options.
22	ZOOM IN	Press to zoom in the image (photo or video).
23	ZOOM OUT	Press to zoom out the image (photo or video).
24	A-B	Press to set the beginning and end points of a section to repeat.
25	ANGLE	Press to change the view angle during DVD (with multi-angle) playback.
26	SETUP	Press to enter the setup menu.
27	RETURN	Press to return to the previous screen while navigating menus.
28	STOP	Press to stop playback.
29	NEXT	Press to view the next file / page down.
30	VOL+	Press to increase the volume.
31	PREV	Press to view the previous file / page up.
32	GOTO	Press to jump to a specific point on a title. Specify the point using Title, Chapter and Time.
33	COPY	Press to enter the file copy menu.
34	MUSIC	Press to start playing music in the music playlist.
35	INFO	Press to hide or display the information bar during playback.

2.2 Front Panel

Front view of a black electronic device with a circular button and indicator light, labeled with number 1 (no text or symbols on the device body)

1. Power indicator & button

2.3 Rear Panel

1 2 3 4 5 6 7 TV OUT V D D DC-PR ONION LUN HOME AV OUT R L VIDEO USB HOST OPTICAL

1. Y/Pb/Pr OUT jack 2. DC IN jack
2. RJ45 LAN socket 4. HDMI jack
3. A/V OUT jack 6. USB HOST port
4. S/PDIF OPTICAL jack

2.4 Side Panel

1 2

1. USB HOST port 2. Memory Card slot

3. Setup Menu

The Setup menu allows you to personalize and configure the preferences for your player.

To select a Setup option:

- Select the Setup icon on the home screen or press the SETUP button on the remote control.

BROWSER Browser fantec

- Use the LEFT/RIGHT navigational buttons to select an option and then press ENTER.

There are five Setup options, including Audio, Video, Network, System and MISC. Use the UP/DOWN navigational buttons to select a menu. Press ENTER to confirm. Press RETURN to cancel and display the previous menu screen.

3.1 Changing Audio Settings

Use this menu to configure audio settings.

Audio Video Network System MISC Night Mode Off Digital Output HDMI LPCM

Night Mode

- Choose between Off / On / Comfort. If the option is turned on, the audio output volume will be decreased to make you more comfortable.

Digital Output

- Choose between HDMI LPCM / HDMI RAW / SPDIF LPCM / SPDIF RAW. In raw mode, Dolby Digital or MPEG sound can be bypassed to the HDMI TV or Digital amplifier.

3.2 Changing Video Settings

Use this menu to configure video settings.

Audio Video Network System MISC Aspect Ratio Letter Box 4:3 Brightness 25 Contrast 25 TV System PAL

Aspect Ratio

• Pan Scan 4:3: Display a wide picture on the entire screen and cuts off the redundant portions. Select when a standard 4:3 TV is connected.
• Letter Box 4:3: Display a wide picture with two black borders on the top and bottom of 4:3 screen. Select when a standard 4:3 TV is connected.
• 16:9: Compress the image to convert the whole image. Select when a 16:9 TV is connected.

Brightness

- Adjust the level of brightness.

Contrast

- Adjust the level of contrast.

TV SYSTEM

- Select to adjust video output resolution: NTSC / PAL / 480P / 576P / 720P 50HZ / 720P 60HZ / 1080I 50HZ / 1080I 60HZ / 1080P 50HZ / 1080P 60HZ.

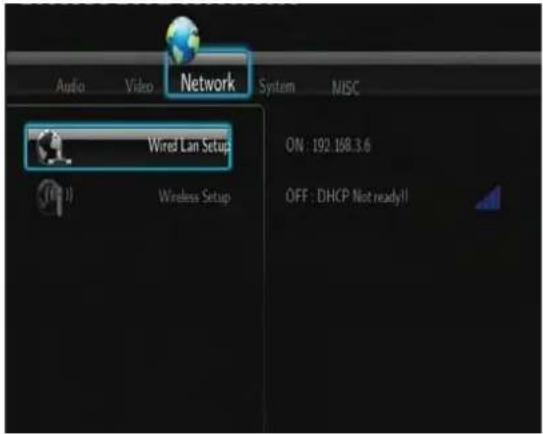

3.3 Changing Network Settings

Use this menu to configure Ethernet and WLAN (Wireless Local Area Network) settings.

Audio Video Network System MISC Wire Lan Setup ON : 192.168.3.6 Wireless Setup OFF : DHCP Not ready!!

Wired LAN Setup

- DHCP IP (AUTO)

Select to obtain IP address automatically.

- FIX IP (MANUAL)

Select to manually input the IP Address, Subnet Mask, Default Gateway and DNS Server IP Address.

Wireless Setup

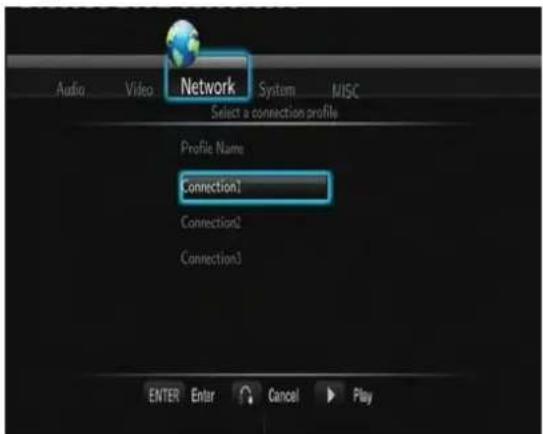

- Selecting a connection profile

Audio Video Network System MISC Select a connection profile Profile Name: Connection1 Connection2 Connection3 ENTER Enter Cancel Play

This player can store up to three wireless network connections. Press ENTER to go to next step, press RETURN to cancel and press PLAY to connect.

- Get Connection Mode

Audio Video Network System MISC Get Connection Mode Connection Mode Infrastructure (AP) Peer to Peer (Ad Hoc) ENTER Enter Cancel

Choose between Infrastructure (AP) and Peer to Peer (Ad Hoc). Press ENTER to go to next step and press RETURN to cancel.

- Infrastructure (AP)

Infrastructure mode is used to connect computers with wireless network adapters, also known as wireless clients to an existing wired network with the help from wireless router or access point.

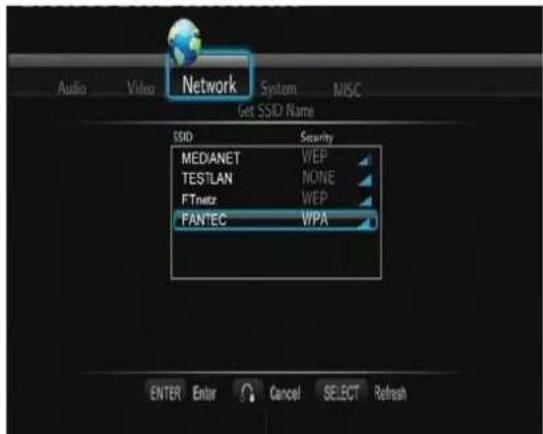

Get SSID Name

Network Audio Video System MISC Get SSD Name SSID Security MEDIANET WEP TESTLAN NONE FTnetz WEP FANTEC VIPA ENTER Enter Cancel SELECT Refresh

Press ENTER to go to next step, press RETURN to cancel and press SELECT to refresh the SSID list.

Note: In the Security list, WEP (Wired Equivalent Privacy) and WPA (Wi-Fi Protected Access) means the network is encrypted, i.e. an encryption key is needed to access the network. NONE means it is an open system network.

Input WEP / WPA Key

Audio Video Network System MISC WPS Key 1223134444 1 2 3 4 5 OK 6 7 8 9 0 q w e r t CAPS y u i o p a s d f g <- h j k l - z x c v b -> n m / \ = [ ] ? shift . * . . ENTER Enter Cancel SELECT Refresh

Encryption keys can be inputted via the virtual keyboard. Press the navigational buttons to select, ENTER to input, CAPS to switch between uppercase and lowercase, <- to delete a character, -> to insert a space, shift to make more symbols available and OK to confirm.

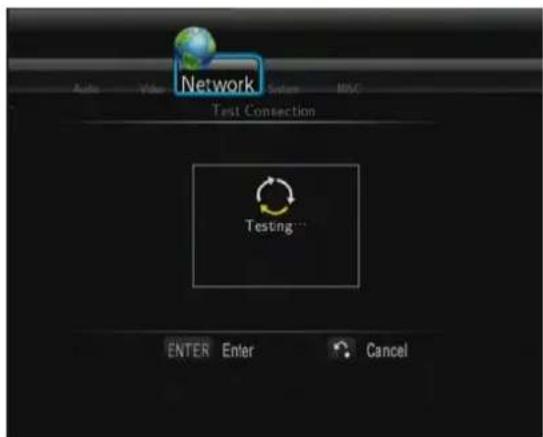

Test connection

Network Auto Video System HSC Test Consection Testing... ENTER Enter Cancel

The testing process will take for a while, please be patient to wait. If the test is ok, the network information (Profile Name, IP address, Subnet Mask, Gateway, etc.) will be displayed on the screen.

- Peer to Peer (Ad Hoc)

Peer to Peer mode, which is also called Ad Hoc mode or computer-to-computer mode, is used to connect wireless clients directly together, without the need for a wireless router or access point.

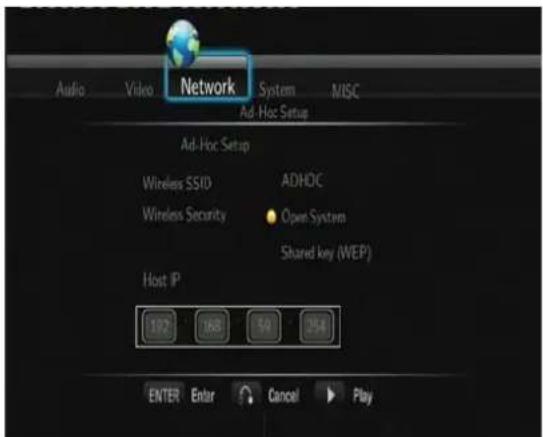

Ad-Hoc Setup

Network Ad-Hoc Setup Wireless SSID ADHDC Wireless Security Open System Shared key (WEP) Host IP 102 168 54 254 ENTER Enter Cancel Play

Press ENTER to go to next step, press RETURN to cancel and press PLAY to connect.

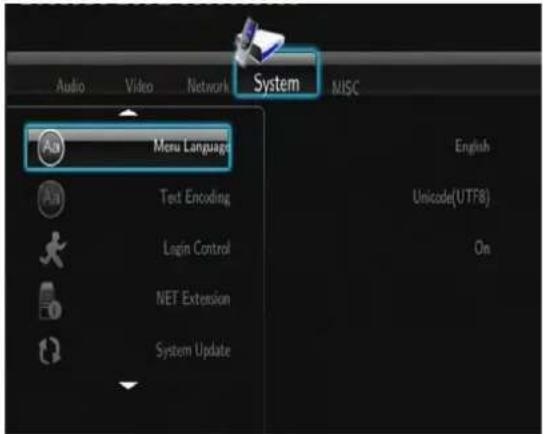

3.4 Changing System Settings

Use this menu to configure system settings.

Audio Video Network System MISC Menu Language English Text Encoding Unicode(UTF8) Login Control On NET Extension System Update

Menu Language

- Select to choose the OSD (On-Screen Display) language. You can choose between English, Spanish, French, German, Italian, Dutch and Russian.

Text Encoding

- Select to set the text encoding option (subtitle display). You can choose between Unicode (UTF8), Western, Turkey, Central European, Greek, Cyrillic, Hebrw and SE European (Southern and Eastern European).

System Update

- Select to update the firmware via a USB stick.

1) Copy 'install.img' to the root directory of a USB stick and connect it to the USB HOST port of the player.
2) Select 'System Upgrade' or 'System Reinstall' and press ENTER to confirm.

System Info

- Select to view system information (firmware version, boot loader version, Mac address, etc.)

Restore Default

- Select to restore factory defaults.

3.5 Miscellaneous

Use this menu to adjust miscellaneous settings.

Audio Video Network System MISC Slide Show Timing Transition Effect Background Music Screen Saver Movie Preview Off Off Folder On On

Resume Play

- Select to turn on / off resume playback (auto-bookmarking) feature for movies.

Slide Show Timing

- Select to set the interval time for photo slide show.

Transition Effect

- Select to set the transition effect for photo slide show.

Background Music

- Select to set the background music options while view pictures: Off / Folder / Playlist.

Screen Saver

- Select to turn on / off screen saver.

Movie Preview

- Select to turn on / off movie preview in the browser menu.

4. Browser Menu

The browser menu allows you to browse and play media files stored on USB devices, Memory cards, Network shares, UPnP-server and Playlist. To enter the menu, select the Browser icon on the home screen, or press the BROWSER button on the remote control.

All Music Photo Movies USB CARD Network UPnP

The following buttons can be used while navigating the browser menu.

Button	Function
UP / DOWN	Move cursor up / down to select devices, folders, or files.
LEFT / RIGHT	Select filter options: All, Music, Photos and Movies.
PREV / NEXT	Go to previous / next page.
ENTER	Enter or confirm the selected item.
SELECT	Select files under Browser -> USB menu.
CONFIRM	Add the selected files to the playlist.
RETURN	Return to the previous menu.

4.1 Browsing All

In this mode, all folders and supported content (music, photos and movies) will be displayed.

All Music Photo Movies C: /BT/ /Cascada - [Everytime We. Touch] /Club 8 - [Best. Wishes - The. Best] /Exchanted/ /Fringe/ /Groove Coverage - [Covergirl] (V 4:33)

Note:

• Please refer to chapter '9.1 Specifications' for more about the supported content formats.
• Muisc tracks might not be able to played continuously under All filter, please switch to the Music filter instead.

4.2 Browsing Music

In this mode, all folders and supported audio files in current directory will be displayed.

All Music Photo Movies C:\Nickelback - all the right reasons (1) /- 01 follow you home.mp3 nickelback - all the right reasons 02 nickelback - all the right reasons 03 nickelback - all the right reasons 04 nickelback - all the right reasons 05 2:12 artist: Nickelback title: Follow You Home album: All The Right Reasons game: Rock comment: img year: 2006 track: 1 Name: nickelback - all the right reasons 01 follow you Size: 5M Dbytes

The following buttons can be used to control music playback.

Button	Function
PLAY	Begin playback.
PAUSE / STEP	Pause playback.
FR / FF	Fast rewind or fast forward. Press repeatedly to select the speed.
REPEAT	Set repeat options: One, All and Shuffle.
INFO	Hide or display the information bar during playback.
STOP	Stop playback.

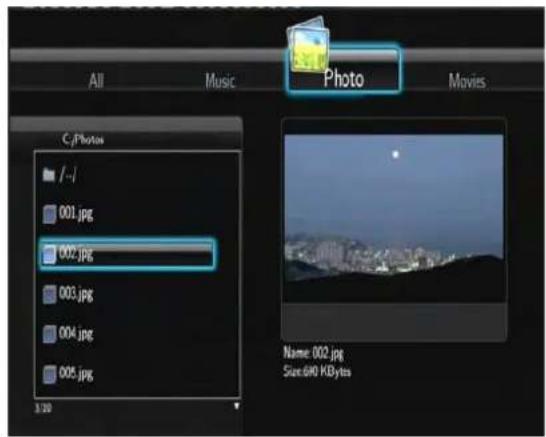

4.3 Browsing Photos

In this mode, all folders and supported image files in current directory will be displayed.

All Music Photo Movies C:\Photo / -1 001.jpg 002.jpg 003.jpg 004.jpg 005.jpg Name: 002.jpg Size:640 KBytes

The following buttons can be used to control music playback.

Button	Function
PLAY	Begin playback.
PREV / NEXT	View the previous or next photo.
LEFT / RIGHT	Rotate a photo in any angle.
ZOOM IN / OUT	Zoom in / out the image.
INFO	Hide or display the information bar during playback.
STOP	Stop playback.

You can view photos in slide show mode with background music. When it is enabled, the slide show starts automatically once you press PLAY button. (Please refer to Slide Show Timing, Transition Effect and Background Music in chapter '3.5 Miscellaneous' for more details)

4.4 Browsing Movies

In this mode, all folders and supported video files in current directory will be displayed.

All Music Photo Movies My Shortcuts/192.168 3.4 /My Video [/-// Love][2007] JVI [Enchanted CD2][Amy Adams][Lox] 00 : 00 : 18 / 00 : 51 : 59 Name: [Enchanted CD1][Amy Adams][Love][2007] in Size: 0.9 MBytes

The following buttons can be used to control video playback.

Button	Function
PLAY	Begin playback.
PAUSE / STEP	Pause playback; Press again to step to next frame.
SLOW	Play video in slow motion. Press repeatedly to select the speed.
FR / FF	Fast rewind or fast forward. Press repeatedly to select the speed.
PREV / NEXT	View the previous or next movie.
REPEAT	Set repeat options: Title, Chapter and All.
ZOOM IN / OUT	Zoom in / out the image.
INFO	Hide or display the information bar during playback.
GOTO	Display playback search menu.
A-B	Set the beginning and end points of a section to repeat.
ANGLE	Change the view angle during DVD (with multi-angle) playback.
MENU	Return to the root menu during DVD playback.
INS REPLAY	Backward 10 seconds of the current playback
CM SKIP	Advance 30 seconds of the current playback.
AUDIO	Select an audio track while watching BivX video or DVD with multiple audio tracks.
SUBTITLE	Set subtitle options.
STOP	Stop playback.

4.5 Audio / Video Streaming via Network

You can stream the media files shared on the home network (Ethernet or WLAN). Please refer to '3.3 Changing Network Settings' for details about network settings.

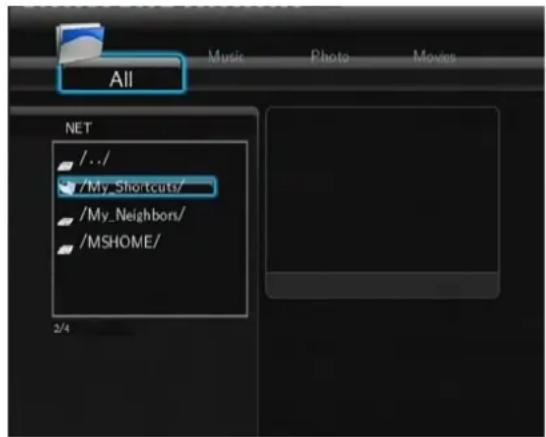

There are two ways to locate media files shared on your local network in the Network menu. One is to browse through workgroup; the other way is to browse through 'My_Shortcuts'.

All NET /../ /My_Shortcuts/ /My_Neighbors/ /MSHOME/ 2/4 Music Photo Movies

4.5.1 Browsing through Workgroup

You can choose the workgroup which your PC belongs to from the workgroup list. Select your PC name and press the ENTER button to confirm. Then you can select and play the shared media files that you want to browse.

All Music Photo Movies NET MSHOME /../ /NAS/ /SIMONLEE/ /ZHANGJY-6066A... 3/4

Note:

• While browsing high definition video files (resolution up to 720p / 1080i / 1080p) via Ethernet or WLAN, the video might be buffering. It is normal due to the limit of network speed or signal strength.
• Due to different network conditions, sometimes the workgroup might not be accessed or shown in the list. And then you need to use 'My_Shortcuts' to browse shared files.

4.5.2 Browsing through 'My\_Shortcuts

You can also set 'Specific File Server IP' of destination PC and access it from 'My_Shortcuts' in the menu.

- Press the MENU button and a popup menu appears.

All Music Photo Movies My Shortcode [/·] /102.1683 €/ Add Modify Delete Return

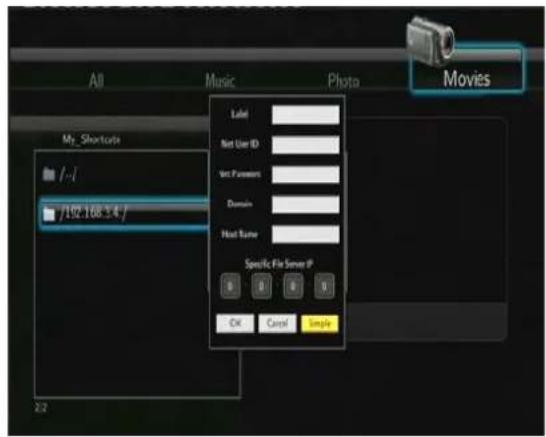

- Select Add to open a popup menu where you can input: Net User ID (User name), Net Password and Specific File Server IP. Under detailed setting you can add Label, Domain and Host Name. Select OK to confirm, Cancel to cancel and Simple / Detail to switch between simple and advanced options.

All Music Photo Movies My_Shortcuts /... /102.168.5 € / Label Net User ID Vert Parameters Domain Host Name Specific File Server IP OK Cancel Simple

- Select the shortcut you added and press the ENTER button to confirm. Then you can select and play the shared media files on the destination computer.

All Music Photo Movies My_Shortcode [/-/] 7102.168.34// 2/2

4.6 Audio Video Streaming via UPnP-server

A built-in UPnP (Universal Plug and Play) client has been integrated on the system, which enables the player to auto-detect UPnP Media Servers on the network to browse and stream media files from them.

4.6.1 Installing UPnP Media Server on your PC

There're a lot of free and commercial UPnP Media Server software, such as Windows Media Connect, Windows Media Player 11, XBMC Media Center (Linux/Mac/Windows), MediaTek (Linux), etc. Please install one of them on you computer. In the following chapters, we will take Windows Media Player 11 on Microsoft Windows XP SP2 for an example.

4.6.2 Sharing Media on your PC

The Media Sharing feature of Windows Media Player 11 lets you enjoy the contents of your Windows Media Player library from anywhere in your home.

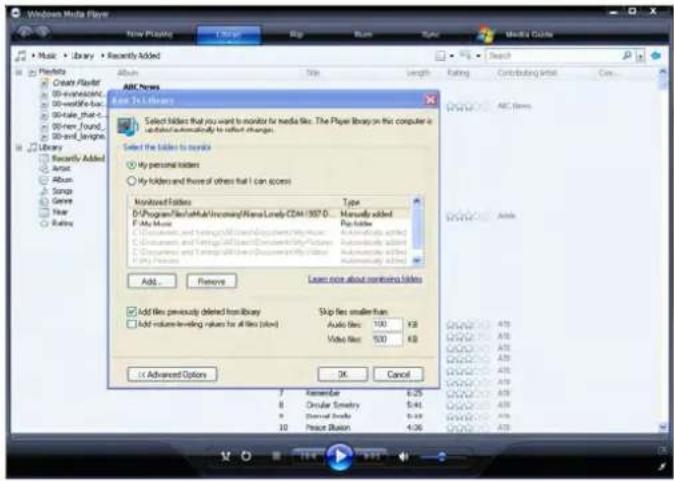

- Open Windows Media Player 11, click Library -> Add Library -> Advanced Options to add or remove media files from the library.

Windows Media Player New Playing Map Run Run Media Guide Music > library > Recently Added Products Create Player 00-experienced 00-week-to-back 00-hate，则来 00-erri found_ 00-and-yellow Library Recently Added About Snap Genes New Rules ABC Movies Select TV Library Select folders that you want to monitor for media files. The Player library on this computer is available automatically to refresh changes. Select the folders to locate My personal folders My folders and those of others that I can access Downloaded folders Type D:\Program Files\Add Incoming\Name Lonely-CDM 1937_0 - Microsoft added File Music □ Documents and Settings All Created Documents/My Music □ Documents and Settings All Created Documents/My Picture □ Documents and Settings All Created Documents/My Video □ My Files Add... Remove Learn more about containing folders Add files previously deleted from library Skip files smaller files... Add values leveling values for all files (all) Audio files: 100 KB Video files: 500 KB On Advanced Options OK Cancel 7 Remember 6.25 8 Circular Satirey 5.41 9 Dental Audio 5.18 10 Peace Station 4.06

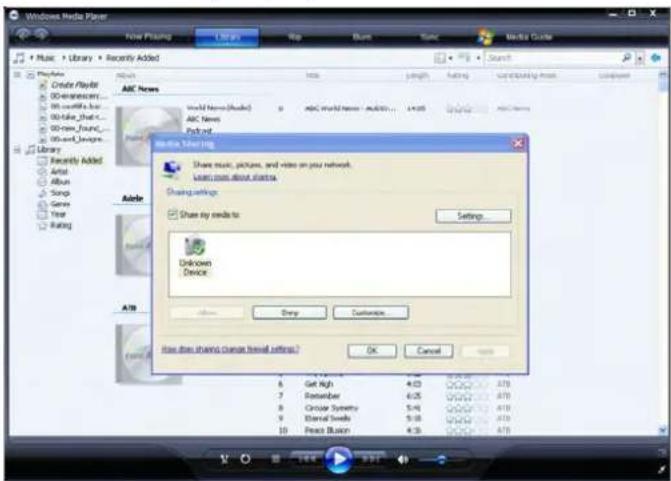

- Click Library -> Media Sharing, then you can allow or deny devices to access the media library. Click Allow to authorize your player.

Windows Media Player New Frames Library Top Burn True Media Guide + Music + Library + Recently Added Projects Create Playlist 00-eranscreen... 00-wa#a-hoc... 00-talu_shet... 00-wan_found... 00-wand_lgroup... Library Recently Added Album Songs Gears Year Rating ABC News World News (Studio) ABC News Punch Share Music, pictures, and video on your network. Leaves more about articles Sharing settings Share my video to: Settings Unknown Device Apply Drop Customize How does share change travel settings? OK Cancel OK Cancel

4.6.3 Streaming Media on your Player

• Connect your FANTEC TV-FHDS to the home network (LAN or WLAN).
• Visit Browser -> UPnP menu on the player, select the UPnP-server and press ENTER.

All Music Photo Movies UPnP i-i *SIMON LEE - Simon Lee / 2/2

- Then you can browse the media library shared by Windows Media Player 11.

All Music Photo Movies SIMONLEE Simon Lee /-// /Music/ /Pictures/ /Playlists/ /Video/ 2/5

Note:

• Make sure your player and your computer are on the same local area network and subnet.
- Firewalls may prevent your player communicating with your computer. Please open the ports manually and add your player to the 'trusted' list, or disable the firewall temporarily.

4.7 Renaming / Deleting Files

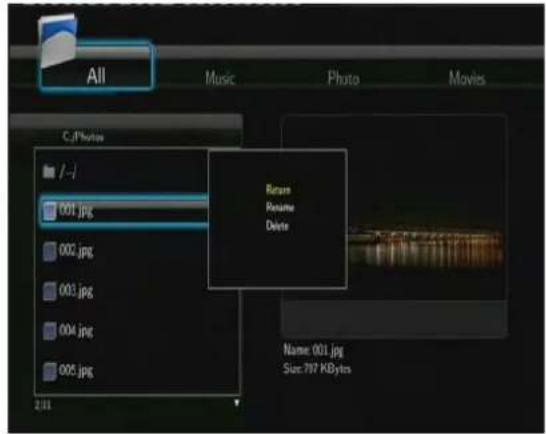

When navigating in the browser menu, you can press the MENU button to activate a popup menu where you can rename and delete files or folders.

All Music Photo Movies C:\MyNotes / -l 001.jpg 002.jpg 003.jpg 004.jpg 005.jpg 2/11 Return Resume Delete Name: 001.jpg Size: 797 KBytes

Press the UP / DOWN buttons to select from Return, Rename and Delete. And press ENTER to confirm.

Note: This option is available for USB, Card, Network (delete only).

4.8 Managing the Playlist

The FANTEC TV-FHDS supports the playlist function, which allows you to add your favorite content on USB devices to the playlists (All, Music, Photos and Movies) and enjoy them at any time.

4.8.1 Adding files to the playlist

Select the favorite file you wish to add, press the SELECT button and the file will be ticked.

Press the CONFIRM button to confirm and then an on-screen message 'Add selects to list' will be shown. Multiple selections are allowed. See photo below.

Music C:/OneRepublic - [Dreaming Out Loud] /- 01. Say (All Need).mp3 02. Mercy mp3 03. Stop And Store.mp3 04. Apology.mp3 05. Goodbye Apathy.mp3 artist: OneRepublic title: Stop And Store album: Dreaming Out Loud genre: Hide year: 2007 track: 3 Name: 03. Stop And Store.mp3 Size: 5 MB/tes

Add selects to list C:/OneRepublic - [Dreaming Out.Load] /- 01. Say (All I Need).mp3 02. Mercy.mp3 03. Stop And Stake.mp3 04. Apologize.mp3 05. Goodbye Apathy.mp3 artist: OneRepublic title: Stop And Stake album: Dreaming Out.Load game: India year 2007 truck: 3 Name: 03: Stop And Stake.mp3 Size: 5 MBytes

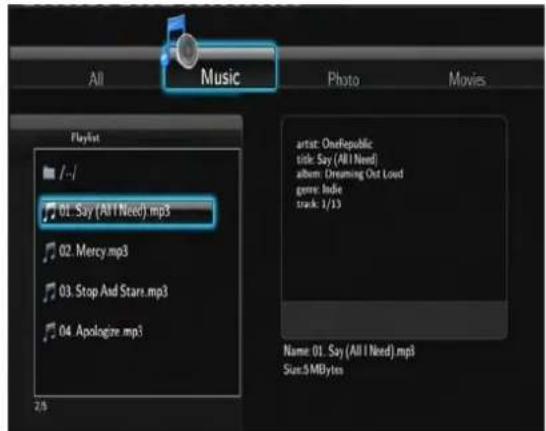

4.8.2 Browsing the playlist

Press the UP / DOWN buttons to select Play List in the browser menu. Press the LEFT / RIGHT buttons to select between All, Music, Photos and Movies. And press the ENTER button to confirm. Then you will enter the playlist.

Music All Photo Movies Playlist /-// 01. Say (All I Need) mp3 02. Mercy.mp3 03. Stop And Stare.mp3 04. Apologize.mp3 2/9 artist: OverRepublic title: Say (All I Need) album: Dreaming Out Loud genre: Indie strark: 1/13 Name: 01. Say (All I Need) mp3 Size: $MBytes

If you wish to delete a file from the playlist, press the SELECT button to select and then press the CONFIRM button to confirm.

5. File Copy Menu

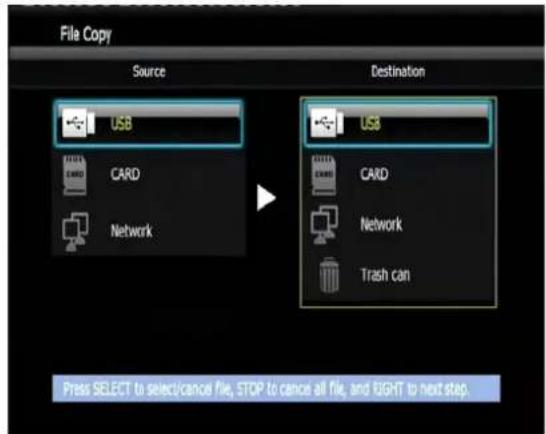

Select the File Copy icon from the home screen to enter the File Copy menu, which allows you to copy files between USB devices, Card and Network.

File Copy Source Destination USB CARD Network USB CARD Network Trash can Press SELECT to select/cancel file, STOP to cancel all file, and LIGHT to next step.

The following buttons can be used under the file copy menu.

Button	Function
UP / DOWN	Move cursor up / down to select devices, folders
RIGHT	Go to the next step.
SELECT	Select (or cancel) folders or files (The selected items will be ticked).
STOP	Cancel all selections.
ENTER	Confirm the selected options.
RETURN	Leave Copy function.

Please refer to the following operations to copy / move folders / files between devices.

• Step 1: Select the source device and destination device.
• Step 2: Select the source files you want to copy.
• Step 3: Select the destination folder to store the above files.
• Step 4: Select Copy or Move to proceed.

6. Internet Radio

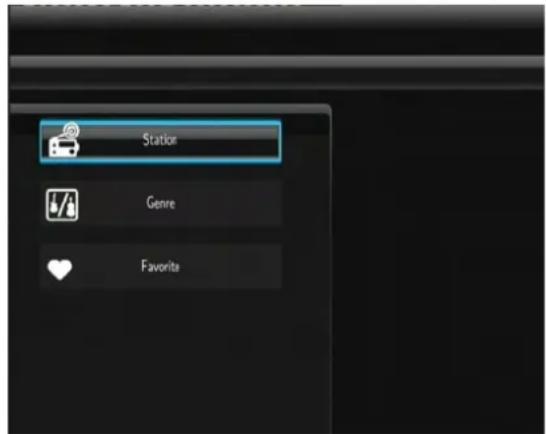

The FANTEC TV-FHDS integrates the SHOUTcast free Internet radio function. Select the Internet Radio icon on the main interface to enter this menu.

Station Genre Favorite

Note:

• Make sure the player is connected properly to a LAN or WLAN with internet access, please refer to '3.3 Changing Network Settings' for more details;
• When you enter the Internet Radio menu at the first time, it will take several seconds to download data from the Internet, please be patient to wait;
  • For more about SHOUTcast, please refer to the website: www.shoutcast.com

The following buttons can be used under this menu.

Button	Function
UP / DOWN	Move cursor up / down to select station, channel and genre.
PREV / NEXT	Page up / down.
ENTER	Confirm and enter the selected menu.
MENU	Add / delete a station to / from Favorite while it is highlighted.
PLAY	Begin playback after a channel has been selected.
STOP	Stop playback.
RETURN	Return to the previous menu.

Station

- All downloaded stations will be listed under this menu.

Genre

- You can search for stations by genre (pop, rock, jazz, etc.) under this menu.

Favorite

- Your favorite stations can be kept under this menu.

7. Upgrading the Firmware

The firmware is the operating system (OS) installed on the device. Firmware upgrades can bring new features, improvements and bug fixes.

Please refer to System Update in chapter '3.4 Changing System Settings' for more details.

You can also use the following method to upgrade the firmware:

• Copy 'install.img' to the root directory of a USB key.
• Plug the USB key to the USB HOST port on the player.
• Press and hold the POWER button on the front panel and connect the player with power supply
• Wait for more than 3 seconds and then loose your finger on the POWER button.

Then the upgrade process will start automatically. The LED indicator on the front panel will be enlightened and flashing during installation. If it is connected to a TV set, an install page will appear on the TV screen.

8. Appendixes

8.1 Specifications

I/O INTERFACES SUPPORTED:

• USB 2.0 HOST port x 2 (compatible to USB 1.1)
  ● Memory Card slot (supports SD/SDHC//MMC/MS/MS Pro)
  ● Composite (CVBS) A/V jack
• Component Y/Pb/Pr jack
• HDMI V1.3 interface
  ● S/PDIF optical jack
• DC-IN 5V

FILE SYSTEM SURPORTED:

- MP2/3, OGG Vorbis, WMA (DRM and Advanced Profile not supported), PCM, LPCM, MS-ADPCM, LC-AAC, HE-AAC, COOK, RA-Lossless

SUBTITLE FORMATS SURPORTED:

● SRT, SMI, SSA, ASS, IDX/SUB, SUB

NETWORK FEATURE

● 10/100Mbps Auto-Negotiation Ethernet
- 802.11b/g/n WLAN, up to 300Mbps (depends on WiFi USB dongle)

Note: The specifications and design of this product are subject to change without notice.

8.2 Frequently Asked Questions

Question. I find new file names and folder names that I never created before or they have strange gibberish names.

Answer:

Most likely, the hard disk's file allocation table (FAT) has been corrupted. This might be due to the PC's shutting down while reading or writing to your hard disk by the USB connection.

Please open "chkdsk" to scan your hard disk.

Windows and Macintosh often write extra files to the hard disk such as "finder.def" or "System volume info". This is normal and will not do any harm to the player.

Question. During power on, why does the TV will have a short flashing, blue screen or screensaver?

Answer:

This is normal, when the system initializes, it will setup the corresponding parameters so it can output the correct video signal to the TV, during the initializing time, the TV will receive incorrect signals or the signals will not be stable and will cause the TV screen to flash, some TV's will treat this as no signal and will display a blue screen or screensaver.

Question. Why is there no sound on movie or music playback when using Y/Pb/Pr component output?

Answer:

Y/Pb/Pr output is a video output only and does not include sound signals. When using Y/Pb/Pr output, please plug the A/V OUT or the S/PDIF jack to output sound.

Question. I cannot get SSID name, the screen always displays: 'Can't get any SSID!!'

Answer:

When the WLAN USB Adapter is connected to the player, it needs some time to get initialized. Please wait for about 1\~2 minutes and try refreshing the SSID list again.

Question. I cannot see files shared on my computer via Browser->Network menu.

Answer:

Please check following items:

1) Connect the player to network and obtain an IP address first;
2) Please enable NetBIOS of TCP/IP on computer;
3) Please check your PC's firewall settings;
4) Please enable your PC's 'Guest' account;
5) Please share the folders which you wish to browse on your PC and make sure that 'Everyone' or 'Guest' has the right to access.

Question. I configured everything correctly, but still cannot get the wireless network or UPnP function to work.

Answer:

Are you using a firewall such as Norton Internet Security, McAfee Personal Firewall, Zone Alarm, etc. or even the built-in firewall of Windows XP? (Don't forget that Service Pack 2 for Windows XP automatically upgrades your firewall and turn it on by default)

If you have a firewall, it may need to be configured or have exceptions created to allow you to see and communicate with the player on the network. To test if your firewall is preventing network communication (including PING and access shared folders), try disabling it to see if you can connect. If you can connect with the firewall disabled, you may need to add the player to the 'Trusted' list or configure the firewall for local intranet access. Worst-case, disable your firewall long enough to use the player, then enable it again when done.

Question. I am using the 802.11n Wi-Fi dongle with an 802.11n wireless router, why the speed is still 802.11g 54Mbps rather than 300Mbps?

Answer:

The IEEE 802.11n Draft standard prohibits using high throughput with WEP or TKIP as the unicast cipher. If you use these encryption methods (e.g. WEP, WPA-TKIP), your data rate will drop to 54 Mbps. You may contact the Access Point or router manufacturer to download the latest firmware, or try other encryption methods (WPA2-AES or WPA2-TKIP), or choose to configure an unsecured profile, but this option is not recommended.

8.3 Copyrights and Trademarks

Copyrights

All rights reserved. No part of this manual may be reproduced, or transmitted in any form or by any means, whether by electronically or mechanically, without the express written permission from the copyright holder.

Copyrighted materials, such as software, music files, or movies, are protected by local law and may not be illegally copied or used without permission from the copyright owner.

Trademarks

Microsoft and Windows are registered trademarks of Microsoft Corporation.

All other trademarks are property of their respective holders.

8.4 Warranty

What your warranty does not cover:

-Acts of nature, such as fire, static discharge.
-Damage from unauthorized repair, alteration or accident.
-Damage from misuse or neglect.
-A unit that has been modified or incorporated into other products or is used for institutional or other commercial purposes.
-Loss of customer's software, firmware, information, or memory data.
-Improper handling or installation.

8.5 GPL Statement

This product contains free software which is licensed under the GNU General Public License. After you purchase this product, you may procure, modify or distribute the source code of the GPL/LGPL software that is used in this product.

To obtain a copy of our open source software, please contact our support center and we will provide you with a CD-ROM of the source code that is used, charging only the actual expense involved. However, please be noted that we can not provide guarantee with the source code and there is also no technical support for the source code from us.

TECHNICAL INFORMATION

License information for the software used in the unit.

This product contains Free Software which is licensed under the GNU General Public License. After you purchase this product, you may procure, modify or distribute the source code of the GPL/LGPL software that is used in this product.

If you contact our Support Center, we will provide you with a CD-ROM of the source code that is used, charging only the actual expensed involved. However, please be noted that we can not provide guarantee with the source code, and there is also no technical support for the source code from us.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a

portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works

based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so,

and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

1. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

2. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and

conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

DEUTSCH

Inhaltsverzeichnis

Pure electrical circuit lines without any symbols

Diagram showing a computer setup connected to an audio amplifier via cable routing (no text or labels present)

1.4.4.2 Y/Pb/Pr Component AUSGANG

Diagram of a computer setup with monitor, cables, and audio equipment (no text or symbols)

Diagram showing a computer monitor connected to an audio device via cable (no text or symbols present)

Diagram showing audio equipment connections: two speakers connected to a CD, and a connected audio device via cable (no text or labels)

Front view of a black electronic device with a circular button and labeled point '1' (no text or symbols beyond the number)

Audio Video Network System MISC ON: 192.168.3.6 Off: DHCP Not ready!!

- Feste IP (MANUELL)

Audio Video Network System MISC Select a connection profile Profile Name Connection1 Connection2 Connection3 ENTER Enter Cancel Play

Audio Video Network System MISC Get Connection Mode Connection Mode Infrastructure (AP) Peer to Peer (Ad Hoc) ENTER Enter Cancel

Network Test Connection Testing... ENTER Enter Cancel

Network Ad-Hoc Setup Wireless SSID ADHDC Wireless Security Oper System Shared key (WEP) Host IP 107 168 59 254 ENTER Enter Cancel Play

All Music Photo Movies C:\Nickelback - all the right reasons (1) /- 01 follow you home.mp3 nickelback - all the right reasons 02 nickelback - all the right reasons 03 nickelback - all the right reasons 04 nickelback - all the right reasons 05 2:12 artist: Nickelback title: Follow You Home album: All The Right Reasons game: Rock comment: img year: 2006 track: 1 Name: nickelback - all the right reasons 01 follow you Size: 5M Dbytes

Windows Media Player New Playing Map Run Style Music > library > Recently Added Search ABC library Select the tables to monitor My personal folders My folders and those of others that I can access Named folders Type D:\Program Files\Add\Increasing\Name Newly CDM 1907 D - Manually added F: Auto Music P: Documents and Settings All Created Documents/My Home C: Documents and Settings All Created Documents/My Picture D: Documents and Settings All Created Documents/My Video E: My Photos Add... Remove Learn more about continuing folders Add files previously deleted from library Skip files smaller files... Add features leveling values for all files (follow) Audio files 100 KB Video files 500 KB Advanced Options OK Cancel 7 Remember 6.25 8 Circular Semistry 5.41 9 Audio PDF 5.13 10 Peace Division 4.06

Windows Media Player New Program Library New Zoom Sync Media Guide + Music + Library + Recently Added Projects Create Playlist 00=onescreen... 00=white bar... 00=blue shelf... 00=news�out... 00=read_designs... Library Recently Added Artist Album Songs Games Time Rating ABC News World News (Audio) ABC News Parks ABC World News - 16:30... ABC News Share Music, pictures, and video on your network. Learn more about articles Sharing settings Share my cards to: Settings... Unknown Device Show Drop Customize... How does sharing Change Email Settings? OK Cancel Help Get High 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:20 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25 4:25

File Copy Source Destination USB CARD Network USB CARD Network Trash can Press SELECT to select/cancel file, STOP to cancel all file, and RIGHT to next step.

Station Genre Favorite

Hinweis:

● SRT, SMI, SSA, ASS, IDX/SUB, SUB

8.3 Copyrights and Trademarks

Copyrights

Pure electrical circuit lines without any symbols

Diagram showing a computer setup connected to an audio amplifier via cable routing (no text or labels)

Diagram of a computer setup with monitor, cables, and audio equipment (no text or symbols)

Diagram showing connection between a computer monitor and two connected audio equipment devices (no text or symbols present)

Diagram showing audio equipment connections including two speakers, a CD, and an audio jack (no text or labels)

Front view of a black electronic device with a circular button and indicator light, labeled with number 1 (no text or symbols on the device body)

Audio Video Network System MISC Select a connection profile Profile Name Connection1 Connection2 Connection3 ENTER Enter Cancel Play

Audio Video Network System MISC Get Connection Mode Connection Mode Infrastructure (AP) Peer to Peer (Ad Hoc) ENTER Enter Cancel

- Infrastructure (AP)

Network Audio Video System MISC Ad-Hoc Setup Ad-Hoc Setup Wireless SSID ADHDC Wireless Security Open System Shared key (WEP) Host IP 107 168 59 254 ENTER Enter Cancel Play

All Music Photo Movies / /BT/ /Cascada - [Everytime We Touch] /Club 8 - [Best Wishes - The Best /Exchanted/ /Finge/ /Groove Coverage - [Covergirl] (V 4:13)

Remarque :

All Music Photo Movies C:\Nickelback - all the right reasons (1) /- 01 follow you home.mp3 nickelback - all the right reasons 02 nickelback - all the right reasons 03 nickelback - all the right reasons 04 nickelback - all the right reasons 05 2:12 artist: Nickelback title: Follow You Home album: All The Right Reasons game: Rock comment: img year: 2006 track: 1 Name: nickelback - all the right reasons 01 follow you Size: 5M Dbytes

Windows Media Player New Playing Add to 1 History Select folders that you want to monitor for media files. The Paper library on this computer is updated automatically to be added changes. Selected the folders to create My personal folders My families and those of others that I can access Randomized folders D:\Program Files\All\Unimaging\Name\Lilly-CDM\1907.D... I My Music Pop folders Downloaded by: https://www.dcm.com/1907.com/ Downloaded by: https://www.dcm.com/1907.com/ Downloaded by: https://www.dcm.com/1907.com/ My Family Advanced folders Add... Remove Use more about nonrandom folders Add file previously removed from library Add volume lending values for all files (dbl) Stop file upload functions Audio files: 100 KB Video files: 500 KB OK Cancel 7 Remember 6.25 8 Circular Summary 5.41 9 External Books 5.18 10 French Button 4.36

Windows Media Player New Topics ABC News Share music, clothes, and videos in your network. Shared shares about shares Options Share by media to: Settings Unknown Devices OK Cancel How does share change from this software? 6 Get High 4.05 0.00 0.00 0.00 7 Remember 6.25 0.00 0.00 0.00 8 Circle Symphony 5.41 0.00 0.00 0.00 9 External Tools 5.18 0.00 0.00 0.00 10 Peace Ballon 4.36 0.00 0.00 0.00

Fraçais

File Copy Source Destination USB CARD Network USB CARD Network Trash can Press SELECT to select/cancel file, STOP to cancel all file, and RIGHT to next step.

Station Genre Favorite

Remarque :

● SRT, SMI, SSA, ASS, IDX/SUB, SUB

CARACTERISTIQUES RESEAU

What your warranty does not cover:
