P3700 - Media player Fantec - Free user manual and instructions

Product Type	Media Player
Brand	Fantec
Model	P3700
Dimensions (W x D x H)	200 x 150 x 50 mm (estimated)
Weight	0.5 kg (estimated)
Power Supply	5V DC, 2A via external adapter
Power Consumption	< 10 W (typical)
Video Output	HDMI 1.4, composite AV
Audio Output	HDMI, optical, analog stereo
Video Playback Formats	MP4, AVI, MKV, MOV, WMV, DivX, XviD, H.264, H.265
Audio Playback Formats	MP3, WAV, FLAC, AAC, OGG, WMA
Image Playback Formats	JPEG, PNG, BMP, GIF
Storage Support	USB 2.0/3.0, SD/MMC card slot, internal 3.5" SATA HDD/SSD (up to 4 TB)
Network Connectivity	Ethernet 10/100, Wi-Fi 802.11 b/g/n
Internet Streaming	YouTube, Netflix, Amazon Prime Video (via apps)
Remote Control	IR remote included
USB Ports	2 x USB 2.0, 1 x USB 3.0
Card Reader	SD/MMC up to 32 GB
File System Support	FAT32, NTFS, exFAT, EXT4
Maintenance & Cleaning	Wipe with a soft, dry cloth; do not use liquids or solvents.
Safety Precautions	Keep away from moisture and heat; use only supplied power adapter; do not open the casing.
Spare Parts & Repairability	Remote control and power adapter available from Fantec support; device not user-serviceable.
General Information	Media player for streaming, local playback, and network sharing. User manual available in PDF.

Frequently Asked Questions - P3700 Fantec

How do I set up the Fantec P3700 for the first time?

Connect the device to your TV via HDMI, plug in the power adapter, and turn on. Follow the on-screen setup wizard to select language, network, and time zone.

What video and audio formats are supported?

The P3700 supports MP4, AVI, MKV, MOV, WMV, DivX, XviD, H.264, H.265 for video, and MP3, WAV, FLAC, AAC, OGG, WMA for audio.

Can I connect an external hard drive to the P3700?

Yes, you can connect external USB drives or install an internal SATA HDD/SSD (up to 4 TB) for local storage.

How do I connect to a Wi-Fi network?

Go to Settings > Network > Wi-Fi, select your network, and enter the password using the on-screen keyboard.

Why is my remote control not working?

Check if batteries are inserted correctly and replace if needed. Ensure nothing blocks the IR sensor on the front panel. Pair the remote again if necessary.

How can I update the firmware?

Go to Settings > System > Firmware Update. Select 'Check for Updates' and follow the prompts. Ensure a stable internet connection.

Does the P3700 support streaming services like Netflix?

Yes, the P3700 includes apps for Netflix, YouTube, and Amazon Prime Video. Download them from the app store if not pre-installed.

How do I play media from a USB drive?

Insert the USB drive into any USB port. The device should auto-detect. Navigate to Media Center, select USB, and browse your files.

What should I do if the device freezes or lags?

Try restarting the device by unplugging power for 10 seconds. If persistent, update firmware or check for network issues. For severe cases, factory reset via Settings.

Can I use subtitles with my video files?

Yes, the P3700 supports subtitle files (.srt, .ass, .sub). Place the subtitle file in the same folder as the video and enable subtitles from the playback menu.

USER MANUAL P3700 Fantec

3. Main Functions 16

3.1 Setup Menu 16
3.2 Movie Library 26

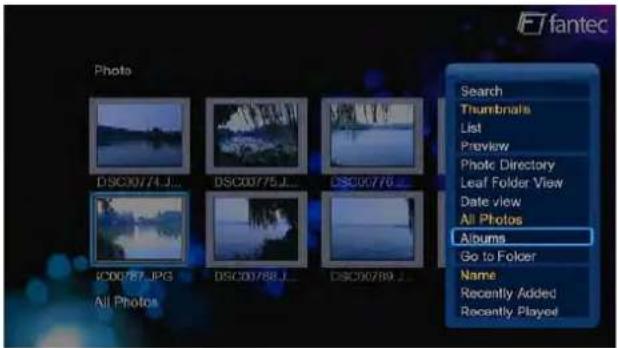

3.3 Photo Library 28

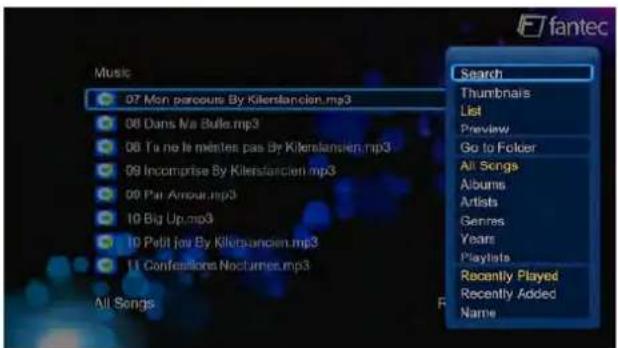

3.4 Music Library 30
3.5 File Manager.... 32

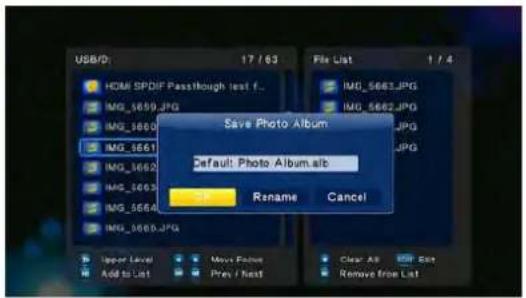

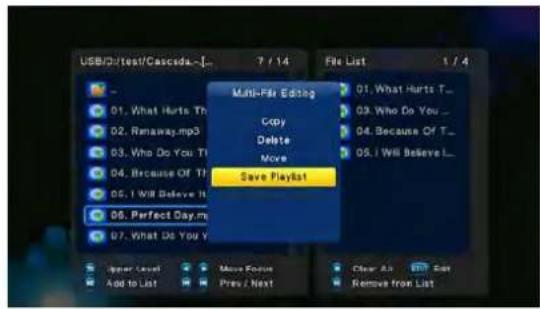

3.6 Playlist Management 36

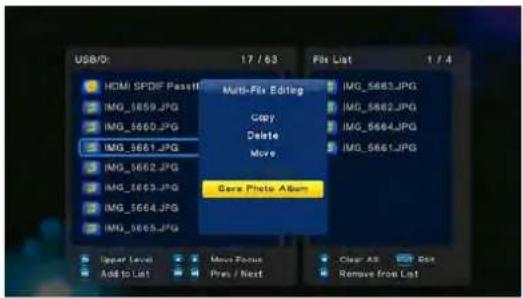

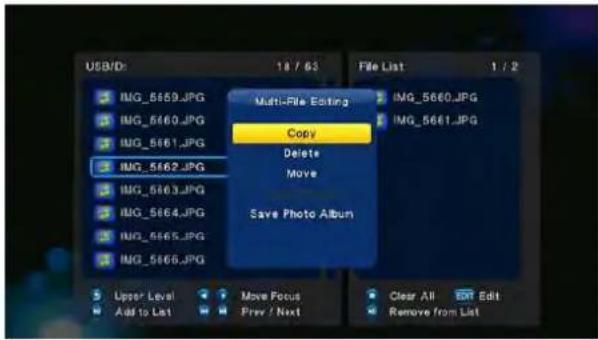

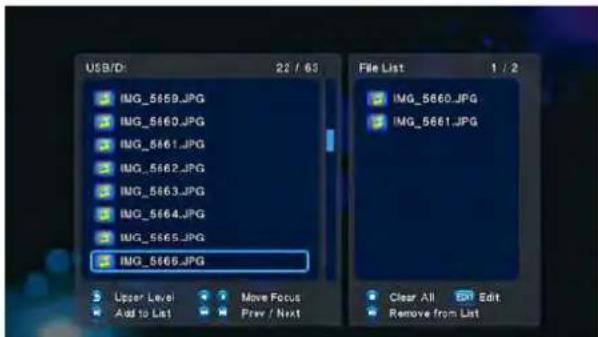

3.7 Copy und Delete Function.... 37

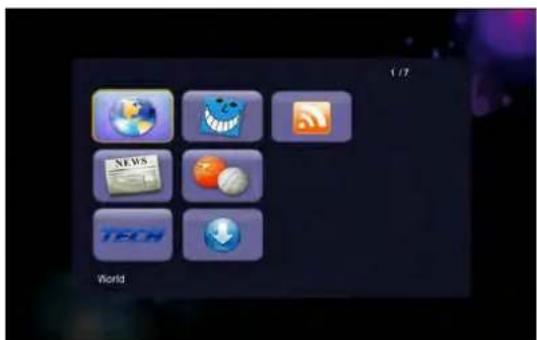

3.8 Internet Media 39

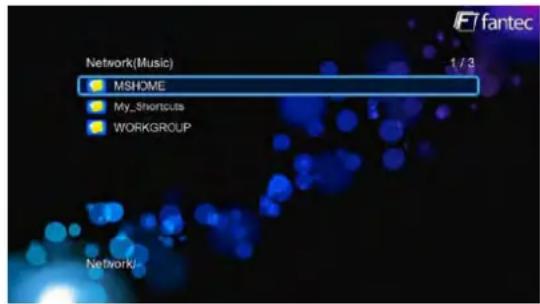

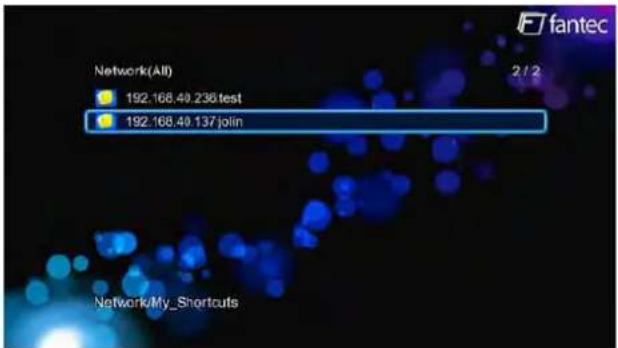

3.9 SAMBA Server and Client 43
3.10 FTP Server 44
3.11 Virtual Remote Control 46

4. Upgrading the Firmware 48

5. Appendixes.... 49

6. Frequently Asked Questions.... 51

7. Copyrights and Trademarks .... 53

8. Warranty 53

9. GPL Statement 54

1. Introduction

1.1 Preface

Thank you very much for purchasing FANTEC P3700 Web. We hope you will enjoy using it as a great home entertainment partner. This player has the following functionality.

A/V Output

• HDMI V1.3 for high-definition video and digital audio
• Composite & component video and stereo audio for analog audio-visual connection
• S/PDIF optical and coaxial interface for high-fidelity digital audio
- Adjustable video output resolution (NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p)

Movie Playback

• Movie format: AVI, VOB, MKV, MOV, MP4, MPG, TS, WMV, DAT, IFO, RM, RMVB, ISO (DVD & BluRay), AVCHD, MTS, M2TS, M4V, ASF, FLV, XviD, DivX 3/4/5, DVD menu playback, H.264, resolution up to 720p/1080i/1080p
  • Supports major audio formats (1080p HD video decoding)
• Fast forward/rewind
• View subtitle
• Subtitle control: color/offset/size
• Unicode (UTF8), BIG5 (Traditional Chinese), Western, Turkish, Central European, Greek, Cyrillic, SE European, Russian, Hebrew, Arabic, Japanese, Thai

Music Playback

• Music format: MP3, OGG, WMA, WAV, AAC, FLAC, PCM, LPCM, MS-ADPCM, LC-AAC, HE-AAC, COOK, RA-Lossless
• Stereo/Dolby Digital AC3 5.1(pass-through & downmix to stereo)
  • Dolby Digital Plus 7.1(pass-through)
  • Dolby TrueHD 7.1(pass-through & downmix to stereo)
  • DTS Digital Surround 5.1(pass-through & downmix to stereo)
  • AAC 7.1 (passthrough & downmix to stereo)
• Fast forward/rewind
• Shuffle
• Repeat

Photo Playback

• Photo format: HD JPEG, JPG, BMP, GIF, TIF, PNG
- You can view photos in slide show mode with background music.
- Zoom in/out, Rotate

Network Feature

• A/V streaming/transmission via Ethernet (10M/100M/1000M) & Wi-Fi (802.11b/g/n, optional)
• File sharing via Samba server
• FTP server
  • A/V streaming via UPnP Media Server

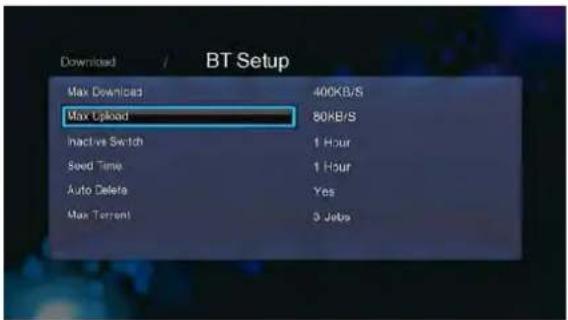

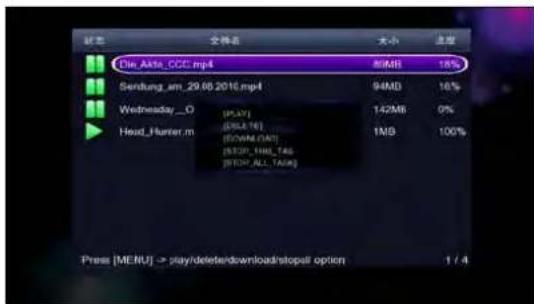

• BitTorrent download
• Internet Radio (Please visit www.shoutcast.com for available stations)
  • Video podcast subscribe and download
  • Web-based remote control for smart phones, iPhone & PC

Media Library

• Quick-Search, search files by keywords.
  • A powerful search engine, allows you to browse multimedia files in most easy ways

File Copy

• Supports copying & moving files among USB devices, Local HDD, and Network

USB 3.0 & USB 2.0 Support

• USB 3.0 DEVICE port (for computer connection, compatible to USB 2.0/1.1)
- USB HOST port x 5 (for USB storage devices), for connection of an USB DVD drive, an USB Y-cable is recommended
• 1 x SD / SDHC / MMC / MS / MS pro Card Reader

Note: All the information contained in this manual was correct at the time of publication.

However, as our engineers are always updating and improving the product, your device's software may have a slightly different appearance or modified functionality than presented in this manual.

1.2 Packing List

Part Quantity
Player 1
USB cable 1
Remote Control 1
Remote Control Battery 2
AC/DC adaptor 1
Quick start guide 1
Driver CD (with User Manual) 1
Warranty card 1

Note: The actual contents in the package might be different from the packing list in the manual.

1.3 Cautions

The FANTEC P3700 Web design and manufacture has your safety in mind. In order to safely and effectively use this player, please read the following before usage.

1.3.1 Usage Cautions

User should not modify this player. If commercial hard disk is being used, the environmental temperature should be within +5^ +35^ .

1.3.2 Power

The player's power voltage: DC 12V.

When using this player, please connect the supplied AC adapter or AC adapter cable to the player's power jack. When placing the adapter cable, make sure it can not get damaged or be subject to pressure. To reduce the risk of electric shock, unplug the adapter first before cleaning it. Never connect the adapter to the player in a humid or dusty area. Do not replace the adapter or cable's wire or connector.

1.3.3 Radio Interference

• If not properly shielded, almost all electronic devices will get radio interference. Under some conditions, your player might get interference.
• The design of this player has followed the FCC/CE standard, and has followed the following rules:

(1) This player may not cause harmful interference;
(2) This player could accept some interference received including interference that may cause undesired operation.

1.3.4 Repair

If the player has a problem, you should take it to an appointed repair center and let the specialists do the repair, never repair the player yourself, you might damage the player or endanger yourself or your data.

1.3.5 Disposing of the Player

When you dispose of the player, be sure to dispose it appropriately. Some countries may regulate disposal of electrical device, please consult with your local authority.

1.3.6 Hard Disk Cautions

The player uses an internal hard disk for data storage, in normal case, format or repair is not required.

You should carefully read the < Frequently Asked Questions > chapter, and check our website for latest information before formatting the hard disk.

• Physical impact may create bad sector in the hard disk, you can use CHKDSK to fix the problem.
• All data stored in the player may be lost due to physical impact, electrical shock, power lost, HDD format etc. Please backup your data.
• It is suggested to do defragment after a long period of usage.
• Regularly backup the data in the hard disk so that it can be recovered in the event of data corruption or loss. Our company takes no responsibility for loss of data stored on the hard disk.

1.3.7 Others

When using this player, please do not let the player come into contact with water or other liquid, if water is accidentally spilled on the player, please use a dry cloth to absorb the spillage.

Electronic products are vulnerable, when using please avoid shaking or hitting the player, and do not press the buttons too hard.

Do not let the player come into contact with water or other liquid.

Do not disassemble the player, repair the player or change the design of the player, any damage done will not be included in the repair policy.

Do not press the buttons of the player too hard.

Avoid hitting the player with hard object, avoid shaking the player, and stay away from magnetic fields.

During electrostatic discharge and the strong electromagnetic field, the product will malfunction, then unplug the power cable and the product will return to normal performance next time it is powered on.

1.4 Connection

1.4.1 Connecting the Power Supply

(1) Follow the picture and connect the AC adaptor to the player's DC IN jack;
(2) Follow the picture and plug in the AC adaptor to the power outlet.

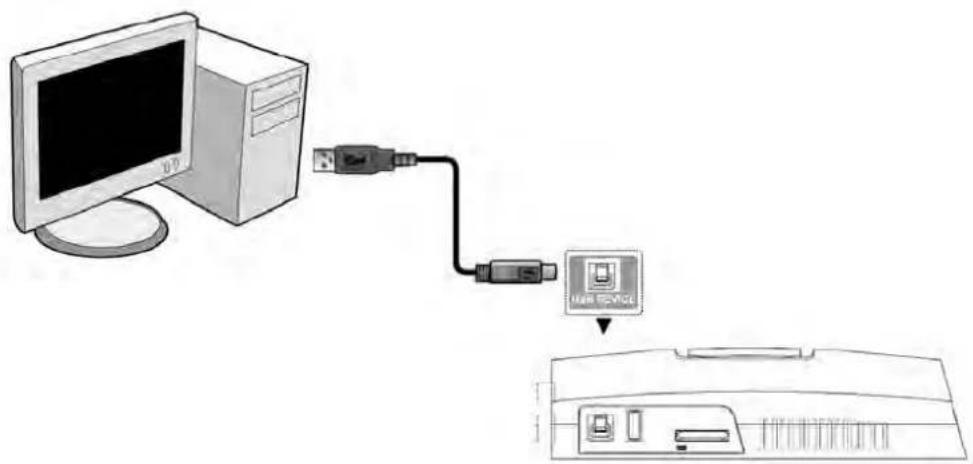

1.4.2 Connecting to a PC

(1) Make sure the player is powered on;
(2) Plug in the squarish connector of the USB cable to this player's USB DEVICE port;
(3) Plug in the rectangular connector of the USB cable to computer.

In this way, you can manage content on the built-in HDD of the player on your local PC.

1.4.3 Connecting a USB Device

(1) Make sure the player is powered on;
(2) Plug in the USB stick, USB DVD or USB HDD etc. to the USB HOST port of this player.

In this way, you can browse contents on the USB device.

1.4.4 Connecting a Memory Card

Memory card can be used by inserting to the card slot

(1) Follow the picture to insert the memory card to the card slot properly;
(2) Insert the card by following the arrow pointer in the picture.

In this way, you can browse contents on the memory card.

1.4.5 Connecting to a TV

1.4.5.1 A/V OUT

(1) Follow the picture and plug in the 3 color connector to the player's A/V OUT jack;
(2) Follow the picture and plug in the 3 color connector to the TV's A/V IN jack. In this way, you can enjoy the content in the player on TV or other display devices.

1.4.5.2 SCART OUT

(1) Follow the picture and plug one connector on the SCART cable to the player's SCART socket;
(2) Follow the picture and plug the other connector on the SCART cable to the TV's SCART socket.

1.4.5.3 Y/Pb/Pr Component OUT

(1) Follow the picture and plug in the 3 color connector to the player's Y/Pb/Pr jack;
(2) Follow the picture and plug in the 3 color connector to the TV's Y/Pb/Pr jack.
Audio Connection while using Y/Pb/Pr Video out:

First method: use the audio output from the A/V OUT jack;

Second method: use the audio output from the S/PDIF Coaxial or Optical jack.

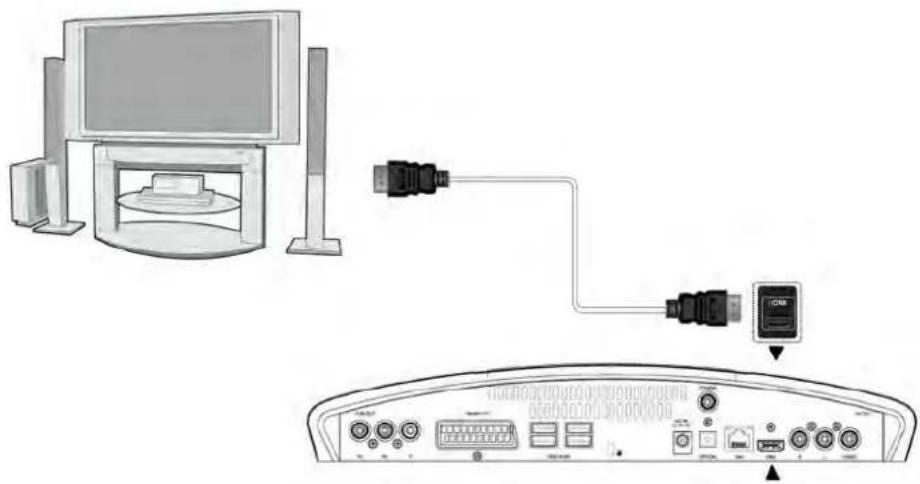

1.4.5.4 HDMI OUT

(1) Follow the picture and plug one connector on your HDMI cable to the player's HDMI jack;
(2) Follow the picture and plug the other connector on your HDMI cable to the TV's HDMI jack.
Note: The HDMI cable is an optional accessory sold separately.

Diagram showing connection between a computer monitor and a CD-ROM drive (no text or symbols present)

In this way, you can have the highest quality video and audio via a single cable.

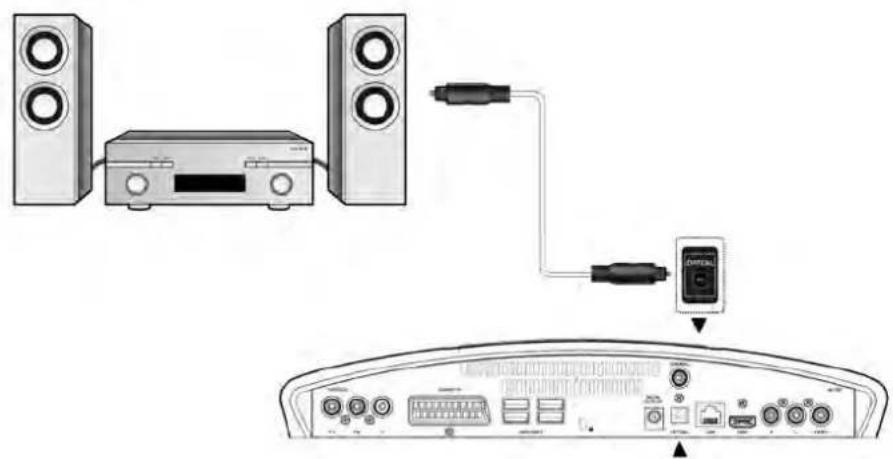

1.4.6 Connecting to an Digital Amplifier

(1) Follow the picture and plug in the Toslink connector of your optical fiber to the player's S/PDIF optical jack;
(2) Follow the picture and plug in the other connector on your optical fiber to the digital audio device (digital amplifier or decoder).

Note: Optical fiber cable is not supplied.

In this way, you can enjoy powerful Dolby Digital/ Dolby Digital Plus/ Dolby TrueHD/ DTS or MPEG sound. DTS-HD sound is transferred via HDMI cable and an amplifier with HDMI interface is needed. (Please refer to '3.1.2 Changing Audio Settings' for configuration)

1.4.7 Connecting to a network

To connect to a LAN (Local Area Network) you require a cat5, cat5e or cat6 network cable (not supplied).

(1) Connect one of the crystal plugs on the cable to the player's RJ45 LAN socket;
(2) Connect the other crystal plug on the cable to a RJ45 LAN port on your router, switch, or hub devices.

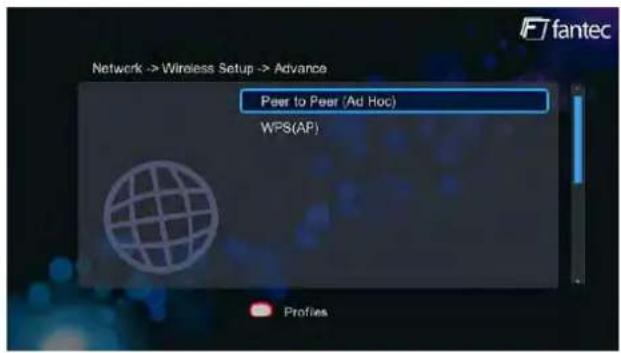

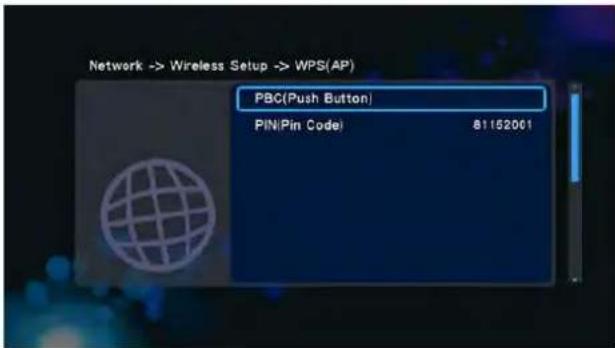

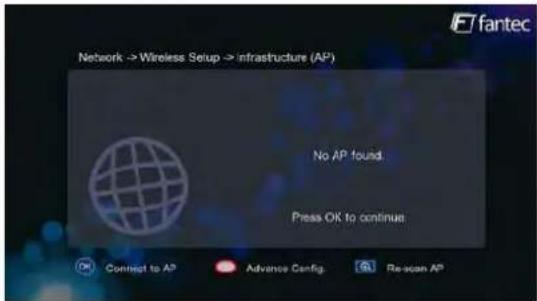

1.4.8 Connecting to a wireless network

(1) Make sure the player is powered on;
(2) Plug the Wireless LAN USB Adapter (i.e. Wi-Fi USB Dongle) to the USB HOST port of the player.

Note: The Wi-Fi Dongle is an optional accessory sold separately. (Please refer to '3.1.4 Changing Network Settings' for more details about wireless setup)

1.5 View

Front Panel

1. VFD display screen

2. POWER button & indicator

Side Panel

1. USB 3.0 Device port

2. USB 2.0 HOST port

3. Memory Card slot

Rear Panel

1. Y/Pb/Pr OUT jack USB HOST port

2. SCART - TV socket

3. USB 2.0 HOST port 4. USB 2.0 HOST port

4. DC-IN jack

5. S/PDIF Coaxial jack

6. S/PDIF Optical jack

7. RJ45 LAN socket

8. HDMI jack

9. A/V OUT jack

1.6 Menu Language

The system language of this player can be set to English or other languages. Change the language you wish in the setup menu, the selected language will take effect immediately.

1.7 HDD Format

For users who wish to install a new SATA HDD into the player, at first you have to format the hard disk. Please refer to the following procedures to format the hard disk.

- Step 1: Select OK on the Warning page, press OK to confirm.

Note: This page can be also accessed via Setup->System->Format menu.

• Step 2: Enter the default password '0000'. Press the numerical buttons to input, and the OK button to confirm.
• Step 3: Select Format, press OK, and then hard disk format will start.

The formatting procedure will be finished within a few minutes. And then you can use the hard disk properly on the player.

Note: HDD format will remove all data stored on the hard disk drive. Please take care and backup your data in advance!

2. About the Player

2.1 Remote Control

All procedures in this manual can be carried out using the remote control buttons.

See the following for details on each button and its function:

	1. Power	2. Numeric buttons
	3. Shuffle 4. VOL-
	5. Mute 6. Menu
	7. Home 8. Navigational buttons
	9. OK	10. Stop
	11. Play/Pause 12. FR
	13. FF 14. Red
	15. Green 16. Setup
	17. TV SYS. 18. GOTO
	19. Slow 20. Browser
	21. Edit 22. Copy
	23. A-B 24. Angle
	25. Zoom 26. Audio
	27. Subtitle	28. Yellow
	29. Blue	30. Prev
	31. Next	32. Info
	33. Back 34. VOL+
	35. Repeat	36. Eject
No.	Button Function
1	Power	Press to enter standby mode or wake up.
2	Numeric buttons	Press to enter channel numbers or numeric input when changing settings.
3	Shuffle	Press to select shuffle mode during music playback.
4	VOL-	Press to decrease the volume.
5	Mute	Press to mute audio output, and press again to resume.
6	Menu	Press to enable the option menu, where you can change the review mode of file manager and media library;Press to display or hide the option menu during playback.
7	Home	Press to enter the home screen.
8	Navigational buttons	Press the arrow buttons to select menu options, and the OK button to confirm.
9	OK	Press OK button to confirm.
10	Stop	Press to stop playback.
11	Play/ Pause	Press to begin/pause playback.
12	FR	Press to fast rewind the current playback. Press repeatedly to select speeds
13	FF	Press to fast forward the current playback. Press repeatedly to select speeds.
14	Red	Function is available in virtual keyboard.
15	Green	Function is available in virtual keyboard.
16	Setup	Press to enter the setup menu.
17	TV SYS.	Press to switch between NTSC, PAL, 480P, 576P, 720P, 1080I, and 1080P.
18	GOTO	Press to jump to a specific point on a title. Specify the point using Title, Chapter and Time.
19	Slow	Press to play back in slow motion. Press the PLAY button to resume regular playback.
20	Browser	Press to enter file manager.
21	Edit	Press to enter file editing menu in file manager.Press to enter file selecting menu in media library.
22	Copy	Press to enter file selecting menu.
23	A-B	Press to set the beginning and end points of a section to repeat.
24	Angle	Press to change the view angle during DVD (with multi-angle) playback.
25	Zoom	Press to zoom the image (photo or video).
26	Audio	Press to select an audio track.
27	Subtitle	Press to set subtitle options. You can change the color/size/offset/text encoding of subtitle.
28	Yellow	Reserved button. No function has been assigned to it yet.
29	Blue	Reserved button. No function has been assigned to it yet.
30	Prev	Press to view the previous file / page up.
31	Next	Press to view the next file / page down.
32	Info	Press to display current status.Press during playback, an onscreen display appears showing track number and time elapsed/remaining.
33	Back	Press to return to the previous screen while navigating menus.
34	VOL+	Press to increase the volume.
35	Repeat	Press to set repeat option.
36	Eject	Press to safely remove the USB device.

3. Main Functions

The Setup menu allows you to personalize and configure the preferences for your player.

3.1 Setup Menu

To select a Setup option:

• Select the Setup icon on the home screen, or press SETUP menu on the remote control.
• Use the UP/DOWN navigational buttons to select an option, and then press OK.

There are five Setup options, including System, Audio, Video, Network and MISC. Use the UP/DOWN navigational buttons to select a menu. Press OK to confirm. Press Back to cancel and display the previous menu screen.

3.1.1 Changing System Settings

Use this menu to configure system settings.

Menu Language

- Select to choose the OSD (On-Screen Display) language. (English, Spanish, French, German, Italian, Korean, Dutch, Russian, Polish, Chinese, Czech, Slovenian, Romanian, Portuguese, Hebrew, Magyar, Slovakian, Greek, Japanese)

Change system font

- Select to change system font. Create a folder named "Resource" in the root directory of your USB or HDD, rename your font as 'font.ttf' and then copy it to the folder.

Change Desktop

- Select to change the photo of main menu.

Create a folder named "Resource" in the root directory of your USB or HDD, rename your photo as 'desktop.png' and then copy it to the folder. (Resolution of the picture: 1280x720)

Text Encoding

- Select to set the text encoding option (subtitle display)

Time

- Select to set the system time.

Manual

Press the left / right button to select each field and the up / down button to adjust each setting. Numeric buttons are available here. Press the OK button to confirm.

DVD Auto-Play

- Select to turn on/off USB DVD auto-play. If you connect the USB DVD drive, an USB Y-cable is recommended.

Screen Saver

- Select to turn on / off screen saver.

DLNA DMR

- Digital Media Renderer, can play content received from a digital media controller (DMC), which will find content from a digital media server (DMS)

Device Name

- Select to key in your desired device name to be seen in your network

Mini KBD Language

- Select to change the language of the mini keyboard.

Scan storage

- Select to set the scan mode of media library and keep media library up to date.

Resume Play

- Select to turn on / off resume playback (auto-bookmarking) feature for movies.

Format

- Select to format your HDD.

Restore Default

- Select to restore factory defaults.

3.1.2 Changing Audio Settings

Use this menu to configure audio settings

Night Mode

- Choose among Off / On / Comfort. If the option comfort is turned on, the audio output volume will be decreased to make you more comfortable.

HDMI Output

- Choose among LPCM, LPCM Multi-Ch and Pass-through.

SPDIF Output

- Choose among LPCM and Pass-through.

Note: In Pass-through mode, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS sound can be by passed to the Digital amplifier.

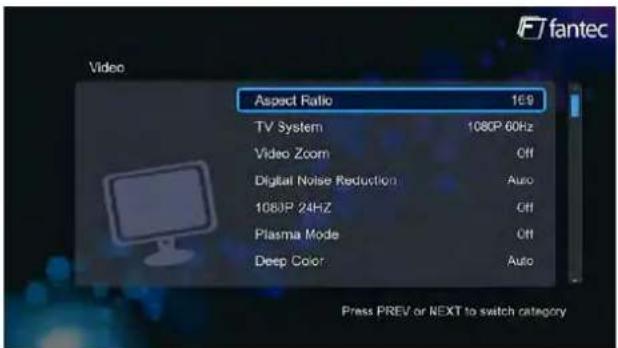

3.1.3 Changing Video Settings

Use this menu to configure video settings.

Aspect Ratio

• Pan Scan 4:3: Display a wide picture on the entire screen and cuts off the redundant portions. Select when a standard 4:3 TV is connected.
  Letter Box 4:3: Display a wide picture with two black borders on the top and bottom of 4:3 screen. Select when a standard 4:3 TV is connected.
• 16:9: Compress the image to convert the whole image. Select when a 16:9 TV is connected.
• 16:10: Compress the image to convert the whole image. Select when a 16:10 TV is connected.

TV System

- Select to adjust TV Type and video output resolution. This setting depends on your regional location. Include: NTSC / PAL / 480P / 576P / 720P 50HZ / 720P 60HZ / 1080I 50HZ / 1080I 60HZ / 1080P 50HZ / 1080P 60HZ.

NTSC: United States, Canada, Japan, Mexico, the Philippines, South Korea, and Taiwan.

PAL: Europe, Greenland, parts of Africa and South America, the Mideast, China, India, Australia, and Indonesia.

Digital Noise Reduction

- This option is to enable or disable the digital noise reduction.

1080p 24Hz

- Choose this option to enable or disable 1080P 24HZ support. A TV set with 1080P 24HZ (24P) mode is needed.

Plasma Mode

- Help to protect your plasma TV by reducing the level of brightness.

Deep Color

- Help to perform more detailed level of color depth, make continuous color change smoother. You can get more vivid color effects. A TV set with deep color support is needed.

Screen Size

- Adjust the video output size according to the size of TV screen. And press Zoom button to Fit the screen size you have set during video playback.

3.1.4 Change Network Settings

Use this menu to configure your network.

Wired Lan Setup

- DHCP IP (AUTO)

Select to obtain IP address automatically.

- FIX IP (MANUAL)

Select to manually input the IP Address, Subnet Mask, Default Gateway, and DNS Server IP Address.

Wireless Setup

- There are 3 mode for you to select, Infrastructure (AP) and Peer to Peer (Ad Hoc) and WPS (AP) mode. Follow the prompting message on the screen and press Red button to choose Peer to Peer (Ad Hoc) or WPS (AP) mode.

This player can store up to three wireless network connections. Press OK to connect, press Back to cancel, and press Zoom to modify the parameters of the connection, press Red button to choose Peer to Peer (Ad Hoc) or WPS (AP).

Infrastructure (AP)

- Infrastructure mode is used to connect computers with wireless network adapters, also known as wireless clients, to an existing wired network with the help from wireless router or access point. Please follow following steps to configure your wireless network.

Step 1: Scanning AP (Access Point) in your network

Follow the prompting message on the screen and press the Zoom button to select Infrastructure (AP) mode and update the access points list, and all SSID will be displayed on the screen.

Step 2: Enter WEP / WPA key.

Press OK to input encryption keys via the virtual keyboard. Press the navigational buttons to select, OK to input, FF to move cursor left, FR to move cursor right, Zoom to switch between

uppercase and lowercase, Stop to delete a character, Red to make more symbols available, Green to change the language of the virtual keyboard, OK to confirm and to start testing the connection.

The testing process will take for a while, please be patient to wait. If the test is ok, the network information (Profile Name, IP address, Subnet Mask, Gateway, etc.) will be displayed on the screen.

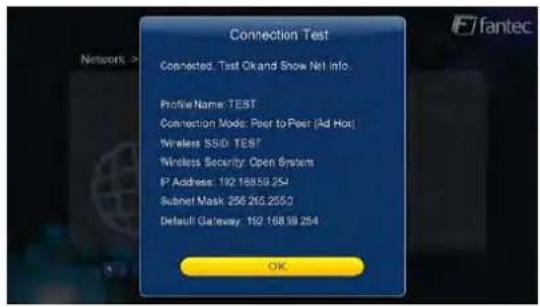

Peer to Peer (Ad Hoc)

- Peer to Peer mode, which is also called Ad Hoc mode or computer-to-computer mode, is used to connect wireless clients directly together, without the need for a wireless router or access point.

Step 1: Specify your SSID name

Step 2: Specify your host IP

WPS (AP)

- WPS, Wi-Fi Protected Setup, is used to connect a wireless router directly, without searching SSID and inputting password. In this mode, you just need to configure the parameters of your router which support WPS function. There are two modes for you to select, PBC mode and PIN mode.

PBC: First press the WPS button on the router or select the button mode in the configuration menu of the router, then select the PBC mode, the connection process will take for a while, please be patient to wait.

PIN: Input the pin code when configure your router, then select the PIN mode, the connection process will take for a while, please be patient to wait.

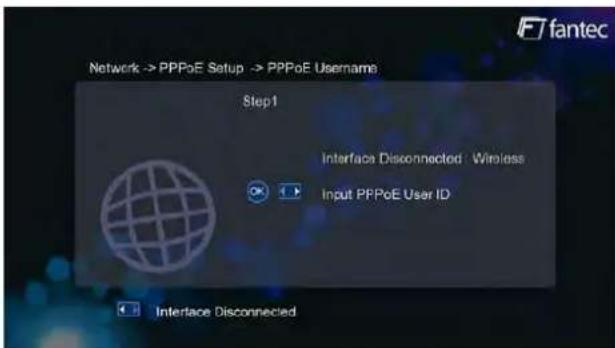

PPPOE Setup

- Input the ADSL accountant and password in this menu, system will obtain IP address automatically from the server based on PPPOE protocol.

Step 1: Select the connection interface, wired or wireless

Step 2: Press Right button to input your ADSL accountant

Step 3: Press Right button to input your password and start to test the connection.

BT

- Select to turn BitTorrent download on On/Off. Please refer to 'BT download' for more details on this unique feature of this product.

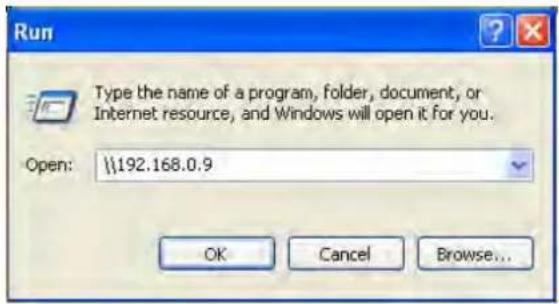

NAS Mode

- Select to turn NAS function On/Off. Please refer to '3.9 SAMBA Server' for more details on NAS function of this product.

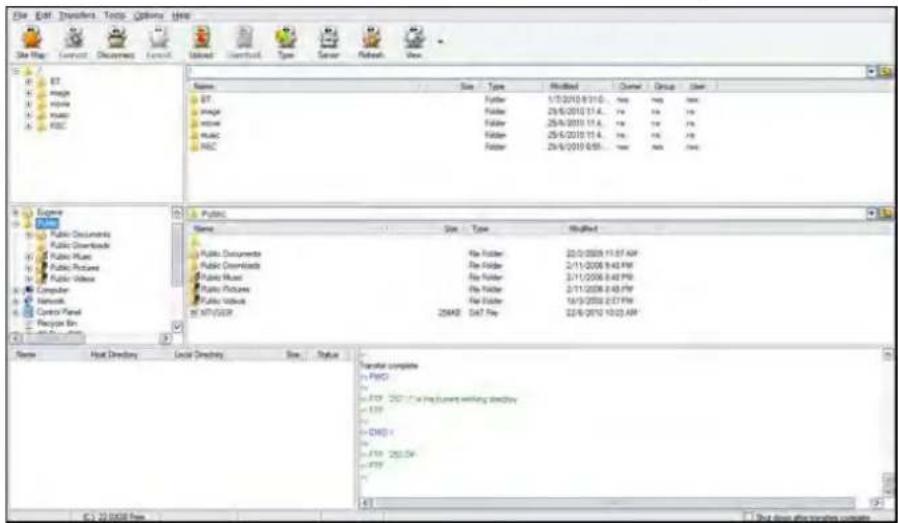

FTP

- Select to turn on / off FTP services and to configure your desired login User Name and Password. Please refer to '3.10 FTP Server' for more details on this unique feature of this product.

Host Name

- Select to key in your desired host name to be seen in your network.

3.1.5 Miscellaneous

Use this menu to adjust miscellaneous settings.

Version Info

- This tab shows you information about the firmware installed and about the material components of your player.

Network Info

This tab shows you information about your network, MAC Address, IP address Gateway, Subnet.

USB Upgrade

- Select to update the firmware via a USB stick.

Step 1: Copy 'install.img' or extension files to the root directory of an USB stick, and connect it to an USB HOST port of the player.

Step 2: Press OK to confirm.

Pin Protection

To prevent deleting files and formatting HDD by asking for a password. The default password is '0000'. Press the numerical buttons to input, and the OK button to confirm.

Folder Access Protection

- Select the folder protection to prevent access to selected folders. The default password is '0000'. Press the numerical buttons to input, and the enter button to confirm. In browser menu press the MENU button and selection the option Lock/Unlock to lock/unlock a folder.

Password

- Change the password. The default password is '0000'. Press the numerical buttons to input, and the OK button to confirm.

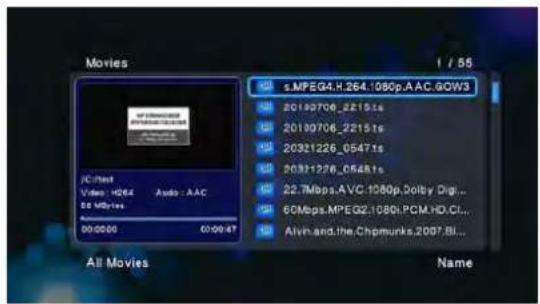

3.2 Movie Library

Select the Movies icon on the main menu to enter into movie library interface. Only supported files will be displayed. Please refer to chapter '5. Appendixes' for more details about the supported file formats.

3.2.1 Movie Library Options

In movie library, press MENU button to display the option menu, you can get following functions though the option menu.

Quick-Search

- Choose the Search option in the option menu and you can search for a media file by filter to locate the specific media file.

View Mode

- Choose a view mode among Thumbnails, List, and Preview from option menu or go to a specified folder.

Filter Mode

- Choose to filter by All Movies, Show DVDs or Flash Animation from option menu.

Show DVDs

- Choose to display DVD IFO,BD MV and ISO files directly in media library. During playback of DVDs, you can press Menu button, to get back to the Title Menu or Root Menu of the DVD.

Sorting Mode

- Choose to sort by Name, Size, Most Viewed or Recently Added from option menu.

3.2.2 Movie Playback Control

You can access the following functions during playback.

Button Function
Play/Pause	Pause or resume the current playback.
Prev/Next	View the previous or next file/chapter.
FR/FF	Fast rewind or fast forward. Press repeatedly to select the speed.
Slow	Play back in slow motion.
GOTO	Jump to a specific point on a title. Specify the point using Title, Chapter and Time.
Menu	Display or hide the option menu during playback.
Stop	Stop playback.
VOL+/-	Increase/decrease the volume.
Audio	Select an audio track.
Subtitle	Select a subtitle and change the color/size/offset/text encoding of subtitle.
Repeat	Set the repeat option.
Zoom	Zoom in the image.
Info	View the media information.

3.2.3 Movie Playback Options

During movie playback, press Menu button to display or hide the option menu at the bottom of the screen.

Next to audio track, subtitle, repeat mode, you also can get following functions though the option menu during video playback.

DVD Menu

- Select to return to the navigation menu (Title Menu / Root Menu) during DVD IFO or ISO playback.

GOTO

- Select to jump to a specific point on a title. Specify the point using Title, Chapter and Time.

Video Setting

- Select to adjust the value of Brightness, Contrast, Saturation and Hue.

3.3 Photo Library

Select the Photo icon on the main menu to enter into photo library interface. Only supported files will be displayed. This player supports HD JPEG, JPG, BMP, GIF, TIF and PNG files.

3.3.1 Photo Library Options

In photo library, press Menu button to display the option menu, you can get following functions though the option menu.

Quick-Search

- Choose the Search option in the option menu and you can search for a photo file by filter to locate the specific photo file.

View Mode

Choose a view mode among Thumbnails, List, and Preview from option menu

Filter Mode

- Choose to filter by Photo Directory, Date view, All Photos, or Albums from option menu.

Sorting Mode

- Choose to sort by Name, Recently Added or Recently Played from option menu.

3.3.2 Photo Playback Control

You can access the following functions during photo playback.

Button Function
Prev / Next	View the previous or next photo.
Up / Down	Rotate a photo in any angle.
Menu	Display or hide the option menu during playback.
Stop	Stop playback.
Zoom	Zoom in the image.

3.3.3 Photo Playback Options

During photo playback, press Menu button to display or hide the option menu at the bottom of the screen. You can get following functions though the Option menu during photo playback.

Slideshow Control

- Select to choose the Interval (Slide Timing) and Transition effect (Slide Transition) of the slideshow.

Repeat Mode

- Choose a repeat mode among Repeat off, Repeat all and Shuffle Loop from option menu.

Select Music

- Select to turn on/off Background music during slideshow playback.

- Select music to specify the background music during photo playback.

Video Setting

- Select to adjust the value of Brightness, Contrast, Saturation and Hue.

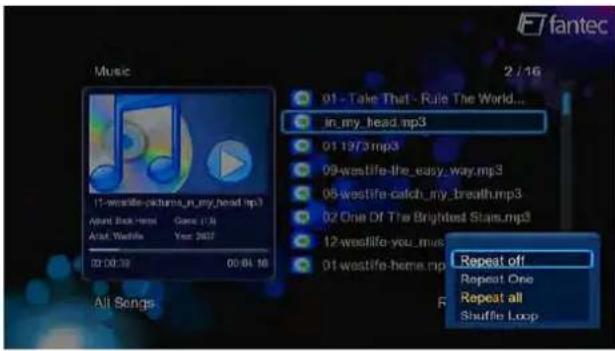

3.4 Music Library

Select the Music icon on the main menu to enter into music library interface. Only supported files will be displayed. This player supports MP3, OGG, WMA, WAV, AAC and FLAC audio files.

3.4.1 Music Library Options

In music library, press Menu button to display the option menu, you can get following functions though the option menu.

Quick-Search

- Choose the Search option in the option menu and you can search for a photo by filter to locate the specific music.

View Mode

- Choose a view mode among Thumbnails, List, and Preview from option menu or go to a specified folder.

Filter options

• Choose Albums to search for music files by album.
• Choose Artists to search for music files by artist.
• Choose Genres to search for music files by genre.
• Choose Years to search for music files by modified year.
• Choose Playlists to search for music by generated playlist.

Sorting Mode

- Choose to sort by Name, Recently Added or Recently Played from option menu.

3.4.2 Music Playback Control

You can access the following functions during music playback.

Button Function
Play/Pause	Begin/Pause playback.
FR / FF	Fast rewind or fast forward. Press repeatedly to select the speed.
Prev / Next	View the previous or next movie.
Menu	Display or hide the option menu during playback.
VOL+/-	Increase/Decrease the volume.
Repeat	Set the repeat option.
Shuffle	Select the shuffle mode.

3.4.3 Music Playback Options

During music playback, press Menu button to display or hide the option menu at the bottom of the screen. You can get following functions though the Option menu during music playback.

Repeat Mode

- Choose a repeat mode among Repeat off, Repeat one, Repeat all and Shuffle Loop from option menu.

3.5 File Manager

The file manager allows you to browse and play music, photo and movie files stored on an internal HDD, external USB device, memory card and network.

3.5.1 File Manager Options

In file manager, press Menu button to display the option menu, you can get following functions though the option menu.

View Mode

- Choose a review mode among Thumbnails, List, and Preview from option menu.

Filter options

• Choose Movies to display all the supported video files in current directory.
• Choose Photos to display all the supported image files in the current directory.
• Choose Music to display all the supported audio files in the current directory.

3.5.2 A/V Streaming via Network

You can stream your media files shared on the home network. Please refer to '3.1.4 Changing Network Settings' for more details on network settings.

There are two ways to locate media files shared on your local network in the Network menu. One is to browse through workgroup; the other way is to browse through 'My_Shortcuts'.

You can choose the workgroup which your PC belongs to from the workgroup list, find your PC name, and press the OK button to confirm. Then you can select and play the shared media files that you are currently browsing.

Note: While browsing high definition video files (resolution up to 720p / 1080i / 1080p) via WLAN, the video might be buffering. It is normal due to the limit of network speed or signal strength.

3.5.2.1 Browsing though workgroup

You can choose the workgroup which your PC belongs to from the workgroup list, find your PC name, and press the OK button to confirm. Then you can select and play the shared media files that you want to browse.

Note: Due to different network conditions, sometimes the workgroup might not be accessed or shown in the list. And then you need to use 'My_Shortcuts' to browse shared files.

3.5.2.2 Browsing though 'My\_Shortcuts'

You can also set 'Specific File Server IP' and access it from 'My_Shortcuts' in the menu.

- Press the Green button and a popup menu appears.

- Select Add to open a popup menu where you can input Label, Net User ID, Net Password, Domain, Host Name, and Specific File Server IP. Select OK to confirm, Cancel to cancel, and Simple / Detail to switch between simple and advanced options.

- Select the shortcut you added and press the OK button to confirm. Then you can select and play the shared media files on the destination computer.

3.5.3 A/V Streaming via UPnP-server

A built-in UPnP (Universal Plug and Play) client has been integrated on the system, which enables the player to auto-detect UPnP Media Servers on the network to browse and stream media files from them.

3.5.3.1 Installing UPnP Media Server on your PC

There're a lot of free and commercial UPnP Media Server software, such as Windows Media Connect, Windows Media Player 11, XBMC Media Center (Linux/Mac/Windows), MediaTek (Linux), etc. Please install one of them on your computer. In the following chapters, we will take Windows Media Player 11 on Microsoft Windows XP SP2 for an example.

3.5.3.2 Sharing Media on your PC

The Media Sharing feature of Windows Media Player 11 lets you enjoy the contents of your Windows Media Player library from anywhere in your home.

Open Windows Media Player 11, click Library -> Add Library -> Advanced Options to add or remove media files from the library.

- Click Library -> Media Sharing, then you can allow or deny devices to access the media library. Click Allow to authorize your player.

3.5.3.3 Streaming Media on your Player

• Connect your player to the home network (LAN or WLAN).
• Visit Browser -> UPnP menu on the player, select the UPnP-server, and press OK.

- Then you can browse the media library shared by Windows Media Player 11.

Note: Make sure your player and your computer are on the same local area network and subnet. Firewalls may prevent your player to communicate with your computer. Please open the ports manually and add your player to the 'trusted' list, or disable the firewall temporarily.

3.6 Playlist Management

3.6.1 Create music playlist

To create a playlist, please enter the HDD via File Manger. The press Edit button on the remote control and select Multiple Select option. In the file explorer you can navigate by Up/Down/Left/Right/Next/Prev button and add or delete files to the File List by the Play/Pause button.

In order to switch between different folders, please select the upper folder icon:

To save the playlist, please press the Edit button and name the playlist.

3.6.2 Playback music playlist

Enter the music library, press Menu button and choose Playlists to show your music playlists.

3.6.3 Create album playlist

To create an album playlist, please enter the HDD via File Manger. The press Edit button on the remote control and select Multiple Select option. In the file explorer you can navigate by Up/Down/Left/Right/Next/Prev button and add or delete files to the File List by the Play/Pause button.

In order to switch between different folders, please select the upper folder icon:

To save the album playlist, please press the Edit button and name the playlist.

3.6.4 Playback Album playlist

Enter the photo library, press Menu button and choose Albums to show your album playlists.

3.7 Copy und Delete Function

3.7.1 Copy under File Manager

To start the copy function, please enter the HDD via File Manger. The press Edit button on the remote control and select Multiple Select option. In the file explorer you can navigate by Up/Down/Left/Right/Next/Prev button and add or delete files to the File List by the Play/Pause button.

In order to switch between different folders, please select the upper folder icon:

To start the copy procedure, please press the Edit button and select Copy.

Select the destination or create a new folder and then press Play/Pause button to finish the copy process.

Note: If you want to copy a single file, just press Edit and then Copy to start the copy procedure.

3.7.2 Delete under File Manager

To start the Delete function, please enter the HDD via File Manger. The press Edit button on the remote control and select Multiple Select option. In the file explorer you can navigate by Up/Down/Left/Right/Next/Prev button and add or delete files to the File List by the Play/Pause button.

In order to switch between different folders, please select the upper folder icon:

To start the Delete procedure, please press the Edit button and select Delete.

Note: If you want to delete a single file, just press Edit and then Delete to start the delete procedure.

3.8 Internet Media

This feature is additional function. All contents and services under this feature are provided by third-party service providers, our company does not offer any contents and services of this feature and it not responsible for any contents and services provided under this feature. Our company is not responsible for any operational stability of the contents and services, for example, if you cannot access certain web site for video streaming or news broadcast, or the content of a web site has been changed etc, are all responsible and control by the third-party service providers. If you find that these features cannot operate properly, please contact our customer service or visit our company website to obtain the relevant information.

Here are the introductions of SHOUTcast radio, BT download and video podcast function.

3.8.1 SHOUTcast Radio

Select SHOUTcast Radio icon to get all free internet radio stations, press OK to select and play radio station, press Back to come back

Note:

• When you enter the Digital Radio menu at the first time, it will take several seconds to download data from the Internet, please be patient to wait;
• For more about SHOUTcast, please refer to the website: www.shoutcast.com

The following buttons can be used under this menu.

Button Function
UP / DOWN	Move cursor up / down to select station, channel, and genre.
PREV / NEXT	Page up / down.
ENTER	Confirm and enter the selected menu.
MENU	Add / delete a station to / from Favourite while it is highlighted.
PLAY	Begin playback after a channel has been selected.
STOP	Stop playback.
RETURN	Return to the previous menu.

Station

- All downloaded stations will be listed under this menu.

Genre

- You can search for stations by genre (pop, rock, jazz, etc.) under this menu.

Favourite

- Your favourite stations can be kept under this menu.

Search

- You can search for radio stations by Keyword. (Please visit www.shoutcast.com for available stations)

3.8.2 BT Download

Select the BitTorrent icon on internet media menu. You can see the status of torrents download progress and configure the BT download settings in this menu. Press Left/Right button to enter into download menu and BT setup menu.

Add a torrent

Store your torrent files on an USB drive and then connect it to the device. Locate your torrent files in file manager menu, then press OK button to add the torrent files and start the download procedure.

Download Menu

After add the BT torrent files, the download progress can be displayed under Internet Media menu.

The following buttons can be used under this menu.

Button Function
Up/ Down	Move cursor up / down.
OK	press to adjust the priority of the download task
Play/Pause	Press to start/pause download.
Stop	Press to stop the download.
Return	Return to the previous menu.

BT setup Menu

In the BT Setup menu, you can configure the following settings. Use Up/Down and OK to change the settings.

• Set the maximum download rate.
• Set the maximum upload rate.
• Set the idle hours to start the next download automatically.
• Set the seeding hours.
• Set to delete the finished torrent files automatically or not.
• Set the maximum number of simultaneous download tasks.

Note: Please visit chapter '3.11.3 BitTorrent management' to get more information about web-based BT menu.

3.8.3 Video Podcast

Select Video podcast on internet media menu, here are world, news, fun, technology, sports, downloading manager, subscribe manager. And here you can start view, subscribe and download video podcast.

Video podcast catalog

This product shows you five catalogs, there are world, fun, news, sport and technology. You can directly watch podcast files, subscribe or download it. To playback a podcast please enter your preferred podcast by the use Up/Down/Left/Right and OK button. To stop playback, please press the Stop button.

Subscribe manager

You can view all video podcast that you have subscribed. In order to unsubscribe a podcast please enter the Subscribe Manager and delete the podcast by pressing the Menu button.

Downloading manager

You can see the status of video download progress. For additional option, please press the Menu button.

To start playback of downloaded files, please press the Right button and select one of the podcast files. For additional option, please press the Menu button.

3.9 SAMBA Server and Client

This player can be used either as a SAMBA Server or as a client.

3.9.1 SAMBA Client

- You can stream media files shared on the home network. Please refer to '3.5.2 A/V Streaming via Network' for more details.

3.9.2 SAMBA Server

- This product works as a NAS (Network Attached Storage) device when it is attached to the home network. This feature allows users to store and retrieve large amounts of data from their own local network.

- When the network connection is done correctly and ready for use, please turn on SAMBA (NAS MODE) function in the setup menu in advance (refer to 3.1.4 Changing Network Settings for more details), and then type in: \IP Address or \Host name in the Run window (click Run in the start menu) or in the address bar of Microsoft® Internet Explorer. If the IP address of the product is 192.168.0.9, please type in: \192.168.0.9, and click OK or press the Enter button on the keyboard.

Under Windows Vista and Windows 7, please type in: \192.168.0.9 at the search bar, then press the Enter button on the keyboard.

You can manage the files stored on the internal hard disk of the product. In this way, you can also playback and copy files via network between your PC and the internal hard disk of this product.

3.10 FTP Server

This product can also be used as a FTP Server as far as it is attached to your home network.

3.10.1 FTP Server Configuration to access via the Internet

- Configure the username and password of the FTP Server.

Setting up your device:

• Assign a manual Fixed IP address for the product, for example 192.168.0.9
• Assign the same subnet mask as your router (usually 255.255.255.0)
• Assign the gateway of your router (router's local IP address, usually 192.168.xxx.xxx)..
• Assign the DNS address of your router (router's local IP address, usually 192.168.xxx.xxx).
  Please refer to your router documentation on getting this information from your router

Setting up your router:

- Configure the FTP server service at your router and enter the IP address of your device, for example, 192.168.0.9. Additionally set up the FTP port to port 21 (default).

Use of a dynamic IP address

• At common internet connections the WAN IP address of the internet connection is changing every 24 hours. For this reason, the use of a dynamic DNS is recommended. This allows you to access your device by an individually defined name and replaces the recurrent update of the WAN IP address of your router.
• In order to get a DynDNS account, sign up for a free DDNS domain for one of the sites that offer this free service, such as www.dyndns.com. More information can be found in various tutorials on the topic "Setting up dyndns"
• Finally enter the account information on the DDNS page of your router and enter your host name, then user name and password. Please read the instruction manual of your router if your router supports the DDNS service and how to obtain this information for your router.

3.10.2 Accessing from a FTP program

Use your favourite FTP application on your PC, for example ALFTP, which can be downloaded from http://www.altools.com/ALTools/ALFTP.aspx

At the FTP program connection page, you can enter your router's WAN IP address or your DDNS host name.

FTP Address: Your router's WAN IP address

User ID: The User Name which was set under FTP, ' Network setup'

Password: The Password which was set under FTP, ' Network setup'

FTP Address: Your DDNS host name

User ID: The User Name which was set under FTP, ' Network setup'

Password: The Password which was set under FTP, 'Network setup'

After login is successful, you will be able to upload/download files via FTP Server.

3.11 Virtual Remote Control

This product is equipped with a virtual network remote control. This feature allows you to remote your player from wherever you are. To access the unit you can use your smartphone or computer as far as they are in the same local network.

3.11.1 Network Remote Control

- To open the network remote control, please enter the IP address of the unit into your Microsoft® Internet Explorer. E.g. IP address 192.168.0.9, and the port: 1024 (//192.168.0.9:1024).

3.11.2 Upload/Download files

• You can view the status of your internal hard disk or the attached USB storage device from anywhere over the network/ internet.
• For up- and downloading files, please use Microsoft® Internet Explorer.

Upload

- Click on "Device" and then a select a drive (e.g. HDD). Then select the folder where the file should be uploaded. Next click the "Browse" button and select the file you want to upload. Finally click on the "Upload" button.

Download

- Click on "Device" and then a select a drive (e.g. HDD). At this point you see the content of your drive and are able to download the selected files.

3.11.3 BitTorrent management

View and manage your BitTorrent tasks remotely over the network/ internet.

3.11.4 HTTP Server Configuration to access via the Internet

Setting up your device:

• Assign a manual Fixed IP address for the product, for example 192.168.0.9
• Assign the same subnet mask as your router (usually 255.255.255.0)
• Assign the gateway of your router (router's local IP address, usually 192.168.xxx.xxx)..
• Assign the DNS address of your router (router's local IP address, usually 192.168.xxx.xxx).

Please refer to your router documentation on getting this information from your router

Setting up your router:

- Configure the HTTP server service at your router and enter the IP address of your device, for example, 192.168.0.9. Additionally set up the HTTP port to port 80 (default).

Use of a dynamic IP address

• At common internet connections the WAN IP address of the internet connection is changing every 24 hours. For this reason, the use of a dynamic DNS is recommended. This allows you to access your device by an individually defined name and replaces the recurrent update of the WAN IP address of your router.
• In order to get a DynDNS account, sign up for a free DDNS domain for one of the sites that offer this free service, such as www.dyndns.com. More information can be found in various tutorials on the topic "Setting up dyndns"
• Finally enter the account information on the DDNS page of your router and enter your host name, then user name and password. Please read the instruction manual of your router if your router supports the DDNS service and how to obtain this information for your router.

To access via HTTP server from out of your local network, launch a web browser such as

Microsoft® Internet Explorer and enter following data into the address bar:

• http://123.456.789.000:1024 where 123.456.789.000 is the WAN IP address of your router. Please refer to your router documentation on getting this information from your router.
• http://DDNS-HOST-NAME:1024, where DDNS-HOST-NAME is the host name which you have signed up for at your desired DDNS service provider.

4. Upgrading the Firmware

The firmware is the operating system (OS) installed on the device. Firmware upgrades can bring new features, improvements and bug fixes.

Please refer to USB Upgrade in chapter '3.1.5 Miscellaneous' for more details.

You can also use the following method to upgrade the firmware:

• Copy 'install.img' to the root directory of a USB key;
• Plug the USB key to the USB HOST port on the player;
• Press and hold the POWER button on the front panel, and connect the player with power supply;
• Wait for more than 30 seconds, and then loose your finger on the POWER button.

Then the upgrade process will start automatically. The LED indicator on the front panel will be enlightened and flashing during installation. If it is connected to a TV set, an install page will appear on the TV screen.

5. Appendixes

I/O INTERFACES SUPPORTED:

• 3.5" SATA HDD
• USB 3.0 DEVICE port (connecting to PC)
  ● Gigabit Ethernet port 10/100/1000 Mbps (RJ45)
• HDMI V1.3 interface
• USB 2.0 HOST port x 5 (compatible to USB 1.1)
  ● Card Reader (supports SD/SDHC/MMC/MS/MS Pro)
• Composite (CVBS) A/V jack
• Component Y/Pb/Pr jack
• EURO Scart
• S/PDIF optical jack
• S/PDIF coaxial jack
• DC-IN 12V

FILE SYSTEM SURPORTED:

- MKV, ISO (DVD & BluRay), AVCHD, MTS, M2TS, AVI, VOB, MOV, MP4, MPG, TS, WMV, DAT, IFO, RM, RMVB, M4V, ASF, FLV, XviD, DivX 3/4/5, DVD menu playback, H.264, resolution up to 720p/1080i/1080p

AUDIO FORMATS SUPPORTED:

● MP3, OGG, WMA, WAV, AAC, FLAC (32 – 320 kbps)
- Stereo/Dolby Digital AC3 5.1 (pass-through & downmix to stereo), Dolby Digital Plus 7.1 (pass-through), Dolby TrueHD 7.1 (pass-through & downmix to stereo), DTS Digital Surround 5.1 (pass-through & downmix to stereo), AAC 7.1 (pass-through & downmix to stereo)

PICTURE FORMATS SUPPORTED:

● HD JPEG, JPG, BMP, GIF, TIF, PNG (JPEG: 6048x4032 - 24MP)

VIDEO CODECS SURPORTED:

• MPEG-1
• HD MPEG-2
  ● HD MPEG-4 SP/ASP/AVC (H.264)
  ● WMV9 (VC-1)
  ● RealNetworks (RM/RMVB) 8/9/10, up to 720p

AUDIO CODECS SURPORTED:

- MP2/3, OGG Vorbis, WMA (DRM, and Advanced Profile not supported), PCM, LPCM, MS-ADPCM, LC-AAC, HE-AAC, COOK, RA-Lossless

MENU LANGUAGE SUPPORTED:

● German, English, Spanish, French, Italian, Korean, Dutch, Russian, Polish, Chinese, Czech, Slovenian, Romanian, Portuguese, Hebrew, Magyar, Slovakian, Greek, Japanese

SUBTITLE FORMATS SURPORTED:

● SRT, SMI, SSA, ASS, IDX/SUB, SUB
- Subtitle control: color/offset/size

- Unicode (UTF8), BIG5 (Traditional Chinese), Western, Turkish, Central European, Greek, Cyrillic, SE European, Russian, Hebrew, Arabic, Japanese, Thai

NETWORK FEATURE

● 10/100/1000Mbps Auto-Negotiation Ethernet
● 802.11b/g/n WiFi, up to 300Mbps (supported by optional WiFi USB Adapter)

Note: The specifications and design of this product are subject to change without notice.

6. Frequently Asked Questions

Question 1. When I try to disconnect the USB device, I keep on getting "The device 'Generic volume' cannot be stopped right now. Try stopping the device again later." message, what should I do?

Answer:

Close any program that might be accessing data on the player, including Windows® Explorer. If it does not work, close all programs and wait for another 20 seconds, then try the green arrow icon again. If it still does not work, you should shut down the player and disconnect the USB cable.

Question 2. I find new file names and folder names that I never created before or they have strange gibberish names.

Answer:

Most likely, the player's file allocation table (FAT) has been corrupted. This might be due to the player shutting down (due to low battery power) while reading or writing to your computer by the USB connection. Windows and Macintosh often write extra files to the hard disk such as finder.def or System volume info. These are normal and will not do any harm to the player.

Question 3. I used my player to transfer files back and forth between different computers. Will defragmenting the player hard disk do any harm to it?

Answer:

Defragmenting the player hard disk may be useful after having transferred many files to and from the player. It is never harmful to use the defragment on the player. Make sure no other programs are running while using the Windows® defragment utility. Make sure you have connected the player with the external power adapter during this procedure.

Question 4. My files have disappeared from the player.

Answer:

Make sure that you browse your files via the correct browser mode which means correct filtered views such as Photos, Music, or Movies.

Question 5. During power on, why does the TV will have a short flashing, blue screen or screensaver?

Answer:

This is normal, when the system initializes, it will setup the corresponding parameters so it can output the correct video signal to the TV, during the initializing time, the TV will receive incorrect signals or the signals will not be stable and will cause the TV screen to flash, some TV's will treat this as no signal, and will display a blue screen or screensaver.

Question 6. Why when I switch to Y/Pb/Pr 480p, 576p, 720p, 1080i, and 1080p, does the TV screen display an unwatchable picture?

Answer:

Please check if your TV supports Y/Pb/Pr 480p, 576p, 720p, 1080i, and 1080p output, if your TV does not support, please use the A/V signal display instead, press the TV SYSYEM button on the remote control, then switch the TV's video input to NTSC or PAL.

Question 7. Why is there no sound on movie or music playback when using Y/Pb/Pr component output?

Answer:

Y/Pb/Pr output is a video output only, and does not include sound signals. When using Y/Pb/Pr output, please plug the A/V OUT or the S/PDIF jack to output sound.

Question 8. I cannot get SSID name, the screen always displays: 'Can't get any SSID!!' Answer:

When the WLAN USB Adapter is connected to the player, it needs some time to get initialized. Please wait for about 1\~2 minutes and try refreshing the SSID list again.

Question 9. I cannot see files shared on my computer via Browser->Network menu. Answer:

Please check following items:

1) Connect the player to network and obtain an IP address first;
2) Please enable NetBIOS of TCP/IP on computer;
3) Please check your PC's firewall settings;
4) Please enable your PC's 'Guest' account;
5) Please share the folders which you wish to browse on your PC, and make sure that 'Everyone' or 'Guest' has the right to access.

Question 10. I configured everything correctly, but still cannot get the wireless network or UPnP function to work.

Answer:

Are you using a firewall such as Norton Internet Security, McAfee Personal Firewall, Zone Alarm, etc. or even the built-in firewall of Windows XP? (Don't forget that Service Pack 2 for Windows XP automatically upgrades your firewall and turn it on by default)

If you have a firewall, it may need to be configured or have exceptions created to allow you to see and communicate with the player on the network. To test if your firewall is preventing network communication (including PING and access shared folders), try disabling it to see if you can connect. If you can connect with the firewall disabled, you may need to add the player to the 'Trusted' list or configure the firewall for local intranet access. Worst-case, disable your firewall long enough to use the player, then enable it again when done.

Question 11. I am using the 802.11n Wi-Fi dongle with an 802.11n wireless router, why the speed is still 802.11g 54Mbps rather than 300Mbps?

Answer:

The IEEE 802.11n Draft standard prohibits using high throughput with WEP or TKIP as the unicast cipher. If you use these encryption methods (e.g. WEP, WPA-TKIP), your data rate will drop to 54 Mbps. You may contact the Access Point or router manufacturer to download the latest firmware, or try other encryption methods (WPA2-AES or WPA2-TKIP), or choose to configure an unsecured profile, but this option is not recommended.

7. Copyrights and Trademarks

Copyrights

All rights reserved. No part of this manual may be reproduced, or transmitted in any form or by any means, whether by electronically or mechanically, without the express written permission from the copyright holder.

Copyrighted materials, such as software, music files, or movies, are protected by local law, and may not be illegally copied or used without permission from the copyright owner.

Trademarks

Microsoft and Windows are registered trademarks of Microsoft Corporation.

All other trademarks are property of their respective holders.

2.0+Digital Out

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

DIGITAL

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

8. Warranty

What your warranty does not cover:

-Acts of nature, such as fire, static discharge.
-Damage from unauthorized repair, alteration or accident.
-Damage from misuse or neglect.
-A unit that has been modified or incorporated into other products or is used for institutional or other commercial purposes.
-Loss of customer's software, firmware, information, or memory data.
-Improper handling or installation.

9. GPL Statement

This product contains free software which is licensed under the GNU General Public License. After you purchase this product, you may procure, modify or distribute the source code of the GPL/LGPL software that is used in this product.

To obtain a copy of our open source software, please contact our support center and we will provide you with a CD-ROM of the source code that is used, charging only the actual expense involved. However, please be noted that we can not provide guarantee with the source code, and there is also no technical support for the source code from us.

TECHNICAL INFORMATION

License information for the software used in the unit.

This product contains Free Software which is licensed under the GNU General Public License. After you purchase this product, you may procure, modify or distribute the source code of the GPL/LGPL software that is used in this product.

If you contact our Support Center, we will provide you with a CD-ROM of the source code that is used, charging only the actual expensed involved. However, please be noted that we can not provide guarantee with the source code, and there is also no technical support for the source code from us.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow. TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
3. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the

Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

1. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
