USER MANUAL iCLPFM3B02 Chief

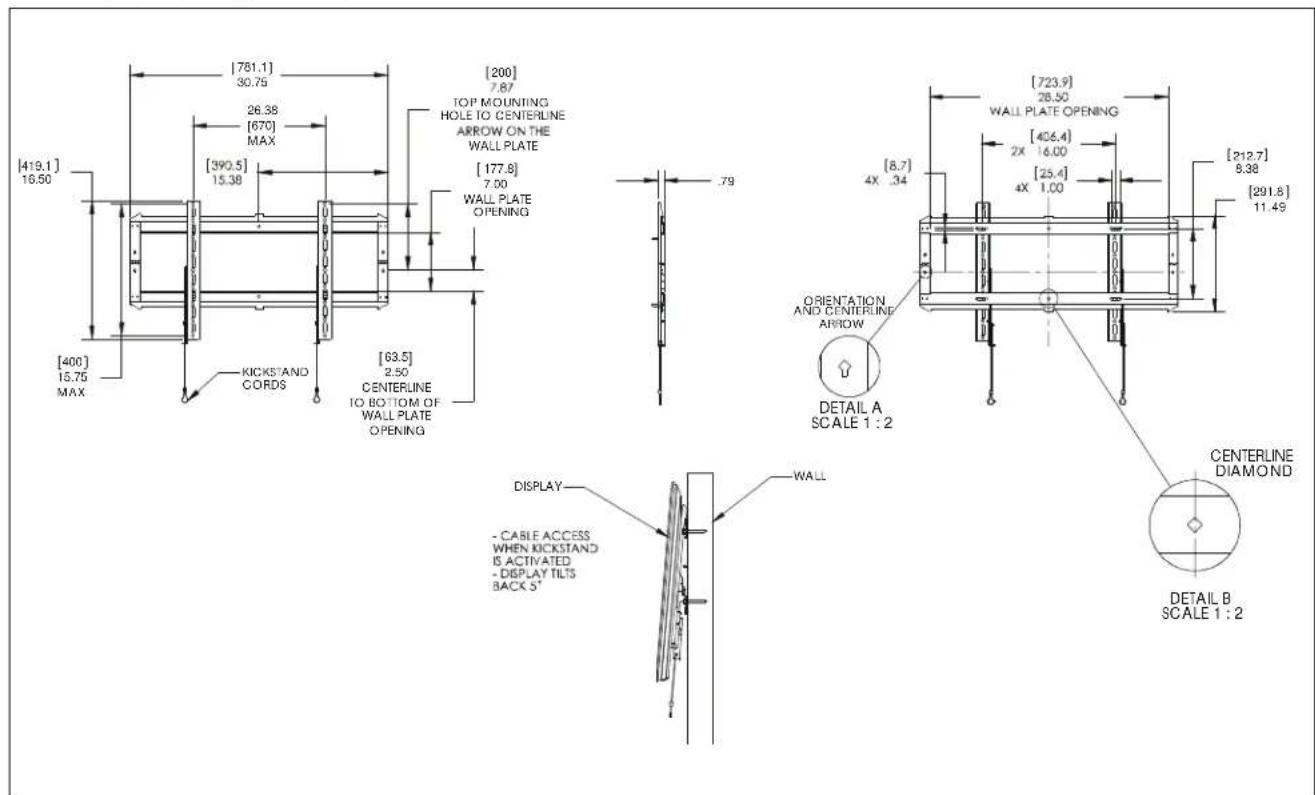

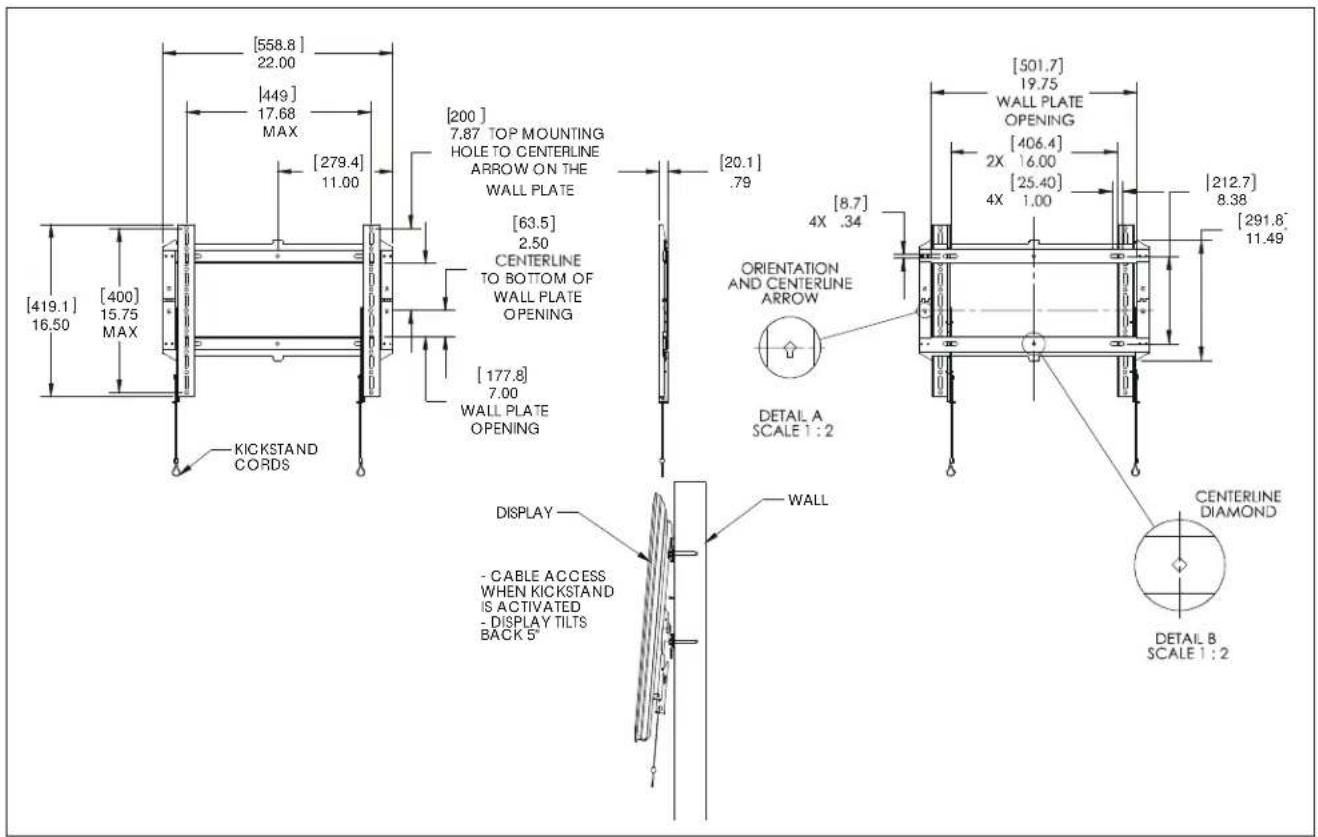

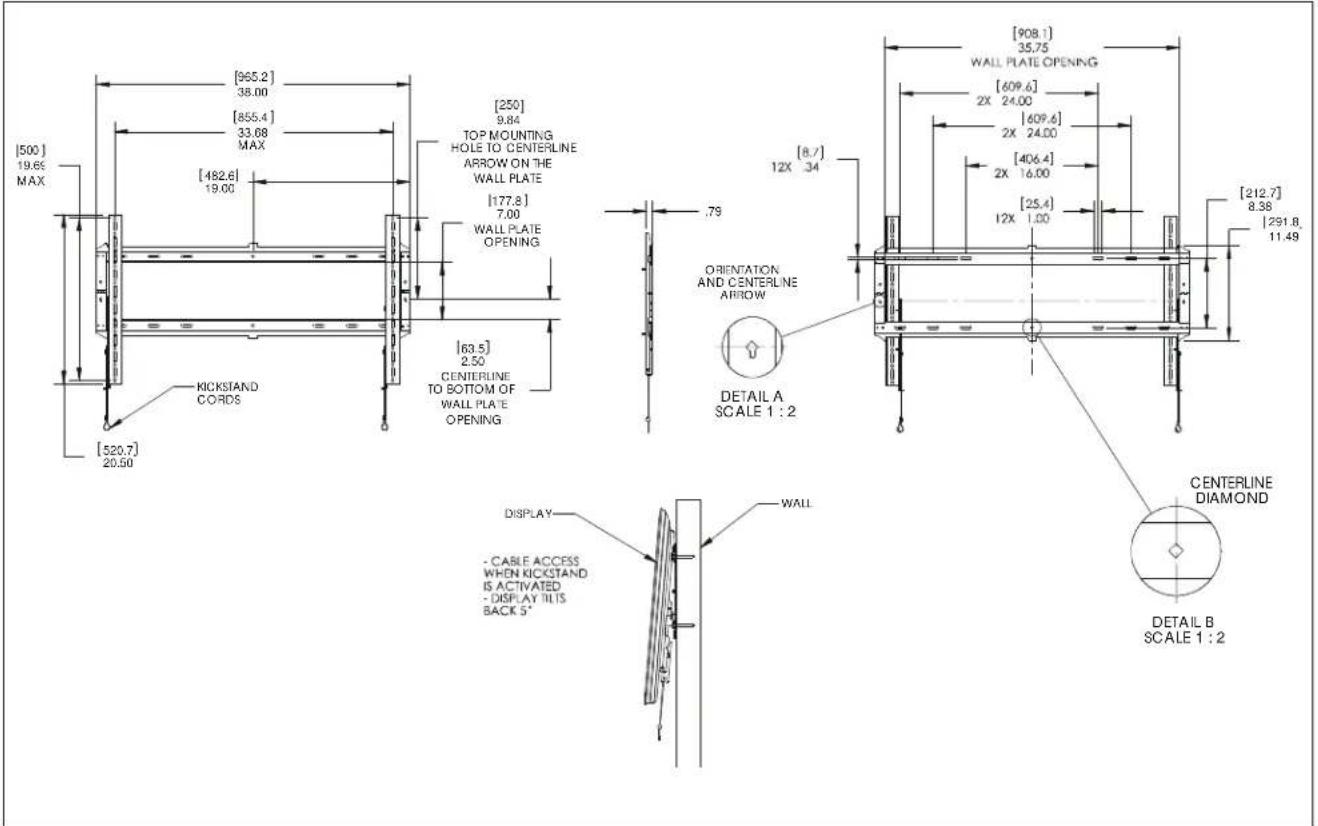

DISCLAIMER Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document. Chief® and Centris™ are trademarks of Milestone AV Technologies. All rights reserved. IMPORTANT WARNINGS AND CAUTIONS!

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions. CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer’s responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength

for this component can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component. The wall to which the mount is being attached may have a maximum drywall thickness of 5/8" (15.9mm).

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all components attached does not exceed 125 lbs (56.7 kg) for the iCMPFM3 and iCLPFM3 or 175 lbs (79.4 kg) for the iCXPFM3. Use with products heavier than the maximum weight indicated may result in collapse of the mount and its accessories causing possible injury.

WARNING: Failure to provide adequate structural

strength for this component can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component. The wall to which the mount is being attached may have a maximum drywall thickness of 5/8" (1.6cm).

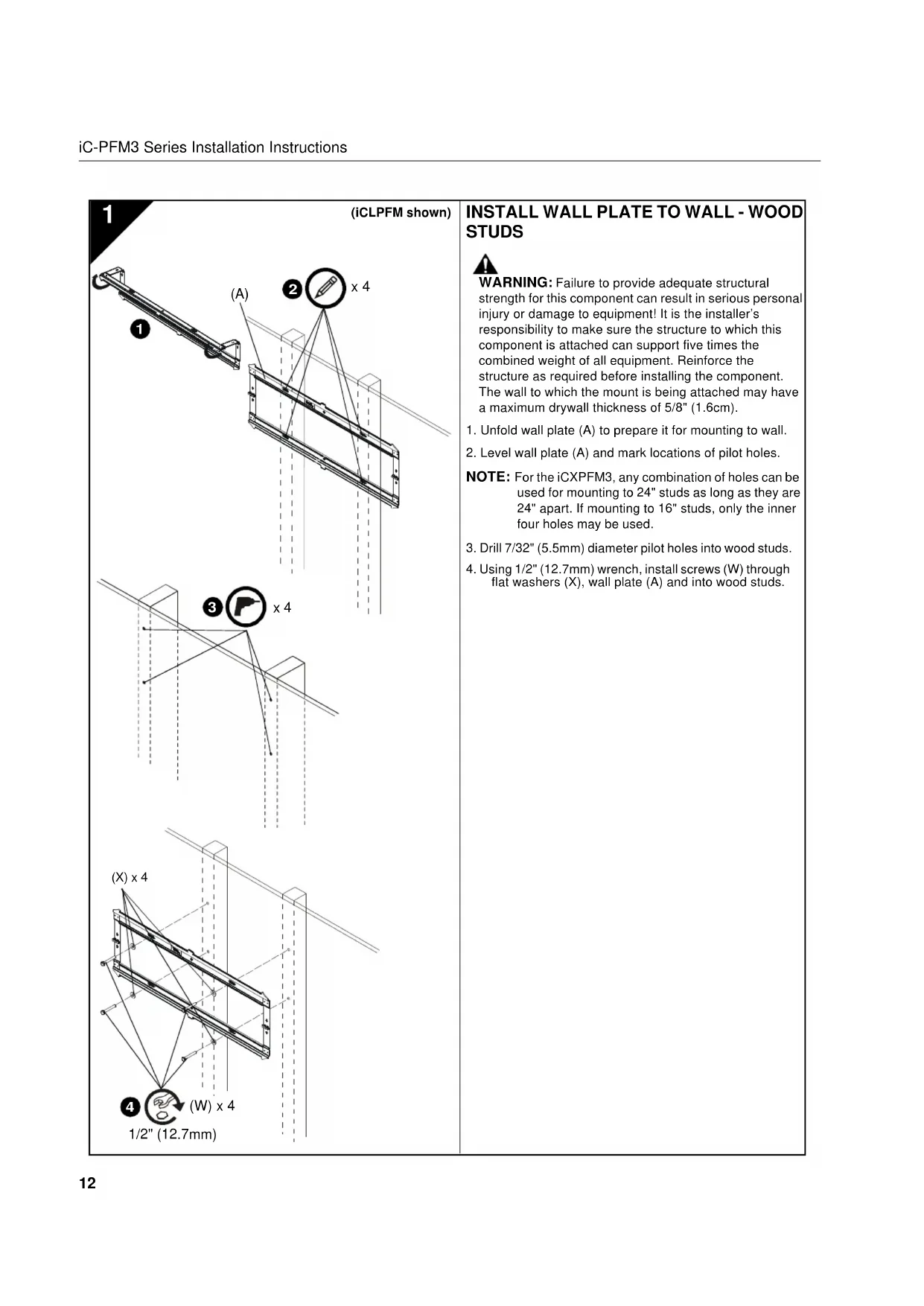

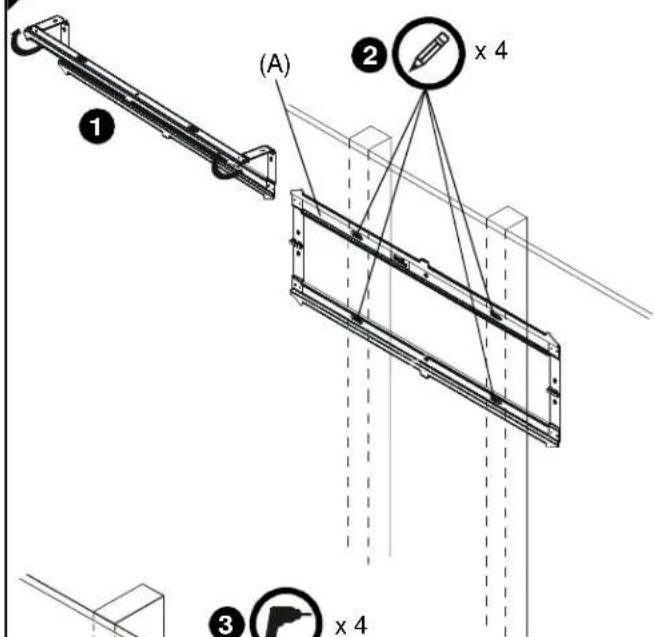

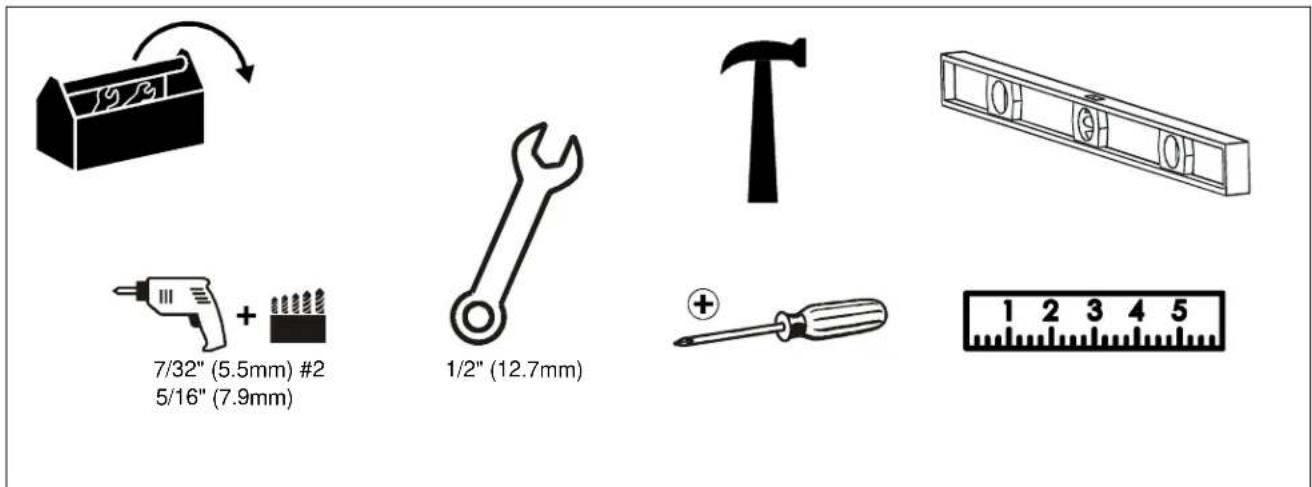

1. Unfold wall plate (A) to prepare it for mounting to wall.

2. Level wall plate (A) and mark locations of pilot holes.

NOTE: For the iCXPFM3, any combination of holes can be used for mounting to 24" studs as long as they are 24" apart. If mounting to 16" studs, only the inner four holes may be used.

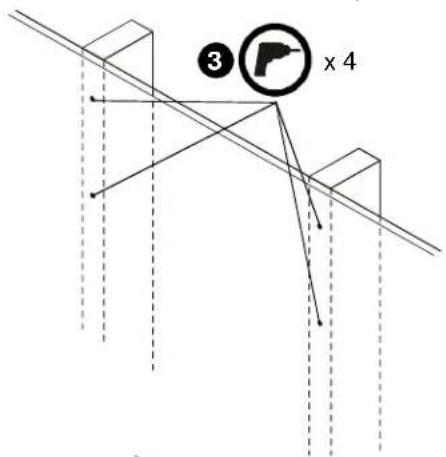

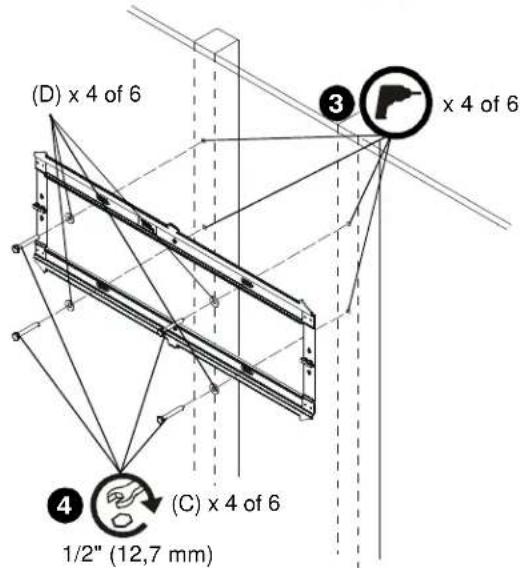

3. Drill 7/32" (5.5mm) diameter pilot holes into wood studs.

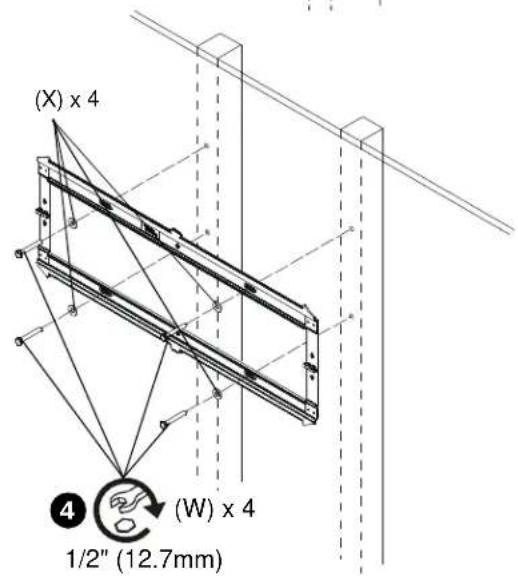

4. Using 1/2" (12.7mm) wrench, install screws (W) through

flat washers (X), wall plate (A) and into wood studs.

WARNING: Failure to provide adequate structural

strength for this component can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component. The wall to which the mount is being attached may have a maximum drywall thickness of 5/8" (1.6cm).

OR CABLES CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free of electrical wires and cables before drilling or installing fasteners.

WARNING: EXPLOSION AND FIRE HAZARD!

CUTTING OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free of gas, water, waste, or any other plumbing before cutting, drilling, or installing fasteners.

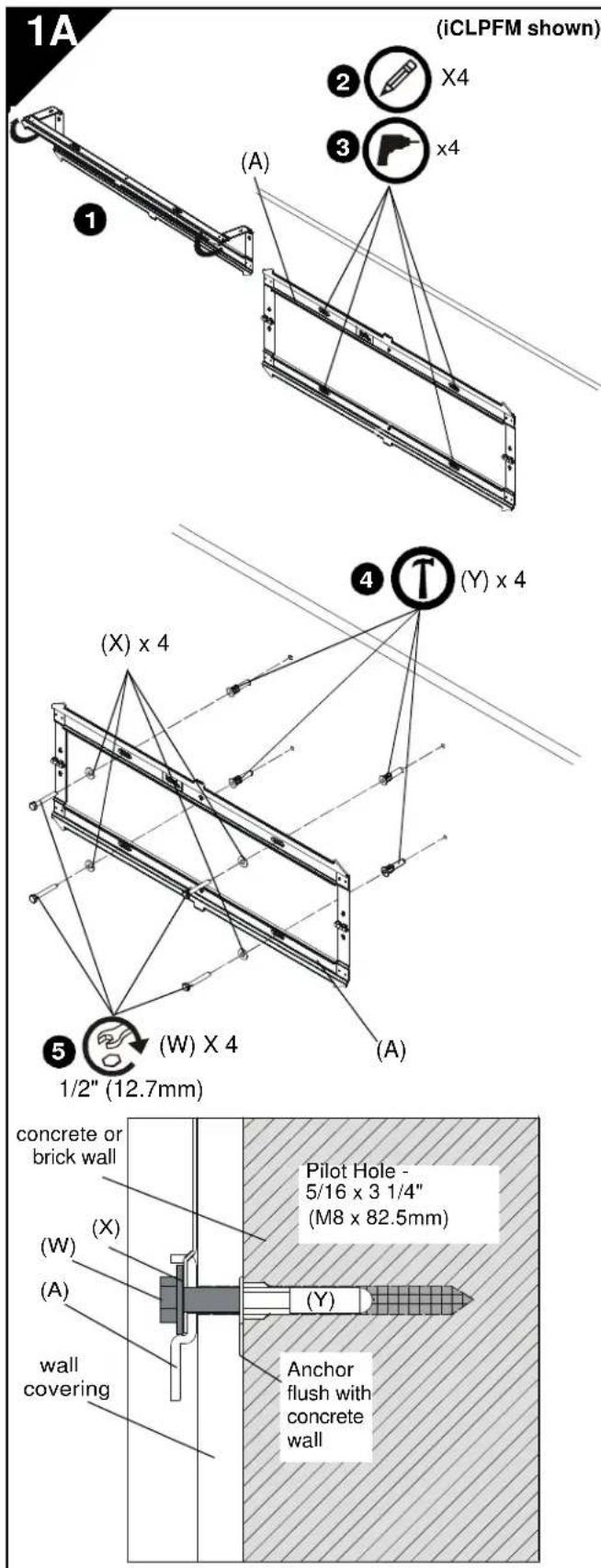

1. Unfold wall plate (A) to prepare it for mounting to wall.

2. Level wall plate (A) and mark locations of pilot holes at

desired mounting location. NOTE: For the iCXPFM3, use the inner four holes on wall plate for installation.

3. Drill 5/16" (8mm) diameter pilot holes into wall at

marked locations. Holes must be drilled at least 3 1/4 inches deep.

4. Install four concrete anchors (Y) into drilled holes. Use

a hammer to tap anchors into holes. IMPORTANT ! : The anchors must be installed through any wall covering until flush with the concrete wall.

5. Using 1/2" (12.7mm) wrench, install screws (W) through

flat washers (X), wall plate (A) and into concrete anchors (Y).

(Y) Anchor flush with concrete wall Pilot Hole - 5/16 x 3 1/4" (M8 x 82.5mm) concrete or brick wall wall covering (A) (W) (X)

WARNING: The minimum hole pattern size is

100mm x 100mm for the iCMPFM3 and 200mm x 200mm for the iCLPFM3 and the iCXPFM3.

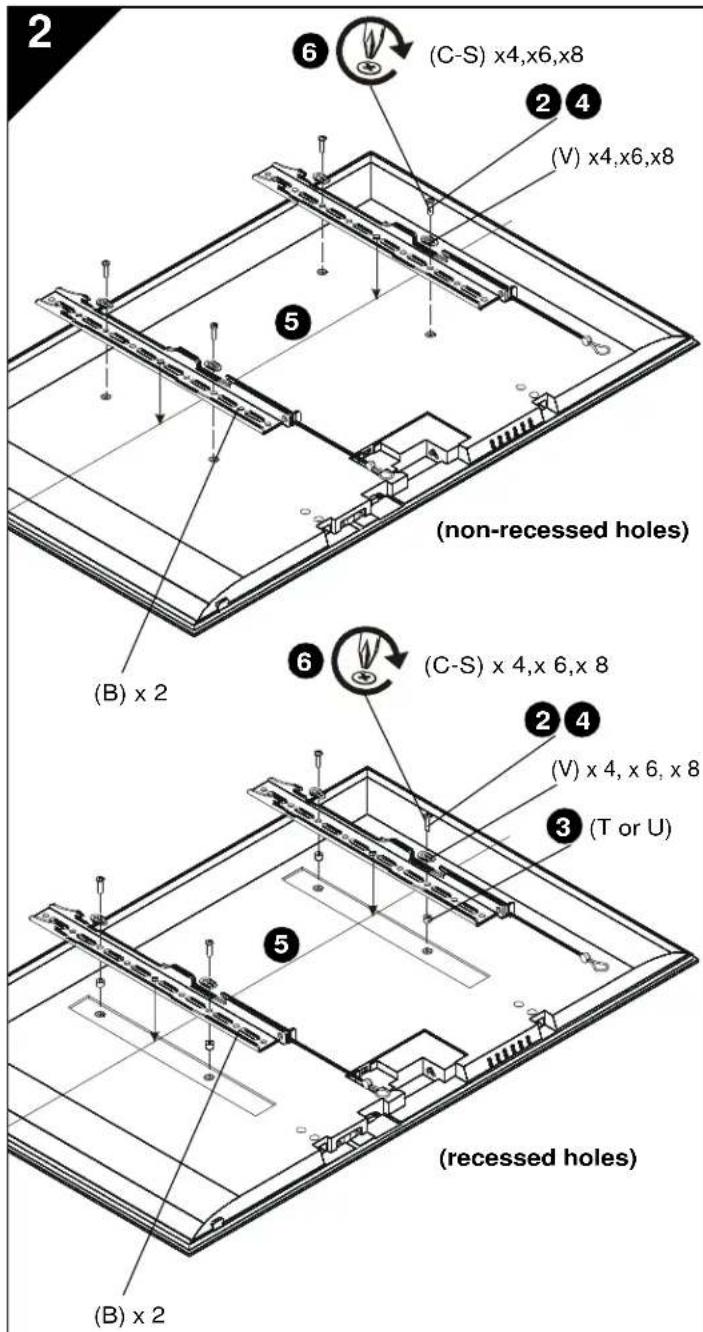

1. Lay display face down on protective surface.

CAUTION: Using screws of improper diameter may damage your display! Proper screws will easily thread into display mounting holes.

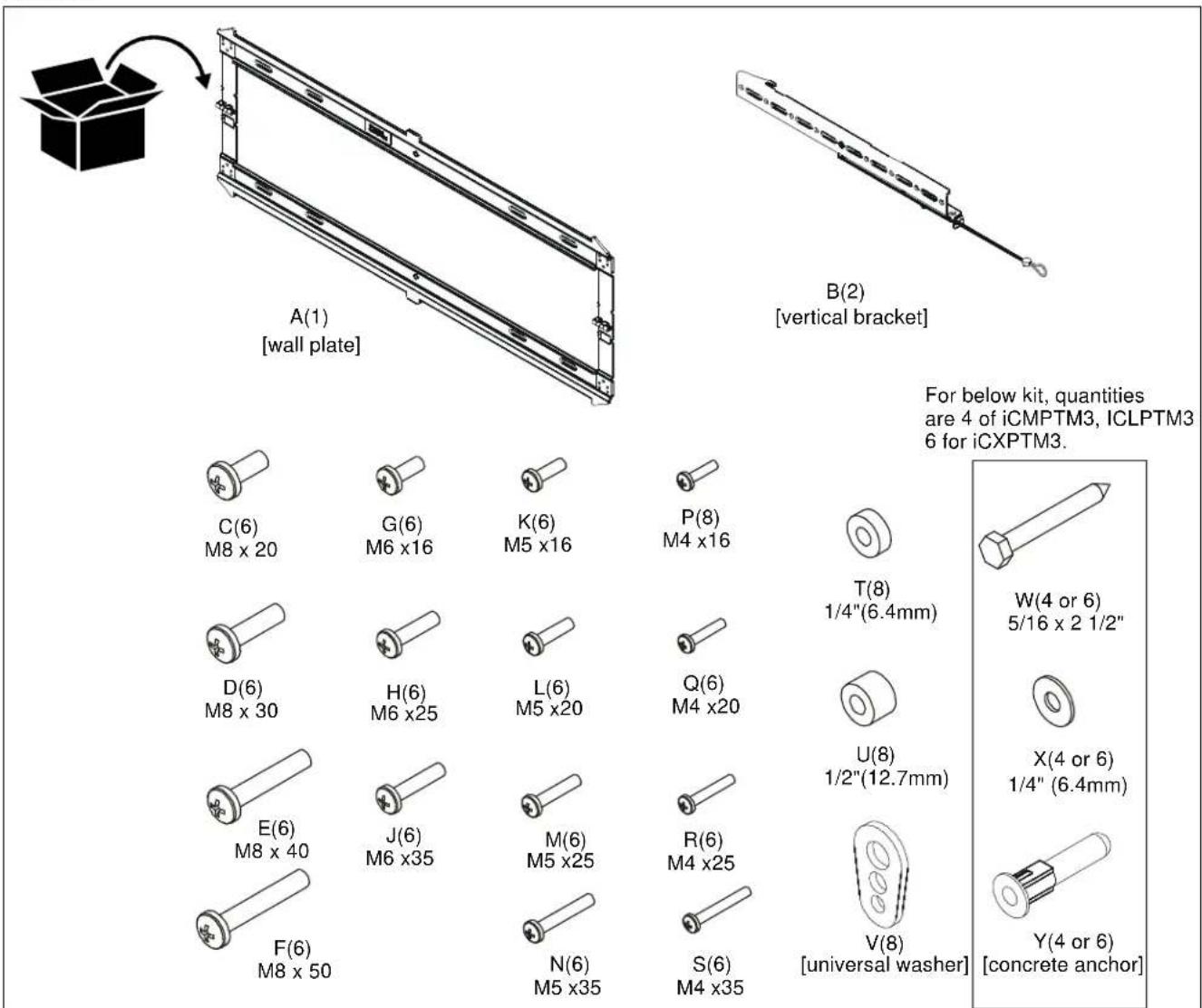

2. Select screw diameter by examining hardware

(C-S) (8mm, 6mm, 5mm, or 4mm) and comparing with mounting holes on display.

• If mounting holes are not recessed and both brackets (B) can lay flat against display, then no spacers are required.

• If mounting holes are recessed, or if protrusions prevent brackets (B) from laying flat, then spacers (T or U) must be used. Select shortest spacer which will provide adequate fill. All spacers must be same length. CAUTION: Using screws of improper length may damage your display! Proper screws will have adequate thread engagement without contacting bottom of display mounting holes.

4. Select screw length:

• Using your hand, insert SHORTEST length screw of selected diameter (C, G, K or P) through bracket (B), universal washer (V), selected spacer (T or U, if required), into display mounting hole. Do NOT thread screw into hole at this time.

• Proper screw length requires base of screw head to protrude above flat washer a distance equal to or greater than the screw diameter. If screw length is inadequate, select longer screw. Select shortest screw which will protrude the required distance.

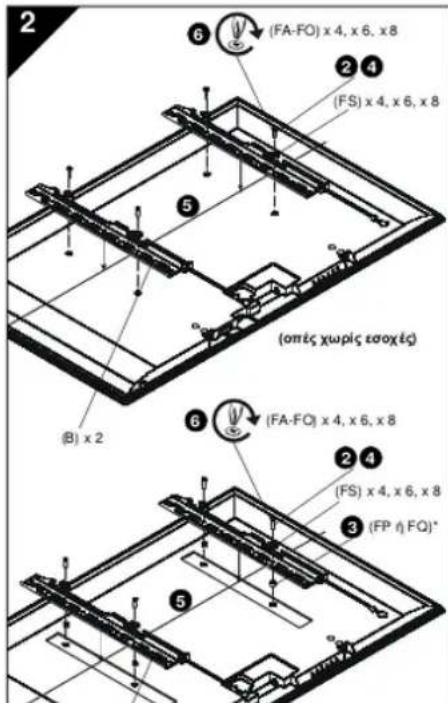

5. Place brackets (B) on display, ensuring:

• Upper hooks are towards top of display.

• Center of brackets (B) are as close to the center of the back of display as possible after being installed. Center of bracket is indicated by the diamond-shaped hole.

6. Using Phillips screwdriver, carefully install

selected screws through universal washers (V), brackets (B), and spacers (T or U, if required), into display.

7. Tighten all screws. Ensure all applicable display

mounting holes (4, 6, or 8) are used.

WARNING: Exceeding the weight capacity can

result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all components attached does not exceed 125 lbs (56.7 kg) for the iCMPFM3 and iCLPFM3 or 175 lbs (79.4 kg) for the iCXPFM3. Use with products heavier than the maximum weight indicated may result in collapse of the mount and its accessories causing possible injury.

WARNING: Display may be very heavy! Ensure

display can be safely lifted and maneuvered as required to install on wall plate. Failure to take adequate precautions can result in serious personal injury or damage to equipment!

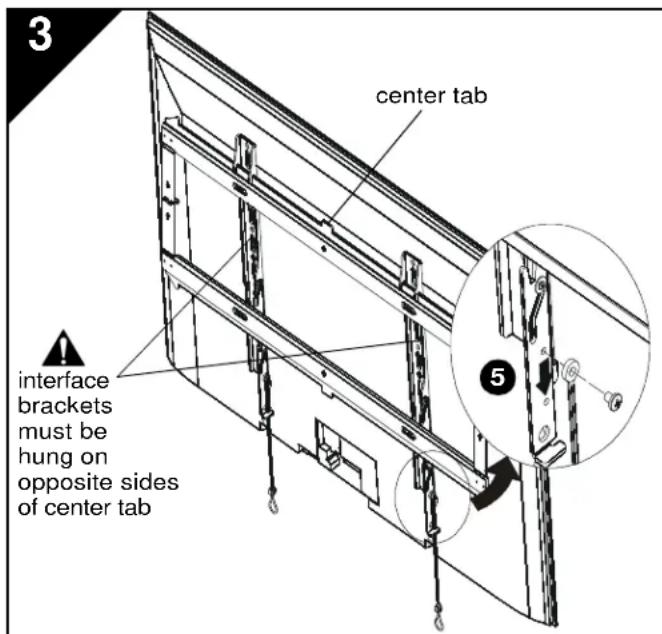

WARNING: Interface brackets must be hung on

opposite sides of the center tab on wall plate!

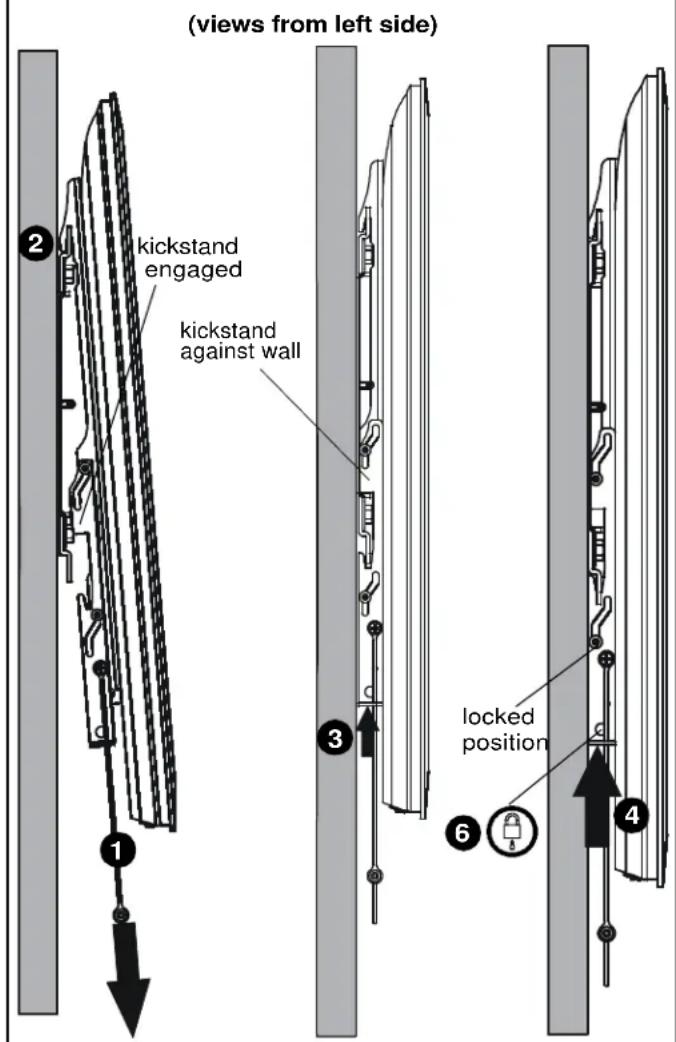

1. Make sure interface brackets are in the kickstand

position by pulling down on handles as far as possible.

2. Hang display with brackets (B) on upper rail of wall

plate (A). Kickstand should be engaged with lower portion of wall plate. NOTE: Any cable management or rear display adjustments should be made when the display is resting on the kickstand.

3. Unlock kickstand by pushing up on interface

brackets until kickstand rests against the wall.

4. Push up on the interface brackets further in order to

lock display into position against wall. NOTE: Straps can be either cut off or tucked behind display after installation is complete so that they will not be visable to the viewer.

5. (Optional) The straps can be moved to the lower

screw holes on interface brackets in order to improve access to the straps on larger displays.

6. (Optional) Route padlock or cable lock (not

included) through bottom holes on interface bracket to provide additional security. (views from left side) kickstand

kickstand against wall locked engaged

center tab interface brackets must be hung on opposite sides of center tab
