Product type	Analog travel radio receiver
Brand	Blaupunkt
Model	BA209
Reception bands	FM and MW (medium wave)
Power supply	5 V DC mains adapter (not supplied) or 3 x 1.5 V R6/UM3/AA batteries (not supplied)
Speaker	Built-in
Headphone jack	3.5 mm jack
FM antenna	Telescopic
Controls	On/Off, Volume, Tuning, Band selector
Display	Frequency dial with needle
Included accessories	None (batteries and adapter not included)
Maintenance	Clean with a soft, dry cloth. Do not use chemicals.
Safety instructions	Do not expose to water, do not block ventilation, avoid heat sources and open flames.
Operating temperature	Mild climate only
Ventilation distance	Minimum 5 cm around the device
Recycling	Do not dispose of with household waste. Take to a recycling center.
Certification	CE marking
Country of origin	Not specified

Frequently Asked Questions - BA209 BLAUPUNKT

How do I turn on the radio?

Slide the ON/OFF switch to the ON position. Use the band selector to choose FM or MW, then turn the TUNING knob to select a station.

How can I improve FM reception?

Fully extend the telescopic FM antenna and orient it for best reception.

How can I improve MW reception?

Rotate the device horizontally to find the optimal position. The antenna is built into the device.

What batteries should I use?

Use 3 x 1.5 V batteries type R6/UM3/AA (not supplied). Observe polarity as indicated in the compartment.

Can I use a mains adapter?

Yes, connect a 5 V DC mains adapter (not supplied) to the DC IN 5 V socket. Ensure voltage matches your local mains.

How do I adjust the volume?

Turn the VOLUME knob to increase or decrease the sound.

Can I use headphones?

Yes, plug headphones (not included) into the headphone jack on the left side. Avoid prolonged listening at high volume.

What should I do if the device stops working?

Turn the device off and on (ON/OFF cycle). If the problem persists, check the batteries or adapter.

How do I clean the radio?

Use a soft, dry cloth. Do not use liquid or abrasive products.

How do I dispose of the radio at the end of its life?

Do not throw it in household waste. Take it to an electronic waste collection point or consult your retailer.

USER MANUAL BA209 BLAUPUNKT

USER MANUALS Models: BA-208 / BA-209

Page 2	German
Page 5	English
Page 8	French
Page 11	Italian
Page 14	Spanish
Page 17	Portuguese
Page 20	Dutch
Page 23	Swedish
Page 26	Danish
Page 29	Finnish
Page 32	Norwegian
Page 35	Russian
Page 38	Greek
Page 40	Turkish
Page 43	Polish
Page 46	Bulgarian
Page 49	Romanian
Page 52	Czech
Page 55	Hungarian
Page 58	Japanese
Page 61	Chinese
Page 64	Arabic

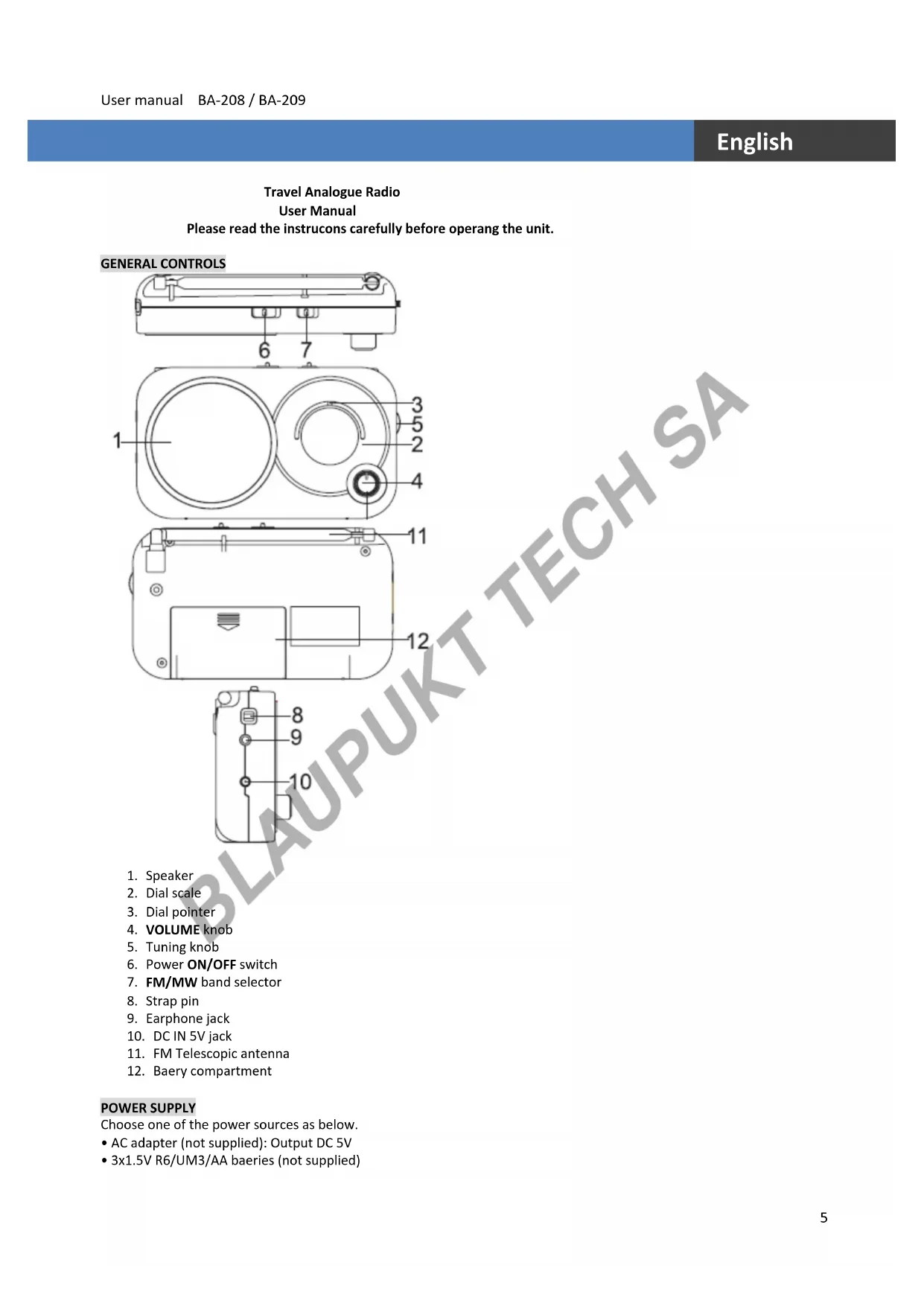

Analog Travel Radio

User Manual

Please read the instructions carefully before operating the unit.

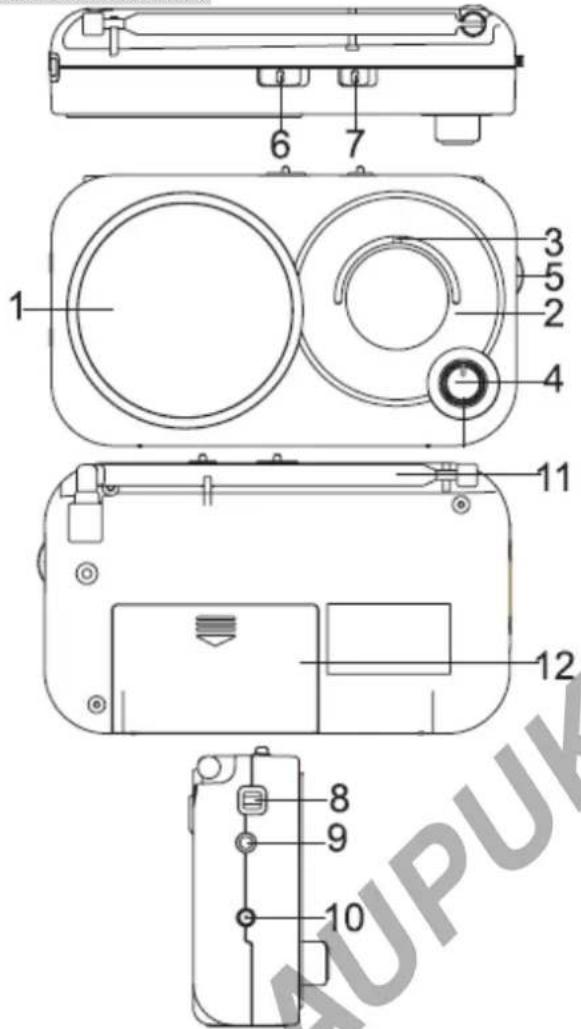

GENERAL CONTROLS

1. Speaker
2. Dial scale
3. Dial pointer
4. VOLUME knob
5. Tuning knob
6. Power ON/OFF switch
7. FM/MW band selector
8. Strap pin
9. Earphone jack
10. DC IN 5V jack
11. FM Telescopic antenna
12. Battery compartment

POWER SUPPLY

Choose one of the power sources as below.

• AC adapter (not supplied): Output DC 5V • 3x1.5V R6/UM3/AA batteries (not supplied)

Connecting power

Connect an AC adapter (not supplied) to the DC IN 5V jack of the unit and to the mains socket.

Caution!

• Check that the voltage marked on the adapter rating plate matches your local supply.
• Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified service agent.
• The AC adaptor is used as the disconnect device and it shall remain readily operable. To be completely disconnected from the power input, the AC adaptor shall be disconnected from the mains completely. The AC adaptor should not be obstructed or should be easily accessed during intended use.

Battery operation

1. Remove the lid of the battery compartment by sliding it outward in the direction of the arrow.
2. Insert 3 1.5V R6/UM3/AA size batteries into the compartment. Make sure to match their polarities (+/-) to the markings inside the compartment.
3. Put the lid back in place.

Notes on batteries (battery not supplied)

• Do not mix different types of batteries or old batteries with new ones.
• Never recharge the batteries, apply heat to them or take them apart.
• Batteries should not be exposed to excessive heat such as sunshine, fire or the like.
• Do not throw the batteries in fire!
• Attention should be drawn to the environmental aspects of battery disposal.
• The batteries need to be replaced when: The volume decreases, or sound is distorted during operation.
• In order to avoid leakage, remove the batteries when unit will not be used for a long period of time.
• Please respect the environment. Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.

CAUTION:

Danger of explosion if the batteries are incorrectly replaced. Replace only with the same or equivalent type.

1. Slide the ON/OFF switch to "ON" position to turn on the radio.
2. Use the FM/MW band selector to select band.
3. Use the Tuning knob to tune to your desired radio station.
4. Adjust the volume level with VOLUME knob.
5. Slide the ON/OFF switch to "OFF" position to turn off the radio.

To enhance radio reception ability:

FM: Extend the telescopic antenna.

MW: Rotate the unit horizontally for optimum reception.

LISTENING WITH EARPHONES

Connect earphones (not included) to the earphone jack on the left side of the unit.

Continuous use of earphones at high volume can damage the user's hearing.

SAFETY INSTRUCTION

IMPORTANT!

• The ventilation should not be impeded by covering the openings with items such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• The use of apparatus in moderate climates.
• The apparatus should not be exposed to dripping or splashing.
• Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation.
• Do not place objects filled with liquids, such as vases, on the apparatus.
• The range plate is located at the back of the unit.
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Under the influence of electrical fast transient or/and electrostatic phenomenon, the product may malfunction and require user to power reset.

If at any time in the future you should need to dispose of this product, please note that waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive).

Note: Design and specification are subject to change without notice.

© 2011 All rights reserved by Blaupunkt. This material may be reproduced, copied or distributed for personal use only.

CE
