CONTENTS INTRODUCTION PREPARATION CONNECTIONS 7

Connecting your amplifier 7 Connecting the supplied power cable 8 Connecting USB devices 8

OPERATION Starting playback 9

Pausing playback 10 Stopping playback 10 Turning off the power 10 Playing back a desired track 10 To improve audio quality (PURE DIRECT mode) 10 Skipping to the beginning of a desired track 11 Advancing or reversing playback rapidly 11 Changing front panel display 12 Changing the brightness of the front panel display 12

• y indicates a tip for your operation.

• In this manual, audio CDs are referred to as “Audio CD”, MP3/WMA discs as “Data Disc”, and MP3/WMA files stored on the USB device as “USB”. • This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In case of differences between the manual and the product, the product has priority.

INTRODUCTION FEATURES

◆ Optical Digital Output ◆ Coaxial Digital Output ◆ CD-R, CD-RW Disc Playability (For details, refer to page 17.) ◆ MP3, WMA Disc Playability ◆ MP3, WMA File Playability Stored on USB Device

Program Play (Audio CD only)

Random-Sequence Play Single Track/Entire Disc Repeat Play Repeat A-B Play (Audio CD only) Adjustable Display Information and Brightness PURE DIRECT Function

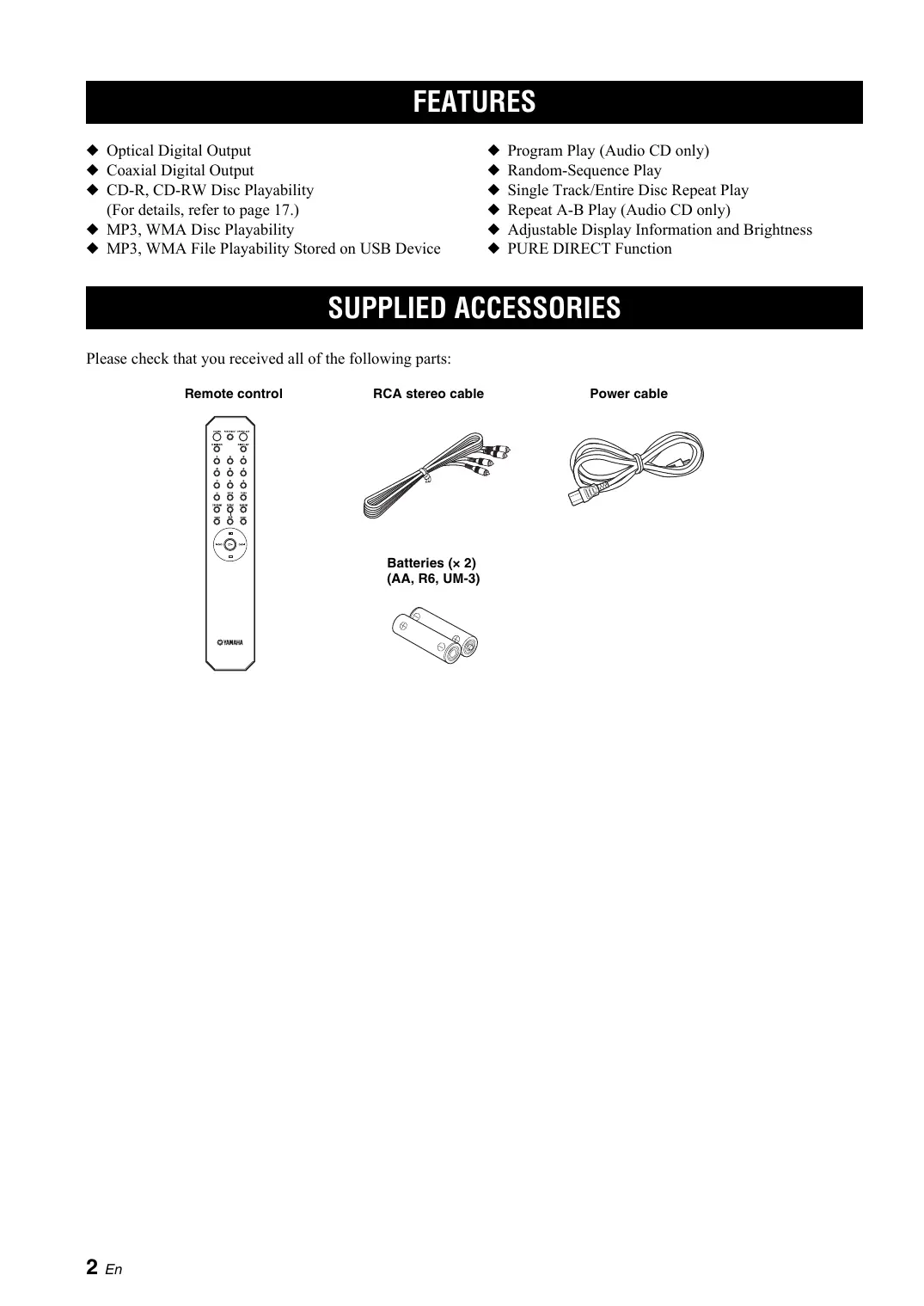

SUPPLIED ACCESSORIES Please check that you received all of the following parts:

CONTROLS AND FUNCTIONS INTRODUCTION Front panel

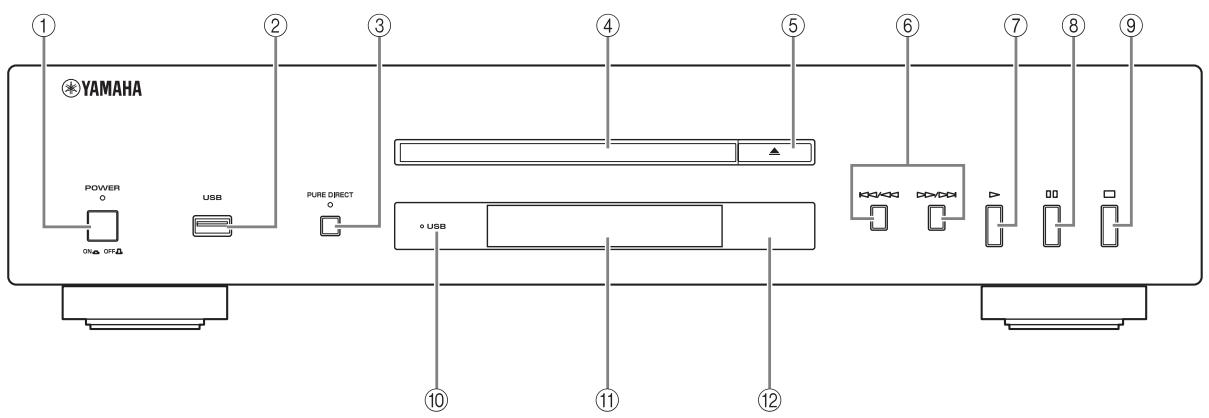

1 POWER Press to turn the power to ON/OFF.

(Play) Start playback.

(Pause) Pause playback. Press

The POWER indicator above lights up when this unit is turned on.

(Stop) Stop playback.

Connect your USB device. See page 8 for details. 3 PURE DIRECT Turn PURE DIRECT mode on or off to improve audio quality. y The PURE DIRECT indicator above lights up when this unit is in PURE DIRECT mode. See page 10 for details.

Lights on/off when this unit is in USB/disc mode, and blinks when this unit is reading the USB device. A Front panel display Shows the current status of this unit. B Remote control sensor Receives signals from the remote control.

(Open/Close) Open or close the disc tray. 6

(Skip/Search backward),

(Skip/Search forward) : Skip to the next track. : Skip back to the beginning of the current

/ track. / (twice): Skip to the previous track. Press and hold / or / to search backward/ forward. y Each time you press and hold / search speed increases by 2 levels.

CONTROLS AND FUNCTIONS Front panel display

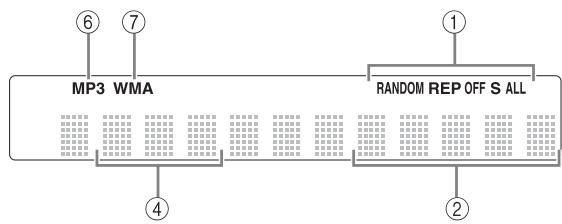

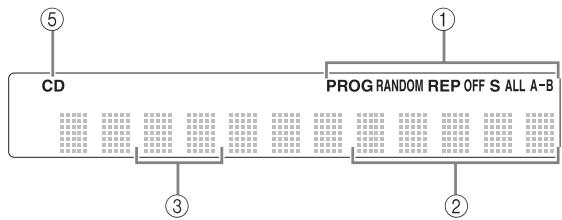

1 Lights up the icon for the selected playback mode. 2 Shows the time displays. (Refer to page 12.) 3 Shows the track number selected or being played back. 4 Shows the file number. 5 Lights up when this unit is in disc mode (refer to page 9) and

also when an Audio CD is recognized on the tray.

6 Lights up when MP3 file is played back.

7 Lights up when WMA file is played back.

USB CONTROLS AND FUNCTIONS Remote control

1 Infrared signal transmitter (p. 6)

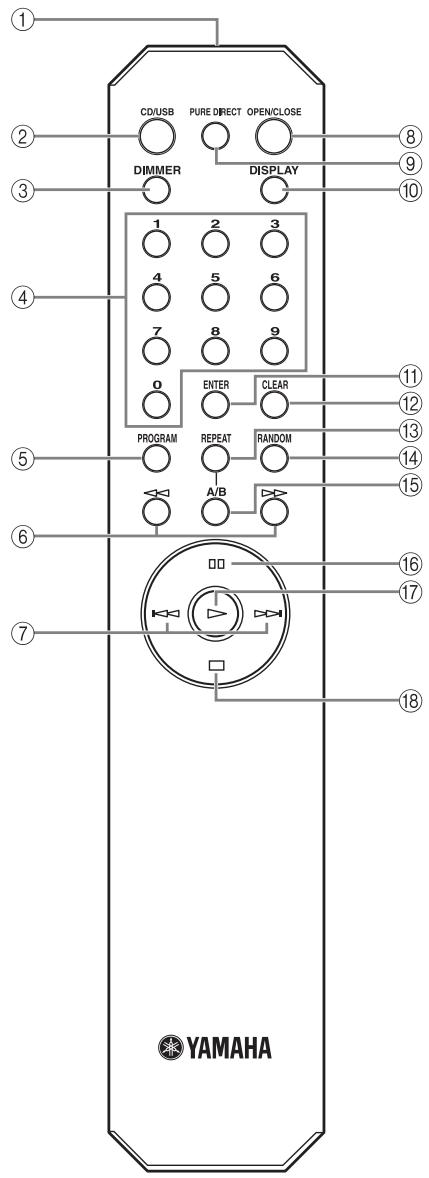

Send infrared signals to this unit. 2 CD/USB (p. 9) Switch between disc mode and USB mode. 3 DIMMER (p. 12) Select brightness level for the front panel display. 4 Numeric buttons (p. 10) Select a track directly. 5 PROGRAM (p. 15) Turn program mode on or off. 6 / (Search backward/forward) (p. 11) Search tracks backward/forward. 7 / (Skip backward/forward) (p. 11) Skip to the next/previous track or skip back to the beginning of the current track. 8 OPEN/CLOSE (p. 9) Open or close the disc tray. 9 PURE DIRECT (p. 10) Turn PURE DIRECT mode on or off. 0 DISPLAY (p. 12) Switch the time display. A ENTER (p. 15) Confirm the track number when this unit is in program input mode. B CLEAR (p. 16) Clear programmed track. C REPEAT (p. 13) Repeat playback of a single track or all tracks. D RANDOM (p. 13) Set random-sequence play. E A/B (p. 14) Set repeat A-B. F (Pause) (p. 10) Pause playback. G (Play) (p. 9) Start playback. H (Stop) (p. 10) Stop playback.

CONTROLS AND FUNCTIONS Installing batteries in the remote control

Using the remote control

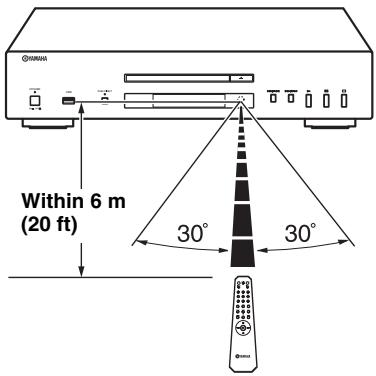

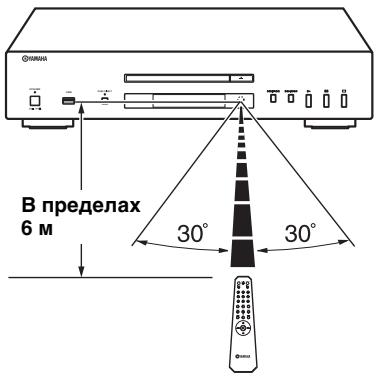

The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the remote control sensor on the front panel of this unit during operation.

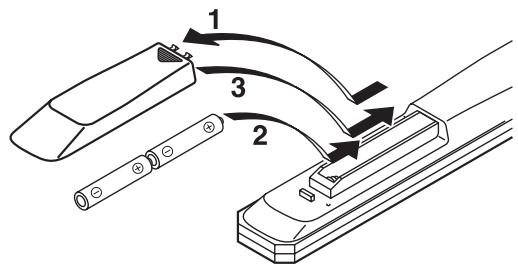

Press the part and slide the battery compartment cover off.

Insert two supplied batteries (AA, R6, UM-3) according to the polarity markings (+ and –) on the inside of the battery compartment.

Slide the cover back until it snaps into place.

■ Notes on batteries

• Change both batteries when the operation range of the remote control decreases.

• Use AA, R6, UM-3 batteries. • Make sure that the polarities are correct. See the illustration inside the battery compartment. • Remove the batteries if the remote control is not to be used for an extended period of time. • Do not use old batteries together with new ones. • Do not use different types of batteries (such as alkaline and manganese batteries) together. Read the packaging carefully as these different types of batteries may have the same shape and color. • If the batteries have leaked, dispose of them immediately. Avoid touching the leaked material or letting it come into contact with clothing, etc. Clean the battery compartment thoroughly before installing new batteries. • Do not throw away batteries with general house waste; dispose of them correctly in accordance with your local regulations.

■ Handling the remote control

• The area between the remote control and this unit must be clear of large obstacles.

• Do not spill water or other liquids on the remote control. • Do not drop the remote control. • Do not leave or store the remote control in the following types of conditions: – high humidity, such as near a bath – high temperature, such as near a heater or a stove – extremely low temperatures – dusty places • Do not expose the remote control sensor to strong lighting, in particular, an inverter type fluorescent lamp; otherwise, the remote control may not work properly. If necessary, position the unit away from direct lighting.

PREPARATION CONNECTIONS Connecting your amplifier

CAUTION • Before making any connection, switch OFF the power to the unit, the amplifier and any other component. • Connections should be made to the correct input terminals of the amplifier or another component. • If the placement of this unit causes noise to another equipment, such as a tuner, move them further away from each other.

PREPARATION RCA stereo cable

• The digital output is turned off when this unit is in PURE DIRECT mode.

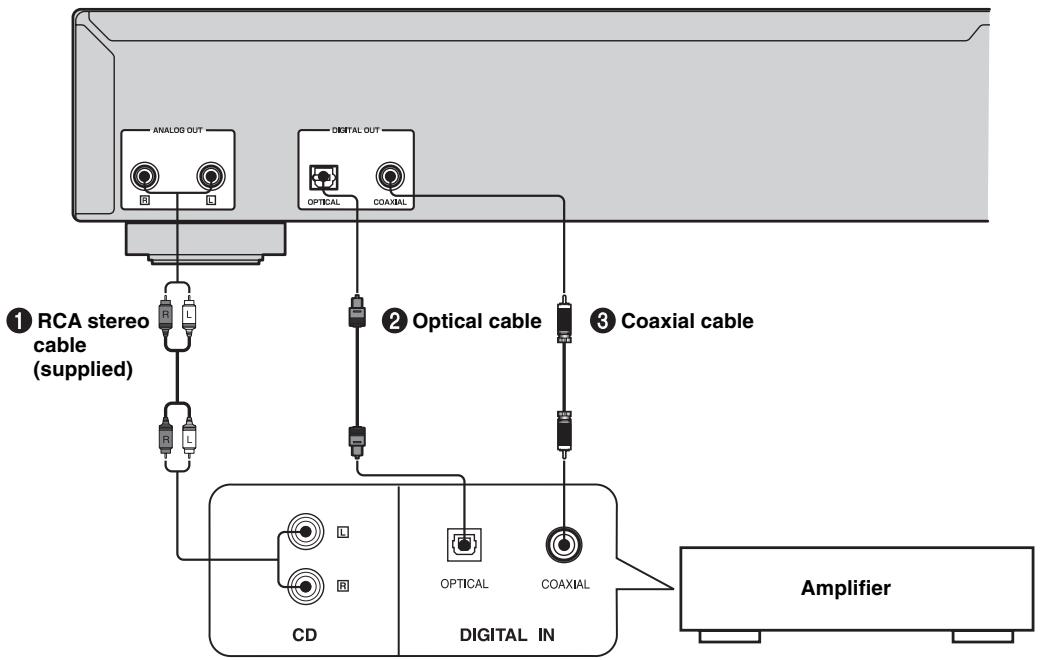

To connect this unit to your amplifier, choose one of the ways listed below.

When the ANALOG OUT terminals of this unit are used (

When the DIGITAL OUT (COAXIAL) terminal of this unit is used (

Connect these terminals to the CD (or AUX) terminals of the amplifier by using a supplied RCA stereo cable. For details concerning these connections, refer to the operation instructions of the amplifier being used.

• Be sure that the left (L) and right (R) of these terminals are connected to the corresponding (left and right) terminals of the amplifier or other component.

Connect this terminal to the digital input terminal of an amplifier with a commercially available coaxial cable.

When the DIGITAL OUT (OPTICAL) terminal of this unit is used (

Connect this terminal to the optical input terminal of an amplifier with a commercially available optical cable.

• Use a reliable optical cable.

CONNECTIONS Connecting the supplied power cable

Asia and General models only

Connecting USB devices

This unit has a USB port and can access MP3 or WMA files saved on your USB device. Connect your USB device to the USB port on the front panel of this unit. CAUTION Do not disconnect your USB device while playing back from the USB device, or when the USB indicator blinks.

Europe and U.K. models

To the wall outlet with the supplied power cable

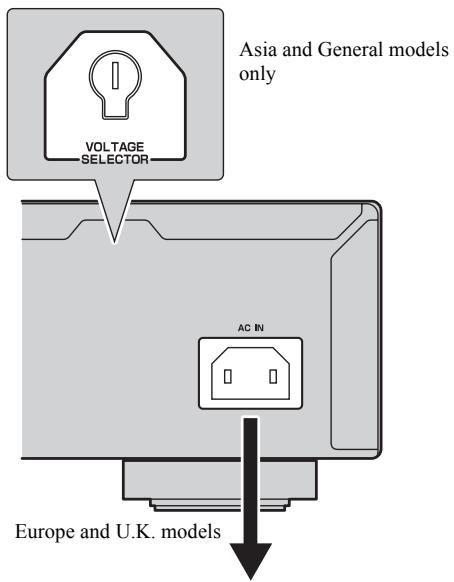

(Asia and General models only) The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging the supplied power cable into the wall outlet. Improper setting of the VOLTAGE SELECTOR may cause damage to this unit and create a potential fire hazard. Rotate the VOLTAGE SELECTOR clockwise or counterclockwise to the correct position using a straight slot screwdriver. Voltages are as follows: AC 110/120/220/230-240 V, 50/60 Hz

■ Connecting this unit to the wall outlet

Plug the supplied power cable into the AC IN on the rear panel of this unit and then plug the power cable into the wall outlet after all other connections are complete.

■ Supported USB devices

This unit supports USB mass storage class devices (e.g., flash memories, card readers or portable audio players) that use FAT16 or FAT32 format.

Notes • Some devices may not work properly even if they meet the requirements. • Do not connect devices other than USB mass storage class devices: USB chargers, USB hubs, PCs, external HDD, etc. • When you insert two or more memory cards at the same time into a card reader connected to the USB port on this unit, only one of the memory cards is recognized. • Yamaha and suppliers accepts no liability for the loss of data saved on the USB devices connected to this unit. As a precaution, it is recommended that the files are made backup copies. • Playability of and power supply to all kind of USB devices are not guaranteed.

OPERATION This manual describes how to operate this unit by using the remote control.

To operate this unit from the front panel, use the corresponding buttons on the front panel. The Audio CD , Data Disc and icons indicate music data formats that can be USB used in the operation.

BASIC OPERATION Notes

• When you load a disc, set the disc on the inside of the disc guides (4 marks on the disc tray). • The disc may not be read correctly, if it is set incorrectly. In this case, open the disc tray and set the disc again.

Press OPEN/CLOSE to close the disc tray.

Press POWER to turn on the power.

Press h to start playback.

You can also close the disc tray by pressing h, a numeric button, or by pressing the front edge of the disc tray gently. If the tray is closed in one of these ways, playback starts automatically.

Press CD/USB to switch between disc mode and USB mode.

When USB mode is selected, the USB indicator lights up, and when disc mode is selected, the USB indicator lights off.

For an Audio CD, playback starts from the first track, and for a Data Disc, in alphanumeric order by filename.

Display information in step 2 Audio CD

This setting is retained even if you turn off this unit.

Total number of tracks

■ Playing back discs

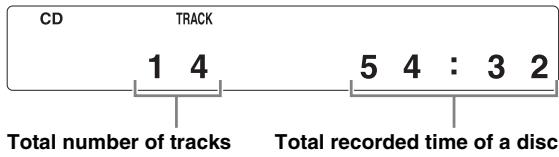

Audio CD Total recorded time of a disc

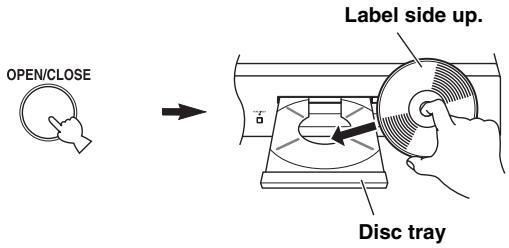

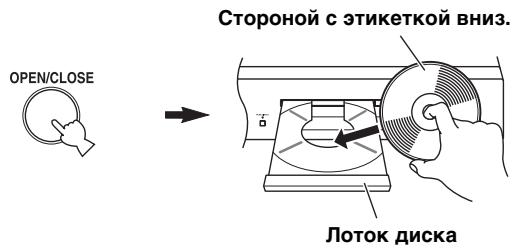

Press OPEN/CLOSE to open the disc tray, and load a disc.

Label side up. Total number of files

■ Playing back USB devices

USB Connect your USB device to the USB port on the front panel. (For details, refer to page 8.)

When USB mode is selected (USB indicator lights up), first filename is displayed in the front panel display (refer to page 12), and playback starts automatically in order by date and time of creation if playable files are in the USB device. To disconnect USB devices Press to stop playback, and then disconnect the USB device.

Turning off the power

Press POWER again. If you turn off the power when disc mode is selected, the next time you turn the power on, playback starts automatically of the disc on the tray. If you turn off the power when USB mode is selected, playback will start automatically of the USB device connected.

Playing back a desired track

Audio CD Select a desired track by using the numeric buttons.

Example: To select track number 12 Press “1”, and then press “2”. Note

Do not disconnect your USB device while playing back from the

USB device, or when the USB indicator blinks.

Following information is displayed.

USB The selected track number

Playback starts in 2 seconds.

This operation is not available for Data Disc and USB.

You can also select and playback a desired track during playback.

To resume playback, press e again (or press h).

To improve audio quality (PURE DIRECT mode)

USB This unit is set to PURE DIRECT mode.

If you press h again, playback starts from the first track.

• The PURE DIRECT indicator lights up.

• The digital output is turned off. • The front panel display is turned off and only the minimum required indicators and messages are displayed during playback.

Connect using the ANALOG OUT terminals when you use PURE DIRECT mode (refer to page 7).

• Press PURE DIRECT again to turn off PURE DIRECT mode. • This setting is retained even if you turn off this unit.

Skipping to the beginning of a desired track

USB Advancing or reversing playback rapidly

To advance rapidly, press playback.

To play back from the beginning of the next track, press once.

To play back from the beginning of the current track, press once.

• These operations can also be performed for Data Disc/USB. • These operations can also be performed when the unit is paused. • These operations can also be performed using b/w and f/a on the front panel.

To resume playback, press point.

OPERATION To play back from the beginning of the previous track, press twice.

To reverse rapidly, press playback.

• These operations can also be performed for Data Disc/USB. • The sound can be heard (although slightly garbled) during these operation in either direction. This is convenient for locating a precise position within a track, or for reviewing the contents quickly. Sound may not be heard depending on the MP3/WMA file. • Each time you press or , the search speed increases by 2 levels. • These operations can also be performed pressing and holding b/w or f/a on the front panel for more than 2 seconds.

BASIC OPERATION Changing front panel display

■ When playing back an Audio CD Audio CD You can select the following front panel displays (1 - 3) by pressing DISPLAY.

1 Elapsed time of the current track (Default)

2 Remaining time of the current track

3 Remaining time of the disc

■ When playing back a Data Disc or USB device

USB You can temporarily display the filename by pressing DISPLAY.

These front panel display examples are for an MP3 file. 1 Elapsed time of the current track

Returns to the normal display after displaying a filename.

* 28 characters maximum

Note This unit can only show alphanumeric characters.

Changing the brightness of the front panel display

Press DIMMER to change the brightness level for the front panel display.

Each time you press DIMMER, the brightness level changes in the following order:

Max (brightest) J Level1 (default) J Level2 J Level3 (darkest) J Max

• Brightness is slightly decreased during playback, except when the level is set to maximum. • Brightness may temporarily be decreased for some operations, except when the level is set to maximum. • This setting is retained even if you turn off this unit.

You can play back the tracks in random sequence.

These operations can also be performed for Data Disc/USB.

To perform random-sequence play

Press , and then, RANDOM.

To cancel random-sequence play

OPERATION REPEAT PLAY Repeating a selected item

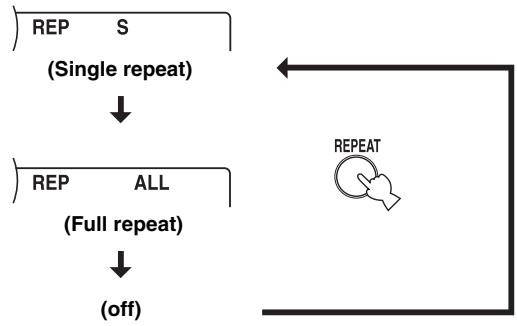

USB You can play back a single track or all tracks repeatedly by pressing REPEAT during playback. The repeat playback mode changes each time you press REPEAT.

A single track is played back repeatedly.

All tracks (the entire disc) are played back repeatedly. Note

These operations can also be performed for Data Disc/USB.

Repeat play also works for program play and random-sequence play. (Full repeat)

REPEAT PLAY You can repeat a specified section of a track by pressing

A/B during playback to set two points (start and end points).

Press A/B to select the start point of repeat play.

Press A/B to select the end point of repeat play.

The selected section is played back repeatedly.

To cancel repeat A-B Press A/B again to make “A-B” disappear from the front panel display.

You cannot set repeat A-B from one track to another track.

This operation is not available for Data Disc and USB. If you stop playback by pressing , repeat A-B is canceled. You cannot use repeat A-B when this unit is in PURE DIRECT mode.

PROGRAM PLAY Following information is displayed.

Audio CD You can customize the playback order of up to 50 tracks stored on an Audio CD. This operation is not available for

The selected track number

Total number of tracks currently programmed

Total time of the tracks currently programmed

Press s to stop playback.

Pressing PROGRAM in program input mode exits to normal playback mode, though programmed tracks are stored.

OPERATION Repeat this operation to program more tracks.

You can select the same track again.

Press h to start program play.

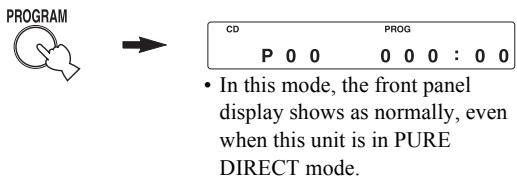

Following information is displayed. • In this mode, the front panel display shows as normally, even when this unit is in PURE DIRECT mode.

This unit is set to program input mode.

Elapsed time of the current track

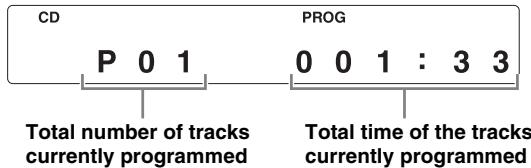

Program a desired track by pressing the corresponding numeric button and ENTER.

PROGRAM PLAY Stopping program playback

To restart program play, press h after pressing

PROGRAM. Playback starts from the first programmed track number.

Clearing programmed track

There are several methods, as described below.

■ Clearing the last programmed track

Press CLEAR during program input mode.

Following information is displayed.

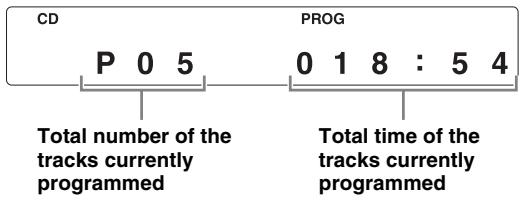

Total number of the tracks currently programmed

Total time of the tracks currently programmed

The last programmed track is cleared.

■ Clearing all programmed tracks

Press CLEAR after exiting program input mode.

Following information is displayed.

All programmed tracks are cleared.

The display is turned off after 2 seconds. Note Switching to USB mode, opening the disc tray or switching off the POWER clears all programmed tracks.

ADDITIONAL INFORMATION NOTES ABOUT DISCS/MP3, WMA FILES

■ Discs playable with this unit

This player is designed for playing back compact discs bearing the marks shown below. Never attempt to load any other type of disc into the unit. The unit can also play back 8-cm (3-inch) compact discs.

Compact discs (digital audio)

The most popular discs for commercially available audio CDs.

CD-R,CD-RW digital audio discs

Music CDs made by copying onto a CD-R or CD-RW (including MP3 or WMA format files). Notes

The discs recorded with text data such as album titles, track titles and artist names. Though these discs can be played back with ordinary CD players, the text data is not displayed.

MP3 is a standard technology and format for compressing an audio sequence into a small-sized file. However, the original level of sound quality is preserved during playback.

The playable formats are: • MPEG-1 Audio Layer-3 Bitrate*: 32-320 kbps Sampling frequency: 44.1/48/32 kHz • MPEG-2 Audio Layer-3, 2 Bitrate*: 8-160 kbps Sampling frequency: 24/22.05/16 kHz • MPEG-2.5 Audio Layer-2 Bitrate*: 8-160 kbps Sampling frequency: 12/11.025/8 kHz * Variable bitrate is supported.

“WMA (Windows Media Audio)” is a Microsoft file format for encoding digital audio files similar to MP3 though can compress files at a higher rate than MP3. The playable formats are: • Version 8 • Version 9 (Standard and variable bitrates are supported. Professional and Lossless are not supported.) • High Profile Bitrate*: 32-320 kbps Sampling frequency: 48/44.1/32 kHz • Mid Profile Bitrate: 16-32 kbps Sampling frequency: 22.05/16 kHz * Both constant and variable bitrates are supported. Notes

This compact disc player may not be able to play back some CD-RW discs or discs on which recording was not made correctly.

To prevent a malfunction of this unit:

• Do not use any nonstandard shaped disc (heart, etc.) available on the market because it might damage the unit.

• Do not use a disc with tape, stickers, or paste on it. If you use such a disc, the disc may get stuck in the unit, or damage to the unit may result.

• Playback for Data Disc starts in alphanumeric order.

• Playback for USB starts in order by date and time of creation. • Copyright-protected WMA (DRM) files cannot be played back by this unit. • The disc must be ISO9660 compatible. • Text data contained in files is not displayed on this unit. • The maximum file and folder numbers are as follows. Data Disc

USB Maximum file number

Maximum folder number

Maximum file number per folder

■ About MP3 and WMA files

ADDITIONAL INFORMATION

• Be sure to use a CD-R or CD-RW disc made by a reliable manufacture.

• Be sure to use a CD-R or CD-RW disc which has at least one of the following phrases on the disc or disc case. FOR CONSUMER FOR CONSUMER USE FOR MUSIC USE ONLY • Be sure to use a finalized CD-R or CD-RW disc.

USB You can play back MP3 and WMA files recorded on a

CD-R/CD-RW and those stored on a USB device. (continued on the next page)

NOTES ABOUT DISCS/MP3, WMA FILES

■ Notes about handling compact discs

• Always handle a disc with care so that its surface is not scratched.

• Compact discs are not subjected to wear during playback, but damage to the disc surface when the disc is being handled can adversely affect the disc playback.

• Be sure to use a felt-tip pen or similar writing tool when writing on the label side of the disc. Do not use a ballpoint pen, pencil, or other hard-tipped writing tool, as these may damage the disc and may adversely affect the disc playback. • Do not warp discs. • When a disc is not being used, remove it from the unit and store in an appropriate case. • When removing or storing a disc, be careful not to scratch the playing surface. • Compact discs are not affected by small particles of dust or fingerprints on their playing surface, but even so they should be kept clean. Wipe by using a clean, dry cloth. Do not wipe with a circular motion; wipe straight outward from the center.

• Do not try to clean the disc’s surface by using any type of disc cleaner, record spray, anti-static spray or liquid, or any other chemical-based liquid because such substances might irreparably damage the disc’s surface.

• Do not expose discs to direct sunlight, high temperature or high humidity for a long period of time, as these might warp or otherwise damage the disc.

To play back an 8-cm (3-inch) CD Place it in the inner recessed area of the disc tray. Do not put a normal (12-cm) CD on top of an 8-cm (3-inch) CD.

TROUBLESHOOTING If the unit fails to operate normally, check the following points to determine whether the problem can be corrected by the simple measures suggested. If it cannot be corrected, or if the problem is not listed in the Problems column, disconnect the power cable and contact your authorized Yamaha dealer or service center for help.

This unit fails to turn on.

The power cable is not connected to the AC IN inlet on the rear panel or not plugged in the wall outlet.

Connect the power cable firmly.

The disc tray does not close completely.

A foreign object is obstructing the tray.

Carefully check the disc tray and remove the foreign object.

Disc playback does not start.

The disc is damaged.

Check the disc carefully; replace it if necessary.

There is moisture on the laser pickup.

Wait 20 to 30 minutes after switching on the unit ON before trying to play back a disc.

The disc is loaded upside down.

Reload the disc with the label side up.

The format of the MP3 or WMA file is not compatible with this unit.

Replace the disc with a correctly recorded disc playable with this unit.

The CD-RW (ReWritable) disc is not recorded correctly.

Replace the disc with a correctly recorded disc playable with this unit.

The disc is a non-standard disc not playable with this unit.

Replace the disc with a correctly recorded disc playable with this unit.

This unit is in USB mode.

Switch to disc mode by pressing CD/USB.

Improper USB device connections.

Connect the USB device again.

The format of the MP3 or WMA file is not compatible with this unit.

Replace the file with a correctly recorded file playable with this unit.

This unit is in disc mode.

Switch to USB mode by pressing CD/USB.

Playback is delayed, or begins at the wrong place.

The disc may be scratched or damaged.

Check the disc carefully; replace it if necessary.

Improper output cable connections.

Connect the cables properly. If the problem persists, the cables may be defective.

Improper amplifier operation.

Set the amplifier controls to the correct input selection.

Sound of a component connected to the

DIGITAL OUT jacks is not played.

PURE DIRECT is turned on.

Turn PURE DIRECT off. Or make an analog connection.

This unit is being subjected to vibrations or impacts.

Improper cable connections.

Securely connect the audio cables. If the problem persists, the cables may be defective.

Noise from a nearby tuner.

The tuner is too close to this unit.

Move the tuner and this unit farther apart.

Noise from inside of the disc tray.

The disc may be warped.

USB playback does not start.

TROUBLESHOOTING Problems

The remote control does not work or function properly.

The remote control functions within a maximum range of 6 m (20 ft) and no more than

30 degrees off-axis from the front panel.

Wrong distance or angle.

Direct sunlight or lighting (from an inverter type of fluorescent lamp, etc.) is striking the remote control sensor of this unit.

Reposition this unit.

The batteries are weak.

Replace all batteries.

SPECIFICATIONS Audio Section

• Frequency response 2 Hz - 20 kHz, ± 0.5 dB

• Power requirements

U.S.A. and Canada modelsAC 120 V, 60 Hz Australia model AC 240 V, 50 Hz Europe and U.K. models AC 220-240 V, 50 Hz Asia and General modelsAC 110-120/220-240 V, 50/60 Hz Korea model AC 220 V, 60 Hz China modelAC 220 V, 50 Hz

Laser Diode Properties

• Material GaAlAs • Wavelength 790 nm • Laser Output max. 1.23 μW* * This output is the value measured at a distance of about 200 mm from the objective lens surface on the Optical Pick-up Block.

Please note that all specifications are subject to change without notice.

Limited Guarantee for European Economic Area (EEA) and Switzerland

Thank you for having chosen a Yamaha product. In the unlikely event that your Yamaha product needs guarantee service, please contact the dealer from whom it was purchased. If you experience any difficulty, please contact Yamaha representative office in your country. You can find full details on our website (http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident). The product is guaranteed to be free from defects in workmanship or materials for a period of two years from the date of the original purchase. Yamaha undertakes, subject to the conditions listed below, to have the faulty product or any part(s) repaired, or replaced at Yamaha’s discretion, without any charge for parts or labour. Yamaha reserves the right to replace a product with that of a similar kind and/or value and condition, where a model has been discontinued or is considered uneconomic to repair. Conditions

1. The original invoice or sales receipt (showing date of purchase, product code and dealer’s name) MUST accompany the defective product, along with a

statement detailing the fault. In the absence of this clear proof of purchase, Yamaha reserves the right to refuse to provide free of charge service and the product may be returned at the customer’s expense.

The product MUST have been purchased from an AUTHORISED Yamaha dealer within the European Economic Area (EEA) or Switzerland. The product must not have been the subject of any modifications or alterations, unless authorised in writing by Yamaha. The following are excluded from this guarantee: a. Periodic maintenance and repair or replacement of parts due to normal wear and tear. b. Damage resulting from: (1) Repairs performed by the customer himself or by an unauthorised third party. (2) Inadequate packaging or mishandling, when the product is in transit from the customer. Please note that it is the customer’s responsibility to ensure the product is adequately packaged when returning the product for repair. (3) Misuse, including but not limited to (a) failure to use the product for its normal purpose or in accordance with Yamaha’s instructions on the proper use, maintenance and storage, and (b) installation or use of the product in a manner inconsistent with the technical or safety standards in force in the country where it is used. (4) Accidents, lightning, water, fire, improper ventilation, battery leakage or any cause beyond Yamaha’s control. (5) Defects of the system into which this product is incorporated and/or incompatibility with third party products. (6) Use of a product imported into the EEA and/or Switzerland, not by Yamaha, where that product does not conform to the technical or safety standards of the country of use and/or to the standard specification of a product sold by Yamaha in the EEA and/or Switzerland. (7) Non AV (Audio Visual) related products. (Products subject to “Yamaha AV Guarantee Statement” are defined in our website at http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident.) Where the guarantee differs between the country of purchase and the country of use of the product, the guarantee of the country of use shall apply. Yamaha may not be held responsible for any losses or damages, whether direct, consequential or otherwise, save for the repair or replacement of the product. Please backup any custom settings or data, as Yamaha may not be held responsible for any alteration or loss to such settings or data. This guarantee does not affect the consumer’s statutory rights under applicable national laws in force or the consumer’s rights against the dealer arising from their sales/purchase contract.

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

TABLE DES MATIÈRES INTRODUCTION Piles (× 2)

Cordon d’alimentation

COMMANDES ET FONCTIONS INTRODUCTION Panneau avant

Distance ou angle incorrects.

• Dimensions (L × H × P) 435 × 96 × 300 mm

• Dimensioni (L × A × P) 435 × 96 × 300 mm

PURE DIRECT is ingeschakeld.

© 2008 Yamaha Corporation All rights reserved.
