IMPORTANT WARNINGS AND CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component. The wall to which the mount is being attached may have a maximum drywall thickness of 5/8" (15.9mm).

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached does not exceed 125 lbs (56.7 kg) for the iCMPTM3 and iCLPTM3 or 175 lbs (79.4 kg) for the iCXPTM3. Use with products heavier than the maximum weight indicated may result in collapse of the mount and its accessories causing possible injury.

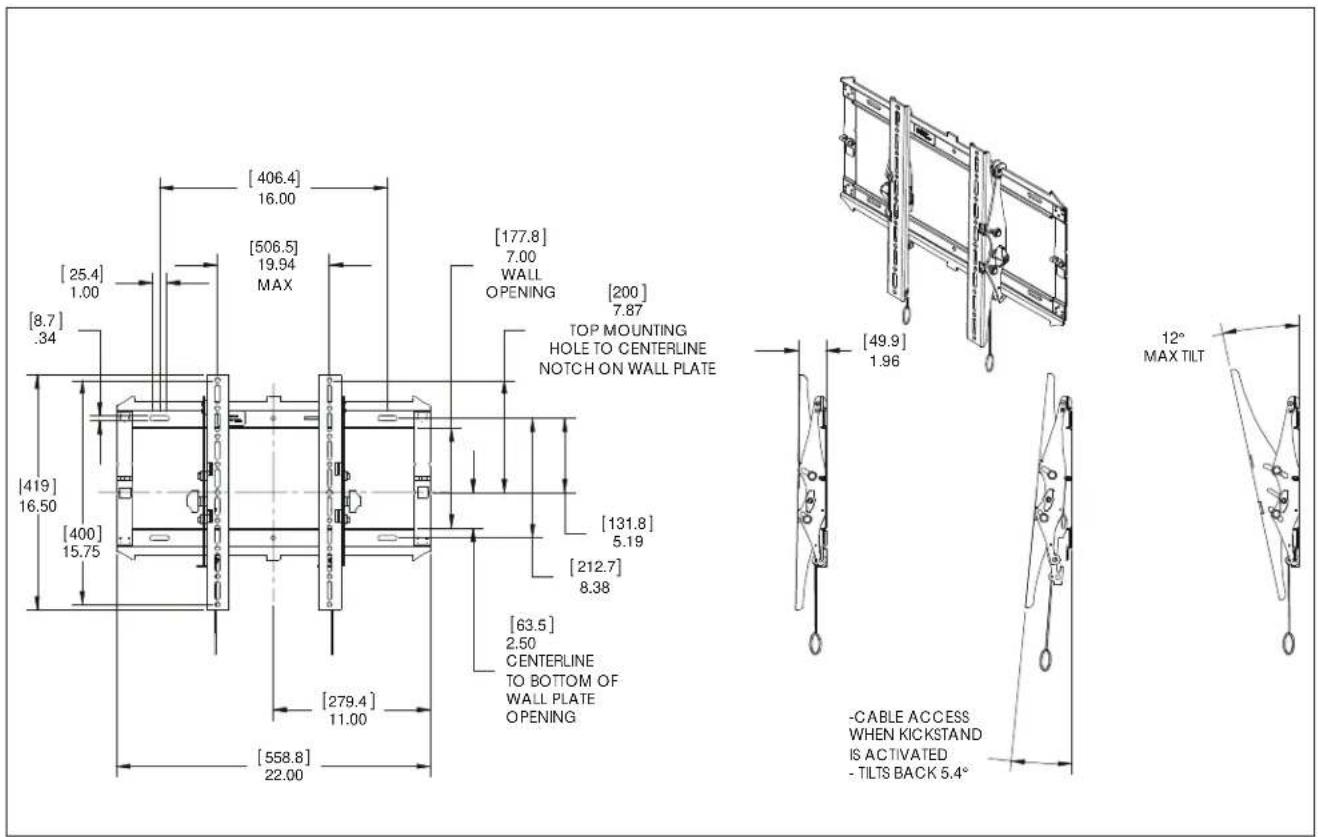

DIMENSIONS - iCMPTM3

[406.4] 16.00 [506.5] 19.94 MAX [25.4] 1.00 [8.7] .34 [419] 16.50 [400] 15.75 [279.4] 11.00 [558.8] 22.00 [177.8] 7.00 WALL OPENING [200] 7.87 TOP MOUNTING HOLE TO CENTERLINE NOTCH ON WALL PLATE [131.8] 5.19 [212.7] 8.38 [63.5] 2.50 CENTERLINE TO BOTTOM OF WALL PLATE OPENING [49.9] 1.96 - CABLE ACCESS WHEN KICKSTAND IS ACTIVATED - TILTS BACK 5.4° 12° MAX TILT

DIMENSIONS - iCLPTM3

[609.6] 24.00 [406.4] 16.00 [728.8] 28.69 MAX [25.4] 1.00 [8.7] .34 [419] 16.50 [400] 15.75 [781.1] 30.75 [390.5] 15.38 [177.8] 7.00 WALL OPENING [200] 7.87 TOP MOUNTING HOLE TO CENTERLINE NOTCH ON WALL PLATE [131.8] 5.19 [212.7] 8.38 [63.5] 2.50 CENTERLINE TO BOTTOM OF WALL PLATE OPENING [49.9] 1.96 12° MAX TILT -CABLE ACCESS WHEN KICKSTAND IS ACTIVATED - TILTS BACK 5°

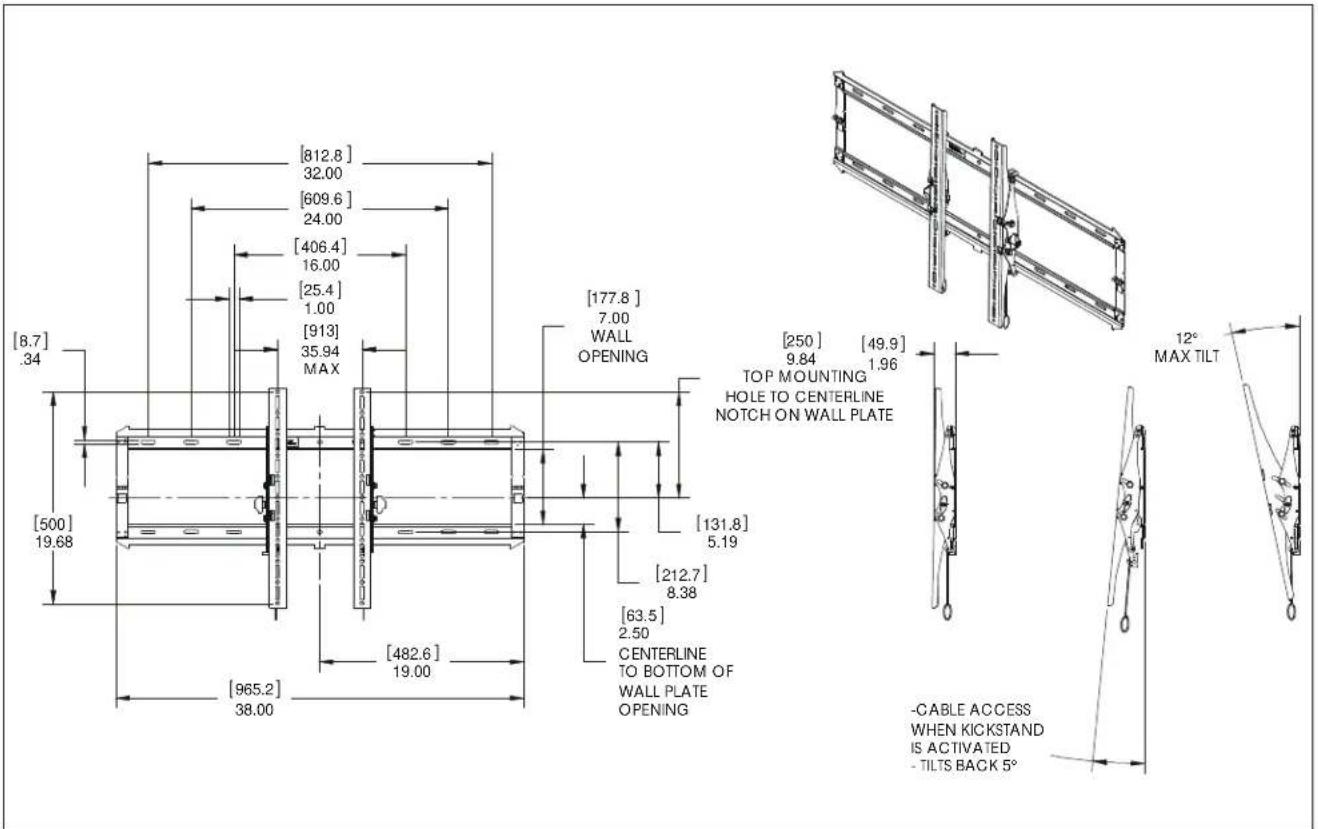

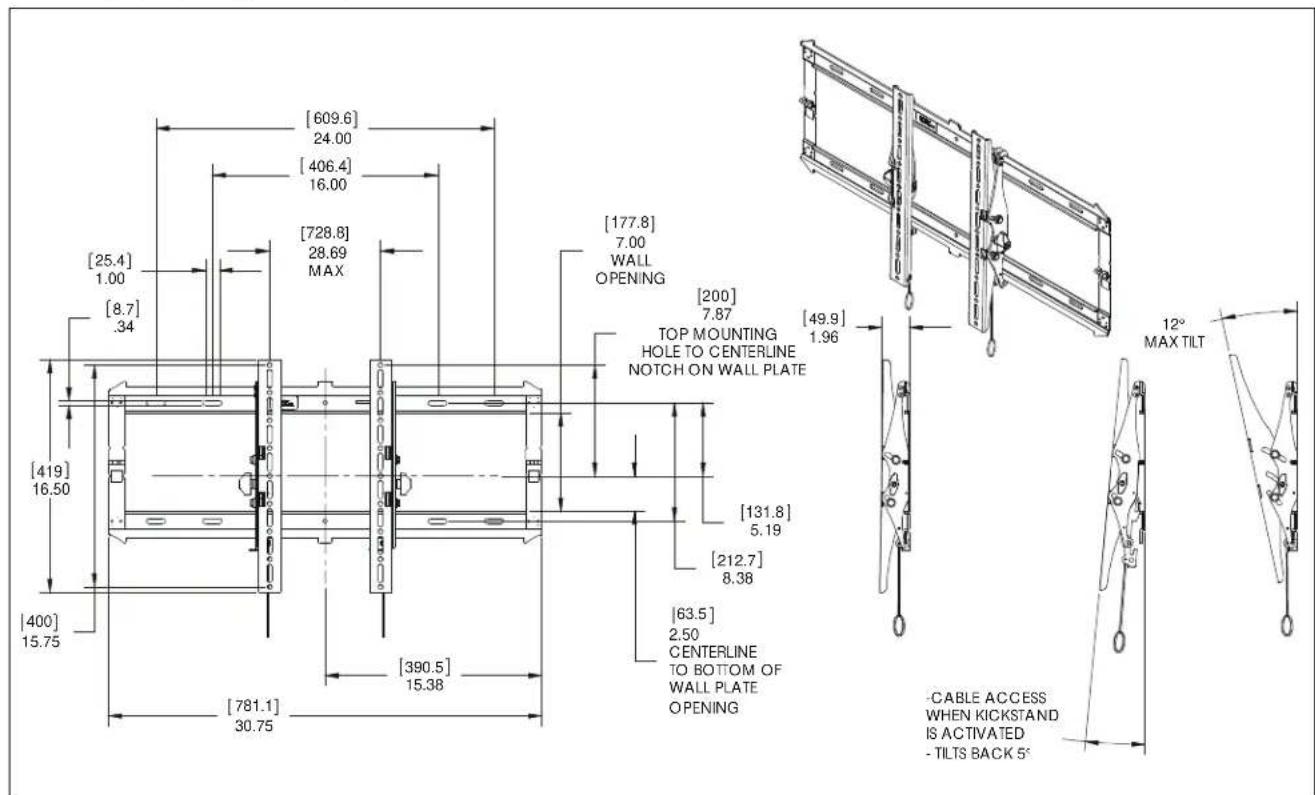

DIMENSIONS - iCXPTM3

[812.8] 32.00 [609.6] 24.00 [406.4] 16.00 [25.4] 1.00 [913] 35.94 MAX [8.7] .34 [500] 19.68 [482.6] 19.00 [965.2] 38.00 [177.8] 7.00 WALL OPENING [131,8] 5.19 [212,7] 8.38 [63,5] 2.50 CENTERLINE TO BOTTOM OF WALL PLATE OPENING [250] 9.84 [49,9] 1.96 TOP MOUNTING HOLE TO CENTERLINE NOTCH ON WALL PLATE - CABLE ACCESS WHEN KICKSTAND IS ACTIVATED - TILTS BACK 5° 12° MAX TILT

LEGEND

	Tighten Fastener			Pencil Mark
	Apretar elemento de fijación	Stram fastspændingsbeslag		Mancar con ląprz	Bryatimanie
	Befastigungstal festzidzeń	Skruva å fåste		Siftmarkierung	Ponmmarkering
	Apertar fixador	Kristå kinnike		Mancar com ląprz	Pimety merlki
	Semare il fissaggio	Dolepciót element mocujący		Segno a malta	Oznaczanie obwkiem
	Bevestiging vastdralen	Zsjžyuo Zuvčotyou		Potloodmehsken	Izrguð uzi uklúði
	Semez les fixazóns	Bąglantyy: Skuptinn		Marquage au orayon	Kalem igaret
	Coxawre zaccreowy	Rógritő meghuzása		Mapka Kapauçausa	Ceruzajebiós
	Lo osen Fastener			Drill Hole
	Aflojar elemento de fijadón	Lesger fastspændingsbeslag		Parlor ar	Borehul
	Befastigungstell össen	Lassa fåste		Bdnloch	Borna hál
	Dasaportar fixador	Imota kinnike		Fazer funo	Porausnikið
	Alentare il fissaggio	Poluzować element mocujący		Praticare un bro	Ołówór wiercony
	Bevestiging losdralen	Xahápuyn: Zuvčotyou		Gat boren	Adtrýpon omíč
	Das semezles fixations	Bąglantyy: Govjetin		Parasz un trâu	Matkap Deligi
	Ocnaśkure Szaccrewy	Rógritő Klazitása		Otraepctrie Tprewposzen	Lyukürás
>=	Philips Screwdriver			Adjust
	Dostanifador Philips	Sjemeskuetsakker		Ajustar	Justar
	Kreuzschitzschraubendrihar	Krysakuvmejel		Einstellen	Justara
	Chave de fondas Philips	Risip ákruvišain		Ajustar	Sátsáša
	Cacladite a stalla	Śrubdkręt krzyśakowy		Regolare	Wyrugubować
	Knudskapschroevendraiser	Konroplők Philips		Aftstellen	Προσαργούης
	Tournevis āp dinte oruforme	Philips Tomavida		Ajustar	Ayar
	Omaepna	Callagląej casawhizó		Pręwcnocoßurea	Balālítás
	By Hand			Hex Head Wrench
	A mano	Medhänden		Llave de cabza hexagonal	Sokukartet skruenagle
	Von Hand	För hand		Sedskaratschlüssel	Insexnydkel
	Com a mão	Klain		Chave de oboça sextavađa	Kuustokoloavain
	A mano	Reçznie		Chave esagonale	Klusz z libam szedokutnym
	Met de hand	Mc ro yólş		Zaskartsdeutel	Klouð cjonuwéj, kaqalnş
	Ala main	El lle		Cló à tête hexagonale	Altogen Katal (Allen) Anahtar

TOOLS REQUIRED FOR INSTALLATION

7/32" (5.5mm) #2 5/16" (7.9mm) 1/2" (12.7mm) T +

PARTS

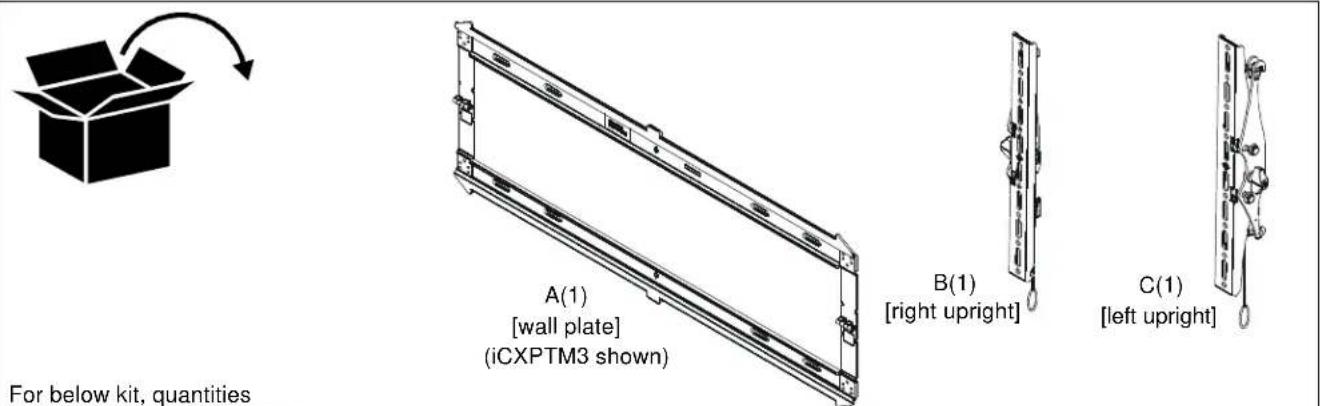

For below kit, quantities A(1) [wall plate] (iCXPTM3 shown) B(1) [right upright] C(1) [left upright]

For below kit, quantities
are 4 of iCMPTM3. ICLPTM3
6 for iCXPTM3.

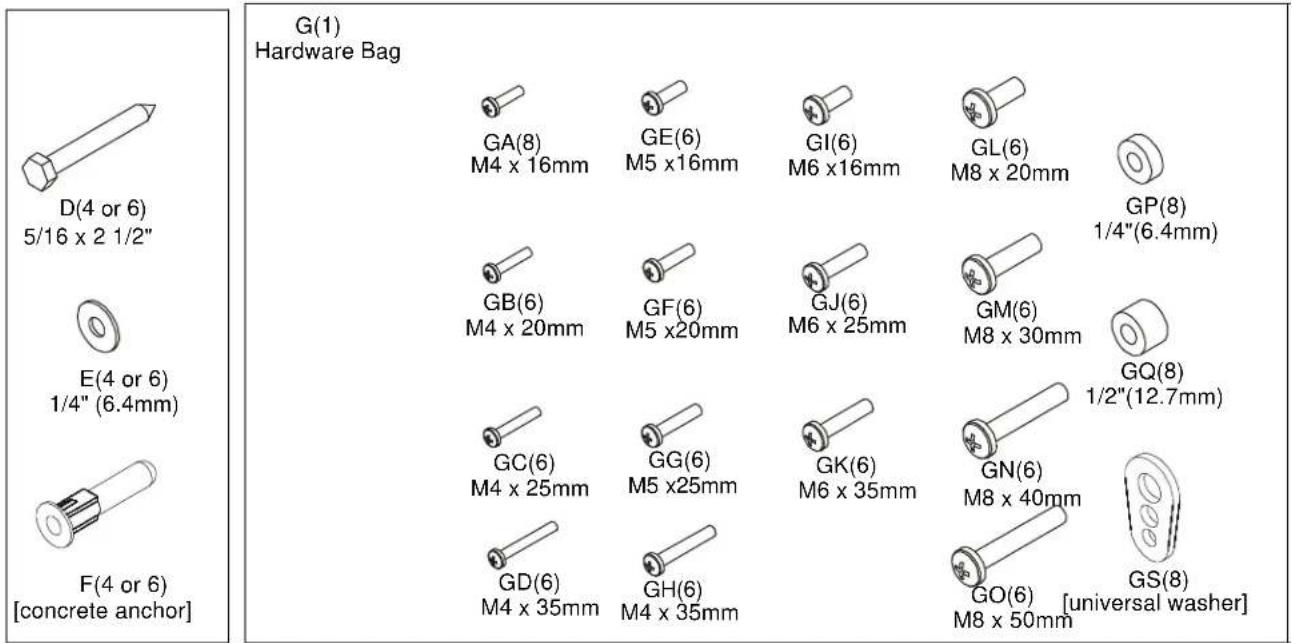

G(1) Hardware Bag D(4 or 6) 5/16 x 2 1/2" E(4 or 6) 1/4" (6.4mm) F(4 or 6) [concrete anchor] GA(8) M4 x 16mm GE(6) M5 x16mm GI(6) M6 x16mm GL(6) M8 x 20mm GP(8) 1/4"(6.4mm) GB(6) M4 x 20mm GF(6) M5 x20mm GJ(6) M6 x 25mm GM(6) M8 x 30mm GQ(8) 1/2"(12.7mm) GC(6) M4 x 25mm GG(6) M5 x25mm GK(6) M6 x 35mm GN(6) M8 x 40mm GD(6) M4 x 35mm GH(6) M4 x 35mm GO(6) M8 x 50mm GS(8) [universal washer]

1
(iCMPTM shown)

(A) ② x 4 or 6

2 x 24" 2 x 16" (iCXPTM3) 3 x 16" CENTER LINE

(E) x 4 or 6 ③ x 4 or 6 ④ (D) x 4 or 6 1/2" (12.7mm)

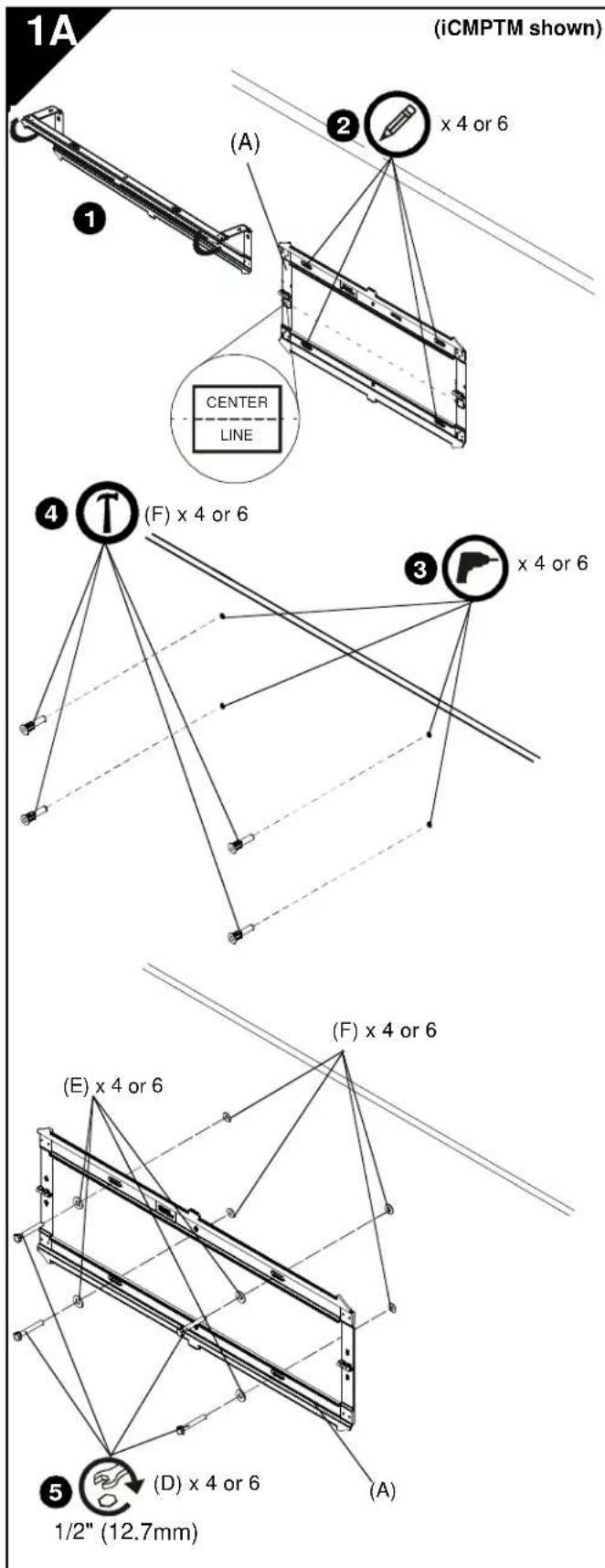

INSTALL WALL PLATE TO WALL - WOOD STUDS

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component. The wall to which the mount is being attached may have a maximum drywall thickness of 5/8" (1.6cm).

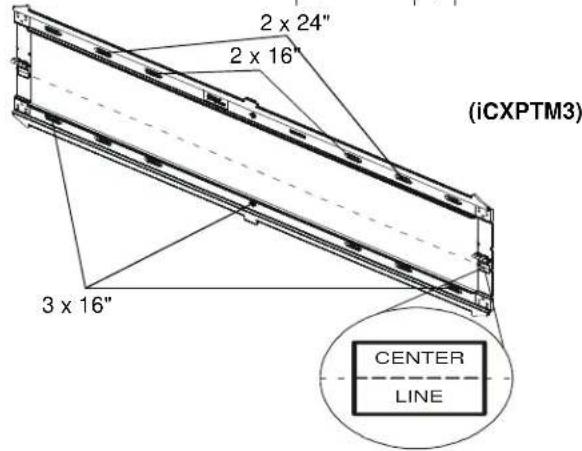

1. Unfold wall plate (A) to prepare it for mounting to wall.

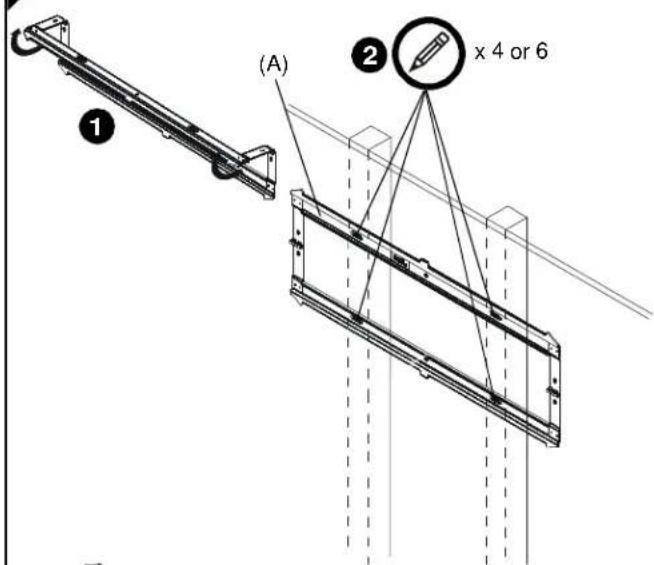

2. Level wall plate (A) and mark locations of pilot holes.

NOTE: The iCMPTM3 must be installed on two 16" studs. The iCLPTM3 can be installed on 16" studs (inner holes) or 24" studs (outer holes). For the iCXPTM3, it can be mounted over two or three 16" studs or two 24" studs. If mounting to three 16" studs, it must be mounted to all three studs using the outer holes and center holes.

NOTE: The vertical center of the display will be even with the center line indicated on the labels located directly below each hinge. Keep this in mind when determining mounting location.

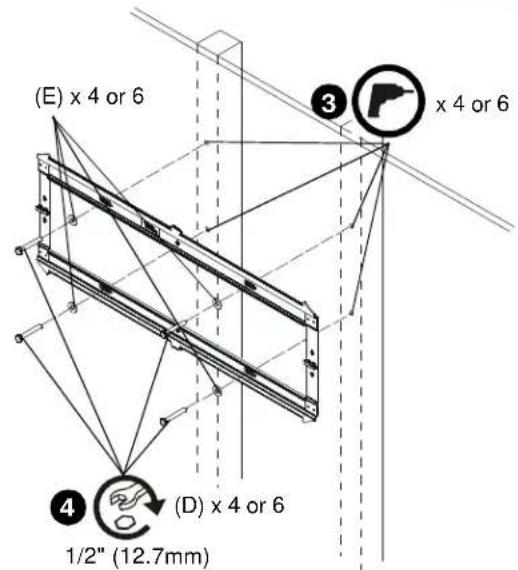

1. Drill 7/32" (5.5mm) diameter pilot holes into wood studs.

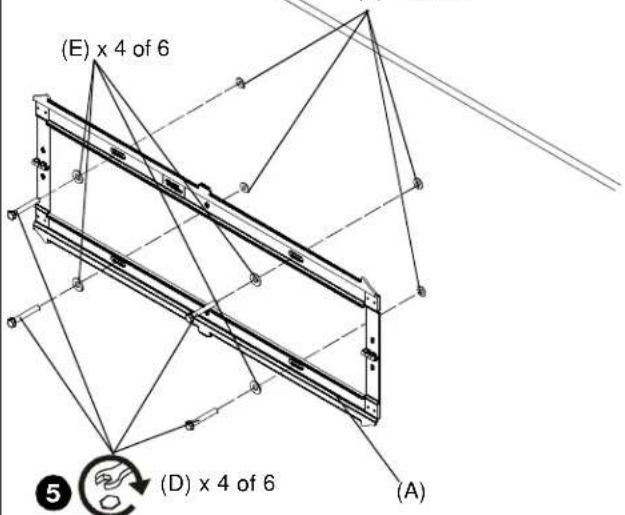

2. Using 1/2" (12.7mm) wrench, install screws (D) through flat washers (E), wall plate (A) and into wood studs.

1A (iCMPTM shown) (A) 2 x 4 or 6 CENTER LINE 3 x 4 or 6 (F) x 4 or 6 (F) x 4 or 6 (E) x 4 or 6 (F) x 4 or 6 (A) (D) x 4 or 6 1/2" (12.7mm)

INSTALL WALL PLATE TO WALL - CONCRETE, CONCRETE BLOCK OR BRICK

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: ELECTRICAL SHOCK HAZARD! CUTTING OR DRILLING INTO ELECTRICAL CORDS OR CABLES CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free of electrical wires and cables before drilling or installing fasteners.

WARNING: EXPLOSION AND FIRE HAZARD! CUTTING OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free of gas, water, waste, or any other plumbing before cutting, drilling, or installing fasteners.

1. Unfold wall plate (A) to prepare it for mounting to wall.
2. Level wall plate (A) and mark locations of pilot holes at desired mounting location.

NOTE: For the iCLPTM3, either the inner or outer four holes may be used.

NOTE: For the iCXPTM3, use the outer four holes and the two middle holes on wall plate for installation.

NOTE: The vertical center of the display will be even with the center line indicated on the labels located directly below each hinge. Keep this in mind when determining mounting location.

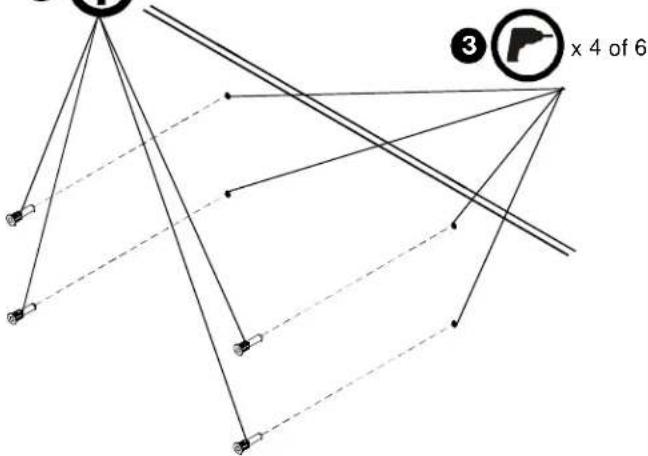

1. Drill 5/16" (7.9mm) diameter pilot holes into wall at marked locations. Holes must be drilled at least 2-1/2 inches deep.

2. Install concrete anchors (F) into drilled holes. Use a hammer to tap anchors into holes.

3. Using 1/2" (12.7mm) wrench, install screws (D) through flat washers (E), wall plate (A) and into concrete anchors (F).

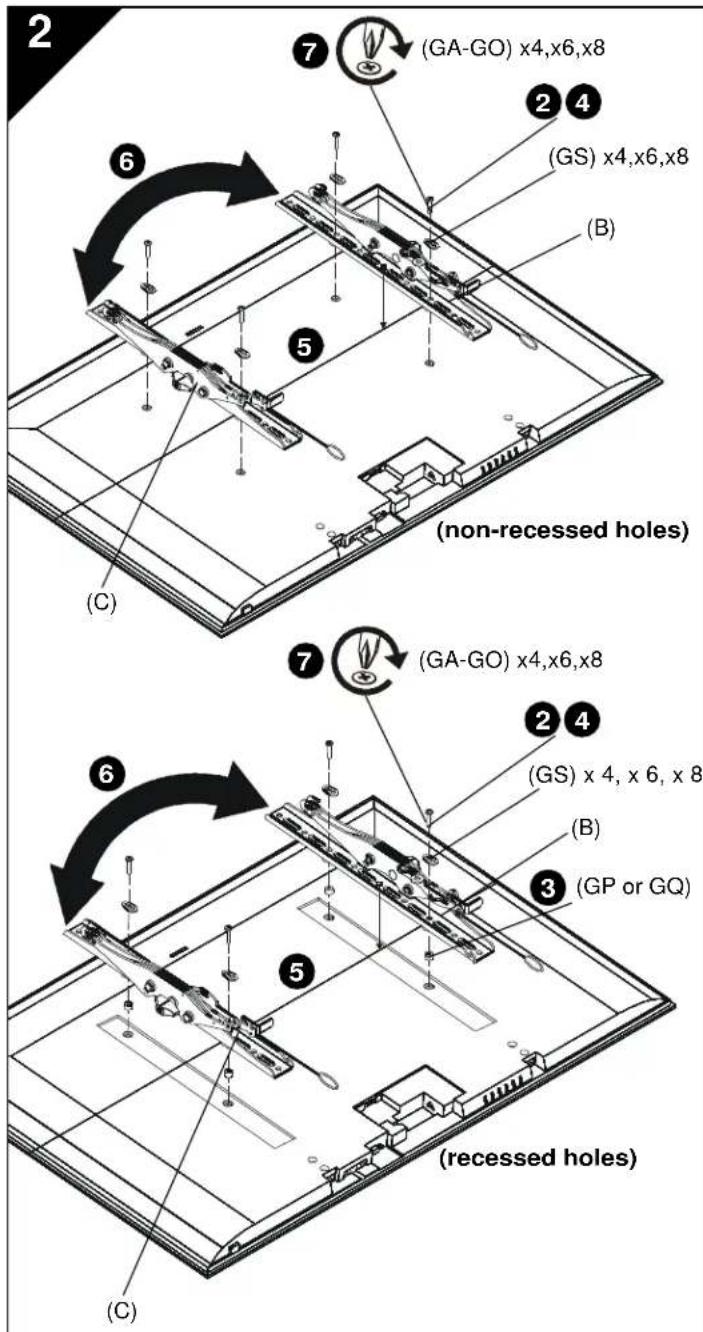

2 (GA-GO) x4,x6,x8 (GS) x4,x6,x8 (B) (C) (non-recessed holes) 7 (GA-GO) x4,x6,x8 2 4 (GS) x 4, x 6, x 8 (B) 3 (GP or GQ) 6 (recessed holes) 5 (C)

INSTALL BRACKETS TO DISPLAY

WARNING: The minimum hole pattern size is 100mm x 100mm for the iCMPTM3 and 200mm x 200mm for the iCLPTM3 and the iCXPTM3.

1. Lay display face down on protective surface.

CAUTION: Using screws of improper diameter may damage your display! Proper screws will easily thread into display mounting holes.

1. Select screw diameter by examining hardware (GA-GO) (8mm, 6mm, 5mm, or 4mm) and comparing with mounting holes on display.

2. Select spacers:

3. If mounting holes are not recessed and both brackets (B and C) can lay flat against display, then no spacers are required.

4. If mounting holes are recessed, or if protrusions prevent brackets (B and C) from laying flat, then spacers (GP or GQ) must be used.

CAUTION: Using screws of improper length may damage your display! Proper screws will have adequate thread engagement without contacting bottom of display mounting holes.

1. Select screw length:

2. Using your hand, insert SHORTEST length screw of selected diameter (GA, GE, GI or GL) through brackets (B and C), universal washer (GS), selected spacer (GP or GQ, if required), into display mounting hole. Do NOT thread screw into hole at this time.

3. Proper screw length requires base of screw head to protrude above flat washer a distance equal to or greater than the screw diameter. If screw length is inadequate, select longer screw. Select shortest screw which will protrude the required distance.

4. Place brackets (B and C) on display, ensuring:

• Upper hooks are towards top of display.
- Center of brackets (B and C) are as close to the center of the back of display as possible after being installed. Center of bracket is indicated by the diamond-shaped hole.

1. If installing display with wide hole pattern, it may be necessary to swap the uprights (B and C). See Switching Interface Brackets section for details.
2. Using Phillips screwdriver, carefully install selected screws through universal washers (GS), brackets (B and C), and spacers (GP or GQ, if required), into display.
3. Tighten all screws. Ensure all applicable display mounting holes (4, 6, or 8) are used.

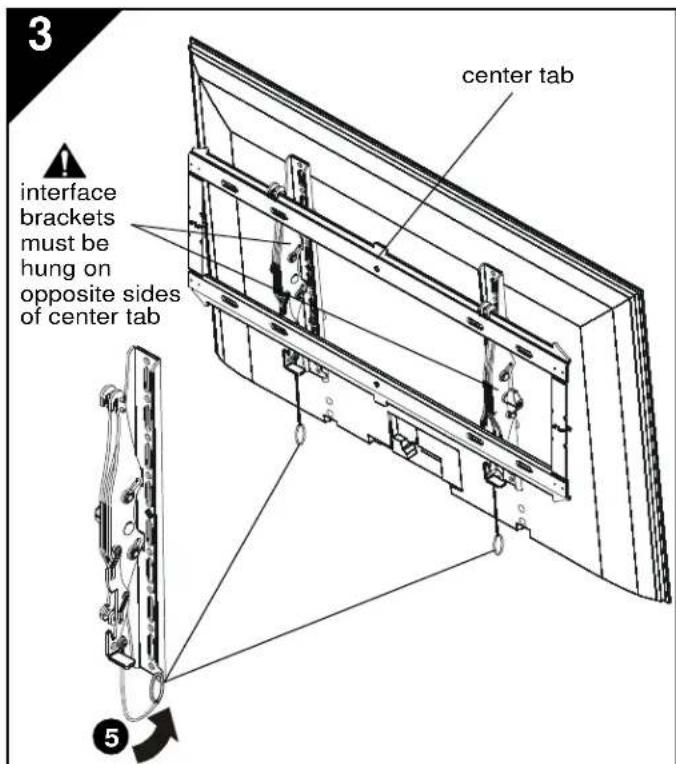

3 interface brackets must be hung on opposite sides of center tab center tab 5

(views from left side) 2 kickstand engaged kickstand against wall 4 3 6 1

INSTALL DISPLAY TO WALL PLATE

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached does not exceed 125 lbs (56.7 kg) for the iCMPTM3 and iCLPTM3 or 175 lbs (79.4 kg) for the iCXPTM3. Use with products heavier than the maximum weight indicated may result in collapse of the mount and its accessories causing possible injury.

WARNING: Display may be very heavy! Ensure display can be safely lifted and maneuvered as required to install on wall plate. Failure to take adequate precautions can result in serious personal injury or damage to equipment!

WARNING: Interface brackets must be hung on opposite sides of the center tab on wall plate!

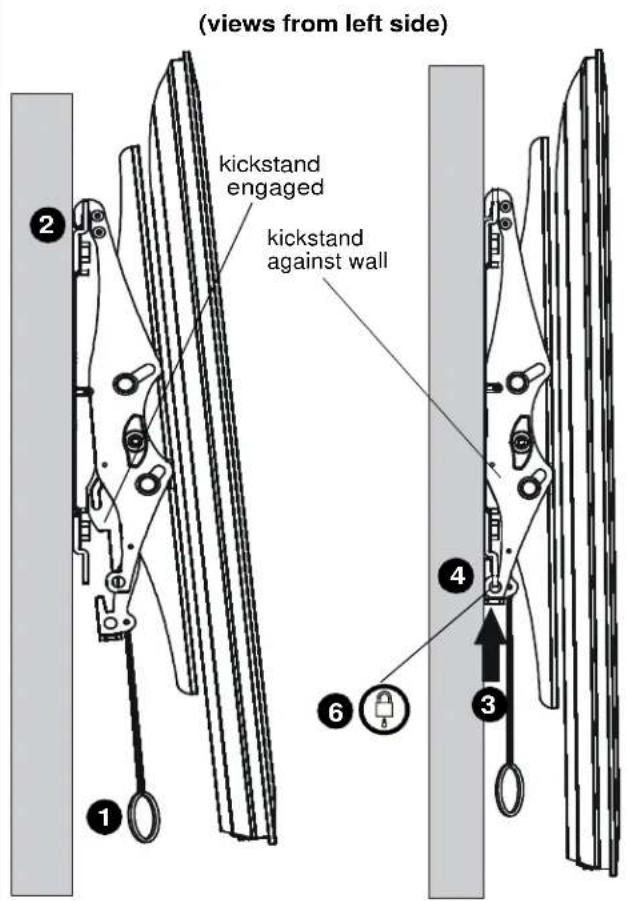

1. Make sure interface brackets are in the kickstand position by pulling down on handles as far as possible.
2. Hang display with brackets (B and C) on upper rail of wall plate (A). Kickstand should be engaged with lower portion of wall plate.
   NOTE: Any cable management or rear display adjustments should be made when the display is resting on the kickstand.
3. Unlock kickstand by pushing up on interface brackets until kickstand rests against the wall.
4. Push up on the interface brackets further in order to lock display into position against wall.
5. Straps can be tucked behind display on notch on interface brackets (B and C) after installation is complete so that they will not be visible to the viewer.
6. (Optional) Route padlock or cable lock (not included) through bottom holes on interface bracket to provide additional security.

4

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating rotation or adjustment.

Technical diagram of a mechanical assembly with labeled parts and directional arrow indicating rotation or adjustment.

Switching Interface Brackets (Optional)

For wide hole patterns, interface brackets must be reversed. See Table 1 below to determine if this is necessary.

Table 1: Hole Pattern Width

Model #	normal installation swap uprights
iCMPTM3 100-44	0mm 441-506mm
iCLPTM3 200-66	3mm 664-728.8mm
iCXPTM3 200-84	7mm 848-913mm

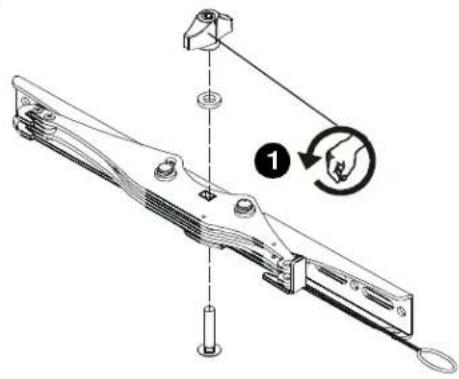

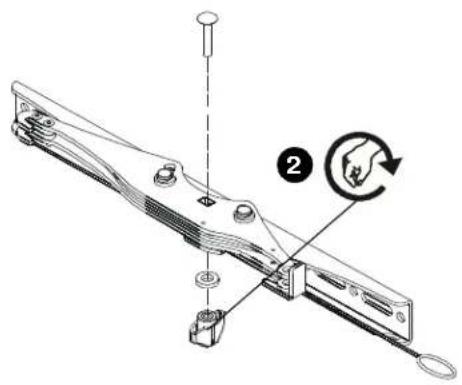

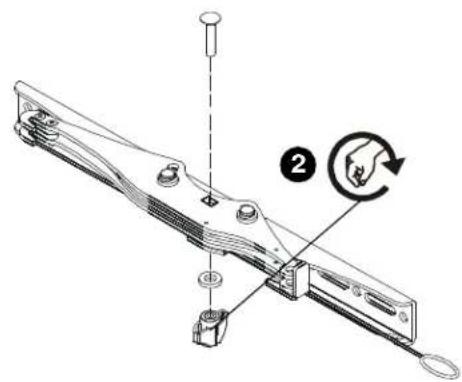

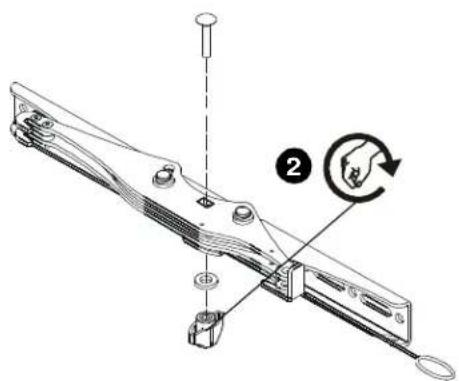

1. Remove the tilt tension knob, washer and screw from interface bracket.
   IMPORTANT ! : Hold the brackets steady when removing the knob, washer and screw from interface bracket to prevent internal washers from falling out. If internal washers do fall out, they must be reinserted in proper position before reinstalling knob on the other side!
2. Replace the knob, washer and screw in the opposite order.
3. Repeat for the other interface bracket.
4. Install interface brackets according to instructions in Section 2.

5

Diagram illustrating a mechanical assembly with labeled steps 1, 2, and 3 showing a turning mechanism.

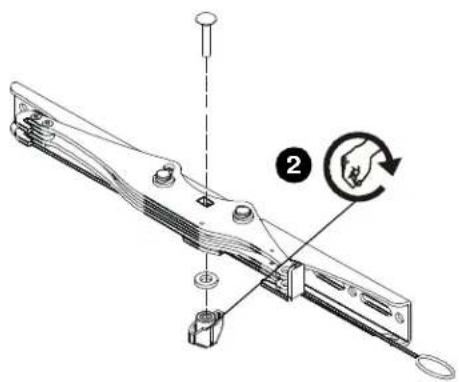

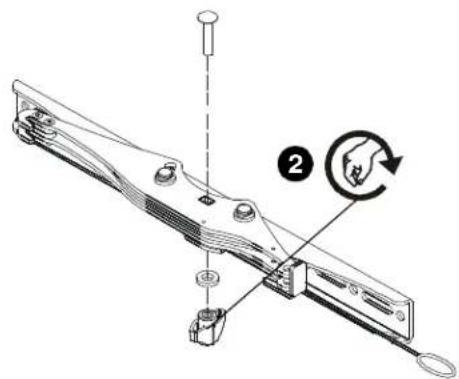

Tilt Adjustment

1. Adjust tilt tension adjustment knobs to desired tension.
2. Adjust tilt of display by pulling the top of display away from the wall until desired tilt position is reached.
3. Tighten tilt tension adjustment knobs to secure tilt position.

(E) x 4 o 6 (D) x 4 o 6 (A) ⑤

12,7 mm (1/2")

Technical diagram of a mechanical assembly with labeled parts and directional arrow indicating rotation or adjustment.

Technical diagram of a mechanical assembly with labeled parts and directional arrow indicating rotation or adjustment.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, including numbered annotations 1, 2, and 3.

Technical diagram of a mechanical clamp or connector with labeled parts and directional arrow indicating rotation or adjustment.

Technical diagram of a mechanical assembly with labeled parts and directional arrow indicating rotation or adjustment.

Diagram illustrating a mechanical assembly with labeled steps 1, 2, and 3 showing a lever mechanism and hand rotation icons.

Technical diagram of a mechanical assembly with labeled parts and directional arrow indicating rotation or adjustment.

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating rotation or adjustment.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, including numbered annotations 1, 2, and 3.

(A) ② x 4 of 6 CENTER LINE

4
(F) × 4 of 6

[Non-Text]
(F) × 4 of 6

(E) x 4 of 6 (D) x 4 of 6 (A) ⑤

1/2" (12,7 mm)

INSTALLEER DE WANDPLAAT AAN DE WAND - BETON, MASSIEF BETON OF BAKSTEEN

Technical diagram of a mechanical assembly with labeled parts and directional arrow indicating rotation or adjustment.

Technical diagram of a mechanical device with labeled parts and directional arrow indicating rotation or adjustment.

Diagram illustrating a mechanical assembly with labeled steps 1, 2, and 3 showing motion directions and component placement.

Technical diagram of a mechanical clamp or bracket assembly with labeled parts and directional arrow indicating rotation.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating rotation or adjustment.

Ombytning af interfacebeslag (valgfrit)

Diagram illustrating a mechanical device with labeled parts and directional arrows, including steps 1 and 2.

Vippejustering

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating rotation or adjustment.

Technical diagram of a mechanical assembly with labeled parts and directional arrow indicating rotation or adjustment.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, including numbered annotations 1, 2, and 3.

Kallistuksen säätö

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Technical diagram showing a mechanical assembly with labeled parts and a circular annotation indicating rotation or adjustment.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including numbered steps 1 and 2.

2 ⑦ (GA-GO) x4,x6,x8 ② ④ (GS) x4,x6,x8 (B) ⑤ (omics hwpi's esooxie) (C) ⑥ ⑦ (GA-GO) x4,x6,x8 ② ④ (GS) x 4, x 6, x 8 (B) ⑥

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts and directional arrows indicating rotation or adjustment.

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Technical diagram showing a mechanical assembly with labeled components and a circular indicator 'f/f' pointing to a specific part.
