USER MANUAL Innergize HB947 PHILIPS

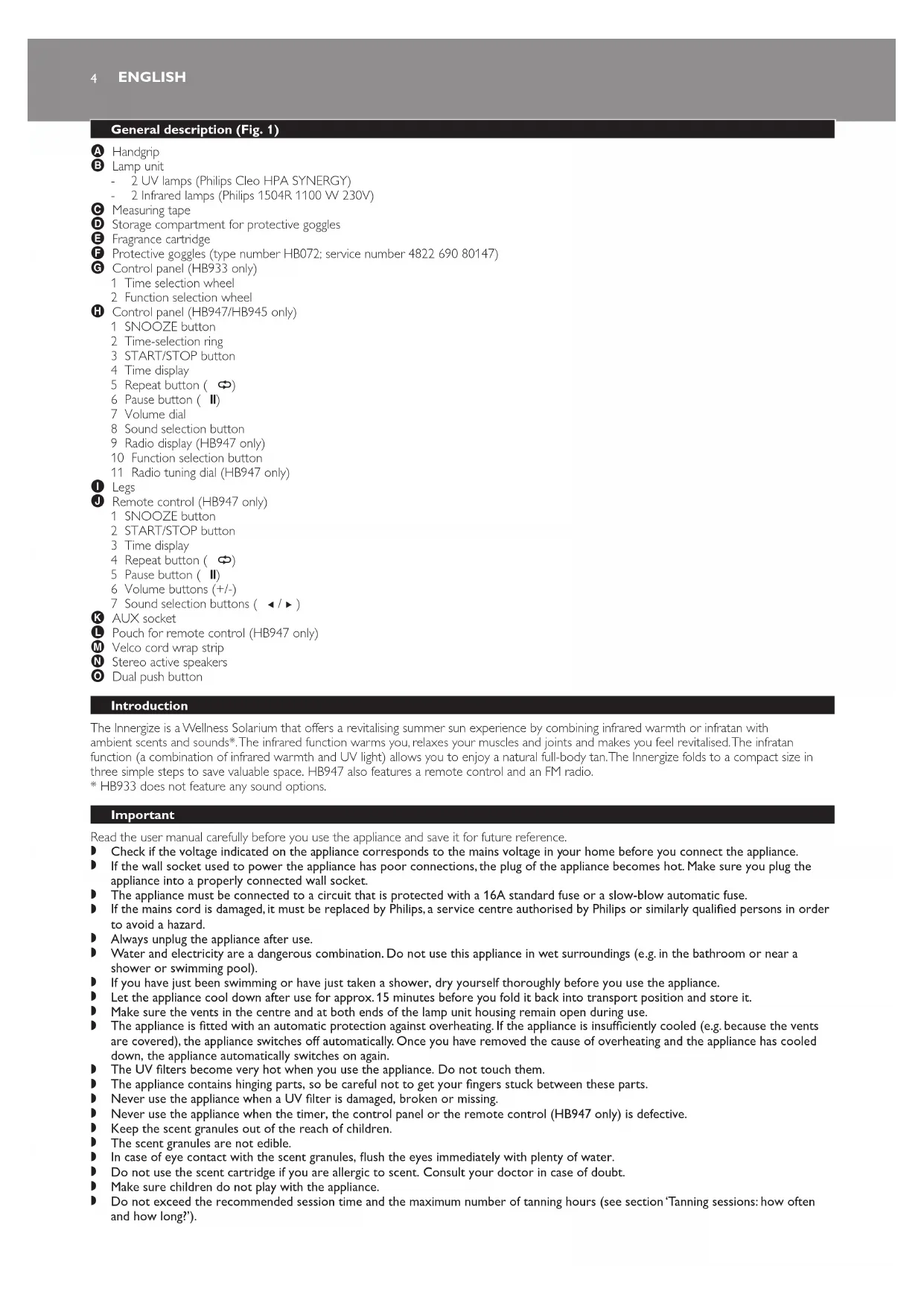

D Storage compartment for protective goggles

E Fragrance cartridge

F Protective goggles (type number HB072; service number 4822 690 80147)

G Control panel (HB933 only)

1 Time selection wheel

2 Function selection wheel

H Control panel (HB947/HB945 only)

2 Time-selection ring

11 Radio tuning dial (HB947 only)

J Remote control (HB947 only)

7 Sound selection buttons (

L Pouch for remote control (HB947 only)

The Innergize is a Wellness Solarium that offers a revitalising summer sun experience by combining infrared warmth or infratan with

ambient scents and sounds*. The infrared function warms you, relaxes your muscles and joints and makes you feel revitalised. The infratan

function (a combination of infrared warmth and UV light) allows you to enjoy a natural full-body tan. The Innergize folds to a compact size in

three simple steps to save valuable space. HB947 also features a remote control and an FM radio.

* HB933 does not feature any sound options.

Read the user manual carefully before you use the appliance and save it for future reference.

Check if the voltage indicated on the appliance corresponds to the mains voltage in your home before you connect the appliance.

If the wall socket used to power the appliance has poor connections, the plug of the appliance becomes hot. Make sure you plug the

appliance into a properly connected wall socket.

The appliance must be connected to a circuit that is protected with a 16A standard fuse or a slow-blow automatic fuse.

If the mains cord is damaged, it must be replaced by Philips, a service centre authorised by Philips or similarly qualied persons in order

Always unplug the appliance after use.

Water and electricity are a dangerous combination. Do not use this appliance in wet surroundings (e.g. in the bathroom or near a

shower or swimming pool).

If you have just been swimming or have just taken a shower, dry yourself thoroughly before you use the appliance.

Let the appliance cool down after use for approx. 15 minutes before you fold it back into transport position and store it.

Make sure the vents in the centre and at both ends of the lamp unit housing remain open during use.

The appliance is tted with an automatic protection against overheating. If the appliance is insufciently cooled (e.g. because the vents

are covered), the appliance switches off automatically. Once you have removed the cause of overheating and the appliance has cooled

down, the appliance automatically switches on again.

The UV lters become very hot when you use the appliance. Do not touch them.

The appliance contains hinging parts, so be careful not to get your ngers stuck between these parts.

Never use the appliance when a UV lter is damaged, broken or missing.

Never use the appliance when the timer, the control panel or the remote control (HB947 only) is defective.

Keep the scent granules out of the reach of children.

The scent granules are not edible.

In case of eye contact with the scent granules, ush the eyes immediately with plenty of water.

Do not use the scent cartridge if you are allergic to scent. Consult your doctor in case of doubt.

Make sure children do not play with the appliance.

Do not exceed the recommended session time and the maximum number of tanning hours (see section ‘Tanning sessions: how often

ENGLISHDo not take a tanning and/or relax session if you have a disease and/or use medication or cosmetics that increase the sensitivity of your

skin. Be extra careful if you are hypersensitive to UV light or IR light. Consult your doctor in case of doubt.

Do not use the tanning appliance and consult your doctor if unexpected effects such as itching occur within 48 hours after the rst

Do not tan a particular part of your body more than once a day. Avoid excessive exposure to natural sunlight on the same day.

Consult your doctor if persistent lumps or sores appear on the skin, or if there are changes in pigmented moles.

The appliance is not to be used by people who get sunburnt without tanning when exposed to the sun, by persons who suffer from

sunburn, by children, or by persons who suffer (or have previously suffered) from skin cancer or who are predisposed to skin cancer.

Always wear the protective goggles provided with the appliance while tanning to protect your eyes from excessive doses of visible light,

UV light and IR light (also see chapter ‘Tanning and your health’).

Remove creams, lipstick and other cosmetics well in advance of a tanning session.

Do not use any sunscreens or suntan accelerators.

If your skin feels taut after the tanning session, you may apply a moisturising cream.

To acquire an even tan, lie down straight below the lamp unit.

Do not choose a tanning distance of less than 70cm.

Only move the appliance when it is in transport position.

Colours fade under the inuence of the sun. The same effect may occur when you use this appliance.

Do not expect the appliance to yield better results than the natural sun.

Electromagnetic elds (EMF)

This Philips appliance complies with all standards regarding electromagnetic elds (EMF). If handled properly and in accordance with the

instructions in this user manual, the appliance is safe to use according to scientic evidence available today.

Tanning and your health

The sun supplies various types of energy. Visible light enables us to see, ultraviolet (UV) light gives us a tan and the infrared (IR) light in sunrays

provides the heat in which we like to bask.

Just as with natural sunlight, the tanning process takes some time. The rst effect only becomes visible after a few sessions (see section ‘Tanning

sessions: how often and how long?’).

Overexposure to ultraviolet light (natural sunlight or articial light from your tanning appliance) can cause sunburn.

Besides many other factors, such as overexposure to natural sunlight, incorrect and excessive use of a tanning appliance may increase the risk of

skin and eye problems. The degree to which these effects occur is determined by the nature, intensity and duration of the exposure on the one

hand and the sensitivity of the person involved on the other hand.

The more the skin and the eyes are exposed to UV light, the higher the risk of keratitis, conjunctivitis, damage to the retina, cataracts, premature

skin ageing and the development of skin tumours will be. Some medications and cosmetics increase the sensitivity of the skin.Therefore it is

that you follow the instructions in chapter ‘Important’ and section ‘Tanning sessions: how often and how long?’.

that the tanning distance (distance between the UV lters and the body) is 70cm.

that you do not exceed the maximum number of tanning hours per year (i.e. 22 hours or 1320 minutes).

that you always wear the goggles provided while you are tanning.

Tanning sessions: how often and how long?

Do not take more than one tanning session a day, over a period of 5 to 10 days.

Take a break of at least 48 hours between the rst and the second session.

After this 5 to 10-day course, we advise you to stop tanning for a while.

Approximately one month after a course, your skin will have lost much of its tan. You can then start a new course.

If you want to keep your tan, do not stop tanning after the course, but continue with one or two tanning sessions a week.

Whether you choose to stop tanning for a while or whether you continue tanning on a lower frequency, always keep in mind that you

must not exceed the maximum number of tanning hours.

For this appliance, the maximum is 22 tanning hours (= 1320 minutes) a year.

Suppose you take a 10-day tanning course, with a 9-minute session on the rst day and a 20-minute session on the nine following days.

The entire course then lasts (1 x 9 minutes) + (9 x 20 minutes) = 189 minutes.

This means you can take 6 of these courses in one year, as 6 x 189 minutes = 1134 minutes.

Of course, the maximum number of tanning hours applies to each separate part or side of the body that is tanned (e.g. the back or front of the

Tip:For a beautiful all-over tan, turn your body slightly during the session so that the sides of your body are better exposed to the tanning light.

Tip:If your skin feels slightly taut after tanning, you can apply a moisturising cream.

Tip:If you use function

¼ (HB947/HB945 only), we advise you to extend the tanning sessions by approximately 5 minutes. This does not apply to the

rst tanning session, which must not last longer than 9 minutes.

As the table shows, the rst session of a tanning course must always last 9 minutes, irrespective of the sensitivity of the skin.

If you think that the sessions are too long for you (e.g. because your skin feels taut and tender after the session), we advise you to reduce the

length of the sessions by e.g. 5 minutes.

Duration of the tanning session

for each separate part of the body

For persons with very sensitive

For persons with normal

For persons with less sensitive

1st session 9 minutes 9 minutes 9 minutes

break of at least 48 hours break of at least 48 hours break of at least 48 hours break of at least 48 hours

2nd session 10-15 minutes 20-25 minutes 30-35 minutes*

3rd session 10-15 minutes 20-25 minutes 30-35 minutes*

ENGLISH 5Duration of the tanning session

for each separate part of the body

For persons with very sensitive

For persons with normal

For persons with less sensitive

4th session 10-15 minutes 20-25 minutes 30-35 minutes*

5th session 10-15 minutes 20-25 minutes 30-35 minutes*

6th session 10-15 minutes 20-25 minutes 30-35 minutes*

7th session 10-15 minutes 20-25 minutes 30-35 minutes*

8th session 10-15 minutes 20-25 minutes 30-35 minutes*

9th session 10-15 minutes 20-25 minutes 30-35 minutes*

10th session 10-15 minutes 20-25 minutes 30-35 minutes*

*) or longer, depending on your skin sensitivity.

Relaxation and your health

Warmth has a relaxing effect. Think of what a hot bath or lazing in the sunshine does to you. You can enjoy the same relaxing effect by selecting

the relax function × or ‚.

Bear in mind the following when you have a relax session:

Avoid getting too hot. Increase the distance between yourself and the lamps, if necessary.

If your head gets too hot, cover it or move your body so that less heat is emitted towards your head.

Close your eyes during a relax session.

Do not let the relax session last too long (see section ‘Relax sessions: how often and how long?’).

Relax sessions: how often and how long?

If you want to pamper your muscles or joints or want to enjoy the relaxing warmth of the Innergize without getting a tan, only switch on the

infrared lamps to get a deep relaxation. If you want to continue enjoying the Innergize’s warmth after your tanning session, switch on the infrared

lamps only for a relax session.

You can take infrared relax sessions several times a day (e.g. 30 minutes in the morning and in the evening).

You can easily move and store the appliance in transport position (Fig. 2).

1 Put the appliance on the oor as shown in the gure (Fig. 3).

Make sure there is sufcient room on either side of the appliance to allow the legs to move outwards.

2 Press the dual push button in the handgrip (1) and pull the stand slightly up (2). Then release the push button (Fig. 4).

On a smooth oor, the legs of the appliance automatically move outwards. If the oor is not smooth, e.g. a carpeted oor, you may have to put

your foot on one of the legs to allow the other leg to move outwards.

3 Pull up the stand by the handgrip as far as it goes. (Fig. 5)

The stand locks into position with a click.

4 Turn the lamp unit in the direction indicated in the gure. (Fig. 6)

This requires some force at rst. Push the lamp unit in the direction indicated until it locks into position with a click.

You can only switch on the appliance for a tanning or relax session if the lamp unit is in the correct position.

5 Push the legs of the appliance under the bed or sofa you intend to lie down on. The lamps for functions ¼ and × are on the marked side

of the appliance (HB947/HB945 only). (Fig. 7)

6 Press the release buttons in the recesses of the control panel and push the control panel upwards along the stand. Let go of the release

buttons when the lamp unit is at the required height. (Fig. 8)

The distance between the UV lters and your body must be 70cm. The distance between the UV lters and the surface on which you lie

(e.g. a bed) must be 90cm. (Fig. 9)

Pull out the measuring tape to determine whether the appliance is at the required height. (Fig. 10)

The measuring tape automatically rewinds when you operate the red tab. (Fig. 11)

2 Put the plug in the wall socket.

3 Set the selector to the desired position (Fig. 12).

Choose ¥ if you want to tan your body.

Choose ‚ if you prefer a relax session.

4 Consult the chapters ‘Tanning and your health’ and ‘Relaxation and your health’ for the correct tanning or relax time.

5 Put on the protective goggles provided.

Only use these protective goggles when you tan with a Philips tanning appliance. Do not use them for other purposes.

The protective goggles comply with protection class II according to directive 89/686/EEC.

6 Lie down straight below the lamp unit of the appliance.

7 Set the timer to the appropriate time for the session. (Fig. 13)

Note:It can take a few seconds for the lamps to go on. This is normal.

The appliance beeps during the last minute of the session.

ENGLISH6During this minute, you can reset the timer to tan the other side of your body. If you reset the timer during this minute, you avoid the

3-minute waiting time which is necessary to let the tanning lamps cool down after they have switched off. This waiting time does not

apply to the infrared lamps.

Tanning or relaxing (HB947 and HB945)

1 Fully unwind the mains cord.

2 Put the plug in the wall socket.

The function selection button shows the different functions. (Fig. 14)

1 Press the function selection button to switch from function to function. (Fig. 15)

The symbol that turns yellow shows the function you have selected.

symbol ¥ if you want to tan your whole body

symbol ¼ if you want to tan a specic part of your body

symbol ‚ if you want to relax

symbol × if you want to warm up a part of your body

Setting the time for a tanning or relax session.

1 Consult the chapters ‘Tanning and your health’ and ‘Relaxation and your health’ for the correct tanning or relax time.

2 Turn the time-selection ring to set the time of the tanning or relax session (Fig. 16).

Turn the ring clockwise to increase the time and turn it anticlockwise to decrease the time.

3 Put on the protective goggles provided.

Only use these protective goggles when you tan with a Philips tanning appliance. Do not use them for other purposes.

The protective goggles comply with protection class II according to directive 89/686/EEC.

4 Lie down straight below the lamp unit of the appliance.

5 Press the START/STOP button to switch on the tanning lamps or the infrared lamps (Fig. 17).

Note:It can take a few seconds for the lamps to go on. This is normal.

6 A blinking dot appears on the display next to the time. (Fig. 18)

The countdown of the set tanning or relax time starts.

The appliance beeps during the last minute of the session.

During the last minute, you can repeat the set time. Press the repeat button ( ä). (Fig. 19)

Note:The display shows the set time and starts to count down. The appliance stops beeping.

During the last minute, you can set a new time. Turn the time-selection ring to the desired time (1) and then press the START/STOP

button (2). (Fig. 20)

Note:By setting a new time, you can avoid the 3-minute waiting time which is necessary to let the tanning lamps cool down after they have switched

off. This 3-minute waiting time does not apply to the infrared lamps.

During the last minute of the tanning or relax session, you can press the SNOOZE button to enjoy the warmth of the infrared lamps

for 9 more minutes. You can press the SNOOZE button as often as you like. (Fig. 21)

Interrupting the tanning or relax session

To interrupt a tanning session, press the pause button ( ã). (Fig. 22)

The lamps go out. The cool-down time of 3 minutes blinks on the display and counts down. During these 3 minutes, the lamps cool down. When

the time has counted down to 0 and stops blinking, you can switch the appliance back on. Press the START/STOP button or the pause button (

ã) to start the countdown of the remaining session time.

To interrupt a relax session, press the pause button ( ã). (Fig. 23)

The lamps are switched off and the pause symbol and the remaining time appear on the display. The waiting time does not apply to the infrared

lamps, so you can switch the appliance back on whenever you want. Press the STOP/START button or the pause button ( ã) to start the

countdown of the remaining time.

Changing the tanning or relax time during a session

To change the set time during a tanning session, press the START/STOP button (Fig. 24).

The lamps are switched off. Set a new time with the time-selection ring. Wait until the set time stops blinking (this takes 3 minutes because the

lamps have to cool down rst). Then press the START/STOP button to switch the appliance back on.

To change the set time during a relax session, turn the time-selection ring. The cool-down time of 3 minutes does not apply to the

Remote control (HB947 only)

Use the remote control to perform the following actions (see also section ‘Tanning or relaxing (HB947 and HB945)):

start/stop the session

see the remaining session time

You can also use the remote control to select a sound and to set the volume (see also section ‘Stereo Active Speakers & ambient sounds

(HB947/HB945 only)):

1 Press the Á or ª button to select a sound.

ENGLISH 7Natural fragrances

During the tanning or relax session, you can enjoy your favourite fragrance. You can choose from three different fragrances.

The scent granules have been specially developed for use in this appliance. Do not use other granules.

Filling the cartridge

1 Pull the cap off the cartridge while you apply pressure on the small pressing points. (Fig. 25)

2 Open the sachet at the small opening at the top.

3 Fill the cartridge with the content of one whole sachet of scent granules.

4 Put the cap back onto the cartridge (‘click’).

Placing or removing the cartridge

1 Place the cartridge in the holder. It only ts in one way and locks in place with a click. (Fig. 26)

2 To remove the cartridge, place your thumb and index nger on the sides of the cartridge. Press on the disc to remove the cartridge

from the holder. (Fig. 27)

Setting the fragrance level

1 Turn the cartridge to set the fragrance level. (Fig. 28)

Turn the cartridge in the direction of the large ower symbol to increase the fragrance level. Turn it in the opposite direction to reduce the

2 When you store the appliance or do not want it to emit a fragrance, turn the cartridge away from the large ower symbol as far as it

The holes are no longer visible.

3 Replace the granules when the cartridge no longer emits any fragrance. Replacement packages with 3 sachets of scent granules are

available under type number HB080.

Please bear in mind that the fragrance level depends on a number of factors, such as the following:

Habituation may cause fragrances to be perceived less or not at all, but this is normal.

When you lie on your belly, the fragrance is less noticeable than when you lie on your back.

Airows in the room where you use the appliance may also affect the fragrance level.

Your personal condition may also inuence the degree to which you perceive the fragrance.

Stereo Active Speakers & ambient sounds (HB947/HB945 only)

During the tanning or relax session, you can choose an ambient sound that appeals to you and that helps you relax optimally.There are four

different ambient sounds to choose from.

You can also listen to your own favourite music on the built-in radio (HB947 only). You can also connect your own audio player (e.g. CD/MP3 or

radio) to the INNERGIZE.

Listening to ambient sounds

1 Press the sound selection button one or more times to select the preferred sound.

Seashore sound (Fig. 30)

City sound (Fig. 33)

Note: The selected sound symbol turns yellow.

Tip:To listen to the sounds undisturbed by other background noises, you can use the in-ear headphones that come with the appliance.

Note:The ambient sounds are meant to be background sounds.This means that they should not be too dominant. The relaxing effect is optimal when

the sounds are just audible. Avoid high sound levels,

Listening to the radio (HB947 only)

1 To select the radio, press the sound selection button until the FM symbol turns yellow. (Fig. 34)

2 To select your favourite radio station, turn the radio tuning dial (Fig. 35).

Listening to your own favourite music

To connect your own audio player (e.g. CD/MP3 or radio) to the appliance, use the cable with 2 jack plugs supplied with the appliance.

1 Insert one jack plug into the AUX socket on the right side of the control panel.

2 Insert the other jack plug into the headphone socket of your audio player (e.g. CD, MP3 or radio).

3 Press the sound selection button until the AUX symbol lights up. (Fig. 36)

The Philips Stereo Active Speakers amplify the signal according to your preference.

Adjusting the volume

1 Turn the volume dial to adjust the volume. (Fig. 37)

Always unplug the appliance and let it cool down before you start to clean it.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Do not let any water run into the appliance.

1 Clean the outside of the appliance with a damp cloth.

2 Clean the outside of the UV lters with a soft cloth sprinkled with some methylated spirits.

ENGLISH83 Clean the protective goggles with a moist cloth.

Let the appliance cool down for 15 minutes before you put it in transport position and store it.

1 Store the protective goggles in the storage compartment between the two lamps. (Fig. 38)

2 Put the remote control and the cord in the pouch on the back of the control panel (HB947 only). (Fig. 39)

3 Make sure the cord does not get stuck between parts of the appliance when you put the appliance in transport position.

4 Turn the appliance away from the bed or sofa and make sure there is enough space around the appliance to collapse it.

5 Press the two release buttons in the recesses of the control panel and slide the control panel down the stand as far as it goes. (Fig. 40)

6 Turn the lamp unit in the direction of the arrow. (Fig. 41)

You hear a click when the lamp unit locks in vertical position.

7 Pull the stand slightly backwards and then press the dual push button. Lower the stand slowly until the lamp unit rests on the oor

between the legs. (Fig. 42)

8 Wind the cord and fasten it with the Velcro cord wrap strip. (Fig. 43)

You can store the appliance in a wardrobe or under a bed.

Have the Philips tanning lamps (Cleo HPA Synergy) replaced by a service centre authorised by Philips. Only they have the knowledge and

skills required for this job and the original spare parts for the appliance.

The light that the tanning lamps emit becomes less bright in time (i.e. after a few years in case of normal use). When this happens, you notice a

decrease in the tanning capacity of the appliance.

After 750 operating hours the tanning capacity of the lamps has decreased so much that replacement of the tanning lamps is advisable.

HB947/HB945: the appliance has a counter that records the operating hours of the tanning lamps. After 750 operating hours, an L appears

on the left-hand side of the display to indicate that replacement of the tanning lamps is advisable (Fig. 44).

Note:Of course, you can choose to postpone replacement for a while by setting a longer tanning time.

Viewing the operating hours of the tanning lamps

1 Set the time to 00 and press the repeat button ( ä) at least 2 seconds to make the operating hours appear on the display. The

maximum number of hours that can be displayed is 999. When this value has been reached, the counter starts to count up from 000

Note:The operating hours disappear from the display as soon as you release the repeat button (

HB947/HB945: removing the L from display

To remove the L from the display:

1 Make sure time indicated on the display is 00.

2 Press and hold down the START/STOP button.

3 Press and release the repeat button ( ä).

4 Press and release the pause button ( ã).

6 Press and release the repeat button ( ä).

The L disappears from the display.

Have the Philips infrared lamps (1100W) and the UV lters replaced by a service centre authorised by Philips. Only they have the

knowledge and skills required for this job and the original spare parts for the appliance.

Have the infrared lamps replaced when they stop functioning.

The UV lters protect against exposure to undesired UV light. It is therefore important to have a damaged or broken lter replaced right

If the mains cord is damaged, it must be replaced by Philips, a service centre authorised by Philips or similarly qualied persons in order to

Ordering scent granules

You can obtain scent rell packages with 3 sachets of scent granules under type number HB080 through www.philips.com/shop or from your

The lamps of the appliance contain substances that can be harmful to the environment. When you discard the lamps, make sure they are

not thrown away with the normal household waste, but handed in at an ofcial collection point.

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an ofcial collection point for

recycling. By doing this, you help to preserve the environment (Fig. 46).

ENGLISH 9Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Customer

Care Centre in your country (you nd its phone number in the worldwide guarantee leaet). If there is no Customer Care Centre in your

country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Guarantee restrictions

The terms of the international guarantee do not cover the tanning lamps and the infrared lamps.

Frequently asked questions

This chapter lists the questions most frequently asked about the appliance. If you cannot nd the answer to your question, please contact the

Customer Care Centre in your country.

Why doesn’t the appliance work? The plug may not be properly inserted in the wall socket. Put the plug properly in the wall socket.

There may be a power failure. Test if the power supply works by connecting another appliance.

The tanning lamps may still be too hot to go on. Let them cool down for 3 minutes rst.

The overheat protection may have switched off the appliance automatically because it overheated.

Remove the cause of overheating (e.g. a towel that blocks one or more vents). Let the appliance

cool down for a while and then switch the appliance back on.

Make sure the lamp unit is in the right position. See chapter ‘Preparing for use’.

Why does the top of the control panel

become hot during use?

The lamps heat up the top of the control panel. This is normal.

Why does the fuse of the circuit to

which the appliance is connected cut off

the power when I switch on or use the

The fuse of the circuit to which the tanning appliance is connected must be a 16A standard fuse

or a slow-blow automatic fuse. You may also have connected too many appliances to the same

Why are the tanning results not as good

Perhaps you use an extension cord that is too long and/or does not have the correct current

rating. Consult your dealer. Our general advice is not to use an extension cord.

You may have followed a tanning course that is not appropriate for your skin type. Check the

table in section ‘Tanning sessions: how often and how long?’

The distance between the lamps and the surface you lie on may be larger than prescribed. See

chapter ‘Preparing for use’.

When the lamps have been used for a long time, the tanning capacity decreases. This effect only

becomes noticeable after several years. To solve this problem, select a slightly longer tanning time

or have the lamps replaced. HB947/HB945 only: after 750 operating hours, an L appears on the

display which tells you that it is advisable to have the lamps replaced.

The tanning result depends on your skin type and the tanning course you are taking. The rst

effect only becomes visible after a few sessions.

Why doesn’t the appliance produce

Read the last part of section ‘Natural fragrances’ in chapter ‘Using the appliance’.

What should I do when the display

shows ‘Err’ (HB947/HB945 only) and/or

the appliance beeps?

Stop using the appliance and unplug it. Wait two seconds and put the plug back into the wall

socket. Contact your dealer or a Philips service centre if the problem reoccurs.

Domestic Appliances and Personal Care BV.

Appliances and Personal Care BV.

Appliances and Personal Care BV.
