HB 546 - Solar bench PHILIPS - Free user manual and instructions

Product type	Sunbed
Brand	Philips
Model	HB 546
Dimensions (L x W x H)	190 x 80 x 70 cm
Weight	50 kg
Power supply	230 V ~ 50 Hz
Total power	1000 W
Number of lamps	4
Lamp type	UV (UVA and UVB)
Power per lamp	100 W
Built-in timer	Yes, adjustable up to 30 minutes
Automatic shut-off function	Yes
Thermal protection	Yes, stops in case of overheating
Emergency stop	Easily accessible stop button
Protective acrylic sheet	Included, with anti-UV coating
Ventilation	Built-in cooling fan
Cleaning	Clean the acrylic sheet with a soft cloth and a non-abrasive cleaner
Lamp replacement	Every 500 hours of use or every 2 years
Spare parts available	Lamps, acrylic sheet, fuses
Repairability	Repairability index: 7.5/10 (parts available and easy disassembly)
Recommended use	Indoors, on a flat surface
Ambient operating temperature	10 °C to 35 °C
Electrical protection class	Class II

Frequently Asked Questions - HB 546 PHILIPS

How long should I use the HB 546 sunbed?

The recommended maximum duration is 30 minutes per session. Start with 5 to 10 minutes if you have fair skin, and increase gradually. Maintain an interval of at least 48 hours between sessions.

What distance should I maintain between my body and the lamps?

Maintain a distance of about 20 to 30 cm between your body and the acrylic sheet for even and safe exposure.

Can I use the sunbed if I have sensitive skin?

It is not recommended for people with very fair skin, pregnant women, people with a history of skin cancer, or those taking photosensitizing medications. Consult a doctor before use.

How to clean the acrylic sheet?

Use a slightly damp soft cloth and a non-abrasive cleaner (e.g., mild soap). Wipe with a dry cloth. Never use solvents or abrasive sponges.

How often should the UV lamps be replaced?

The lamps should be replaced every 500 hours of use or every 2 years, even if they still work, because their UV output decreases over time.

Does the sunbed stop automatically?

Yes, the built-in timer automatically stops the device after the set time. Additionally, thermal protection cuts off the power in case of overheating.

What to do if the cooling fan does not work?

Immediately stop the device and unplug it. Check that the air intakes are not blocked. If the problem persists, contact customer service.

Can I use creams or tanning oils with the sunbed?

Use only products specially designed for sunbeds. Avoid creams containing alcohol or fragrances that could damage the acrylic sheet.

How to set the timer?

Turn the timer knob clockwise to set the desired duration (from 0 to 30 minutes). The unit starts automatically after setting.

Where can I find spare parts for the HB 546?

Spare parts such as lamps, the acrylic sheet, and fuses are available from authorized Philips dealers or on the official website. Always use original parts.

USER MANUAL HB 546 PHILIPS

Line drawing of a modern outdoor shower pool with curved wooden panel and mesh structure (no text or symbols)

English Page 4

- Keep page 3 open when reading these operating instructions.

Français Page 9

English

Important

• Before connecting the appliance to the mains socket, check if the voltage indicated on the rating plate corresponds with the mains voltage in your home.
• Water and electricity are a dangerous combination! Therefore, do not use the appliance in wet surroundings (e.g. in the bathroom or shower, or near a swimming pool).
• If you have just been swimming or have just taken a shower, dry yourself thoroughly before using the appliance.
  • Take care that children cannot play with the Combi solarium. As a precaution remove the plug from the wall socket after use.
• Do not support the sun couch by any other method than the legs supplied.
• Ensure that the mains cord does not get caught under a supporting leg when placing the sun couch.
• Keep the ventilation openings in the solarium and in the sun couch clear of obstruction when using the Combi solarium.
• Do not exceed the advised session times or the maximum amount of "tanning hours". (See section "UV sessions: How often? And how long?")
• Do not select a shorter operational distance (i.e. the distance between your body and the solarium) than 20 cm (approx. 8").

• Do not treat the body more often than once a day. Avoid intensive skin exposure to natural sunlight on the same day as a UV session.

• If you have any symptoms of illness, if you take any medicines and/or apply cosmetics which increase skin sensitivity, you should not have a UV-session. Special care is also necessary in cases of pronounced individual sensitivity to ultraviolet. When in doubt, please consult your doctor.

• A Combi solarium is not to be used by people who get sunburnt without tanning when exposed to the sun, by persons suffering from sunburn, by children, or by persons who suffer (or have previously suffered) from skin cancer or who are predisposed to skin cancer.
• Consult your doctor if ulcers, moles or persistent lumps develop on the skin.
• Always wear the protective eye goggles while tanning to protect your eyes against excessive doses of ultraviolet, visible light and infrared. (Also refer to section "UV and your health".)
• Remove creams, lipstick and other cosmetics well in advance of a UV session.
• Do not use sunscreen lotions or creams. Do not use suntan lotions or creams either.
• If your skin should feel taut after the sun tanning session, you may apply a moisturizing cream.
• Never use the Combi solarium if the timer or a protective shield has become faulty.
• Colours may fade under the influence of the sun. The same effect may occur when using the appliance.
• Do not expect the appliance to yield better results than the natural sun.
• For optimum comfort use the appliance at ambient temperatures in the range 18 - 20 °C).

The Sun

The sun is the source of energy on which all life on earth depends.

There are various kinds of solar energy: the sunlight enables us to see, we feel the warmth of the sunshine on our skin, and under the influence of the sun our skin is tanned.

These three effects are due to three specific components of the sun radiance spectrum, each of the components having their own wave lengths.

The sun radiates electro-magnetic vibrations with widely different wave lengths. The wave lengths of heat rays or "infrared" (IR) are longer than the wave lengths of visible light. And the wave lengths of "ultraviolet" (UV), which tans our skin, are shorter than these.

Science has managed to reproduce these three kinds of solar radiation: heat (e.g. Infraphil), light (lamps) and UV (solariums, sun couches etc.)

UV-A, UV-B and UV-C

Ultraviolet (UV) is subdivided into UV-A (longer wave lengths), UV-B and UV-C (shorter wave lengths).

UV-C seldom reaches the earth as it is filtered out by the atmosphere.

UV-A and UV-B cause the tanning effect of the skin. In fact there are two processes which produce tanning, and they are simultaneously effective:

- "Indirect tanning". Primarily UV-B stimulates the production of a substance called "melanin", which is necessary for tanning. The effect does not show until a couple of days after the sunbath.

- "Direct tanning". The UV-A and also a part of the visible light cause quicker browning without reddening or "getting sunburnt".

The Combi solarium

This Combi solarium emits predominantly UV-A, and also a very small amount of UV-B.

It possesses some important features which make tanning at home comfortable and convenient.

The sun lamp emit light, warmth and ultraviolet, so that it feels just like lying in the natural sun.

The lamps have been positioned in such manner that your whole body is tanned evenly, from head to toe.

For your convenience, but also to prevent unintended prolonged exposure (e.g. after falling asleep), a timer-controlled automatic switch-off operates after 60 minutes tanning.

As it is with the natural sun, it's wise not to have too much of a good thing! (See section "UV and your health".)

UV and your health

After an excessive exposure to ultraviolet (from the natural sun or from your Combi solarium), the skin may develop sunburn.

Beside numerous other factors, such as excessive exposure to the natural sun, improper and excessive use of your Combi solarium will increase the risk of skin and eye disease.

The nature, intensity and duration of the radiation on one hand, and the sensitivity of the individual on the other, are decisive on the degree in which these affects can occur.

The more skin and eyes are exposed to UV, the more risk increases of diseases such as inflammation of the cornea and/or conjunctiva, damaging of the retina, cataract, premature aging of the skin and skin tumours.

Certain medicines and cosmetics increase the sensitivity to UV.

Therefore, it is of great importance

• that you follow the instructions in sections "Important" and "UV sessions: how often? And how long?";
• that you select the advised operational distance of at least 20 cm (approx. 8");
• that you do not exceed the maximum amount of tanning hours per year; (Please see the section "UV sessions (...)")
• that you always wear the provided goggles while tanning.

UV sessions: how often? And how long?

You may have one UV session per day, over a period of five to ten days. Allow at least 48 hours between the first two sessions.

After such a course, you may rest the skin for a while.

Approximately one month after a course your skin will have lost much of the tan. You might then decide to start a new course.

On the other hand, it is also possible to have one or two UV sessions per week after a course has elapsed in order to keep up the tan.

Whatever you may prefer, make sure that you do not exceed the maximum amount of tanning hours per year.

- For this Combi solarium this is 26 hours (= 1560 minutes).

Example:

Imagine that you take a 10 day UV course, with a 10 minute session on the first day and 25 minutes' sessions on the nine following days.

The entire course then includes (1 x 10 minutes) + (9 x 25 minutes) = 235 minutes.

- You may have 6 of these courses over a year. (As 6 x 235 minutes = 1410 minutes.)

From the table it will be seen that the first session of a course should have a duration of 10 minutes.

This is not dependent upon individual skin sensitivity.

Duration of the UV session (for each separately treated part of 1st 2nd 3rd the body) in minutes:	4th 5th session	8th 7th session	10th session	session	session	session	session	session	session	session
- for persons with very sensitive skin:	10	10-15	10-15	10-15	10-15	10-15	10-15	10-15	10-15	10-15
- for persons with normal sensitive skin:	10	20-25	20-25	20-25	20-25	20-25	20-25	20-25	20-25	20-25
- for persons with less sensitive skin:	10	30-35	30-35	30-35	30-35	30-35	30-35	30-35	30-35	30-35

If you think that the sessions are too long for you (e.g. if the skin gets taut and tender after the session), we advise you to reduce the sessions by e.g. 5 minutes.

General description (fig. 1, page 3)

Sun couch tube lamps and starters

10 large tube lamps (type Philips UVA 100W

"Cleo Performance") with

10 starters (type Philips S12)

B Solarium tube lamps and starters

HB 545 - 10 large tube lamps (type Philips UVA 100W

"Cleo Performance") with

10 starters (type Philips S12)

HB 546 - 10 large tube lamps (type Philips UVA 100W

"Cleo Performance") with

10 starters (type Philips S12) and

4 small tube lamps (type Philips UVA 15W

"Cleo Performance") for extra face tanning

performance, with

4 starters (type Philips S2)

© End caps

D Mains cord

E Legs

F Timer

GStands

H Rods

Gas springs

Height adjustment holes

Connecting cord

Handle

M Cooling fans

N Vents

Protective shields

P Protective plastic foils

Protective eye goggles (2x)

(Type HB 071 / service n°. 4822 690 80123)

R Bolts and nuts

\$ Spanner

Making the Combi solarium ready for use

Sun couch

Illustration of a person using a tool to interact with a curved surface, showing motion direction (no text or symbols)

- With one person helping you, lay the sun couch on the floor with the lamps facing downwards (fig. 2).

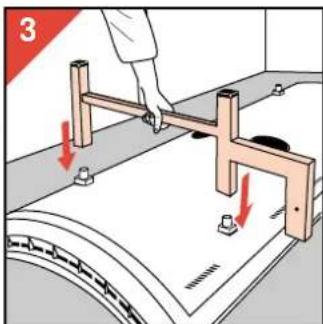

- Push the legs in firmly into the corresponding holes (fig. 3).

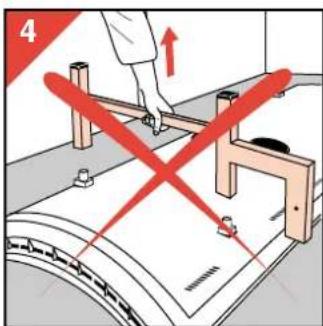

- Please note: Do not attempt to lift or tilt the sun couch by its legs! (Fig. 4.)

Illustration of a person using a loom to lift a machine, with a red arrow indicating downward motion (no text or symbols)

Line drawing of a curved wooden structure with textured surface and support beams (no text or symbols)

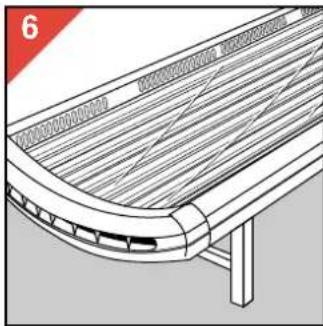

- Lift the sun couch as illustrated (fig. 5) and put it on its legs (fig. 6).

Solarium

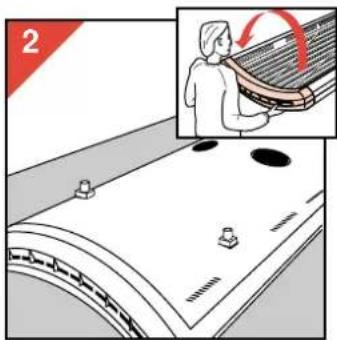

Illustration of a person using a tool to adjust or install a large cylindrical object, with a red downward arrow indicating compression (no text or symbols present)

Diagram of a mechanical lever system with pivot and pivot points (no text or symbols)

- With one person helping you, lay the solarium on a table top with the lamps facing downwards (fig. 7).

Ensure that the handle does not rest on the table.

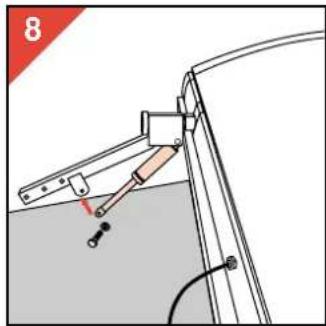

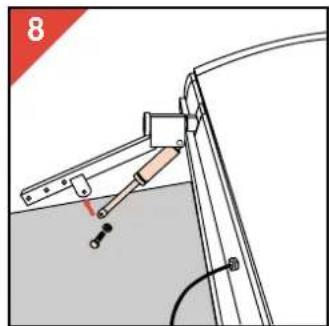

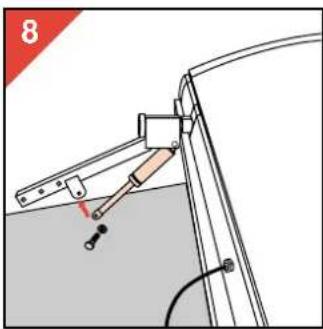

- Fix the two gas springs to the rods (fig. 8).

Illustration of a person using a textile machine to clean fabric, with no visible text or symbols

Mechanical assembly diagram showing a bracket with a red arrow indicating a downward force or adjustment, no text or symbols present.

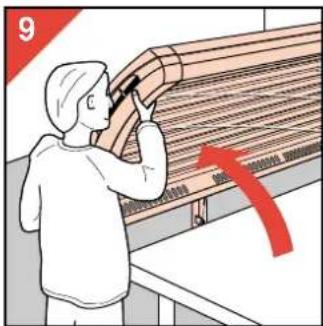

- Lift the solarium from the table top (fig. 9).

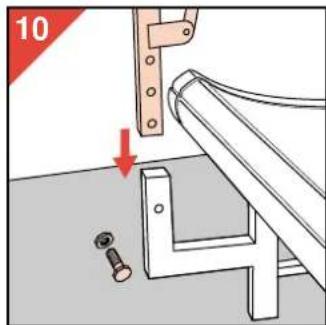

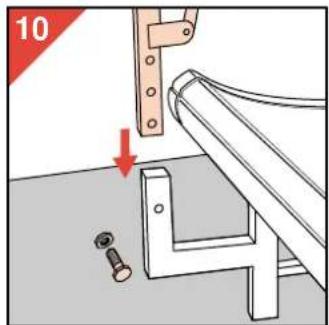

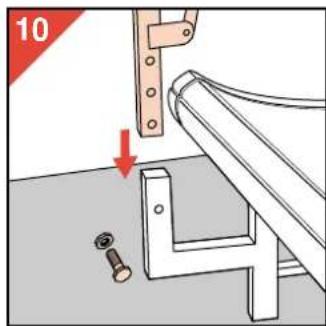

- Insert the rods into the stands (fig. 10).

Diagram of a medical procedure showing a patient lying on a stretcher with a magnified view (no text or labels)

Diagram of a mechanical assembly with layered components and a highlighted section (no text or symbols)

- Lie down on the sun couch (fig. 11).

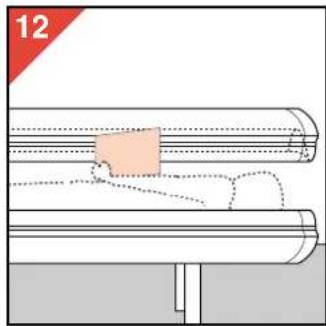

- Hold this instructions booklet as shown in fig. 12. You can use the meter in this instructions booklet (page 2) to measure the distance between your body and the solarium. This distance should be approx. 20 cm.

Mechanical assembly diagram showing a bracket with red arrows indicating force or movement (no text or symbols present)

If necessary you can use the mounting holes to mount the solarium higher (fig. 13, 14). The distance between the mounting holes is 4 cm (fig. 15).

- Please note: If the Combi solarium is to be used by more than one person, use the highest applicable mounting holes.

Illustration of a garment being folded into a slatted garment (no text or symbols)

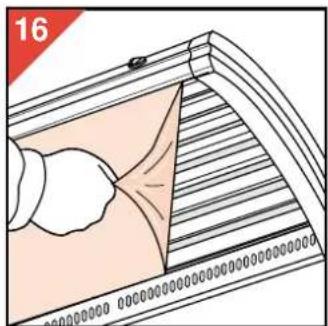

- Remove the plastic foils from the protective shields (fig. 16, 17).

Illustration of a hand holding a triangular object over a striped surface, with no visible text or symbols.

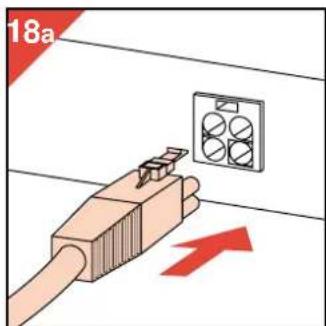

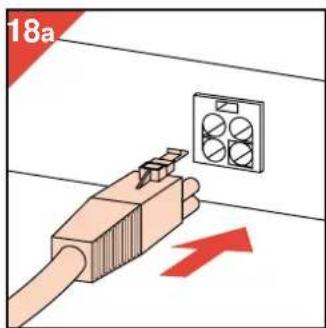

- Connect the connection cord to the solarium (fig. 18a). (To disconnect: fig. 18b.) - Insert the mains plug into a wall socket.

How to use

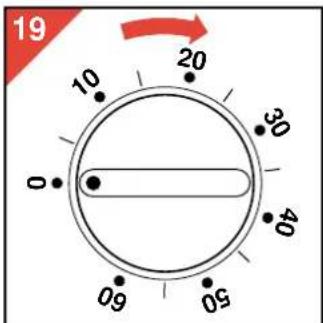

- Set the timer to the session time (fig. 19). (Please refer to the table in these instructions and to your own notes.) - Do not forget to put on the eye goggles provided.

Diagram of a wooden bench with a curved top and side supports, showing a red directional arrow indicating movement (no text or symbols)

- Push the solarium backwards (fig. 20) so that you can easily lie down on the sun couch (fig. 21). (With type HB 546: Please note the side with the extra face tanning lamps.) - When lying, pull the solarium into a horizontal position (fig. 22). - As soon as the session time has elapsed the lamps will automatically be switched off.

Illustration of a person lying on a curved bed-like structure (no text or symbols)

Cleaning

• Always unplug the Combi solarium and let it cool down before cleaning.
- You can clean the outside of the Combi solarium with a damp cloth. Make sure that no water runs into the appliance.
- Do not use abrasives or scourers.
- Never use liquids such as alcohol, methylated spirits, petrol or acetone to clean the protective plates as this may cause irreparable damage.

Replacing the tube lamps and/or starters

In the course of time (in normal family use after some years) the efficiency of the tube lamps will gradually decrease. If this happens, you may increase the tanning session time or have the tube lamps replaced.

• You can have the tube lamps and/or the starters replaced by authorized service personnel: they have the required skill and the original replacement parts and tools to do the job. They also have the facilities to dispose of the used tube lamps.

• Replacing the tube lamps and/or the starters of the solarium and the sun couch is basically similar.

• If you prefer to replace the lamps yourself, proceed as follows:

• First remove the mains plug from the wall socket.

• Remove the starters by turning slightly to the left and withdrawing.
  (Half the amount of starters are at each end of the Combi solarium.)

• To place new lamps and starters proceed in reverse order and direction.
• Slide the protective shield back into the profile. Do not forget to fix the end caps by means of the screws.

The tube lamps of Combi solariums contain substances which may pollute the environment.

When discarding old tube lamps, please ensure that they are separated from the normal household refuse and that they are disposed of at an officially assigned place.

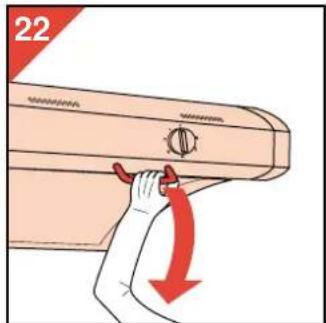

- Loosen the screws and remove the two end caps (fig. 23).

- Pull out the protective shield completely (fig. 24). After this, the lamps and starters are accessible

- Rotate the lamps slightly to the left or to the right. When unlocked remove them from the lamp holders.

Combi solarium does not operate as required?

If the Combi solarium should not operate as required, this may be due to a defect. In this case do not hesitate to apply to your dealer or to a Philips Service Centre.

However, it is also possible that the appliance has not been installed according to the instructions or is used incorrectly. If this is the case, you will be able to solve the problem immediately.

You may check the following section before contacting your dealer or Philips Service Centre.

Problem

• Combi solarium does not switch on.
• The power fuse switches the mains power off when switching on or while using the Combi solarium.
• The browning is not according to your expectations.

Possible cause

• Mains plug is not in wall socket.
• No mains power. (Please check with other appliance.)
• Timer has not been set.
• Check the fuse to which the Combi solarium has been connected. The proper type for your Combi solarium is a 13 A (for U.K.) or a 16 A (for other countries) normal fuse or a slow reacting automatic fuse.
• You use an extension cord which is too long, wound-up and/or does not allow the required power levels. Please apply to your dealer. In general, we advise not to use an extension cord.
• You followed a course which is not the most appropriate for your skin type.
• The operational distance is larger than indicated.
• After using for a long time the UV production of the lamps decreases. (With normal use this will not be noticeable for years.)
  You may compensate for this effect by selecting longer treatment times or replace the sun lamps

Français

Important

10 tubes (type Philips UVA 100W

"Cléo performance")

10 starters (type Philips S12)

B Ciel Tubes et starters

HB 545 - 10 tubes (type Philips UVA 100W

"Cléo performance")

10 starters (type Philips S12)

HB 546 - 10 tubes (type Philips UVA 100W

"Cléo performance")

10 starters (type Philips S12)

4 mini tubes (type Philips UVA 15W

Illustration of a person using a tool on a curved surface, with an inset showing the process (no text or symbols present)

Illustration of a person using a loom on a machine, with a red arrow indicating direction (no text or symbols)

Line drawing of a curved wooden structure with textured surface and vertical supports (no text or symbols)

Illustration of a person using a tool on a large industrial machine, with a red downward arrow indicating compression or reduction (no text or symbols present)

Diagram of a mechanical lever system with pivot and pivot points (no text or symbols)

Illustration of a person operating a textile machine with a red arrow indicating process (no text or symbols)

Mechanical assembly diagram showing a bracket with a red arrow indicating a downward force or adjustment, and a separate view of a metal frame (no text or symbols present)

Diagram of a medical procedure showing a patient lying on a bed with a magnified view (no text or symbols)

Diagram of a mechanical assembly with layered components and a highlighted section (no text or symbols)

Illustration of a garment pattern with a zipper and fabric, no text or symbols present

Illustration of a hand holding a fabric or material over a striped surface, with no visible text or symbols.

Diagram of a wooden bench with a curved top and horizontal side, showing a red directional arrow indicating rotation or movement (no text or symbols present)

Illustration of a person relaxing in a sunlit indoor machine (no text or symbols visible)

Entretien

Type Philips UVA 100 W "Cleo Performance"

10 Starter Type Philips S12

B Sonnenhimmel:

HB 545 - 10 große Röhrenlampen

Type Philips UVA 100 W "Cleo Performance"

10 Starter Type Philips S12

HB 546 - 10 große Röhrenlampen

Type Philips UVA 100 W "Cleo Performance"

10 Starter Type Philips S12

4 kleine Röhrenlampen

Type Philips UVA 15 W "Cleo Performance"

5 Schraubenschlüssel

Inbetriebnahme

Sonnenliege

Illustration of a person using a curved tool on a curved surface, with no visible text or symbols.

Illustration of a mechanical assembly with a hand operating a bracket and two red arrows indicating force or movement (no text or symbols present)

Illustration of a person operating a textile loom with a curved handle and red arrow indicating direction (no text or symbols)

Technical line drawing of a curved structural component with textured surfaces and a base (no text or symbols)

Illustration of a person using a tool to inspect or inspecting a large wooden structure, with a red downward arrow indicating reduction (no text or symbols present)

Diagram of a mechanical lever system with a curved arm and pivot, showing no text or symbols

Illustration of a person operating a textile machine with a red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket with a red arrow indicating a downward force or adjustment, no text or symbols present.

Diagram of a medical procedure showing a patient lying on a bed with a magnified view (no text or labels)

Technical diagram showing a mechanical assembly with layered components and a highlighted section (no text or symbols)

Mechanical assembly diagram showing a bracket with bolts and red directional arrows indicating motion (no text or symbols)

Illustration of a garment pattern with a zipper and fabric, no text or symbols present

Illustration of a hand using a tool to cut or mark a striped pattern on a surface (no text or symbols)

Illustration of a wooden bench with a curved lid and a red arrow indicating rotation (no text or symbols)

Line drawing of a person relaxing in a sunlit outdoor machine (no text or symbols)

Reinigung

10 starters (type Philips S12)

10 starters (type Philips S12)

HB 546 - 10 grote buislampen (type Philips UVA 100W

Illustration of a person using a tool to interact with a curved surface, showing mechanical components and a magnified view (no text or symbols)

Illustration of a person operating a loom with a curved tool, showing motion direction (no text or symbols)

Line drawing of a curved wooden structure with textured surface and vertical supports (no text or symbols)

Illustration of a person using a tool to lift a large cylindrical object, with a red downward arrow indicating compression (no text or symbols present)

Diagram of a mechanical lever system with pivot and pivot points (no text or symbols)

Illustration of a person operating a large industrial machine with a red arrow indicating speed (no text or symbols present)

Mechanical assembly diagram showing a bracket with a red arrow indicating a downward force or adjustment, and small bolts on the base (no text or symbols present)

Diagram of a medical procedure showing a patient lying on a stretcher with a magnified view (no text or labels)

Diagram of a mechanical assembly with layered components and a highlighted section (no text or symbols)

Mechanical assembly diagram showing a bracket with red arrows indicating force or motion direction (no text or symbols)

Illustration of a garment pattern piece with striped fabric and a zipper, no text or symbols present

Illustration of a hand holding a fabric or paper over a striped surface, with no visible text or symbols.

Diagram of a folding bench with a red arrow indicating rotation or movement (no text or symbols)

Illustration of a person relaxing on a curved bench with a red label '21' (no text or symbols on the diagram itself)

Schoonmaken

Close-up of a mechanical component with a red upward arrow and screw hole, no visible text or symbols

Illustration of a person using a handheld device to interact with a curved surface, showing mechanical components and a magnified view (no text or symbols)

Illustration of a person using a lathe machine to interact with a conveyor belt, showing motion direction (no text or symbols)

Line drawing of a curved wooden structure with textured surface and support beams (no text or symbols)

Illustration of a person using a large tool on a machine, with a red downward arrow indicating compression or reduction (no text or symbols present)

Diagram of a mechanical lever system with pivot and pivot points (no text or symbols)

Illustration of a person operating a large industrial machine with a red arrow indicating speed (no text or symbols)

Mechanical assembly diagram showing a bracket with a red arrow indicating force or adjustment, no text or symbols present

Illustration of a person lying on a bed with a magnified view of the abdomen (no text or symbols)

Diagram of a mechanical assembly with layered components and a highlighted section (no text or symbols)

Illustration of a garment collar with fabric and striped pattern, no text or symbols present

Illustration of a hand holding a fabric or material inside a rack, with no visible text or symbols.

Diagram of a wooden bench with a curved top and side supports, showing a red directional arrow indicating rotation (no text or symbols)

Illustration of a person relaxing in a sunlit indoor machine (no text or symbols visible)

Pulizia

Illustration of a person using a curved tool on a curved surface, with no visible text or symbols.

Illustration of a person using a loom to lift a machine, with a red arrow indicating downward motion (no text or symbols)

Line drawing of a curved wooden structure with textured surface and support legs (no text or symbols)

Illustration of a person using a tool to brush or brush on a large industrial machine, with a red downward arrow indicating compression (no text or symbols present)

Diagram of a mechanical lever system with pivot and pivot points (no text or symbols)

Illustration of a person operating a large industrial machine with a red arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a bracket with a red arrow indicating a downward force or adjustment, and a small bolt on the base (no text or symbols present)

- Levanten el Solarium de la mesa (fig. 9).

Diagram of a medical procedure showing a patient lying on a bed with a ruler and clamped cup (no text or labels)

Technical diagram of a mechanical assembly with layered components and a highlighted section (no text or symbols)

- Echense sobre la Cama solar (fig. 11).

Mechanical assembly diagram showing a bracket with bolts and red directional arrows indicating motion (no text or symbols)

Illustration of a garment pattern piece with striped fabric and a zipper, no text or symbols present

Illustration of a hand holding a tool interacting with a striped panel (no text or symbols visible)

Diagram of a wooden bench with a curved seat and a red arrow indicating rotation (no text or symbols)

Illustration of a person relaxing on a bamboo raft under sunlight (no text or symbols)

Illustration of a person using a tool on a curved surface, with no visible text or symbols

Illustration of a person using a loom on a machine, with a red arrow indicating direction (no text or symbols)

Line drawing of a curved wooden structure with textured surface and vertical supports (no text or symbols)

Illustration of a person using a large wooden tool to interact with a machine, with a red downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical lever system with pivot and guide mechanism (no text or symbols)

Illustration of a person operating a textile loom with a red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket with a red arrow indicating a downward force or adjustment, no text or symbols present.

- Løft overdelen op fra bordet (fig. 9).

Diagram of a medical procedure showing a patient lying on a stretcher with a magnified view (no text or labels)

Technical diagram of a mechanical assembly with layered components and dotted lines indicating motion (no text or symbols)

Illustration of a garment collar with a hand holding a sleeve, showing fabric texture and stitching (no text or symbols)

Illustration of a hand holding a triangular object over a striped surface, with no visible text or symbols.

- Sæt ledningen i solariet (fig. 18a). (Løse: fig. 18b.)

Illustration of a bamboo bench with a red arrow indicating compression or shift (no text or symbols)

Illustration of a person relaxing in a sunlit bath machine (no text or symbols)

Rengøring

4 startere (type Philips S 2)

© Endestykker

D Nettledning

E Føtter

F Tidsur

G Stativ

HStang

Gass støtdemper

Illustration of a person using a curved tool on a curved surface, with no visible text or symbols.

Illustration of a person using a loom to lift a machine, with a red arrow indicating downward motion (no text or symbols)

Line drawing of a curved wooden structure with textured surface and vertical supports (no text or symbols)

Illustration of a person using a large wooden tool to interact with a machine, with a red downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical lever system with pivot and pivot points, no text or symbols present

- Få hjelp av en annen person. Legg solariet på et bord, med rørene pekende nedover (fig. 7). Forsikre Dem om at håndtaket ikke hviler på bordet.

- Fest de to gass demperne til stengene (fig. 8).

Illustration of a person operating a textile loom with a red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket with a red arrow indicating a downward force or adjustment, no text or symbols present.

Diagram of a medical procedure showing a patient lying on a stretcher with a magnified view (no text or symbols)

Technical diagram of a mechanical assembly with layered components and dotted lines indicating motion (no text or symbols)

Mechanical assembly diagram showing a bracket with red arrows indicating force or movement (no text or symbols present)

Illustration of a garment collar with a hand holding a sleeve, showing fabric texture and stitching (no text or symbols)

Illustration of a hand holding a triangular object over a striped surface, with no visible text or symbols.

Diagram of a folding bench with a red arrow indicating rotation or movement (no text or symbols)

Illustration of a person relaxing in a sunlit bath with a red label '21' (no text or symbols on the diagram itself)

Rengjøring

Illustration of a person using a curved tool on a curved surface, with no visible text or symbols.

Illustration of a person operating a textile loom with a curved handle and red arrow indicating direction (no text or symbols)

Line drawing of a curved wooden structure with textured surface and vertical supports (no text or symbols)

Illustration of a person using a tool on a large industrial machine, with a red downward arrow indicating compression or reduction (no text or symbols present)

Diagram of a mechanical lever system with pivot and pivot points, no text or symbols present

Illustration of a person using a loom to brush or brush on a machine, with a red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket with a bolt and a separate workpiece, no text or symbols present

Diagram of a medical procedure showing a patient lying on a bed with a ruler and stand (no text or labels)

Diagram of a mechanical assembly with layered components and a highlighted section (no text or symbols)

Mechanical assembly diagram showing a bracket with bolts and red directional arrows indicating motion (no text or symbols)

Illustration of a garment pattern piece with striped fabric and a zipper, no text or symbols present

Illustration of a hand holding a tool interacting with a striped panel (no text or symbols visible)

Illustration of a wooden bench with a curved seat and a red arrow indicating rotation (no text or symbols)

Illustration of a person relaxing on a bamboo raft under sunlight (no text or symbols)
