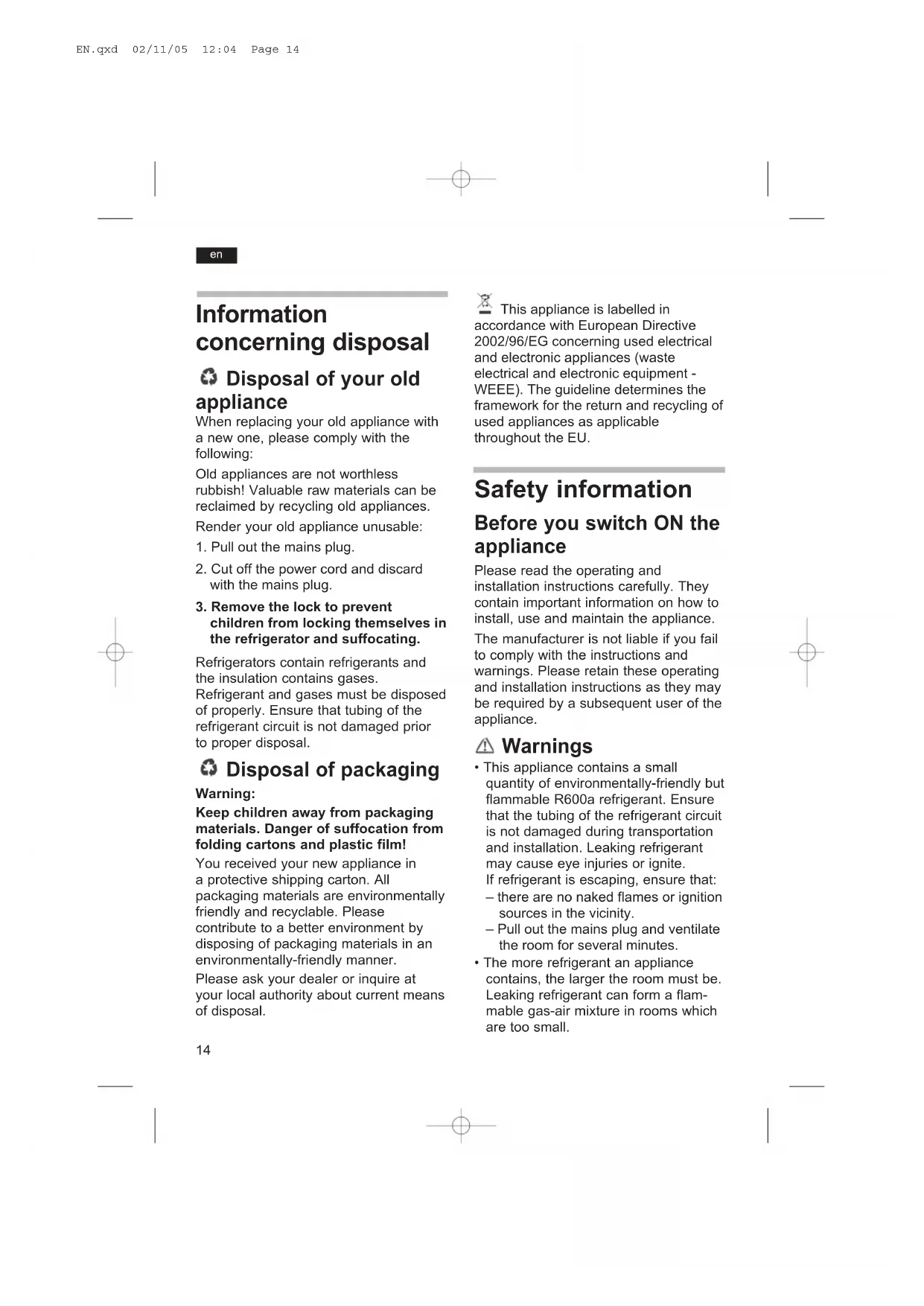

EN Operating Instructions

Disposal of your old

When replacing your old appliance with

a new one, please comply with the

Old appliances are not worthless

rubbish! Valuable raw materials can be

reclaimed by recycling old appliances.

Render your old appliance unusable:

1. Pull out the mains plug.

2. Cut off the power cord and discard

with the mains plug.

3. Remove the lock to prevent

children from locking themselves in

the refrigerator and suffocating.

Refrigerators contain refrigerants and

the insulation contains gases.

Refrigerant and gases must be disposed

of properly. Ensure that tubing of the

refrigerant circuit is not damaged prior

Disposal of packaging

Keep children away from packaging

materials. Danger of suffocation from

folding cartons and plastic film!

You received your new appliance in

a protective shipping carton. All

packaging materials are environmentally

friendly and recyclable. Please

contribute to a better environment by

disposing of packaging materials in an

environmentally-friendly manner.

Please ask your dealer or inquire at

your local authority about current means

This appliance is labelled in

accordance with European Directive

2002/96/EG concerning used electrical

and electronic appliances (waste

electrical and electronic equipment -

WEEE). The guideline determines the

framework for the return and recycling of

used appliances as applicable

Before you switch ON the

Please read the operating and

installation instructions carefully. They

contain important information on how to

install, use and maintain the appliance.

The manufacturer is not liable if you fail

to comply with the instructions and

warnings. Please retain these operating

and installation instructions as they may

be required by a subsequent user of the

• This appliance contains a small

quantity of environmentally-friendly but

flammable R600a refrigerant. Ensure

that the tubing of the refrigerant circuit

is not damaged during transportation

and installation. Leaking refrigerant

may cause eye injuries or ignite.

If refrigerant is escaping, ensure that:

– there are no naked flames or ignition

sources in the vicinity.

– Pull out the mains plug and ventilate

the room for several minutes.

• The more refrigerant an appliance

contains, the larger the room must be.

Leaking refrigerant can form a flam-

mable gas-air mixture in rooms which

EN.qxd 02/11/05 12:04 Page 1415

• The room must be at least 1 m

g of refrigerant. The amount of

refrigerant in your appliance is

indicated on the rating plate inside the

– Rinse eyes and call a doctor.

– Keep ignition sources and naked

flames away from the appliance.

– Pull out the mains plug and ventilate

the room for several minutes.

• In the following cases pull out the

mains plug or switch off the fuse.

Do not pull out the mains plug by

• Do not switch on damaged or

defective appliances. If in doubt,

contact your dealer.

• Never use electrical appliances inside

the refrigerator (e.g. heater, electric

• Do not store products which contain

flammable propellants (e.g. spray

cans) or explosive substances in the

appliance – Risk of explosion!

• Do not allow children to play with the

• NEVER use a steam cleaner to

defrost or clean the appliance. Steam

may come into contact with electrical

components and cause a short-circuit

or an electric shock.

When using the appliance, comply

• Never cover or block the ventilation

• Repairs may be performed by

qualified technicians only. Improper

repairs may put the user in

considerable danger.

• Do not stand or support yourself on

the base, drawers or doors, etc.

• Bottles which contain a high percen-

tage of alcohol must be sealed and

stored in an upright position.

• If the appliance features a lock, keep

the key out of the reach of children.

• Keep plastic parts and the door seal

free of oil and grease. Otherwise,

parts and door seal will become

• Do not store bottled or canned drinks

(especially carbonated drinks) in the

freezer compartment. Bottles and

• Do not put an ice lolly or ice cube

directly from the freezer compartment

into your mouth. Risk of burns from

very low temperatures!

• Never touch frozen food with wet

hands. Your hands could freeze to the

• Do not scrape off hoarfrost or stuck

frozen food with a knife or pointed

object. You could damage the

refrigerant tubing. Leaking refrigerant

may ignite or cause eye injuries.

• Use only agents recommended

by the manufacturer to accelerate

the defrosting process.

EN.qxd 02/11/05 12:04 Page 1516

• Do not block the ventilation grilles on

the refrigerator casing.

• Do not use mechanical devices or any

other method to accelerate the

thawing-out process, other than those

recommended by the manufacturer.

• Do not damage the refrigeration

• Always use the internal electrical

components recommended by the

manufacturer for your

refrigerator/freezer.

General requirements

The appliance is suitable

• for refrigerating and freezing food,

The appliance is designed for domestic

If the appliance is used industrially, the

appropriate standards and regulations

The appliance has been interference-

suppressed in compliance with EU Directive 89/336/EEC.

The refrigerant circuit has been tested

This product complies with the relevant

safety regulations for electrical

appliances (EN 60335/2/24).

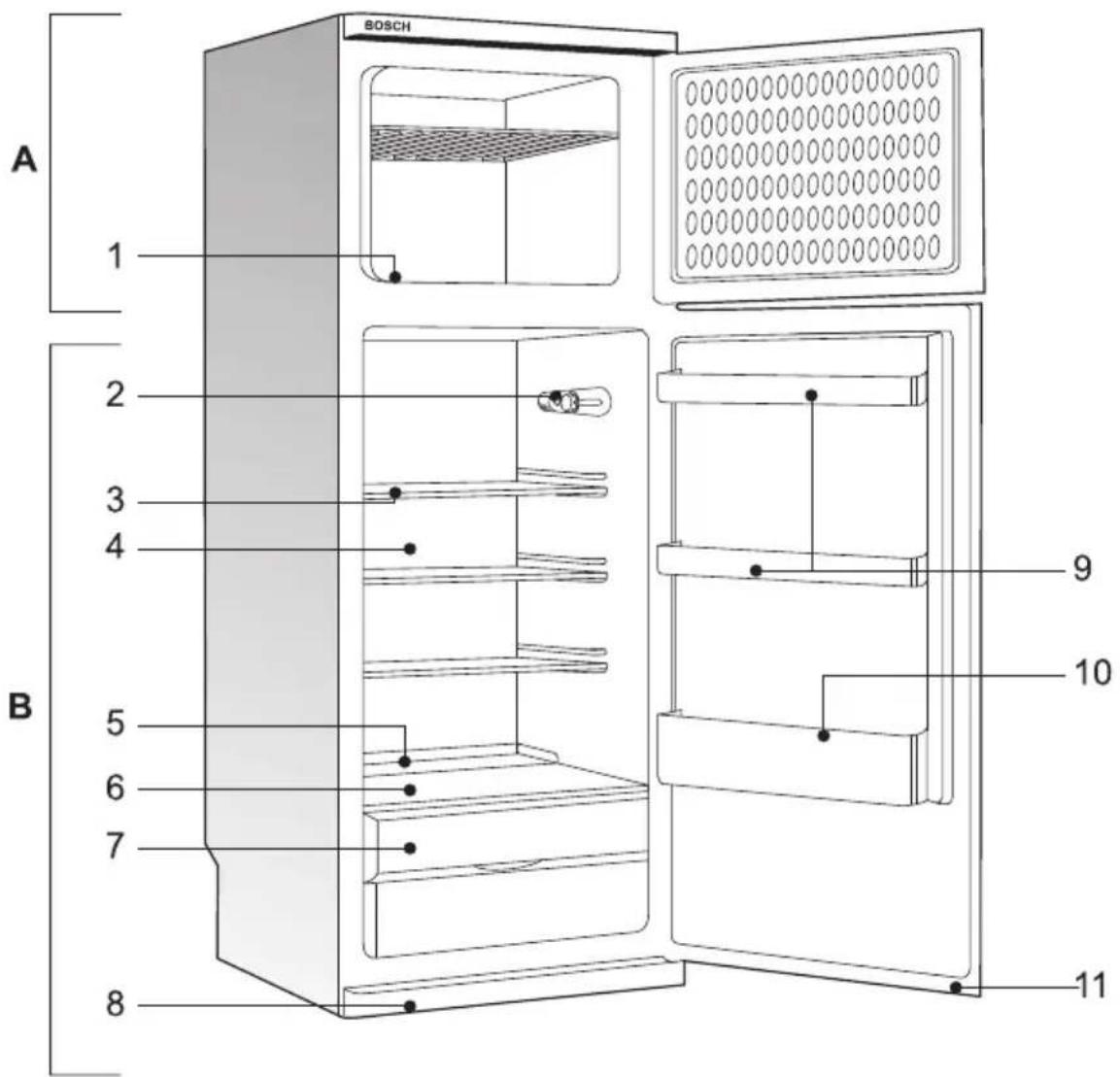

Details may differ according to the

appliance type, especially with respect

2 Temperature selector/inner light

8 Kickstrip with ventilation outlet

A Deep-freezing compartment

The climatic class can be found on the

rating plate (Fig. !!0) and indicates the

ambient temperatures at which the

appliance can be operated.

Climatic class Permitted ambient

SN +10 °C to 32 °C N +16 °C to 32 °C ST T Ventilation

Fig. R The air on the rear panel of the

appliance heats up. The warm air must

be able to escape. Otherwise, the

refrigerator must work harder. This will

increase the power consumption.

Therefore: Never cover or block

ventilation openings!

Information on the usable capacity can

be found inside your appliance on the

After installing the appliance, wait at

hour until the appliance starts

up. During transportation the oil in the

compressor may have flowed into the

refrigeration system.

Before switching on the appliance for

the first time, clean the interior (see

The socket should be easily accessible.

Connect the appliance to 220–240 V/

50 Hz alternating current via a correctly

installed earthed socket. The socket

must be fused with a 10 A fuse or

If the appliance is to be operated in

a non-European country, check

on the rating plate whether the

indicated voltage and current type

correspond to the values of your

mains supply. The rating plate is

located in the appliance at the bottom

left-hand side. The mains connection

cable may be replaced by an

temperature selection

Clean the inside of the appliance

thoroughly, before using the first time

Turn temperature selector (figure E)

out of the position “O”.

The refrigerating process begins.

Should the door of the freezer

compartment refuse to come open

shortly after having closed it, please

wait for two or three minutes for the

suction produced, when the door was

first opened, to release.

Temperature selection

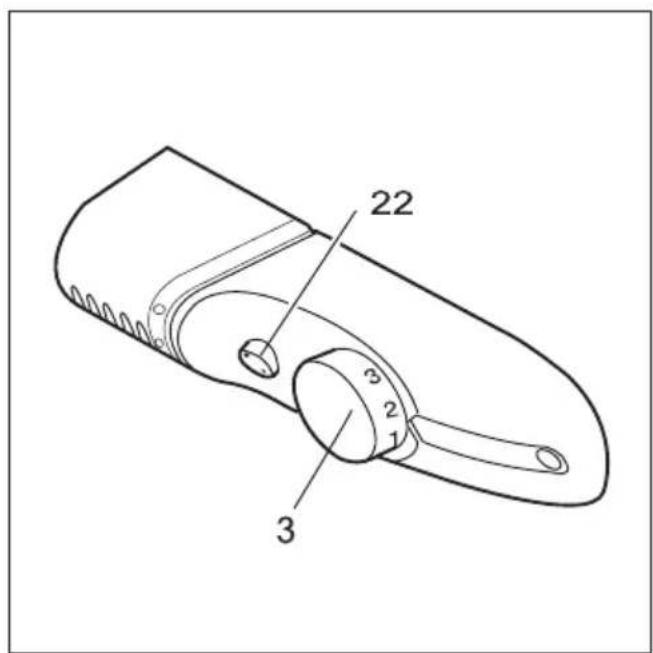

Use the temperature selector (Figure E)

to adjust the temperature of both freezer

and refrigerating compartments.

Observe the high figures yield low

degrees of temperature.

When the temperature selector is placed

at setting “O” the refrigerating process is

From setting “1” onwards it starts and

We suggest a medium temperature

setting (approximately “2-3”).

To freeze foods, rotate the temperature

control to “3” (see also “Freezing”).

Observe the following for

the storage of frozen

If the temperature of the room where the

appliance has been placed drops below

+18ºC the freezer switch should be

connected. A red mark will indicate it is

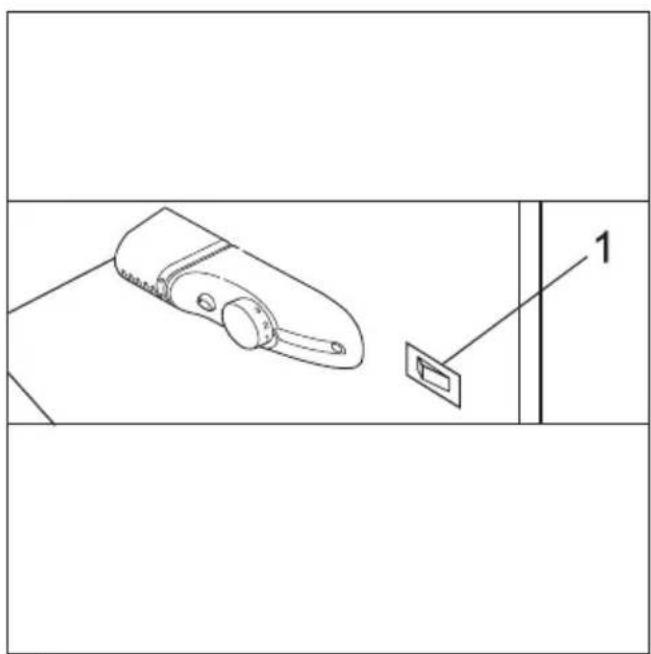

on (figure E/22). On connecting the

switch, the inner light will remain on at

reduced power. This ensures that the

temperature required in the freezer

compartment for long-life storage of food

Turn the temperature selector

(Figure E) to the setting “O”.

The refrigerating process stops for the

If the appliance is set out of use for a

long period of time, unplug, allow to

defrost and clean. Leave the door of the

freezer compartment and appliance's

How to rearrange the

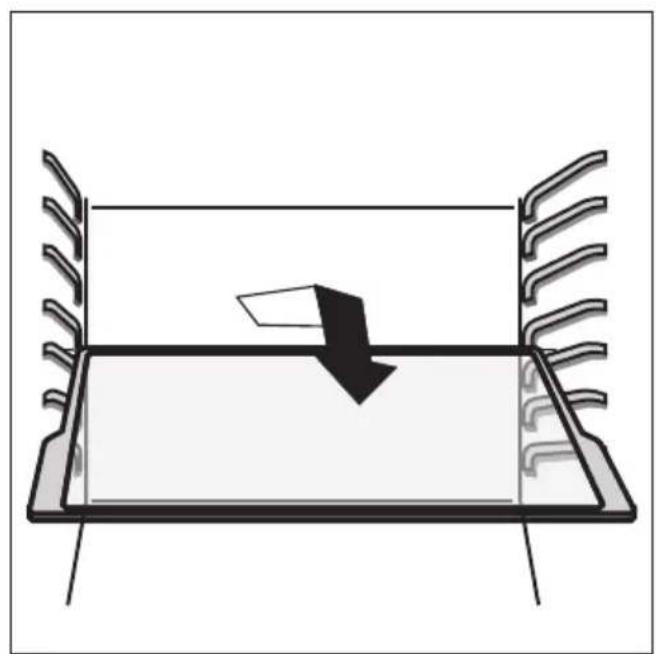

The shelf racks in the refrigerator area

may be adjusted to different levels. To

adjust, pull rack forward, push it down

and reinstall at the desired position.

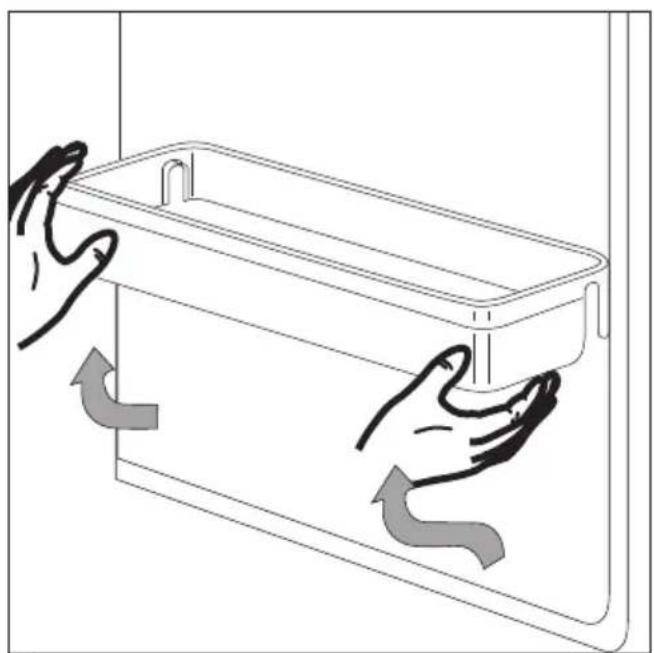

The containers on the inside of the door

may be taken out for cleaning (Fig. Y).

following when arranging

food inside the appliance:

• Allow warm food or beverages to cool

down before placing inside the

• Wrap or cover food well before placing

inside the appliance.

• Oil or fat should not be allowed to

come in contact with the plastic parts

of the appliance or with the door seal

(these are materials which tend to

become easily porous).

• Do not store explosive substances

inside the appliance.

• Keep high-proof alcoholic beverages

in air-tight bottles or jars and store in

• The coldest areas in the refrigerator

are the rear wall and the area around

Example of arrangement

Figure Q In the freezer compartment (A):

freezing of fresh products, storage of

deep-frozen goods and making ice

In the refrigerator (B):

On racks (3), from top to bottom:

pastries, ready-cooked meals,

In the meat containers (4)

meat and cold slices.

meat, sausages and cold slices.

In the vegetable bin (7):

vegetables, lettuce and fruit.

In the door compartment (9):

tubes and small tins.

On the large shelf (10):

The air circulation in the refrigerator

compartment means that there are

zones at different temperatures.

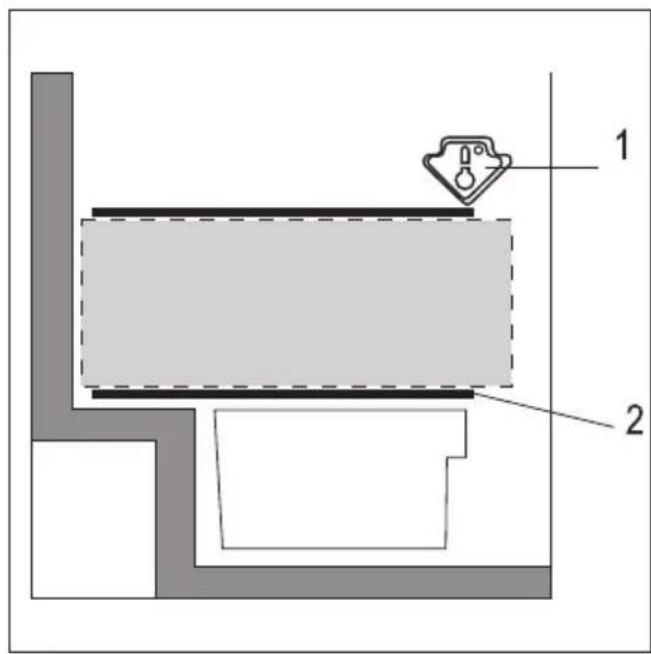

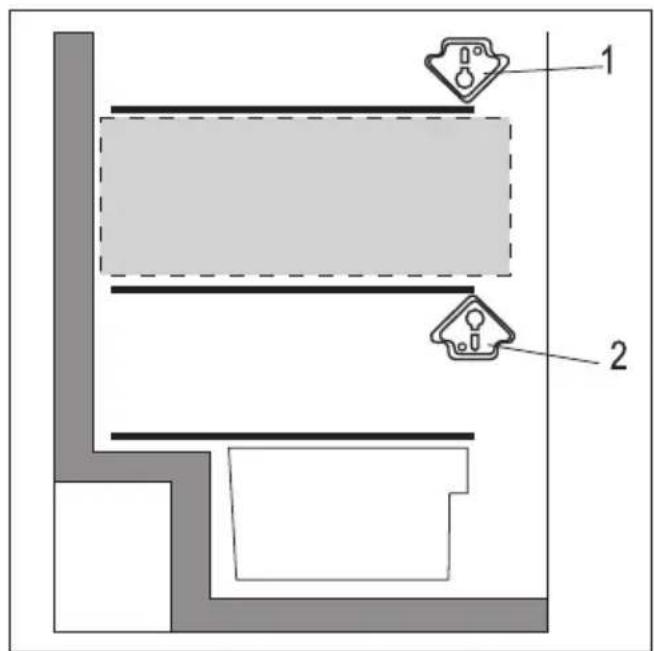

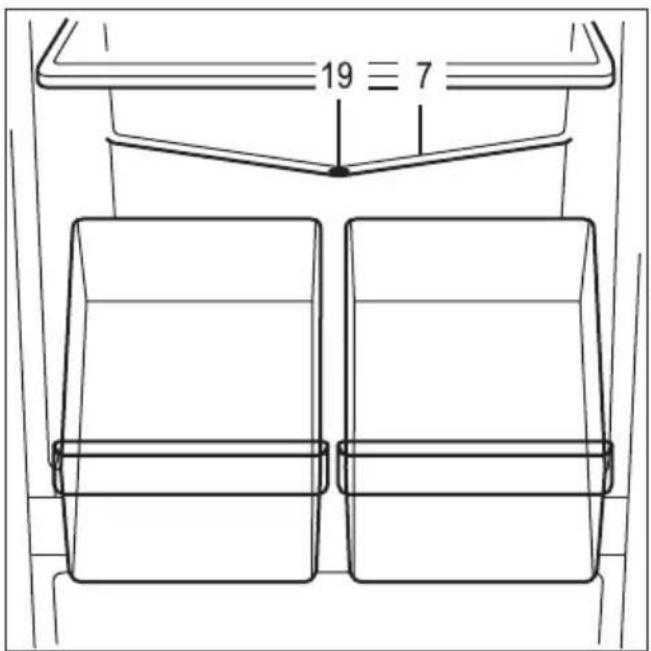

Depending on the model, the zone for

sensitive foods is right at the bottom

between the arrow on the side and the

glass surface below (fig. !1/1 and 2) or

between the two arrows (fig. !2/1 and

2). Ideal for storing meat, fish, sausage

and salad mixtures, etc.

EN.qxd 02/11/05 12:04 Page 1920

Observe the following

when purchasing deep-

• Inspect the package and ensure that it

is perfect conditions.

• Check the expiry date stamped on the

package; make sure it has not run out.

• Check the thermometer in the freezer

of the store where you purchase your

goods; it should indicate a

temperature lower than -18ºC.

• When shopping, ensure that the deep-

frozen products are the last items to

bepurchased; wrap them up in

newspaper or place in a insulating

bag and take them home at once,

place in the home freeze right away.

If home freezing, ensure that the

products of your choice are absolutely

fresh and in perfect condition. Pack food

airtight so that it does not lose its taste

Suitable wrapping material:

Plastic film, polyethylene bags, alu-foil

and freezing containers.

All these products are available at your

local dealers and most large

Unsuitable wrapping material:

wrapping paper, wax-coated paper,

butcher's paper, cellophane, rubbish

bags or used carrier bags.

Wrap-up food, press down on parcel to

remove all air and seal airtight.

Suitable sealing material:

rubber bands, plastic clips, string, water-

proof adhesive tape or similar. Plastic

and polyethylen bags may be heat-

sealed with an appropriate machine.

Label package indicating contents and

date of freezing before storing in the

freezer compartment.

Information about the max. freezing

capacity according to current

standards can be found on the rating

The maximum freezing capacity for

fresh food in 24 h (distributed on the

freezer racks) is indicated on the

characteristics plate (in Kg/24h), see

To retain the vitamins, nutritional value,

appearance and flavour, do not exceed

the max. freezing capacity.

selector to freezing and

switch on freezing process

Turn temperature selector to an average

temperature setting (approx. “3”)

whenever fresh products are put in to

This temperature setting is sufficient for

freezing up to 2,5 kg of food. For larger

amounts you should additionally actuate

the freezing switch (Fig. E/22).

(Press the rocker switch -red marking

If takes approximately 24 hours for the

freezing process to reach full

completion; once the food is thoroughly

frozen, you may disengege the freezing

EN.qxd 02/11/05 12:04 Page 2021

Please observe following

when putting fresh food

Please carefully ensure that freshly

freezing food does not come into

contact with food which is already

Observe the following

tips for better storage of

If the temperature of the room where the

appliance has been placed drops below

+18ºC the freezer switch should be

connected. A red mark will indicate it is

on (figure E/22). On connecting the

switch, the inner light will remain on at

reduced power. This ensures that the

temperature required in the freezer

compartment for long-life storage of

To avoid quality loss, it is important not

to be exceed the admissible storage life

assigned to each product. The length of

admissible storage varies from product

to product. Fish, cold slices, ready-

cooked meals bread and pastries will

keep out to two months at a

temperature of -18ºC. At the same

degree of temperature you may keep

meat, poultry and cheese for up to four

months and fruit and vegetables for up

Depending on the type of food and the

use intended for it, you may choose

among any of the following defrosting

- at ambient temperature,

- in the refrigerator,

- in an electric oven.

- with/without fanheater,

- in a microwave oven.

You may refreeze food that has partially

or totally defrosted provided that:

- in the case of meat and fish, these

products were not kept for longer than

a day at a temperature of 3ºC or

- in the case of other products, these

were not kept for longer than three

days at a temperature of 3ºC or

Otherwise, check food for smell,

appearance and flavour, if these have

remained unaltered, boil, fry, roast or

cook food to some kind of ready meal

and refreeze. Observe that the

maximum admissible storage life in this

case is shorter than average.

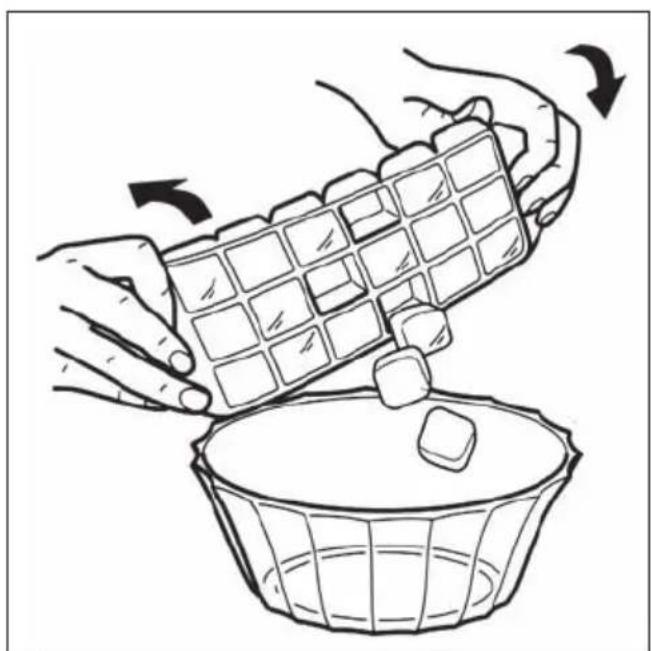

Figure U Fill ice tray 3/4 full with water and place

on the bottom of the freezer

compartment. Ice cubes will be easier to

remove if the tray is given a gentle twist.

The refrigerator defrosts automatically.

The thaw-water collects in the discharge

gutter (figure I/7) and is then

conducted to the refrigerating unit to

evaporate. Ensure that the discharge

gutter and the discharge outlet

(figure I/19) are clean at all times, so

that water may drain unhindered.

For safety reasons, the freezer

compartment (Figure Q/A) does not

defrost automatically, since the products

stored in this area, are not supposed to

accidentally thaw out. Intensive frost and

ice build-up adversely influence the cold

transmission to the frozen products and

cause the rate of energy consumption to

Scrape off frost build-ups

To remove frost build-ups you may use

the standard frost scrapers available at

most local dealers and large

supermarkets. Ensure that the freezer

compartment is not damaged when frost

is scraped. Never use sharp or pointed

items or metal utensils to remove frost.

Allow ice coats to thaw out

If a thick ice coat has built up inside the

freezer compartment, it should be

allowed to thaw out.

If there are still frozen products in the

freezer, swicht on the freezer switch

(Fig. E/22) about 4 hours before

defrosting so that the food is once again

Observe the following procedure:

• Remove frozen products, wrap up well

in newspaper and store in a cool

• Turn the temperature selector

(Figure Q/2) to setting "O" or unplug.

Do not allow thaw water to run into

the temperature selector.

• Leave door open and wipe-up thaw

water with a cloth or sponge.

• Rub freezer compartment dry, switch

appliance on once more and reinsert

Be extremely careful when using

defrosting sprays. These sprays may

cause the formation of explosive gases,

contain propellants or substances which

may be a major health hazzard and

even damage the plastic parts of the

When making use of these sprays, read

the manufacturer's instructions most

carefully and adhere strictly to the given

Before cleaning, make it a rule to

unplug the appliance and/or

Use luke-warm water with a little

desinfectant and washing-up liquid to

clean the entire appliance, except for

the door seal. Never use sand, abrasive

cleansers or acids, e.g. chemical

Clean the door seal (Figure Q/11) with

clear water and dry thoroughly

Do not allow cleaning water to get into

the temperature selector.

The discharge gutter (Figure I/7) and

the discharge outlet (Figure I/19)

should be cleaned more frequently to

ensure that thawwater can drain

unhindered. Pierce the discharge outlet

with a toothpick or similar object to get

it clean. Try to prevent cleaning water

from getting into discharge outlet and

running through to the evaporating

In you so wish, you may additionally use

a standard furniture polish to clean the

outer cabinet panels. Ensure that the

door of the appliance is closed while

prevent the polish from getting to the

door seal or to the plastic parts inside

• Install appliance in a cool and well

ventilated room, do not expose to

direct sunlight and keep away from

heat sources (radiators, cookers etc.).

• Allow warm food and beverages to

cool down before storing in the

• When defrosting, place the deep-

frozen goods inside the refrigerator.

The cold loss from the frozen goods

can be effectively used-up to assist

the cooling process inside the

• Allow freezer compartment to thaw out

when ice has built-up. A thick coat of

ice adversely affects the cold

transmission to the frozen goods and

causes the rate of energy

consumption to increase.

• When putting in or taking out food,

avoid keeping the door of the

appliance open for too long.

EN.qxd 02/11/05 12:04 Page 2324

Small problems for self-help

Before calling the service engineer, check the following points and see if you

can solve the problem yourself.

If the service engineer is simply called-in for advice, i.e. if he finds no real fault

with the appliance when he visits, you will be charged the full cost of service

time, even before the guarantee period has run out.

The inner light does not

The temperature inside the

refrigerator is too cold:

Total lack of cooling:

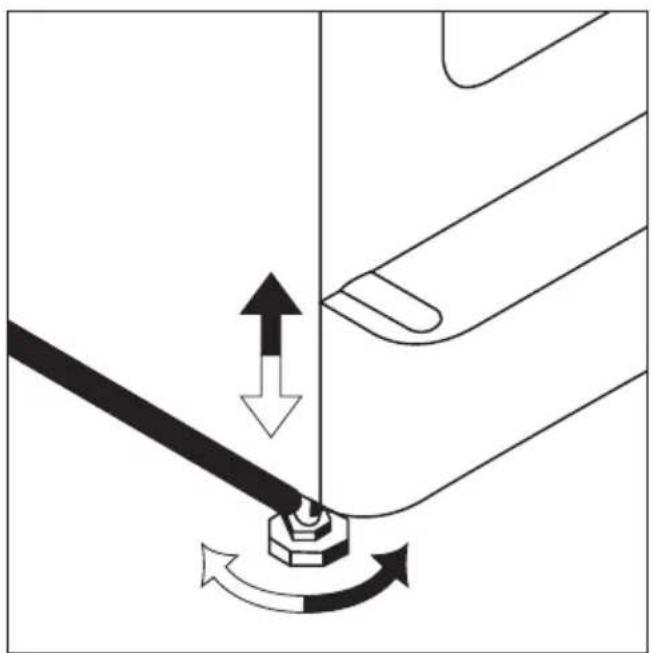

- The appliance may not be standing level or some

kind of object is caught near the refrigerating unit.

- A part on the rear wall of the appliance cannot turn

freely and rubs against the appliance or against

the wall. In this case, bend part carefully away.

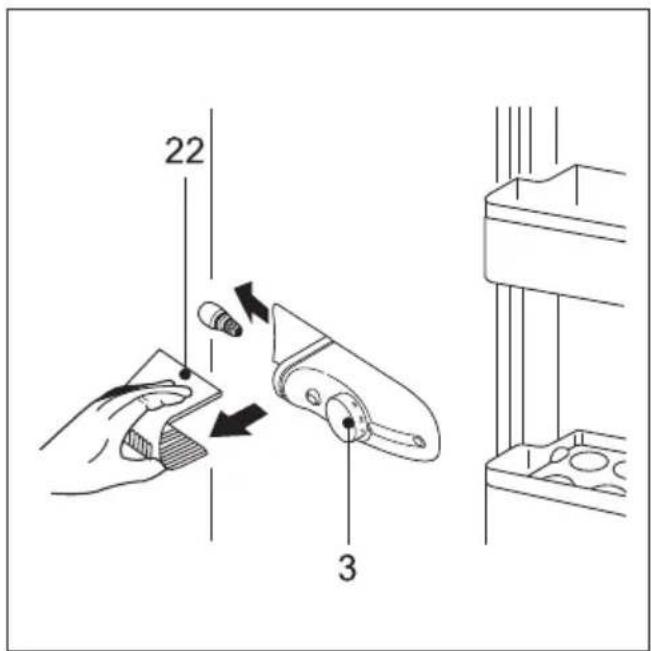

- The bulb has burnt out. Pull plug out of supply

socket. Remove screen (Fig. O) then remove bulb

and exchange for a new one, maximum 15W, 220-

- The light switch sitcks (Figure T/1). Try to get the

switch to move. If it doesn't budge call customer

- The temperature selector (figure O/3) is on setting

- Temperature setting dial is set at a too low

- Fresh food was put into freeze without switching

on the super-freeze (Fig. E/22).

- The door was opened too often.

- A large amount of food was placed in the

- A thick layer of frost has built up inside the freezer.

- The relief outlet and the ventilation grid are

- Some kind of object is caught between the

refrigerating unit and the wall.

- Plug does not fit properly into socket.

- The fuse has disengaged.

- Temperature selector (figure Q/2) is on setting “O”.

EN.qxd 02/11/05 12:04 Page 2425

If you have not managed to solve the

problem with help of the above

mentioned tips, call customer service.

Do not insist on solving the problem

yourself. Above all, refrain from working

on the electrical parts.

Try not to open the door of the appliance

unnecessarily to avoid cooling loss.

You can find your local customer service

in the telephone directory or in the

customer service list. When calling

customer service, please quote the

product number (E-Nr.) and the

production number (FD) of the

This information can be found on the

rating plate (Fig. !0).

To prevent unnecessary call-outs,

please assist customer service by

quoting the product and production

numbers. This will save you additional

and electronic equipment - WEEE).

Congélation stockage

frigorifique diminue:

electrical and electronic equipment -

and electronic equipment – WEEE).

NO.qxd 02/11/05 12:05 Page 60sv

stilling. Derved startes

under den ydre rengøring for at undgå

and electronic equipment - WEEE).
