MSI 5561 - Massage device AEG - Free user manual and instructions

Product type	Massage device
Brand	AEG
Model	MSI 5561
Net weight	0.30 kg
Power supply	3 AA 1.5 V batteries (UM-3, R6)
Operating modes	3: off (0), massage (1), massage + heating panel (2)
Heating function	Yes, built-in heating panel
Cooling function	Yes, via gel accessory (place in freezer for 30 min)
Included accessories	Gel accessory, ball accessory (4x), 4-massage-foot accessory, heating panel
Maximum usage time per session	20 minutes
Recommended cooling time	15 minutes between sessions
Recommended use	On body areas, preferably without clothing, avoid sensitive areas
Cleaning the device	With a damp cloth, do not immerse
Cleaning accessories	Gel and ball accessories: washable with soapy water
Protection class	III
Compliance	EC directives (electromagnetic compatibility and low voltage)
Warning	Heating surface, do not use on painful or swollen skin, do not leave unattended
Environmental protection	Do not dispose of with household waste; recycle the device and batteries through public collection points

Frequently Asked Questions - MSI 5561 AEG

How to turn on and use the MSI 5561 device?

Turn the function button (1) to select the mode: position 0 = off, 1 = massage only, 2 = massage + heating panel. Direct the device to the desired areas with light pressure.

Can I use the device with clothes on?

The device is more effective without clothes. The massage should be pleasant and painless. If you feel discomfort, stop immediately.

What is the maximum recommended usage time?

Do not use for more than 20 minutes per session. After use, let the device cool for about 15 minutes before reusing.

What to do if the device no longer turns on or loses power?

Press the unlock button (3) to open the battery compartment. Replace the batteries with new AA (UM-3, R6) batteries, respecting polarity. If not used for a long time, remove the batteries to avoid leaks.

How to clean the massage accessories?

Remove the accessories from the device. The gel accessory and ball accessory can be cleaned with soapy water. The device itself can be cleaned with a damp cloth; never immerse it.

Does the device really heat up? Is it dangerous?

Yes, the heating panel heats up. Check the temperature before use. Do not use the device on painful, inflamed or sensitive areas, nor near the eyes.

How to use the gel accessory for cold massage?

Place the gel accessory in the freezer for about 30 minutes. Use it only with the massage only mode (position 1).

Can I use the device if I have sensitive skin or lesions?

No, not recommended. Do not use the device on painful, inflamed or sensitive areas. People who are less sensitive to heat should be especially careful.

How to replace the massage accessories?

To remove an accessory, turn it until the arrows are on the 'F' symbol. To install a new one, turn it until it clicks; the arrow should point to the '®' symbol. Always turn off the device before changing accessories.

How to dispose of the device at end of life and used batteries?

Do not dispose of the device or batteries with household waste. Return used batteries to a collection point (legal requirement). The device must be recycled at a public collection center to protect the environment.

USER MANUAL MSI 5561 AEG

Location of Controls

German

Safety Instructions

Whenever you want to use the "quando" function, you can use the following command:

Stop the function

Before using this device, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the device to any third person, include the user manual as well.

• Use the device for private and its intended purpose only. The device is not intended for commercial use. Do not use the device outdoors. Protect it from heat, direct sunlight, humidity (do not immerse into liquids under any circumstances) and sharp edges. Do not leave the device unattended during operation.
• Do not operate a damaged device.
• Do not repair the device by yourself; contact an authorized expert. This device is intended for the massage of adult skin.
• Only use the device for its intended purpose.
• Do not use the device near eyes or other sensitive body parts.

WARNING:

The surface of the device gets hot. Persons who are not sensitive to heat should take special caution when using the device.

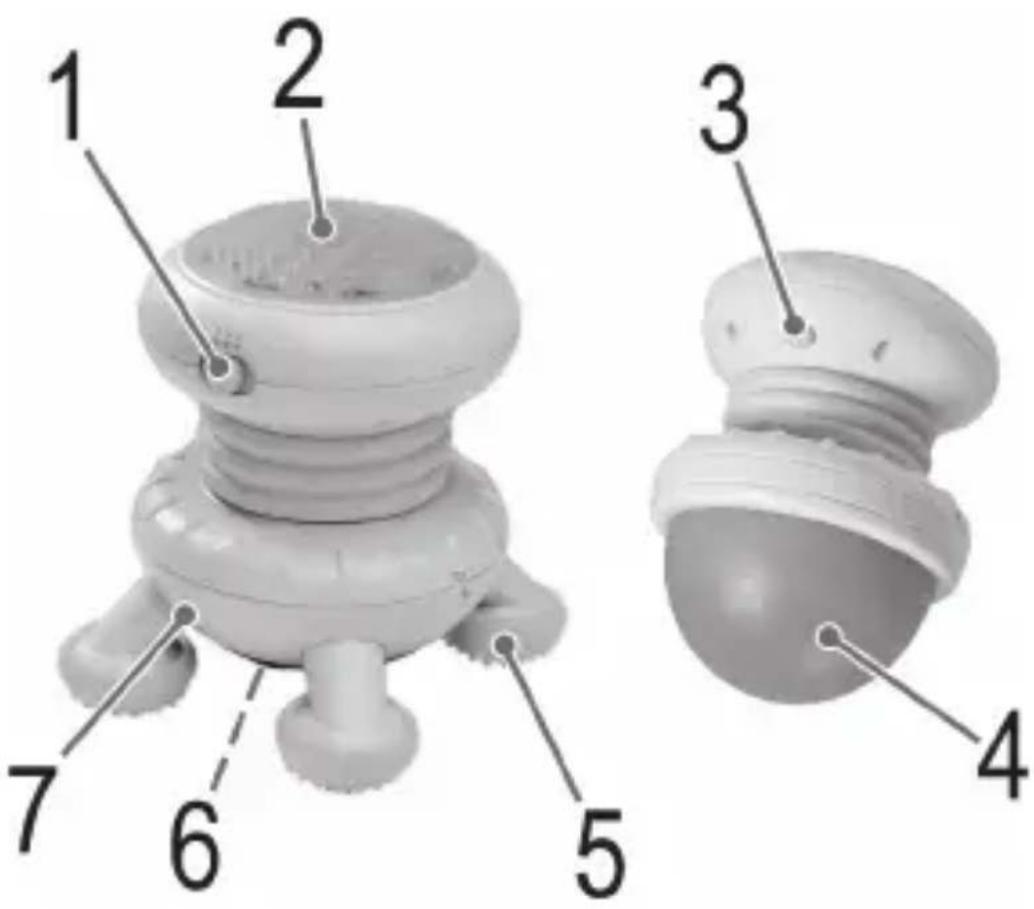

Location of Controls

1 Function switch 2 Battery compartment with soft cover 3 Unlock key of battery compartment

42 English

4 Gel attachment for cooling massage 5 Multi-burls attachments (4x) 6 Heating panel 7 Massage attachment with 4 massage feet

Inserting batteries (Batteries included in delivery scope)

NOTE:

The 3 batteries in the battery compartment have been secured with a foil for transport of the device. This is to extend the lifespan of the batteries. Remove the foil prior to first use in order to prepare the device for operation.

If the power of the device weakens during operation, proceed as follows:

• Press the unlock key (3) to open the battery compartment (2).
• Replace the batteries by batteries of similar type (AA • UM-3 • R6).
• Observe right polarity! Please follow the markings on the device.
• Do not mix other battery types or new and old batteries.
• If the device will not be used for a longer period of time, remove the batteries, in order to avoid "leakage".

WARNING:

Do not expose batteries to extreme heat or direct sunlight. Never throw batteries into fire. Risk of explosion!

English

Function switch

0 = Off

1 = Massage, 2 = Massage with heating panel

Using massage attachments

WARNING REGARDING THE HEATING PANEL:

Before using the heating panel, check the heat of the massage head.

WARNING:

Do not use the device on parts of the skin that are painful, inflamed or sensitive.

CAUTION:

Do not use the device longer than 20 minutes at a time. Let the device cool down afterwards for approx. 15 minutes, before using it again.

NOTE:

The device is most effective when not wearing clothes. The massage should be comfortable and without pain. When experiencing discomfort or pain, stop operation immediately.

• Use the function switch (1) to select the desired operating mode.
• Guide the device over the desired body parts by rotating the device and applying gentle pressure.

Replacing massage attachments

• Turn the massage attachment until the arrow points to the "→" symbol.
• Replace it with a new attachment; turn the latter until it locks into place with a click. The arrow should point to the "□" symbol.

Massage attachment with massage feet (relaxing)

You may use this massage attachment with or without any of the multi-burl attachments.

Multi-burl attachments (improving blood circulation)

• Turn the device off before fitting any massage attachment.
• Fit the attachments to the massage feet if desired.

Gel attachment

Before using this attachment, put it in the freezer for approx. 30 minutes.

NOTE:

When using this attachment, only use the "massage" operating mode.

Stopping operation

To stop operation, set the switch to "0". Store the device in a dry location.

English

Cleaning

CAUTION:

• Do not use any caustic cleaning agents.
• Do not insert the device into water!

Clean the device with a damp cloth only.

Gel attachments/ multi-burls attachments

Remove the attachments from the device and clean them in warm soapy water as required.

Technical Specifications

Model: .MSI 5561

Battery operation: 3 x 1.5V type AA • UM-3 • R6

Short operation: max. 20 min.

Protection class: III

Net weight: 0.30 kg

Subject to change without prior notice!

This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

English

Disposal of batteries

Your device is operated by batteries. When these batteries are exhausted, adhere to the following instructions:

Caution:

• Do not dispose of batteries with your normal household waste!
• As user you are obligated by law to return exhausted batteries.

The batteries must be removed from the device. - You may return your old batteries free of charge at the place of purchase. - Contact your local authorities for information on public collection points.

Environmental protection

Do not dispose of this device with the normal household waste. Return it to public collection points for recycling. By doing so, you will contribute to environmental protection.

Polish

Before using the heating pad, check how hot the head is.

Before using the heating pad, check the temperature of the heating head.

Warning.

Do not apply to body parts that are injured or have skin conditions.

Attention.

Do not use the device continuously for more than 20 minutes. Before using the device again, let it cool down for approximately 15 minutes.

Ukrainian

NOTE.

• The device is intended for home use only.

The massage should be pleasant and painless. If you feel discomfort or pain, stop using the device immediately.

You can select the desired operating mode using the function switch (1). - Apply the device to the desired part of the body, pressing it lightly and moving it slowly.

Replacing massage heads

• Turn the massage head until the arrow points to the "Replace" mark; then turn it to remove it from the device. The arrow should point to the "Replace" mark.

Massage head with massage rollers (for relaxation)

This massage head can be used without the massage rollers.

Heads with protrusions (for deep tissue massage)

• Before using them, attach the head to the device and turn it on.
• If necessary, attach the massage rollers to the device.

Ukrainian

Body massage head

Before using the nozzle, place it in a freezer for about 30 minutes.

NOTE.

When using the nozzle, use only the "Massage" operating mode.

Troubleshooting

To turn off the device, set the switch to the "0" position. Store the device in a dry place.

Cleaning

WARNING.

Do not use any cleaning agents. Do not immerse the device in water!

Wipe the device with a damp cloth.
