Product type	Multimedia car stereo with touchscreen
Brand	Audiovox
Model	VME 9425
Dimensions (DIN chassis)	178 x 178 x 100 mm
Display	6.2-inch TFT LCD high definition (800 x 480 pixels)
Output power	4 x 40 watts max
Supported audio formats	CD-DA, MP3, WMA, WAV
Supported video formats	DVD, VCD, SVCD, DivX, Xvid, MPEG1/2, AVI
FM tuner	87.5 - 107.9 MHz, 18 presets
AM tuner	522 - 1620 kHz, 12 presets
Built-in Bluetooth	Yes, with external microphone, profiles HFP, A2DP, AVRCP
iPod/iPhone compatibility	Yes, via USB port
Rear view camera	Rear camera input with image reversal possible
Audio outputs	Front, rear, subwoofer (4VRMS)
Auxiliary inputs	Front A/V input, USB input, SD card
Steering wheel control	Compatible with Dietz, PAC, Metra adapters
Equalizer	3 bands (bass, mid, treble) + 8 presets
Power supply	11 - 16 V DC, negative ground
Operating temperature	-20°C to 65°C
Warranty	2 years

Frequently Asked Questions - VME 9425 AUDIOVOX

How to pair my Bluetooth phone with the VME 9425 car stereo?

On the Bluetooth screen, touch Options and enable Bluetooth ON and Auto Connect ON. Then touch Pair. On your phone, enable Bluetooth, search for devices and select VME9425. The default pairing code is 0000 or 1234. Confirm pairing on both devices.

Can I watch videos on the screen while driving?

No, for safety reasons, video playback on the front screen is blocked when the vehicle is moving. The parking brake must be engaged to display video. Rear screens (if installed) can operate normally.

How to adjust the audio equalizer?

Press the EQ button on the screen to access the settings. You can adjust the frequencies Bass, Mid and Treble from -14 to +14. Use the +/– buttons. There are also presets like Rock, Pop, Dance, etc.

What to do if the radio does not pick up stations well?

Check that the antenna is properly connected and extended. Disable the LOC/DX (Local/Distance) function by pressing Options in the radio menu. If the Local function is enabled, only strong stations are received. Switch to DX mode for better reception.

How to use the rear view camera function?

The rear view camera (not included) must be installed and connected to the rear camera input. When you shift into reverse, the screen automatically displays the camera image. You can set the image to normal or mirror mode in the menu Setup > Hardware.

The screen does not turn on, what to do?

First check the fuses (radio and battery). If the fuses are good, press the RESET button located on the front of the unit with a pen. If the screen remains black, the parking brake wire may be improperly connected or used.

How to play MP3 files from a USB drive?

Insert the USB drive into the front USB port (open the cover). The unit automatically switches to USB mode. You can navigate folders via the touchscreen. Files must be in FAT32 format (NTFS not supported). Up to 1500 files are possible on DVD.

How to reset the unit to factory settings?

Go to the menu Setup > Miscellaneous and select Factory setting > Initialize. You can also press the RESET button on the front of the unit (above the rotary knob) for a quick reset.

Which disc formats are compatible?

The player accepts the following discs: DVD±R/RW, CD-R/RW (finalized), DVD±R dual layer. The format must be MP3, WMA, WAV for audio. For video: DivX, Xvid, MPEG1/2, AVI. CD-RW must be formatted in full mode.

How to eject a disc if the mechanism is stuck?

Press the EJECT button (▲) on the front panel. If the disc does not come out, hold the EJECT button for about 5 seconds to reset the loading mechanism. If the problem persists, the unit may require repair.

USER MANUAL VME 9425 AUDIOVOX

“Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

iPhone,iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Bluetooth® is a trademark of Bluetooth Special Interest Group (SIG) Inc.

iGo Primo is a trademark of NNG Kft.

DIVX

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivXvideo. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

1. Power Ein/Aus ⏻)/SRC

One Radio USB1 USB2 5G AUX IN ST NAV Bluetooth Next

Menü Seite 1

Camera Settings Bluetooth Previous

Menü Seite 2

Bass Mid Treb LCF MCF TCF EQ BAL-FAD - - - - - - - 0 0 0 100 1k 10k User

Equalizer-Einstellungen

Screenshot of a software toolbar with icons for Edit, Save, Scan, and Export options

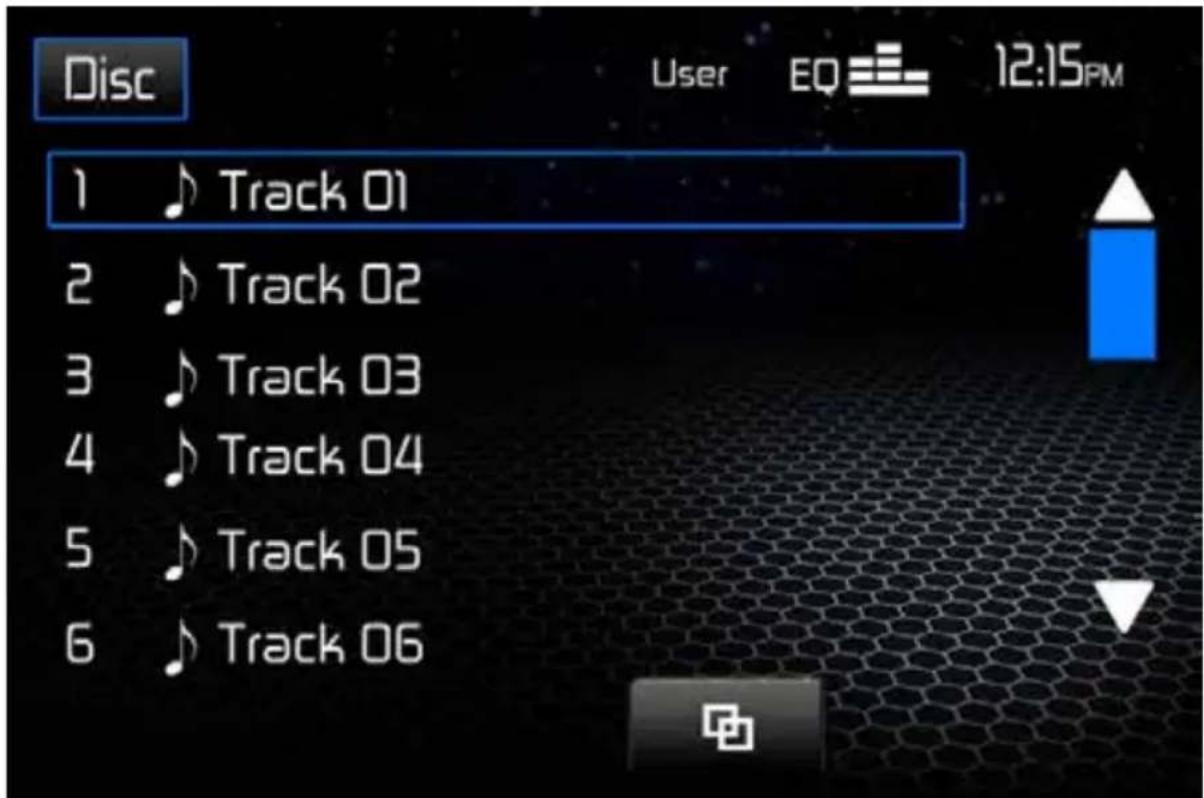

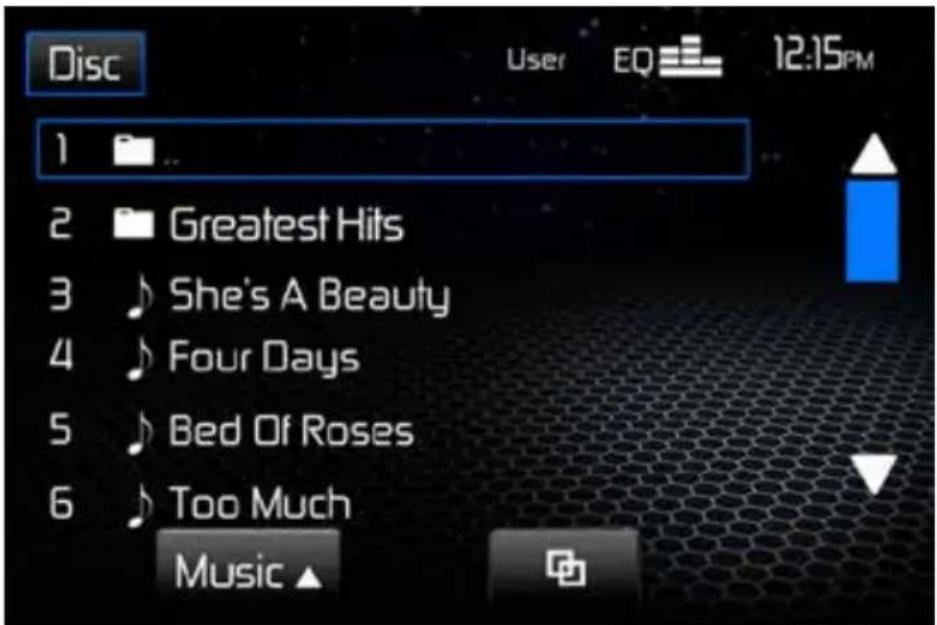

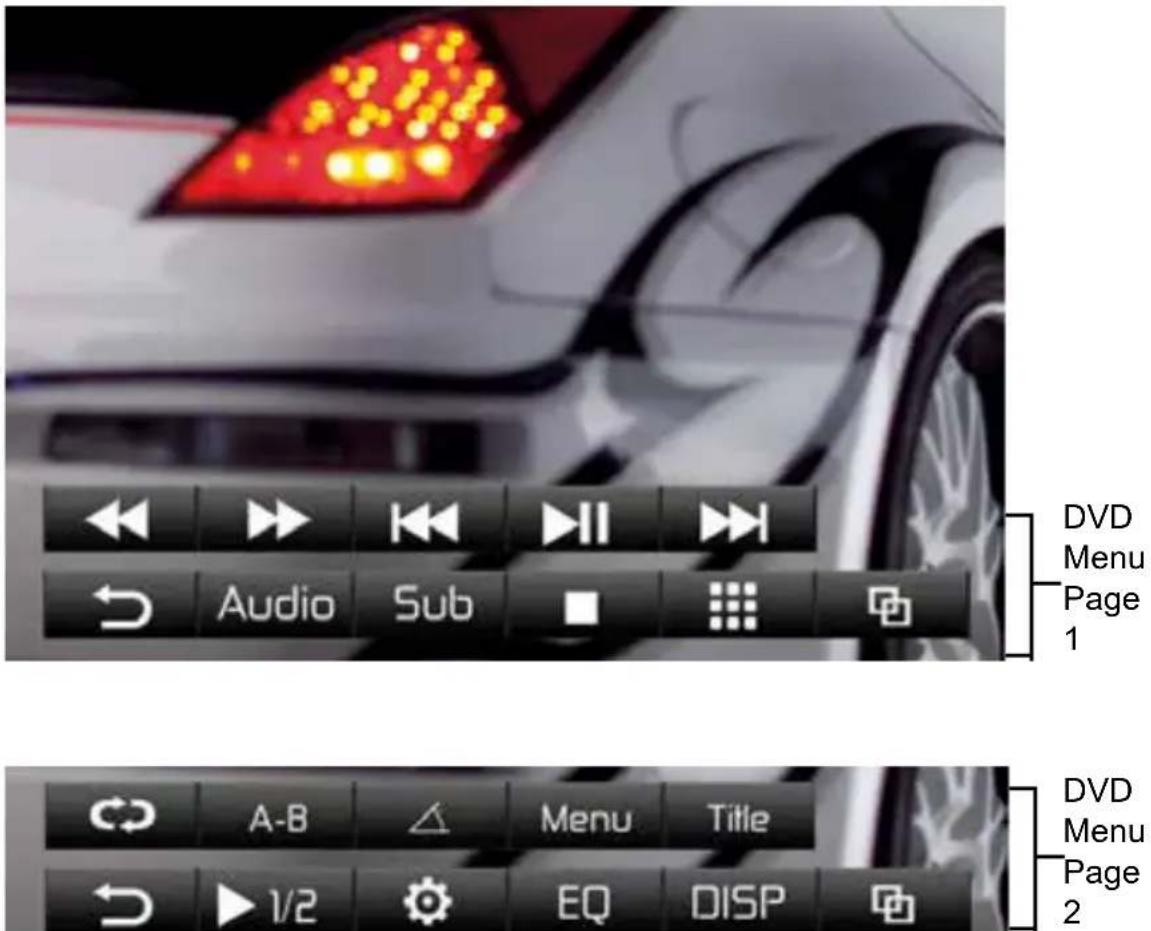

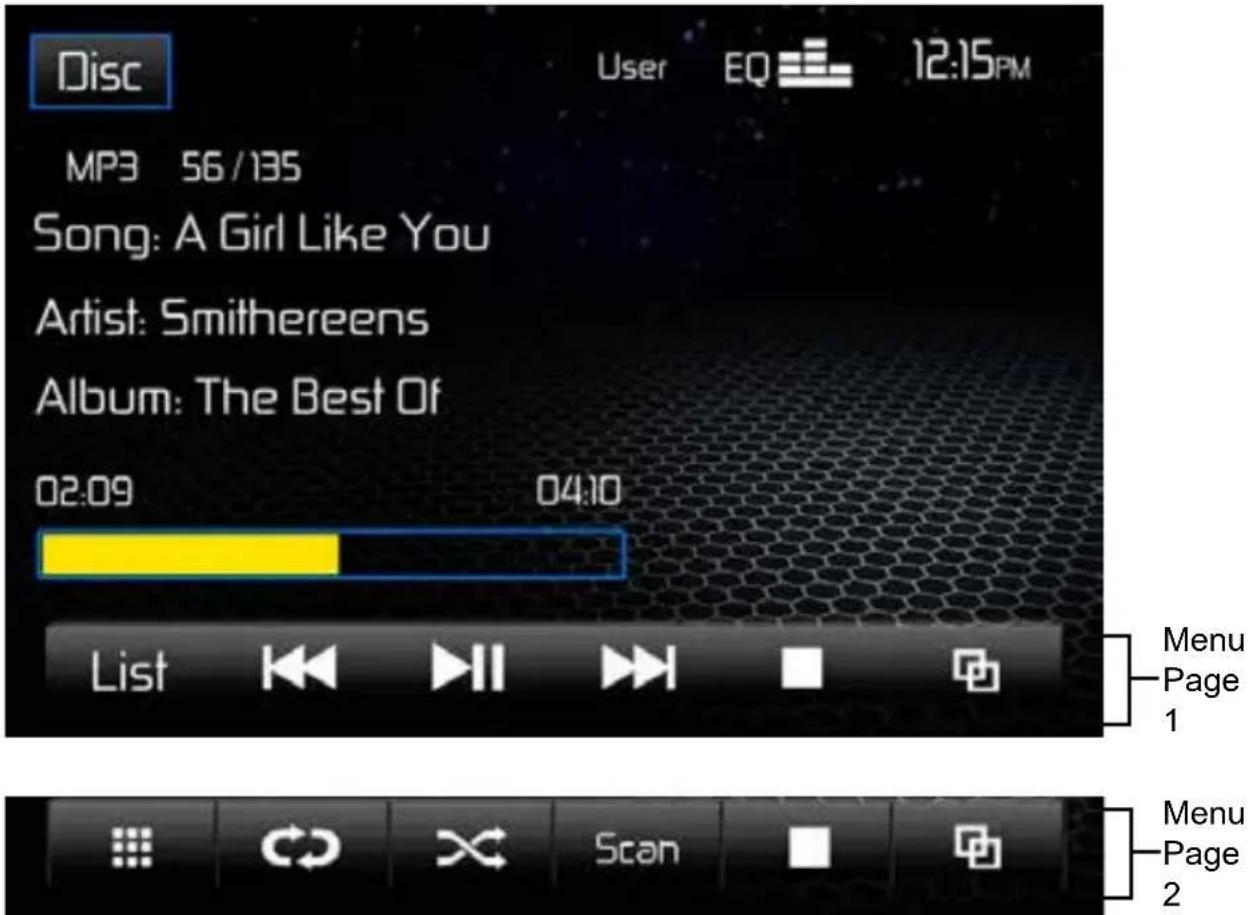

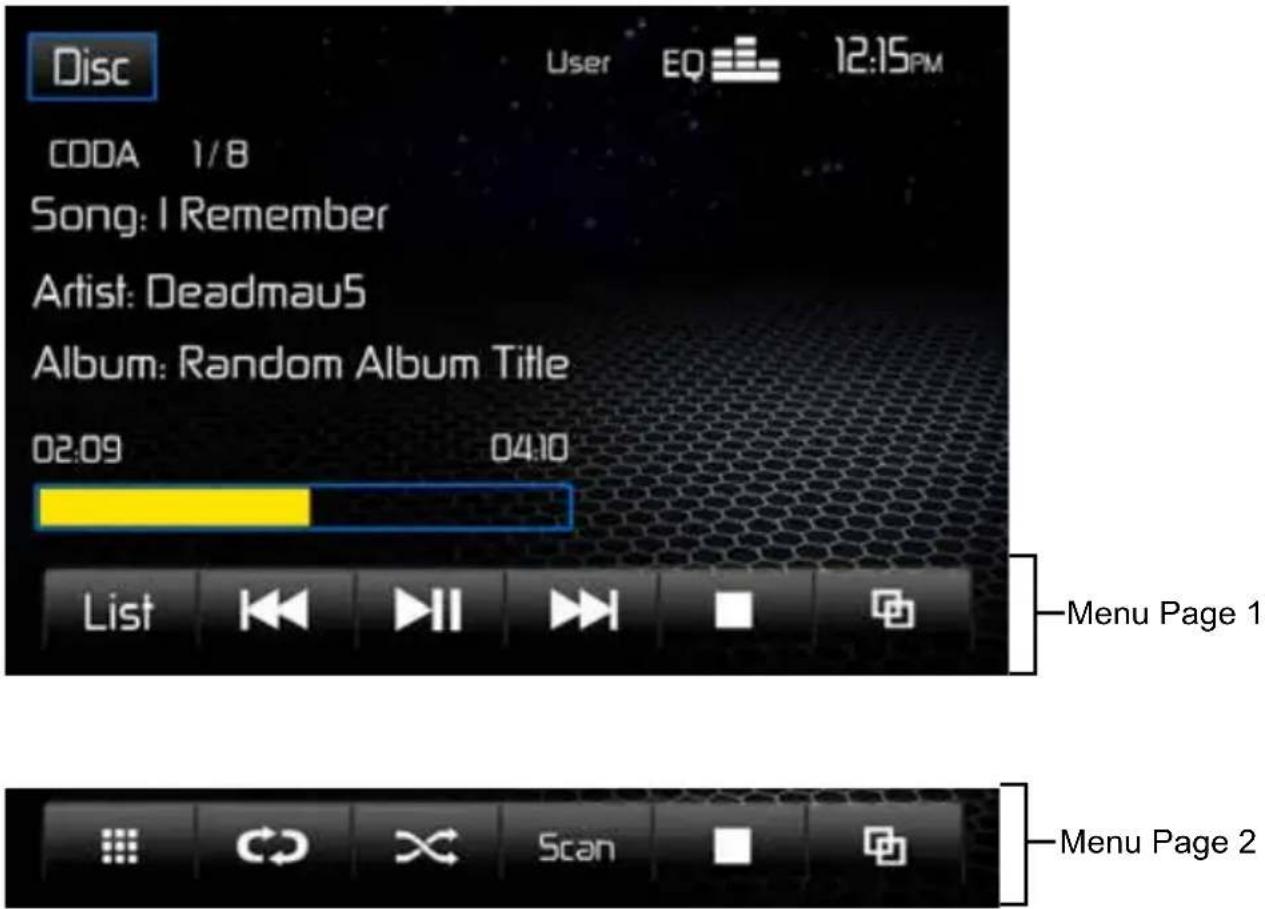

Disc User EQ 12:15PM 1 Track 01 2 Track 02 3 Track 03 4 Track 04 5 Track 05 6 Track 06

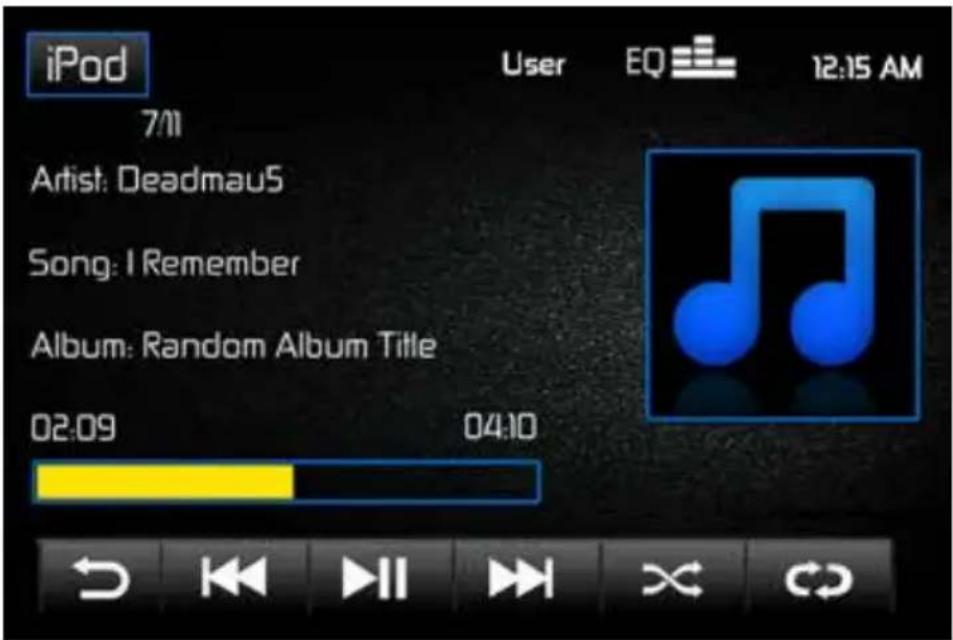

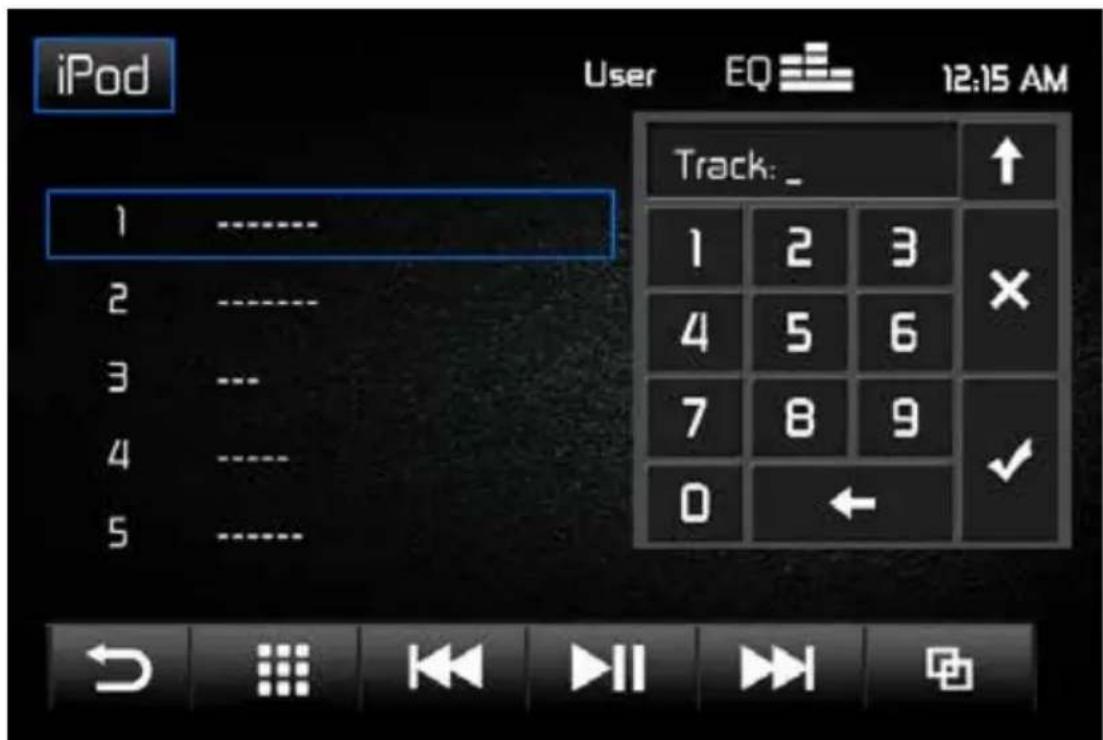

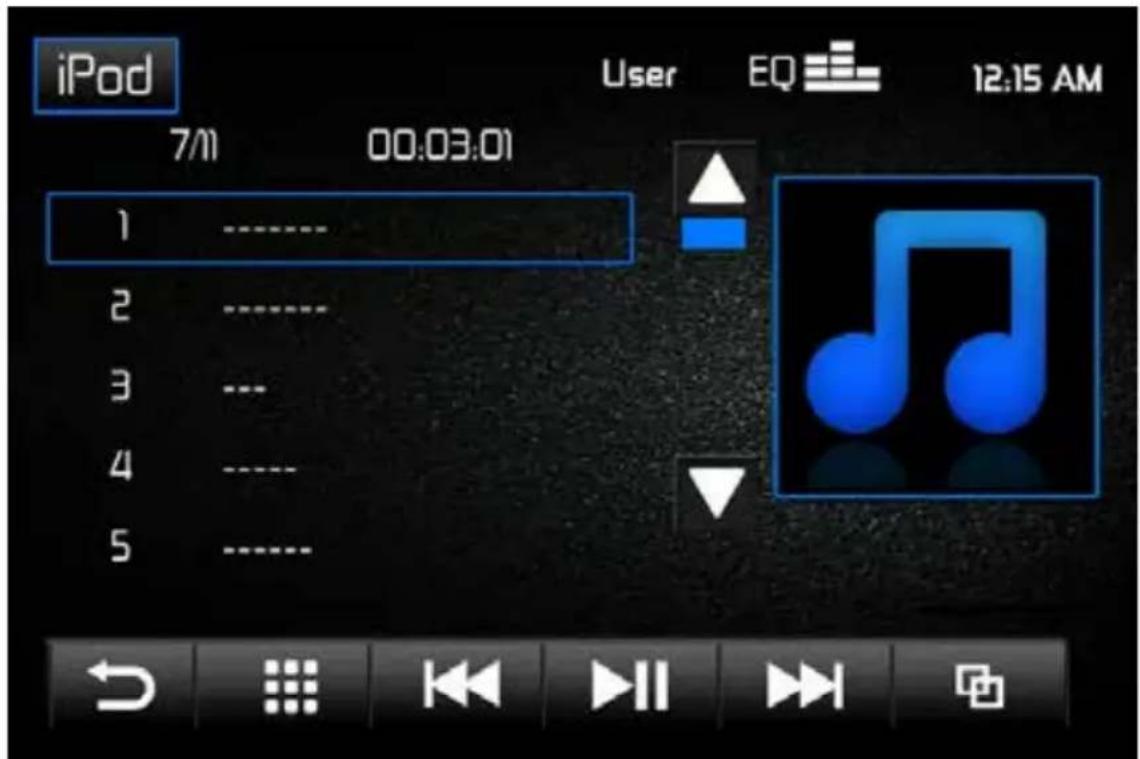

iPod User EQ 12:15 AM Track: _ 1 2 3 4 5 6 7 8 9 0 ← ↑ × ✓

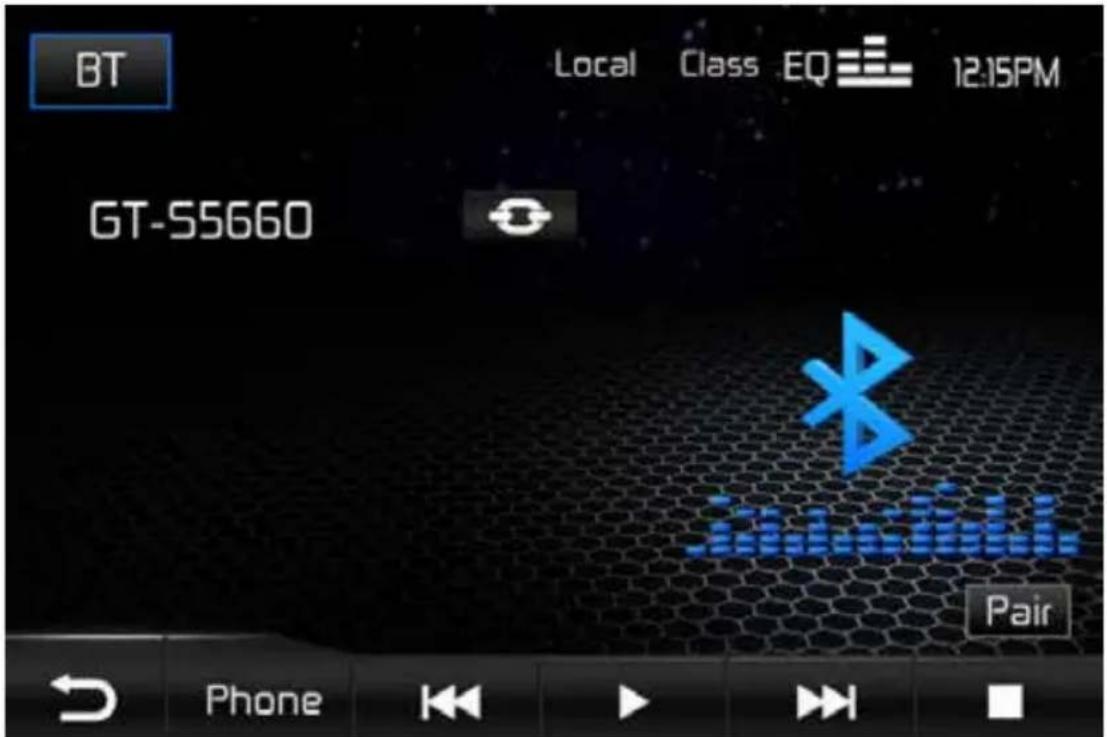

BT Local Class EQ 12:15PM GT-SS660 Pair Phone

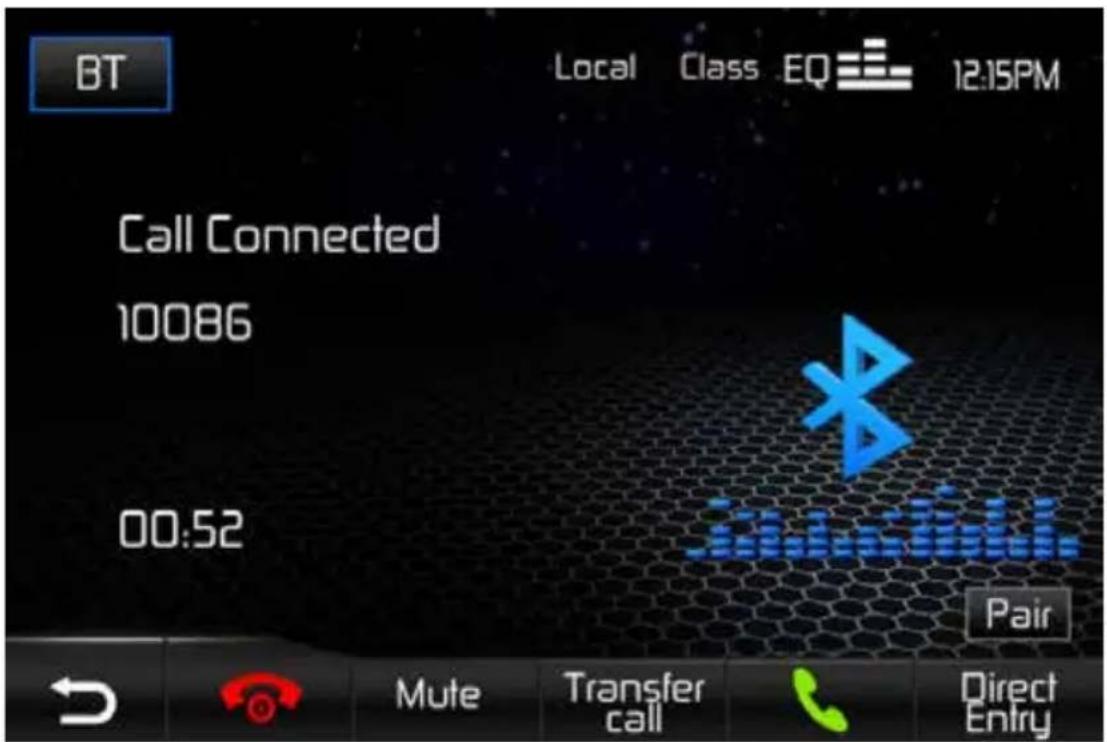

BT Local Class EQ 12:15PM Call Connected 10086 00:52 Pair Mute Transfer call Direct Entry

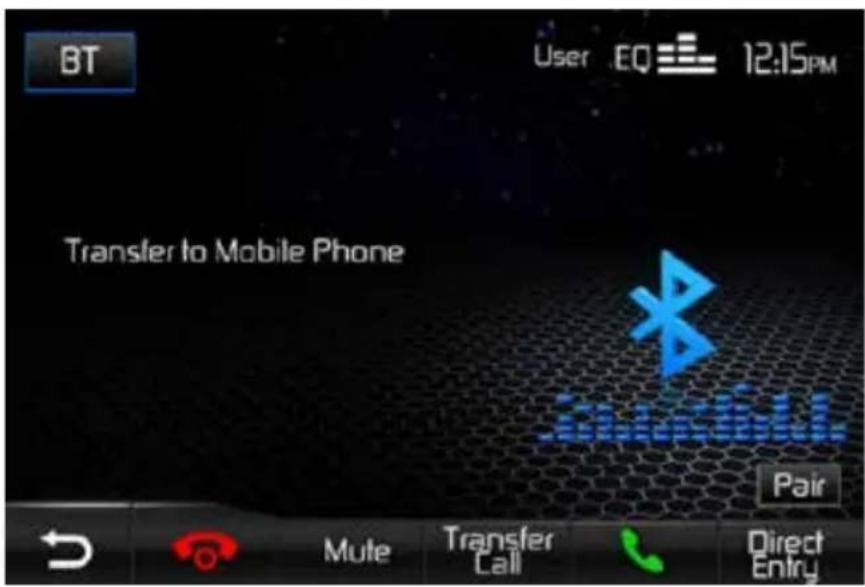

BT User EQ 12:15PM Transfer to Mobile Phone Bluetooth Pair Mute Transfer Call Direct Entry

BT User EQ 12:15PM BMW Pair Phone

Sigma-Delta Modulator

Video

Format: NTSC, PAL (auto-detection)

Thank you for choosing an Audiovox product. We hope you will find the instructions in this owner's manual clear and easy to follow. If you take a few minutes to look through it, you'll learn how to use all the features of your new Audiovox VME 9425 Mobile Multimedia Receiver for maximum enjoyment.

CONTENTS

Features......69

Warnings 71

Controls and Indicators 72

Operating Instructions....73

Steering Wheel Controls....79

Settings Menu....80

Tuner Operation....86

DVD/VCD Video Operation....192

DVD/CD Audio Operation....198

MP3/WMA/Xvid/DivX Operation....102

iPod/iPhone Operation....110

Bluetooth Operation....114

Rear Camera Operation 122

Troubleshooting 123

Care and Maintenance .... 126

Specifications 127

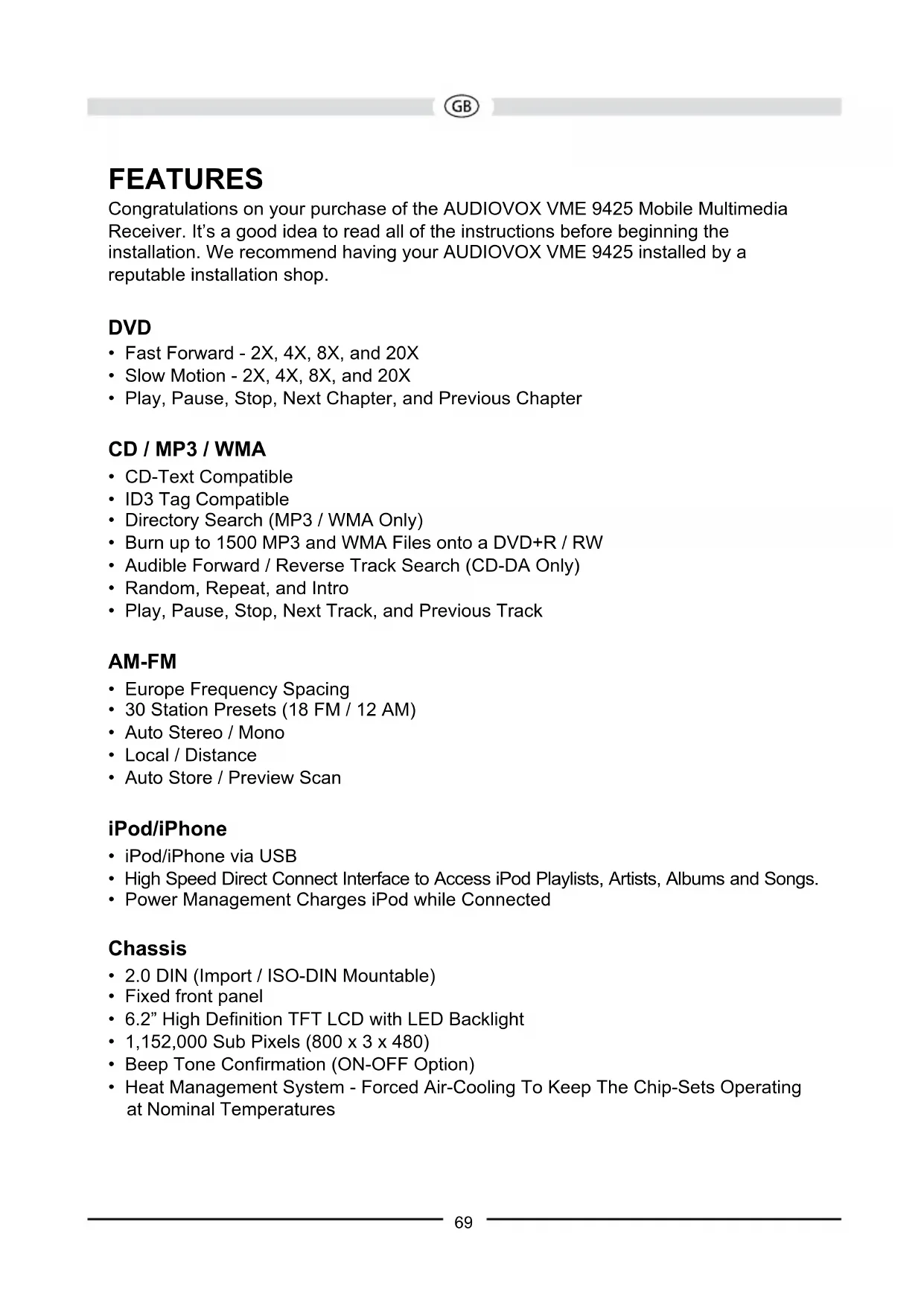

FEATURES

Congratulations on your purchase of the AUDIOVOX VME 9425 Mobile Multimedia Receiver. It's a good idea to read all of the instructions before beginning the installation. We recommend having your AUDIOVOX VME 9425 installed by a reputable installation shop.

DVD

• Fast Forward - 2X, 4X, 8X, and 20X
• Slow Motion - 2X, 4X, 8X, and 20X
• Play, Pause, Stop, Next Chapter, and Previous Chapter

CD / MP3 / WMA

• CD-Text Compatible
  • ID3 Tag Compatible
• Directory Search (MP3 / WMA Only)
• Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW
  • Audible Forward / Reverse Track Search (CD-DA Only)
  • Random, Repeat, and Intro
• Play, Pause, Stop, Next Track, and Previous Track

AM-FM

• Europe Frequency Spacing
• 30 Station Presets (18 FM / 12 AM)
- Auto Stereo / Mono
- Local / Distance
• Auto Store / Preview Scan

iPod/iPhone

• iPod/iPhone via USB
  • High Speed Direct Connect Interface to Access iPod Playlists, Artists, Albums and Songs.
  • Power Management Charges iPod while Connected

Chassis

• 2.0 DIN (Import / ISO-DIN Mountable)
- Fixed front panel
- 6.2" High Definition TFT LCD with LED Backlight
• 1,152,000 Sub Pixels (800 x 3 x 480)
- Beep Tone Confirmation (ON-OFF Option)
- Heat Management System - Forced Air-Cooling To Keep The Chip-Sets Operating at Nominal Temperatures

General

• Navigation Ready (Audiovox NAV104)
• Built-In Bluetooth with external microphone, providing hands-free operation for safety and convenience and A2DP/AVRCP for streaming music from your smartphone or other Bluetooth device.
  • One Composite Video Output for Additional Screens
• Front Panel Audio/Video Input
• Three-Band Tone control (Bass, Mid and Treble) with Eight Preset EQ Curves
• Front Panel A/V Aux Input for Portable Media Devices
• Front, Rear, and Subwoofer Line Output
• Programmable Volume Control
• Rear Camera Input (Normal and Mirror Image View)
• Touch Screen Calibration Mode
  • 4 VRMS Line Output - All Channels
  • Rotary Encoder Audio Control
• SWC Interface - Compatible with the steering wheel control adapters: Dietz UNICO DUAL PLUS + cable, PAC (Pacific Accessory Corporation) SWI-PS and Metra ASWC (sold separately)

Optional Equipment

- NAV104

The VME 9425 is “navigation ready.” Before accessing any navigation features, you must purchase and install the navigation module (Audiovox NAV104). All installation and operating instructions will be included with the navigation module.

Once the navigation module is connected and operating properly, the NAV source mode will become active. While the navigation module is not installed, the NAV option appears gray, indicating the function is not available.

- Rear Camera

The VME 9425 is “camera ready.” Before accessing any camera features, you must purchase and install a rear video camera. Once the rear camera is connected and operating properly, the CAMERA source mode will become active. While the camera is not installed, the CAMERA option appears gray, indicating the function is not available.

WARNING!

Never install this unit where operation and viewing could interfere with safe driving conditions.

WARNING!

To reduce the risk of a traffic accident (except when using for rear view video camera) never use the video display function while driving the vehicle. This is a violation of federal law.

WARNING!

To prevent injury from shock or fire, never expose this unit to moisture or water.

WARNING!

Never disassemble the unit.

WARNING!

Never use irregular discs.

WARNING!

To prevent damage to the mechanism inside this unit, avoid impact to the unit's monitor.

WARNING!

Using an improper fuse may cause damage to the unit and result in a fire.

CONTROLS AND INDICATORS

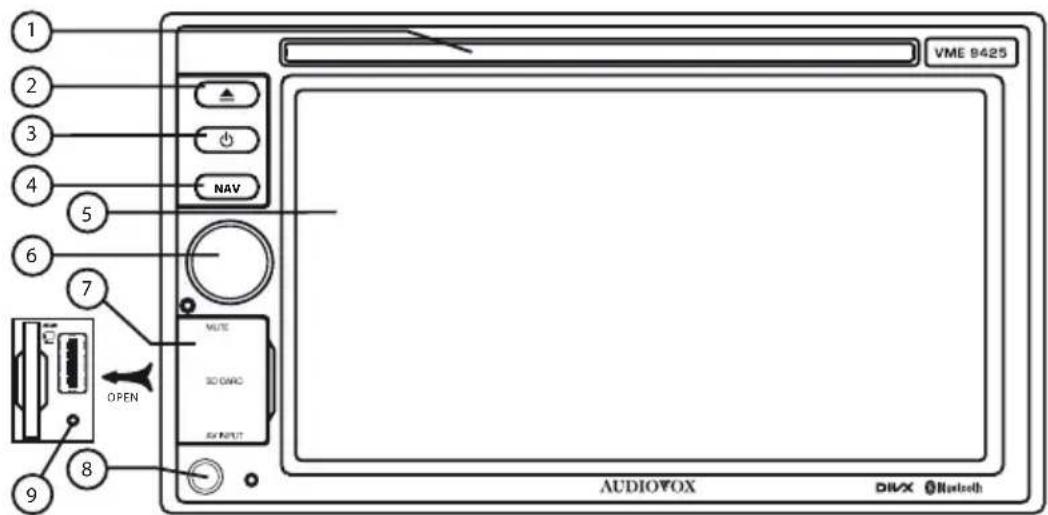

VME 9425 1 2 3 4 5 6 7 OPEN MUTE 3D OADC AV INPUT AUDIOFOX DHX Bluetooth

1. DiscSlot
2. EJECT

Press to eject a disc.

1. Power On/Off ⏻)/SRC

Press to turn the unit ON. Press and hold to turn the unit OFF. Once the unit is ON, momentarily pressing the SRC button will display the Main Source Menu.

1. NAV

When a NAV104 is connected, this button toggles back and forth between the NAV SRC and currently selected SRC.

Press and hold the NAV-button to adjust the monitor display settings. Adjust brightness and contrast by rotating the rotary encoder (refer to "Picture Adjustment" for further information).

1. TFTDisplay

2. RotaryEncoder

Rotate to adjust the volume. Press momentarily to activate the MUTE function.

Press again to resume normal listening.

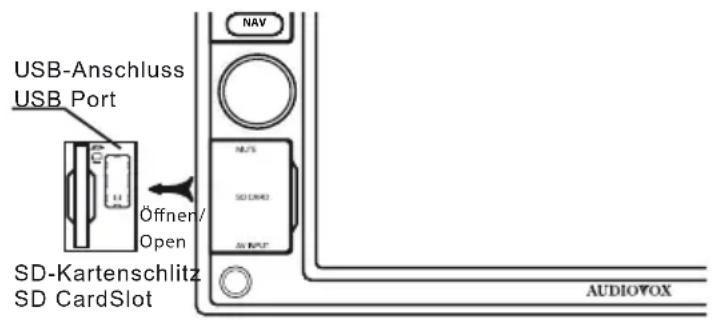

1. USB/SD Interface Connector

Connect a USB device or insert an SD card for playback of music/video files.

1. A/VInput

Attach a compatible A/V device.

1. RESET

Press to reset system settings to factory default (except password and parental lock settings).

OPERATING INSTRUCTIONS

Power On / Off

Press the USRC button on the front panel to turn the unit on.

Press and hold the ⏻/SRC button on the front panel to power off the unit.

Audible Beep Confirmation

An audible beep tone confirms each function selection. The Beep tone can be disabled through the Setup menu.

Mute

Press the rotary encoder MUTE button on the front panel to mute the volume. The mute symbol is displayed on the TFT screen.

Press the rotary encoder button again to restore the volume. Adjusting the volume or using any of the audio setup features cancels the mute function.

If the "MUTE" wire is connected, audio output mutes when a telephone call is received by a mobile phone.

Playing Source Selection

Source Menu

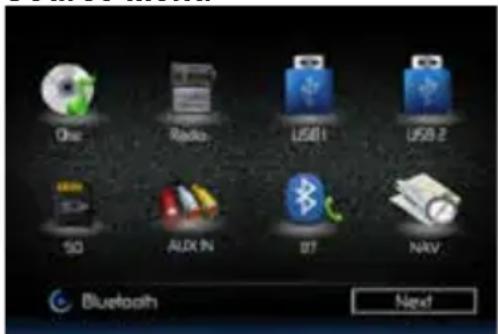

One Radio USB1 USB2 5G ALDX IN ST NAV Bluetooth Next

Source Menu Page 1

Camera Settings Bluetooth Previous

Source Menu Page 2

You can use the touch screen to change the source through the SOURCE MENU. To access the SOURCE MENU, touch the top left corner of the screen or press the SRC button. The SOURCE MENU consists of two pages. Touch NEXT or PREVIOUS to go from one page to another. Touch the DISC, RADIO, USB, USB2, SD, BLUETOOTH (BT), NAV, AUXIN, CAMERA or SETTINGS to select the corresponding source.

NOTE: If an iPod® is attached to the USB port, "iPOD" appears instead of the text "USB."

External Devices

External peripheral devices, including a game console, camcorder, navigation unit, iPod, Zune, etc. can be connected to this unit via RCA output using an A/V Media Adapter Cable (not included).

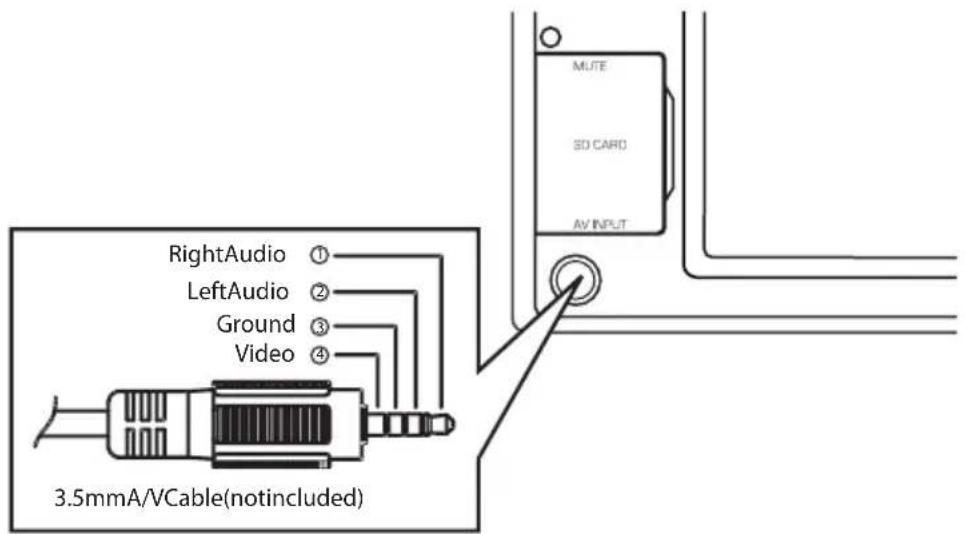

RightAudio ① LeftAudio ② Ground ③ Video ④ 3.5mmA/VCable(notincluded) MUTE SD CARD AV INPUT

Connect the external device to the A/V Media Adapter Cable and then plug the cable into the A/V INPUT connector on the front of the radio. Select “AUX IN” on the SOURCE MENU to access auxiliary devices. You cannot directly control external devices connected to the A/V INPUT.

For information regarding the use of USB devices/SD cards, see “Inserting a USB Device or SC card.”

Volume Adjustment

Volume Increase/Decrease

To increase or decrease the volume level, turn the rotary encoder on the front panel. When the volume level reaches "0" or "40", a beep sounds, indicating that the adjustment limit has been reached. The LCD or TFT screen displays the volume level for 3 seconds.

Programmable Turn-On Volume

This feature allows the user to select a turn-on volume setting regardless of the volume setting prior to turning the unit off.

To program a specific turn-on volume level, turn the rotary encoder to adjust the volume to the desired turn-on volume. Push and hold the rotary encoder while the blue speaker icon and level indication is displayed on the screen. The unit will beep to confirm your turn-on volume setting.

Audio Control Menu

The Audio Control feature allows you to easily adjust your audio system to meet the acoustical characteristics of your vehicle, which vary depending on the type of vehicle and its measurements. Proper setting of the Fader and Balance boosts the effects of the cabin equalizer.

Equalizer

Touch the EQ icon on the right side of the touch screen to display the equalizer screen.

- Use the touch screen +/- icons to adjust the settings for an audio feature.

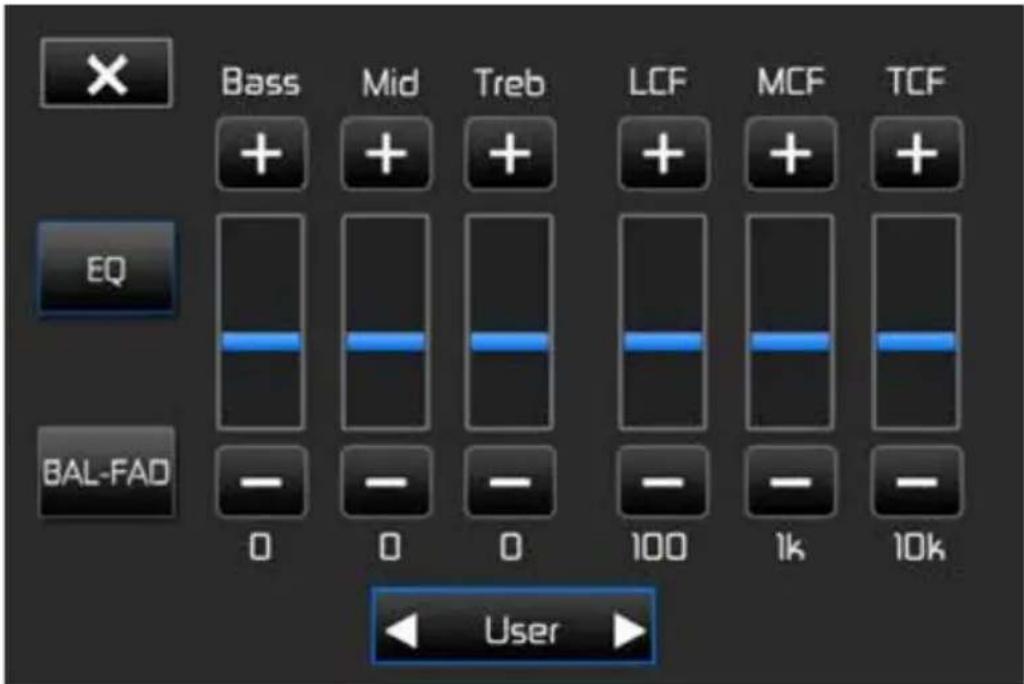

Bass Mid Treb LCF MCF TCF EQ BAL-FAD - - - - - - - 0 0 0 100 1k 10k User

Equalizer Adjustments

Setting Adjustable	Range	Function
BASS -14 to +14 Reduces or increases the bass frequency sound level.Touch the + or - buttons to adjust the settings.
MID -14 to +14 Reduces or increases the mid-range frequency sound level.Touch the + or - buttons to adjust the settings.
TREB -14 to +14 Reduces or increases the high frequency sound levels.Touch the + or - buttons to adjust the settings.
LCF 60 Hz Selects the low pass filter center frequency.Touch the + or - buttons to adjust the settings.
MCF 0.5 kHz Selects the mid pass filter center frequency.Touch the + or - buttons to adjust the settings.
TCF 10 kHz Selects the high pass filter center frequency.Touch the + or - buttons to adjust the settings.
Equalizer Presets User Applies a preset sound level to the unit's audio output signal.Touch the◀ or ▶button to change the setting.NOTE: The equalizer will automatically change to “USER” when individual audio functions are adjusted.
Acoustic
Urban
Rave
Latin
Dance
Hip Hop
Rock

To exit the equalizer:

- touch the X button on the top left corner of the screen or press and hold the rotary encoder to return to the previous screen.

- touch the BAL-FAD button on the left side of the screen to display the balance/fader screen.

Balance-Fader

Touch the BAL-FAD button on the left side of the equalizer screen to display the balance/fader screen.

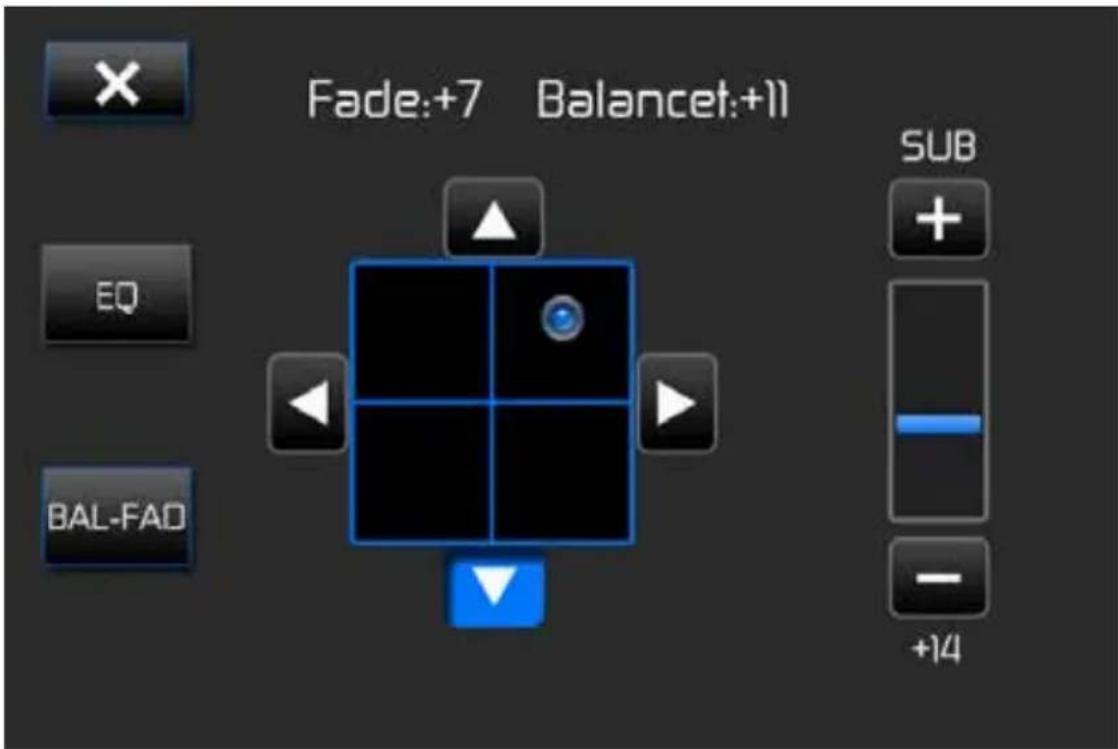

Fade:+7 Balancet:+11 EQ BAL-FAD SUB + - +14

Balance-Fader Adjustments

Setting Adjustable Range Function
Balance -16	to +16 Balances the	audio output levels between the left and right side of the vehicle.Touch the◀ or ▶button to change the setting.
Fade -16 to	+16 Balances the audio	io output levels between the front and back side of the vehicle.Touch the▲ or▼button to change the setting.
Sub -14 to +	14 Reduces or increas	ses the subwoofer sound level.Touch the + or - buttons to adjust the settings.

To exit the balance-fader:

• touch the X button on the top left corner of the screen.
• touch the EQ button on the left side of the screen to display the equalizer screen.

System Reset

To correct a system halt or other illegal operation, use the tip of a pen to press the reset button located on the front bottom-left corner of the unit behind the protective cover. After a system reset, the unit restores all factory default settings.

NOTE: If the unit is reset while a DVD is playing, the DVD resumes play once the reset is complete.

Image/Display Settings

Video Output Modes

The following table shows the video output mode for each playing source.

Video Output Modes

Playing Source Video Output Modes
AM/FM TUNER RGB Mode
DVD YCbCr Mode
AUX IN CVBS Mode

*CVBS – Composite Video Baseband Signal

Picture Adjustment

To adjust monitor display settings, perform the following steps:

1. Press and hold the NAV button on the monitor to display the picture adjustment menu. The "BRIGHT" bar is highlighted in yellow.
2. Turn the rotary encoder to adjust the brightness setting level.
3. Press and hold the NAV button again. The "CONTRAST" bar is highlighted in yellow.
4. Turn the rotary encoder to adjust the contrast setting level.
5. Press and hold the NAV button again to exit the picture adjustment menu.

Parking Brake Inhibit

When the pink “Parking” wire is connected to the vehicle Parking Brake circuit, the front TFT monitor will display video when the Parking Brake is engaged. (When the pink wire is grounded via the Parking Brake circuit, video will be displayed.)

STEERING WHEEL CONTROLS (SWC)

(if equipped)

The VME 9425 is compatible with following steering wheel control adapters: Dietz UNICO DUAL PLUS + cable, PAC (Pacific Accessory Corporation) SWI-PS and Metra ASWC. A 3.5mm female connector (labeled "SWC Interface") on the back of the head unit allows connectivity to the adapters. Please refer to the instructions included with the adapters for detailed installation information.

SWC Functions

The following controls are available for most vehicles:

1. Volume Up
2. Volume Down
3. Mute
4. Seek Up
5. Seek Down
6. Source
7. Preset Up
8. Preset Down
9. Band

**If additional SWC buttons are available on the vehicle, these features may be supported. All SWC functions may not be available on some vehicles.

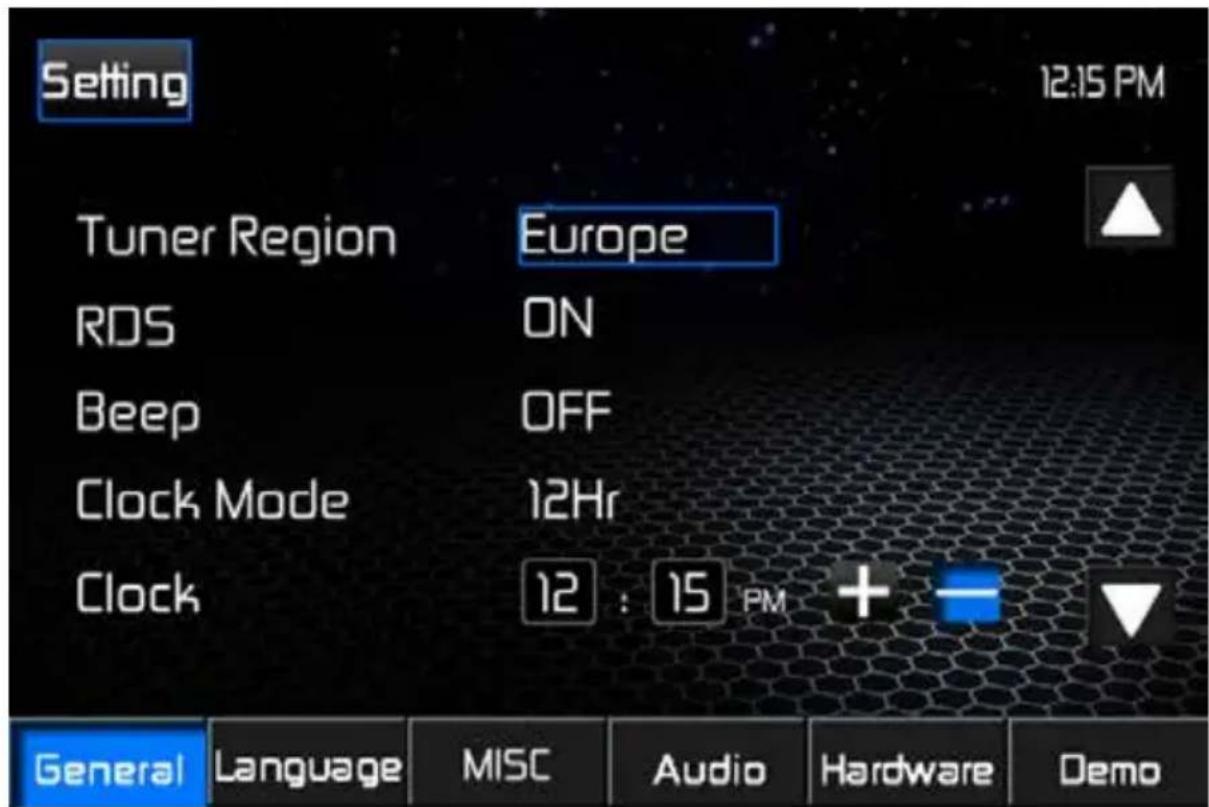

SETTINGS MENU

To access system settings, touch the Settings icon on the second page of the source menu to enter the SETTINGS MENU. The General Sub-menu appears on the bottom of the screen highlighted in blue.

Setting 12:15 PM Tuner Region Europe RDS ON Beep OFF Clock Mode 12Hr Clock 12 : 15 PM + General Language MISC Audio Hardware Demo

Accessing Menu Items

Touch the sub-menu name on the bottom of the screen to select a sub-menu (General, Language, Misc, Audio, Hardware or Demo). The features available for adjustment under the highlighted sub-menu option will appear on the left of the screen.

Adjusting a Feature

1. Touch an item on the touchscreen to select the feature to be adjusted. Touch the ▲ or ▼icon to view the previous or next feature page, if applicable. An options list appears on the right.

2. Touch the option field for the feature you want to adjust. The feature option is updated.

General Sub-menu Features

Setting Options	Function
Tuner Region Europe	• AM Frequency Spacing - 9 kHz• AM Frequency Band - 522 kHz ~ 1620 kHz• FM Frequency Spacing - 50 kHz• FM Frequency Band - 87.5 MHz ~ 107.9 MHz
RDS Off Turn On	/Off the RDS feature.
	On
Beep Off No beep sounds.
Clock Mode 12Hr	Clock displays 12 hour time using AM and PM.
	24Hr Clock displays 24 hour time up to 23:59.
Clock (HH:MM)	Clock appears in the top right corner of the screen during certain operations.NOTE: The AM/PM indication will change as you continue to adjust the hour past 12.
TsCal Yes	Press to access the touch screen calibration function.
Wallpaper	Black	Allows the user to select a screen background.The Wallpaper will not appear on the Main Source Menu, Camera source or EQ settings page.
	Motorsport
	Space
	Havoc
	Sheet Metal

Language Sub-menu Features

If a DVD supports more than one Subtitle or Audio language, all the languages are available for selection during playback. If the selected language is not supported by the DVD, then the default language is used.

Setting Options Function
Language English On	Screen Dis	play appears in English.
	French On	Screen Display appears in French.
	German On	Screen Display appears in German.
Subtitle English DVD	subtitles automatically appear in English when available.
	French DVD subtitles automatically appear in French when available.
	German DVD subtitles automatically appear in German when available.
	Auto DVD subtitles appear according to the default subtitle language specified on the disc.
	Off DVD subtitles do not appear.
Audio English Audio	is heard in English when the option is available.
	French Audio is heard in French when the option is available.
	German Audio is heard in German when the option is available.
DVD Menu English D	DVD menu (if applicable) is displayed in English.
	French DVD menu (if applicable) is displayed in French.
	German DVD menu (if applicable) is displayed in German.

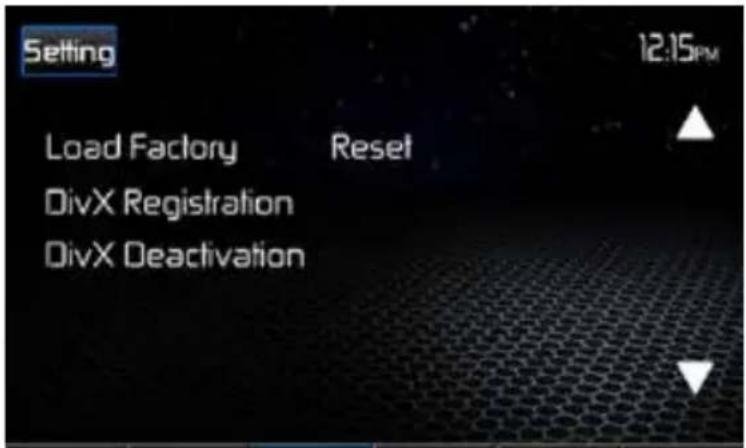

Misc Sub-menu Features:

Setting Options Function
Load Factory Reset	Select “Reset” to restore the factory default settings.
DivX Registration Shows DivX®	registration code.
DivX Deactivation Deactivates DivX® registration.

Audio Sub-menu Features

Setting Options	Function
DRC Off Employ the Dynamic Range Control (DRC) for better playback for low volumes.
Loudness Off Select low frequency by boost only or high and low frequency boost.
Subwoofer Off Turns the subwoofer output on or off.
Sub Filter 80 Hz Selects a cross-over frequency to set a cut-off frequency for the subwoofer's Low-Pass Filter (LPF).
BASS Q 1.0 Adjust the Q / Band width of the bass response of the selected Bass Center Frequency (BCF).
MID Q 0.5 Adjust the Q / Bandwidth of the midrange response of the selected Midrange Center Frequency (MCF).
Source Radio Choose a source for which you would like to increase or decrease the relative volume (LEVEL).
Level 0 to 6 The default level is 3 (0dB reference):0 = (-6dB)1 = (-4dB)2 = (-2dB)3 = (0dB)4 = (+2dB)5 = (+4dB)6 = (+6dB).

Hardware Sub-menu Features

If the rear-view video camera is connected, the unit is on, and the TFT monitor is retracted inside the unit, the TFT monitor automatically moves into the viewing position and Camera mode is selected upon shifting into REVERSE gear. When shifting into DRIVE gear, the TFT monitor is retracted back inside unit.

Setting Options Function
Color Select White This feature	ture allows the user to select eight pre-defined LED colors for the front panel button illumination.
	Red
	Blue
	Green
	Yellow
	Purple
	AquaBlue
	SkyBlue
	Custom
Color Scan On The unit will	"scan" the color spectrum to allow the user to select a color.
	Off
Color Custom Red This feature	ture allows the user to tune the RGB colors of the LEDs to obtain an exact match for their vehicle.
	Green
	Blue
Camera In Normal Reverse	the camera image as if looking through a rear-view mirror.
	Mirror
Video Input (Input circuitry auto detects the video signal from the Aux In source).	NTSC The color signals are output in the standard NTSC format.
	PAL The color signals are output in the standard PAL format.
	Auto The color signal output is switched automatically based on the current video input signal - NTSC or PAL.

Camera In

If the monitor is in display mode, the monitor automatically switches to CAMERA mode upon reverse driving. When the reverse driving stops, the monitor return to its original input mode.

Demo Sub-menu Features

The Demo mode is on and set to Auto run by default. The Demo mode will display various user interface TFT display pages such as the Radio, Disc, Aux In, and Camera sources. The Demo mode will also display the Equalizer and Settings menu pages. Touching any portion of the touch screen will pause the Demo mode temporarily. If the touch screen is not pressed again (within 30 seconds) the Demo mode will resume.

To turn the Demo mode off, access the Settings Menu and turn Auto run to OFF.

TS Cal (Screen Calibration)

To access the “Screen Calibration” function from the SETTINGS MENU, select the “TS CAL” option.

After entering calibration mode, a crosshair + appears in a corner quadrant of the screen. To begin calibration, touch and hold the crosshair for one second until it moves to the next quadrant. Continue for each quadrant until the calibration is completed.

Exiting the System Settings Menu

To exit setup mode and resume normal playback, touch the Setting icon on the screen.

TUNER OPERATION

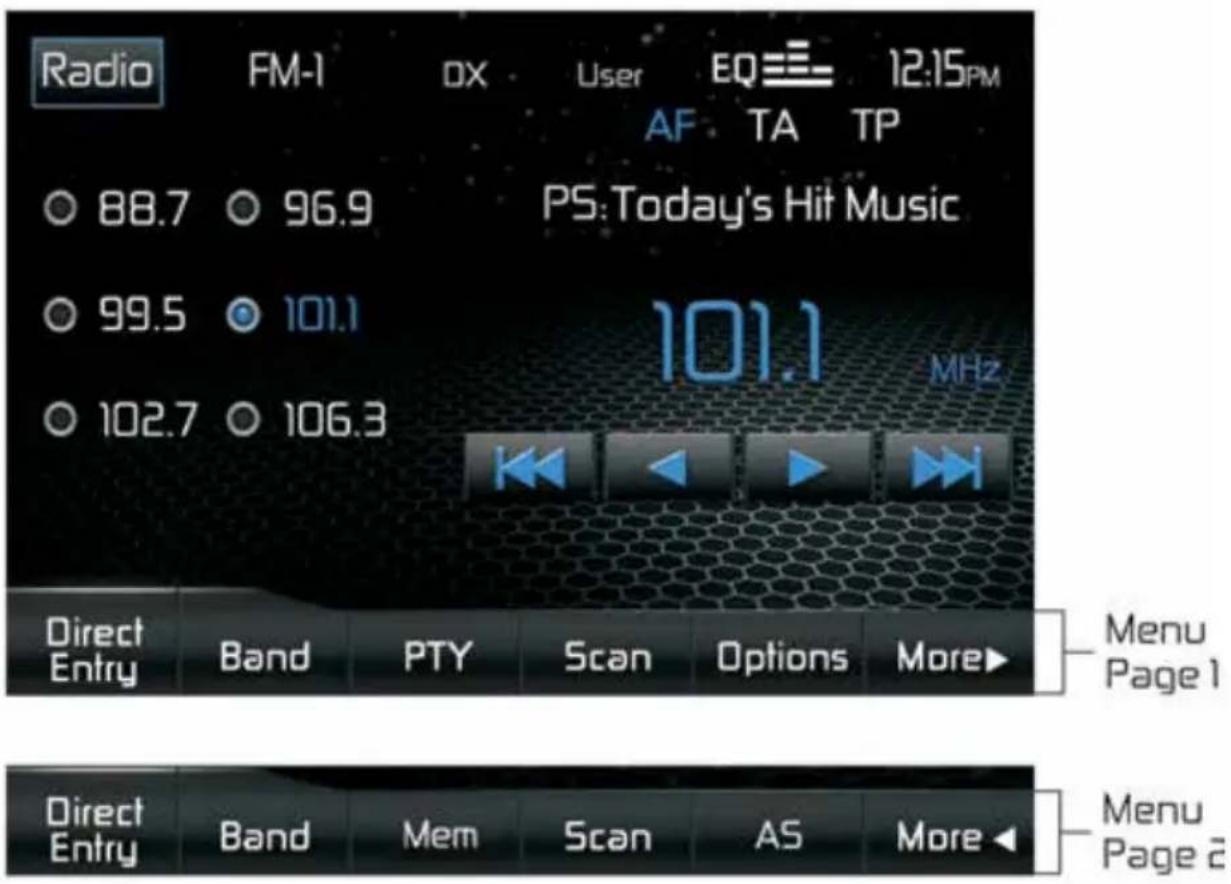

Tuner TFT Display

The on-screen indicators and touch key areas for the tuner functions are shown below.

Radio FM-1 DX User EQ 12:15PM AF TA TP ○ 88.7 ○ 96.9 PS:Today's Hit Music ○ 99.5 ○ 101.1 ○ 102.7 ○ 106.3 101.1 MHz Direct Entry Band PTY Scan Options More► Menu Page 1 Direct Entry Band Mem Scan AS More ► Menu Page 2

- Radio icon: Touch to view the SOURCE MENU and select a new playback source.

- Current radio band indicator.

- Loc/Dx Indicator: Strong/Local signal broadcasting indicator.

- Equalizer setting indicator: Displays the current equalizer preset setting.

- EQ icon: Touch for quick access to Equalizer level settings.

- Clock: Displays the time as entered by the user in the settings menu.

• AF: Indicates the AF function is activated.

• TA: Traffic Announcement indicator

• TP: Traffic Program indicator

- Program Information: This indicator provides three types of information: PS, RT, and PTY. PTY displays the program category of the current station such as category (news, sports, talk etc.) RT/PS provide the current song title, current song title, performing artist and station call letters.

• Radio frequency indicator

- ien: Touch to seek forward.

• Icon: Touch to tune forward one step.

- icon: Touch to tune backward one step.

- ien: Touch to seek backward.

- More icon: Touch to toggle between menu page 1 and menu page 2.

• AS icon: Touch to automatically store stations.

- PTY icon: Touch to activate the program type related search function.

- Scan icon: Touch to scan all stations available, stopping for 5 seconds at each and continuing until a station is selected.

- Mem icon: Touch to display screen used to enter current channel into preset memory.

- Band icon: Touch to change between AM/FM bands.

- Direct Entry icon: Touch to access the direct entry screen.

- Presets: Provides a display of the preset frequencies. Touch to recall preset stations.

- Options icon: Touch to access the Options Screen.

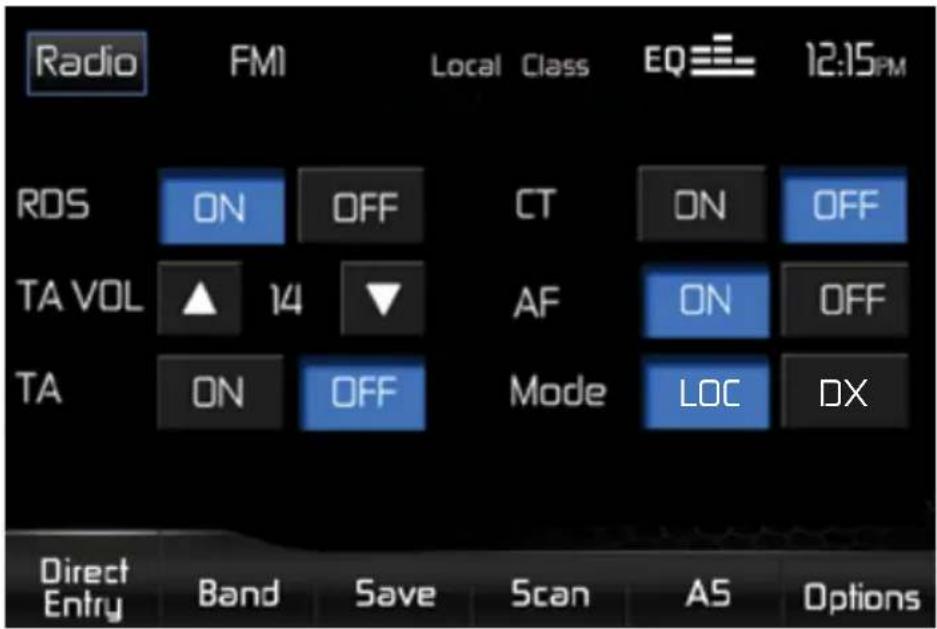

Options Submenu

Touch the Options icon to display the Options Screen.

Radio FMI Local Class EQ 12:15PM ROS ON OFF CT ON OFF TA VOL ▲ 14 ▼ AF ON OFF TA ON OFF Mode LOC DX Direct Entry Band Save Scan AS Options

RDS ON/OFF:

Radio Data System (RDS) enables traffic reports to be received and provides many facilities, including enabling the radio station name to be displayed on the radio display.

TA Volume

In the OPTION menu, press the TA VOL button. Adjust the desired volume with the ▲ or ▼ button. Press the OPTION button. The radio menu is displayed again, the set volume is stored.

TA

Press the TA ON/OFF button to switch the priority for traffic announcements on or off. CT:

(Clock Time, RDS feature) When enabled the radio system clock is synchronized with broadcasters time signal setting the clock automatically. In some regions where daylight savings time is not adhered to, the system clock will be off by one hour. In these cases, set CT to OFF and manually set the clock.

AF

The receiver can automatically switch to an alternative frequency (AF) of the same station if the reception becomes poor. Press the OFF/ON touch-point to turn the automatic scanning for alternative frequencies of an RDS broad-cast station off and on.

MODE:

This allows the user to activate local station reception function. When the Local function is on, only radio stations with a strong local radio signal are played.

Switching to Radio Tuner Source

• Touch the top left corner of the screen (the radio box) to view the SOURCE MENU. Touch "Radio".
• Press the SRC button on the front panel to switch to the AM/FM or RADIO source.

Selecting FM/AM Band

Touch the Band icon on the screen to change between the following bands: FM1, FM2, FM3, AM1, and AM2.

Seek Tuning

To seek the next higher station, touch the ▶ button.

To seek the next lower station, touch the button.

Manual Tuning

To increase or decrease the tuning frequency one step, touch the ◀or ▶button.

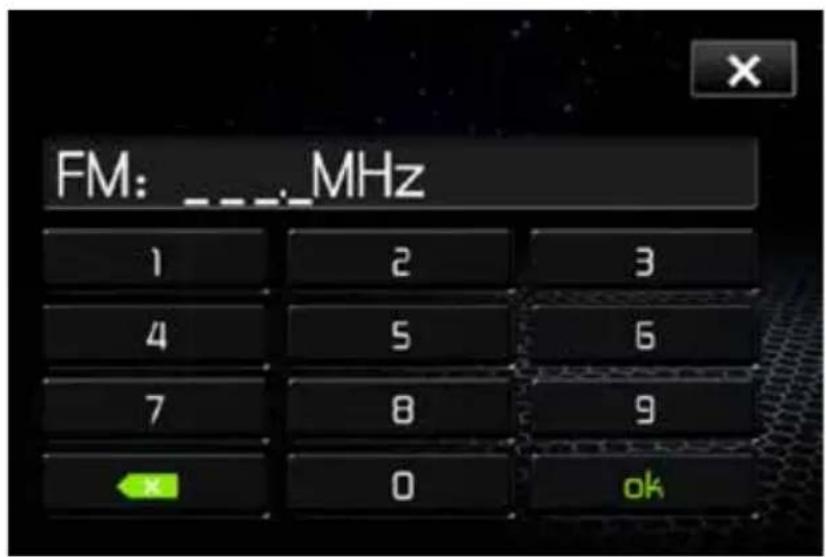

Direct Tuning

To enter a radio station directly:

1. Touch the Direct Entry icon to display the DIRECT ENTRY MENU.

FM: __MHz 1 2 3 4 5 6 7 8 9 OK 0 ok

1. Enter the desired radio station frequency using the on-screen number pad. If you wish to delete an entry number touch the ←-■ icon. Press OK to tune to the selected station. To exit the screen without changing the station, touch X.

Using Preset Stations

Six numbered preset buttons store and recall stations for each band. All six stored stations (P1 - P6) for the current band appear on the screen.

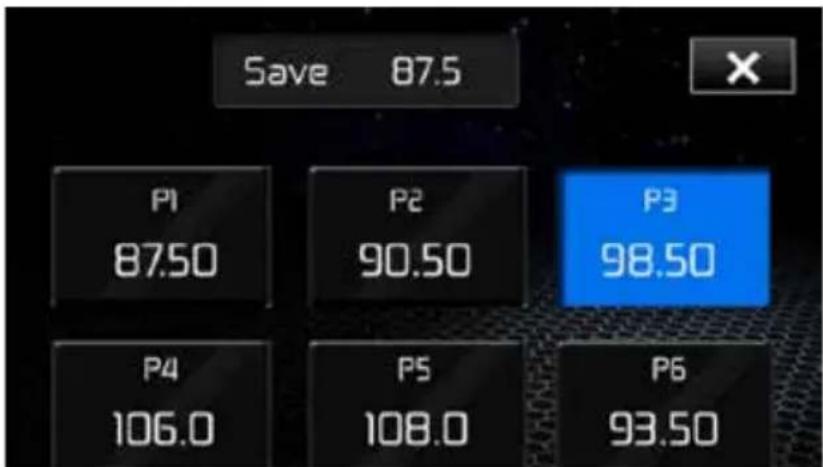

Storing a Station

1. Select a band (if needed), then select a station.
2. Touch the on-screen Mem icon to access the preset screen.

Save 87.5 P1 87.50 P2 90.50 P3 98.50 P4 106.0 P5 108.0 P6 93.50

1. Touch the preset number in which you would like to store the current station (or touch X to cancel and close the menu). The station frequency is displayed at the top of the menu. The preset number will appear highlighted. The station frequency will be stored in the highlighted preset. The station will be displayed on the front panel of the tuner screen.

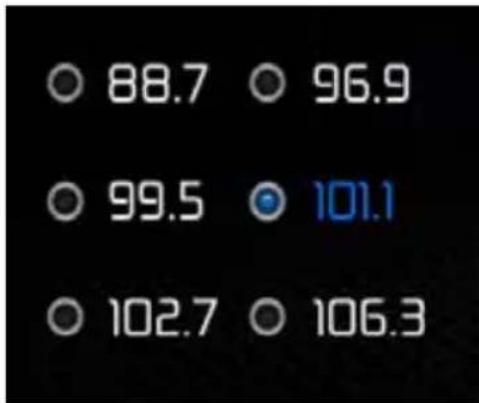

Recalling a Station

1. Select a band (if needed).
2. Touch an on-screen preset button to select the corresponding stored station.

Auto Store (AS)

To select six strong stations and store them in the current band:

1. Select a band (if needed).
2. Touch the AS icon on the on-screen controls to activate the Auto Store function.
   The new stations replace stations already stored in that band. If you have already set the preset memories to your favorite stations, activating the Auto Store feature will erase those stations and enter the new strong stations. This feature is most useful when travelling in an area where you are not familiar with the local stations.

Preview Scan (SCAN)

To scan the AM or FM band for a preview of available stations in your particular area, touch Scan. The scan function will play the first five seconds of each station. When a desired station is reached, touch Scan again. Play of the selected station will continue and the preview scan will stop.

Local Radio Station Seeking (LOC)

When the Local function is on, only radio stations with a strong local radio signal are played. To activate the Local function in the AM/FM tuner mode:

1. Touch the Options icon on the touch screen. A pop-up window appears.
2. Touch MODE LOC/DX to turn the local function on or off.

When the Local function is active, the LOC indicator at the top of the screen is illuminated. When the Distant function is active, the DX indicator at the top of the screen is illuminated.

NOTE: When properly installed, DVD video cannot be displayed on the main TFT screen unless the parking brake is applied. If you attempt to play a DVD while the vehicle is moving, the TFT screen display a parking brake notice. Rear video screens, if applicable, will operate normally.

DVD/VCD TFT Display

Warning!!! It is illegal to view video while driving or operating a motor vehicle. Set parking brake to view video.

To access the on-screen controls, touch the bottom 1/3 of the screen while a DVD is playing. Touch to view a second page of controls.

DVD Menu Page 1 Audio Sub A-B Menu Title EQ DISP DVD Menu Page 2

• ▶bn: Touch to advance to the next chapter on the DVD.
• Icon: Touch to see the second page of DVD controls.
• icon: Touch to select a chapter/track directly using the on-screen display direct entry menu display
• icon: Touch to stop DVD playback.
• Sub icon: Touch during playback to select the subtitle language if the disc is recorded in multiple languages. Each time the icon is touched a different subtitle language is selected. The subtitle function can also be turned on or off.
• Audio icon: Touch during playback to select to select the audio language. Each time the icon is touched a different audio language is selected if you are watching a disc recorded in multiple languages.
  • Don: Touch to remove the DVD controls from the screen during DVD playback.
• icon: Touch to fast reverse. Keep touching and releasing the icon to increase the rate from "x2" to "x4", "x8", and "x20". Touch the icon again to resume normal play.
• icon: Touch to fast forward. Keep touching and releasing the icon to increase the rate from "x2" to "x4", "x8", and "x20". Touch the icon again to resume normal play.
  • iean: Touch to move to previous chapter.
• ledn: Touch to begin playback. Touch the icon again to pause playback.
• Title icon: Touch to select a different title for playback. Select a title using the touch screen.
• DISP icon: Touch to display playback information on the screen including the media playing and current playback time.
  • EQ: Touch for quick access to the Equalizer level settings.
• icon: Touch to view the SETTINGS menu.
• ▶1/2 icon: Touch to select and activate Slow Motion Playback (Forward and Reverse). Touch to play the current title in slow motion. Keep touching and releasing the icon to change the rate from forward 1/2, 1/4, 1/6 and 1/8 speed. Continue for slow motion backward at 1/2, 1/4, 1/6 and 1/8 speeds. Touch the on-screen play icon (▶)to resume normal play.
• icon: Touch during playback to repeat the current chapter. Touch the icon a second time to repeat the current title. Touch the icon a third time to turn the repeat function off.
• A-B icon: Touch to repeat a specific portion from point A to point B of the DVD disc.
• △ icon: Touch to view angles if the DVD contains scenes shot from different angles.
• Menu icon: Touch to display the DVD root menu.

Controlling Playback

Inserting a Disc

Upon inserting a DVD disc, DVD mode is entered and disc play begins.

You cannot insert a disc if there is already a disc in the unit or if the power is off.

NOTE: DVD-R and DVD-RW will not play unless the recording session is finalized and the DVD is closed.

Ejecting a Disc

Press the ▲ button on the front of the unit to eject the disc. The unit automatically reverts to Tuner mode. You may eject a disc with the unit powered off. The unit will remain off after the disc is ejected.

Resetting the Loading Mechanism

If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the ▲button to reset the loading mechanism. Normal operation resumes.

Accessing DVD Mode

To switch to DVD mode when a disc is already inserted, press the SRC button on the front panel to access the source menu. Touch the disc icon.

Repeat Playback

Touch the repeat button ( ) to alter repeat mode according to the following:

• DVD: Repeat Chapter, Repeat Title, Repeat Off
• VCD (PBC Off): Repeat Single, Repeat Off

NOTE: For VCD play, the repeat function is not available if PBC is on.

Sectional Repeat Function (A-B)

Use the A-B function to define a specific area of a disc to repeat.

• Touch A-B on the second page of DVD on-screen controls to set the start point (A) of the repeated section.
• Touch A-B again once you reach the desired end point (B) of the repeated section. The selected portion of the DVD will now repeat continuously.
• Touch A-B a third time to cancel the A-B section setting and stop repeat play.

Accessing the DVD Source Menu

• Touch MENU on the second page of DVD on-screens controls to recall the DVD source menu. Touch to select a title from the menu.
• Touch TITLE on the second page of DVD on-screen controls to select a different title for playback.
• Select a title using the touch screen.

Moving Through Chapters

Touch ▶▶▶ advance to the next chapter on the DVD.

Touch I button to move to the previous chapter.

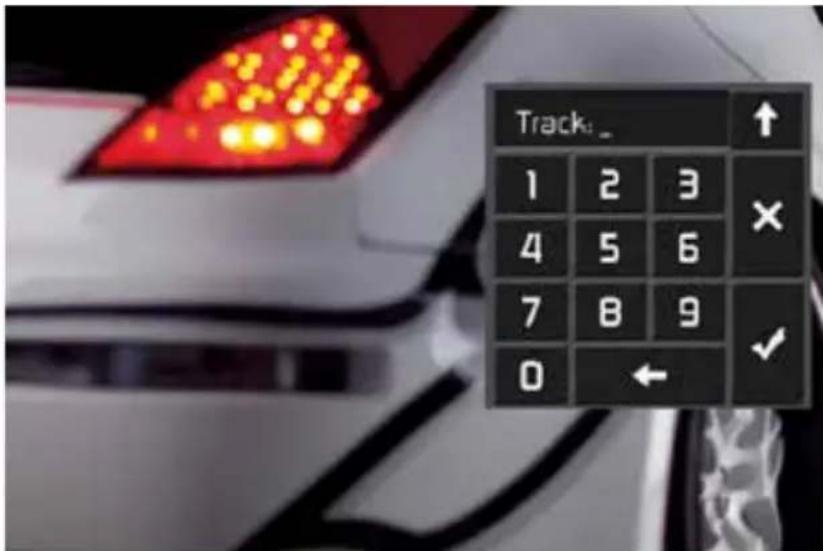

Direct Chapter / Track Selection

To select a chapter/track directly:

1. Touch the on-screen ■ to display the Direct Entry Menu.

Track: _ 1 2 3 4 5 6 7 8 9 0 ←

1. Enter the desired chapter/track using the on-screen number pad.
2. Touch the check mark to enter your selection. To clear your entry and start over, touch the back arrow. To exit the screen, touch X.

Viewing an Alternate Picture Angle (DVD Only)

Some DVDs contain scenes that have been shot simultaneously from different angles. For discs recorded with multiple angles, touch △ on the second page of DVD on-screen controls to toggle available angles of the on-screen image.

Multi-Language Discs (DVD Only)

Changing Audio Language

If you are watching a disc recorded in multiple languages, touch AUDIO on the first page of DVD on-screen controls to choose a language. Each time the icon is touched the language will change.

Changing Subtitle Language

If you are watching a disc recorded in multiple languages with subtitles, touch Sub on the first page of DVD on-screen controls to choose the language in which you would like the subtitles to appear.

NOTE: During VCD playback, touch the AUDIO on the first page of DVD on-screen controls to choose between Left Channel, Right Channel, and Stereo.

PBC - Play Back Control (VCD Only)

For VCDs with play back functionality, play back control (PBC) provides additional controls for VCD playback.

Touch PBC on the first page of DVD on-screen controls to toggle the PBC function "On"/"Off". Once PBC is on, playback starts from track one of the play list.

NOTE: When PBC is activated, fast forward, slow playback, and previous/next track are available. Repeat and direct track selection are not available.

When PBC is activated, selecting random, scan, or search playback automatically deactivates PBC.

Playback Information

During DVD and VCD playback, touch DISP on the second page of DVD on-screen controls to display playback information on the screen, including the media playing and current playback time.

DVD Playback Information

• DVD Video – Format of current disc.
• Time 00:01:30/00:36:10 – Indicates the playback time of the current track.
• Title 5/08 – Indicates the fifth of 8 titles on the DVD is currently playing.
• Chapter 2/16 – Indicates that the second of 16 chapters on the DVD is currently playing.

VCD Playback Information

• VCD2.0 – Format of current disc.
• Time 00:01:30/00:36:10 – Indicates the playback time of the current track.
• PBC On/Off – Indicates whether Play Back Control is On or Off.

General Disc Information

Disc Properties

Symbol 12 cm Disc Properties Max Play Time
	Single side single layer (DVD-5)	(MPEG 2 Method)
		133 minutes
	Single side double layer (DVD-9)	242 minutes
	Double side single layer (DVD-10)	266 minutes
	Double side double layer (DVD-18)	484 minutes
	Single side single layer (VCD)	(MPEG 1 Method)
		74 minutes
	Single side single layer 74 minutes

Disc Symbols

Symbol	Meaning
	Number of voice languages recorded. The number inside the icon indicates the number languages on the disc (maximum of 8).
	Number of subtitle languages available on the disc (maximum of 32).
	Number of angles provided (maximum of 9).
	Aspect ratios available. “LB” stands for Letter Box and “PS” stands for Pan/Scan. In the example on the left, the 16:9 video can be converted to Letter Box video.
	Indicates the region code where the disc can be played.• Region 1: USA, Canada, East Pacific Ocean Islands• Region 2: Japan, Western Europe, Northern Europe, Egypt, South Africa, Middle East• Region 3: Taiwan, Hong Kong, South Korea, Thailand, Indonesia, South-East Asia• Region 4: Australia, New Zealand, Middle and South America, South Pacific Ocean Islands/Oceania• Region 5: Russia, Mongolia, India, Middle Asia, Eastern Europe, North Korea, North Africa, North-West Asia• Region 6: Mainland China• ALL: All regions

The VME 9425 will play music or other audio files from the following disc media:

• CD-DA
• CD-R/RW
  • DVD
• DVD+R/RW
• DVD-R/RW

Upon inserting a disc with the TFT screen open, the disc and track title (if available), along with the track number and playing time appear on the screen.

CD TFT Display

The on-screen indicators and touch key areas for CD playback are outlined below.

Disc User EQ 12:15PM CODA 1/8 Song: I Remember Artist: Deadmau5 Album: Random Album Title 02:09 04:10 List Menu Page 1 Scan Menu Page 2

• Disc icon: Touch to view the SOURCE MENU and select a new playback source.
• Repeat Play Indicator ( )This indicator is lit when the repeat mode is active.
• Random Play Indicator ( ) This indicator is lit when the random mode is active.
• Equalizer setting indicator: Displays the current equalizer preset setting.
• EQ: Touch for quick access to the Equalizer level settings menu.
• Clock: Displays the time as entered by the user in the settings menu.
• Preview Window: Displays album art, if available.
• Toggle (☐) icon: Touch to toggle between menu page 1 and menu page 2.
• Stop ( ▪icon: Touch to stop playback.
• Next ( ▶ icon: Touch to play the next track.
• Pause/Play( ▶II ) icon: Touch to pause playback. Touch again to resume playback.
• Previous (icon: Touch to play the previous track.
• List icon: Touch to display the Playlist screen.
• Elapsed time Indicator: Displays the elapsed and total playing time of the current track playing.
• Track Indicator: Displays the current track number playing and total number of tracks on disc.
• EQ icon: Touch for quick access to the Equalizer level settings menu.
• icon: Touch to select a chapter/track directly using the on-screen display direct entry menu display.
• Repeat( 📊 ) icon: Touch to alter repeat mode as follows: Repeat Single > Repeat Folder > Repeat All > Repeat Off
• Random( ) icon: Touch to alter random mode as follows: Random On > Random Off
• SCAN: Plays the first ten seconds of each track. Press again to stop this function.

Playlist Screen

The Playlist screen allows you to directly search for music on your disc.

Disc 1 Track 01 2 Track 02 3 Track 03 4 Track 04 5 Track 05 6 Track 06 User EQ 12:15PM

• Touch a track title (if available) or track number to begin playback of that track.
• Touch ▲ to view the previous playlist page. Touch ▼ to view the next playlist page.
• Touch to return to menu page 1.

Controlling Playback

Inserting a Disc

Upon inserting a CD, disc play begins. You cannot insert a disc if there is already a disc in the unit or if the power is off.

Ejecting a Disc

Press the ▲button on the front of the unit to eject the disc. The unit automatically reverts to Tuner mode.

You may eject a disc with the unit powered off. The unit will remain off after the disc is ejected.

Resetting the Loading Mechanism

If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the ▲button to reset the loading mechanism. Normal operation resumes.

Stopping Playback

Touch the Stop (■) icon to stop disc play.

To resume playback, touch the Pause/Play (▶II) icon.

Pausing Playback

Touch the Pause/Play (▶)licon to suspend or resume disc play.

Moving Through Tracks

Touch the Next (▶▶) icon to advance to the next track on the disc.

Touch the Previous (◀◀) button to move to the previous track.

Repeat Playback

Touch the "oon" to alter repeat mode according to the following:

- DVD: Repeat Single > Repeat Folder > Repeat All > Repeat Off

• CDDA: Repeat Single > Repeat Folder > Repeat All > Repeat Off

- CD-R/RW: Repeat Single > Repeat Folder > Repeat All > Repeat Off

- DVD-R/RW: Repeat Single > Repeat Folder > Repeat All > Repeat Off

Random Play Select

Touch the Random (✗) icon to play the tracks on the disc in a random, shuffled order.

Touch the Random (✗) icon again to cancel Random Play mode.

NOTE: CD-R and CD-RW will not play unless the recording session is finalized.

Instructions for TFT control and Insert/Eject are the same for DVD and MP3 operation. Please see the DVD/Disc Video Operation section for information about these topics.

Media and File Requirements

This player allows you to play back MP3 and WMA files recorded onto CD-R/RWs, DVD+R/RWs, and DVD-R/RWs. For CD-RW discs, please make sure it is formatted using the full method and not the quick method to prevent illegal disc operation.

For the greatest file capacity, Dual Layer DVD's can be used when burning music to a disc.

MP3 Format Compatibility

The file naming formats listed below are compatible with this unit:

• ISO 9660 – file name: 12 characters, file extension: 3 characters
• ISO 9660 – file name: 31 characters, file extension: 3 characters
• Joliet – 64 characters

If the file or folder name does not conform to ISO 9660 file system standards, it may not be displayed or played back correctly. Use the following settings when compressing audio data for your MP3 disc:

• Transfer Bit Rate: 128 kbps

• Sampling Frequency: 48 kHz

When recording MP3 up to the maximum disc capacity, disable additional writing. For recording on an empty disc up to maximum disc capacity, use the “Disc at once” setting.

MP3 Playing Order

When selected for play, files and folders (Folder Search, File Search or Folder Select) are accessed in the order they were written by the CD writer. As a result, the order in which they are expected to be played may not match the order in which they are actually played. You may be able to set the order in which MP3/WMA files are to be played by writing them onto a medium such as a CD-R with their file names beginning with play sequence numbers such as "01" to "99".

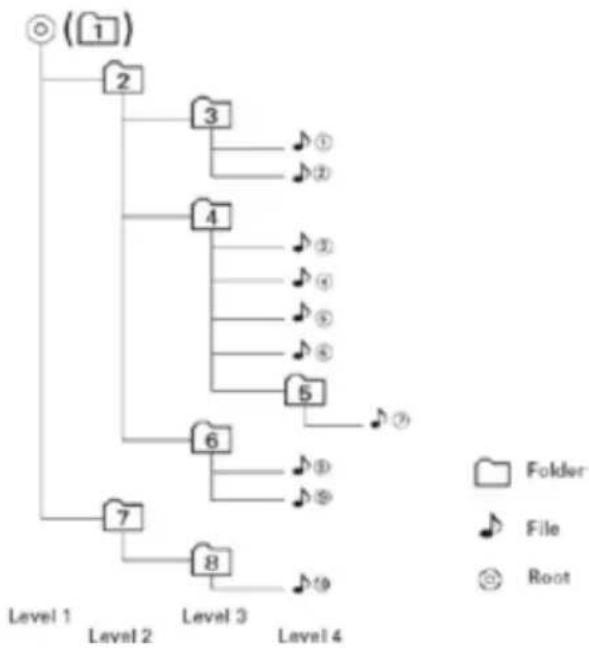

For example, a medium with the following folder/file hierarchy is subject to Folder Search, File Search or Folder Select, as shown below.

The VME 9425 player will only recognize three folder levels and does not display folders containing only other folders. In the example above, the unit will display folders 3, 4, 6, and 8, but not 2 and 7 since they do not contain any tracks directly. Folder 5 is not recognized at all since it is at the fourth level.

Inserting a USB/SD Card Device

NOTE: Front and rear USB ports are for either Apple iPod / iPhone devices, USB memory sticks or portable HDD. The USB/SD ports will recognize most USB/SD flash memory devices and portable hard drives. The unit supports 8GB SD cards (however SD cards larger than 8GB may not be recognized) and portable hard drives (hard drives must be formatted to FAT32 and NTFS is not supported).

1. Locate the USB/SD connector on the front of the radio.

USB-Anschluss USB Port Öffnen/ Open SD-Kartenschlitz SD CardSlot NAV NUTS SD CARD AV INPUT AUDIOVOX

1. Lift the protective cover to reveal the USB/SD slots.
2. Insert the USB/SD device into the USB/SD connectors. The unit will read the audio/video files on the USB/SD device automatically.

To remove the USB/SD device, press the SRC button or use the SOURCE MENU to switch to another mode, and then remove the USB/SD device from the connector.

DIVX

This device is certified in accordance with DivX® Home Theater Version 3.0.

DivX® is a digital video format which has been developed by DivX, Inc. to provide a high-quality viewing experience on various platforms, for example, on mobile phones and DVD players. DivX®, DivX Certified® and associated logos are registered trademarks of DivX, Inc. and are used under licence.

This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies.

Please note the online information www.divx.com/vod.

Setting Load Factory Reset DivX Registration DivX Deactivation 12:15PM

This device is able to play DivX® video files that have been recorded on CD-R/RW, DVD-R/RW and DVD+R/RW discs and USB sticks.

This device plays all versions of DivX® video (incl. DivX®8), with standard playback of DivX® media files.

Unauthorised DivX® files may not play properly. File extensions such as .avi or .divx must be used properly.

You can obtain further information on DivX® video files and software tools at

www.divx.com.

MP3/WMA/XVID/DIVX TFT Display

The on-screen indicators and touch key areas for MP3/WMA playback are outlined below.

Disc User EQ 12:15PM MP3 56/135 Song: A Girl Like You Artist: Smithereens Album: The Best Of 02:09 04:10 List Menu Page 1 Scan Menu Page 2

- Disc icon: Touch to view the SOURCE MENU and select a new playback source.

- Repeat Play Indicator ( )This indicator is lit when the repeat mode is active.

- Random Play Indicator ( ) This indicator is lit when the random mode is active.

- Equalizer setting indicator: Displays the current equalizer preset setting.

- EQ: Touch for quick access to the Equalizer level settings menu.

- Clock: Displays the time as entered by the user in the settings menu.

- Preview Window: Displays album art, if available.

- Toggle (☐) icon: Touch to toggle between menu page 1 and menu page 2.

- Stop ( ▪ icon: Touch to stop playback.

- Next ( ▶ icon: Touch to play the next track.

- Pause/Play( ▶II ) icon: Touch to pause playback. Touch again to resume playback.

- Previous (icon: Touch to play the previous track.

- List icon: Touch to display the Playlist screen.

- Elapsed time Indicator: Displays the elapsed and total playing time of the current track playing.

- Track Indicator: Displays the current track number playing and total number of tracks on disc.

- EQ icon: Touch for quick access to the Equalizer level settings menu.

- icon: Touch to select a chapter/track directly using the on-screen display direct entry menu display.

- Repeat( 📋 ) icon: Touch to alter repeat mode as follows: Repeat Single > Repeat Folder > Repeat All > Repeat Off

- Random( ) icon: Touch to alter random mode as follows: Random On > Random Off

• SCAN: Plays the first ten seconds of each track. Press again to stop this function.

Playlist Screen

The Playlist screen allows you to directly search for music, video or photo files stored on your MP3 disc/USB device.

Disc User EQ 12:15PM 1 2 Greatest Hits 3 She's A Beauty 4 Four Days 5 Bed Of Roses 6 Too Much Music ▲

• Touch a folder to view the contents of the directory or touch a track title/file name to begin playback of that file.
• Touch ▲ to view the previous playlist page. Touch ▼ to view the next playlist page.
• Touch return to menu page 1.

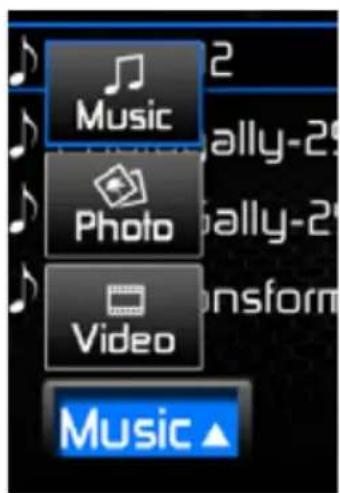

Search Playlist by File Type

1. Touch the MUSIC▲icon.

Music Photo Video Music ▲

1. Touch "MUSIC," "PHOTO" or "VIDEO". The list of files that appear will be filtered by the type of file selected.

Controlling Playback

Inserting a Disc

Upon inserting a MP3/WMA disc, disc play begins. You cannot insert a disc if there is already a disc in the unit or if the power is off.

Ejecting a Disc

Press the ▲button on the front of the unit to eject the disc. The unit automatically reverts to Tuner mode.

You may eject a disc with the unit powered off. The unit will remain off after the disc is ejected.

Resetting the Loading Mechanism

If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the ▲button to reset the loading mechanism. Normal operation resumes.

Playing MP3/WMA Files

After inserting a MP3/WMA disc, files will play in the sequence of the “Root” directory. NOTE: When burning MP3 / WMA files onto a DVD disc, use the 2X or 4X burning option, if available. This slower burning speed will help eliminate buffer errors and increase disc reading reliability. Also, use folders when burning large numbers of songs / files to a disc for easy music navigation. Select the “Disc at Once” option and close your disc.

Stopping Playback

Touch the Stop (■) icon to stop playback.

To resume playback, touch the Pause/Play (▶II) icon.

Pausing Playback

Touch the Pause/Play (▶)licon to suspend or resume playback.

Moving Through Tracks

Touch the Next (▶) icon to advance to the next track

Touch the Previous (◀◀) button to move to the previous track on the MP3 disc/USB device.

Repeat Playback

Touch the Repeat (icon to alter repeat mode as follows: Repeat Single > Repeat Folder > Repeat All > Repeat Off

NOTE: CD-R and CD-RW will not play unless the recording session is finalized.

Random Play Select

Touch the Random (✗) icon to play the tracks on the MP3 disc/USB device in a random, shuffled order. Touch the Random (✗) icon again to cancel Random Play mode.

This unit is Made for iPod and iPhone. You can control your iPod and iPhone via the touch screen to access Playlist, Artist, Albums, Songs, etc. Supported models include, but are not limited to the following:

• iPhone 4S / 4 / 3GS /
• iPodtouch 5th and 4th Generation
• iPod nano 6th and 5th Generation
• iPod classic

NOTE: Be sure your iPod has the latest Apple firmware installed to avoid connectivity issues.

Accessing iPod Mode

The unit will automatically switch to iPod mode when an iPod, iPod touch or iPhone is plugged into the front or rear USB connector.

NOTE: For basic iPod connectivity, you can use the white 30-pin to USB iPod cable that came with your Apple device.

To return to the iPod menu from any other source menu, touch SRC on the front panel until the iPod menu appears on the screen, or choose the iPod icon from the source menu (only available when an iPod or iPhone is connected to the USB connector).

Search Screen

The Search Screen allows you to search for music files stored in your iPod/iPhone. Touch the Music list box to search for music grouped by playlists, artists, albums, songs, genres, composer or podcast.

iPod 7/1 00:03:01 User EQ 12:15 AM 1 ---- 2 ---- 3 ---- 4 ---- 5 ----

• iPod icon: Touch to view the SOURCE MENU and select a new playback source.
• indicator: Indicates whether media is playing or paused.
  • 2/23 indicator: File number and total number of files on the disc.
  • EQ icon: Touch for quick access to Equalizer level settings menu.
• Clock: Displays the time as entered by the user in the settings menu.
• Preview Window: Displays album art, if available.
• Toggle(☐) icon: Touch to toggle between menu page 1 and menu page 2.
• Next ( ▶ ) icon: Touch to play the next track.
• Pause/Play( ▶II ) icon: Touch to pause playback. Touch again to resume playback.
• Previous (icon: Touch to play the previous track.
• icon: Touch to select a chapter/track directly using the on-screen display direct entry menu display.
• icon: Touch to return to a previous menu.

Controls and Indicators

The on-screen indicators and touch key areas for iPod playback are outlined below.

iPod 7/11 Artist: Deadmau5 Song: I Remember Album: Random Album Title 02:09 04:10

- iPod icon: Touch to view the SOURCE MENU and select a new playback source.

• indicator: Indicates whether media is playing or paused.

- Equalizer setting indicator: Displays the current equalizer preset setting.

- EQ icon: Touch for quick access to Equalizer level settings menu.

- Clock: Displays the time as entered by the user in the settings menu.

- Repeat ( ⬆ ) icon: Indicates the repeat function is enabled.

- Random( ) icon: Indicates the random function is enabled.

• 2/23: File number and total number of files on the disc.

- Song title, album, and performing artist.

• 02.01: Elapsed playing time and playback progress bar for current file.

• 04:20 Total playing time for current file.

• ⏰ Preview Window: Displays album art, if available.

- Repeat( ) icon: Touch to alter repeat mode as follows: Repeat Single > Repeat Folder > Repeat All > Repeat Off

- Random() icon: Touch to alter random mode as follows: Random On > Random Off

- Next ( ) icon: Touch to play the next track.

- Pause/Play( ) ledn: Touch to pause playback. Touch again to resume playback.

- Previous (icon: Touch to play the previous track.

- icon: Touch to return to a previous menu.

Controlling Your iPod

Touch the MENU button to access the main iPod menu. Use the touchscreen to navigate the iPod menus.

Direct Track Entry

To select a track directly:

1. Touchthe ■ icon to display the Direct Entry Menu.

iPod User EQ 12:15 AM Track: _ 1 ---- 2 ---- 3 ---- 4 ---- 5 ---- 1 2 3 4 5 6 7 8 9 0 ← ↑ × ✓

1. Touch to select a chapter/track directly using the direct entry menu by entering the desired track number.
2. Touch √ to play the selected file. To exit the screen without changing the file, touch the X. To clear your entry and start over, touch the ← icon.

NOTE: After disconnecting your iPod, the VME 9425 will always return to the last mode accessed when the iPod is plugged back into the unit.

BLUETOOTH OPERATION

Bluetooth® was launched by a special interest group (SIG) comprised of Ericsson Inc., Intel Corp., Nokia Corp., Toshiba and IBM in 1998, and it is currently developed by nearly 2,000 companies worldwide. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Audiovox Corporation is under license. Other trademarks and trade names are those of their respective owners.

Bluetooth® technology has the capability to wirelessly synchronize and transfer data among devices. The Bluetooth® audio capabilities can be used for mobile phones hands free applications. Bluetooth® has many profiles and the unit is compatible with most Bluetooth® enabled mobile phones. Before attempting to use the Bluetooth® functions on the unit, please make sure your mobile phone supports Bluetooth® functions.

NOTE: The line-of-sight distance between this unit and your mobile phone must be 8 feet (2.4 meters) or less for sending and receiving voice and data via Bluetooth® wireless technology.

Please make sure your mobile phone supports Bluetooth® functions (Headset or Handsfree profiles or both). Adhere to the following guidelines for successful operation:

- Before using Bluetooth® functions, you must pair your mobile phone to the VME 9425 head unit (see “Pairing the Bluetooth® System with Your Mobile Phone and Head Unit”). To ensure the best reception for pairing and reconnection, please make sure the phone battery is fully charged before you begin.

- Try to perform pairing within a few minutes of the phone being turned on.

- Once the unit has been paired with the phone, the unit's model number, "VME 9425", will be displayed on the mobile phone.

- To achieve the best performance, always keep the mobile phone within 3 meters of the head unit.

- Always keep a clear path between the mobile phone and the head unit. Never place a metal object or any other obstacle between the mobile phone and the head unit.

- Some mobile phones (like Sony Ericsson) may have a “Power Saving Mode” option. PLEASE DO NOT use the power saving mode with the VME 9425.

- Before accepting or making a call, make sure your mobile phone's "Bluetooth function" is turned on.

- To ensure the best conversation quality/performance, stay within one meter of the microphone when talking.

- To "disconnect" the mobile phone from the head unit, turn the Bluetooth® connectivity off on the mobile phone or touch the button.

Bluetooth User Interface

The on-screen indicators and touch key areas for Bluetooth® functions are outlined below.

BT Local Class EQ 12:15PM GT-S5660 Pair Phone

• BT icon: Touch to view the SOURCE MENU and select a new playback source.
• Equalizer setting indicator: Displays the current equalizer preset setting.
  • EQ :en: Touch for quick access to Equalizer level settings.
• Clock: Displays the time as entered by the user in the settings menu.
• indicator: Indicates whether the unit is disconnected/connected with a Bluetooth® device.
• Pair icon: Touch to initiate the pairing process with a Bluetooth®device.
• Options icon: Touch to configure Bluetooth® parameters and options. Refer to the Options screen for further details.
• BT Audio icon: Touch to access the Bluetooth® music function.
  • Phone icon: Touch to access the phone call menu.
• icon: Touch to return to a previous menu.

Hands Free Profile (HFP)

To use a mobile phone with this unit, it is necessary to first establish a connection using Bluetooth® wireless technology. The connection is normally established using Hands Free Profile (HFP), which gives you full control of functions available on the telephone source. However, depending on your phone, the connection may be made using Head Set Profile (HSP), making some functions unavailable. This is a limitation of your phone, not the VME 9425.

Since there are a number of Bluetooth® mobile phone implementations available on the market, operations with your Bluetooth® mobile phone using this unit vary greatly. Please refer to the instruction manual that came with your Bluetooth® mobile phone along with this manual while operating your phone with this unit.

Pairing Your Mobile Phone with the Head Unit

Your mobile phone can initiate a search for new devices and pair to the unit. The following procedure describes the pairing process.

NOTE: The following procedures are generic. Procedures for pairing mobile phones may vary slightly from phone manufacturer to phone manufacturer.

1. Press the SRC button on the front panel to access the source menu.
2. Touch the BT icon on the source menu and the Bluetooth® user interface screen will appear.
3. Touch the Options icon and the following screen will appear.

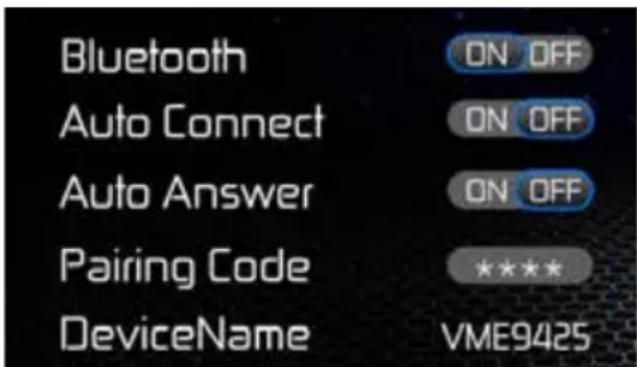

Bluetooth ON OFF Auto Connect ON OFF Auto Answer ON OFF Pairing Code ***** DeviceName VME9425

1. On the Options submenu set the Bluetooth function to ON.
2. On the Options submenu set the Connect function to ON.
3. Press the "Pair" button on the head unit's Bluetooth® user interface screen.
4. Access the mobile phone Bluetooth® function and set the function to ON.
5. Set the mobile phone Bluetooth® discover mode to ON.
   NOTE: Some discovery modes have a time limit (usually a minute) before they are automatically turned off.

6. Use the mobile phone's add a new device feature. A device or devices will appear on your mobile phone display.

7. A prompt to pair or bond should appear on your mobile phone. Accept the request and initiate the process.

NOTE: Some mobile phones require a "pass key" or pairing code to connect. If your phone requires a pass key or pairing code, you will need to enter this number. The default pairing code for many wireless phones is "0000". The default code for the unit is "1234".

1. A prompt to enter a PIN number or passkey for the unit should appear. The default passkey for the unit is "1234".

2. At this point a prompt stating that pairing is successful should appear. Another prompt should appear asking connect to the unit, Yes or No. Press Yes. The mobile phone and the unit should connect. The mobile phone should display a message similar to "Device Connected." The mobile phone and the unit are now connected. VME 9425 will appear on the mobile phone list of devices.

Managing Incoming Calls

When connected to a Bluetooth® phone, the unit will mute audio output, pause CD play, and change to the Bluetooth screen below when a call is received. The incoming phone number or as-signed name for that number will appear in the top of the screen. An audible tone will sound from the unit and a graphic display will appear on the front panel. If the incoming call has no caller ID, the unit will display “Private Caller”.

BT Local Class EQ 12:15PM Call Connected 10086 00:52 Pair Mute Transfer call Direct Entry

- Direct Entry icon: Touch to access the direct dial screen. Refer to the Direct Entry screen for further detail.

- icon: Touch to answer an incoming call.

• Transfer Call icon: Touch to transfer a call back to the mobile phone.
• Mute icon: Touch to mute the microphone audio from the unit. Touch the icon again to restore the microphone and audio from the unit.
• icon: Touch to end an in coming call.
• icon: Touch to return to a previous menu

Answering an Incoming Call

Touch the icon. For best reception, speak loudly and clearly into the microphone. To end the conversation, touch the icon.

Rejecting an Incoming Call

Press the Transfer Call icon to reject an incoming call. The call will revert to your mobile phone and be left for voice mail.

Volume Control

To increase or decrease the volume level of an incoming call, turn the rotary knob on the front panel.

Audio Mute

To mute the phone call audio from the unit when a call is received, press the front panel rotary knob. Press the front panel rotary knob again and phone call audio will be restored to the unit.

Making an Outgoing Call

Outgoing calls can be performed by touching the Direct Entry icon and using the unit's touch screen keypad.

Direct Dialing

1. Touch the Direct Entry icon and the following screen will appear:

1 2 3 4 5 6 7 8 9 * 0 #

1. Using the keypad, touch 0-9,* or # to enter the phone number you wish to dial. If you enter an incorrect number touch the ← on to delete the incorrect number.
2. Once the correct number appears on the screen touch the icon. To exit the direct entry screen touch the X.
3. To end the call touch the icon on the previous screen.

Call Transfer

While talking, to transfer audio from the unit back to the wireless phone, touch the Transfer Call icon. You can only transfer a call after it has been answered. Touching the Transfer Call icon again will return the audio from the mobile phone to the unit. Touch the Transfer Call icon and the following screen will appear:

BT User EQ 12:15PM Transfer to Mobile Phone Bluetooth Pair Mute Transfer Call Direct Entry

Bluetooth Music Function (BT Audio/A2DP)

Bluetooth provides an Advanced Audio Distribution Profile (A2DP) profile for streaming music from a wireless phone or a portable multimedia player (PMP), sometimes referred to as a MP3 player. The unit allows you to play back audio files from your wireless phone or a PMP using a Bluetooth connection.

NOTE: Please quit A2DP mode before attempting to make a phone call, as unexpected results may occur depending on your wireless phone model.

The unit can control a Bluetooth audio player via Advanced Audio Distribution Profile (A2DP) or Audio/Video Remote Control Profile (AVRCP). Bluetooth audio players (or Bluetooth adapters) compatible with these profiles can be connected to this unit. Touch the BT Audio icon and the following screen will appear:

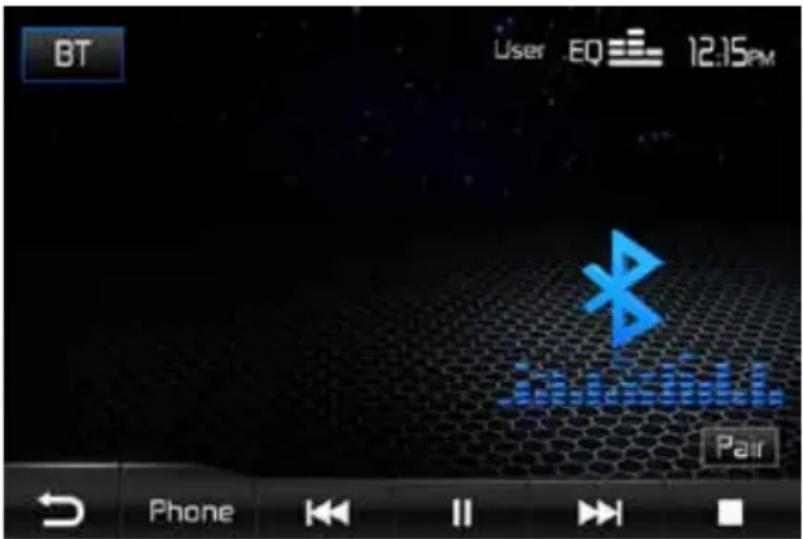

BT User .EQ 12:15PM BMW Pair Phone

While listening to audio the following functions are available:

• Pause/Play( ▶/II ) icon: Touch to pause playback. Touch again to resume playback.
• Previous (icon: Touch to play the previous track.
• Next (▶) icon: Touch to play the next track.
• Touch the Stop ( ■ ) icon to stop playback.

Functionality varies depending on the profile used:

• A2DP: Stream audio from your Bluetooth compatible audio player and listen to the music through the unit.
• AVRCP: Play back, pause, select songs, etc. while streaming audio from your Bluetooth compatible audio player to the unit.

NOTE: Song information (e.g. elapsed playing time, song title, song index, etc.) cannot be displayed on this unit. Since there are a number of Bluetooth audio players available on the market, operations with your Bluetooth audio player using this unit vary greatly. Please refer to the instruction manual that came with your Bluetooth audio player.

When there is an incoming call, the song will be paused. After the incoming call is finished, the screen will return to the music function screen and playback will continue.

This unit is “camera ready.” Before accessing any camera features, you must install a rear video camera.

When the camera is not installed and the function is accessed by the gear selector being placed in reverse or by the unit's menu, the message "VIDEO NOT DETECTED" will appear, indicating the function is not available.

When the camera is installed, the rear view image of what is behind the vehicle will appear when the vehicle is placed in reverse gear. When leaving reverse gear, the unit displays the previous screen.

The rear camera image can be adjusted from Normal to Mirror using the "Setup" menu ("see Hardware Sub-menu Features").*

TROUBLESHOOTING

Problem Cause Corrective Action
GENERAL
Unit will not power on Radio Fuse blown Install new fuse with correct rating
No/low audio output Improper audio output connection		Check wiring and correct
Poor sound quality or distortion	Pirated disc is in use Use original copy
	Speaker power rating not compatible with unit	Connect proper speakers
	Speaker is shorted Check speaker contact
Unit resets itself when engine is off	Incorrect connection between ACC and positive battery wire	Check wiring and correct
TFT MONITOR
No image Incorrect connection to parking brake wire		Check wiring and correct
Flashing image or interference appears on screen	DVD is not compatible with current TV system settings	Change setup to accommodate disc
	Improper video signal connections	Check wiring and correct
Prolonged image or improper height/width ratio display	Improper aspect ratio setup	Use correct aspect ratio setting
TUNER
Weak station searching	Auto antenna is not fully extended	Connect the auto antenna control cable properly
	Auto antenna not properly connected	Connect the auto antenna control cable properly
	LOCAL function is activated	Turn LOCAL function off
DISC
Cannot insert disc Disc already inside unit Eject current disc and insert new one
Image blurred, distorted, or dark	Disc is illegally copied Use	original disc
Disc does not play back	Disc is warped or scratched	Use disc in good condition
	Disc is dirty or wet Clean disc with soft cloth
	Laser pickup is dirty Clean laser pickup with cleaning disc
	Incompatible disc is used	Use compatible disc
	Disc region code is not compatible with unit	Use disc with proper region code
	Disc is inserted upside down	Insert disc with label side up
PBC cannot be used during VCD playback	PBC is not available on the disc
No repeat or searching while playing VCD	PBC is on Turn PBC off
MP3
Interruption occurred during playback	Disc is dirty or scratched Clean disc or replace
	File is damaged/bad recording	Recreate disc with good files

Error Messages

Message Displayed Cause	Corrective Action
No Disc Disc is dirty Clean	disc with soft cloth
	Disc is upside down Insert disc with label side up
	Disc not present in loading compartment	Insert disc
Bad Disc Disc is dirty Clean	disc with soft cloth
	Disc is upside down Insert disc with label side up
Unknown disc Disc format is not compatible with this unit
Region Error DVD is not compatible with region code of unit
Error Illegal mechanism	operation	Press EJECT key for 5 seconds to reset loading mechanism

CARE AND MAINTENANCE

1. Use only a clean silicone cloth and neutral detergent to clean the front panel or monitor. A rough cloth and non-neutral detergent (such as alcohol) may result in scratching or discoloration.

2. Do not get water or cleaning fluids on the unit.

3. If the temperature inside the player gets too hot, a protective circuit automatically stops play of the disc. If this occurs, allow the unit to cool before operating the player again.

4. Never insert anything other than a 5" (12 cm) compact disc into the player as the mechanism can be damaged by foreign objects.

5. Do not attempt to use a 3" (8 cm) CD-Single disc in this unit, either with or without an adaptor, as damage to the player and/or disc may occur. Such damage is not covered by the Warranty on this product.

6. The CD player may not operate properly in extreme hot or cold. If such conditions occur, allow the interior of the vehicle to reach a normal temperature before using player.

7. When the vehicle warms up during cold weather or under damp conditions, condensation may appear on the TFT panel. Should this occur, the screen will not operate properly until the moisture has evaporated.

8. We suggest you use a cleaning disc in this unit more frequently than in the unit in your home due to the environmental conditions of the vehicle.

SPECIFICATIONS

DVD/CD Player

Compatible Disc Media: DVD + R / RW (Single and Dual Layer) and CD-R / RW

Compatible Media Formats: CD-DA, MP3, WMA, VCD, SVCD, Xvid, DviX, AVI, MPEG 1/2

Signal to Noise Ratio: >95dBA

Dynamic Range: >95dB

Frequency Response: 20Hz to 20 kHz, -3dB

Channel Separation: > 60dB @ 1 kHz

D/A Converter: High performance 24-bit / 192 kHz sample rate, Multi-Bit Sigma-Delta Modulator

Video

Format: NTSC, PAL (auto-detection)

Output: 1Vp-p (75-ohm)

Input: 1Vp-p (75-ohm)

FM Tuner

Tuning Range: 87.5MHz - 107.9MHz

Mono Sensitivity (-30dB): 9dBf

Quieting Sensitivity (-50dB): 15dBf

Alternate Channel Selectivity: 70dB

Signal to Noise Ratio @ 1 kHz: 58dB

Image Rejection: 80dB

Stereo Separation @ 1 kHz: >30dB

Frequency Response: 30Hz - 15 kHz, -3d

AM Tuner

Tuning Range: 522 kHz - 1620 kHz

Sensitivity (-20dB): 15uV

Signal to Noise Ratio @ 1 kHz: 50dB

Image Rejection: 60dB

Frequency Response: 50Hz - 2 kHz, -3dB

Monitor

Screen Size: 6.2" (Measured diagonally), 16:9 Widescreen

Screen Type: TFT Liquid Crystal Display (LCD) active matrix

Resolution: 1,152,000 sub pixels, 800x3 (W) X 480 (H)

General

Auxiliary Input impedance: 10k

Power Supply: 11 to 16VDC, negative ground

Power Antenna (Blue): 500mA max, current limited protection

Amplifier Remote (Blue/White): 500mA max, current limited protection

Operating Temperature: -20C \~ 65C

Signal to Noise Ratio: 70dBA below reference (Reference: 1 Watt, 4-Ohms)

Frequency Response: 20 Hz - 20 kHz, -3dB. (Aux Input used as reference input)

Reference Supply Voltage: 14.4VDC

*Specifications subject to change without notice.

1. Bouton Power (⊕)/SRC

Camera Settings Bluetooth Previous

MENU SOURCE Page 2

Bass Mid Treb LCF MCF TCF EQ BAL-FAD - - - - - - - 0 0 0 100 1k 10k User

Commander la reproduction

Insérer un disque

Track: _ 1 2 3 4 5 6 7 8 9 0 ← ↑ × ✓

Disc User EQ 12:15PM 1 Track 01 2 Track 02 3 Track 03 4 Track 04 5 Track 05 6 Track 06

Commander la reproduction

Insérer un disque

iPod User EQ 12:15 AM Track: _ 1 2 3 4 5 6 7 8 9 0 ← ↑ × ✓

BT Local Class EQ 12:15PM GT-S5660 Pair Phone

BT Local Class EQ 1215PM Call Connected 10086 00:52 Bluetooth Pair Mute Transfer call Direct Entry

BT User EQ 12:15PM Transfer to Mobile Phone Bluetooth Pair Mute Transfer Call Direct Entry

FONCTION MUSIQUE DE BLUETOOTH

BT User 12:15pm Phone Pair

GB Congratulations! You have made a wise selection in becoming the owner of a AUDIOVOX Mobile Video equipment. Due to high quality AUDIOVOX Mobile Video products have earned an excellent reputation through the western world. And this high quality standard enables us to grant a 2-years warranty for AUDIOVOX Mobile Video products.

The equipments are checked and tested continuously during the entire production process. In case you have problems with your AUDIOVOX HiFi equipment, kindly observe the following:

1. The guarantee period commences with the purchase of the component and is applicable only to the original owner.
2. During the guarantee period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequential damages, are excluded. The guarantee period is not altered by the fact that we have carried out guarantee work.
3. Unauthorized tampering with the equipment will invalidate this guarantee.
4. Consult your authorized dealer first, if guarantee service is needed. Should it prove necessary to return the component to the factory, please insure that • the component is packed in original factory packing in good condition • the quality control card has been filled out and enclosed with the component • your enclose your receipt as proof of purchase.
5. Excluded from the guarantee are: • Illuminates • Wear parts • Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with forwarding agent, the railway express office or post office). • Scratches in cases, metal components, front panels, etc. (You must notify your dealer directly of such defects within three days of purchase.) • Defects caused by incorrect installation or connection, by operation errors (see operating instructions), by overloading or by external force. • Equipments which have been repaired incorrectly or modified or where the case has been opened by persons other than us. • Consequential damages to other equipments. • Reimbursement of cools, without our prior consent, when repairing damages by third parties • Batteries and battery packs.

Name and address of the dealer/stamp

Käufer/Customer

Name/Name

Straße/Street

PLZ, Ort/City

Land/Country

Kaufdatum/buying date

No warranty without receipt!

AUDIOVOX®
