Product Type	Active Noise-Cancelling Headphones
Brand	Audio-Technica
Model	ATH-ANC7b QuietPoint®
Transducer	40 mm
Frequency Response	10 - 25 000 Hz
Active Noise Reduction	Up to 20 dB (QuietPoint®)
Sensitivity	109 dB
Impedance	300 ohms
Maximum Input Power	500 mW
Power Supply	1 AAA alkaline battery (non-rechargeable)
Battery Life (noise reduction)	Up to 40 hours (alkaline battery)
Weight (without cable or battery)	210 g
Supplied Cables	2 detachable cables: 1.6 m and 1.0 m, gold-plated 3.5 mm stereo mini-jack
Included Accessories	6.3 mm stereo adapter, airplane adapter, carrying case with pouch
Operation without battery	Passive mode (normal stereo headphone)
Design	Closed-back, adjustable headband, swiveling earcups, replaceable ear pads
Recommended Use	MP3, CD, DVD players, airplane audio systems
Care	Clean with a soft cloth; do not use solvents
Safety	Do not use in traffic; avoid prolonged high volume; keep batteries out of reach

Frequently Asked Questions - ATHANC7B AUDIO TECHNICA

How to activate noise reduction on the ATH-ANC7b headphones?

Set the power switch to the ON position. The blue indicator lights up to confirm activation. You can use noise reduction even without connecting the audio cable.

What type of battery to use?

Use a disposable AAA alkaline battery. Do not use rechargeable batteries. Observe the polarity indicated in the compartment.

Can I use the headphones without a battery?

Yes, the headphones work in passive mode (normal stereo headphone) even without a battery. The switch must be set to OFF and the audio cable connected.

How to connect the headphones to an airplane audio system?

Use the supplied airplane adapter. Connect it to the headphone cable, then insert it into the airplane's audio jack.

What to do if noise reduction does not work properly?

Check that the headphones are properly positioned on your ears (ear cups poorly applied). Set the switch to OFF and then back to ON to resynchronize.

How to replace the ear pads?

The ear pads are replaceable. Obtain replacement pads commercially and carefully remove the old ones to replace them.

Why is my headphone emitting a buzzing sound?

This may be due to improper positioning of the ear cups. Adjust the position of the headphones on your ears. If the problem persists, check the battery.

What safety precautions should be observed?

Do not use the headphones in traffic (car, bicycle). Avoid prolonged listening at high volume to protect your hearing. Keep batteries out of reach of children.

How to clean the headphones?

Clean with a soft, dry cloth. Do not use benzene, thinner, or other solvents.

What to do in case of sound distortion?

Reduce the volume of the audio device. If distortion persists, replace the battery as it may be low.

USER MANUAL ATHANC7B AUDIO TECHNICA

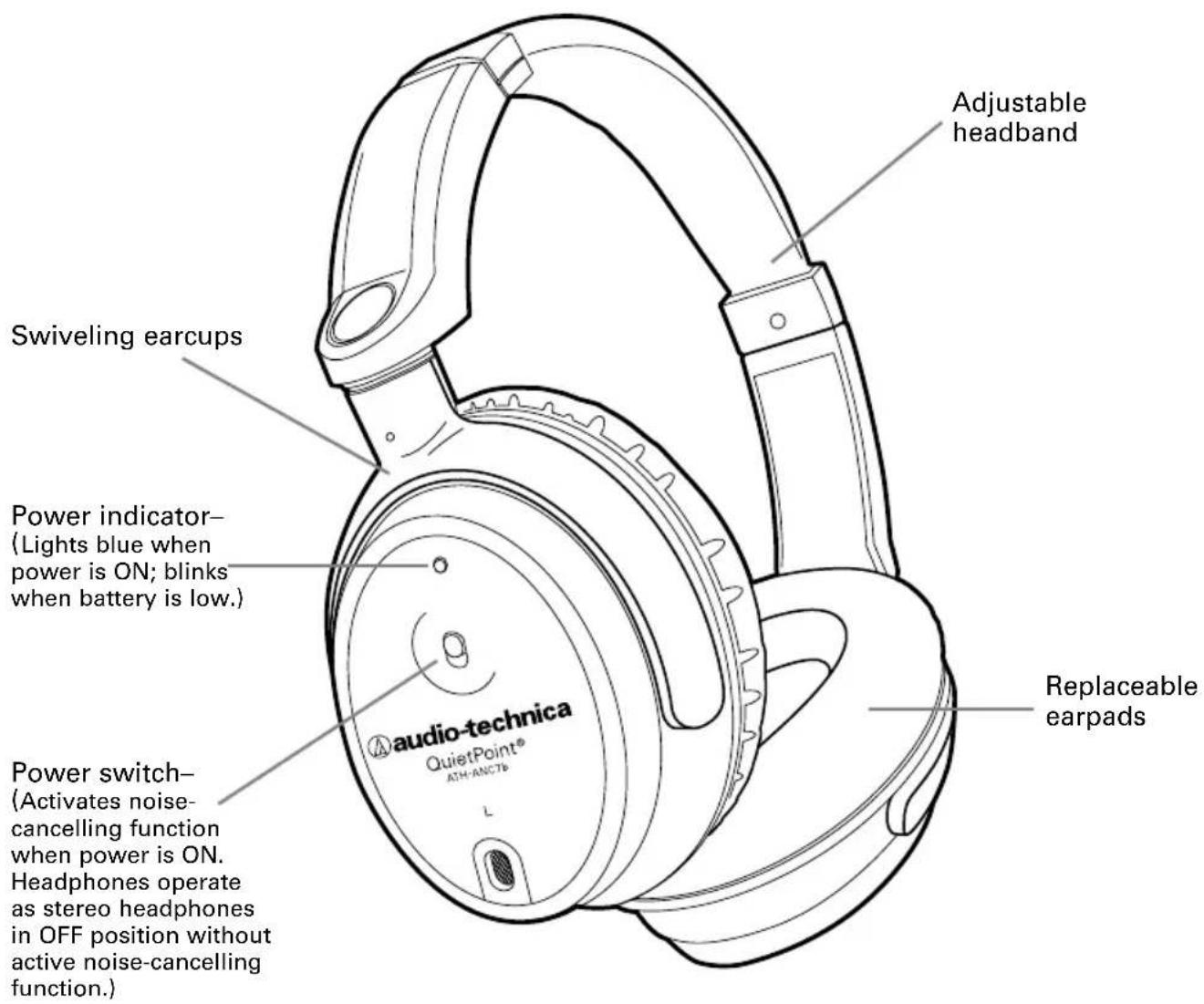

Line drawing of a audio-technica headphones with visible branding and earphones (no text beyond brand name)

Instruction Manual

ATH-ANC7b QuietPoint®

Noise-Cancelling Headphones

Please read these warnings before using your headphones. To ensure safety, observe all warnings while using this equipment.

• Do not disassemble or attempt to repair headphones.
• Never use the headphones in places where the inability to hear ambient sounds presents a serious risk (such as while operating a motor vehicle or bicycle, or at railroad crossings, train stations, construction sites or on roads or where vehicles and bicycles are traveling).

• Noise-cancelling headphones make it hard to hear outside low-pitched sounds. Take care to recognize warning beeps and other auditory reminders; be aware that the familiar sound of these alerts may be changed by the headphones.

• To prevent damage to your eardrums, never use the headphones at excessive volume levels. Listening to loud sounds for an extended period may cause temporary or permanent hearing loss.

• Do not store the headphones in direct sunlight, near heating devices or in hot, humid or dusty places.
• Do not subject the headphones to strong impact.
• Do not allow the headphones to become wet.

Battery precautions

• Keep batteries out of the reach of children.
• Use only disposable AAA alkaline batteries.
• Do not use rechargeable batteries.
• Observe correct polarity as marked.
• Remove depleted battery immediately.

• Please dispose of used batteries properly.

• Do not use a leaking battery. If battery leakage occurs, avoid contact with skin. If contact occurs, immediately wash thoroughly with soap and water. If battery leakage comes into contact with your eyes, immediately flush with water and seek medical attention.

• Do not expose the battery to excessive heat.

Compliance with FCC rules (USA only)

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Canada only

This Class B digital apparatus complies with Canadian ICES-003.

This product conforms to the EMC Directive 2004/108/EC. The complete declaration of conformity can be used from Audio-Technica Limited, Unit 5, Millennium Way, Leeds, United Kingdom LS11 5AL.

Thank you for purchasing Audio-Technica ATH-ANC7b QuietPoint® Noise-Cancelling Headphones.

Read these instructions before using the headphones, and keep the manual for future reference.

About ATH-ANC7b QuietPoint® Noise-Cancelling Headphones

Audio-Technica's ATH-ANC7b QuietPoint® headphones use active noise-cancelling technology to provide a comfortable listening environment in areas with high ambient noise. The headphones feature a miniature microphone in each earpiece that picks up ambient noise (such as traffic, air-handling systems, etc.) and creates a sound-cancelling signal to effectively block the noise.

From studio...to stage...to you

Audio-Technica equipment is used by major artists for studio recording and capturing live performances on stage...allowing audiences to experience their work as clearly and fully as it was intended. These headphones are designed to offer you the advances in electro-acoustic technology that make Audio-Technica the choice of leading artists worldwide. Wherever you happen to find yourself—in the comfort of your living room, in a noisy office, or settling in for a long flight—there is no better way to experience audio or immerse yourself in a peaceful environment.

• Award-winning QuietPoint® active noise-cancelling technology reduces environmental noise by 90%
• Arrive refreshed after a long flight, avoid distractions in a noisy office, or find peace & quiet in your living room
  • Lightweight, compact design is ideal for travel
• Use for MP3, CD, DVD and in-flight entertainment systems; remove detachable cable for noise-cancelling function without audio input
• Closed-back headphones feature large-aperture 40 mm drivers for impactful bass, extended treble and higher fidelity
• Audio functions (in passive mode) even without the battery
• Fully integrated electronics—no external modules needed
• Includes a durable carrying case with attached pouch for accessories

ATH-ANC7b QuietPoint® Noise-Cancelling Headphones

Included Accessories

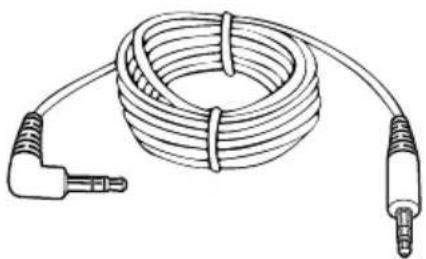

Line drawing of a coiled audio cable with two connectors (no text or symbols)

Detachable 1.6 m (5.2') cable with gold-plated 3.5 mm ( ^1/_8 ) stereo mini-plugs

Gold-plated airline adapter

Line drawing of a coiled audio cable with two connectors (no text or symbols)

Detachable 1.0 m (3.3') cable with gold-plated 3.5 mm ( 18 ) stereo mini-plugs

Gold-plated 6.3 mm ( _4 ) stereo adapter

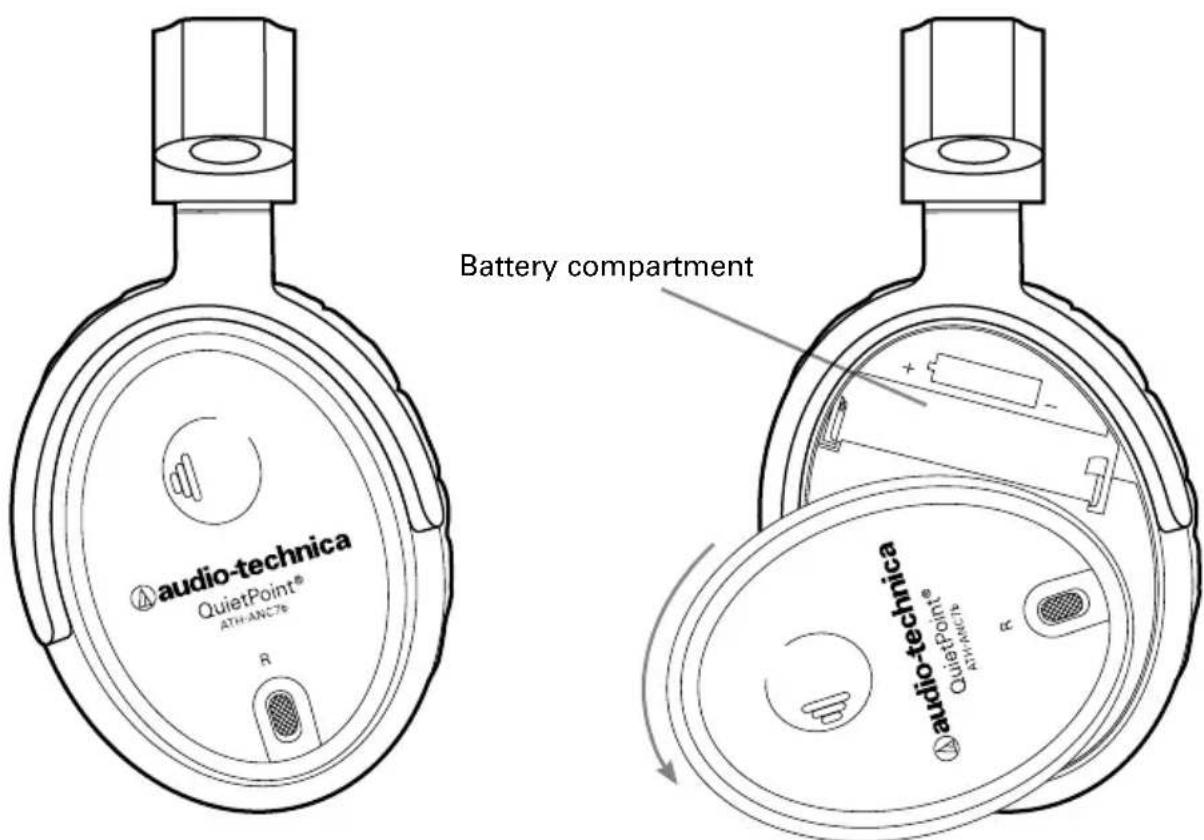

Installing the battery and case construction

Pivot right earcup to expose battery compartment.

The ATH-ANC7b requires one AAA battery for operation (included). Use only disposable AAA alkaline batteries. Do not use rechargeable batteries.

1. Move headphone power switch to the "OFF" position.
2. Pivot right earcup to expose battery compartment.
3. Insert AAA battery, observing correct polarity as marked.
4. Close battery compartment cover. Note: Close cover completely. The right earcup will not pivot freely if the battery compartment is not completely closed.

Note: Power indicator light blinks to indicate low battery.

To listen to music/audio

1. Connect the included headphone cable to the port on the left earcup, making certain the plug is firmly seated.

2. Connect the other end of the headphone cable to the headphone jack of your audio device.

3. Use 3.5 mm ( ^1/_8 ) stereo mini-plug to connect to MP3, CD player, DVD player, computer, and other audio devices equipped with a 3.5 mm output jack.

4. Use included 6.3 mm ( ^1/4 ) stereo adapter to connect to home stereo equipped with 6.3 mm ( ^1/4 ) output jack.
5. Use included airline adapter to connect to typical airline audio systems.

Note: The headphones cannot be used with devices equipped with 2.5 mm earphone jacks. Please purchase an optional mono/stereo adapter for use with a mono device. (Without use of an adapter, the right channel is muted when headphones are connected to a mono device.)

1. To activate noise-cancelling function, move the power switch on your headphones to the "ON" position; power indicator should light (blue). (If you do not wish to use the active noise-cancelling function, move power switch to the "OFF" position.)
2. Turn on your audio device. (Volume should be set at a low level at first; adjust as necessary on audio device.)

For noise-cancelling only

1. To activate noise-cancelling function, move the power switch on your headphones to the "ON" position; power indicator should light (blue). In this case, there is no need to connect the headphone cable; simply turn the headphones on and wear them.

After using

• After you have finished using your headphones, be certain to move the power switch to the "OFF" position.
• Remove battery when you will not be using the headphones for an extended period.
• Store the headphones in included protective carrying case; store accessories in attached pouch.
• To clean the headphones, wipe with a clean, soft cloth. Do not use solvents such as benzene or paint thinner on the headphones.
• Earpads will wear over time. Replacement pads are available from Audio-Technica dealers.

Troubleshooting guide

Problem

Solution

Ambient noise is not reduced Adjust headphones' position. (Headphones may be incorrectly positioned on ears.)

Turn power switch off, and on again.

(Ambient noise may be out of synchronization with noise-cancelling frequency.)

Headphones produce rumbling noise Adjust headphones' position. (Headphones may be incorrectly positioned on ears.)

Sound has become distorted Turn down volume of audio/video equipment. (Volume may be too loud.)

Change battery in headphones. (Battery may be drained.)

ATH-ANC7b Specifications*

Driver 40 mm, active noise-cancelling
Frequency Response 10 - 25,000 Hz
QuietPoint® Active Noise Reduction Up to 20 dB
Sensitivity 109 dB
Impedance 300 ohms
Maximum Input Power 500 mW
Battery AAA (alkaline)
Battery Life Up to 40 hours, typical (alkaline)
Weight 210 g (7.4 oz), without cable and battery
Cables Detachable 1.6 m (5.2') with 3.5 mm (Detachable 1.0 m (3.3') with 3.5 mm (	18 " stereo mini-plugs; 18 " stereo mini-plugs
Connector Input 3.5 mm (	18 "
Included Accessories 6.3 mm (carrying case with attached accessory pouch	14 " stereo adapter; airline adapter; AAA battery;

* Specifications measured with headphones in active mode. Specifications are subject to change without notice.

Avertissements

Line drawing of a coiled audio cable with two connectors (no text or symbols)

Line drawing of a coiled audio cable with two connectors (no text or symbols)

Line drawing of a coiled audio cable with two connectors (no text or symbols)

Line drawing of a coiled audio cable with two connectors (no text or symbols)

Line drawing of a coiled audio cable with two connectors (no text or symbols)

Line drawing of a coiled audio cable with two connectors (no text or symbols)

Line drawing of a coiled audio cable with two connectors (no text or symbols)

Line drawing of a coiled audio cable with two connectors (no text or symbols)

Audio-Technica Active Noise Cancelling Headphones may be sent to any of the Authorized Audio-Technica Service Centers listed below for warranty repair or replacement. For details of warranty service, return approval, and shipping information, contact the Authorized Audio-Technica Service Center in your region.

All product submitted for warranty repair or replacement must be pre-approved and must be sent prepaid and include a sales slip, receipt or other proof of purchase date.

Defects due to normal wear, abuse, shipping damage, or failure to use product in accordance with instructions are not warranted. Unauthorized repair or modification, or removal or defacing of the product labeling will void the warranty.

U.S., Canada, Latin America

Service Department, Audio-Technica U.S., Inc.

Address: 1221 Commerce Drive, Stow, Ohio 44224

Tel: [phone]

(Monday - Friday, 8:30 a.m. - 4:30 p.m. Eastern time)

Fax: [phone]

E-mail: [e-mail]

Web site : http://www.audio-technica.com

Southeast Asia, India, GCC

Audio-Technica (S.E.A.) Pte Ltd.

Address: 1 Ubi View, Focus One, #01-14, Singapore 408555

Singapore

Tel: [phone]

Fax: [phone]

E-mail Tech-Support: [e-mail]

E-mail Sales: [e-mail]

Web site: http://www.audio-technica.com.sg

China

Hong Kong and Macau -

Service Center, Audio-Technica (Greater China) Limited

Address : Unit K, 9/F., Kaiser Estate, Phase 2,

51 Man Yue Street, Hunghorn, Kowloon, HK

Tel: [phone]

Fax: [phone]

Service Center, Audio-Technica (Greater China) Limited

Address: Room 908, 31 Zhong Shan 2 Road, Yue Xiu District,

Guangzhou, Guangdong, China

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Web site: http://www.audio-technica.com.hk

Europe (western and eastern), Africa, Middle East

Product & Technical Support Department, Audio-Technica Ltd.

Address : Audio-Technica Limited (UK)

Unit 5, Millennium Way, Leeds, LS11 5AL

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

South Korea

International Dept., KEUKDONG SOUND CO., LTD.

Address: No.303-24 Gwanghee-dong 2-ga, Joong-gu, Seoul, 100-412-Korea

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Web site : http://www.kdsound.co.kr

Australia, New Zealand

International Dept., Technical Audio Group Pty Limited

Address: 43-53 Bridge Road, Stanmore, NSW, 2048 Australia

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Web site : http://www.tag.com.au

Taiwan

Customer Service Department, Audio-Technica Taiwan Co., Ltd.

Address: No.6, Lane 322, Sec.2, Fuda Rd., Jhongli-city, Taoyuan-county, Taiwan 32050, R.O.C.

Toll-Free: 0800-774-788 (From anywhere in Taiwan)

Fax: [phone]

Customer Service Department, Audio-Technica Corp.

Address: 2206 Naruse, Machida, Tokyo 194-8666, Japan

Tel: [phone]

Fax: [phone]

Toll-Free:0120-887-416(From anywhere in Japan)

E-mail: [e-mail]

Web site : http://www.audio-technica.co.jp

This explanation is a guidance concerned with the environmental laws and regulations of the People's Republic of China. The printed information as well as the list of contained materials conform with the standard values established by the related laws and regulations of the People's Republic of China, and does not apply to other Restrictions of Hazardous Substances including Europe's RoHS directive.

Deutsch

Disposal of Old Electrical & Electronic Equipment (Applicable in European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product;

Deutsch

U.S. One-Year Limited Warranty

Audio-Technica brand products purchased in the U.S.A. are warranted for one year from date of purchase by Audio-Technica U.S., Inc. (A.T.U.S.) to be free of defects in materials and workmanship. In event of such defect, product will be repaired promptly without charge or, at our option, replaced with a new product of equal or superior value if delivered to A.T.U.S. or an Authorized Service Center, prepaid, together with the sales slip or other proof of purchase date. Prior approval from A.T.U.S. is required for return. This warranty excludes defects due to normal wear, abuse, shipping damage, or failure to use product in accordance with instructions. This warranty is void in the event of unauthorized repair or modification, or removal or defacing of the product labeling.

For return approval and shipping information, contact the Service Department, Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224.

Except to the extent precluded by applicable state law, A.T.U.S. will have no liability for any consequential, incidental, or special damages; any warranty of merchantability or fitness for particular purpose expires when this warranty expires.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

Outside the U.S.A., please contact your local dealer for warranty details.

Register your product online at www.audio-technica.com.

audio-technica.

Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224 USA [phone] Audio-Technica Limited, Unit 5, Millennium Way, Leeds LS11 5AL England [phone] Audio-Technica (Greater China) Limited, Unit K, 9/F., Kaiser Est. (Ph.2) 51 Man Yue St. Kowloon, HK. [phone] Audio-Technica (S.E.A.) Pte. Ltd., 1 Ubi view, Focus One, #01-14, Singapore 408555 Singapore [phone] Audio-Technica Taiwan Co., Ltd., Taipei Branch, 2F. No.85, Sec. 1, Da-an, Taipei, 106, Taiwan [phone] Audio-Technica Corporation, 2206, Naruse Machida, Tokyo Japan

www.audio-technica.com

©2012 Audio-Technica U.S., Inc. P52204-02

132408011B
