FM16FD05B - USB Drive PHILIPS - Free user manual and instructions

Brand	Philips
Model	FM16FD05B
Product type	USB key (flash drive)
Interface	High-Speed USB 2.0 (backward compatible with USB 1.1)
Read transfer rate	Up to 14 MB/s (High Speed USB 2.0 port required)
Write transfer rate	Up to 5 MB/s (High Speed USB 2.0 port required)
Supported operating systems	Windows Vista, XP, 2000, ME, 98SE (with driver), Mac OS 9.0 or later, Linux 2.4.0 or later
Power supply	Via USB port (self-powered)
Connector	USB Type-A male with protective cap
Compatibility	PC and Mac
Warranty	Limited to the USB flash drive itself, under normal use
Operating environment	Avoid extreme temperatures, humidity, dust, vibrations, direct sunlight
Standby power consumption	Standby mode (automatic detection upon safe removal)
Compliance	FCC Class B, ICES-003, European Directives 89/336/EEC, 2006/95/EC, 93/68/EEC, EN55022 Class B and EN55024 standards
Main functions	Data storage and transfer, Plug-and-Play (except Windows 98SE), activity LED indicator
Accessories	Protective cap for USB connector
Manufacturer	Philips Royal Electronics

Frequently Asked Questions - FM16FD05B PHILIPS

How to install the USB drive on Windows 98SE?

Under Windows 98SE, driver installation is manual. Download the driver from www.philips.com/storage, then launch the 'New Hardware Found' wizard. Follow the instructions by pointing to the driver folder. Do not remove the drive before installation is complete.

How to safely disconnect the USB drive?

Under Windows Vista/XP, double-click the 'Safely Remove Hardware' icon in the taskbar, select the drive, click 'Stop' then confirm. On Mac OS, drag the icon to the Trash. Wait for the 'Safe to Remove Hardware' message before unplugging.

The USB drive is not recognized by the computer, what to do?

1. Try another USB port. 2. Restart the computer. 3. Under Windows 98SE, check that the driver is correctly installed. 4. Make sure the drive is not in conflict with other devices. 5. Test on another computer to rule out a hardware issue.

Can I use the USB drive with a Mac?

Yes, the USB drive is compatible with Mac OS 9.0 or later. Simply plug it into a USB port, the system detects it automatically. To remove it, drag the icon to the Trash.

What operating systems are supported?

The USB drive supports Microsoft Windows Vista, XP, 2000, ME, 98SE (with driver), Mac OS 9.0 or later and Linux 2.4.0 or later. For Windows 98SE, a specific driver is required.

What to do if the drive LED does not light up?

Check that the drive is correctly inserted into the USB port. Try a different port or a different computer. If the LED stays off, the drive may be defective. Contact Philips support.

Can I remove the USB drive during data transfer?

No, never remove the drive during copy or recording. This could damage data or make the drive unrecognized. Wait for the transfer to finish (the LED flashes quickly then stabilizes) and use the safe removal procedure.

How to format the USB drive?

You can format the drive via your operating system. Under Windows, right-click the drive in 'My Computer', choose 'Format'. Under Mac, use Disk Utility. Note that formatting erases all data. Preferably use the FAT32 file system for maximum compatibility.

Is the USB drive compatible with USB 3.0?

Yes, the USB drive is backward compatible. Plug it into a USB 3.0 port, it will work but at USB 2.0 speed (up to 14 MB/s read). For optimal performance, use a High-Speed USB 2.0 port.

Where to find driver or support updates?

Visit www.philips.com/storageupdates for software updates and support. For the Windows 98SE driver, download it from www.philips.com/storage.

USER MANUAL FM16FD05B PHILIPS

Register your product and get support at

www.philips.com/welcome

EN Vivid Edition	Click here	2
FR Vivid Edition	Cliquez ici	10
DE Vivid Edition	Hier kicken	18
ES Vivid Edition	Hagaclinicaquí	26
NL Vivid Edition	Klik hier	34
IT Vivid Edition	Fareclinic qui	42
PT Vivid Edition	Cliqueaquí	50
GR Vivid Edition	Kávτε κλικ εδω	58
SV Vivid Edition	Klicka hare	66
FI Vivid Edition	Napsautatātā	74
PL Vivid Edition	Kliknj tutaj	82
CZ Vivid Edition	Klepněte zde	90
SK Vivid Edition	Kliknite sem	98
HU Vivid Edition	Katluntsonide	106
RU Vivid Edition	Lilleakhinite 3aech	114
RO Vivid Edition	Faceti Clinici	122

USB Flash Drive

FMXXFD05B/00

PHILIPS

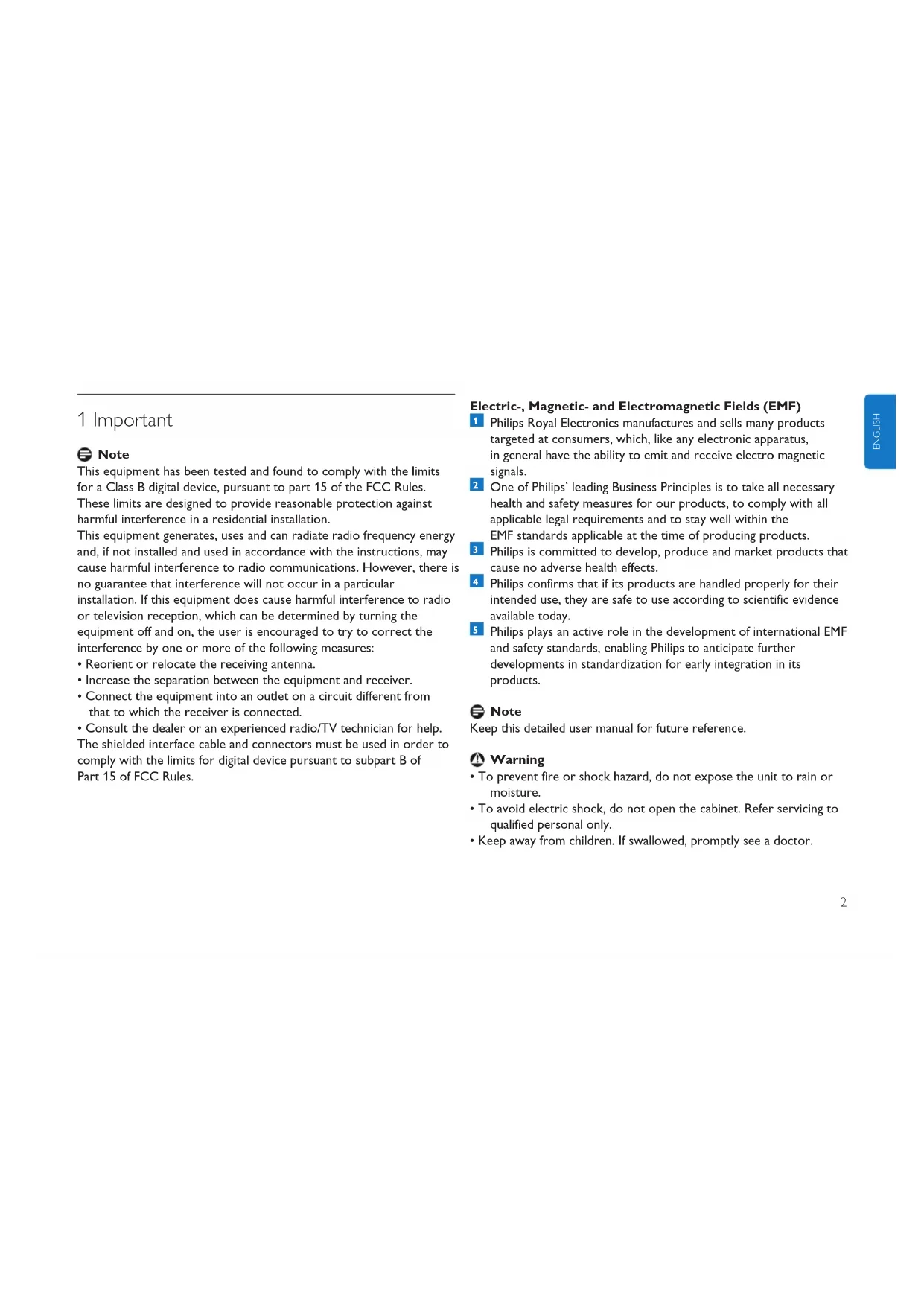

1 Important

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The shielded interface cable and connectors must be used in order to comply with the limits for digital device pursuant to subpart B of Part 15 of FCC Rules.

Electric-, Magnetic- and Electromagnetic Fields (EMF)

Philips Royal Electronics manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electro magnetic signals. One of Philips' leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing products. 3 Philips is committed to develop, produce and market products that cause no adverse health effects. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today. Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products.

Note

Keep this detailed user manual for future reference.

Warning

• To prevent fire or shock hazard, do not expose the unit to rain or moisture.
• To avoid electric shock, do not open the cabinet. Refer servicing to qualified personnel only.
• Keep away from children. If swallowed, promptly see a doctor.

Note

Data is safe in the following environments: In X-ray security systems at airports and in magnetic fields with strengths not exceeding 3,500 Oe.

For customers in the U.S.A.

Changes or modifications made to this equipment not expressly approved by the manufacturer may void the FCC authorization to operate this equipment.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Caution

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.

For customers in Europe

This product conforms to the following European Directives: 89/336/EEC, 2006/95/EEC (safety directive) and 93/68/ECC (EC Marking Directive). This product complies with EN55022 Class B and EN55024 for use in the following areas; residential, commercial, and light-industrial.

Notes on Use

• The USB flash drive may not function correctly if it is connected to the computer when the computer is started up, restarted, or restored from sleep mode. Always disconnect the USB flash drive from the computer before performing any of these operations.
• Do not place the drive in locations that are:

extremely hot or cold; - vibrating; exposed to corrosive gases; -dusty or dirty; - very humid;

exposed to direct sunlight.

• Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries.
• Mac and Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
• Other system names and product names that appear in this manual are registered trademarks or trademarks of their respective owners. Note that the ^TM and ^® symbols are not used in this manual.
• Power consumption in standby mode: < 100 mA .
• Our product warranty is limited only to the USB flash drive itself, when used normally in accordance with these operating instructions and with the accessories that were included with this unit in the specified or recommended system environment. Services provided by the Company, such as user support, are also subject to these restrictions. The Company cannot accept liability for damage or loss resulting from the use of this unit, or for any claim from a third party.
• The Company cannot accept any liability for: problems with your computer or other hardware arising from the use of this product; the suitability of this product for specific hardware, software, or peripherals; operating conflicts with other installed software; data loss; or other accidental or unavoidable damage.
• The Company cannot accept any liability for financial damages, lost profits, claims from third parties, etc., arising from the use of the software provided with this unit. The software specifications may be subject to change without notice.

Environmental information

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Be responsible Respect copyrights

The making of unauthorized copies of copy-protected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes.

2 Your USB flash drive

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome

3 Install

Microsoft Windows Vista, XP, 2000, ME, MAC OS 9.0 or higher:

• The device driver is installed automatically when the drive is connected to a USB port of the computer. However, with some USB 2.0 cards or boards, you may need to initiate installation manually. In this case, follow the on-screen instructions to search for a suitable driver. Refer to the operating system's Help file if you need any help.

Note

Do not remove USB flash drive from the computer USB port as long as the download process is in progress.

Windows 98SE:

1 Download the device driver at http://www.philips.com/storage 2 Remove the protective cap from the USB connector and turn it backwards (fig.1). 3 Insert the flash drive USB connector into one of the computer's USB ports (fig. 2).

The New Hardware wizard starts and the drive's LED lights up. The light intensity of the LED will gradually increase and then diminish again. This will continue for as long as the drive is connected to the computer.

4 Click the Next button.

5 Click Search for the best driver for your device. Then click the Next button.

Click Specify a location. Then click the Browse button.

6 When the dialog box appears, specify the folder where the installation program is stored.

7 Click the OK button to close the dialog box. Then click the Next button.

8 Click the Next button.

9 Click the Finish button.

Installation of the driver starts.

Once the installation process is complete, a drive icon for the USB flash drive appears in the My Computer window.

10 After confirming that the drive is in standby mode, you can remove the drive from the computer's USB port.

4 Connect

Connecting the USB flash drive to your computer

Note

You can use a USB extension cable or an optional USB hub to connect the USB flash drive to your computer.

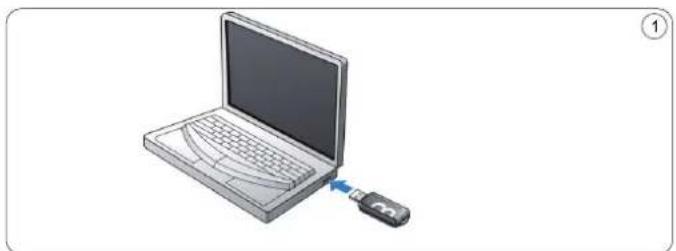

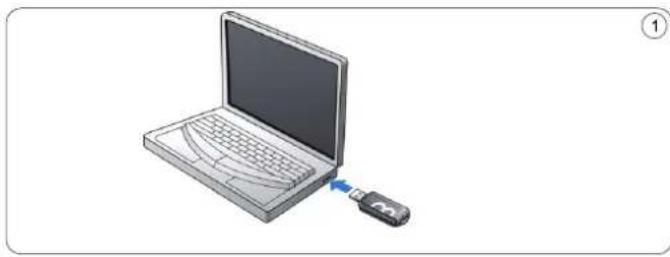

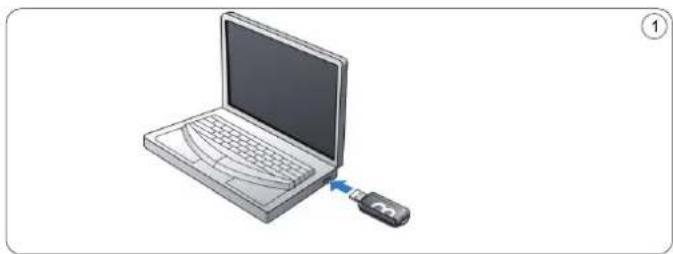

1 Remove the protective cap from the USB connector and turn it backwards (fig. 1).

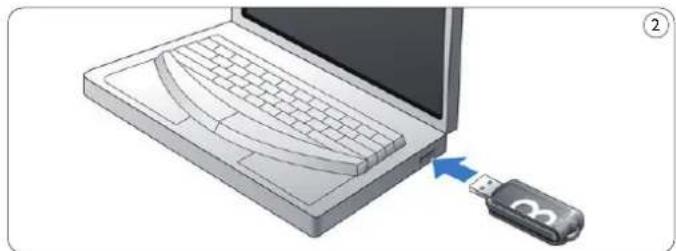

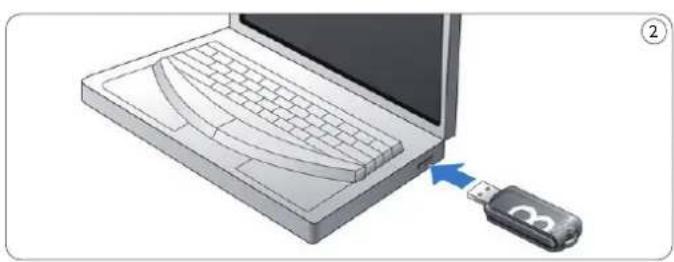

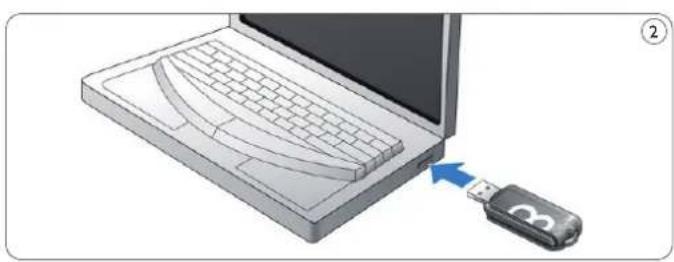

2 Insert the USB flash drive's USB connector into one of the computer's USB ports (fig. 2).

The USB flash drive's LED lights up. The light intensity of the LED will gradually increase and then diminish again. This will continue for as long as the drive is connected to the computer.

5 Enjoy

Operating the USB flash drive

• Once the USB flash drive is connected to the USB port of the computer:
• a software package will automatically start up enabling you to activate various applications. See the software help file for further instructions.

Visit our website www.philips.com/storage for software related questions and software updates.

• The drive icon for the USB flash drive will appear. You can now copy and save data on the drive by dragging files and folders onto the drive icon, just like when you copy data to a hard disk, CD-ROM, DVD, or floppy disk.

When copying data, the LED's light intensity will quickly increase and diminish.

Notes

• Do not remove the USB flash drive from the computer USB port while copying and saving data; otherwise, the drive will no longer be recognized by your system.
• When operating under Windows, the drive name varies depending on your Windows version.

Disconnecting the USB flash drive from your computer

Windows 98SE

• After confirming that the USB flash drive is in standby mode, you can remove the flash drive from the computer's USB port.

Windows® ME and Windows® 2000

1. Double-click the Unplug or eject hardware icon in the task bar in the lower right part of the screen. 2. In the window that appears, select the name of the device that is to be removed, then click the STOP button. 3. When the Stop a hardware device screen appears, make sure the correct information is displayed, then click the OK button. 4. When a message appears indicating that the USB flash drive can be safely removed, remove the USB flash drive from the computer's USB port.

Windows Vista, XP

1. Double-click the Safely Remove Hardware icon in the task bar in the lower right part of the screen. 2. In the window that appears, select the name of the device that is to be removed, then click the STOP button. 3. When the Stop a hardware device screen appears, make sure the correct information is displayed, then click the OK button. 4. When the message Safe to Remove Hardware appears, remove the USB flash drive from the computer's USB port.

Mac OS 9.0 and higher

Drag the drive icon to the Trash. After confirming that the USB flash drive is in standby mode, remove the USB flash drive from the computer's USB port.

6 Technical specifications

Interface

High-Speed USB 2.0 (backwards compatible with USB 1.1)

Transfer rate

• Read: max. 14MB per second / Write: max. 5MB per second (High-speed USB 2.0 port required to achieve maximum speed)

Compatible OSs

• Microsoft Windows Vista, XP, 2000, ME and 98SE (with driver) Mac OS 9.0 or later Linux 2.4.0 or later

7 Need help?

Online help: www.philips.com/support

For interactive help and frequently asked questions.

For software updates and support: www.philips.com/storageupdates

1 Important

Be responsible. Respect copyrights.

For customers in Canada

Be responsible. Respect copyrights.

Be responsible. Respect copyrights.

For customers in Canada

Be responsible. Respect copyrights.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003. This equipment complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.

For customers in Europe

Be responsible. Respect copyrights.

Be responsible. Respect copyrights.

The copying of material that is protected by copyright, such as computer programs, files, broadcasts, and sound recordings, may be an infringement of copyright and may constitute a criminal offense.

This equipment should not be used for such purposes.

2 The USB flash drive

Congratulations on your purchase and welcome to Philips!

For more information, visit Philips at www.philips.com/welcome

3 Installation

Microsoft Windows Vista, XP, 2000 and MAC OS 9.0 or later version:

The driver installation program starts automatically as soon as the device connects to a USB port of the computer. However, some USB 2.0 cards or hubs may require manual driver installation. In this case, follow the instructions of the driver installation program. Refer to the operating system help file for assistance.

Note

Do not remove the USB flash drive from the USB port of the computer during the installation process.

Windows 98SE:

1 Run the driver installation program from http://www.philips.com/storage 2 Remove the protective cap from the USB connector and insert it (Fig. 1). 3 Insert the USB flash drive connector into a USB port of the computer (Fig. 2).

The driver installation program starts and the LED of the device flashes. The LED will increase in brightness gradually and then remain steady. This indicates that the device is connected to the computer.

4 Click the Next button.

5 Select Search for the best driver for your device and then click Next. Select Specify a location and then click Next.

6 When the dialog box appears, select the folder where the program will be installed.

7 Click OK to close the dialog box and then click Next.

8 Click Next.

9 Click Finish.

The device is ready for use.

The installation procedure is complete. The computer will display an icon for the USB flash drive.

10 After the drive is detected and enters standby mode, you must remove it from the computer's USB port.

4Connection

Be responsible Respect copyrights

Be responsible Respect copyrights

Visit our website www.philips.com/storage for software related questions and software updates.

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

3This device complies with the following two conditions:

1 This device must not cause harmful interference. 2 This device must accept any interference received, including interference that may cause undesired operation.

Caution

You are warned that any changes or modifications not expressly approved in this manual could void your authority to operate this device.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Part 15 of the FCC Rules and Canadian RSS-210.

For customers in Europe

This product complies with the requirements of the following European Directives: 89/336/EEC, 2006/95/EC (Low Voltage Directive) and 93/68/EEC (EC Marking Directive). This product complies with the requirements of EN55022 for Class B devices and EN55024 when used in residential, commercial, and light industrial environments.

Intended Use

This USB flash drive may malfunction if it is connected to a computer during startup, restart, or wake from sleep mode. Always disconnect the USB flash drive from the computer before performing any of these operations. -Do not place the flash drive in the following locations:

-In areas of high or low temperature; - With vibration; - With corrosive gases; - Overloaded; - With high humidity; - In direct sunlight.

• Microsoft Windows - registered trademarks of Microsoft in the United States and other countries. Mac and Macintosh - trademarks of Apple Computer, Inc., registered in the USA and other countries. Other system and product names mentioned in this manual are registered trademarks or trademarks of their respective owners. Note that this manual does not use the symbols TM and (R). Power consumption: <100mA.

The product warranty applies only to the USB flash drive itself when used normally in accordance with these operating instructions, with accessories included in the package of this device, in a specified or recommended system environment. Provision of such services as user support is also limited by these terms. The company is not liable for damages or losses caused by the use of this device, nor for any claims by third parties. The company is not liable for problems with the computer or other hardware caused by the use of this product; compatibility of this product with specific hardware and software or peripheral devices; conflicts with other installed software; loss of data or other incidental or consequential damages. The company is not liable for financial damages, lost profits, claims of third parties, etc., caused by the use of the software supplied with this device. Software specifications may change without notice.

Environmental Protection Information

Disposal of Old Products

Your product is designed and manufactured from high-quality materials and components that can be recycled and reused.

This symbol on the product or its packaging indicates that the product complies with the requirements of the European Directive 2002/96/EC. Please obtain information about the local separate collection system for electrical and electronic products.

Please, follow the local rules and do not dispose of your old products with normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Be responsible. Respect copyrights.

Making unauthorized copies of copyrighted material, including computer programs, films, broadcasts, and sound recordings, may be a violation of copyright law and constitute a criminal offense. This equipment should not be used for such purposes.

We congratulate you on your purchase. Welcome to the Philips family!

To take full advantage of the support that Philips offers, register your product at www.philips.com/welcome.

3 Installation

Microsoft Windows Vista, XP, 2000, ME, MAC OS 9.0 or later:

The device driver is installed automatically when you connect the drive to a USB port on your computer. However, when using some cards with USB 2.0, you may need to manually install the driver. In that case, follow the on-screen instructions to find the appropriate driver. If you need help, see the operating system help.

Note:

Do not disconnect the USB drive from the computer's USB port during the boot process.

Windows 98SE:

Download the device driver from http://www.philips.com/storage. 2 Remove the protective cap from the USB connector and turn it over (Fig. 1). 3 Insert the USB connector into an available USB port on your computer (Fig. 2).

The hardware installation wizard starts and the LED indicator lights up. The brightness of the LED gradually increases and then decreases again. This will continue as long as the drive is connected to the computer.

5 Savurati experienta

All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.

July 2008

www.philips.com N'MW/RR/RD/RM/2808

CC
