Brand	Philips
Model	FM02FD05B
Product Type	USB Flash Drive
Interface	High-Speed USB 2.0 (compatible with USB 1.1)
Storage Capacity	Varies depending on model (not specified in manual)
Transfer Speed (read)	Up to 14 MB/s
Transfer Speed (write)	Up to 5 MB/s
Compatible Operating Systems	Windows Vista, XP, 2000, ME, 98SE (with driver), Mac OS 9.0 or later, Linux 2.4.0 or later
Power Supply	Via USB port (bus-powered)
Main Functions	Data storage and transfer, plug-and-play
Maintenance and Cleaning	Avoid exposure to heat, moisture, dust, strong magnetic fields. Clean with a dry cloth.
Safety	Do not open, avoid shocks, keep out of reach of children. Use safe removal to avoid data loss.
Spare Parts and Repairability	Not user-repairable. No spare parts available. In case of failure, replace the device.
General Information	Compliant with FCC Class B, ICES-003, European directives. CE marking.
Warranty	Limited warranty covering the product itself under normal use conditions.
Weight and Dimensions	Not specified in the manual

Frequently Asked Questions - FM02FD05B PHILIPS

How to install the Philips FM02FD05B USB flash drive under Windows 98SE?

First download the driver from the website www.philips.com/storage. Remove the cap, insert the key into a USB port. The New Hardware Wizard opens. Follow the steps: click Next, select 'Search for the best driver', specify the folder where you downloaded the driver, then complete the installation.

How to safely remove the USB flash drive in Windows?

Double-click the 'Safely Remove Hardware' icon in the taskbar, select your USB flash drive, click Stop, then wait for the message 'Safe to Remove Hardware' before unplugging.

Which operating systems are compatible with this USB flash drive?

The key is compatible with Windows Vista, XP, 2000, ME, 98SE (with driver), Mac OS 9.0 or later, and Linux 2.4.0 or later.

How to use the USB flash drive on a Mac?

Insert the key into a USB port. The icon appears on the desktop. To remove, drag the icon to the Trash. Wait for the light to turn off before unplugging.

What to do if the USB flash drive is not recognized by the computer?

Try another USB port. Under Windows 98SE, check that the driver is installed. If the problem persists, restart the computer without the key, then reconnect it. Visit www.philips.com/support.

Can I use a USB extension cable with this stick?

Yes, you can use a USB extension cable or a USB hub (optional) to connect the key to your computer.

What is the maximum transfer speed?

The maximum read speed is 14 MB/s and the maximum write speed is 5 MB/s (requires a high-speed USB 2.0 port).

How to avoid data loss?

Never remove the key during data transfer. Always use the safe removal procedure. Avoid strong magnetic fields (above 3500 Oe) and humid or dusty environments.

Is the USB flash drive compatible with airport security systems?

Yes, the manual indicates that data is safe in X-ray security system environments at airports, as well as in magnetic fields below 3500 Oe.

What to do if there is a problem with the provided software?

For any questions about the software or to get an update, visit the website www.philips.com/storage. You can also consult online help at www.philips.com/support.

USER MANUAL FM02FD05B PHILIPS

Register your product and get support at

www.philips.com/welcome

EN Vivid Edition	Click here	2
FR Vivid Edition	Cliquez ici	10
DE Vivid Edition	Hier kicken	18
ES Vivid Edition	Hagaclinicaquí	26
NL Vivid Edition	Klik hier	34
IT Vivid Edition	Fareclinic qui	42
PT Vivid Edition	Cliqueaquí	50
GR Vivid Edition	Kávτε κλικ εδω	58
SV Vivid Edition	Klicka hare	66
FI Vivid Edition	Napsautatātā	74
PL Vivid Edition	Kliknj tutaj	82
CZ Vivid Edition	Klepněte zde	90
SK Vivid Edition	Kliknite sem	98
HU Vivid Edition	Katluntsonide	106
RU Vivid Edition	Lilleakhinite 3aech	114
RO Vivid Edition	Faceti Clinici	122

USB Flash Drive

FMXXFD05B/00

PHILIPS

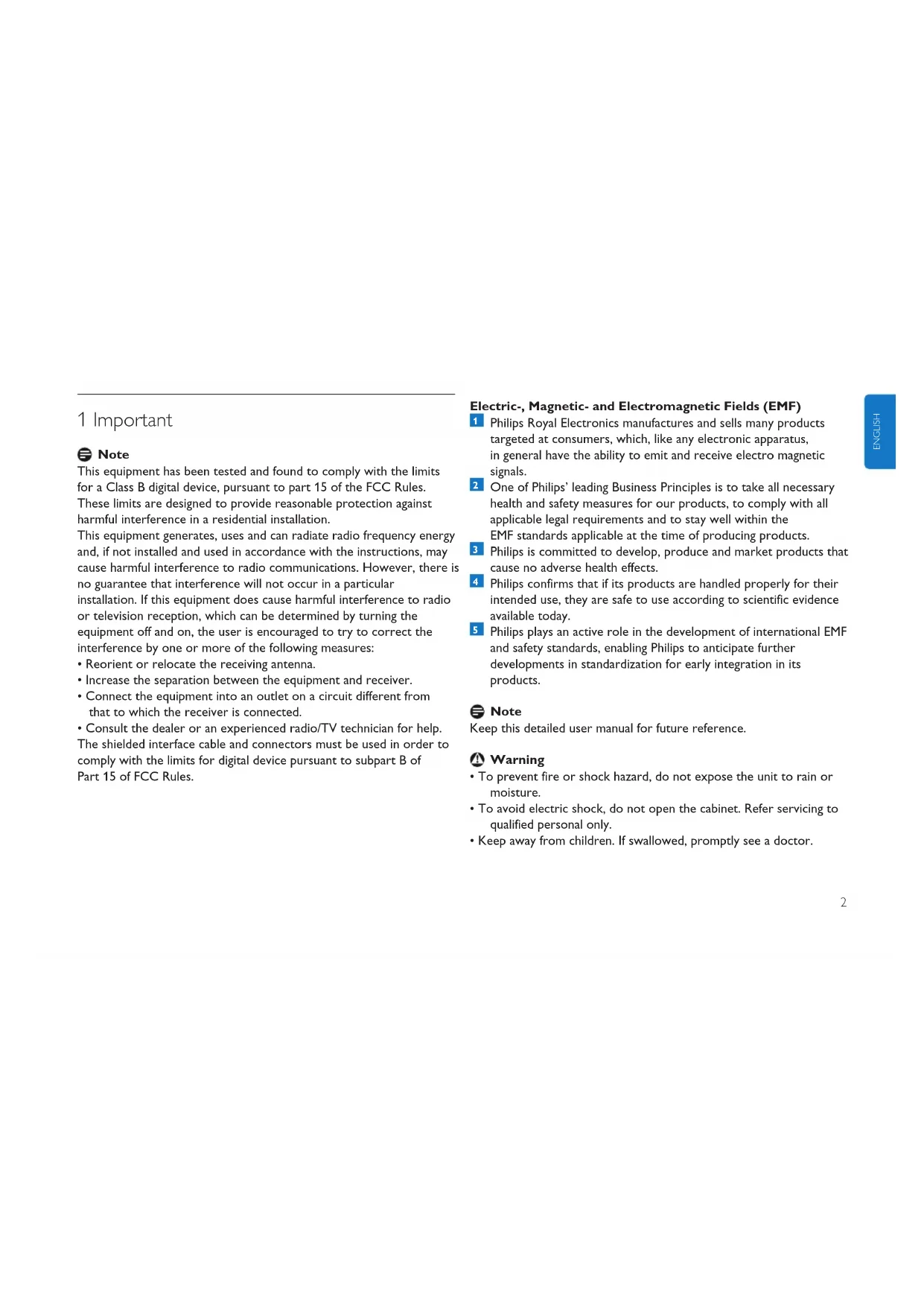

1 Important

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The shielded interface cable and connectors must be used in order to comply with the limits for digital device pursuant to subpart B of Part 15 of FCC Rules.

Electric-, Magnetic- and Electromagnetic Fields (EMF)

Philips Royal Electronics manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electro magnetic signals. One of Philips' leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing products. 3 Philips is committed to develop, produce and market products that cause no adverse health effects. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today. Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products.

Note

Keep this detailed user manual for future reference.

Warning

• To prevent fire or shock hazard, do not expose the unit to rain or moisture.
• To avoid electric shock, do not open the cabinet. Refer servicing to qualified personnel only.
• Keep away from children. If swallowed, promptly see a doctor.

Note

Data is safe in the following environments: In X-ray security systems at airports and in magnetic fields with strengths not exceeding 3,500 Oe.

For customers in the U.S.A.

Changes or modifications made to this equipment not expressly approved by the company may void the FCC authorization to operate this equipment.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Caution

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.

For customers in Europe

This product conforms to the following European Directives: 89/336/EEC, 2006/95/EEC (safety directive) and 93/68/ECC (EC Marking Directive). This product complies with EN55022 Class B and EN55024 for use in the following areas; residential, commercial, and light-industrial.

Notes on Use

• The USB flash drive may not function correctly if it is connected to the computer when the computer is started up, restarted, or restored from sleep mode. Always disconnect the USB flash drive from the computer before performing any of these operations.
• Do not place the drive in locations that are:

extremely hot or cold; - vibrating; exposed to corrosive gases; -dusty or dirty; - very humid;

exposed to direct sunlight.

• Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries. Mac and Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
• Other system names and product names that appear in this manual are registered trademarks or trademarks of their respective owners. Note that the ™ and ® symbols are not used in this manual.
• Power consumption in standby mode: < 100 mA.
• Our product warranty is limited only to the USB flash drive itself, when used normally in accordance with these operating instructions and with the accessories that were included with this unit in the specified or recommended system environment. Services provided by the Company, such as user support, are also subject to these restrictions. The Company cannot accept liability for damage or loss resulting from the use of this unit, or for any claim from a third party.
• The Company cannot accept any liability for: problems with your computer or other hardware arising from the use of this product; the suitability of this product for specific hardware, software, or peripherals; operating conflicts with other installed software; data loss; or other accidental or unavoidable damage.
• The Company cannot accept any liability for financial damages, lost profits, claims from third parties, etc., arising from the use of the software provided with this unit.
• The software specifications may be subject to change without notice.

Environmental information

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Be responsible Respect copyrights

The making of unauthorized copies of copy-protected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes.

2 Your USB flash drive

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome

3 Install

Microsoft Windows Vista, XP, 2000, ME, MAC OS 9.0 or higher:

• The device driver is installed automatically when the drive is connected to a USB port of the computer. However, with some USB 2.0 cards or boards, you may need to initiate installation manually. In this case, follow the on-screen instructions to search for a suitable driver. Refer to the operating system's Help file if you need any help.

Note

Do not remove USB flash drive from the computer USB port as long as the download process is in progress.

Windows 98SE:

1 Download the device driver at http://www.philips.com/storage 2 Remove the protective cap from the USB connector and turn it backwards (fig.1). 3 Insert the flash drive USB connector into one of the computer's USB ports (fig. 2).

The New Hardware wizard starts and the drive's LED lights up. The light intensity of the LED will gradually increase and then diminish again. This will continue for as long as the drive is connected to the computer.

4 Click the Next button.

5 Click Search for the best driver for your device. Then click the Next button.

Click Specify a location. Then click the Browse button.

6 When the dialog box appears, specify the folder where the installation program is stored.

7 Click the OK button to close the dialog box. Then click the Next button.

8 Click the Next button.

9 Click the Finish button.

Installation of the driver starts.

Once the installation process is complete, a drive icon for the USB flash drive appears in the My Computer window.

10 After confirming that the drive is in standby mode you can remove the drive from the computer's USB port.

4 Connect

Connecting the USB flash drive to your computer

Note

You can use a USB extension cable or an optional USB hub to connect the USB flash drive to your computer.

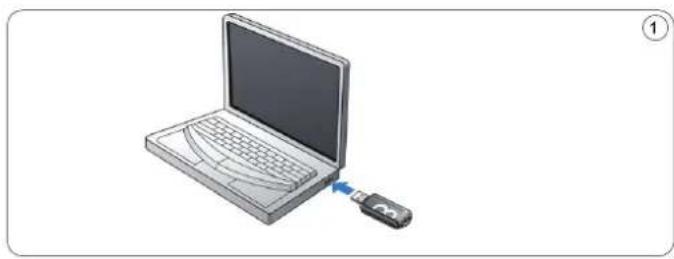

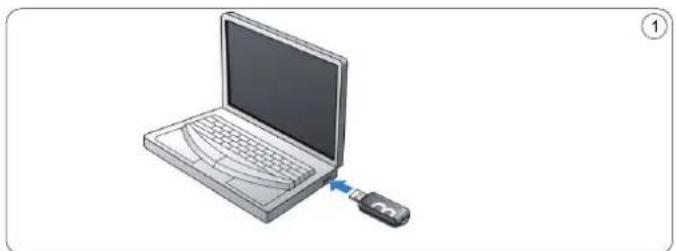

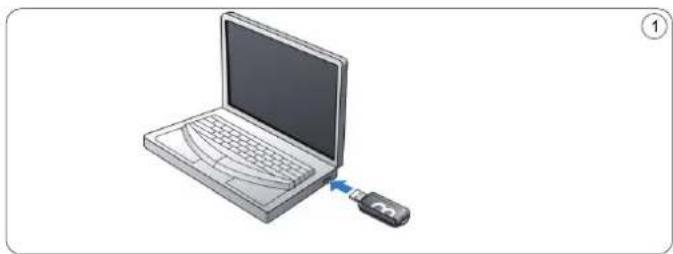

1 Remove the protective cap from the USB connector and turn it backwards (fig.1).

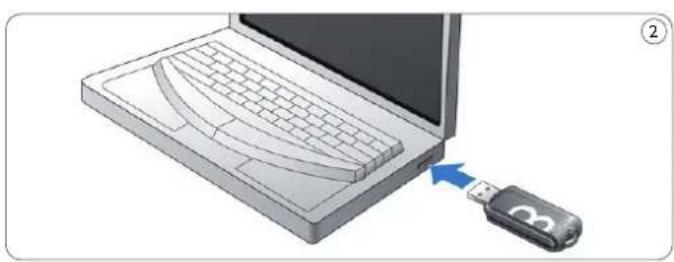

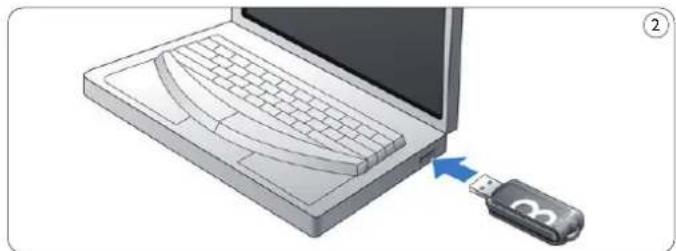

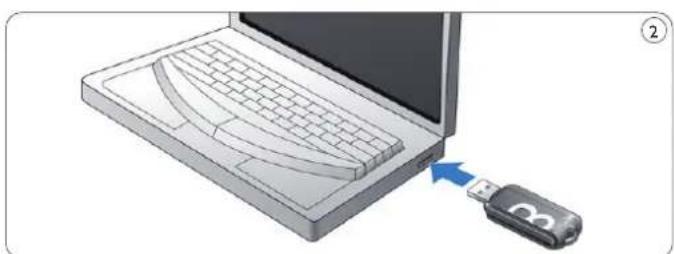

2 Insert the USB flash drive's USB connector into one of the computer's USB ports (fig. 2).

The USB flash drive's LED lights up. The light intensity of the LED will gradually increase and then diminish again. This will continue for as long as the drive is connected to the computer.

5 Enjoy

Operating the USB flash drive

• Once the USB flash drive is connected to the USB port of the computer:
• a software package will automatically start up enabling you to activate various applications. See the software help file for further instructions.

Visit our website www.philips.com/storage for software-related questions and software updates.

• The drive icon for the USB flash drive will appear. You can now copy and save data on the drive by dragging files and folders onto the drive icon, just like when you copy data to a hard disk, CD-ROM, DVD, or floppy disk.

When copying data, the LED's light intensity will quickly increase and diminish.

Notes

• Do not remove the USB flash drive from the computer's USB port while copying and saving data; otherwise, the drive will no longer be recognized by your system.
• When operating under Windows, the drive name varies depending on your Windows version.

Disconnecting the USB flash drive from your computer

Windows 98SE

• After confirming that the USB flash drive is in standby mode, you can remove the flash drive from the computer's USB port.

Windows ME and Windows 2000

1. Double-click the Unplug or eject hardware icon in the task bar in the lower right part of the screen. 2. In the window that appears, select the name of the device that is to be removed, then click the STOP button. 3. When the Stop a hardware device screen appears, make sure the correct information is displayed, then click the OK button. 4. When a message appears indicating that the USB flash drive can be safely removed, remove the USB flash drive from the computer's USB port.

Windows Vista, XP

1 Double-click the Safely Remove Hardware icon in the task bar in the lower right part of the screen. 2 In the window that appears, select the name of the device that is to be removed, then click the STOP button. 3 When the Stop a hardware device screen appears, make sure the correct information is displayed, then click the OK button. 4 When the message Safe to Remove Hardware appears, remove the USB flash drive from the computer's USB port.

Mac OS 9.0 and higher

Drag the drive icon to the Trash. After confirming that the USB flash drive is in standby mode, remove the USB flash drive from the computer's USB port.

6 Technical specifications

Interface

High-Speed USB 2.0 (backwards compatible with USB 1.1)

Transfer rate

• Read: max. 14MB per second / Write: max. 5MB per second (High-speed USB 2.0 port required to achieve maximum speed)

Compatible OSs

• Microsoft Windows Vista, XP, 2000, ME and 98SE (with driver) Mac OS 9.0 or later Linux 2.4.0 or later

7 Need help?

Online help: www.philips.com/support

For interactive help and frequently asked questions.

For software updates and support: www.philips.com/storageupdates

1 Important

Note

Be responsible. Respect copyrights.

For customers in Canada

Be responsible. Respect copyrights.

Be responsible. Respect copyrights.

For customers in Canada

Be responsible. Respect copyrights.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003. This equipment complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.

For customers in Europe

Be responsible. Respect copyrights.

Be responsible. Respect copyrights.

The copying of copyrighted material, including computer programs, files, broadcasts, and sound recordings, may be an infringement of copyrights and constitute a criminal offense.

This device may not be used for such purposes.

2 The USB flash drive

Luyxpntnpia yia tvy apaas kai kaaws npate otn Philips!

Ia va enwpeanthe nnapw an tvn unoohpnn nou npoepein Philips, dnawto npoiov aas otn dieuovon www.philips.com/welcom

3 Installation

Microsoft Windows Vista, XP, 2000 and MACOS 9.0 or later version:

The driver installation program is installed automatically when you connect the device to the USB port of the computer. However, some cards or USB 2.0 hubs may require manual start of the installation. In this case, follow the instructions of the driver search for suitable driver program. Refer to the help file of the operating system for assistance.

Note

Do not remove the USB flash drive from the USB port of the computer during the installation process.

Windows 98SE:

1 Download the driver program from http://www.philips.com/storage 2 Remove the protective cap from the USB connector and insert it into the USB port of the computer (Fig. 1). 3 Insert the USB flash drive into the USB port of the computer (Fig. 2).

Download the driver program and the LED of the device will blink. The LED will increase gradually and then remain steady. This will happen when the device is connected to the computer.

4 Click the Next button.

5 Select Search for the best driver for your device and then click Next. Click Select location and then click Browse.

6 When the dialog box appears, select the folder where the program will be installed.

7 Click OK to close the dialog box and then click Next.

8 Click Next.

9 Connect the device to the computer.

The device will be detected by the operating system.

The detection procedure is simple: on the computer screen, a removable disk icon appears for the USB flash drive.

10 Once the device is detected and in standby mode, you must remove it from the computer's USB port.

4 Connection

Be responsible. Respect copyrights.

Be responsible. Respect copyrights.

Visit our website www.philips.com/storage for software related questions and software updates.

Be responsible. Respect copyrights.

Be responsible. Respect copyrights.

Be responsible. Respect copyrights.

4 Press the Next button.

5 Press Search to find the most suitable driver for the connected device.

Then press the Next button.

Press and hold the placement.

3. A window will appear, specify the drive where the installation program is saved.

6. A dialog box will appear, specify the drive where the installation program is saved.

7. Click OK to close the dialog box. Then click Next.

8. Click Next.

Click Finish.

The driver installation begins.

After the installation is complete, the computer will detect the USB flash drive.

10. Make sure the flash drive is in the correct mode, you can disconnect it from the computer's USB port.

Disconnection

Disconnecting the USB flash drive from your computer

Note

You can use a USB extension cable or a USB hub to connect the flash drive to your computer.

1. Remove the protective cap from the USB connector and put it back on (Fig. 1).

2. Insert the USB connector of the flash drive into one of the computer's USB ports (Fig. 2).

The flash drive indicator lights up. The brightness of the indicator will gradually increase and then decrease. This will continue as long as the flash drive is connected to the computer.

USB flash drive operation

After connecting the flash drive to the USB port of the computer: the software is launched automatically, allowing you to activate the various applications. Additional instructions are given in the software help. Visit www.philips.com/storage to get answers to questions regarding the software or to download updated versions of the software. The flash drive icon appears. You can now copy and save data to the flash drive by dragging files and folders onto the flash drive icon, just as you copy files to a floppy disk, CD-ROM, DVD, or hard disk. During data copying, the activity indicator will rapidly increase and decrease.

Disconnection

Do not disconnect the USB flash drive from the USB port of the computer during copying and saving of data; otherwise, the system will no longer recognize the flash drive. When working under Windows, the flash drive may be different depending on your Windows version.

Disconnecting the USB flash drive from your computer

Windows 98SE

After making sure that the USB flash drive is in idle mode, you can disconnect it from the USB port of the computer.

Windows ME Windows 2000

1 Double-click the Safely Remove Hardware icon on the taskbar at the bottom right of the screen. 2 Select the device to be removed in the pop-up window, then click the Stop button. 3 When the Stop Device window appears, verify the displayed information, then click OK. 4 When a message appears saying that the device can be safely removed, disconnect the USB flash drive from the USB port of the computer.

Windows Vista, XP

1 Double-click the Safely Remove Hardware icon on the taskbar at the bottom right of the screen. 2 Select the device to be removed in the pop-up window, then click the Stop button. 3 When the Stop Device window appears, verify the displayed information, then click OK. 4 When a message appears saying that the device can be safely removed, disconnect the USB flash drive from the USB port of the computer.

Mac OS 9.0 and above

1 Drag the flash drive icon to the Trash. 2 After making sure that the USB flash drive is in idle mode, you can disconnect it from the USB port of the computer.

Technical specifications

• High-speed USB 2.0 (backward compatible with USB 1.1)

Data transfer speed

• Read: max. 14 Mbit/s / Write: max. 5 Mbit/s (to ensure maximum speed, a high-speed USB 2.0 port is required)

Compatible operating systems

• Microsoft Windows Vista, XP, 2000, ME and 98SE (with driver) Mac OS 9.0 or later Linux 2.4.0 or later

7 Need help?

Electronic help: www.philips.com/support

Interactive help with frequently asked questions. Updated software and support: www.philips.com/storageupdates

1 Important

Note

5 Enjoy your experience

All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.

July 2008

www.philips.com N'MW/RR/RD/RM/2808

CC
