USER MANUAL Toaster PHILIPS

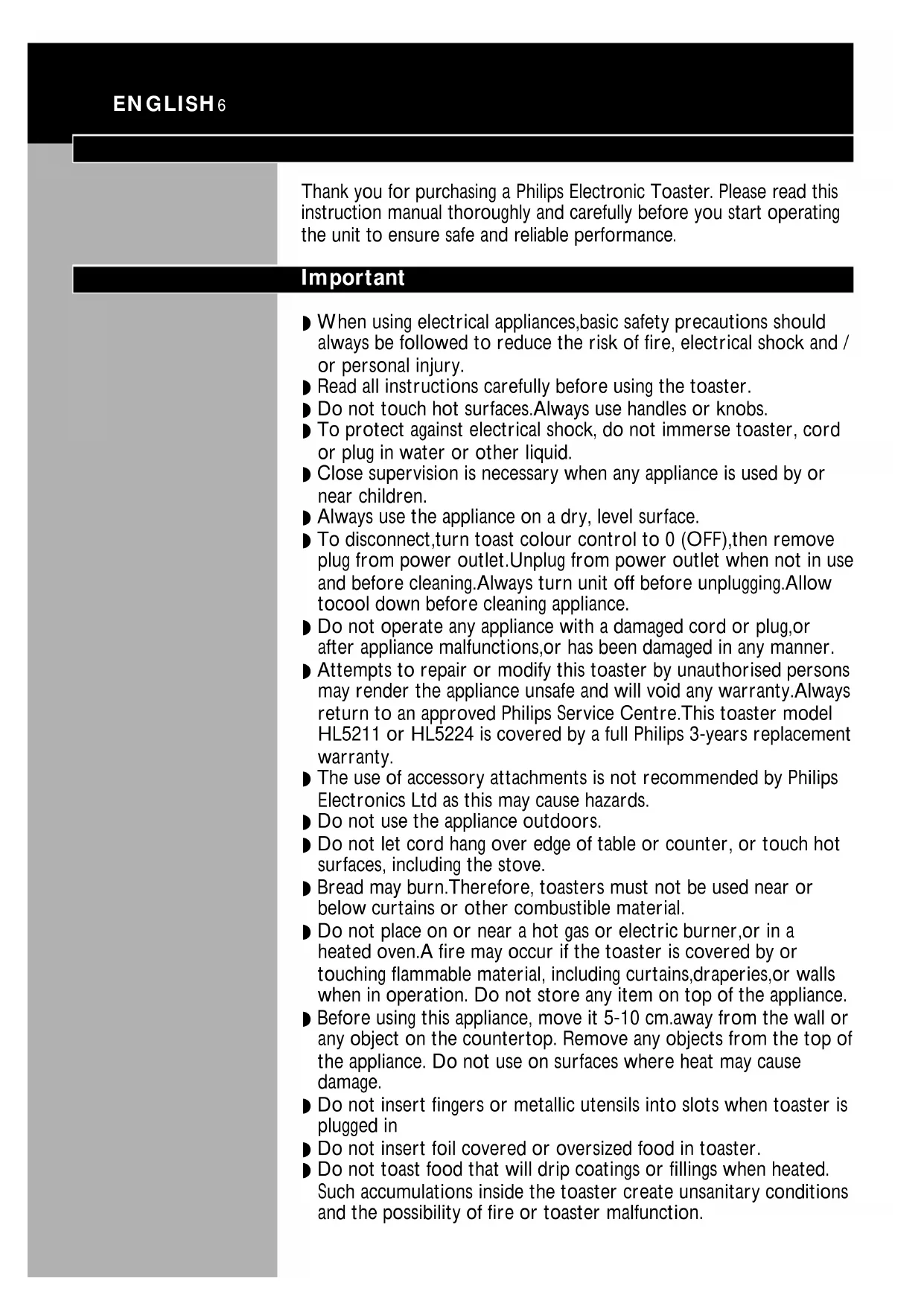

Thank you for purchasing a Philips Electronic Toaster. Please read this instruction manual thoroughly and carefully before you start operating the unit to ensure safe and reliable performance.

Important

• When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and / or personal injury.
  Read all instructions carefully before using the toaster.
  Do not touch hot surfaces. Always use handles or knobs.
• To protect against electrical shock, do not immerse toaster, cord or plug in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
  Always use the appliance on a dry, level surface.
• To disconnect, turn toast colour control to 0 (OFF), then remove plug from power outlet. Unplug from power outlet when not in use and before cleaning. Always turn unit off before unplugging. Allow to cool down before cleaning appliance.
• Do not operate any appliance with a damaged cord or plug,or after appliance malfunctions,or has been damaged in any manner.
  Attempts to repair or modify this toaster by unauthorised persons may render the appliance unsafe and will void any warranty. Always return to an approved Philips Service Centre. This toaster model HL5211 or HL5224 is covered by a full Philips 3-years replacement warranty.
  The use of accessory attachments is not recommended by Philips Electronics Ltd as this may cause hazards.
  Do not use the appliance outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
• Bread may burn. Therefore, toasters must not be used near or below curtains or other combustible material.
• Do not place on or near a hot gas or electric burner,or in a heated oven.A fire may occur if the toaster is covered by or touching flammable material, including curtains,draperies,or walls when in operation. Do not store any item on top of the appliance.
  Before using this appliance, move it 5-10 cm.away from the wall or any object on the countertop. Remove any objects from the top of the appliance. Do not use on surfaces where heat may cause damage.
• Do not insert fingers or metallic utensils into slots when toaster is plugged in
  Do not insert foil covered or oversized food in toaster.

• Do not toast food that will drip coatings or fillings when heated. Such accumulations inside the toaster create unsanitary conditions and the possibility of fire or toaster malfunction.

• Do not clean with metal scouring pads. Pieces can break off the pads and touch electrical parts creating a shock hazard.

• Clean out crumb tray frequently to avoid risk of fire or toaster malfunction. Unplug before cleaning.
  Never leave toaster unattended when in use.
  Do not use the appliance for other than its intended use. This appliance is intended for domestic use only.
  It is recommended to use this product on a circuit that is protected by a circuit breaker or safety switch.
• Please save these instructions and refer to them when using the toaster. If you lend out the toaster to anyone, ensure that you will also pass on the instructions for use.
  This appliance is not intended for use by young children or infirm people, without supervision of an adult.
• Young children should be supervised to ensure that they do not play with the appliance.

Other Safety Information.

A short power-supply cord is provided to reduce the hazards resulting from entanglement or tripping over a longer cord. An extension cord may be used with care; however, be sure that the marked electrical rating is equal to or greater than the rating of this appliance. The extension cord should be positioned in such way, that it does not drape over the counter or tabletop where it can be pulled by children or that it can be tripped over. The electrical rating of this appliance is listed on the bottom panel of the unit.
- Do not operate this high-wattage appliance on the same electrical circuit as another high-wattage appliance.

Toaster features

Philips HL5211 2 slice and HL5224 4 slice toaster.

These toasters are equipped with safety and convenience features to give you optimum performance, year after year.

Features include:

• Cool wall, high gloss exterior finish
• Electronic
• 0 (OFF) position on the dial, cancels toasting immediately
• (Defrost) position on the dial, toasts frozen bread
• Wide slots, for toasting extra thick bread and muffins
• Crumbtray, conveniently slides out for easy cleaning
• Extra lift lever, allows toast to be elevated to allow easy removal
• Cord winder, is located underneath the toaster

General Description.

A.Wide slots
B. Cool wall exterior
C. Pull out crumb tray
D. Cancel function
E. Defrost function
F. Thermostat browning control, 0 - 5 settings and defrost
G. Extra lift lever
H. Cord storage

Before first use

Before using your toaster for the first time, unpack and remove labels from the body of the toaster. Wipe the outside of your toaster with a damp cloth. Dry thoroughly.

Most heating appliances produce an unpleasant smell and / or smoke when used for the first time.

This is normal. Set the toast browning control to 5. Press down on the toast lever until it engages.Toast lever will not engage unless unit is plugged in.Allow the toast cycle to finish.The unpleasant smell should disappear after this initial preheating.

Making toast

1. Plug the toaster into a 110/120V-power outlet and turn the power on.
2. The toaster will only latch down when the cord is plugged in and the power turned on.
3. To toast, set the toasting control to the desired setting (1 is the lightest setting and 5 is the darkest setting) before engaging the toast lever. For frozen bread, set the toasting setting to (※) defrost setting before engaging the Toast lever.

Warning: Toasting performance will vary with the type of bread, especially bread that contains higher sugar contents, e.g. fruitbread. For these kinds of bread theasting setting must be reduced.

1. Place bread in slot(s) and lower the toast lever until it engages or locks in. NOTE:The toast lever will not engage if the toast control dial is in the (0) OFF / cancel position or if the toaster is unplugged from the power supply. After the selected toast colour has been achieved, the toast will pop up automatically, ready for removal from the slots.
2. To immediately stop the toasting process at any time, lift the toast lever up lightly. In addition, you can also use the control dial and turn to (0) OFF position.

If the toast gets stuck in the bread carrier and will not pop up, the auto-cancel circuit shuts off the heating elements automatically. Unplug the toaster and carefully remove the toast once the unit has cooled down. Take care not to damage the internal element of the toaster.

1. Remove the plug from the outlet.

CAUTION: Do not wrap the cord around the main body of the toaster during or after use. The cord wrap (storage) facility is located on the underside of the toaster.

Tips

• Stale bread toasts more quickly than fresh bread. Therefore, set the toast setting dial to a lower setting.
• When toasting 2 slices of bread, it is recommended that the slices are of equal size and freshness.
• If you wish to reheat toast that has not been buttered, set the toast setting dial to the first toast setting, no 1.
• When toasting a single slice of bread, the inner side of the bread will be toasted a little bit more than the outer side, this is normal for toasters that toast side by side, as some of the heat from the unused toasting slot will be transferred to the inner side of the used slot.
• When toasting 2 slices in the 4-slice toaster, use both slots and place the bread in the middle of the slots and reduce the toasting setting.
• Never place an object on top of the toaster when in use, this will cause damage to the toaster.

Cleaning

After use and before cleaning, set toast setting dial to (0) OFF. Remove the plug from the outlet and allow toaster to cool down.

Wipe the outside with a damp cloth and dry with another cloth or paper towel. Do not use scouring or abrasive cleaners on any part of the toaster.

To avoid damage to the toaster heating elements, do not use any metal utensils to clean the inside of the toaster.

Crumbs will accumulate in the crumbtray and could catch fire if the tray is not emptied frequently. When the toaster has cooled down completely, tap the sides of the toaster lightly to dislodge any crumbs caught in the toasting chamber and pull out the crumbtray. Empty the tray, wipe clean and replace the tray into the toaster.
